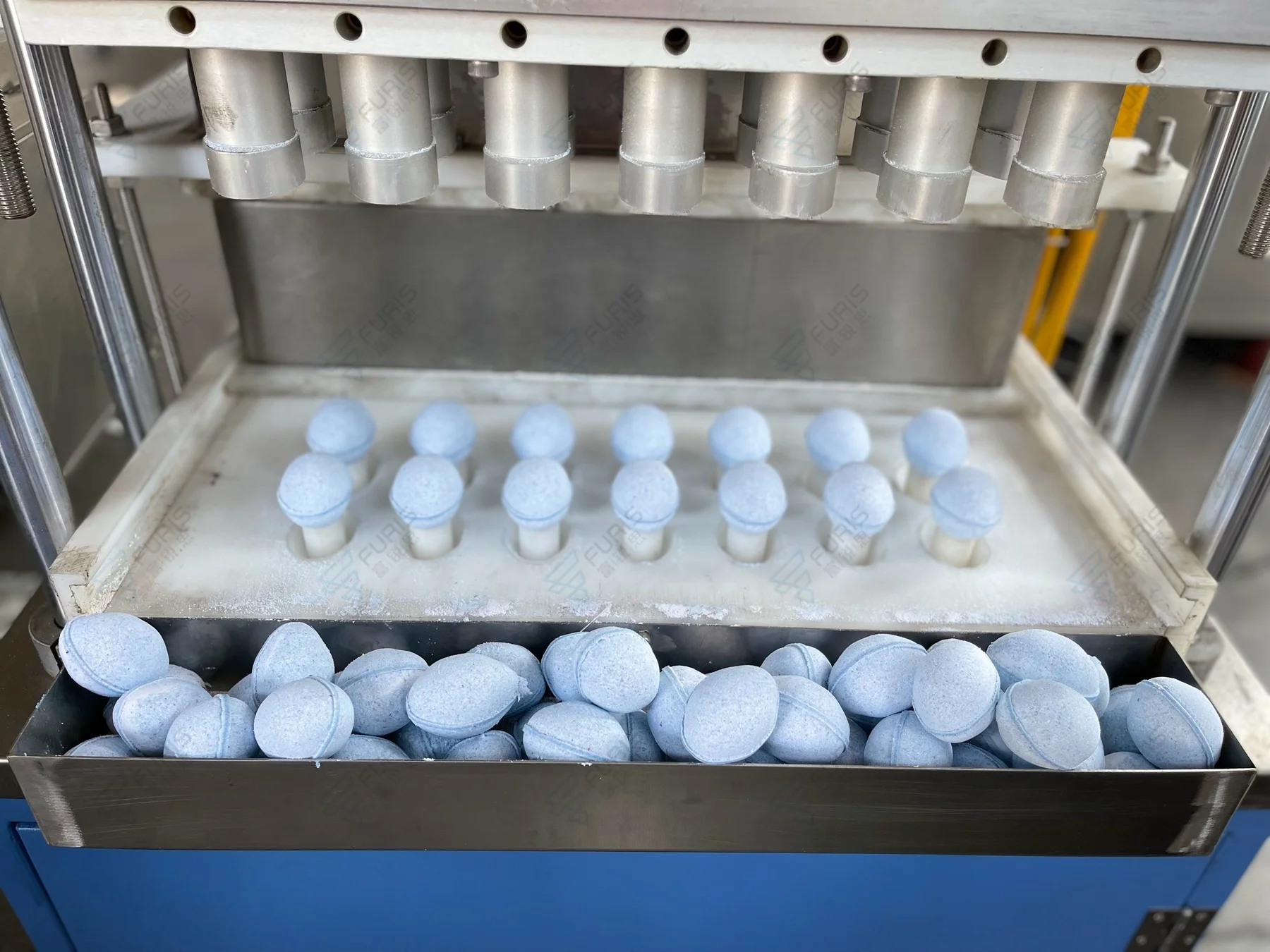

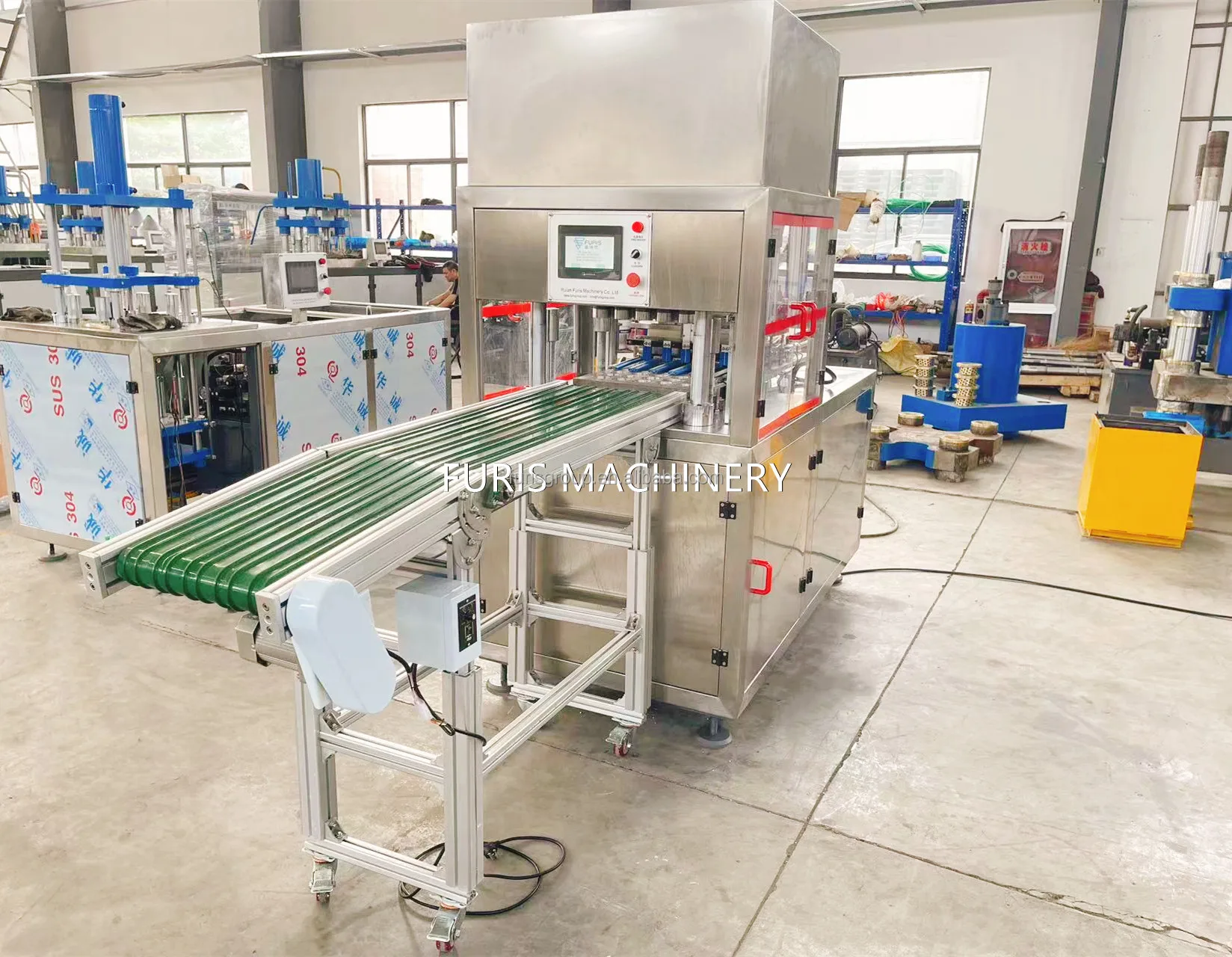

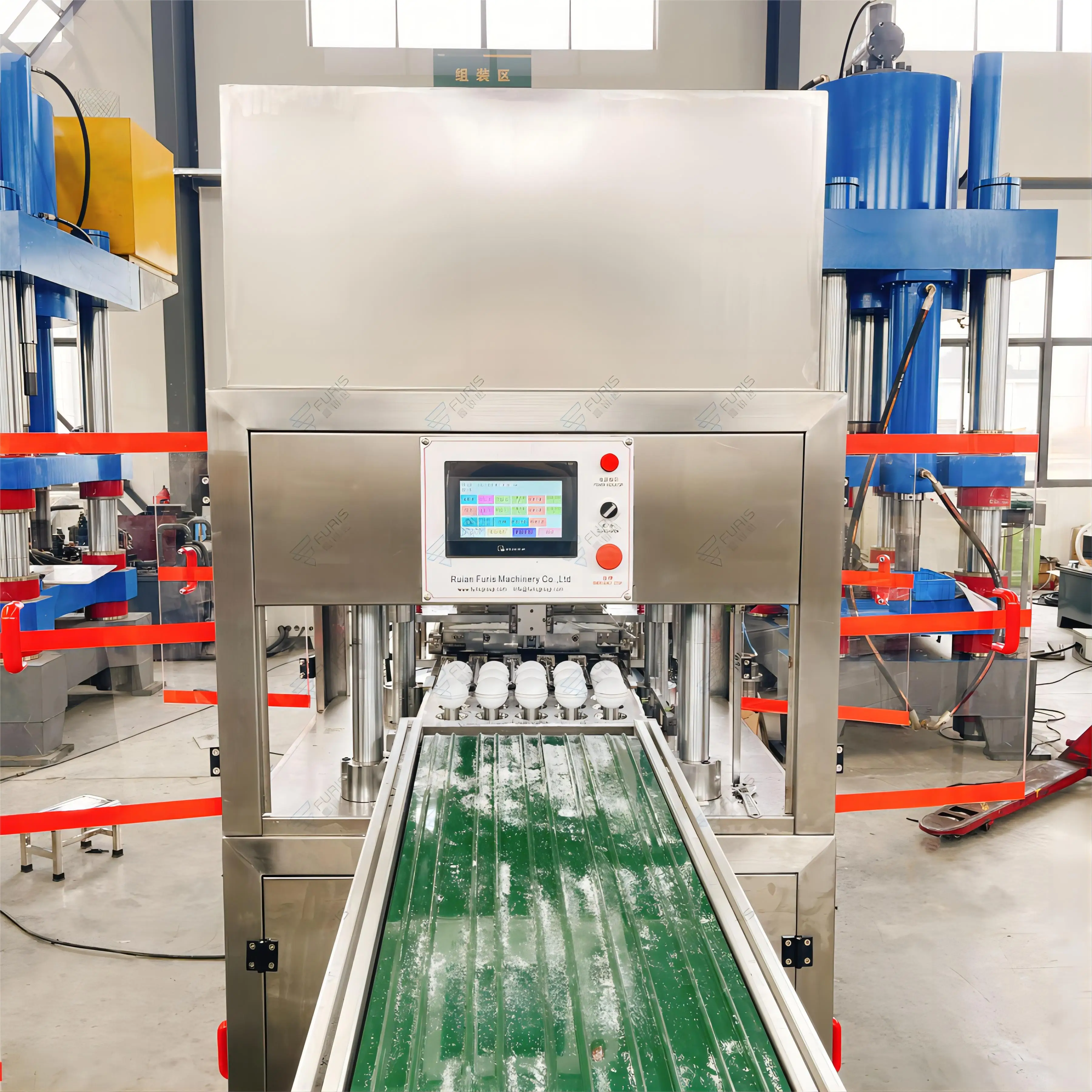

Semi full auto four column hydraulic press bath bomb machine,oem bubble bath ball machine,logo kids bath bombs gift make machine
- Category: >>>
- Supplier: Ruian Furis Machinery Co. Ltd
Share on (1600792908239):
Product Overview
Description

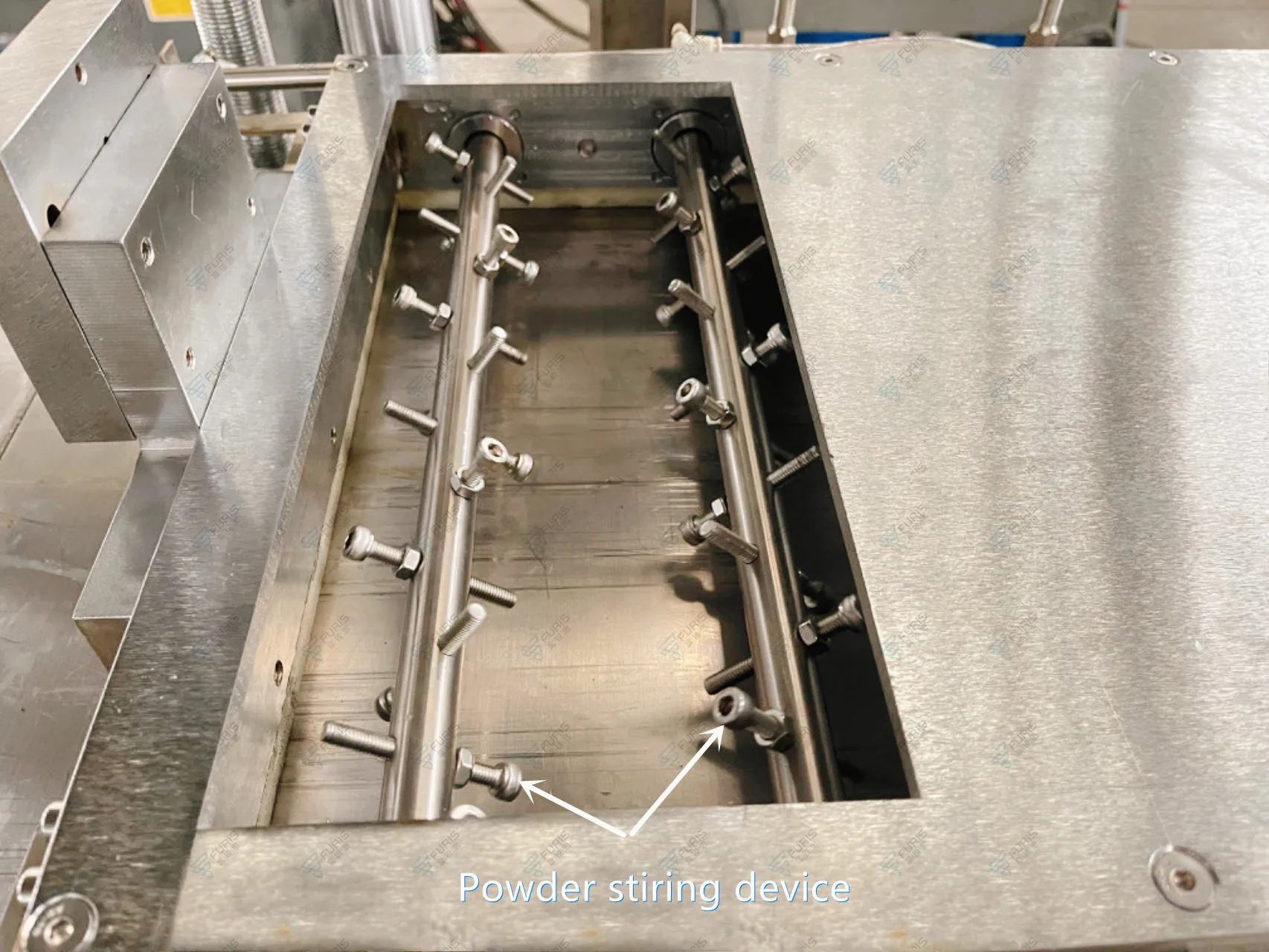

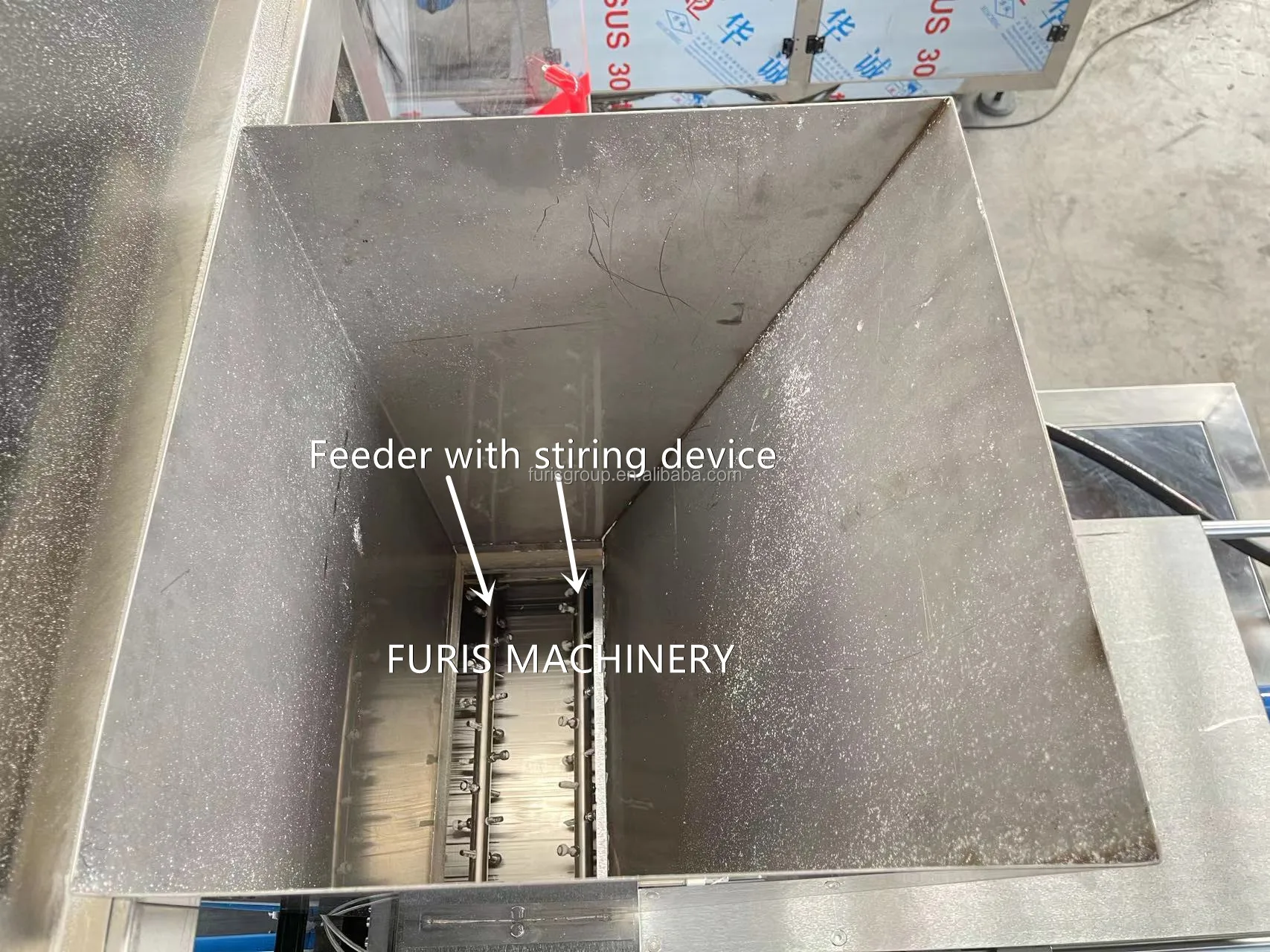

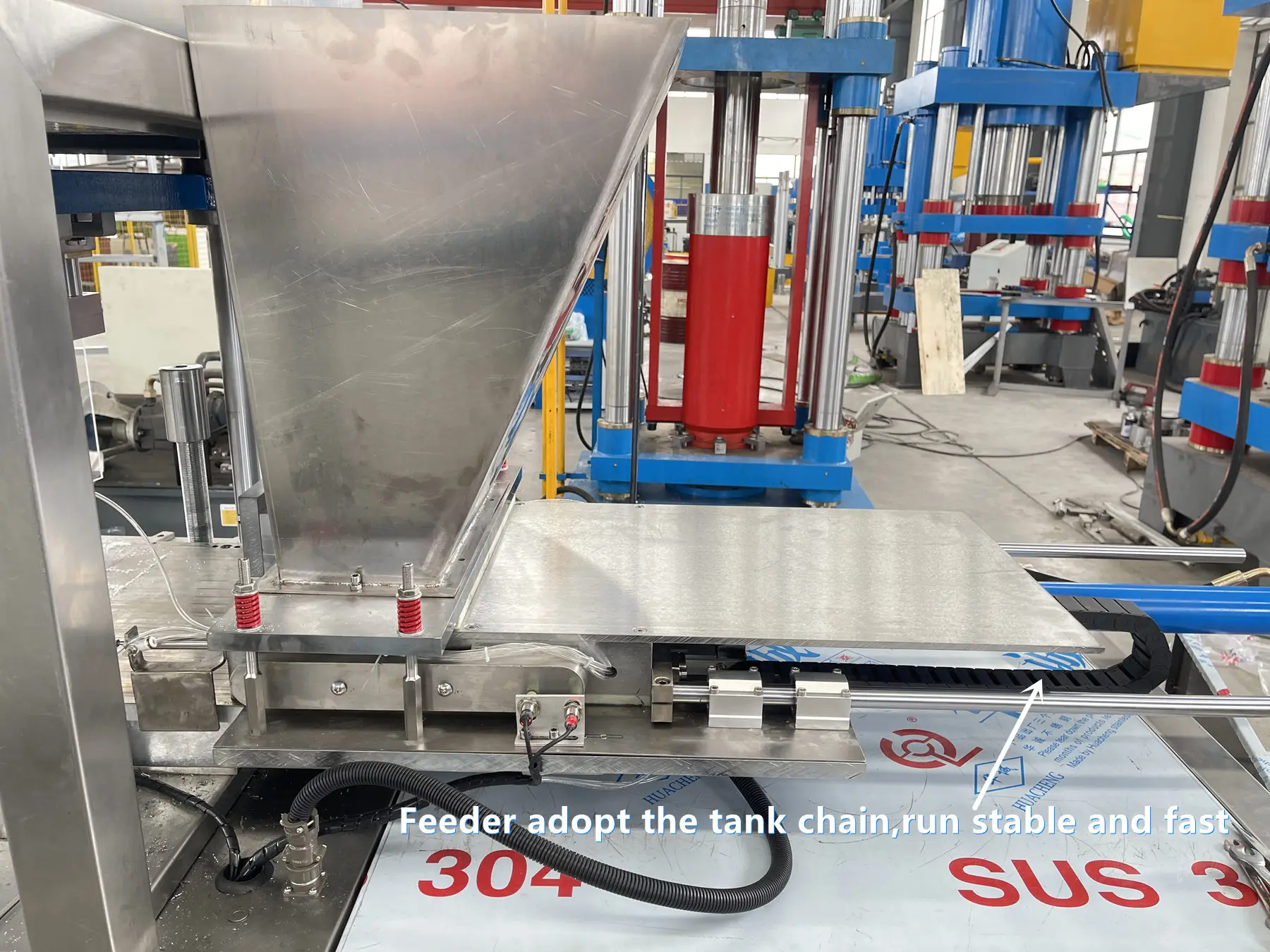

Auto feeding powder hopper,has big volume 80L,run stable and fast,can feeding the powder even into the mold，With stir device,use the wet powder will not stuck the hopper。frs-8 mold is made of Aluminum and POM
Product Overview
Furis Machinery Co., Ltd. is a well-known manufacturer of fully automatic bath bomb salt ball machines in China, offer manual semi auto full auto bath bomb press machine and full auto bath bomb wrap machine to meet different customer with different capacity inquiry.with more than 10 years of experience in providing a wide range of machine customization services.We has rich production experience and professional knowledge of the whole process of bath bomb salt ball production, and is well versed in the formulation of bath salt balls, and can customize machines according to the requirements of different customers.
One of the representative products is our FRS-8 high-speed automatic bath bomb salt ball press machine. Capable of delivering a maximum pressure of up to 10 tons, the machine can produce 10,500 balls per hour, making it one of the fastest and most efficient bath bomb salt press machines available.
The fully automatic bath bomb salt press machine is designed to optimize production without compromising quality. It can be customized according to production requirements, and all parameters can be easily adjusted on the touch screen PLC control panel.This allows for quick adjustments, such as adjusting pressure or production speed, which helps save time and increase productivity.
One of the main advantages of the high-speed automatic bath bomb salt ball hydraulic machine is its ability to automatic add toys to the bath salt ball. This is a unique and useful feature that allows customization of the final product, which helps attract customers and increase sales. In addition, the machine is equipped with an automatic shut-off function and protection devices to ensure safety during operation.
The machine is also designed with an air cooling device to control the temperature of the hydraulic oil, which helps prevent
excessive heat accumulation and prolongs the service life of the machine. The machine voltage can be customized to meet the requirements of different countries, which is convenient for customers to use in any place.
The fully automatic bath salt ball machine is exported to more than 50 countries such as North America, Europe, and Southeast Asia, and has helped many customers become the largest manufacturer of bath salt balls in their countries. With a commitment to quality and customer satisfaction, the company is a trusted partner in the bath salt ball machine industry.Overall, the features of the High Speed Automatic Bath bomb Salt Ball Press make it an excellent investment for businesses looking to increase productivity, quality and profitability. With its unique features, customization options and proven performance record, this machine is an industry leader sure to deliver a high return on investment (ROI) for businesses in the bath salt ball production industry.
One of the representative products is our FRS-8 high-speed automatic bath bomb salt ball press machine. Capable of delivering a maximum pressure of up to 10 tons, the machine can produce 10,500 balls per hour, making it one of the fastest and most efficient bath bomb salt press machines available.
The fully automatic bath bomb salt press machine is designed to optimize production without compromising quality. It can be customized according to production requirements, and all parameters can be easily adjusted on the touch screen PLC control panel.This allows for quick adjustments, such as adjusting pressure or production speed, which helps save time and increase productivity.
One of the main advantages of the high-speed automatic bath bomb salt ball hydraulic machine is its ability to automatic add toys to the bath salt ball. This is a unique and useful feature that allows customization of the final product, which helps attract customers and increase sales. In addition, the machine is equipped with an automatic shut-off function and protection devices to ensure safety during operation.
The machine is also designed with an air cooling device to control the temperature of the hydraulic oil, which helps prevent
excessive heat accumulation and prolongs the service life of the machine. The machine voltage can be customized to meet the requirements of different countries, which is convenient for customers to use in any place.
The fully automatic bath salt ball machine is exported to more than 50 countries such as North America, Europe, and Southeast Asia, and has helped many customers become the largest manufacturer of bath salt balls in their countries. With a commitment to quality and customer satisfaction, the company is a trusted partner in the bath salt ball machine industry.Overall, the features of the High Speed Automatic Bath bomb Salt Ball Press make it an excellent investment for businesses looking to increase productivity, quality and profitability. With its unique features, customization options and proven performance record, this machine is an industry leader sure to deliver a high return on investment (ROI) for businesses in the bath salt ball production industry.
Welcome to OEM and distribute our machine in local place
Product Feature

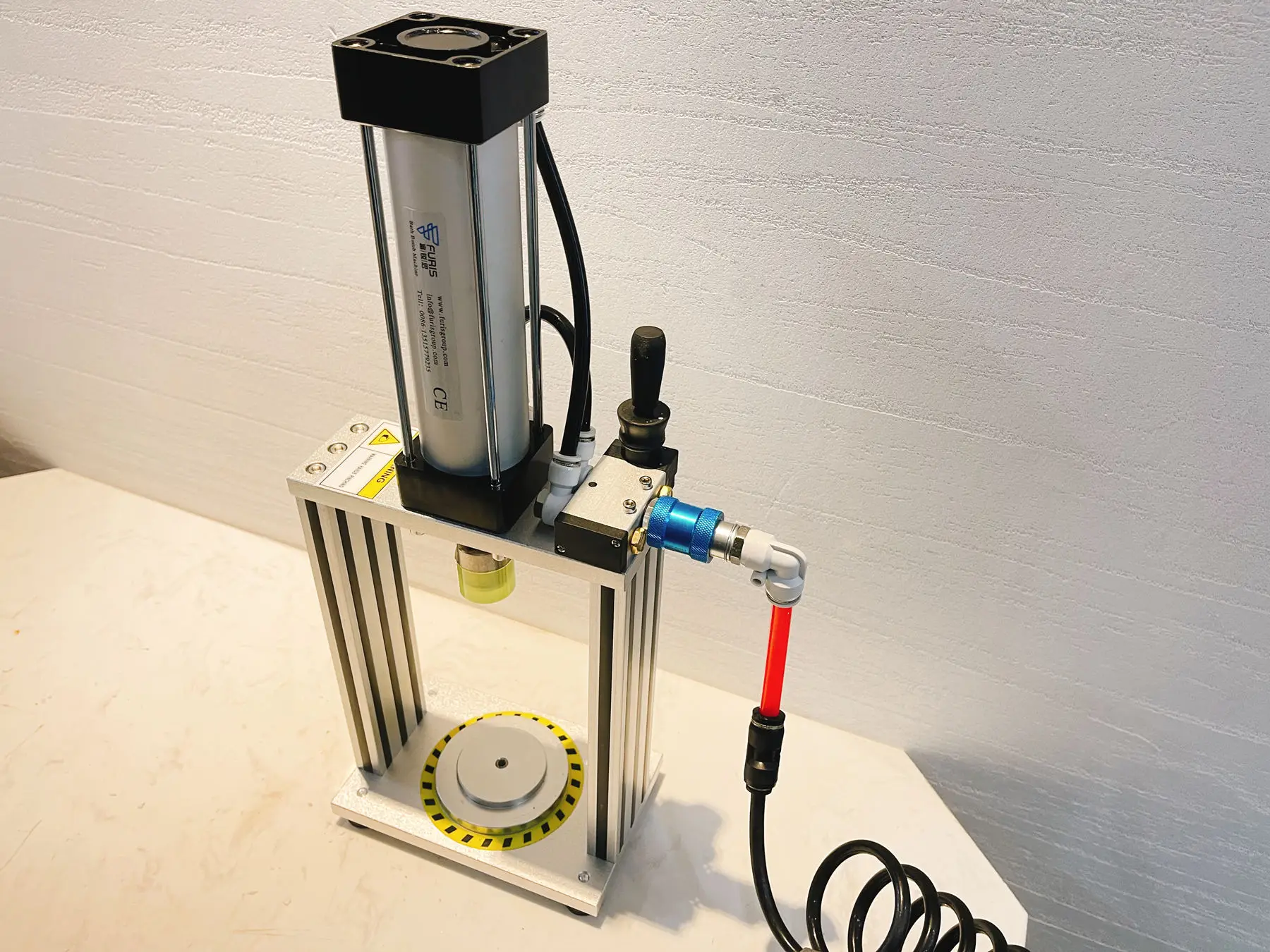

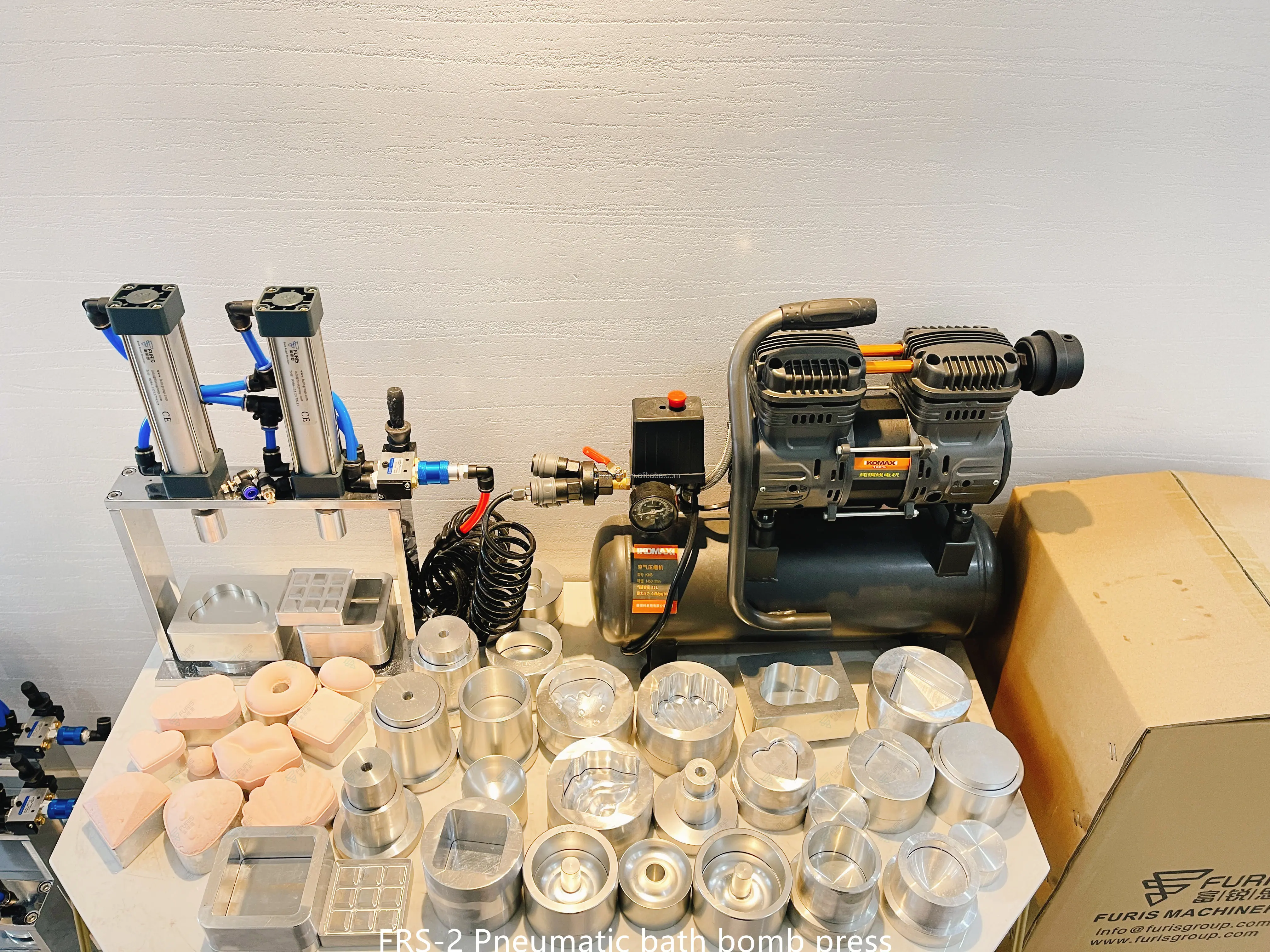

FRS-2 Bath bomb press machine:
one time press 2 pcs bath bomb,need connect the air compressor,no need connect the electric power,the mold can customize,any shape,air compressor,30L tank volume,100psi

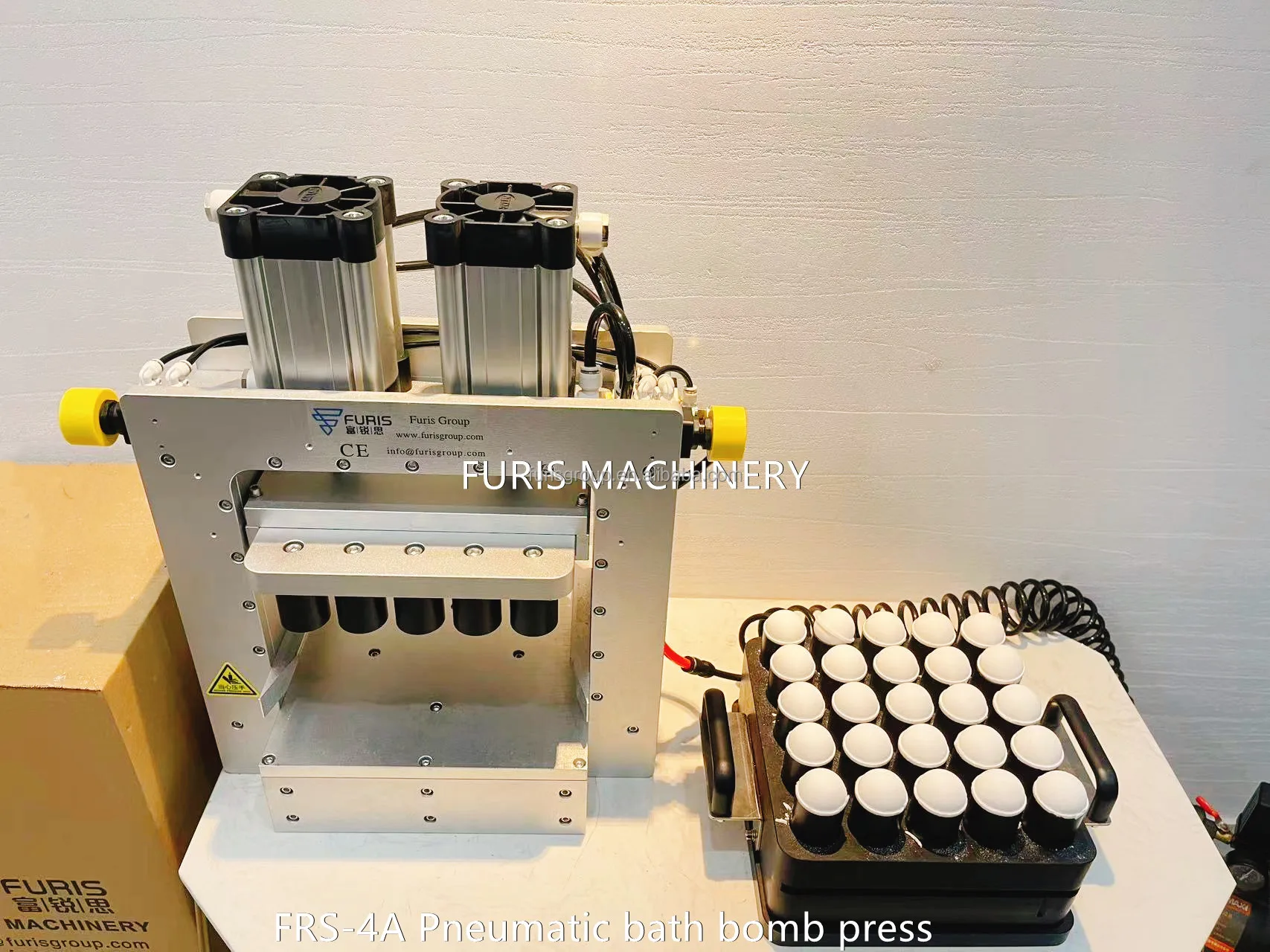

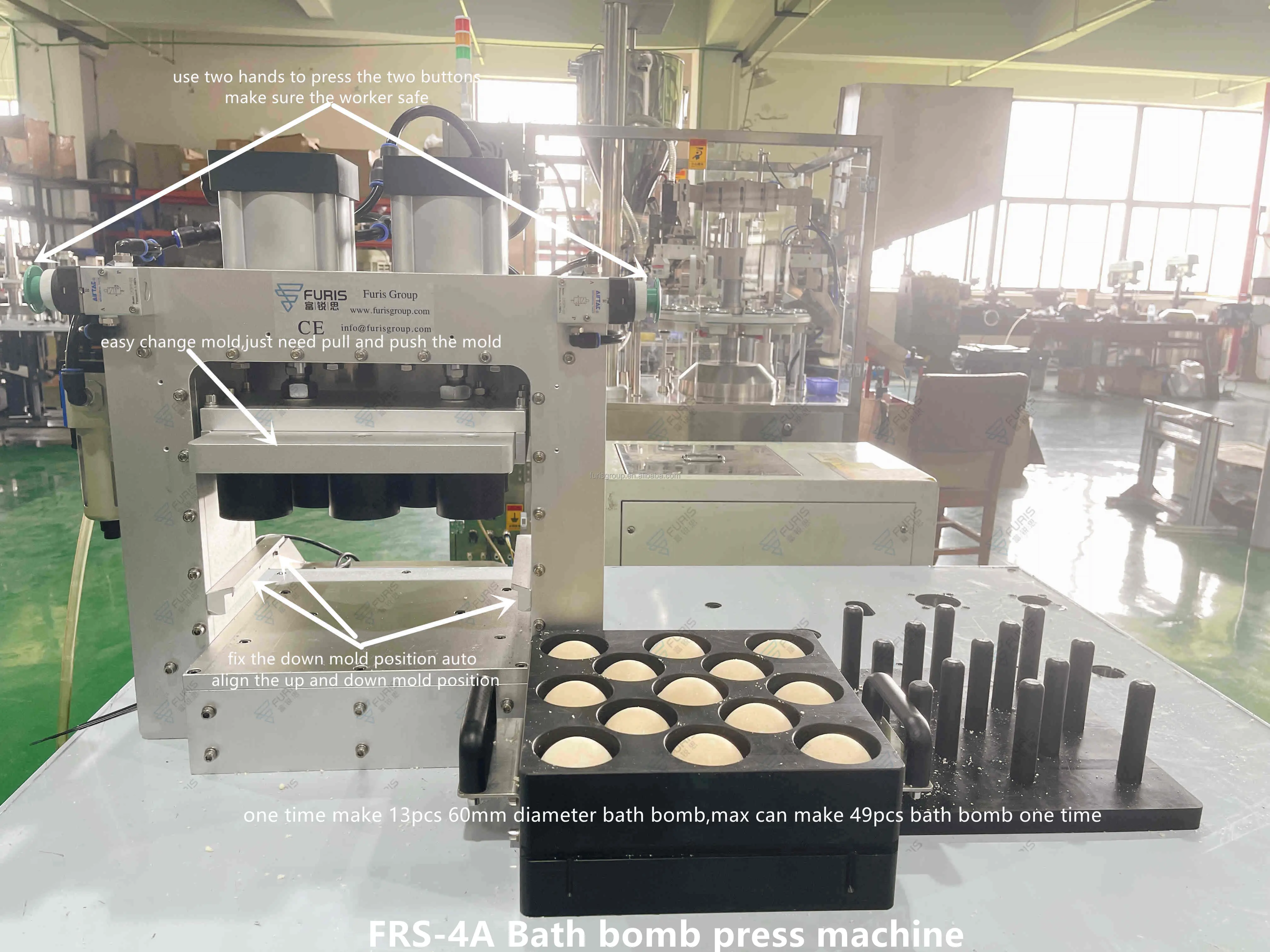

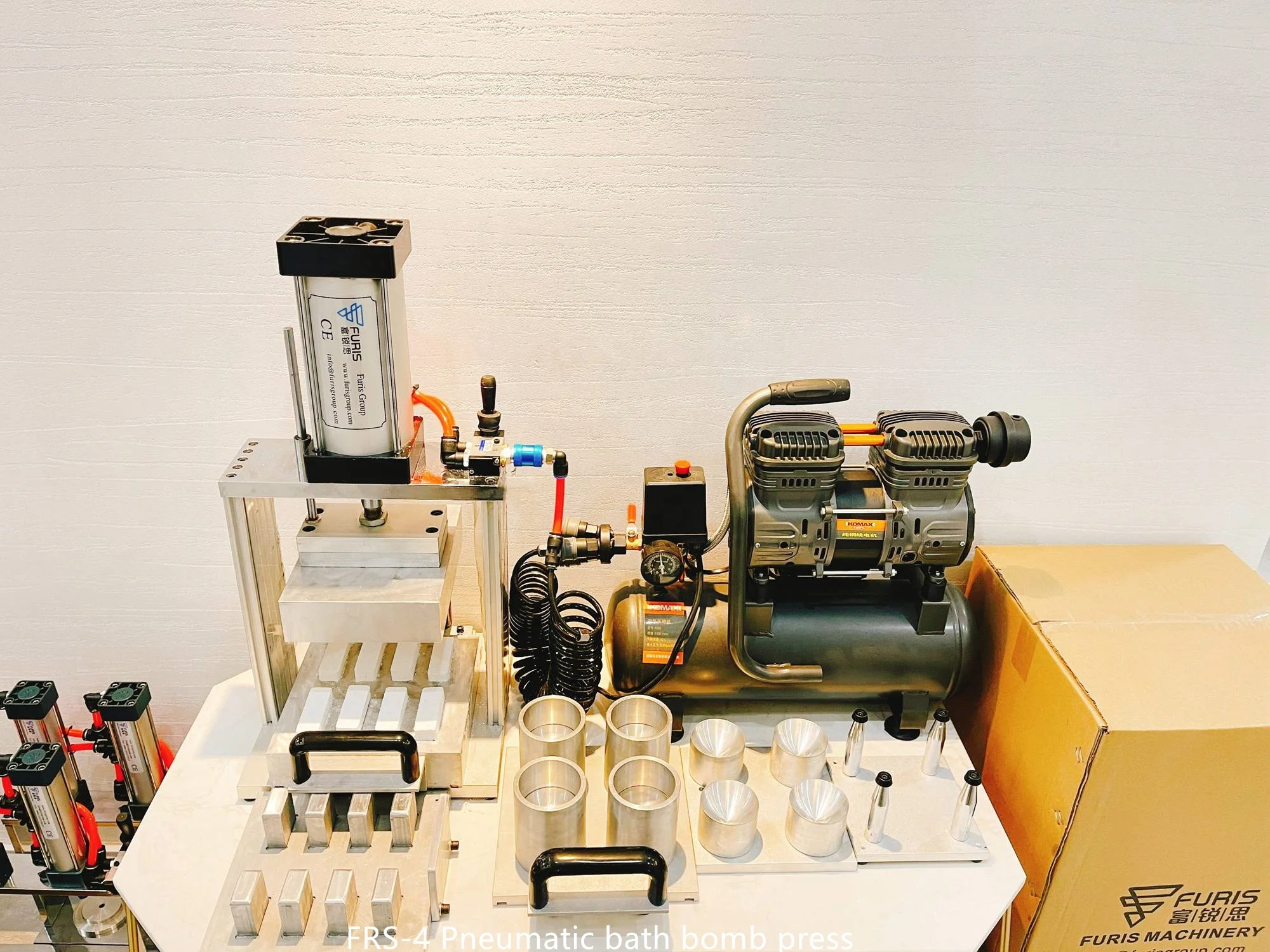

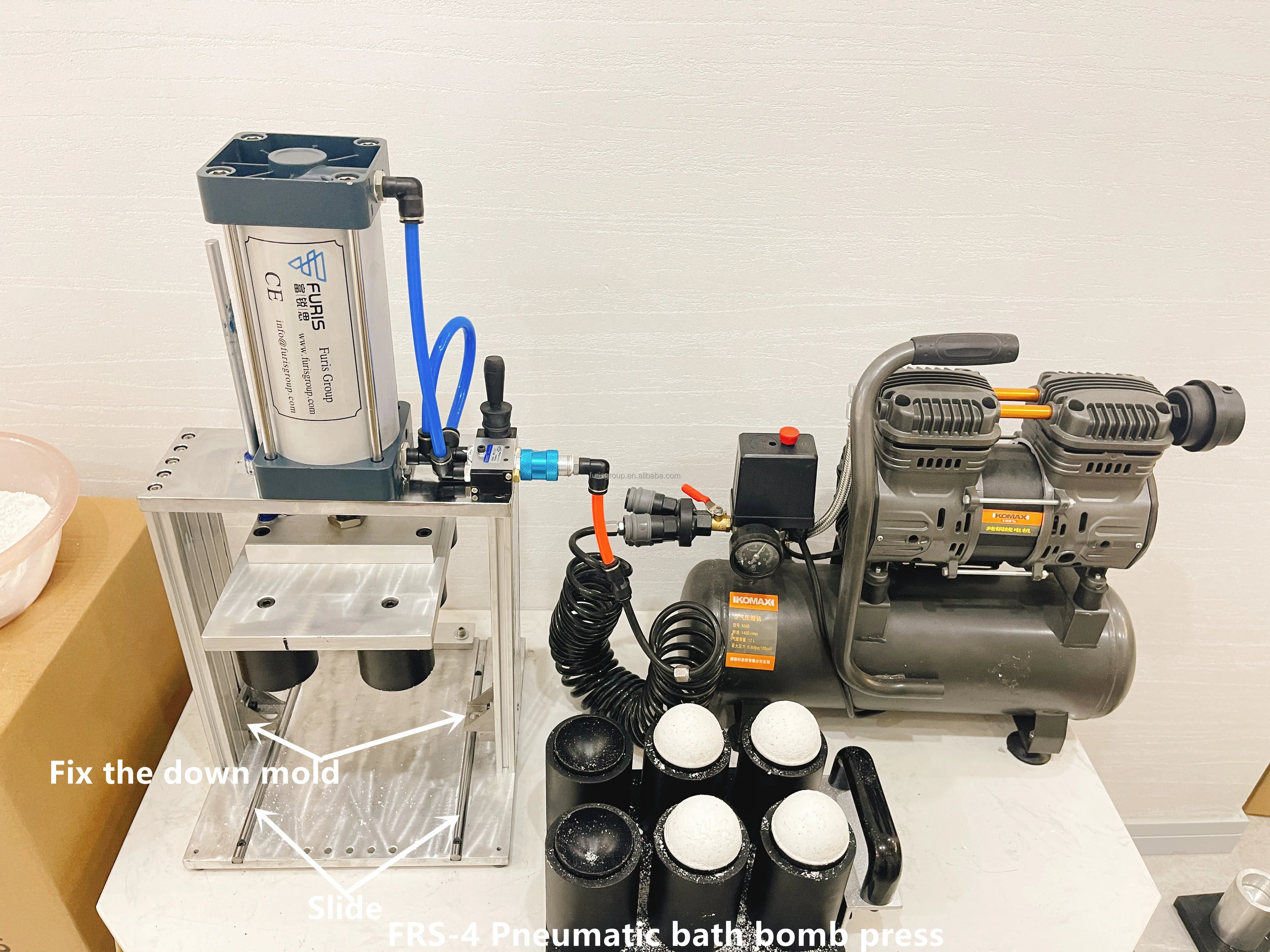

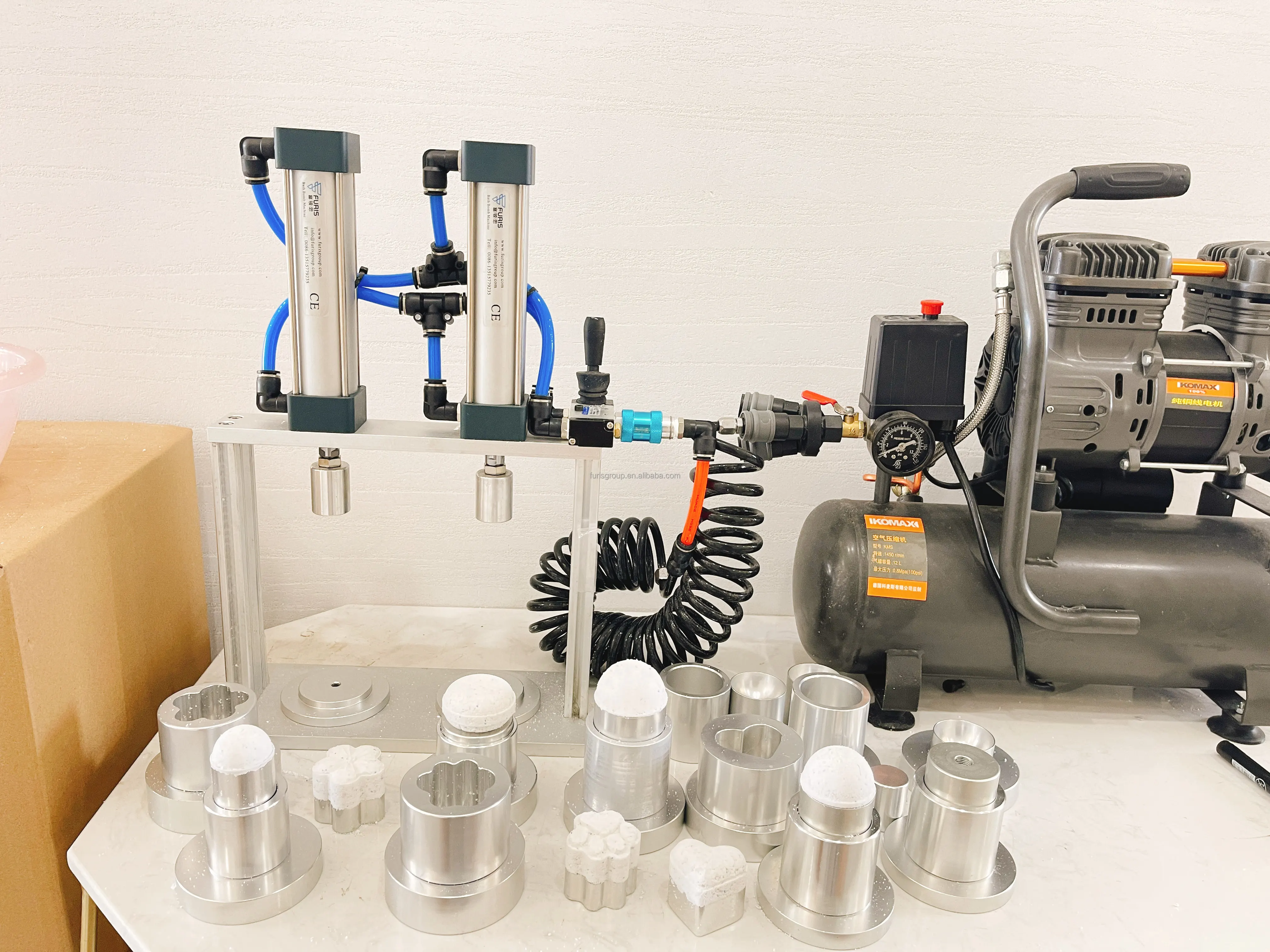

FRS-4 Bath bomb press machine:
one time press 4 pcs bath bomb,need connect the air compressor,no need connect the electric power,the mold can customize,any
shape,air compressor,30L tank volume,100psi
The machine put powder by manual after form the bath bomb,the bath bomb will push up by pole and you can pick it out easily.The
machine with low cost,suit for small company.

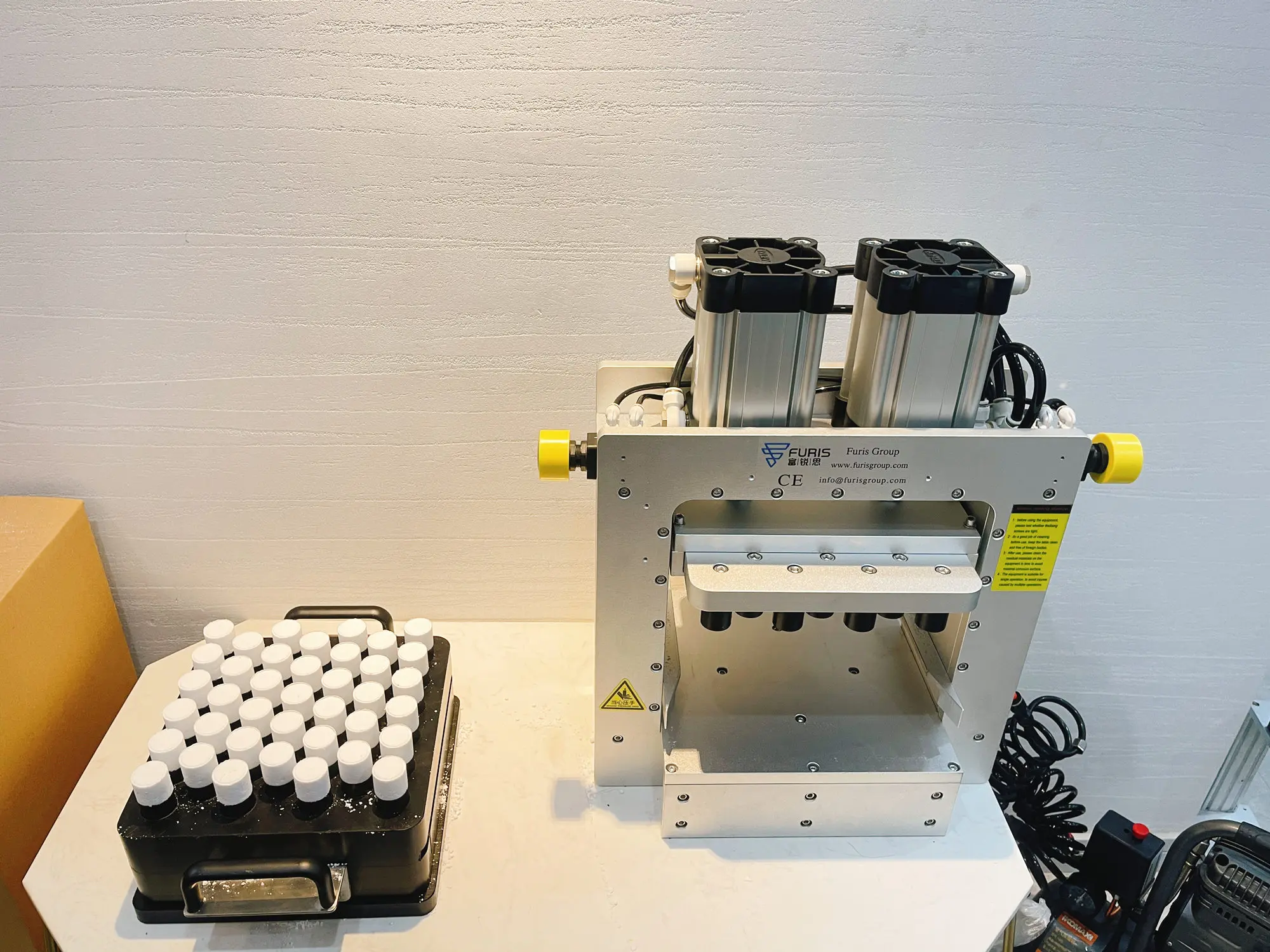

FRS-5 Bath bomb press machine:
One time press 4-8pcs bath bomb,need connect the outsource powder and air compressor,it adopt the 220v voltage,the mold can
customize,any shape,air compressor,50L tank volume,100psi,if you need more big capacity we also can do it for you,The machine put
powder by manual after form the bath bomb,the bath bomb will push up by mold and you can pick it out easily.The machine with low
cost,suit for small company.

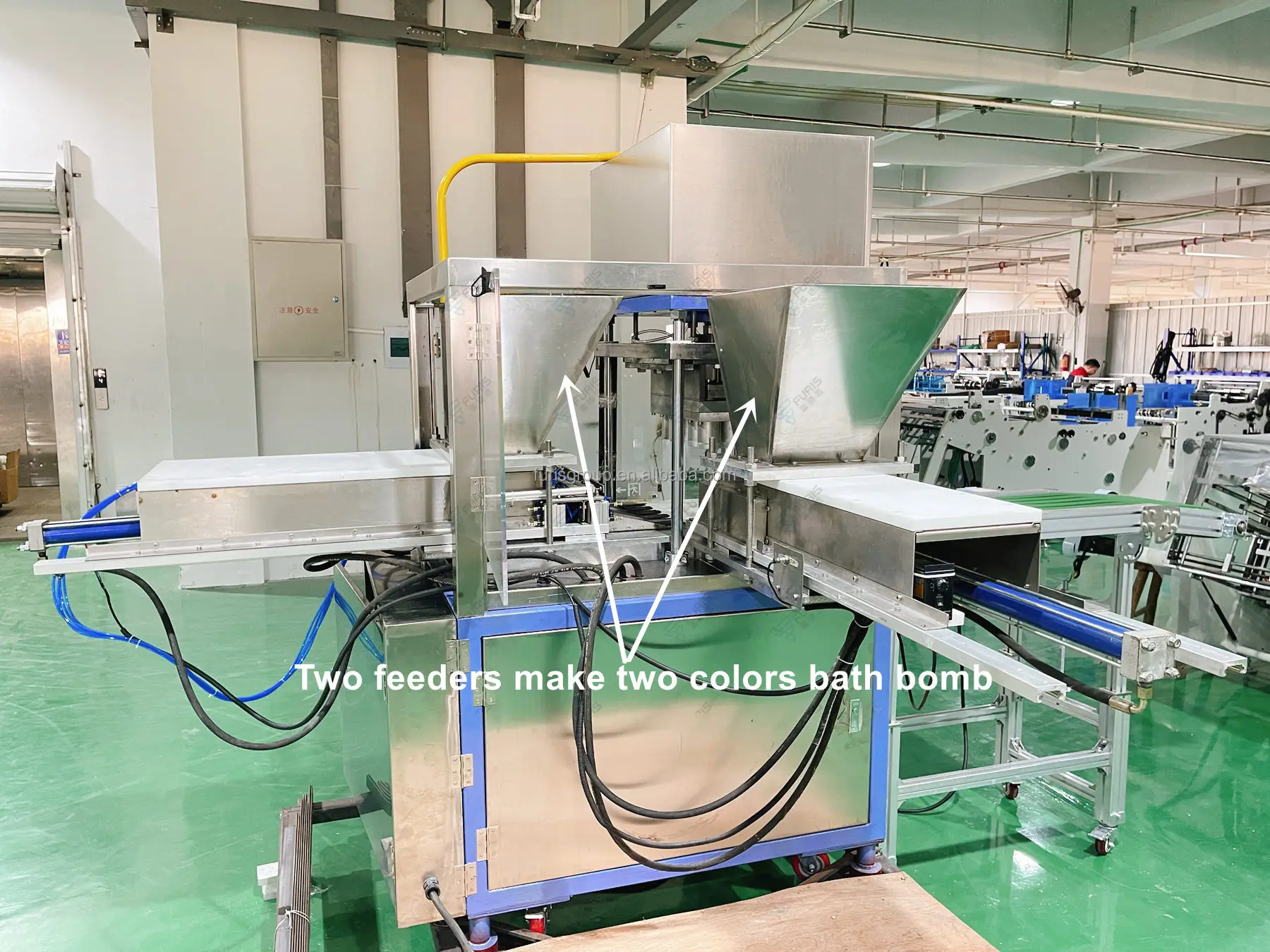

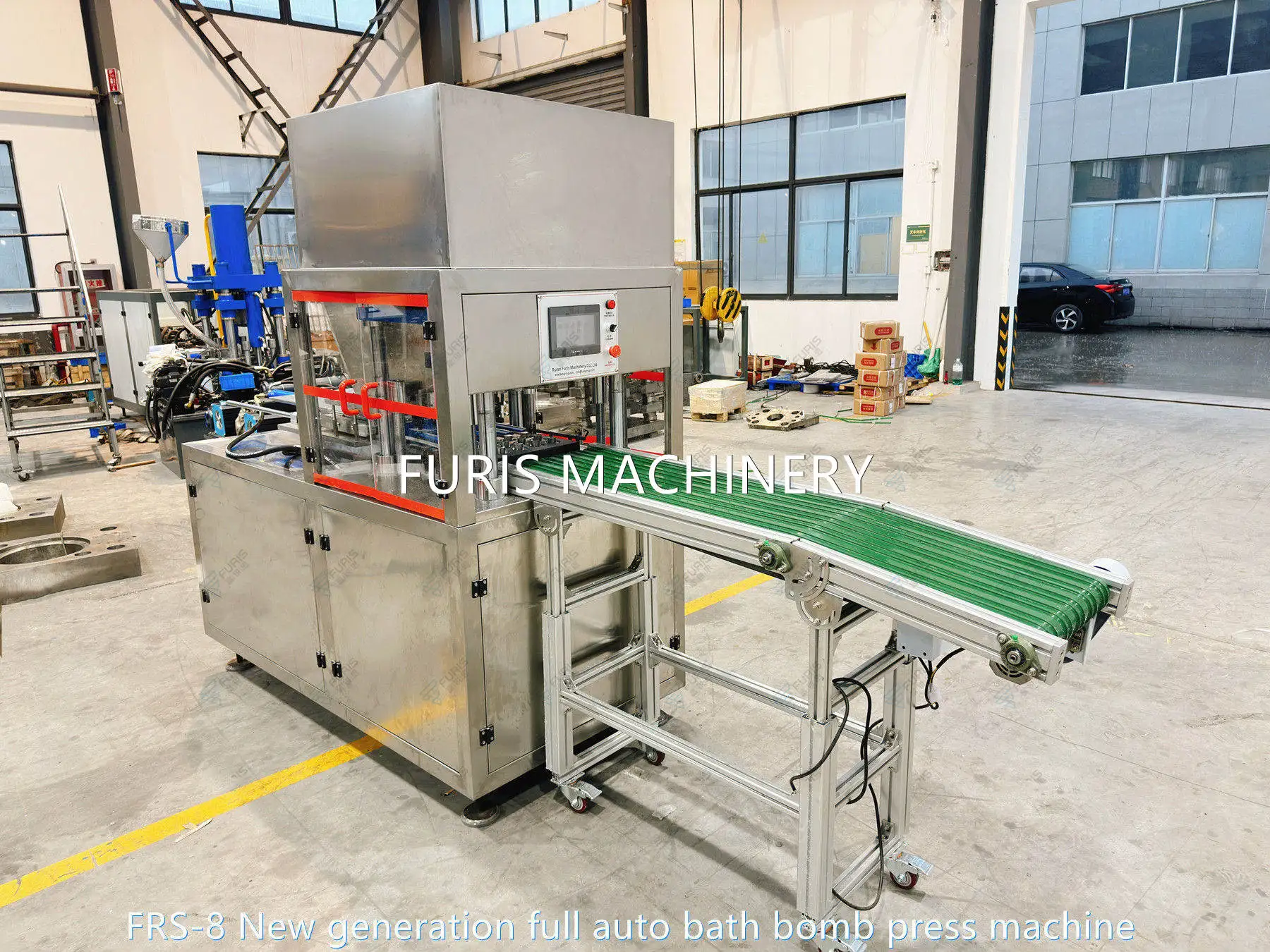

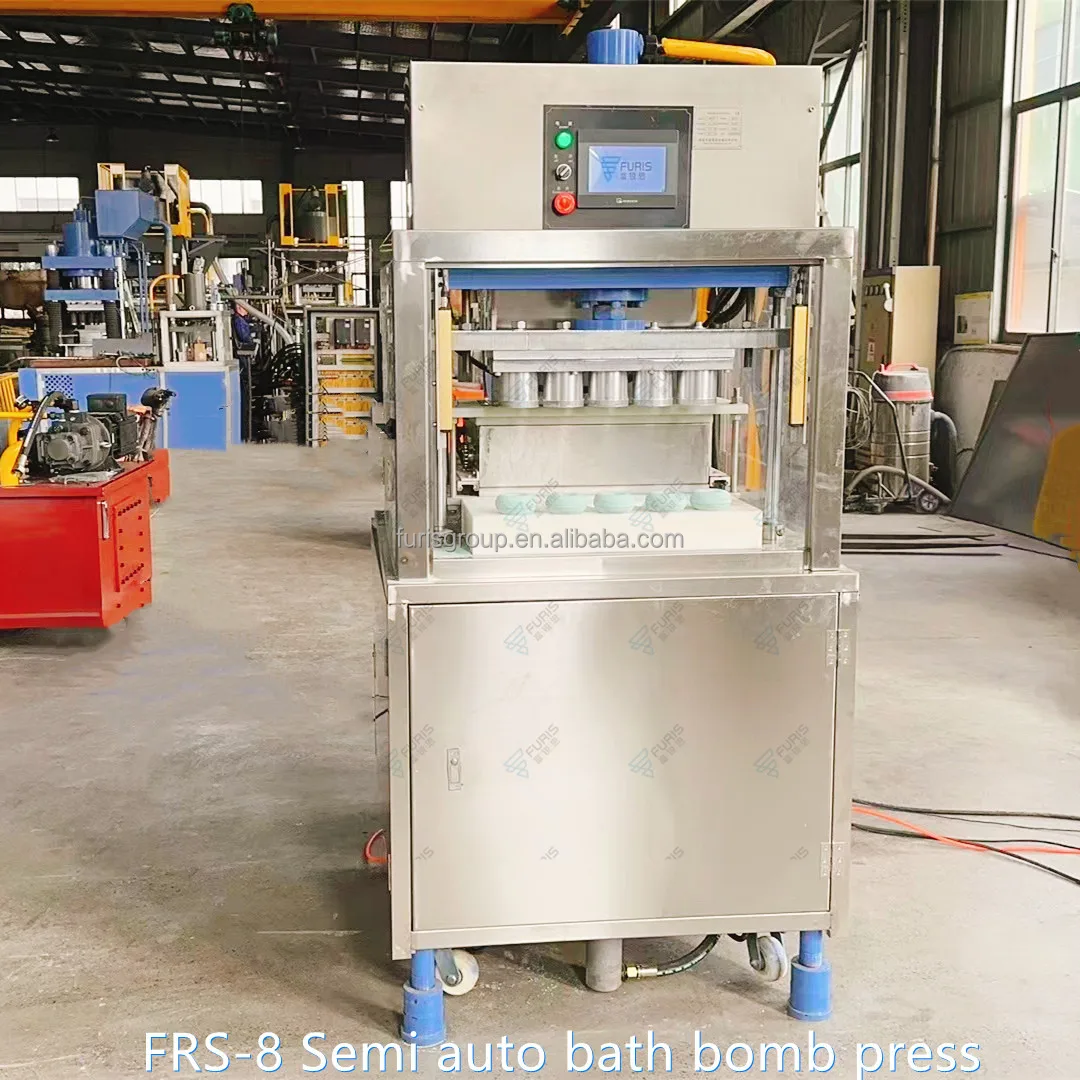

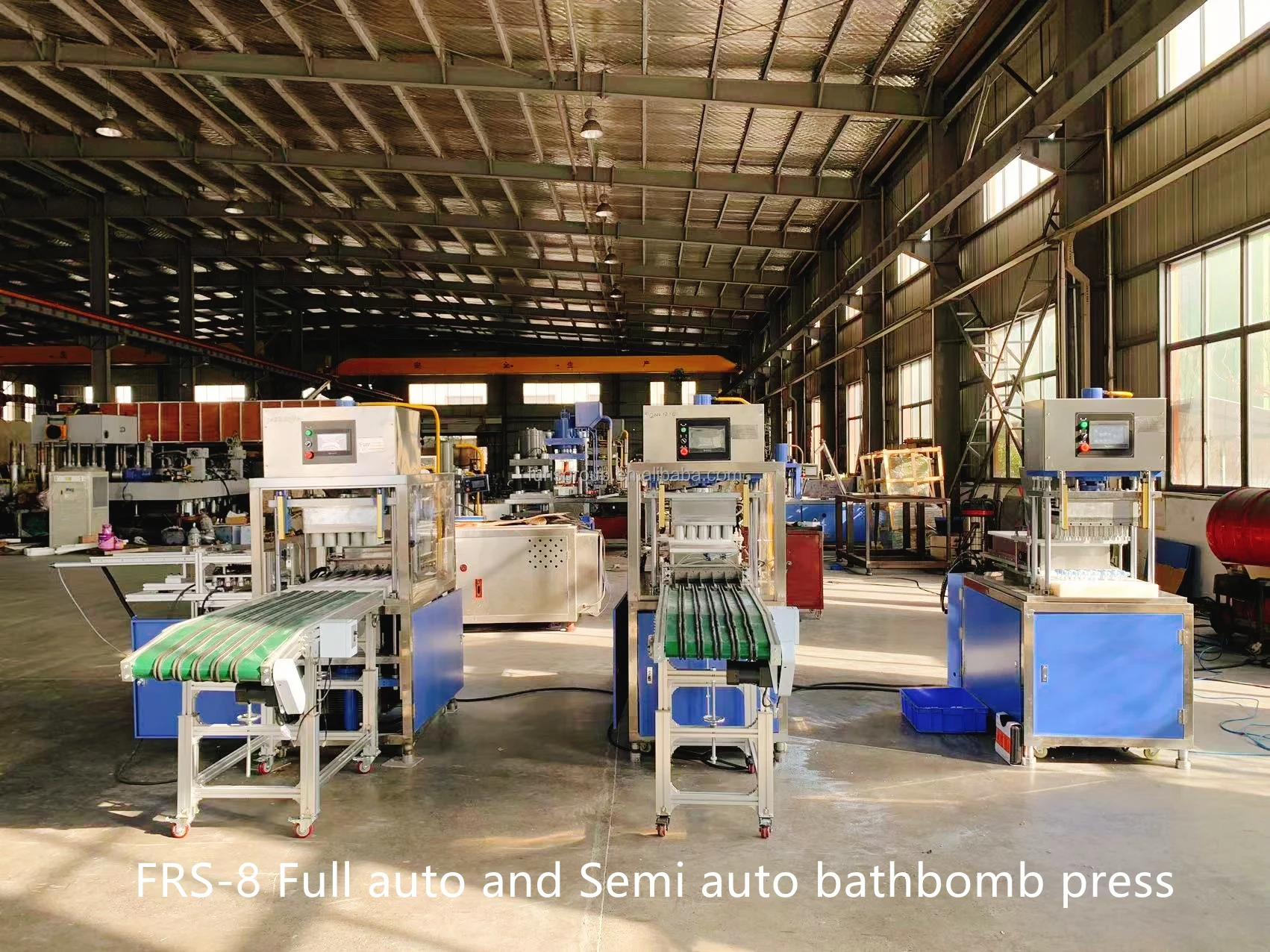

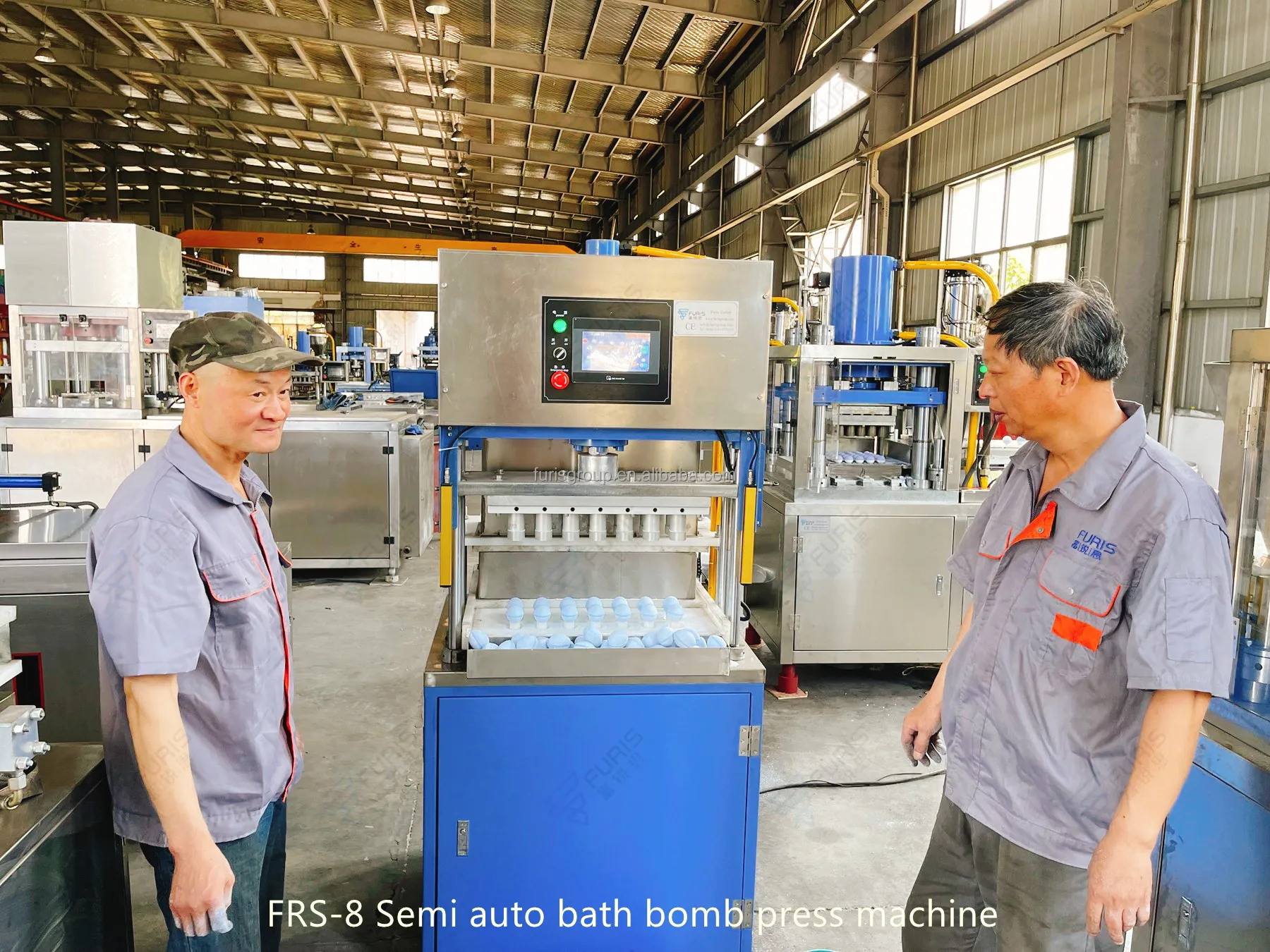

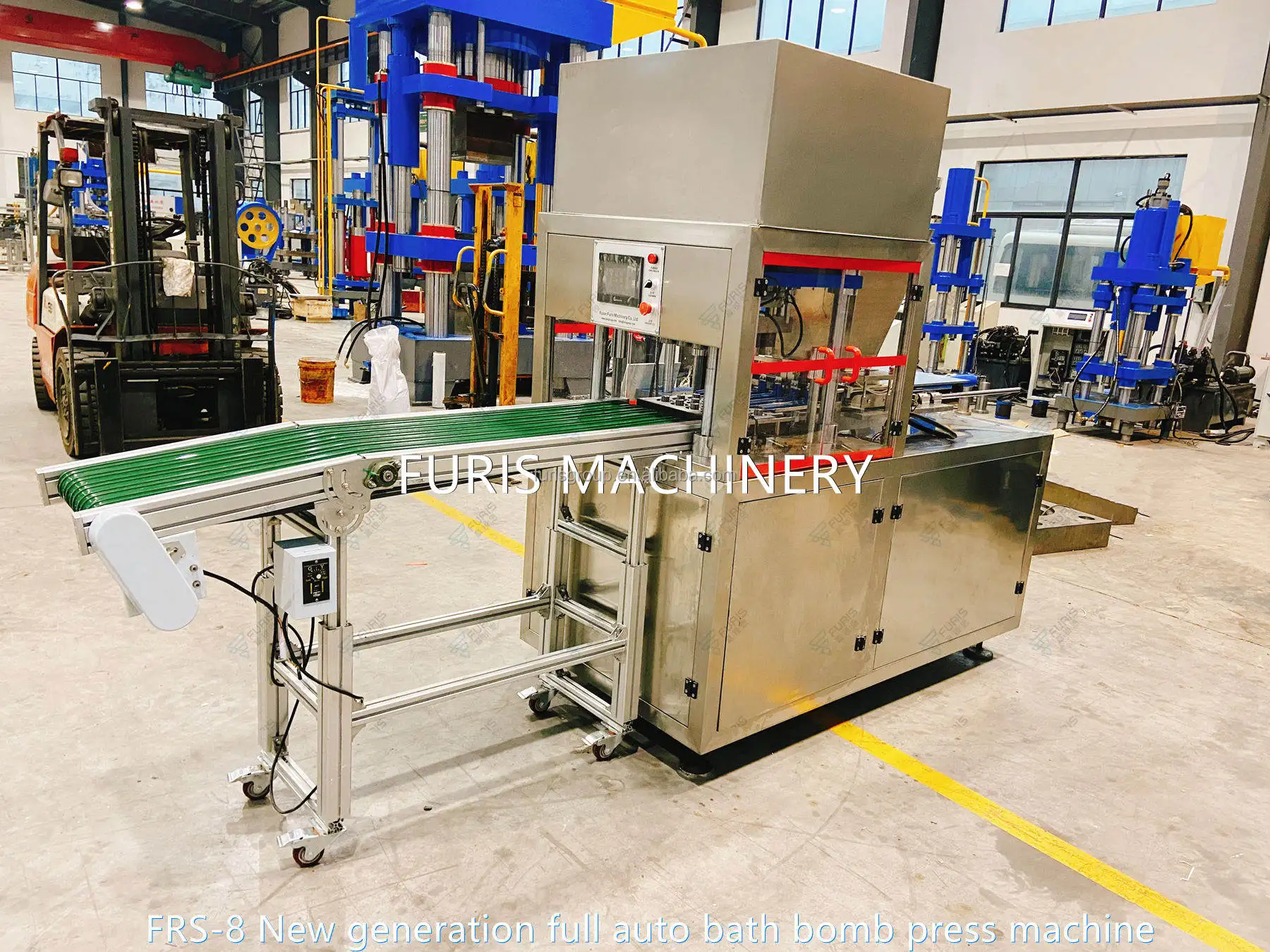

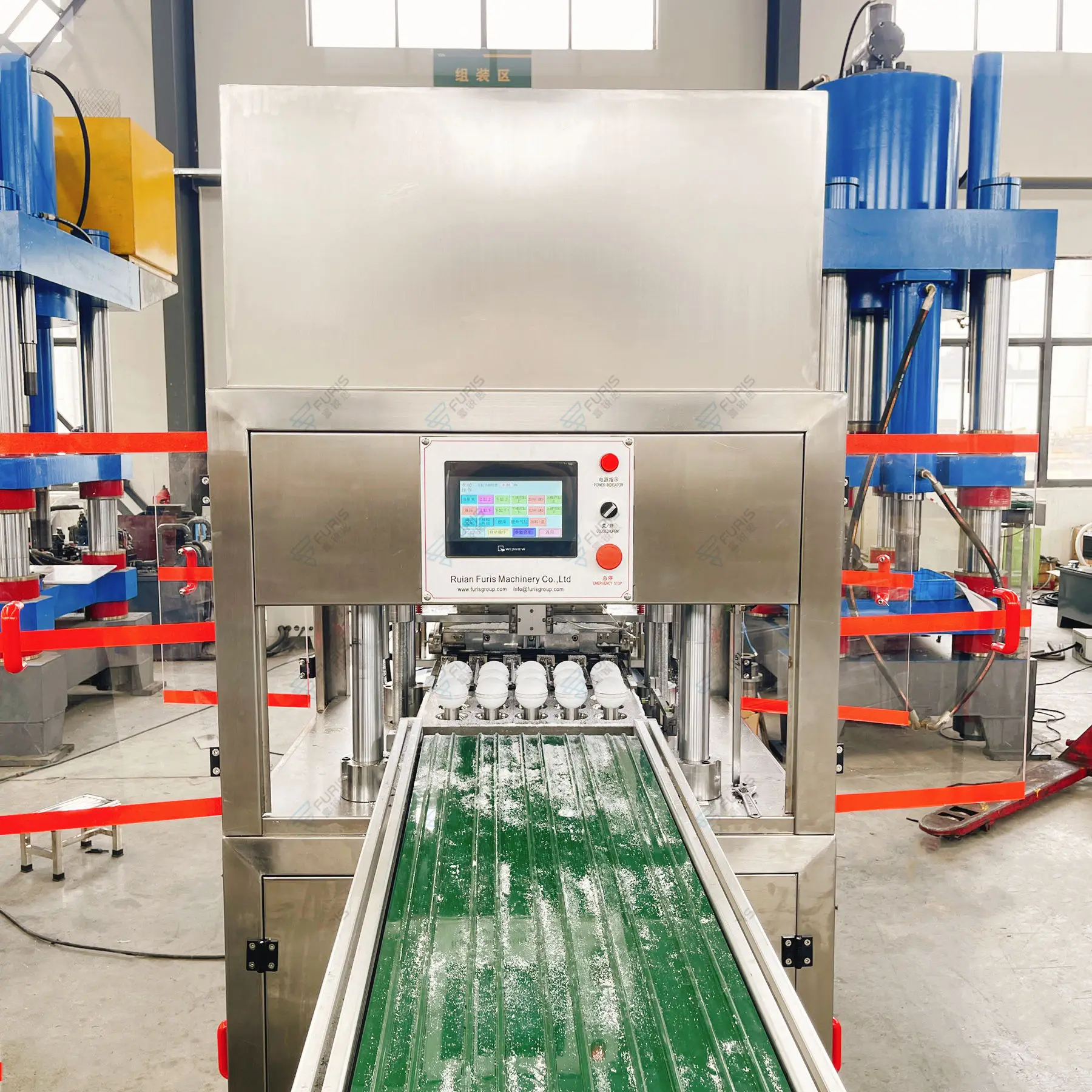

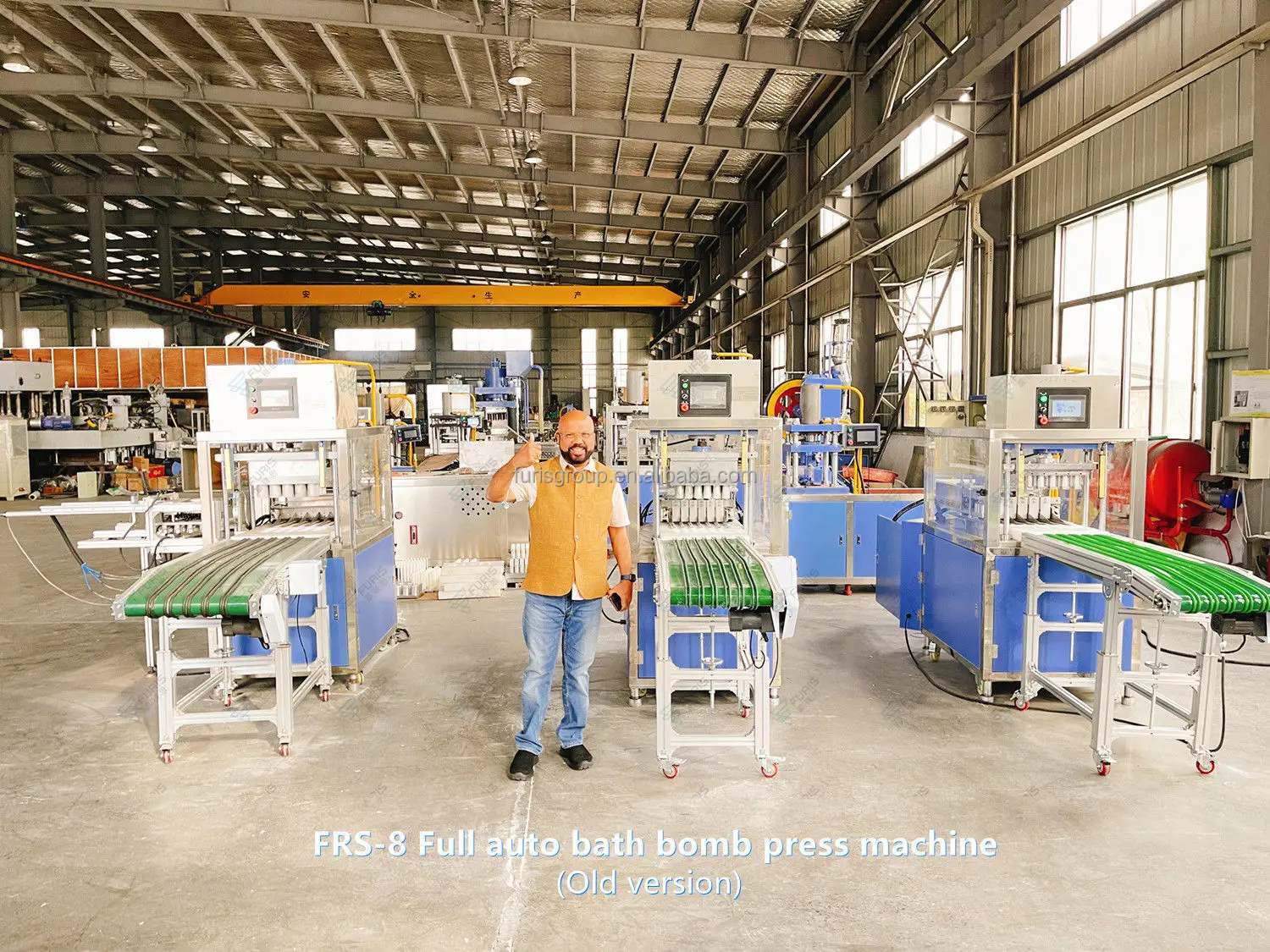

FRS-8 Semi auto full auto hydraulic press machine
Suit for press wet half wet and dry powder
Compact dimension.simple operation,easy maintan.multy function.

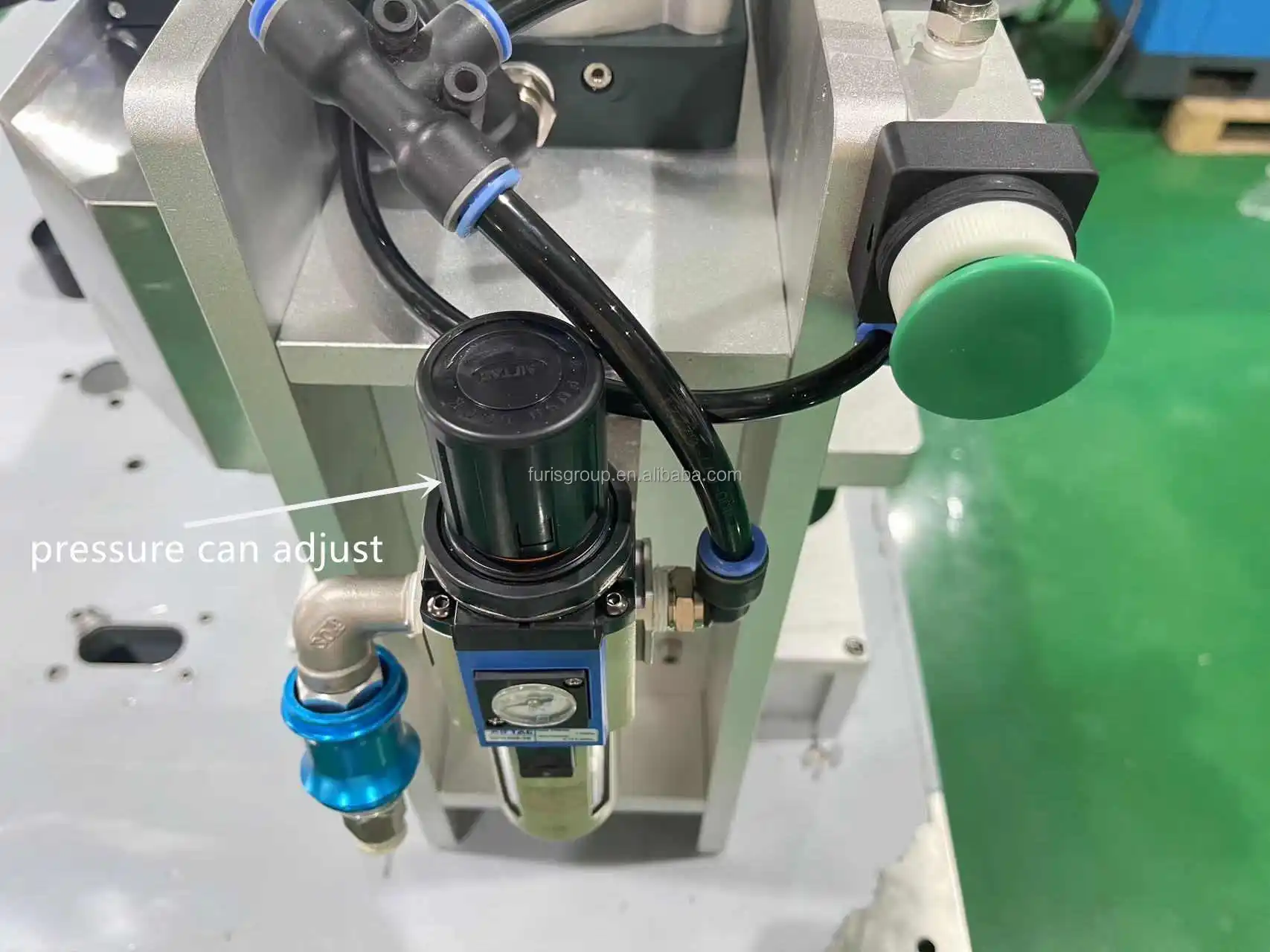

Machine pressure can reach 10T (pressure can customize),the pressure can be adjusted in the touch screen

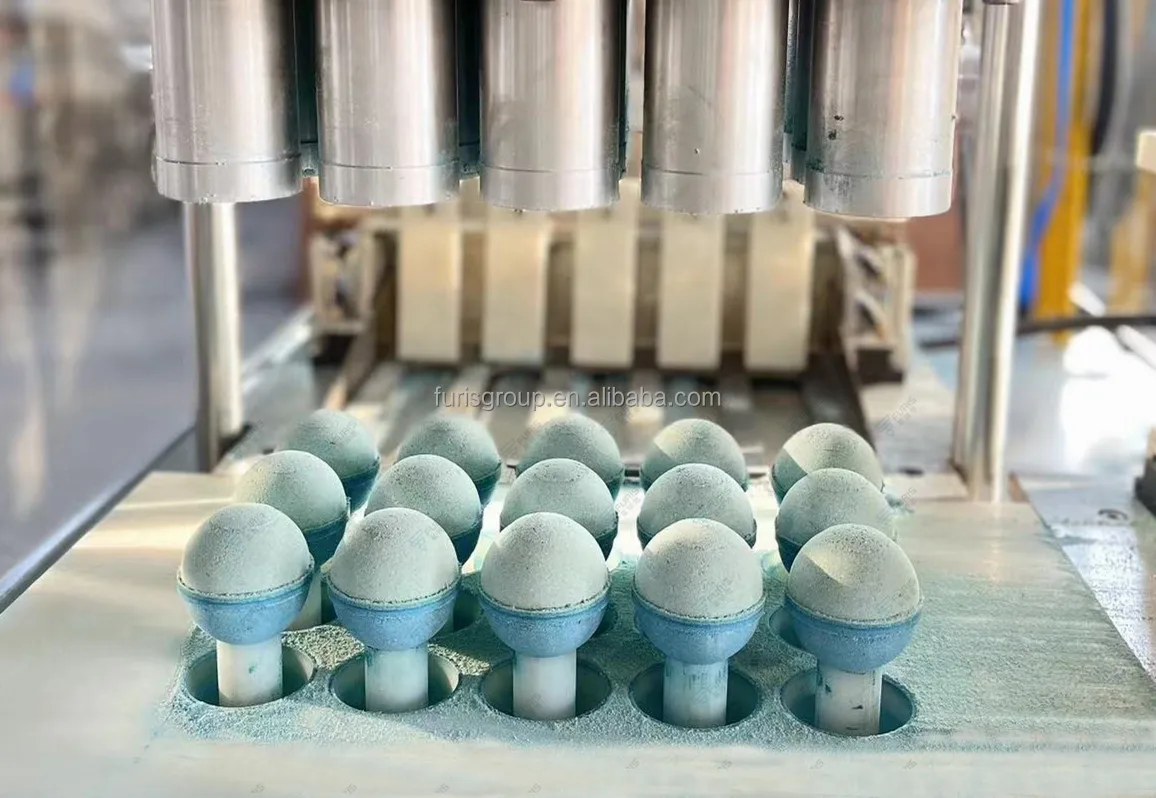

This machine can reach multi-cavity mould pressing, keep the same pressure, greatly improve production efficiency.

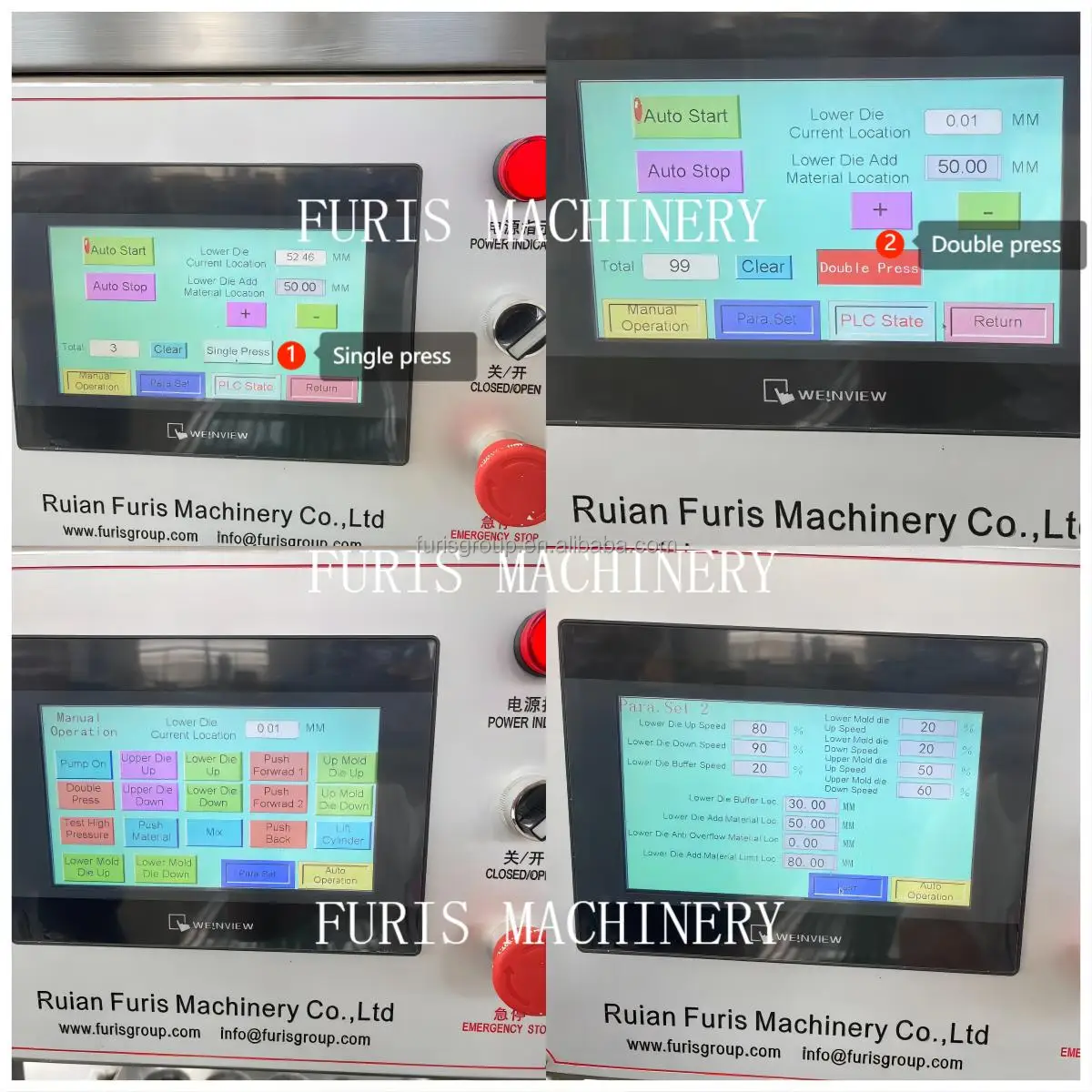

Adopts computer system control PLC control,touch screen operation, make the machine operation very easy.
Can work in automatic and manual two kind model
one time press 2 pcs bath bomb,need connect the air compressor,no need connect the electric power,the mold can customize,any shape,air compressor,30L tank volume,100psi
FRS-4 Bath bomb press machine:
one time press 4 pcs bath bomb,need connect the air compressor,no need connect the electric power,the mold can customize,any
shape,air compressor,30L tank volume,100psi
The machine put powder by manual after form the bath bomb,the bath bomb will push up by pole and you can pick it out easily.The
machine with low cost,suit for small company.
FRS-5 Bath bomb press machine:
One time press 4-8pcs bath bomb,need connect the outsource powder and air compressor,it adopt the 220v voltage,the mold can
customize,any shape,air compressor,50L tank volume,100psi,if you need more big capacity we also can do it for you,The machine put
powder by manual after form the bath bomb,the bath bomb will push up by mold and you can pick it out easily.The machine with low
cost,suit for small company.
FRS-8 Semi auto full auto hydraulic press machine
Suit for press wet half wet and dry powder
Compact dimension.simple operation,easy maintan.multy function.
Machine pressure can reach 10T (pressure can customize),the pressure can be adjusted in the touch screen
This machine can reach multi-cavity mould pressing, keep the same pressure, greatly improve production efficiency.
Adopts computer system control PLC control,touch screen operation, make the machine operation very easy.
Can work in automatic and manual two kind model

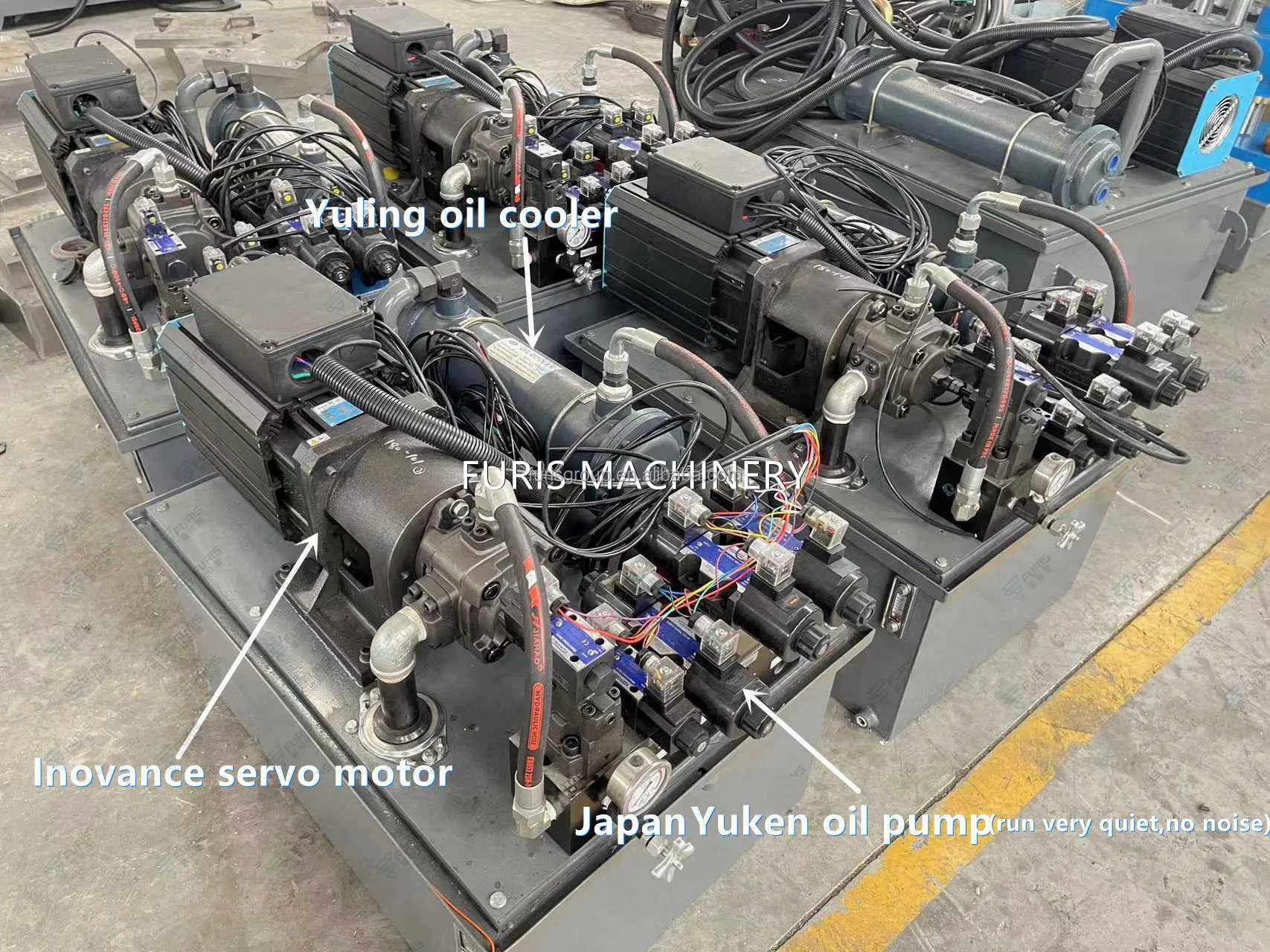

Adopt the Inovance servo motor system Japan Yuken oil pump and Yuling oil cooler,make the machine run very quiet more stable and more fast
With auto stop function when the hand put into the machine mould
The machine cover is stainless steel,no rust for long time use.
Press time can be adjusted in the touch screen.
Adopt the imported hydraulic system make sure the machine can work stable and has long work life.

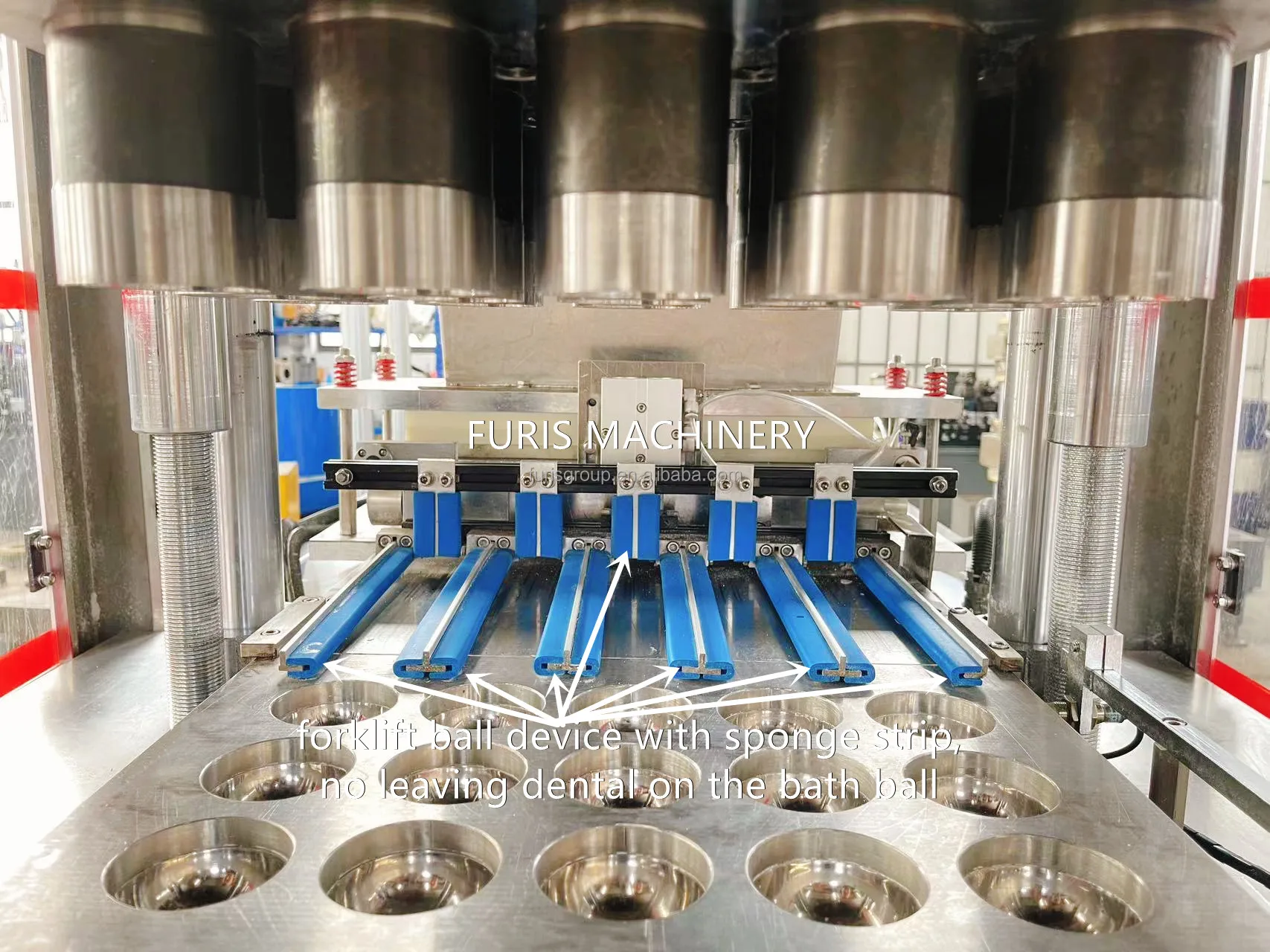

The process is full automatic,adopt the mechanical handle can auto take the bath bomb from the mould and put the bath bomb on the conveyor great save the labour force.

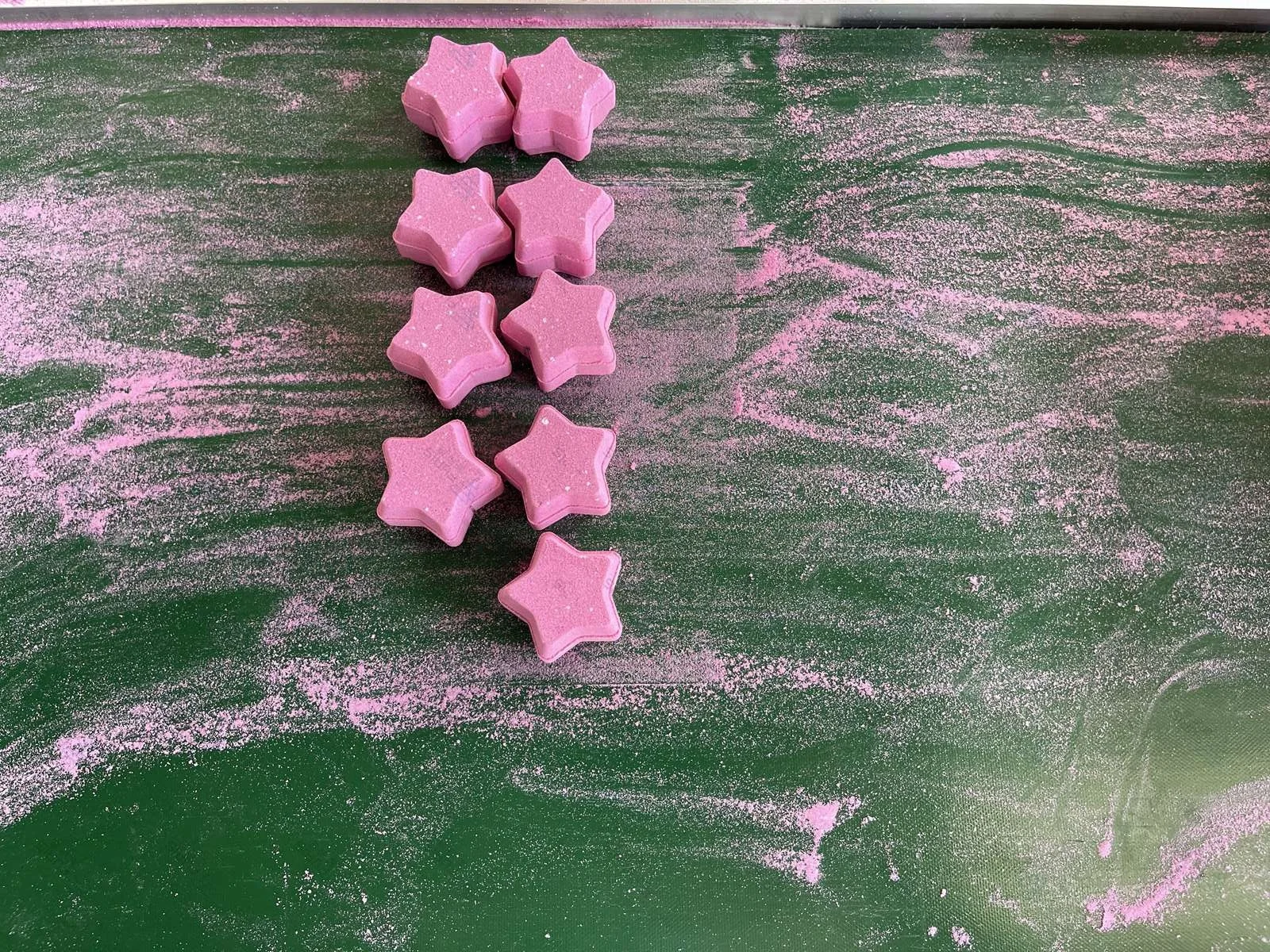

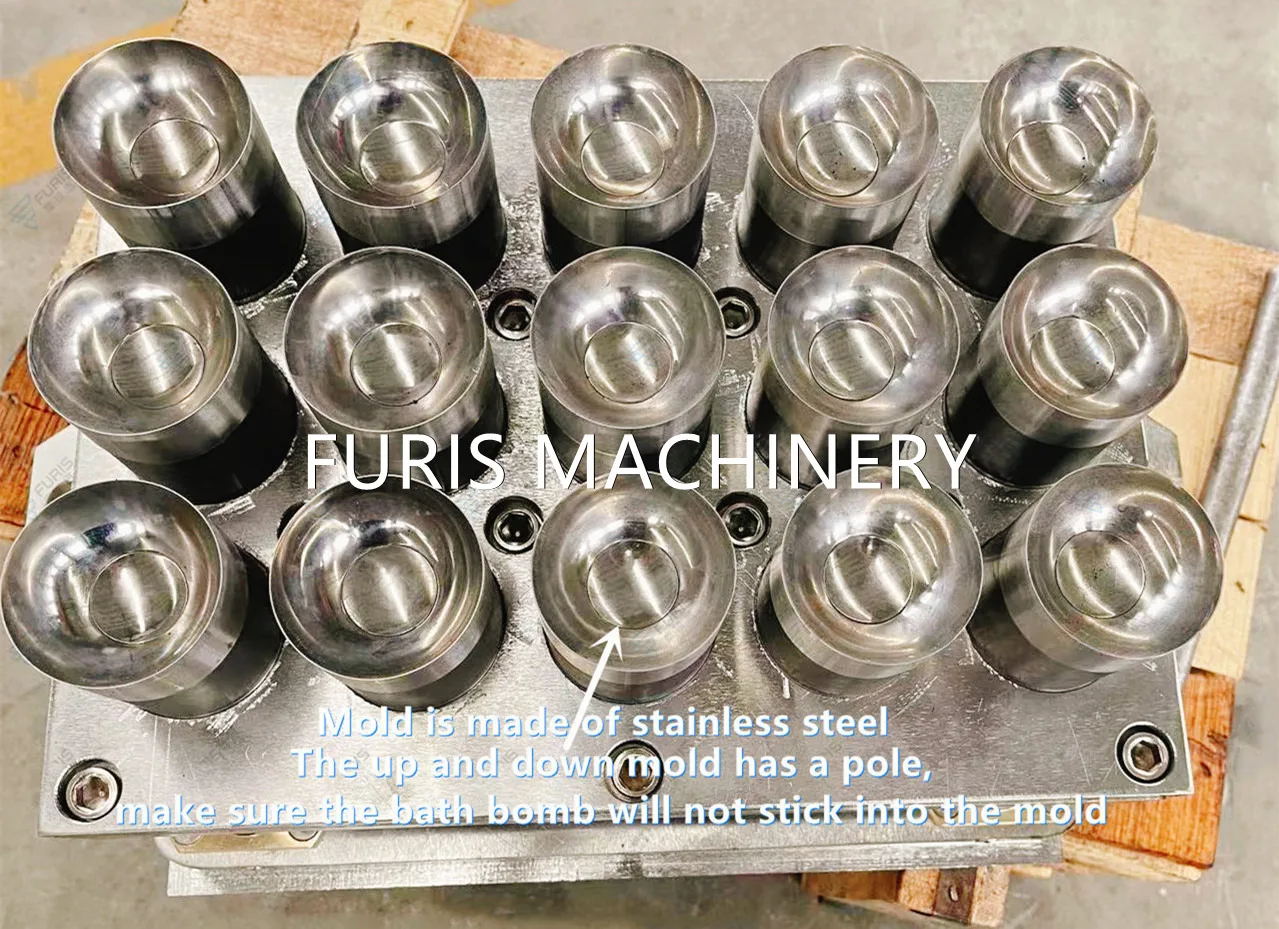

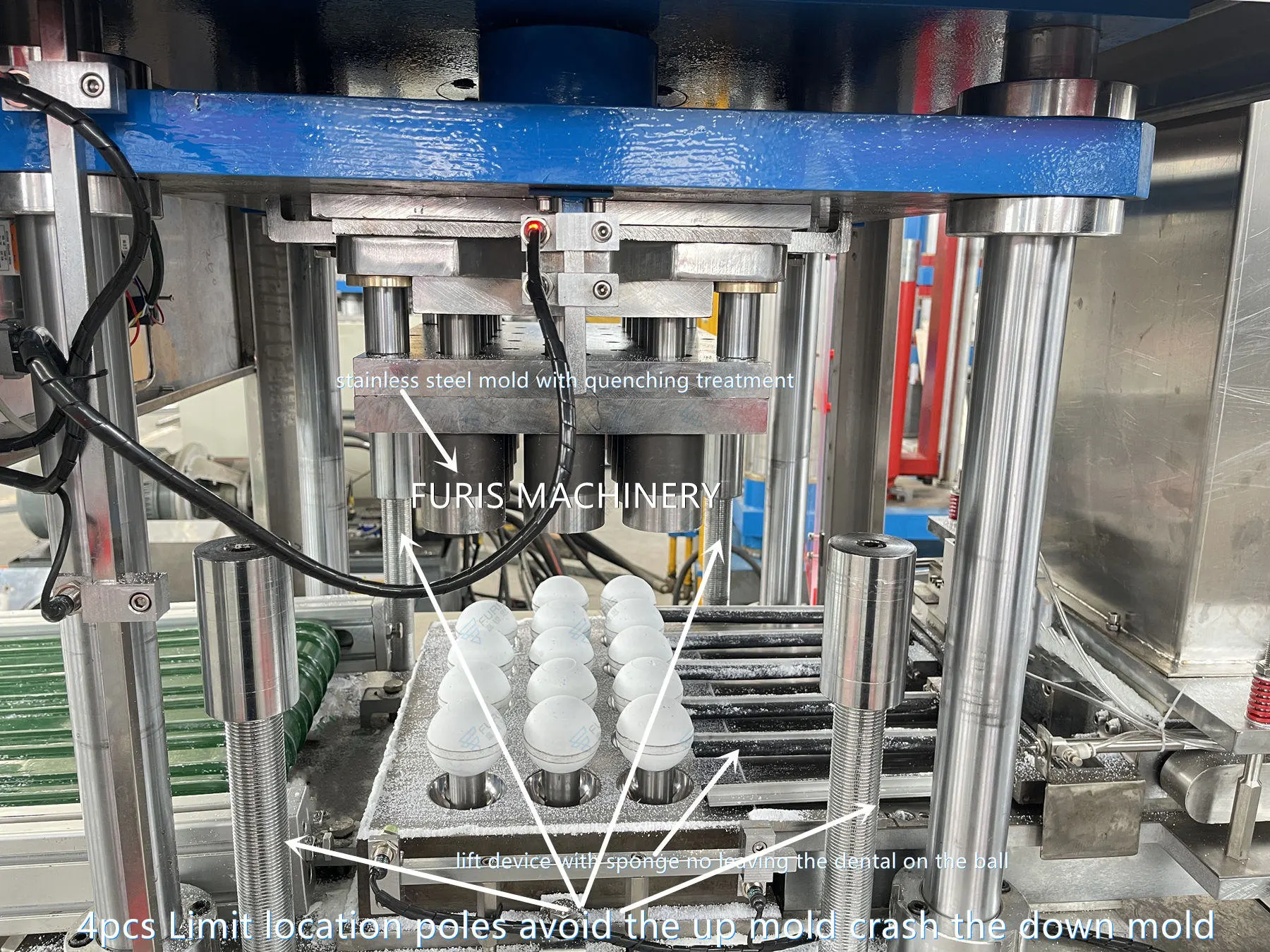

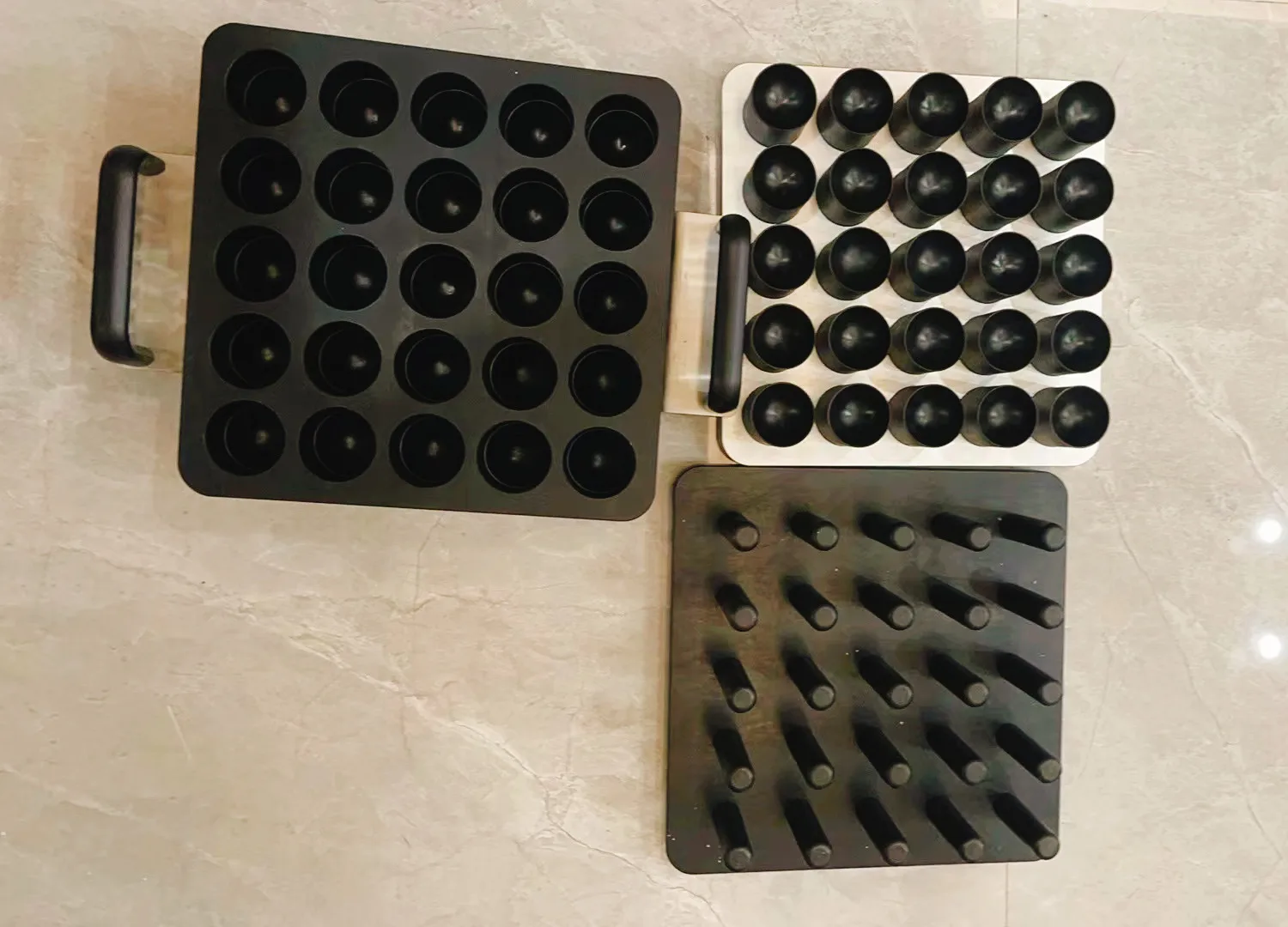

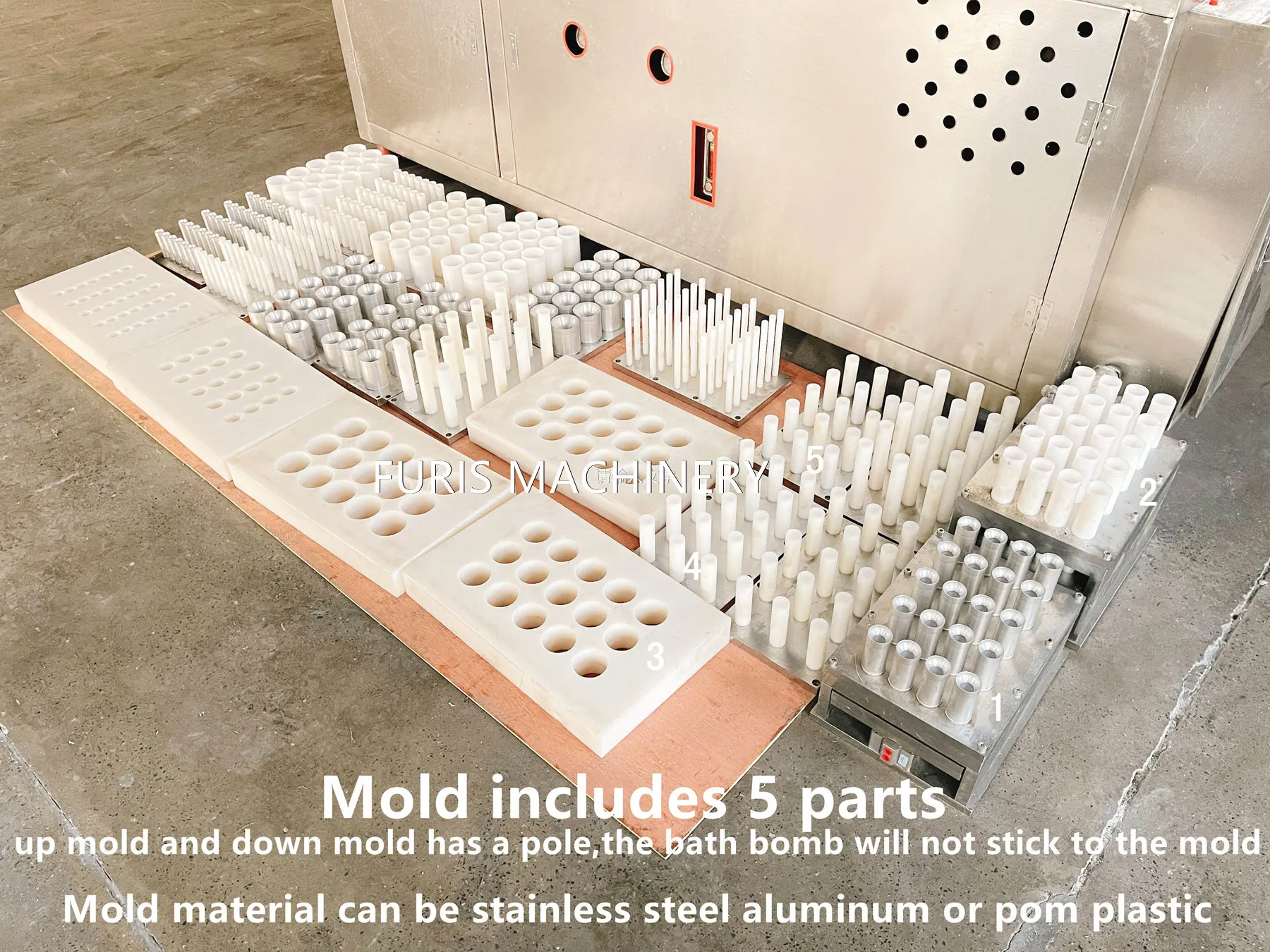

Through change the mould,the machine can press different shape and different size bath bomb.Can add extra feeder to make two color bath bomb
With auto stop function when the hand put into the machine mould
The machine cover is stainless steel,no rust for long time use.
Press time can be adjusted in the touch screen.
Adopt the imported hydraulic system make sure the machine can work stable and has long work life.
The process is full automatic,adopt the mechanical handle can auto take the bath bomb from the mould and put the bath bomb on the conveyor great save the labour force.
Through change the mould,the machine can press different shape and different size bath bomb.Can add extra feeder to make two color bath bomb
Adopt the servo motor system,the machine run very quiet,no noise,auto adjust the product thickness or height in touch screen.
Machinery cover and contact powder parts are all made from 304 stainless steel,the mold also can be Aluminum and POM plastic

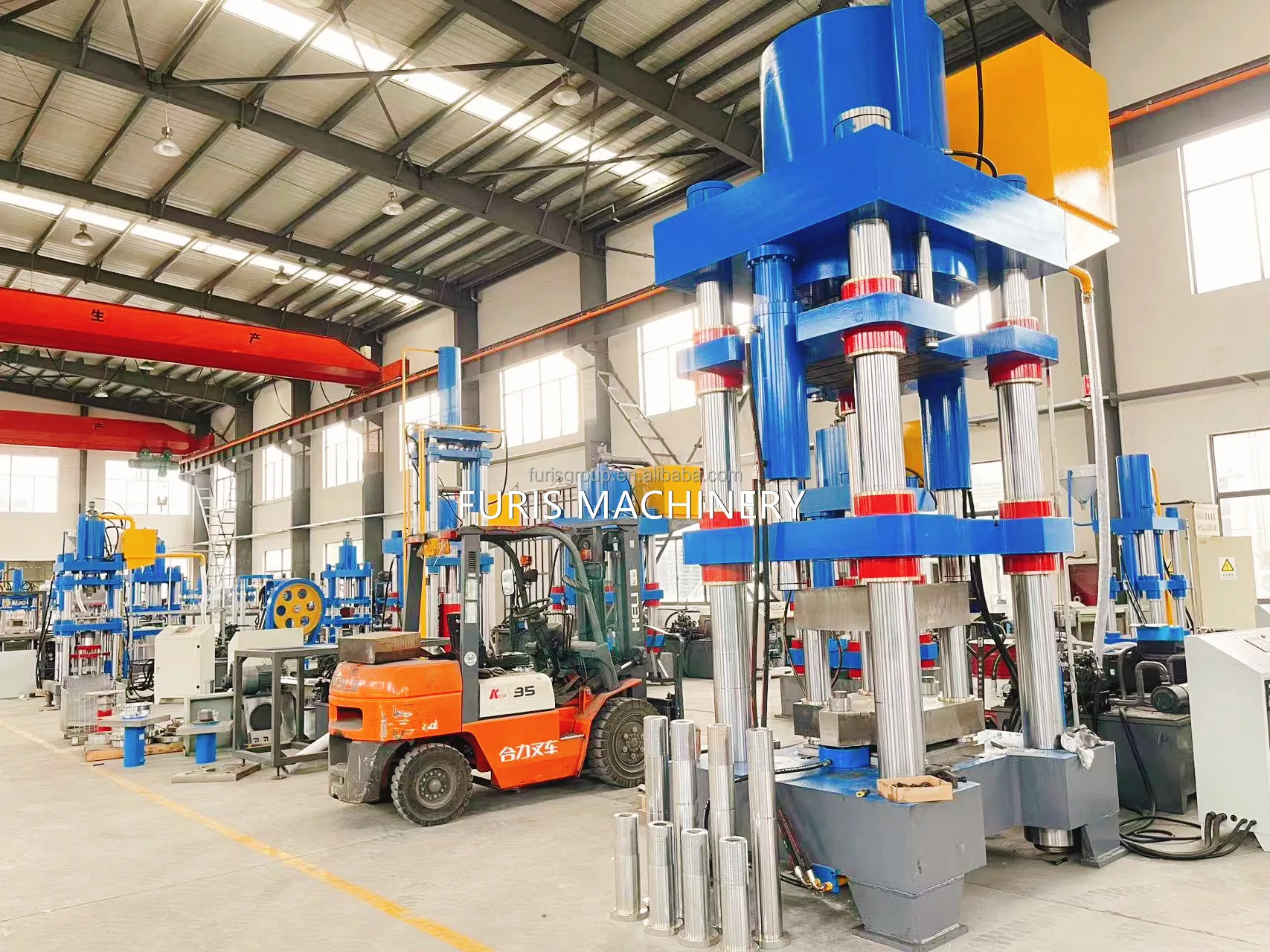

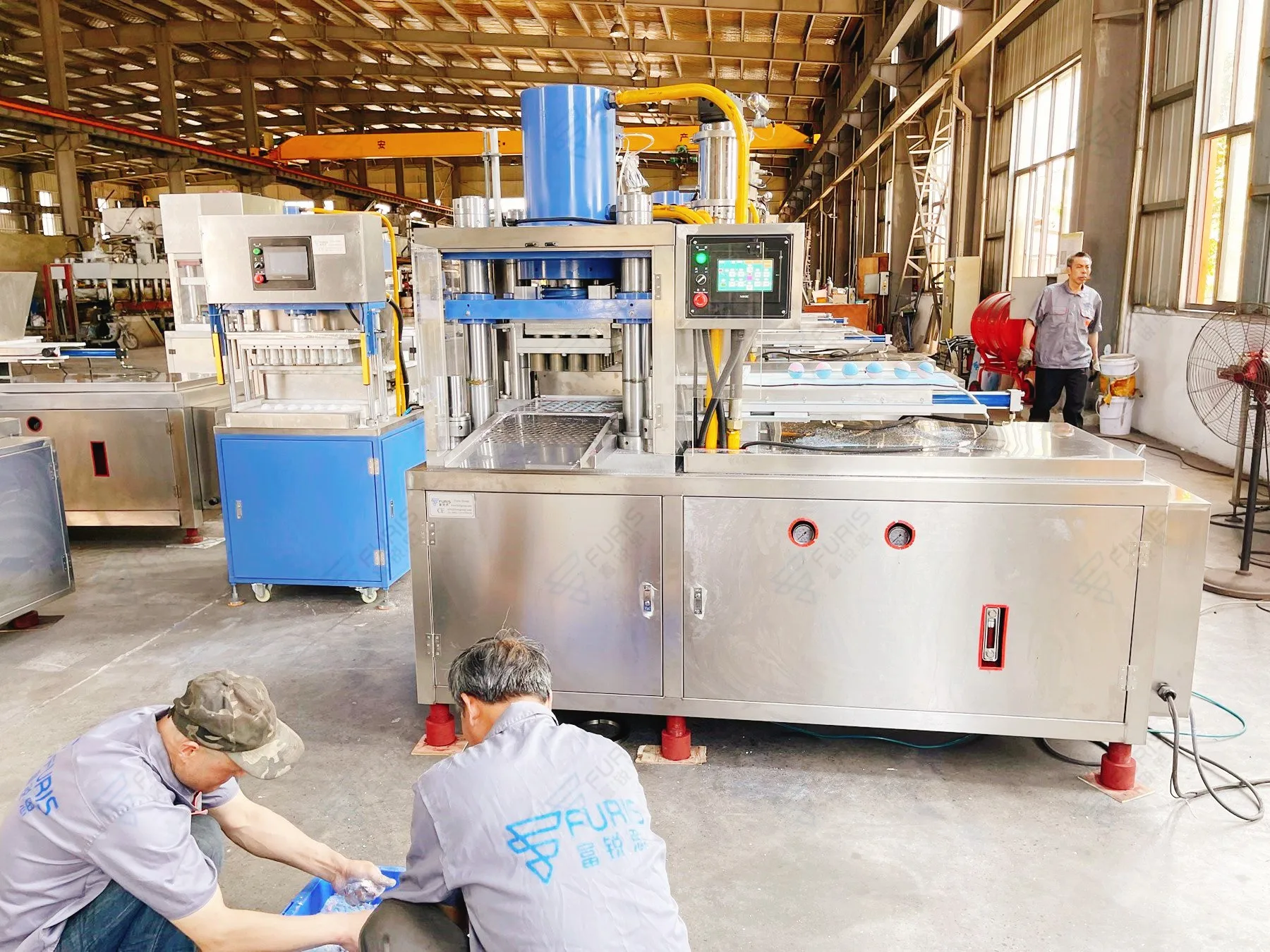

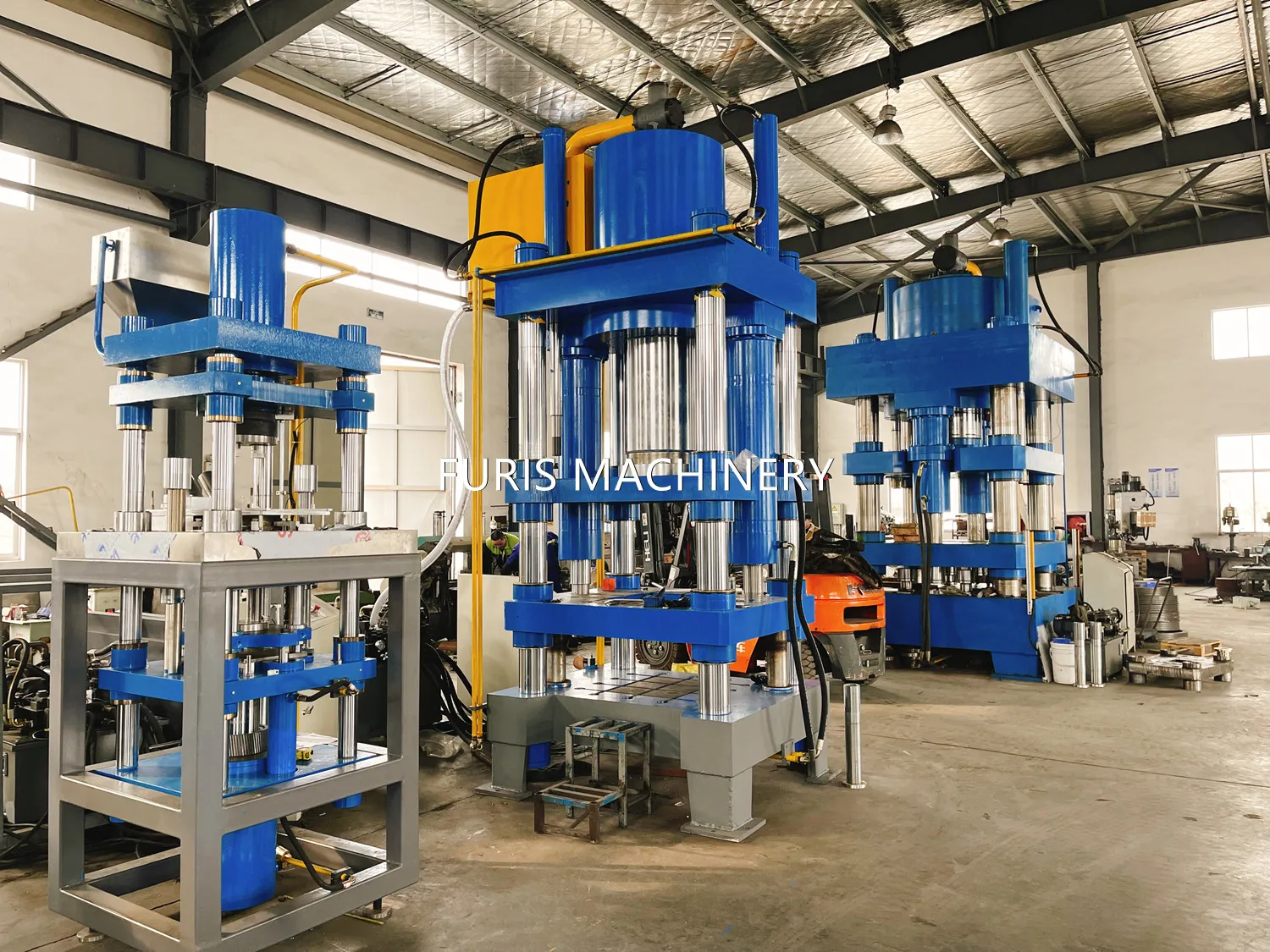

FRS-45 Full auto hydraulic press machine
Suit for press wet and dry powder both.
Compact dimension.simple operation,easy maintain.multy function.
Machine pressure can reach 45T (pressure can customize),the pressure can be adjusted in the touch screen
This machine can reach multi-cavity mould pressing, keep the same pressure, greatly improve production efficiency.
Adopts computer system control PLC control,touch screen operation, make the machine operation very easy.
Can work in automatic and manual two kind model
FRS-45 Full auto hydraulic press machine
Suit for press wet and dry powder both.
Compact dimension.simple operation,easy maintain.multy function.
Machine pressure can reach 45T (pressure can customize),the pressure can be adjusted in the touch screen
This machine can reach multi-cavity mould pressing, keep the same pressure, greatly improve production efficiency.
Adopts computer system control PLC control,touch screen operation, make the machine operation very easy.
Can work in automatic and manual two kind model
Adopt the Inovance servo motor system Japan Yuken oil pump and Yuling oil cooler,make the machine run very quiet more stable and more fast
With auto stop function when the hand put into the machine mould
The machine cover is stainless steel,no rust for long time use.
Press time can be adjusted in the touch screen.
Adopt the imported hydraulic system make sure the machine can work stable and has long work life.
The process is full automatic,auto feeding powder forming bath bomb and push the bath bomb out from machine.
Through change the mould,the machine can press different shape and different size bath bomb.Can add extra feeder to make two color bath bomb

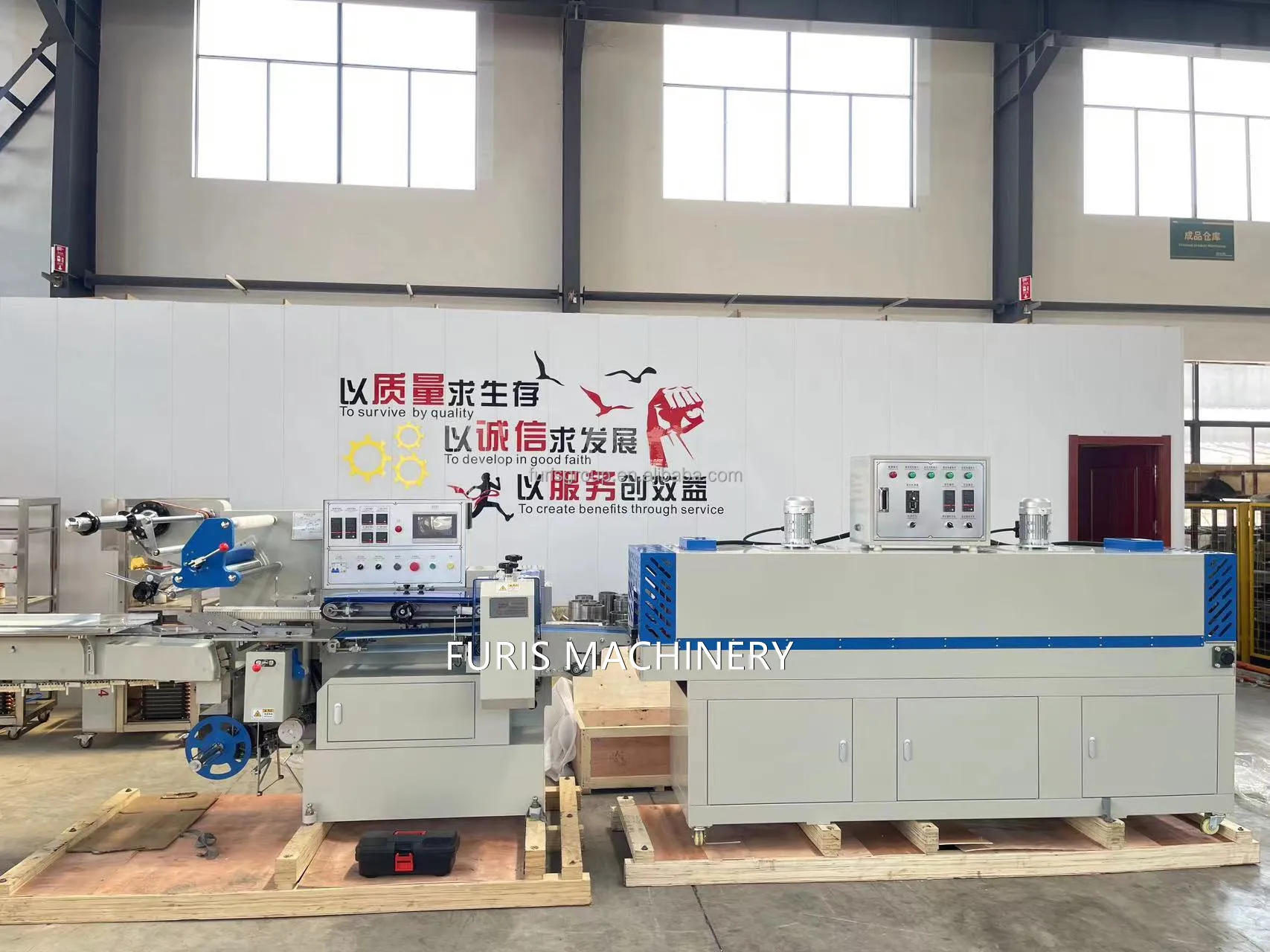

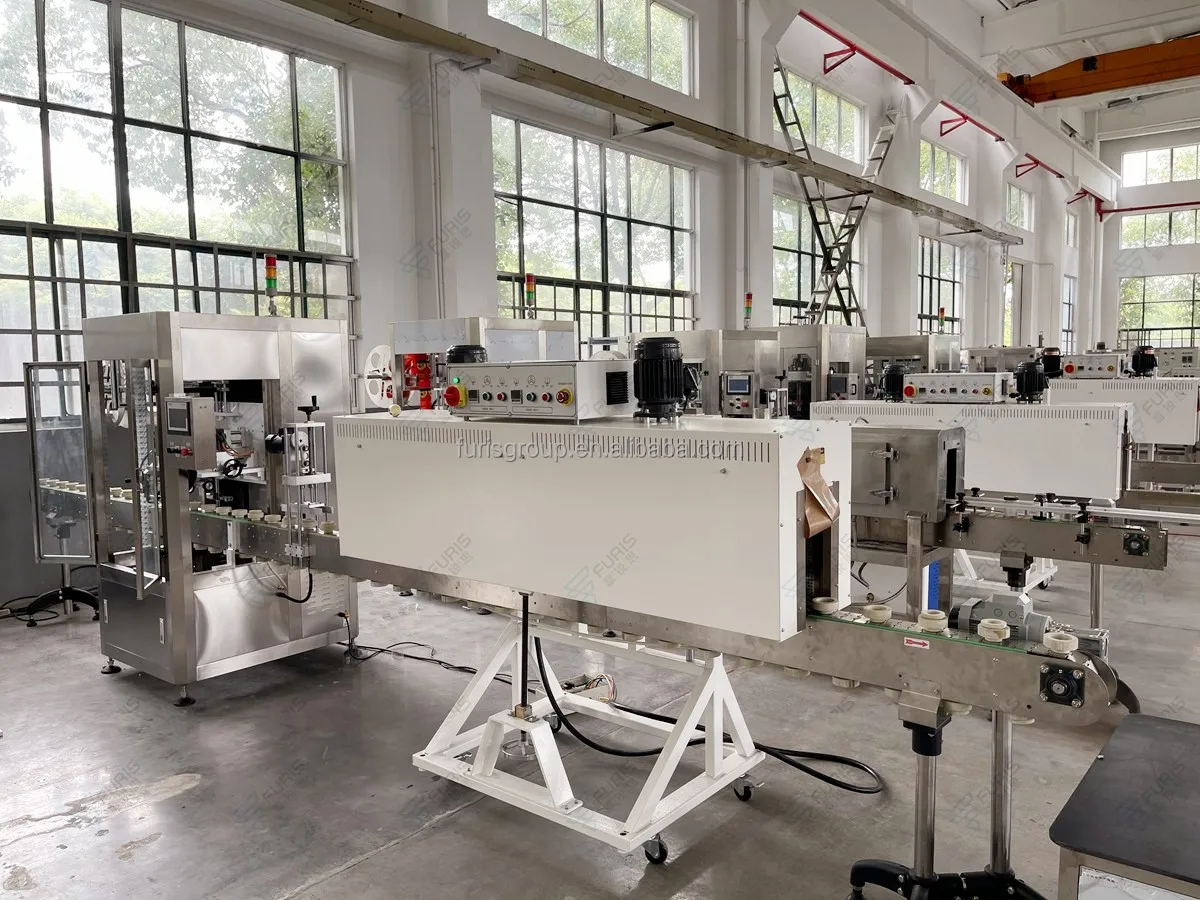

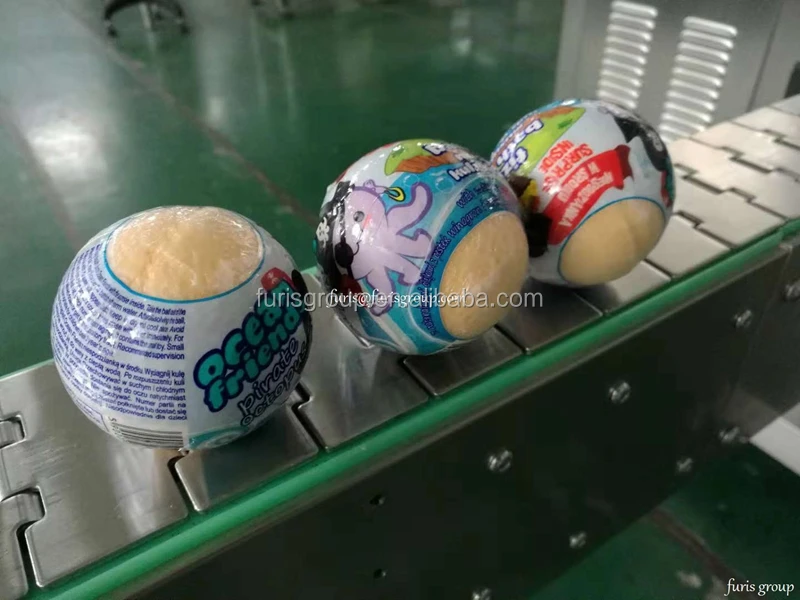

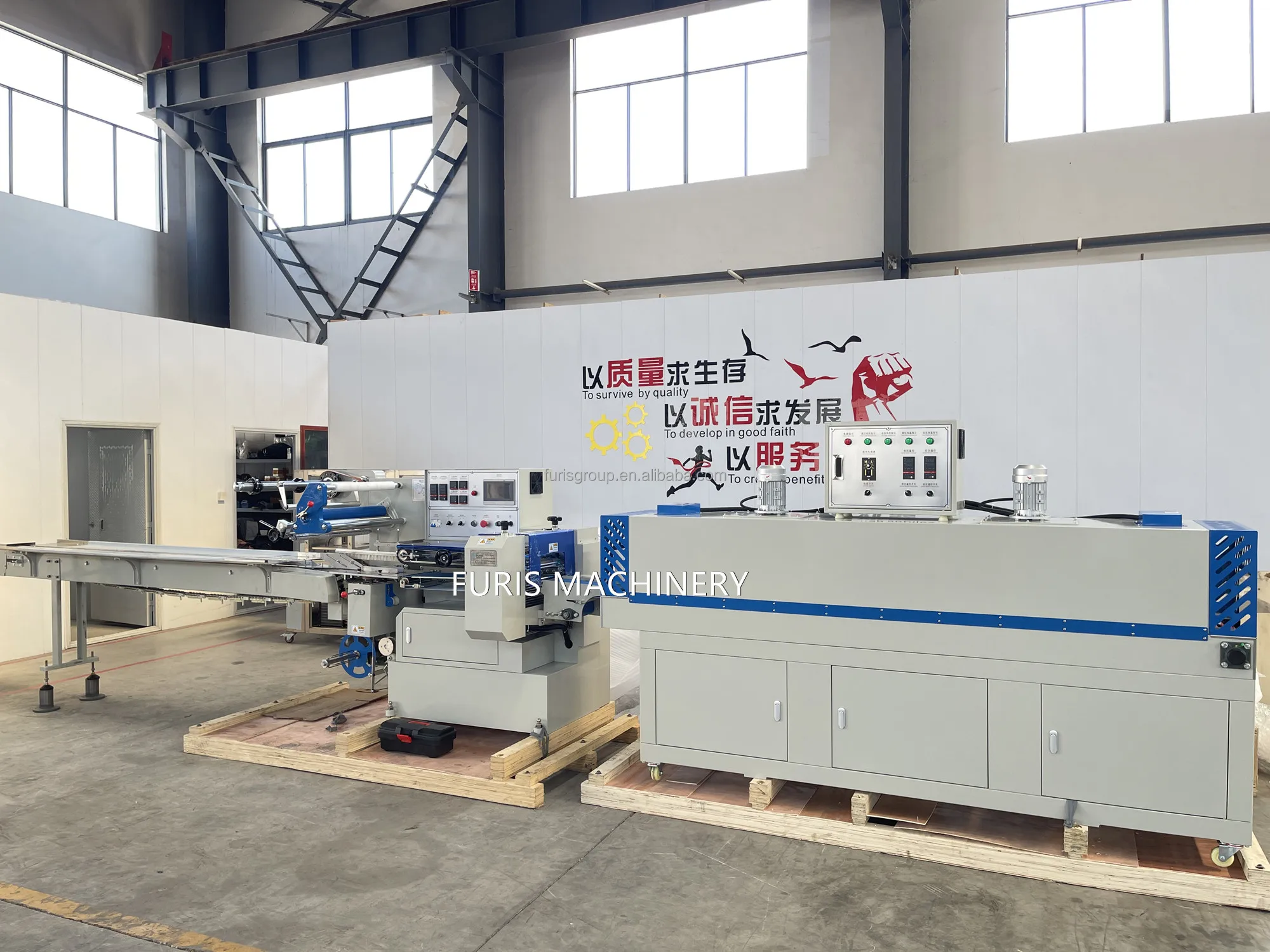

FRS-590 Shrink wrap machine：
The color touch screen control system, driven by
three servo motors, is easy to operate, high stability, high packaging efficiency and low failure rate. The bag length, speed and temperature can be adjusted independently, and the operation is convenient and accurate.
Cut-proof safety clutch without damaging packaging.
High sensitivity photoelectric eye color mark tracking, mathematically input the sealing position, so that the sealing position is more accurate.
Temperature independent PID control, better suitable for all kinds of coating materials.
Positioning stop function, no sticking knife, no waste of film.
The transmission system is simple, reliable and easy to maintain.
Cut to the product automatically reversed, restart directly after boot convenient operation.
Increase waste recycling device, make packaging more beautiful, save about 20% - 30% material than traditional folding packaging machine.
It can be equipped with a typewriter or a jet printer without manual use.
With motor brake control, the equipment is sensitive.
High efficiency double temperature zone, high efficiency hot air circulation, automatic temperature control to ensure the quality of shrinkage.
With auto stop function when the hand put into the machine mould
The machine cover is stainless steel,no rust for long time use.
Press time can be adjusted in the touch screen.
Adopt the imported hydraulic system make sure the machine can work stable and has long work life.
The process is full automatic,auto feeding powder forming bath bomb and push the bath bomb out from machine.
Through change the mould,the machine can press different shape and different size bath bomb.Can add extra feeder to make two color bath bomb
FRS-590 Shrink wrap machine：
The color touch screen control system, driven by
three servo motors, is easy to operate, high stability, high packaging efficiency and low failure rate. The bag length, speed and temperature can be adjusted independently, and the operation is convenient and accurate.
Cut-proof safety clutch without damaging packaging.
High sensitivity photoelectric eye color mark tracking, mathematically input the sealing position, so that the sealing position is more accurate.
Temperature independent PID control, better suitable for all kinds of coating materials.
Positioning stop function, no sticking knife, no waste of film.
The transmission system is simple, reliable and easy to maintain.
Cut to the product automatically reversed, restart directly after boot convenient operation.
Increase waste recycling device, make packaging more beautiful, save about 20% - 30% material than traditional folding packaging machine.
It can be equipped with a typewriter or a jet printer without manual use.
With motor brake control, the equipment is sensitive.
High efficiency double temperature zone, high efficiency hot air circulation, automatic temperature control to ensure the quality of shrinkage.
Product Paramenters
Model | FRS-2 | FRS-4 | FRS-5 | FRS-8 | FRS-45 | Model | FRS-590 | FRS-150 |
Feeder volume | / | / | 10L | 80L | 80L | Max film size | <590mm | 15mm width two layers |
Max pressure | 250kg | 500KG | 5Ton(the pressure customize) | 10Ton(the pressure customize) | 45Ton(the pressure can customize) | packing size | L:100mm-450mm w:10mm-200mm | Φ30-Φ150mm |
Max press bath bomb size | 8cm | 8cm | 15cm(customize) | 10cm(customize) | 20cm(customize) | Max packing bath bomb | 8cm customize | 150mm customize |
Capacity | 240pcs per hour | 420pcs per hour | 720pcs per hour(according to the bath bomb size 1.75'') | 5870pcs per hour(according to the bath bomb size 1.75'') | 5870pcs per hour(according to the bath bomb size 1.75'') | Capacity | Max200pcs/min | Max 200pcs/min |
Power | / | / | 50w | 3.5kw | 5kw | power | 20kw | 11kw |
Hydraulic oil | / | / | 46# | 46# | 46# | Film type | POF | PVC PE |
Air compressor | small | small | small | small | small | Air compressor | no need | no need |
Cylinder volume | 50L | 100L | 100L | |||||
Cooling type | air blow cooling | air blow cooling | air blow cooling | |||||
Machine weight | 10kg | 25kg | 200kg | 800kg | 1500kg | Machine weight | 1200kg | 1000kg |
Machine size | 40*10*50mm | 40*40*50mm | 700*650*1800mm | 1300*1650*1800mm | 1500*1000*1800mm | Machine size | 7500*1170*1500mm | 4000*1000*2000mm |
Customer Reviews
Customer Photos
Company Profile
Furis Machinery Group is a integrated the machine research and sales enterprise.We are a professional manufacturer for making personal care cosmetic packing machine and personal care products machine,etc.Our main product :bath bomb press packing line,detergent pod making machine,tube filling sealing machine,blister packing machine,etc. We own more than 10000 square meter modern standard factory,has 80 skillful workers.We strictly according to ISO9001:2002 quality management system to organize producing,the machines gets the CE certification.The advanced equipment, high manufacture technology and prefect inspection system assures products quality and precision.With complete production equipment,stable quality,reliable performance and good after service.
Certifications
FAQ
Q: Why can't form the bath bomb well use your machine?
A: Most new customers don't know make the bath bomb need use the citric acid powder,they buy the citric acid granule from market no grinding to powder.
A: We have own factory manufacturing pharma machine and packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.before ship the machine,we will let the machine run one week in our factory.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments.Pay 30%deposit after when finish the machine you can pay the balance before shipping.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q:How is your machine quality?
More than 15 years manufacturing experience,with rich experience engineer and good CNC machine to make the with machine stable
performance and high quality ,with good quality and competitive price let our machines with good comment from our customers,now
our machines mainly export to north American and western Europe.
Q:How is the machine guarantee and after service?
One year guarantee,in one year,if the spare parts break,we can send the new spare parts for free but the customer need pay the express fee.
Q:How is the after service?
We have several technicians who gets passport ready to travel all over world to offer service to you.have 24hours hot line for Technical Support.We get 18hours internet line for technical support. Video camera in workshop to help you adjust and solve machine problem in working situation.We have many agents can offer the technical support in local place all over the world.
