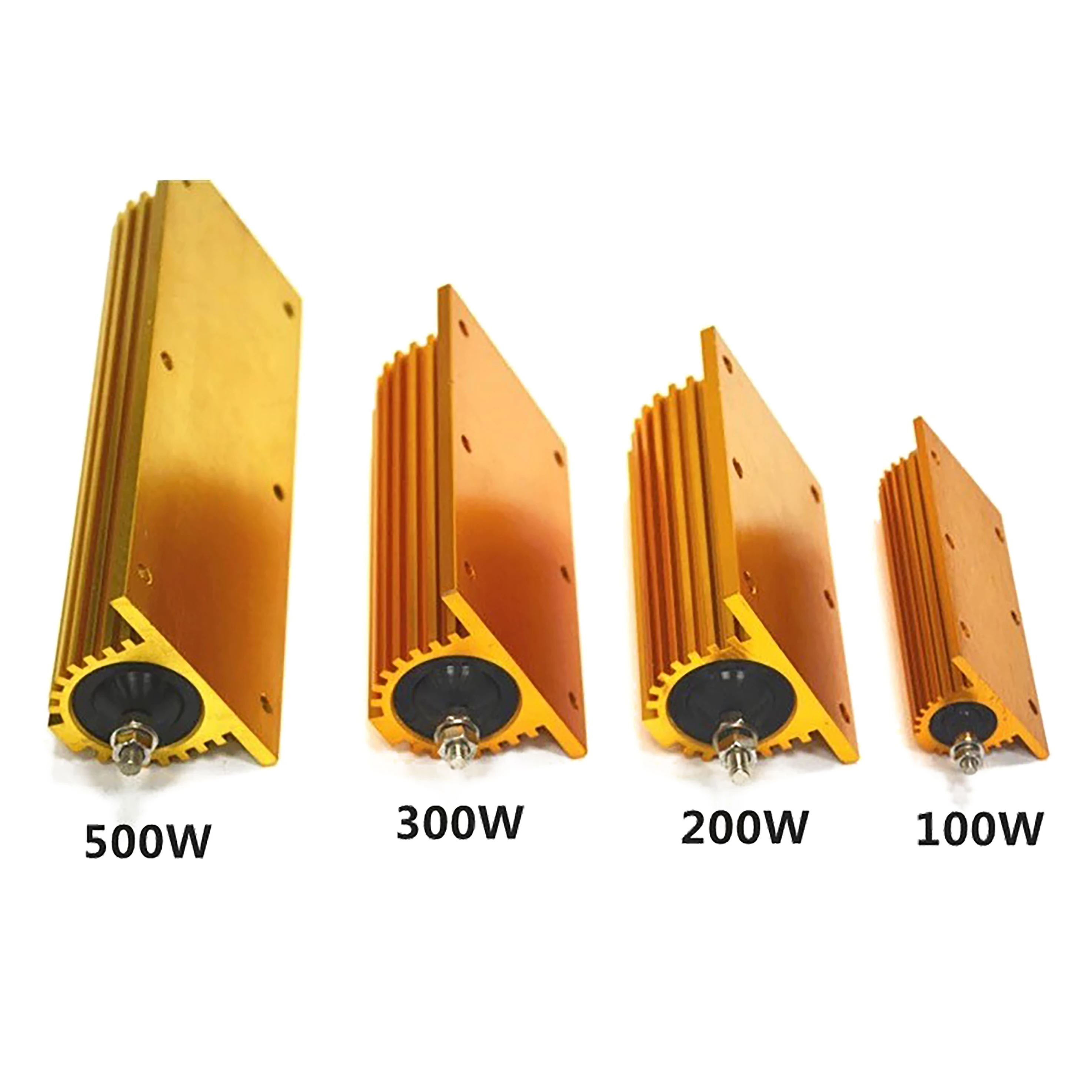

Rx24 gold 100W fixed wirewound inductive resistor
- Category: >>>
- Supplier: Shenzhen,Lorida,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Type | Rated power at 25°C(W) |
Range(Ω) |
Tolerance(%) | T.C.R. | Voltage(V) | |
with heatsink | Without heatsink | (x10-6/°C) | ||||
RX24 | 5W | 3 | 0.01~1K |
±1,±5 |
±100,±50 |
1000 |
10W | 8 | 0.01~1.5K | ||||
20W | 12.5 | 0.01~10K | ||||
30W | 15 | 0.01~27K | ||||
50W | 20 | 0.01~33K | ||||
RXG24 | 75W | 45 | 0.01~39K |
2000 | ||
100W | 50 | 0.01~51K | ||||
150W | 55 | 0.01~56K | ||||
200W | 50 | 0.01~62K | ||||
250W | 60 | 0.01~68K | ||||
300W | 75 | 0.01~75K | ||||
500W | 200 | 0.01~82K | ||||
Q1: Are you a trading company or manufacturer?
Lorida: We are a professional manufacturer of electrolytic capacitor since2007. We promise all products are original and brand newly.
Q 2:How can I get some samples ?
Lorida:We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.
Q3: What is your delivery time?
Lorida: There are no lead time for in-stock products.We can ship out within 1-3 days after you confirmed the payment.
Lorida:Customized product,we will ship out within our professional invoice show;
Q4: How about your warranty?
Lorida: Under standard operating condition, we guarantee no less than 1 year.
Q5 :What should we do if there are quality problems?
Lorida:If there is any quality problems or questions , we could offer technical support or return service.
Q6: Can you do OEM or ODM?
Lorida: OEM and ODM are both acceptable. Please contact us for more details.
Q7:Do you have a catalog?
Lorida:Yes. Please contact us for catalog and latest price list. Pls check here
Q8:Can we ask support if get trouble?
Lorida:Sure, if there is any quality problems or questions;we could offer technical support or return service
Q9:Can I print my LOGO on it?
Lorida: YES, LOGO/sticker/OEM/ODM welcomed
