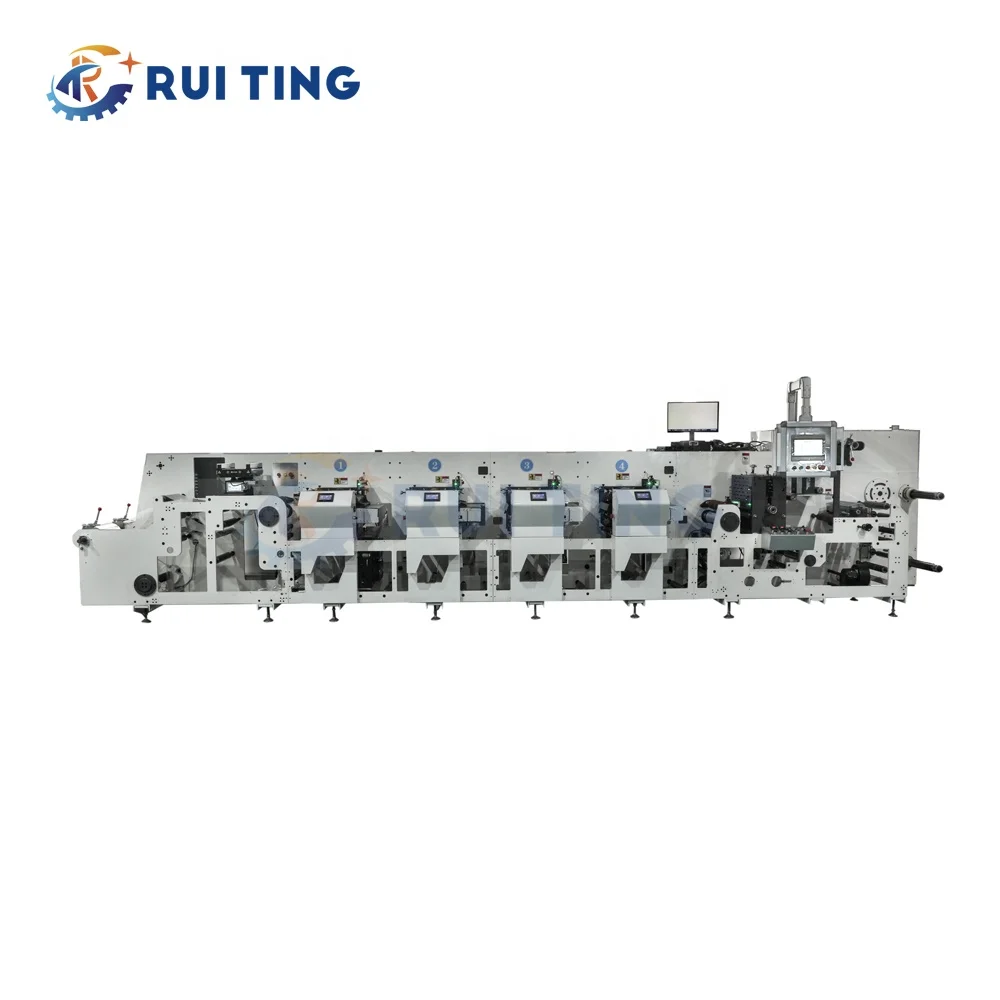

350mm self adhesive polypropylene selfadhesive paper inline flexo printing machineinline for 8 color flexographic printing press

Share on (1600792994535):


Price:$80,000.00

Quantity:


Product Overview

Description









Feature:
1.From the discharge to the receipt of the short distance.

2.The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.

3.Repeatedly printing the circumference of 190.5-635MM, filling the blank of the cascading flexographic printing machine, the
slanting trademark printing machine, the petal printing machine and the printing length.

4.The use of gear color to solve the 360-degree coloring device gap, assembly, wear, etc., affecting the color accuracy and printing instability.

5.From left to right: coil feeding, printing, curing, film cutting, winding a coherent completion .

6.Water-based ink UV ink printing, pollution-free, environmentally friendly, printing speed varies according to the network cable,the speed is also different, the fastest speed of printing labels is 90 meters per minute.Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.

8.Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.

9.Process:
1 discharging, 2 automatic constant tension, 3 scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 center receiving



Printer unit
Printer unit


Pre-register

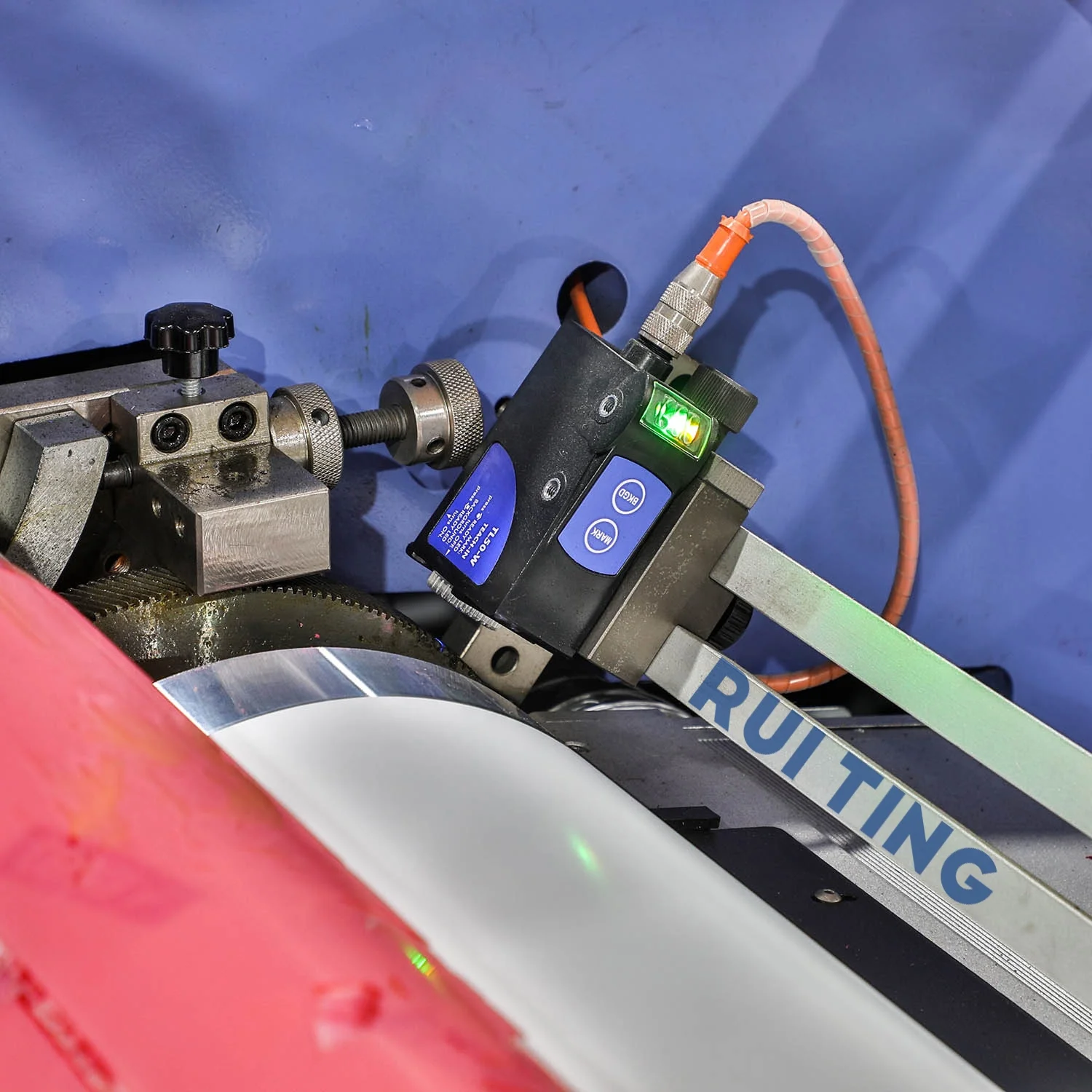

Color sensor

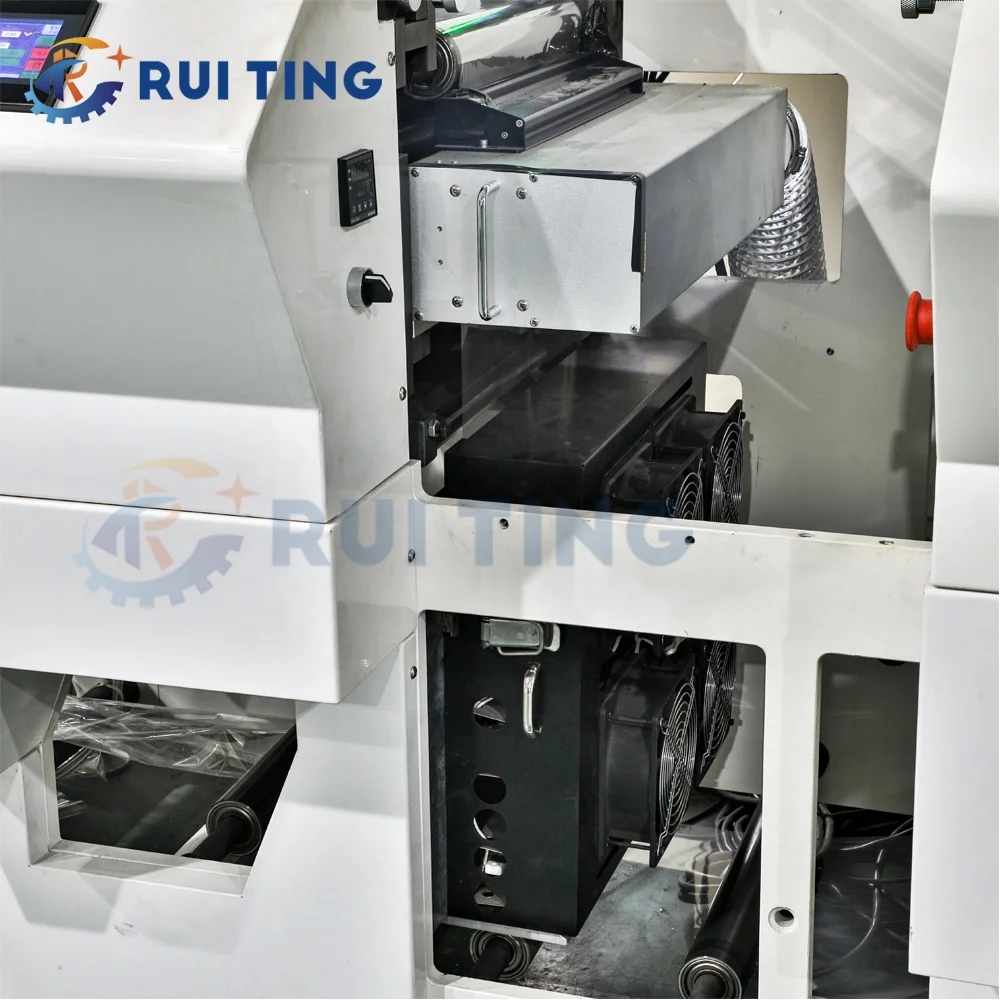

UV dryer
Cold stamping


Turn bar system
Delam relam

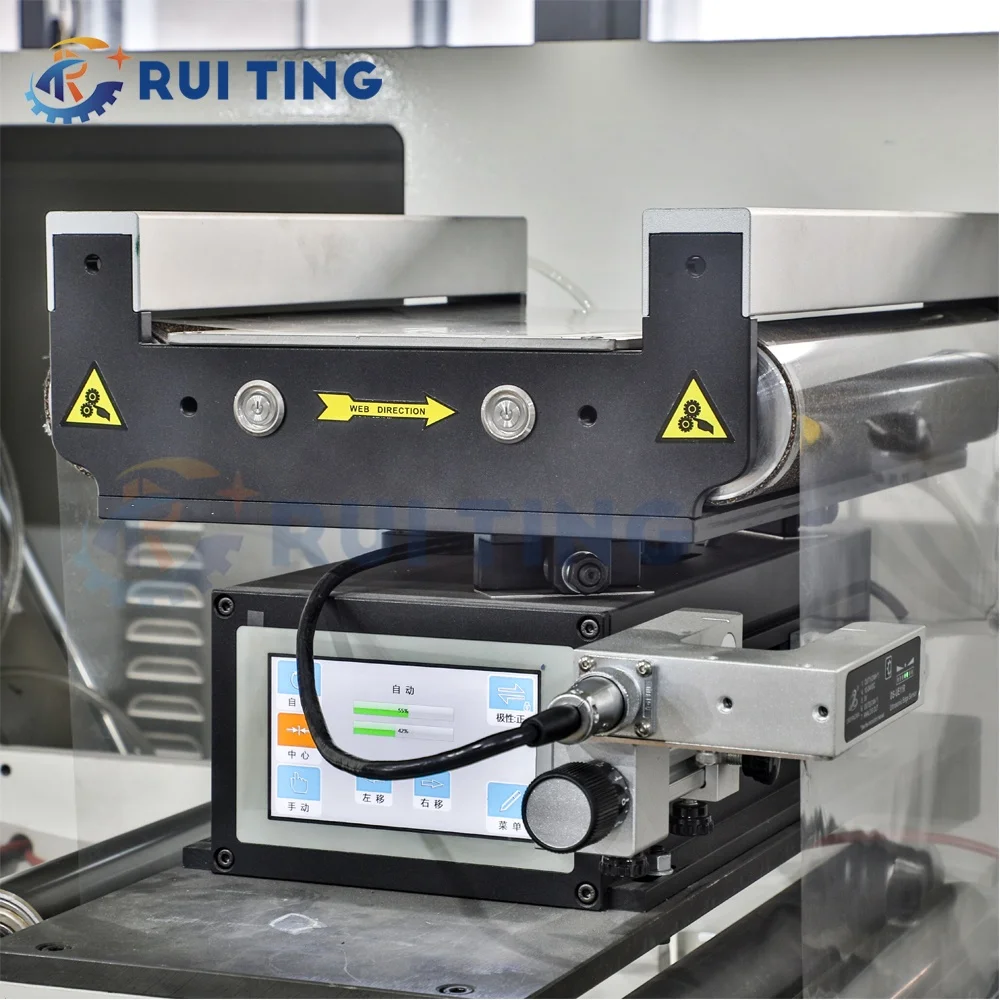

BST web guide system
Sheet conveyor


Rotary die cuuter station
Snow ball waste




Model
RTRY-350
Printing speed
160m/minute
Printing color number
8color
Max width of paper
350mm
Max printing wide
340mm
Max.printing girth
190.5-680mm
Plate thickness
1.7/1.14mm(special advance notice)
Max unwinding diameter
600mm
Max rewinding diameter
600mm
Drying heat source
electric heating
Overall dimension
10(L)×1.5(W)×1.292(H)m
Weight
5400kg
Body color
White (special advance notice)
Power supply
380V,3 phase,50HZ
