MYAMI MY K2050 20V 50A Motor aging test teaching battery charging mobile phone repair adjustable DC rectifier power supply
- Category: >>>
- Supplier: Guangzhou Myami Trading Co. Ltd.
Share on (1600793538995):
Product Overview
Description
MYAMI MY-K2050 20V 50A Motor aging test teaching battery charging mobile phone repair adjustable DC rectifier power supply
0-20V/0-50A variable/1000W
4LED digital
Application:
(1) Aerospace Testing
4LED digital
Application:
(1) Aerospace Testing
(2) Photovoltaic and energy storage system
(3) New energy vehicle
(4) Data center
(5) Industrial motor
(6) Power semiconductor module
(7) Automated test system (ATE)
(8) Lithium fuel cell
(9) Aging of electronic equipment
(10) Precision electroplating, splashing and surface treatment
(3) New energy vehicle
(4) Data center
(5) Industrial motor
(6) Power semiconductor module
(7) Automated test system (ATE)
(8) Lithium fuel cell
(9) Aging of electronic equipment
(10) Precision electroplating, splashing and surface treatment
Feature:
(1) Voltage and current can be preset;
(2) Voltage, current, power, equivalent resistance 4 Windows 4 high precision display at the same time;
(3) over voltage, over current, over power, over temperature, cornet 5 double protection;
(4) ON/OFF output on-off switch;

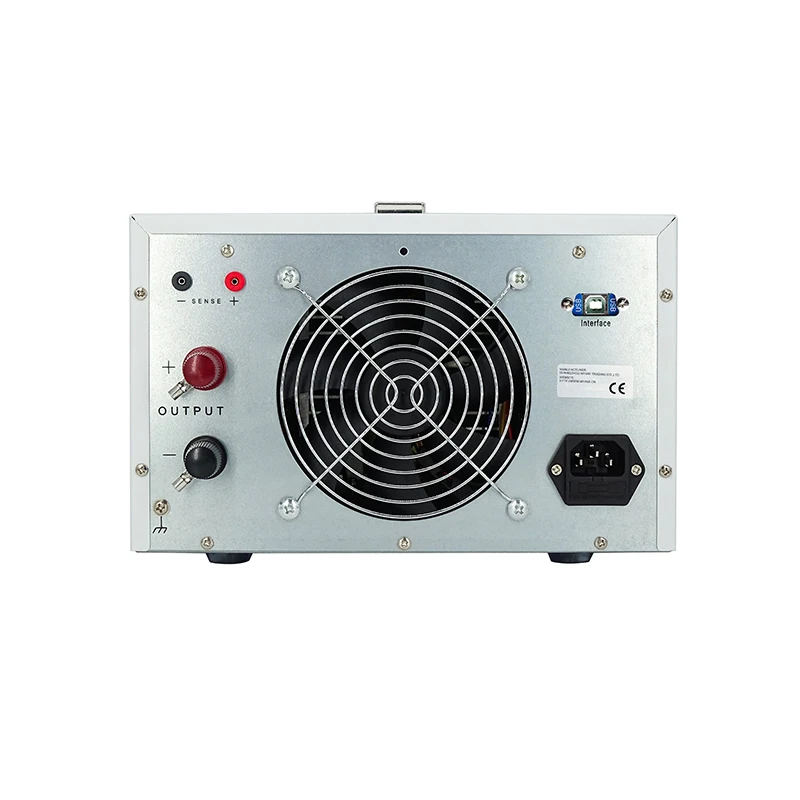

(5) SENSE compensation interface is optional at the back;
(6) It is equipped with communication serial port RS232 in the rear, and the upper computer software can control the output on and off and read the output voltage and current value;
(2) Voltage, current, power, equivalent resistance 4 Windows 4 high precision display at the same time;
(3) over voltage, over current, over power, over temperature, cornet 5 double protection;
(4) ON/OFF output on-off switch;
(5) SENSE compensation interface is optional at the back;
(6) It is equipped with communication serial port RS232 in the rear, and the upper computer software can control the output on and off and read the output voltage and current value;
Specification
Rated DC output (0℃~ 40℃) | ||
Voltage | 0-20V | |
Current | 0-50A | |
Voltage stability | ≤±(0.2%+0.05V) | |
Current stability | ≤±(0.5%+0.05A) | |
Load stability | ≤0.5% | |
Ripple & noise | ≤1% | |
Display resolution | ||
Voltage resolution | 10mV | |
Current resolution | 10mA | |
Power resolution | 1mW | |
Load resistance | 1mR | |
Operating environment | ||
Elevation | ≤2000m | |
Relative humidity | ＜80% | |
Environment temperature | 5℃~ 40℃ | |
Storage environment | ||
Environment temperature | -20~ 80℃ | |
Relative humidity | ≤80% | |
Power input | ||
Input | AC220V±10%,50Hz (or AC110V input or AC100V/220V manual switch) | |
Size | ||

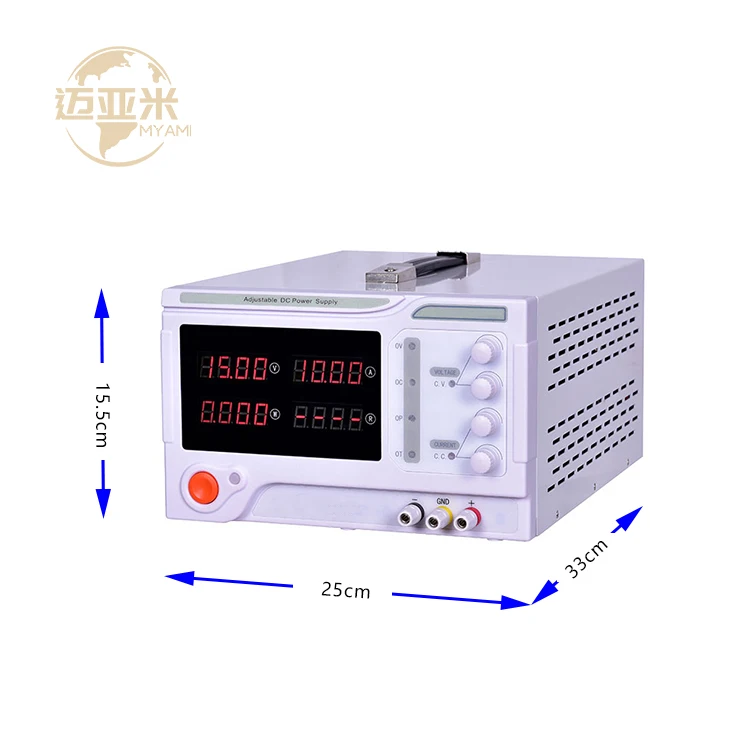

Fuselage size | 330(D)×250(W)×155(H)mm | |
Package size | 430(D)×330(W)×250(H)mm | |
Weight | 5.5Kg | |
Product Details
Model | Voltage | Current | Display | Accuracy |
MY-K1560 | 0-15V | 0-60A | 4 LED | ≤±(0.2%+0.05V) |
MY-K15100 | 0-15V | 0-100A | 4 LED | ≤±(0.2%+0.05V) |
MY-K2050 | 0-20V | 0-50A | 4 LED | ≤±(0.2%+0.05V) |
MY-K3020 | 0-30V | 0-20A | 4 LED | ≤±(0.2%+0.05V) |
MY-K3030 | 0-30V | 0-30A | 4 LED | ≤±(0.2%+0.05V) |
MY-K3050 | 0-30V | 0-50A | 4 LED | ≤±(0.2%+0.05V) |
MY-K3060 | 0-30V | 0-60A | 4 LED | ≤±(0.2%+0.05V) |
MY-K3080 | 0-30V | 0-80A | 4 LED | ≤±(0.2%+0.05V) |
MY-K30100 | 0-30V | 0-100A | 4 LED | ≤±(0.2%+0.05V) |
MY-K30150 | 0-30V | 0-150A | 4 LED | ≤±(0.2%+0.05V) |
MY-K30200 | 0-30V | 0-200A | 4 LED | ≤±(0.2%+0.05V) |
MY-K5020 | 0-50V | 0-20A | 4 LED | ≤±(0.2%+0.05V) |
MY-K5030 | 0-50V | 0-30A | 4 LED | ≤±(0.2%+0.05V) |
MY-K5050 | 0-50V | 0-50A | 4 LED | ≤±(0.2%+0.05V) |
MY-K5060 | 0-50V | 0-60A | 4 LED | ≤±(0.2%+0.05V) |
MY-K6010 | 0-60V | 0-10A | 4 LED | ≤±(0.2%+0.05V) |
MY-K6015 | 0-60V | 0-15A | 4 LED | ≤±(0.2%+0.05V) |
MY-K6020 | 0-60V | 0-20A | 4 LED | ≤±(0.2%+0.05V) |
MY-K6030 | 0-60V | 0-30A | 4 LED | ≤±(0.2%+0.05V) |
MY-K6050 | 0-60V | 0-50A | 4 LED | ≤±(0.2%+0.05V) |
MY-K6060 | 0-60V | 0-60A | 4 LED | ≤±(0.2%+0.05V) |
MY-K8030 | 0-80V | 0-30A | 4 LED | ≤±(0.2%+0.05V) |
MY-K10005 | 0-100V | 0-5A | 4 LED | ≤±(0.2%+0.05V) |
MY-K10010 | 0-100V | 0-10A | 4 LED | ≤±(0.2%+0.05V) |
MY-K10020 | 0-100V | 0-20A | 4 LED | ≤±(0.2%+0.05V) |
MY-K10030 | 0-100V | 0-30A | 4 LED | ≤±(0.2%+0.05V) |
MY-K12010 | 0-120V | 0-10A | 4 LED | ≤±(0.2%+0.05V) |
MY-K12020 | 0-120V | 0-20A | 4 LED | ≤±(0.2%+0.05V) |
MY-K12030 | 0-120V | 0-30A | 4 LED | ≤±(0.2%+0.05V) |
MY-K15005 | 0-150V | 0-5A | 4 LED | ≤±(0.2%+0.05V) |
MY-K15010 | 0-150V | 0-10A | 4 LED | ≤±(0.2%+0.05V) |
MY-K20002 | 0-200V | 0-2A | 4 LED | ≤±(0.2%+0.05V) |
MY-K20003 | 0-200V | 0-3A | 4 LED | ≤±(0.2%+0.05V) |
MY-K20005 | 0-200V | 0-5A | 4 LED | ≤±(0.2%+0.05V) |
MY-K22010 | 0-220V | 0-10A | 4 LED | ≤±(0.2%+0.05V) |
MY-K30002 | 0-300V | 0-2A | 4 LED | ≤±(0.2%+0.05V) |
MY-K30003 | 0-300V | 0-3A | 4 LED | ≤±(0.2%+0.05V) |
MY-K30005 | 0-300V | 0-5A | 4 LED | ≤±(0.2%+0.05V) |
MY-K40002 | 0-400V | 0-2A | 4 LED | ≤±(0.2%+0.05V) |
MY-K40003 | 0-400V | 0-3A | 4 LED | ≤±(0.2%+0.05V) |
MY-K40005 | 0-400V | 0-5A | 4 LED | ≤±(0.2%+0.05V) |
MY-K50002 | 0-500V | 0-2A | 4 LED | ≤±(0.2%+0.05V) |
MY-K50003 | 0-500V | 0-3A | 4 LED | ≤±(0.2%+0.05V) |
MY-K50005 | 0-500V | 0-5A | 4 LED | ≤±(0.2%+0.05V) |
MY-K60002 | 0-600V | 0-2A | 4 LED | ≤±(0.2%+0.05V) |
MY-K60003 | 0-600V | 0-3A | 4 LED | ≤±(0.2%+0.05V) |
