Load Bank 400V 100KW Load Bank For Sale Used for Generator Testing
- Category: >>>
- Supplier: Hebei Kaixiang Electrical Technology Co. Ltd.
Share on (1600793563595):
Product Overview
Description

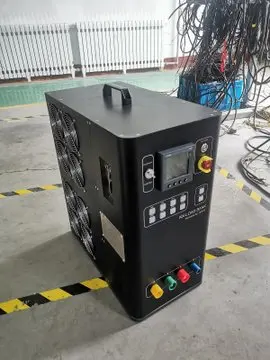

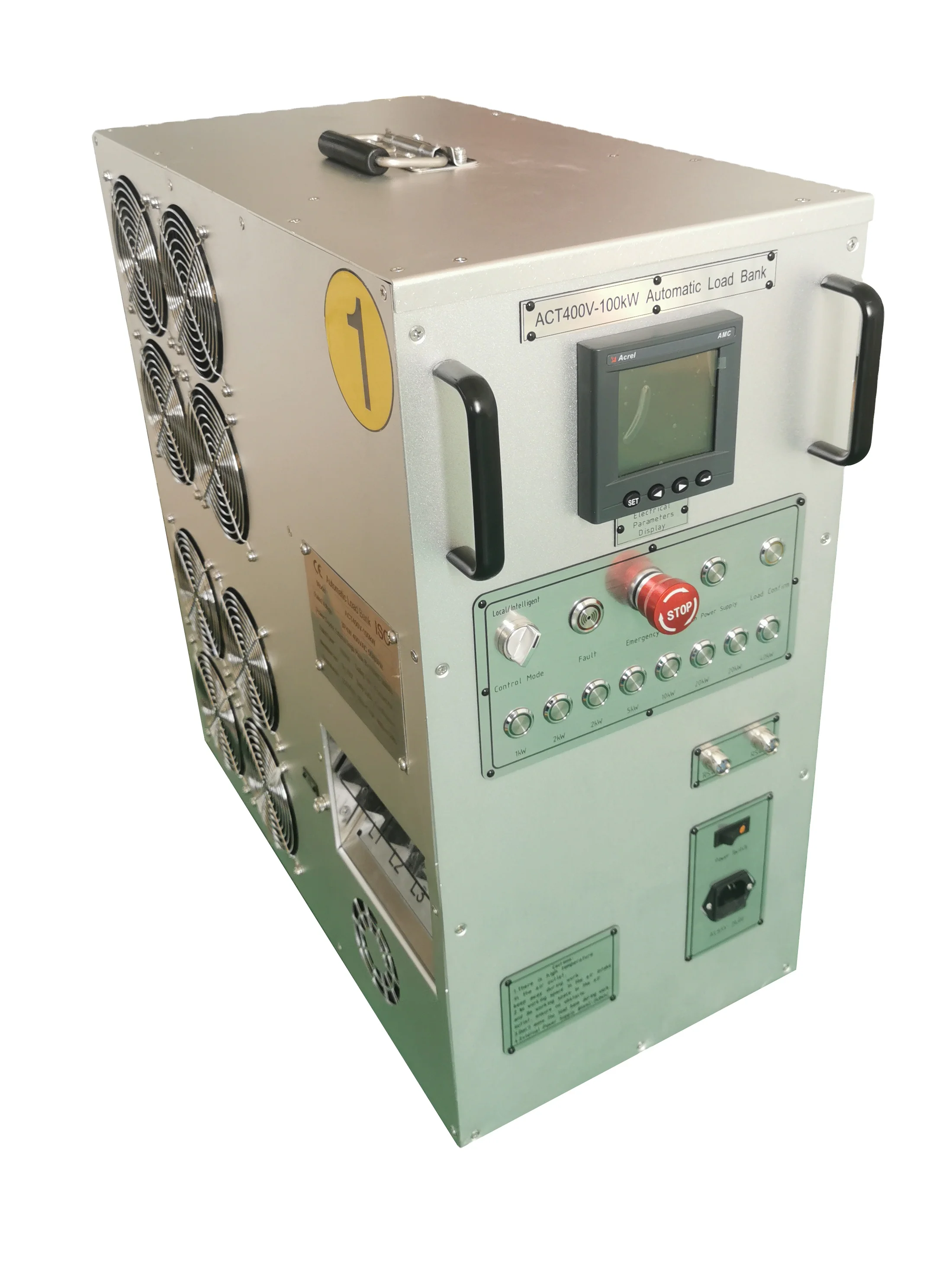

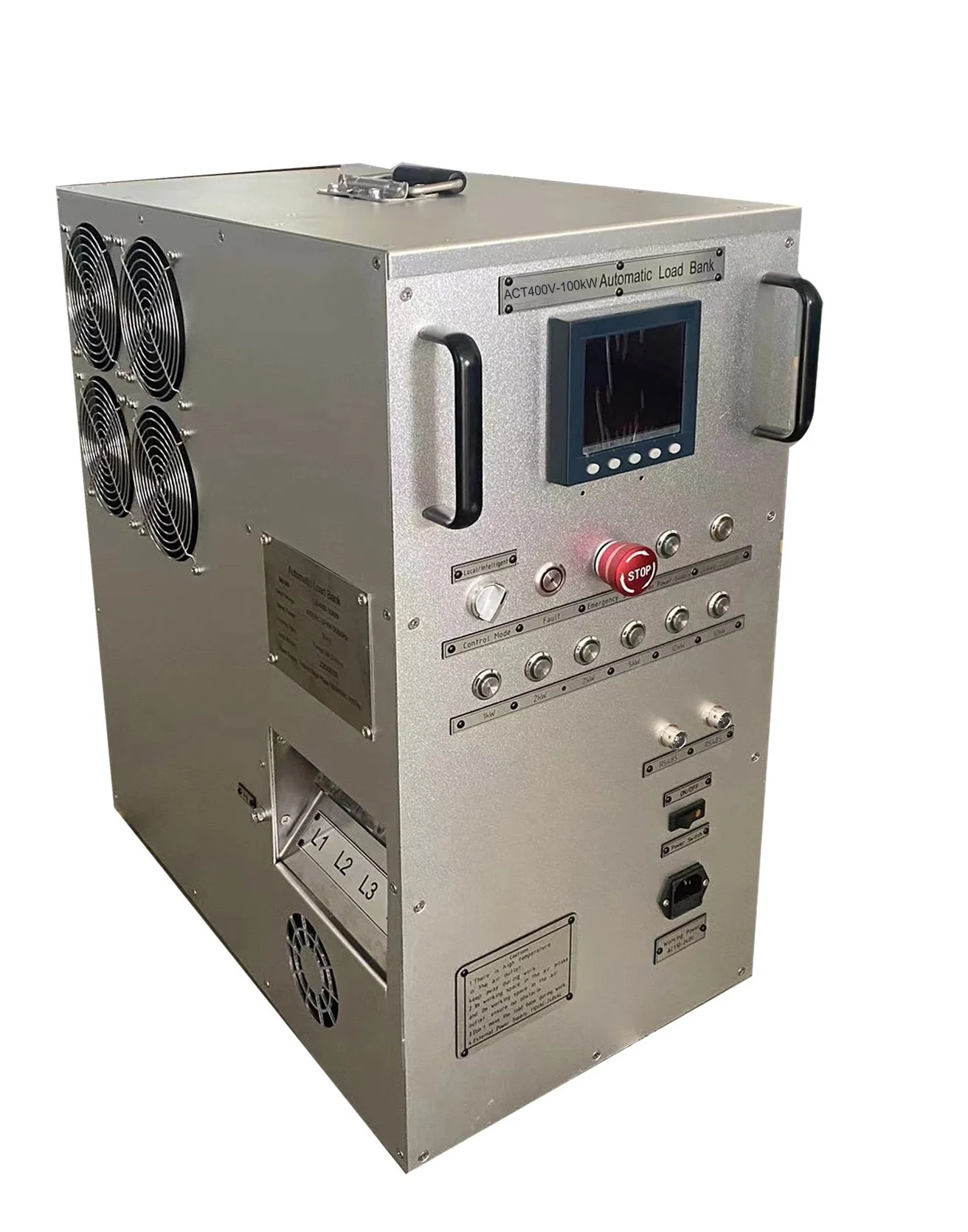

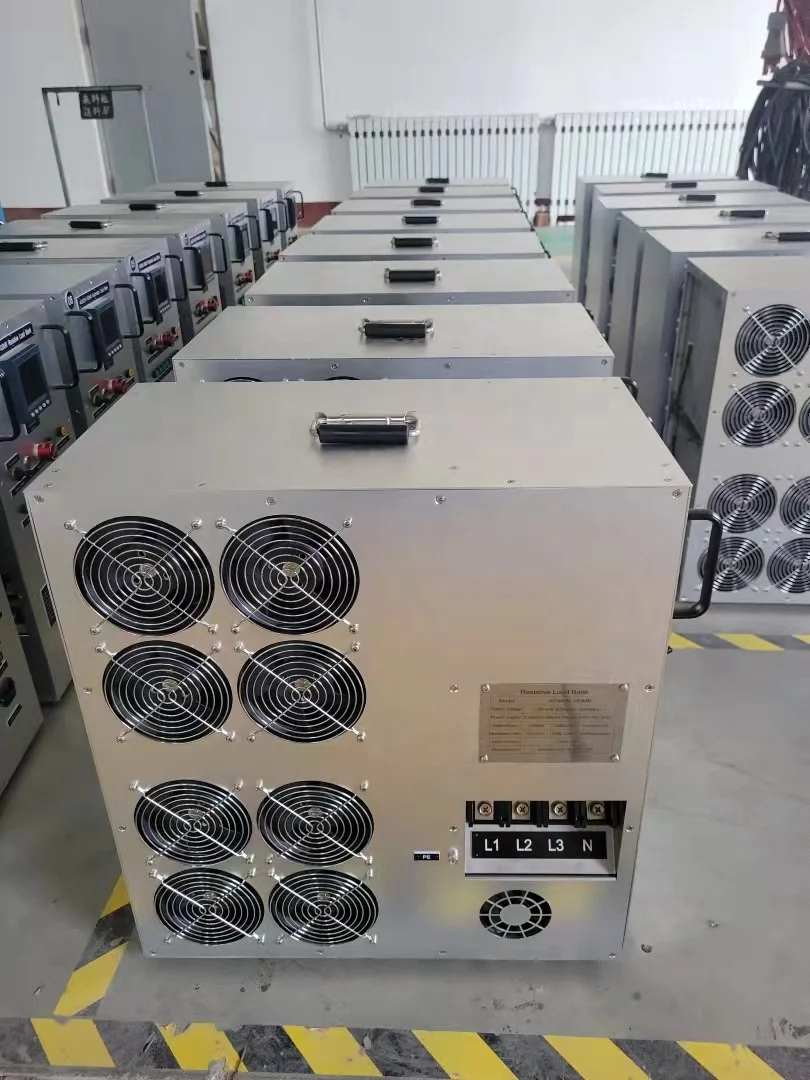

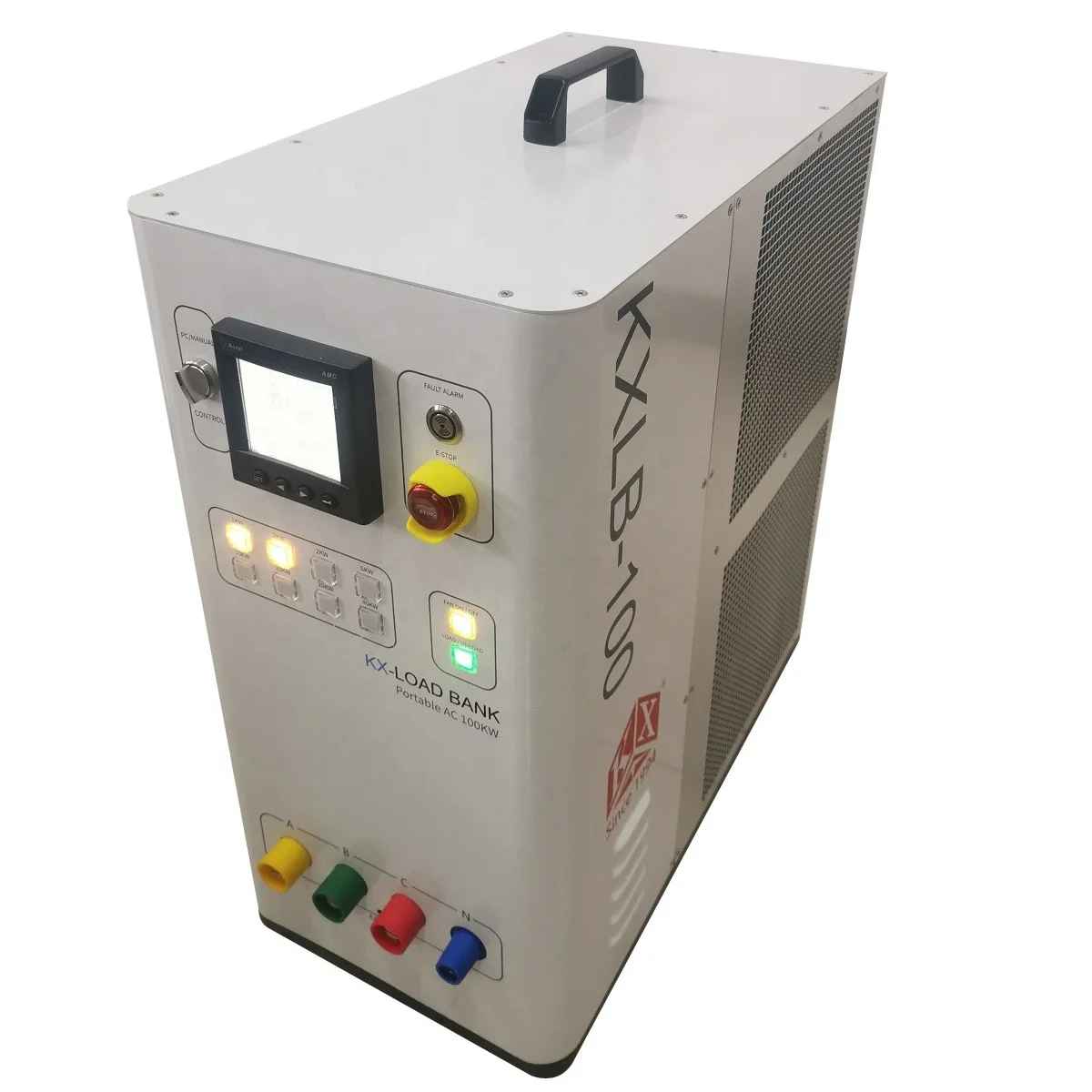

Load Bank 400V 100KW Load Bank For Sale Used for Generator Testing
Products Description
Introduction
Portable Load Banks Load Banks Direct, LLC is a leading manufacturer of high-capacity Load Banks. The Series of Portable Indoor Load Banks offers the most robust, high-capacity designs in the industry. It is setting the standard with intelligent operator controls, safety indication layouts, adjustable load step resolution, and lightweight designs. The Series of portable products is the perfect solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems.
Main functions
1. Users can set adjustable load power within rated power.
2. Current, voltage, frequency, power factor, and active power, reactive power, and apparent power can be displayed.
3. With software programmable control, graphs of current, voltage, frequency, power factor, power can be displayed, saved and printed.
Control mode: manual control (control panel) with remote control or PC intelligent control.
Display meters: multi-function digital meter or generator tester.
Protection: Over load protection, over heat protection, short circuit protection, Emergency stop switch, etc Force air cooling.
2. Current, voltage, frequency, power factor, and active power, reactive power, and apparent power can be displayed.
3. With software programmable control, graphs of current, voltage, frequency, power factor, power can be displayed, saved and printed.
Control mode: manual control (control panel) with remote control or PC intelligent control.
Display meters: multi-function digital meter or generator tester.
Protection: Over load protection, over heat protection, short circuit protection, Emergency stop switch, etc Force air cooling.
Specification
Rated Voltage & Frequency | 400VAC; 3 phase 4 wire, 50/60Hz |
Max Load Power | 100kW |
Load Resolution | 1, 2, 2, 5, 10, 20, 20, 40kW Min Step: 1kW |
Power Factor | 1 |
Load Tolerance (overall) | ±3% |
Fan Control Power | AC220V single phase 50/60Hz |
Wire Connection | Load bank input——terminal block Control power input——3-pin plug |
Communication Interface | RS485 |
Insulation | F |
Way of Working | Continuous Working |
Cooling | Forced air, horizontal air intake and cooling |
Transportation | With handle |
Dimensions | 540*292*582mm (L×W×H) |
Weight | About 35kgs |
Operating Environment Parameter | |
Ambient Temperature | -20℃~+50℃ |
Relative Humidity | ≤95% |
Atmospheric Pressure | 86~106kPa |
Ventilation Distance | 1-2 meters free of obstacles from air inlet, 3 meters free of obstacles from air outlet |
Safe Working Distance | There should be an isolation fence 1 meter away from the load bank, and there should be no idlers within 3-5 meters when the load bank is working. |
Brands of Main Components | |
Contactor | Schneider |
PLC | Siemens |
Alloy Resistor | (self-developing) |
Data Processing Software | (self-developing) |
Company Profile
Hebei Kaixiang Electrical Technology Co., Ltd is a leading manufacturer in emergency power supply test & maintenance industry.Specialized in the design, R&D, manufacture of the high capacity AC & DC load bank, it owns the professional intelligent power supply testing equipment R&D centre in China. Kaixiang offer one-stop solutions to generator set & battery & UPS power manufacturers.
Its products are widely used in data centre, shipbuilding, offshore platform, state grid, nuclear power, hospital, communication, railway etc filed. Kaixiang is strategy partner of many famous company, such as Cummins, Caterpillar, Kohler,Jiangnan Shipyard, CSSC,CSIC, State grid, China mobile, Tecent, Baidu, Sinopec, CETC etc. Some of its products have been exported to America, Singapore, Israel, Japan, United Kingdom, Saudi Arabia, Australia, South Korea, Thailand, Sri Lanka, Angola etc. Through years of development, “Triumph Load” already famous brand in power supply detection industry in China.

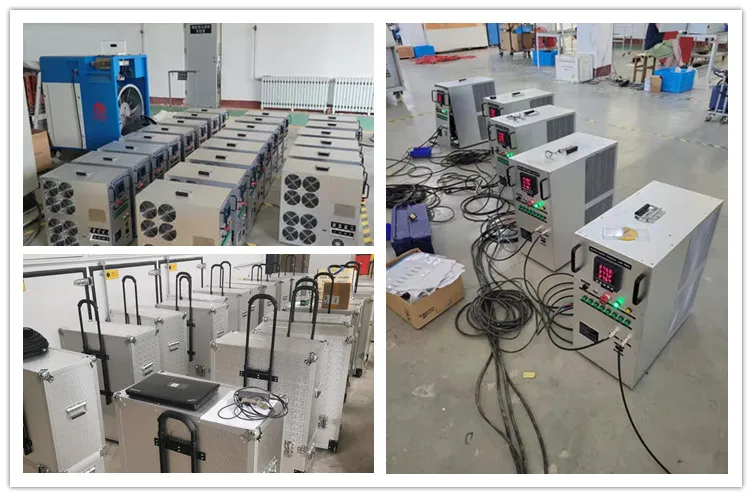

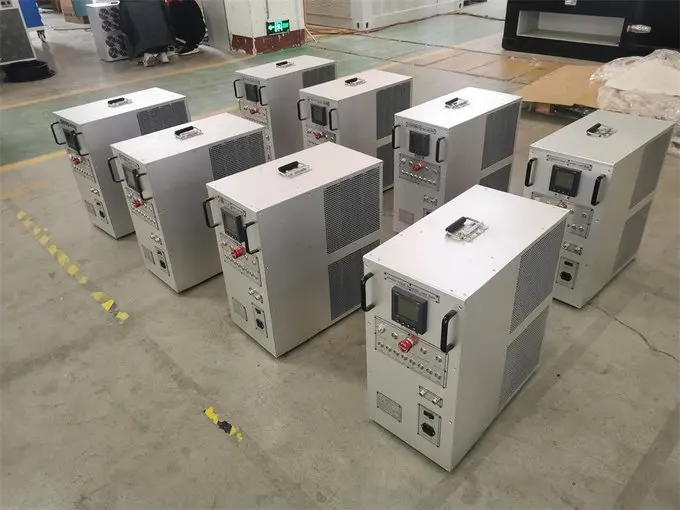

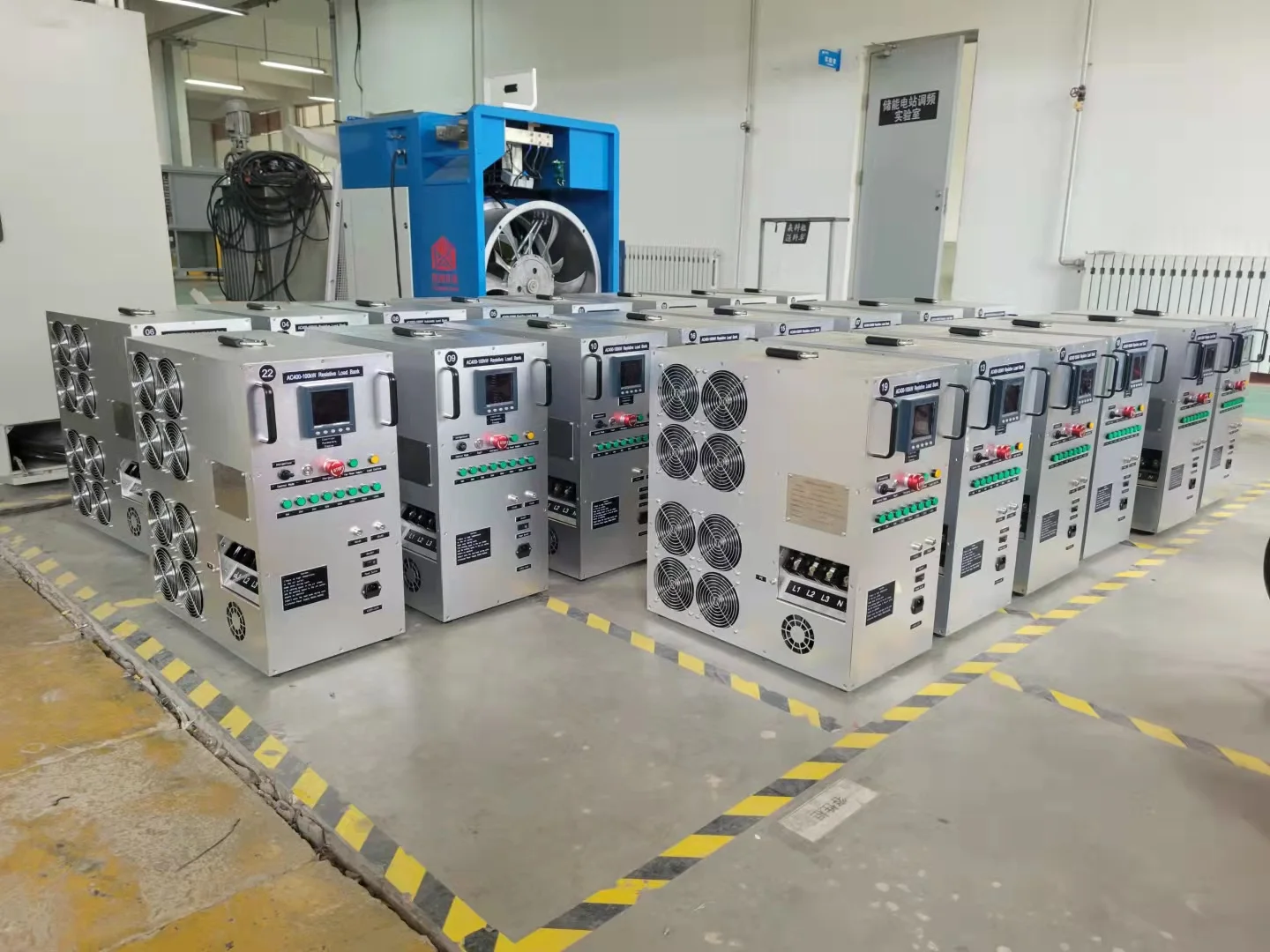

Workshop
Package and Transportation
Exhibition
Certifications
FAQ
Why choosing us
1. Professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
2. Lot of patent technology and scientific research awards gainer in China.
3. Advanced detection method and strict inspection procedure build the qualified quality.
4. Customized production meet the individual requirement.
5. Prompt delivery & excellent after sales service.
6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
7. Certified with China Classification Society (CCS) and ISO9001:2015 Quality Certificate.
8. Triumph Load is the famous brand in the emergency power supply test & maintenance industry in China.
2. Lot of patent technology and scientific research awards gainer in China.
3. Advanced detection method and strict inspection procedure build the qualified quality.
4. Customized production meet the individual requirement.
5. Prompt delivery & excellent after sales service.
6. Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
7. Certified with China Classification Society (CCS) and ISO9001:2015 Quality Certificate.
8. Triumph Load is the famous brand in the emergency power supply test & maintenance industry in China.
