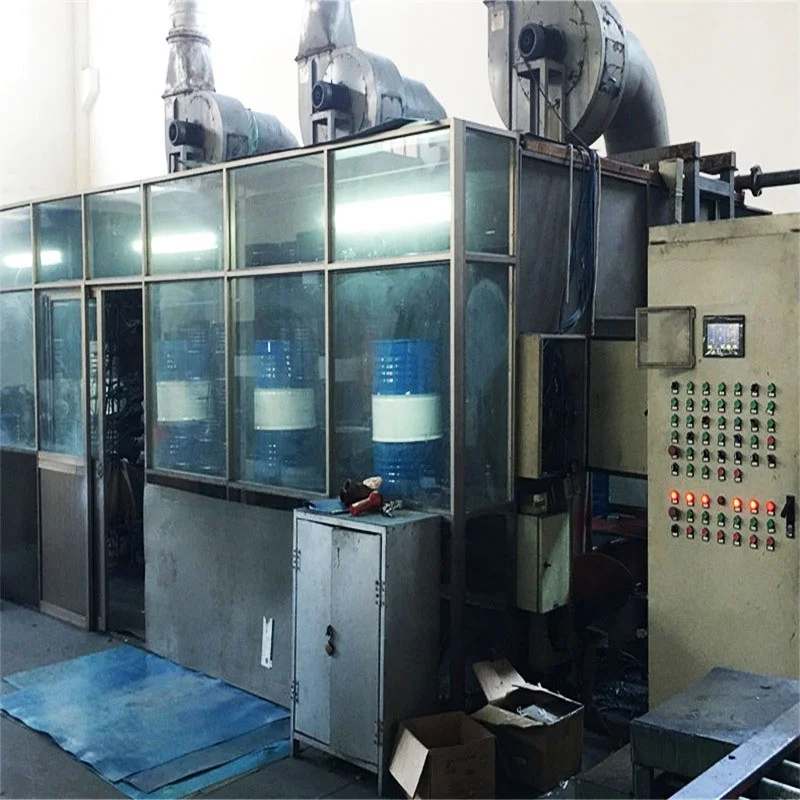

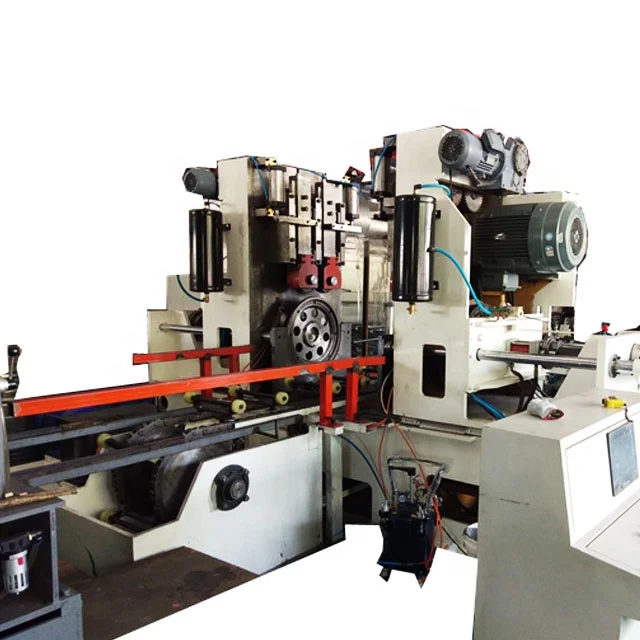

Fully Automatic 55 Gallon Steel Barrel Production Line / Steel Drum Making Machine

Share on (1600793758573):


Price:$689,999.00 - $1,044,599.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Production capacity
720 drums/h
Drum diameter
560/571.5mm
Steel plate specification
L:850-1000mm;T:0.8-1.2mm
Main electrical components
SIEMENS
Power distribution cabinet
Single machine single cabinet


FLANGER

1.Hydraulic propulsion is adopted, and the hydraulic pressure and flow are all digitally adjusted.

2.Concentricity error within 0.2mm.

3.The equipment comes with 208L, 1 set of closed mold and 1 open mold

4.Equipped with automatic quick mold change function

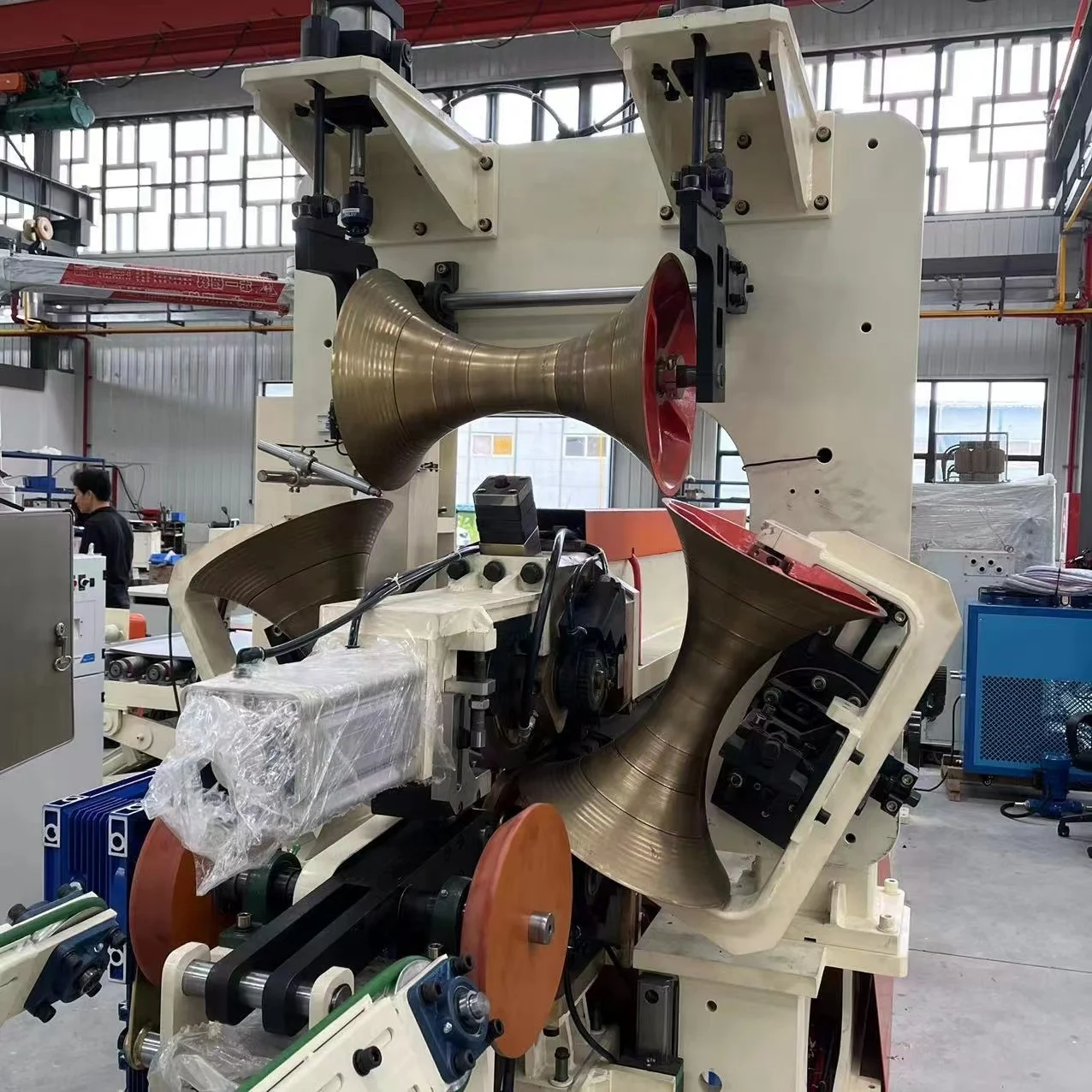

BEADER

1.Servo plus high-precision reducer, digital quantity automatically adjusts the height of the ribs.

2.Body height automatic adjustment range: 850mm -1000mm.

3.Beads height automatic adjustment range: 0-15±3mm.

4.Diameter: Φ555-Φ590mm.

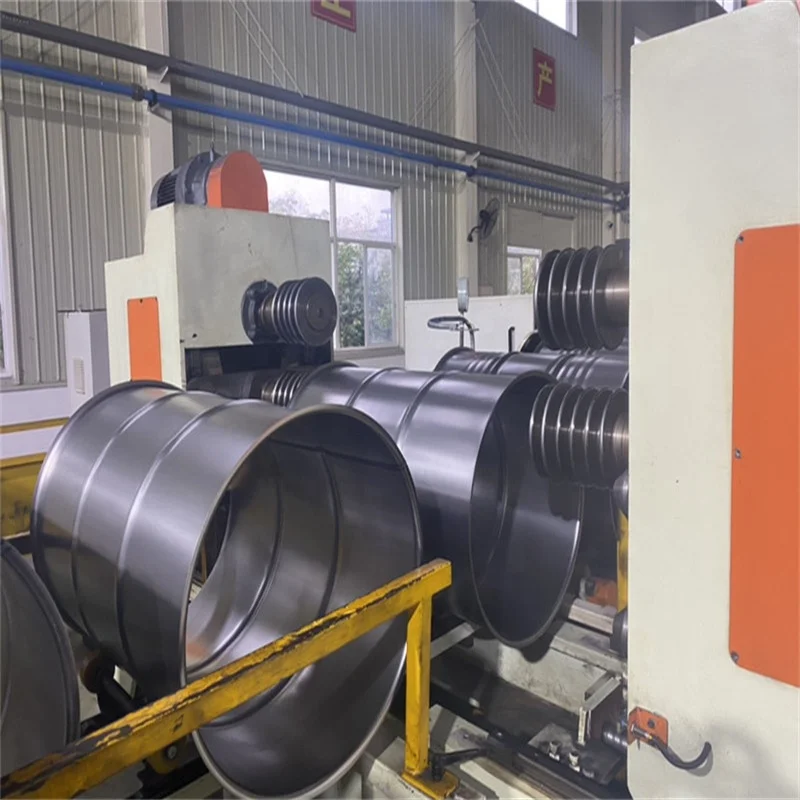

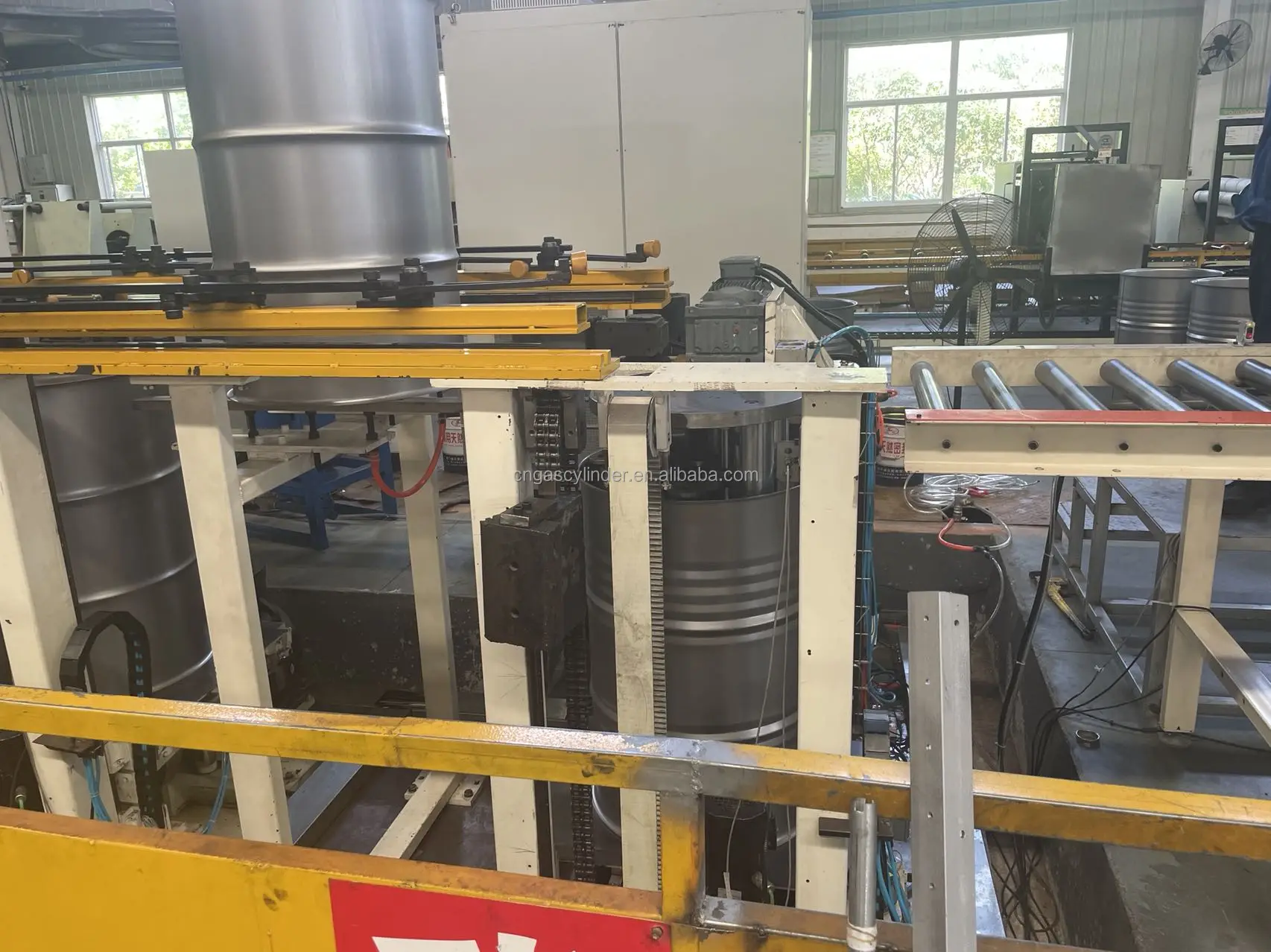

CORRUGATOR
1. With 4 groups of fast switching mold stations, the factory default setting is from no corrugator to 5 corrugators.

2. The corrugation depth is controlled by the servo, the precision is accurate, the depth is digitally adjusted, the adjustment range: 0-5±1mm.

3. The clamping and lifting of corrugated machine are all servo controlled; barrel height adjustment range: 850-1000mm



SEAMER

1. The pressing device adopts four-axis positioning, stable rotation, better and stable seaming quality.

2. Hydraulic compression is adopted, the pressure and flow are set by digital quantities, and the pressure deviation is 6-10bar.

3. Spindle rotation adopts 50KW servo motor.

4. The capping unit is equipped with welding seam and top cover large mouth positioning station. The welding seam of the drum body can be positioned at 0° and 180°.

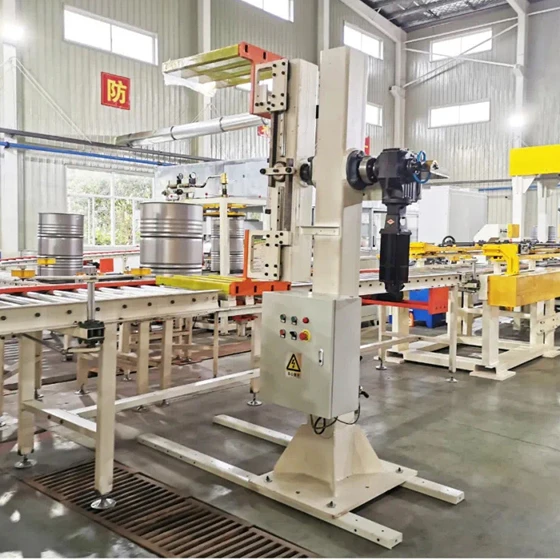

TURNOVER DEVICE

1. Simple structure, lightweight, simple, easy maintenance and energy saving.

2. It can be passed directly when not in use.

3. Servo control positioning is accurate and stable.








Packing & Delivery




Company Profile




Our Customer






FAQ


Q: How can we guarantee quality?
A: Always final Inspection before shipment;

Q: What can you buy from us?
A: All the machine for the Steel drum production line.

Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...

To enable me send you offer for correct machines, please tell me following details:
A: Technical drawing
B: Size of the steel drum you want to manufacture
C: What's the capacity per shift/day?
