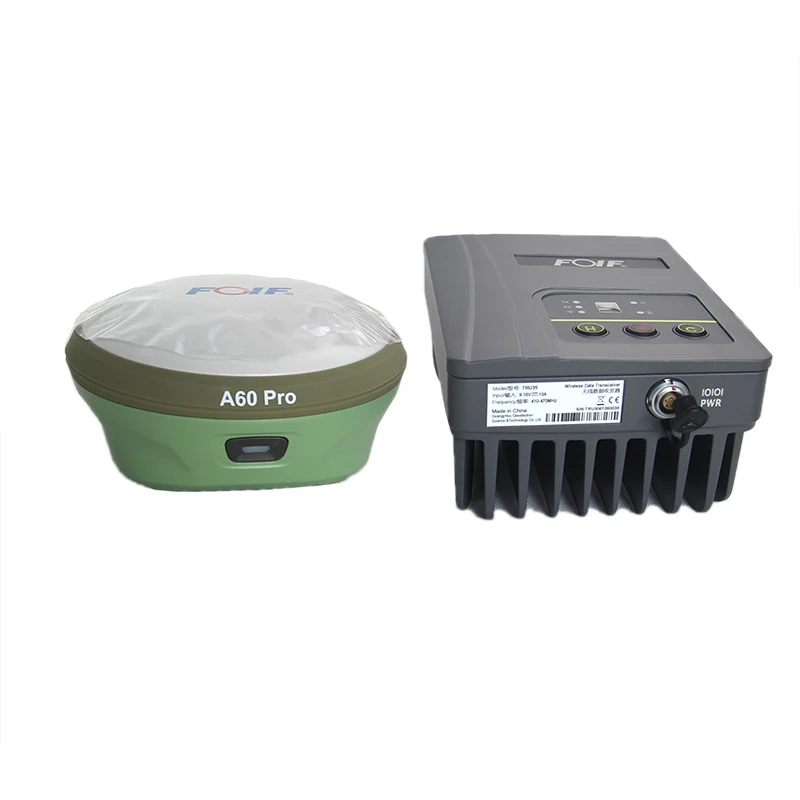

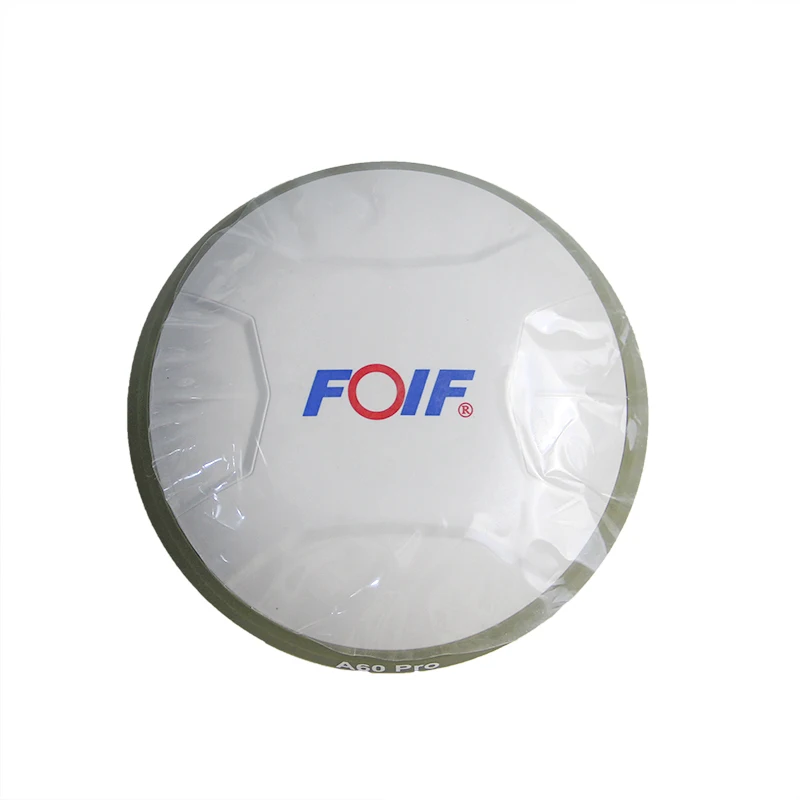

Foif A60 PRO Gps Gnss RTK High Precision RTK Gps RTK Survey Equipment
- Category: >>>
- Supplier: Jiangxi Xin Mainland Surveying Co. Ltd.
Share on (1600793801243):
Product Overview
Description

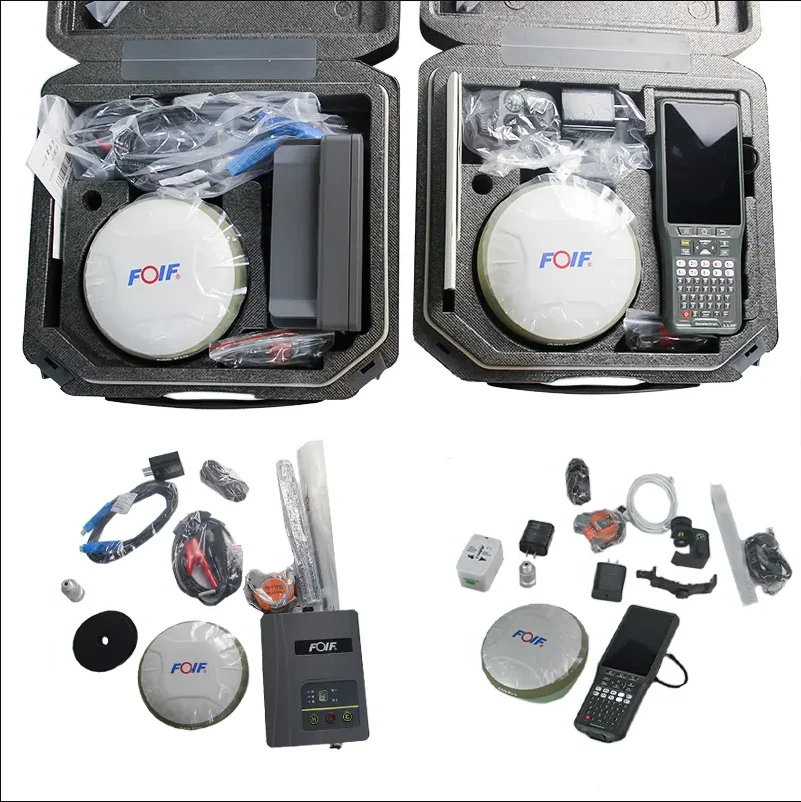

Foif A60 PRO Base And Rover Land Measuring Instrument High Accuracy Survey Equipmens Rtk Gps
Original FOIF Software Can Be Updated At Any Time

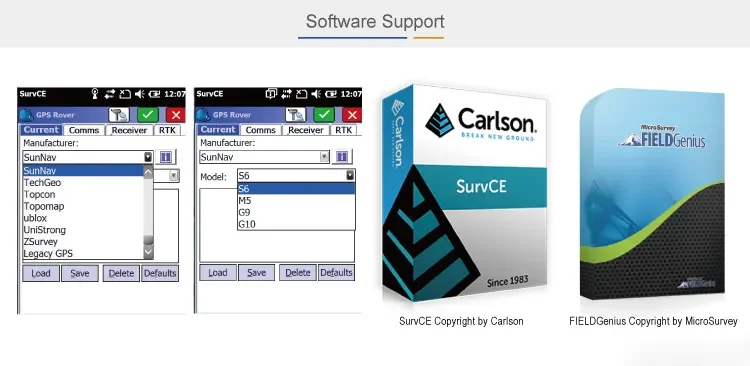

Carlson SurvCE/FieldGenius/Esurvey/SurPAD

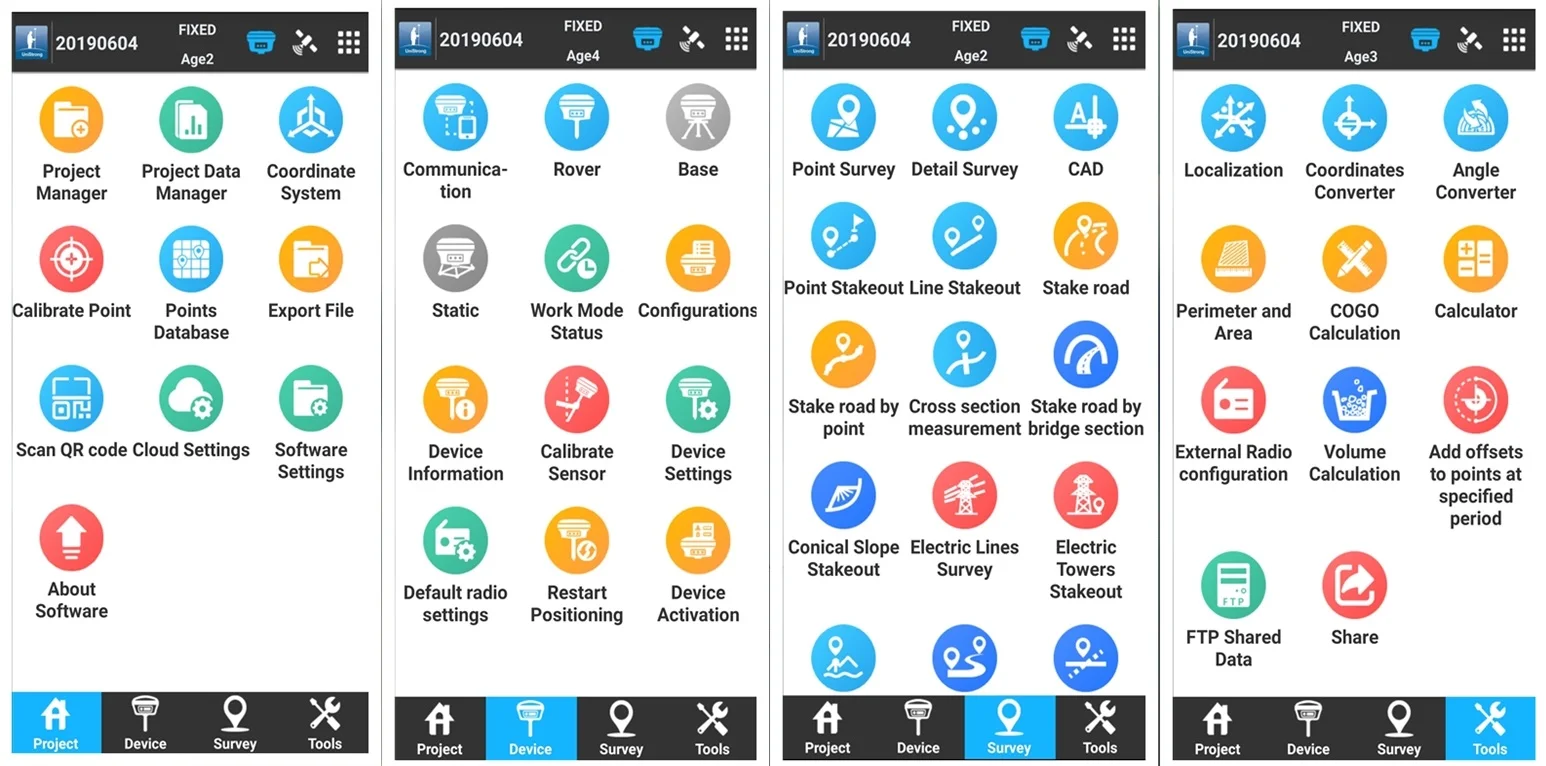

Surpad Software Professional,intuitive and efficient

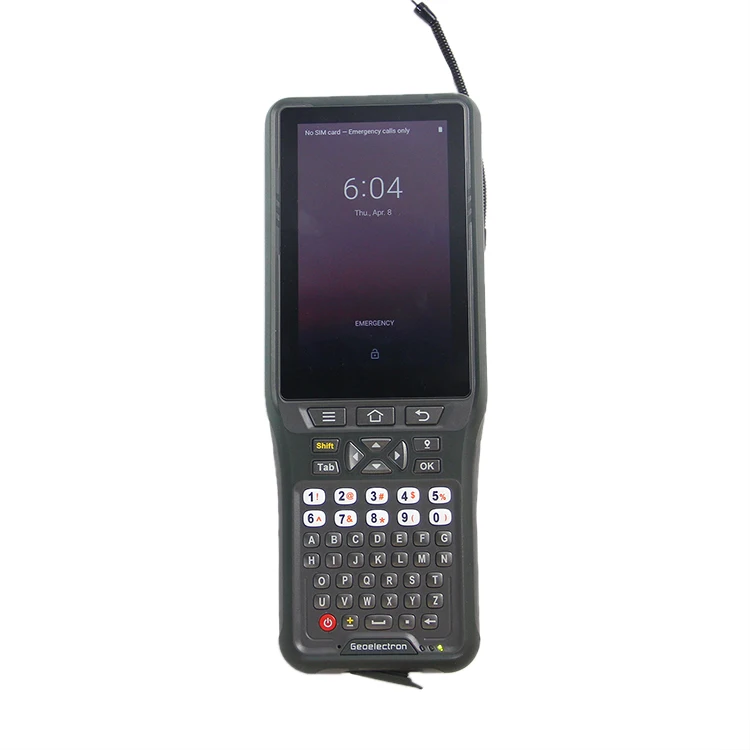

This RTK data controller Field Software is designed & developped by the most professional software R&D engineers team, which brings you a professional, intuitive and efficient measurement of the new experience. The ESurvey software integrates construction survey, power survey, GIS data collecting in one unit. This software is compatible both with Windows Mobile and Android platform, it also supports the smart phone to be used as data controller.
1. Power Survey
Line selection, cross measurement, 4-D Data Format output.
2. Road survey
Road design, Middle Side Stake Layout, Cross section survey.
3. Base Map Loading
Support vector data loading such as DXF, SHP and GCP.
4. GIS collection
Support Attribute Data Collecting by Self-Defined data dictionary and export GIS exchange format.
5. Post Processing Software GGO
Support to convert the data format into RINEX, which is compatible with AutoCAD and other Drawing & Mapping Software.
| A60 PRO | ||
| GNSS | Channels | 800 |
| Satellite Signals | GPS:L1 C/A,L1P,L1C,L2C,L2P,L5 | |
| BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC | ||
| GLONASS: G1, G2, G3 | ||
| Galileo: E1, E5a, E5b, ALTBOC, E6 | ||
| QZSS: L1C/A, L1C, L2C, L5, LEX | ||
| SBAS:L1,L5 | ||
| L-Band: optional | ||
| Update Rate | 10Hz standard, 20Hz optional | |
| Accuracy | Static | H: ±(2.5+0.5×10-6D)mm ; V: ±(5+0.5×10-6D)mm |
| RTK | H: ±(8+1×10-6D)mm; V: ±(15+1×10-6D)mm | |
| Power supply | Battery capacity | Built-in battery, 4.2V, 6800mAh*2 |
| working duration | lasts for 10h (rover) | |
| input voltage | 9~28V DC | |
| System | Operating System | Linux+A7 |
| Memory | 8G, no TF card slot | |
| Blue tooth | V5.0+EDR, downward compatibility/ BLE | |
| WIFI | 802.11 b/g/n | |
| Network | Full Netcom 4G; | |
| LTE FDD: B1/B3/B5/B8 | ||
| LTE TDD: B34/B38/B39/B40/B41 | ||
| WCDMA: B1/B8 | ||
| TD-SCDMA: B34/B39 | ||
| CDMA: BC0 | ||
| GSM: 900/1800MHz | ||

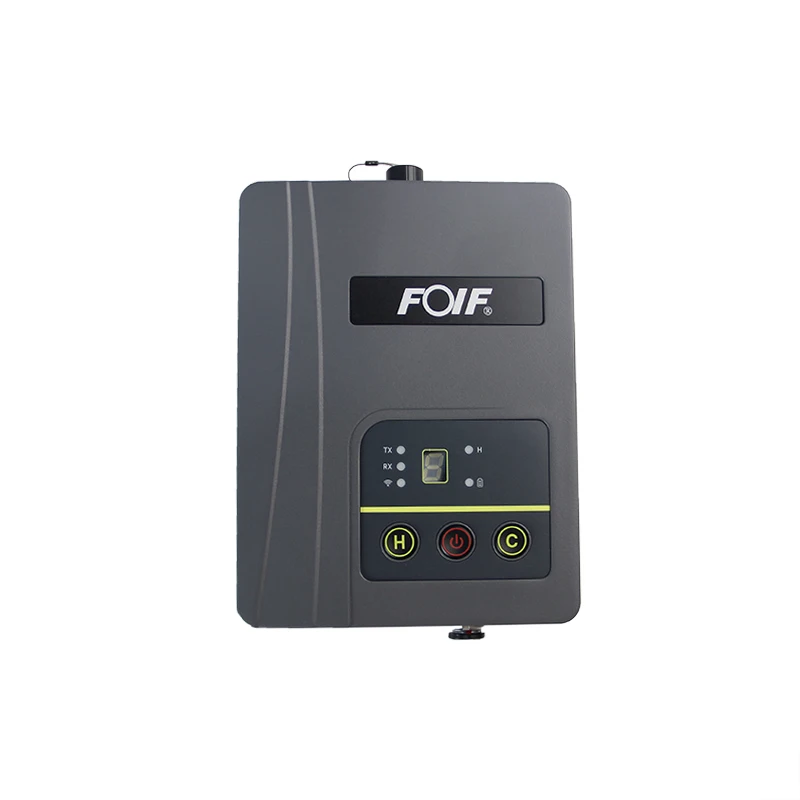

| radio | TRM101,410-470MHz | |
| RTKFusion | Positioning accuracy of 30° bar tip within 2cm and 60° bar tip within 5cm Note: 1.8 m bar height | |
| Data link | TNC | used to connect inner radio antenna |
| Type-C port | used for charge and date transmission | |
| 5 Pin Port | Used to connect external power and external radio | |
| Esim | ESim embedded, no need to insert a card can be implemented network mode operation | |
| SIM Card slot | Dual-card slot compatible design, embedded ESIM, external SIM card.If the SIM card is inserted, it will use the SIM card by default. If the SIM card is not inserted, it will use ESim by default.At the same time, the user can also choose the use scheme | |
| Physical | Size | 148mm*74.5mm, weights about 1.0kg |
| vioce | supprt | |
| Screen | Smart Touch Screen, work as a controller | |
| turn on/ off | 1) Long press for 3 seconds to turn off the device. | |
| (2) Short press once to broadcast the current state, and the four battery level indicator lights will be on for 5s according to the battery level and then off. | ||
| Shutdown state: | ||
| (1) Long press for 3 seconds to start the device | ||
| (2) Shutdown and charging state: four battery level indicators. | ||
| (3) Short press once (slightly longer than in the power-on state) : the four battery level indicator lights will be on for 5s and then go off. | ||
| Breathing Light Red | ||
| Red always bright: self - check fault | ||
| Breathe in Red: Charge less than 25% | ||
| Red flash: abnormal communication on board card | ||
| Green 5S one time (500ms green) overlay mixed color: data records, including static, base station, mobile station data records | ||
| purple | ||
| Chang Liang: Fixed solution | ||
| Blink: data link receiving and sending | ||
| Breathing: single point, successful positioning | ||
| Flash: Not positioned | ||
| Purple turns blue when blue tooth is connected | ||
| Yellow boot in.. | ||
| Yellow flicker self check.. | ||
| The yellow breath firmware is being upgraded.. | ||
| Red-green-blue cycle built-in module upgrade...Including network module firmware, board card firmware, sensor firmware, radio firmware | ||
| 4 electric quantity indicator lights | ||
| In the charging state, the light flashes according to the remaining charge | ||
| 75% to 100% electric quantity, representing 25%/50%/75% electric quantity light is always green, only the fourth electric quantity light flashes | ||
| The battery level is 50%-75%, representing 25% and 50% of the battery level lights are always green, and only the third battery level light flashes | ||
| The battery level is 25%-50%, representing 25% of the battery level light is always green, and only the second battery level light flashes | ||
| When the battery is below 25%, only the first battery light flashes every second | ||
| Power 75-100%, 4 lights are all bright, green is always bright | ||
| Power 50%-75%, 3 lights on, green light | ||
| Electricity 25%-50%, 2 lights on, green light is always on | ||
| When the electric quantity is lower than 25%, only one light is left and the green light is always on | ||
| Environment | Work Temperature | -30℃ ~ +65℃ |
| Storage | '-40℃ ~ +80℃ | |
| Temperature | ||
| Down Fall | Resistance to 2m fall with pole (hardwood ground), 1.2m free fall. | |
| Waterproof & dustproof | IP67 | |
| Humidity | anti-condensation 100% | |
 |
