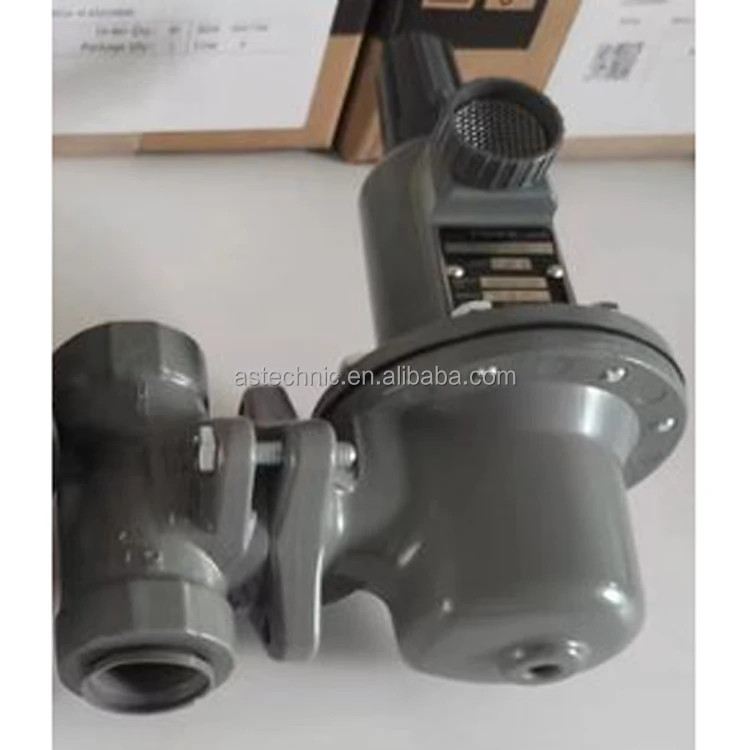

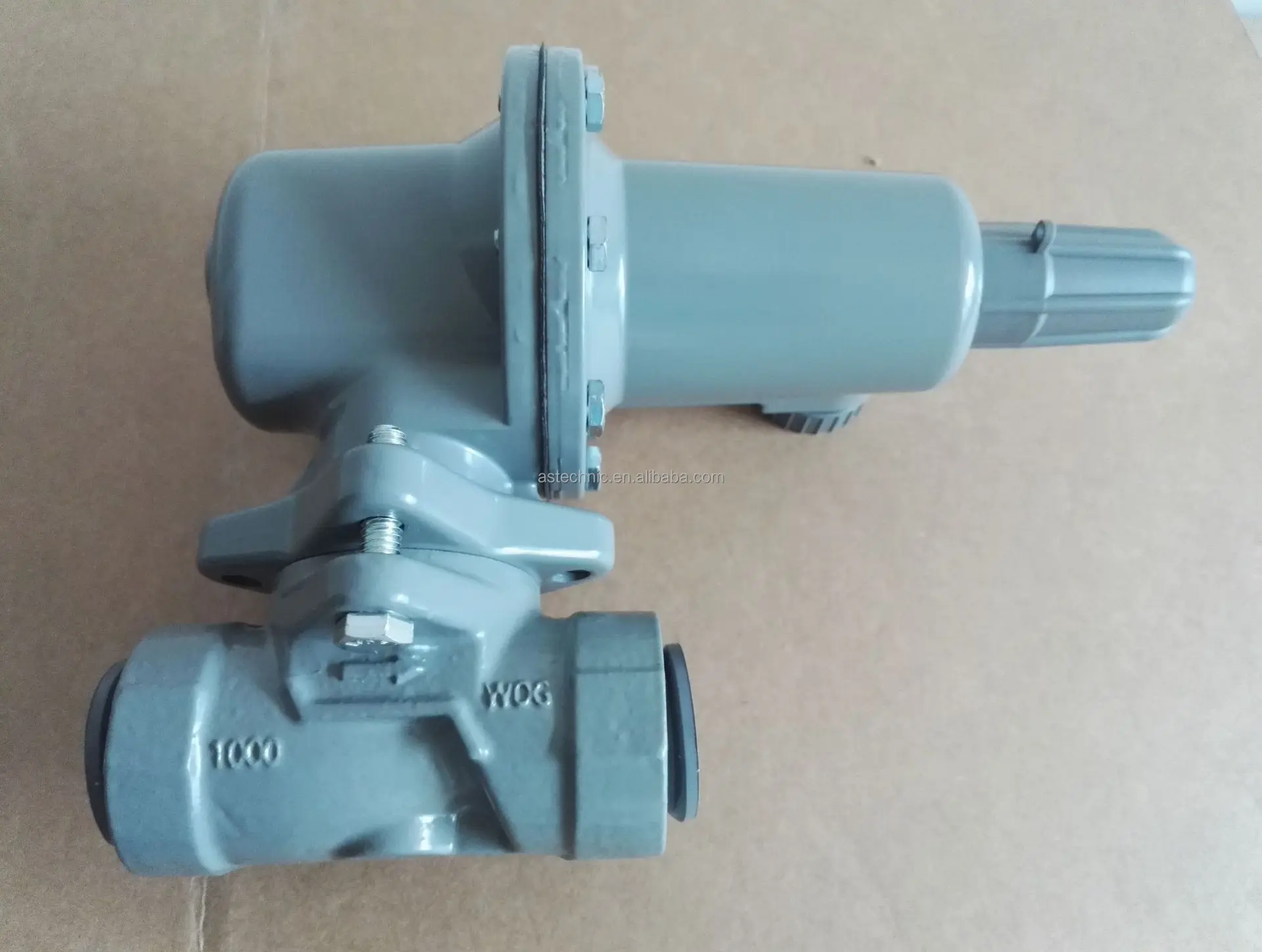

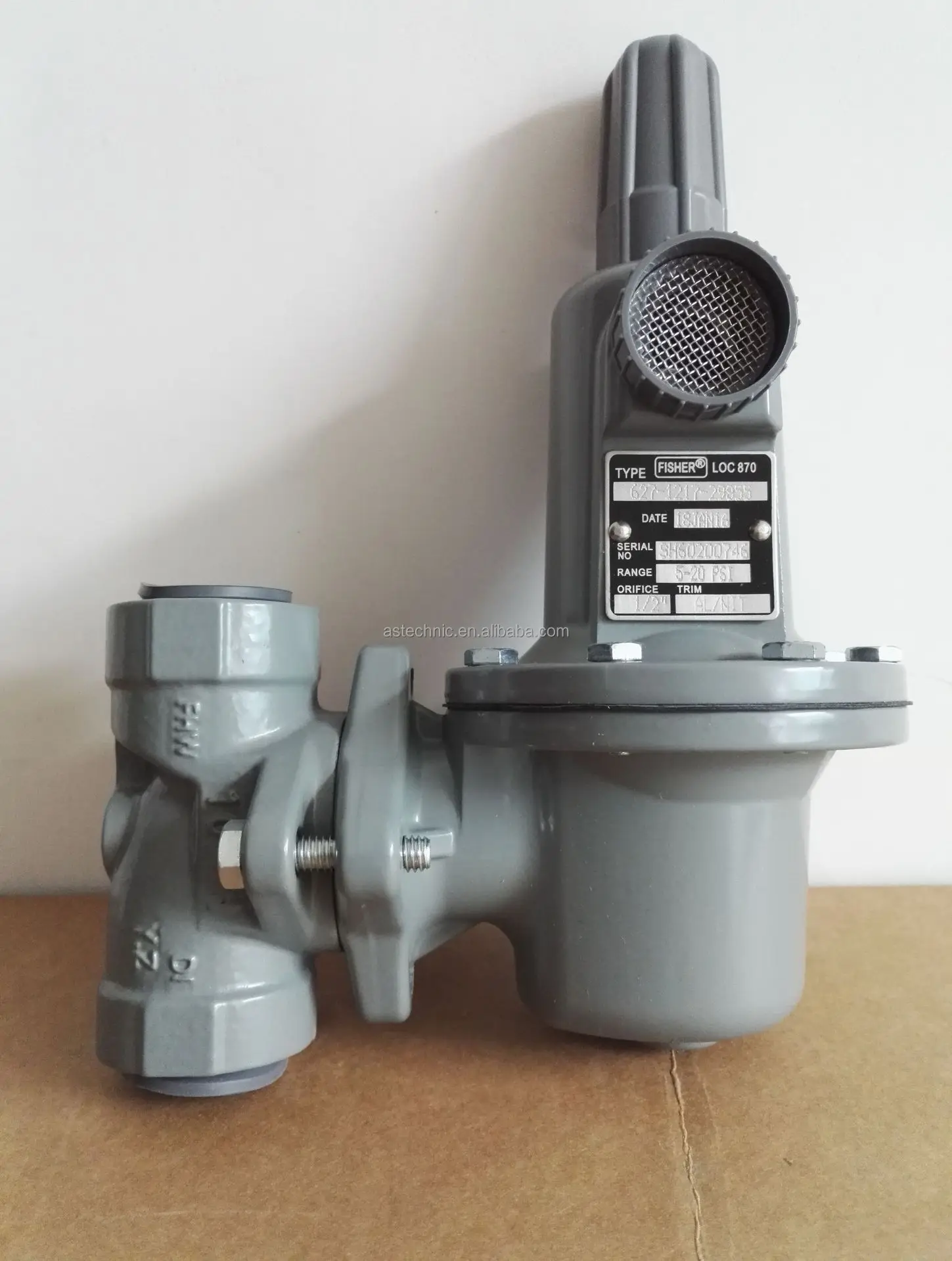

Fisher 627 Pressure Regulator Natural Gas Pipeline Fittings
- Category: >>>
- Supplier: Foshan Deshi Electric Appliance Technology Co. Ltd.
Share on (1600793973153):
Product Overview
Description
working principle
As shown in Figure 2, when downstream demand decreases, the pressure on the lower side of the valve membrane increases. This pressure overcomes the set pressure of the pressure regulator (set by the spring). Through the linkage of the push rod assembly, lever, and valve rod, the valve disc is brought closer to the valve core and the gas flow is reduced. As downstream demand increases, the pressure on the underside of the valve membrane decreases. The spring forces the push rod assembly downward to pull the valve disc away from the valve core.
Product Description
The 627 and 627H direct acting pressure reducing regulators - 627 and 627H regulators provide economical pressure reducing control for various residential, commercial, and industrial control facilities. A pressure regulator pitot tube located in a high-speed flow beam provides dynamic pressure rise, compensating for a drop in outlet pressure.
The Type 627 Long Valve Body - Type 627 Long Valve Body Pressure Regulator can be replaced with the Type 630 Pressure Regulator in a dry emergency without changing the piping system.
The internal relief valve of a 627R627LR or 627M pressure regulator obtains the performance value of the 627R internal relief valve by removing the valve disc assembly from the pressure regulator. For Type 627R. 627LR, or 627MR regulators, internal pressure relief valves that pass through the valve membrane provide overpressure protection in many control applications. When the outlet pressure increases greater than the initial release point, the valve membrane will detach from the pressure relief valve seat, allowing excessive pressure to be released through the air vent with a filter screen.
In the event of a fault condition (e.g., a valve disc falling off or a corroded valve disc) that can prevent the regulator from working properly, for additional protection, the push rod contacts the lever holder, causing the pressure relief valve assembly to open. As downstream pressure increases, valve membrane relay
The continuous rise causes the pressure relief valve to open, thereby opening the valve. This internal pressure relief generation fully meets the application requirements for pressure relief.
The downstream control pipeline of the 627M 627HM or 627MR pressure regulator - The 627M 627HM or 627MR pressure regulator has an O-ring sealed closed valve neck stem seal and a 1/4-inch NPT control pipeline connection in its valve membrane housing. The pressure regulator with downstream control pipeline is suitable for monitoring occasions, as well as monitoring occasions where other equipment is installed between the pressure regulator and the pressure control point. The valve stem seal isolates the valve body outlet pressure from the valve membrane housing.
Product Description
The 627 and 627H direct acting pressure reducing regulators - 627 and 627H regulators provide economical pressure reducing control for various residential, commercial, and industrial control facilities. A pressure regulator pitot tube located in a high-speed flow beam provides dynamic pressure rise, compensating for a drop in outlet pressure.
The Type 627 Long Valve Body - Type 627 Long Valve Body Pressure Regulator can be replaced with the Type 630 Pressure Regulator in a dry emergency without changing the piping system.
The internal relief valve of a 627R627LR or 627M pressure regulator obtains the performance value of the 627R internal relief valve by removing the valve disc assembly from the pressure regulator. For Type 627R. 627LR, or 627MR regulators, internal pressure relief valves that pass through the valve membrane provide overpressure protection in many control applications. When the outlet pressure increases greater than the initial release point, the valve membrane will detach from the pressure relief valve seat, allowing excessive pressure to be released through the air vent with a filter screen.
In the event of a fault condition (e.g., a valve disc falling off or a corroded valve disc) that can prevent the regulator from working properly, for additional protection, the push rod contacts the lever holder, causing the pressure relief valve assembly to open. As downstream pressure increases, valve membrane relay
The continuous rise causes the pressure relief valve to open, thereby opening the valve. This internal pressure relief generation fully meets the application requirements for pressure relief.
The downstream control pipeline of the 627M 627HM or 627MR pressure regulator - The 627M 627HM or 627MR pressure regulator has an O-ring sealed closed valve neck stem seal and a 1/4-inch NPT control pipeline connection in its valve membrane housing. The pressure regulator with downstream control pipeline is suitable for monitoring occasions, as well as monitoring occasions where other equipment is installed between the pressure regulator and the pressure control point. The valve stem seal isolates the valve body outlet pressure from the valve membrane housing.
item | value |
Type | Safety Relief Valves, Adjustable Relief Valves, Pressure Reducing Control Valves, Pressure Regulators, Pressure regulating valve |
Customized support | NO |
Place of Origin | USA |
Brand Name | fisher |
Model Number | 627 |
Application | General |
Temperature of Media | Medium Temperature |
Power | Hydraulic |
Media | Gas |
Structure | BALL |
NOTE：
There are differences between product data and testing, only for reference. Due to different batches, there will be updated
differences in product data, appearance, packaging and color. subject to physical products.We reserve the right to update. No further notice will be given.
There are differences between product data and testing, only for reference. Due to different batches, there will be updated
differences in product data, appearance, packaging and color. subject to physical products.We reserve the right to update. No further notice will be given.
