Product Overview
Description
Product Description

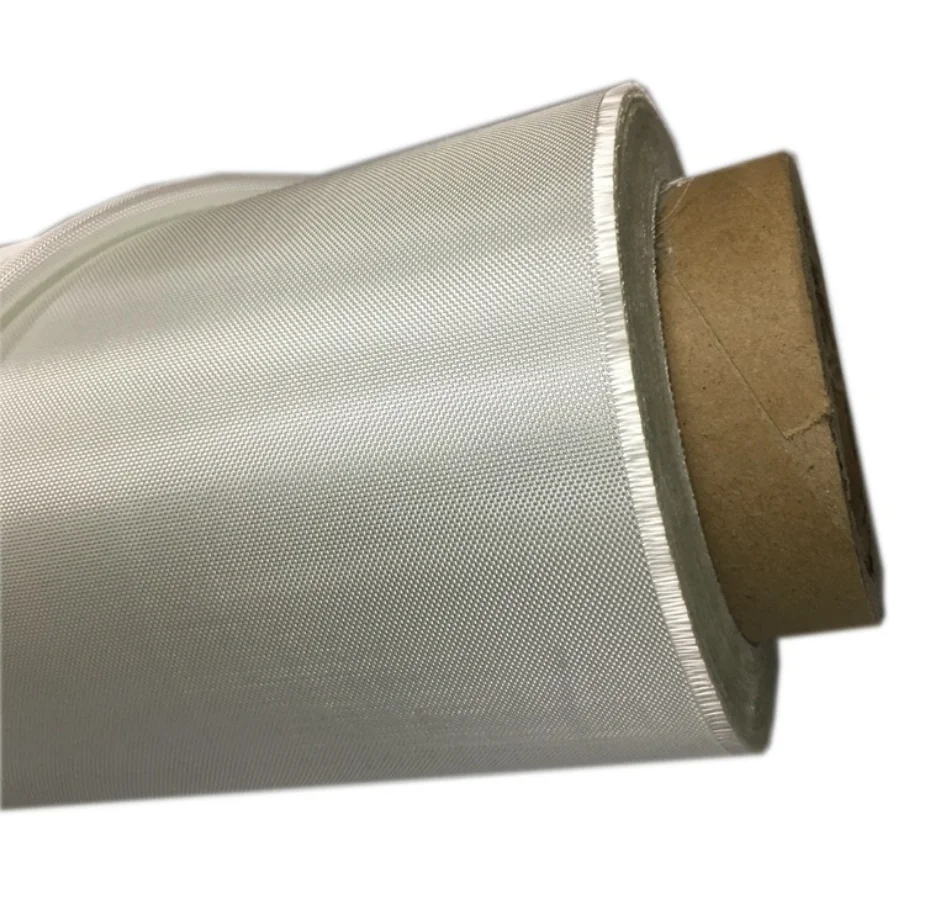

200g/m2 E Glass Fiberglass fabric 7628 for making copper clad laminate
Packaging Type: Pallets and Cartons Material: 100% E-Glass Yarn
Length: 2500m
Width: 1270 mm ,custom abvailable
GSM: 200 GSM
Fiberglass cloth is made of e-glass yarn under the process of plain weaving. It has excellent characteristics such as flame resistant, corrosion resistant, heat resistance and is highly durable. It is often called "soft steel" of the heat insulation industry.
Application Area:
It is widely used in the electric insulation as it prevents the system from high impact by equally spreading the stress in
different direction. Widely used for making CCL (copper clad laminate) . Also It is also used in chemical industry, pipeline ductile conjunction, machinery, sound absorption, anti-fire
agent and so on.
Application Area:
It is widely used in the electric insulation as it prevents the system from high impact by equally spreading the stress in
different direction. Widely used for making CCL (copper clad laminate) . Also It is also used in chemical industry, pipeline ductile conjunction, machinery, sound absorption, anti-fire
agent and so on.
High-temperature resistant fiberglass fabrics
High-temperature resistant fiberglass fabrics are made of e glass yarn. These fabrics are particularly used as removable and reusable insulation pads and blankets in the insulation industry.
Fiberglass fabrics have low smoke emission,excellent abrasion resistance, and thermal insulation properties, and they can be heat treated to minimize fraying when they undergo fabrication.
Fiberglass fabrics can be heat-treated or laminated with foil to further improve the temperature resistant properties when being used for insulation blankets and insulation pads.
If the product is intended for short-term use, the operating temperature can reach as high as 550 ℃.
Fabrics in this range are very lightweight, have high strength, a high level of abrasion and chemical resistance, and excellent dimensional stability. Fabrics with foil or applying them with coatings can also improve their thermal
and abrasion properties. This product range includes cloth, tape, sleeving, and rope in knit, braided, and woven configurations.
If the product is intended for short-term use, the operating temperature can reach as high as 550 ℃.
Fabrics in this range are very lightweight, have high strength, a high level of abrasion and chemical resistance, and excellent dimensional stability. Fabrics with foil or applying them with coatings can also improve their thermal
and abrasion properties. This product range includes cloth, tape, sleeving, and rope in knit, braided, and woven configurations.
Specification
SPECIFICATION. | OIL AGENT | DESITY OF WARP AND WEFT | USING YARN | WEIGH PER SQUARE | ||||
WARP | WEFT | WARP | WEFT | |||||
792 | PARAFFIN | 26±1 | 15±1 | 4.2TEX*2±0.8 | 4.2TEX±0.4 | 26g | ||
771 | PARAFFIN | 21±1 | 12±1 | 7TEX*2±0.8 | 7TEX±0.4 | 32g | ||
EW18-1050 | PARAFFIN | 23±1 | 15±1 | 7TEX±0.4 | 4.2TEX±0.4 | 20g | ||
1080 | SILICAN | 23±1 | 18±1 | EC5-11*1 | EC5-11*1 | 47g | ||
2116 | SILICAN | 23±1 | 22±1 | EC7-22*1 | EC7-22*1 | 104g | ||
7628 | SILICAN | 17±1 | 12±1 | EC9-68*1 | EC9-68*1 | 203g | ||
7635 | SILICAN | 17±1 | 11±1 | EC9-68*1 | EC9-102*1 | 235g | ||
7667 | SILICAN | 17±1 | 12±1 | EC9-74*1 | EC9-74*1 | 220g | ||
7638 | SILICAN | 17±1 | 10±1 | EC9-68*1 | EC9-136*1 | 245g | ||
EW140 | SILICAN | 16±1 | 12±1 | 24tex x1x2 | 24tex x1x2 | 145g | ||
EW200 | SILICAN | 7.5*7.5 | 70tex x2Z40 | 70tex x2Z40 | 205g | |||
EW300 | SILICAN | 7.5*7.5 | 70tex x3Z40 | 70tex x3Z40 | 305g | |||
3732 | C & E TYPE | 20±1 | 12±1 | EC9-68*1*2 | 134TEX | 430g | ||
3784 | C & E TYPE | 18±1 | 10±1 | 50TEX x 2 | 300TEX | 830g | ||
