Export Agent Price Max 20W 30W 50W Fiber Laser Source Important Laser Parts For Fiber Laser Marking Engraving Cutting Machine
Inquiry Us: +8615628958710
Products Description

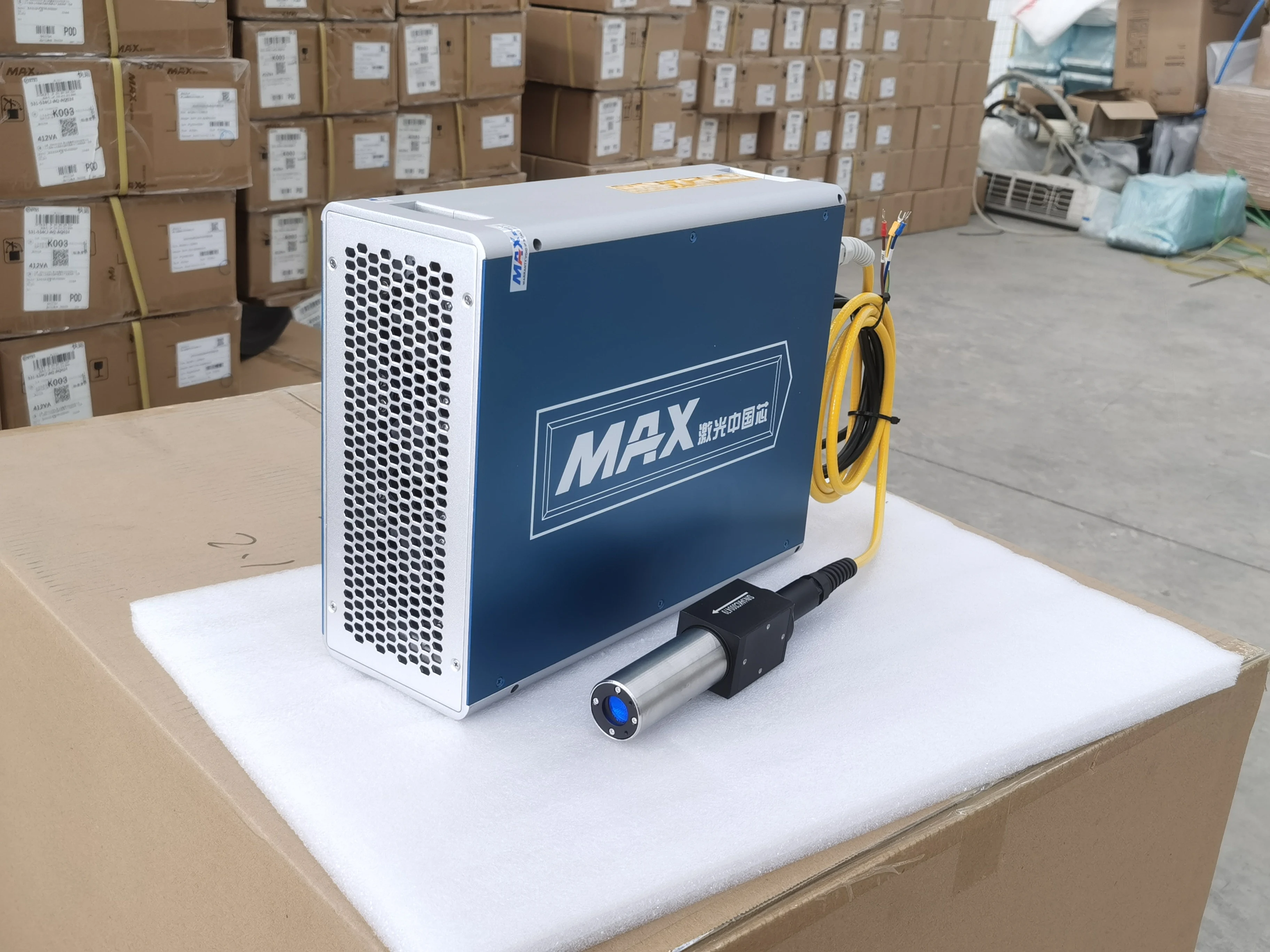

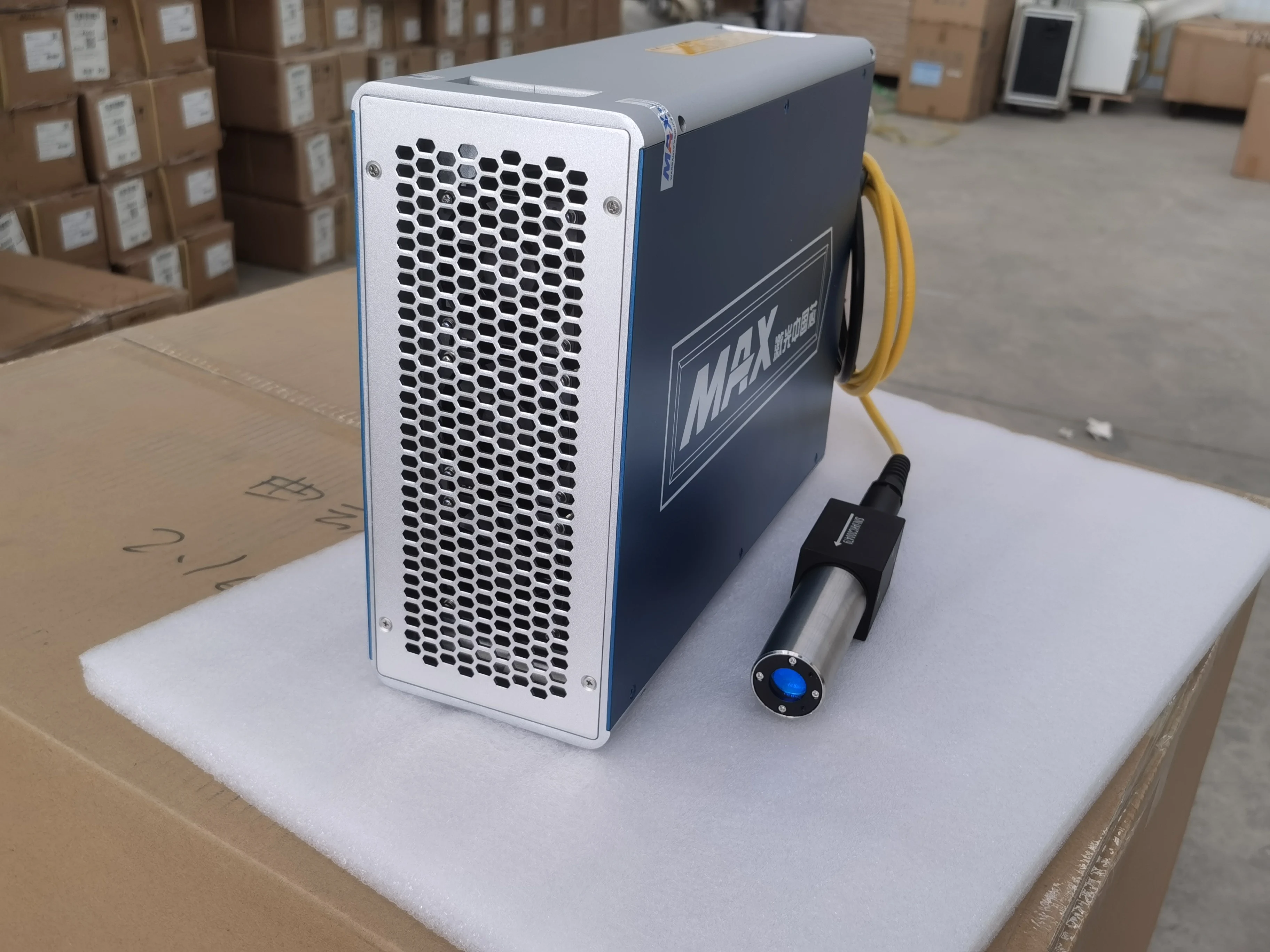

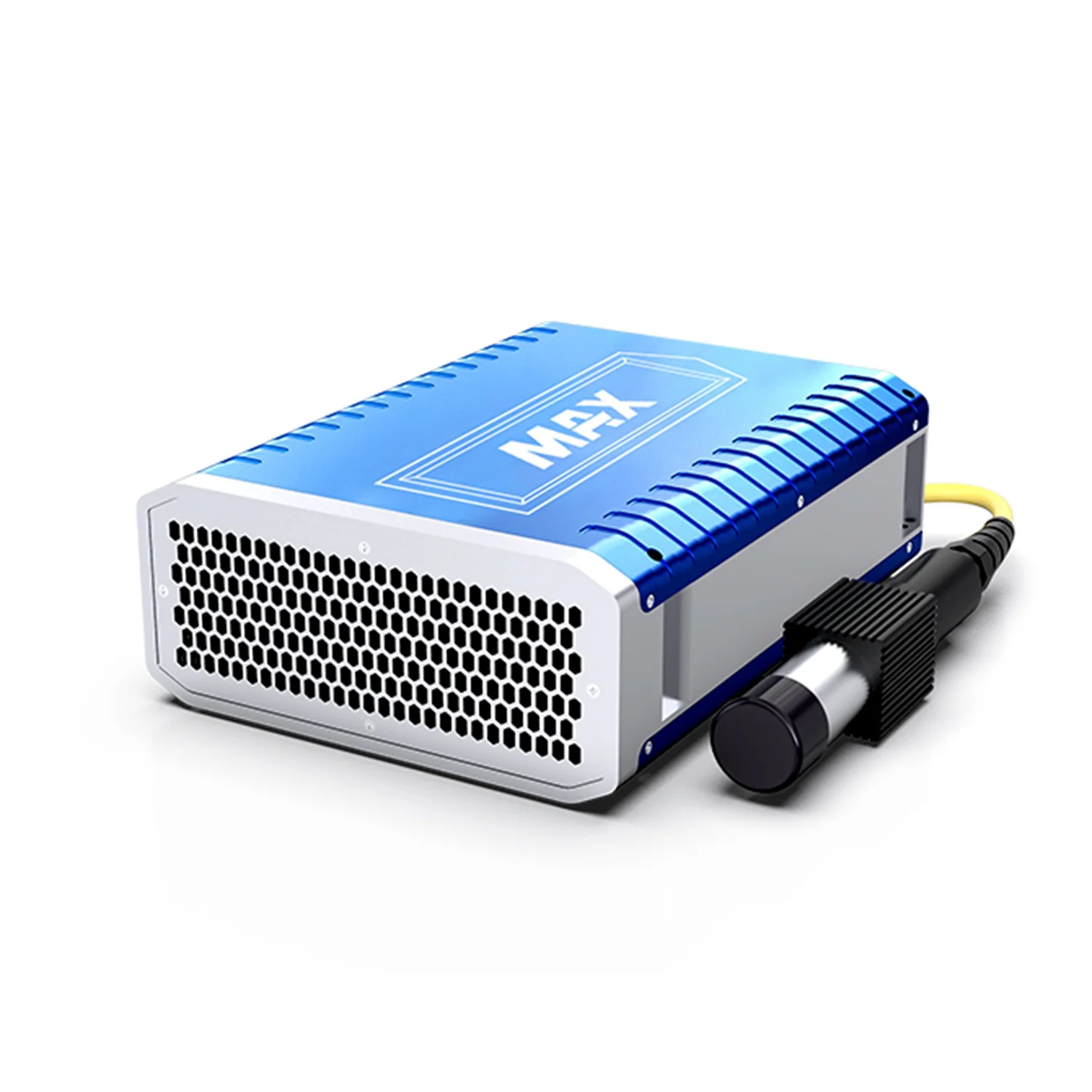

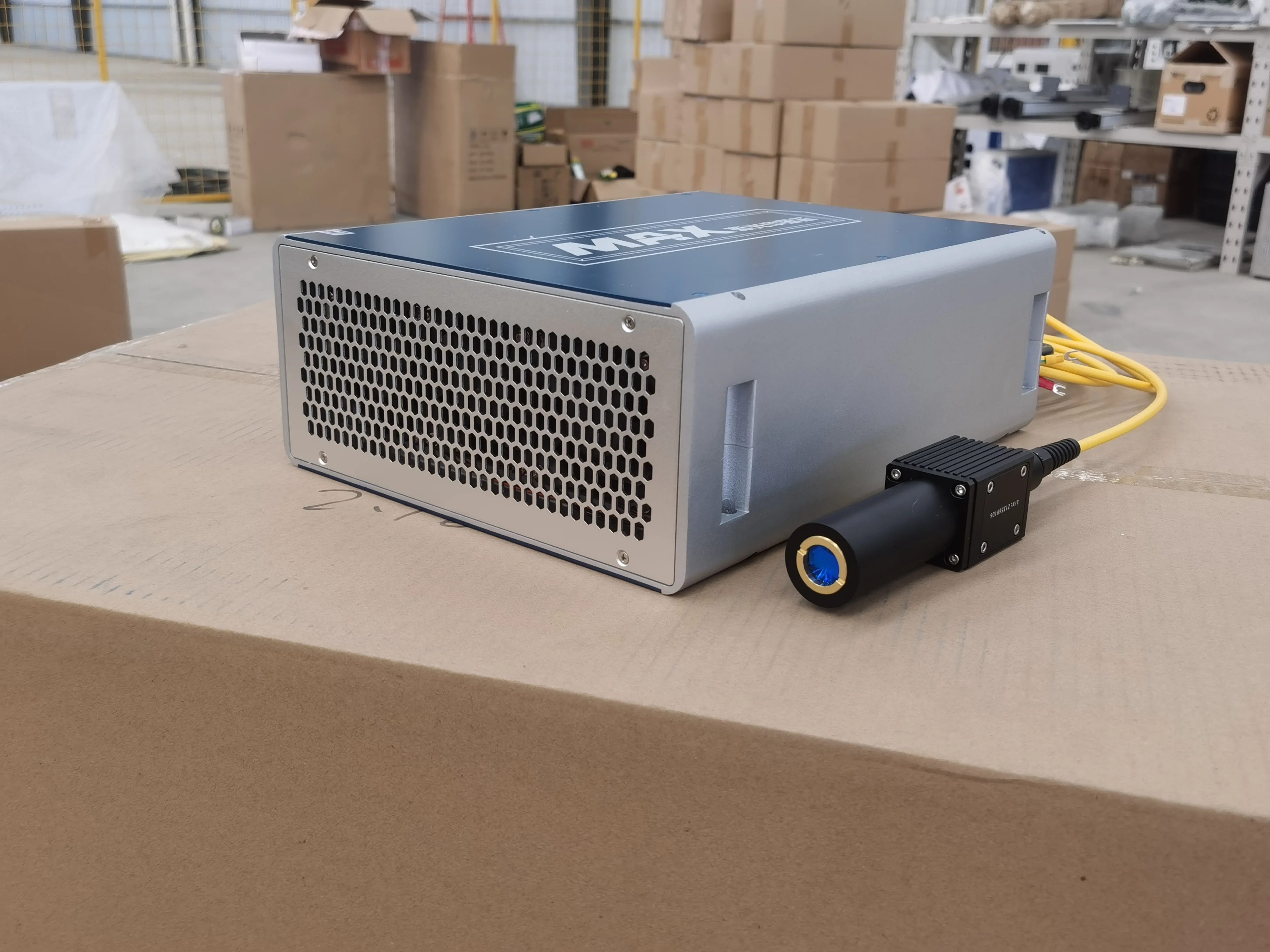

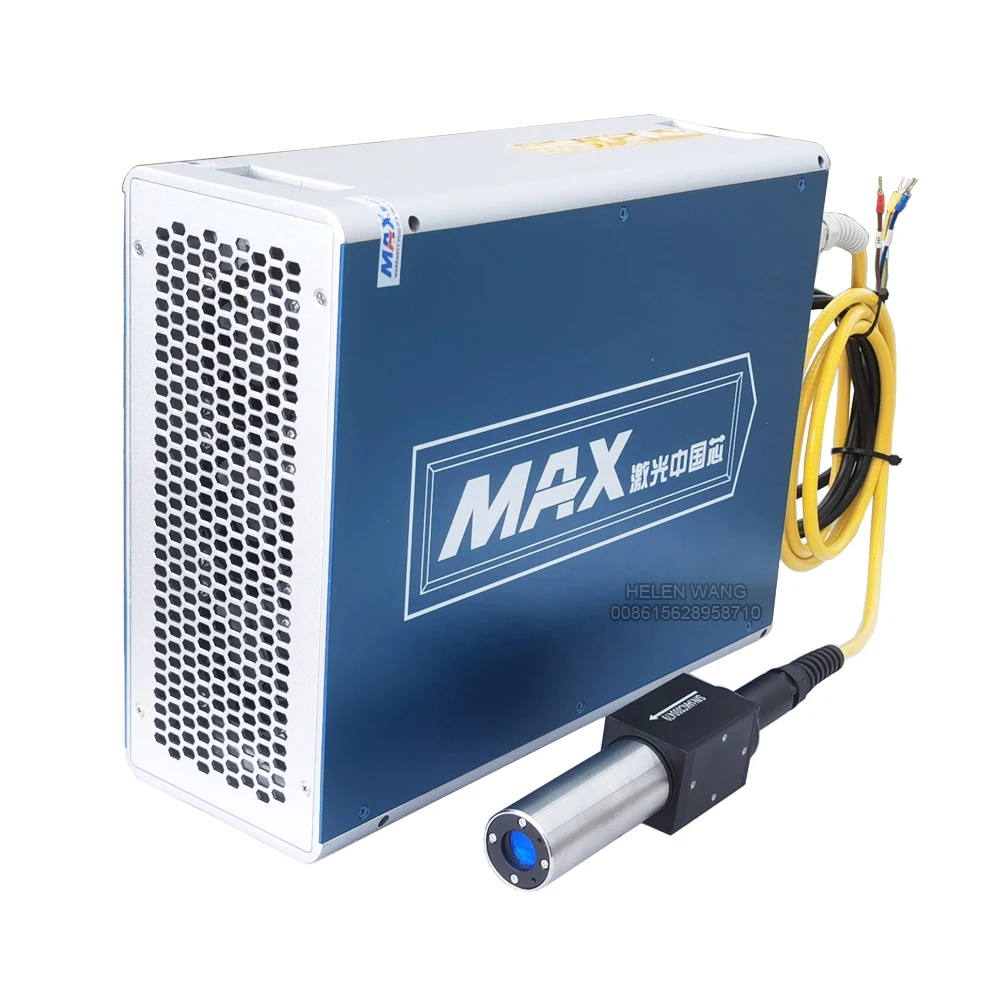

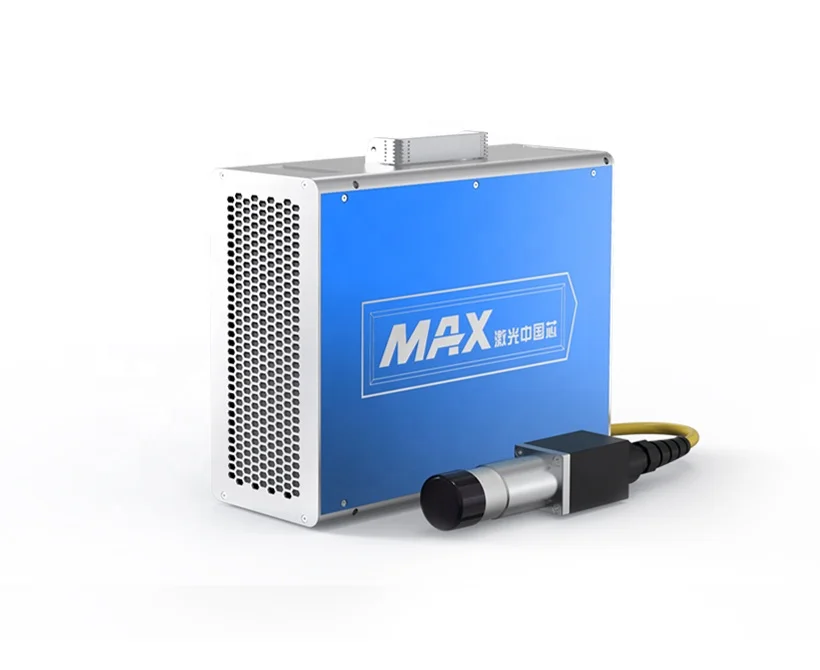

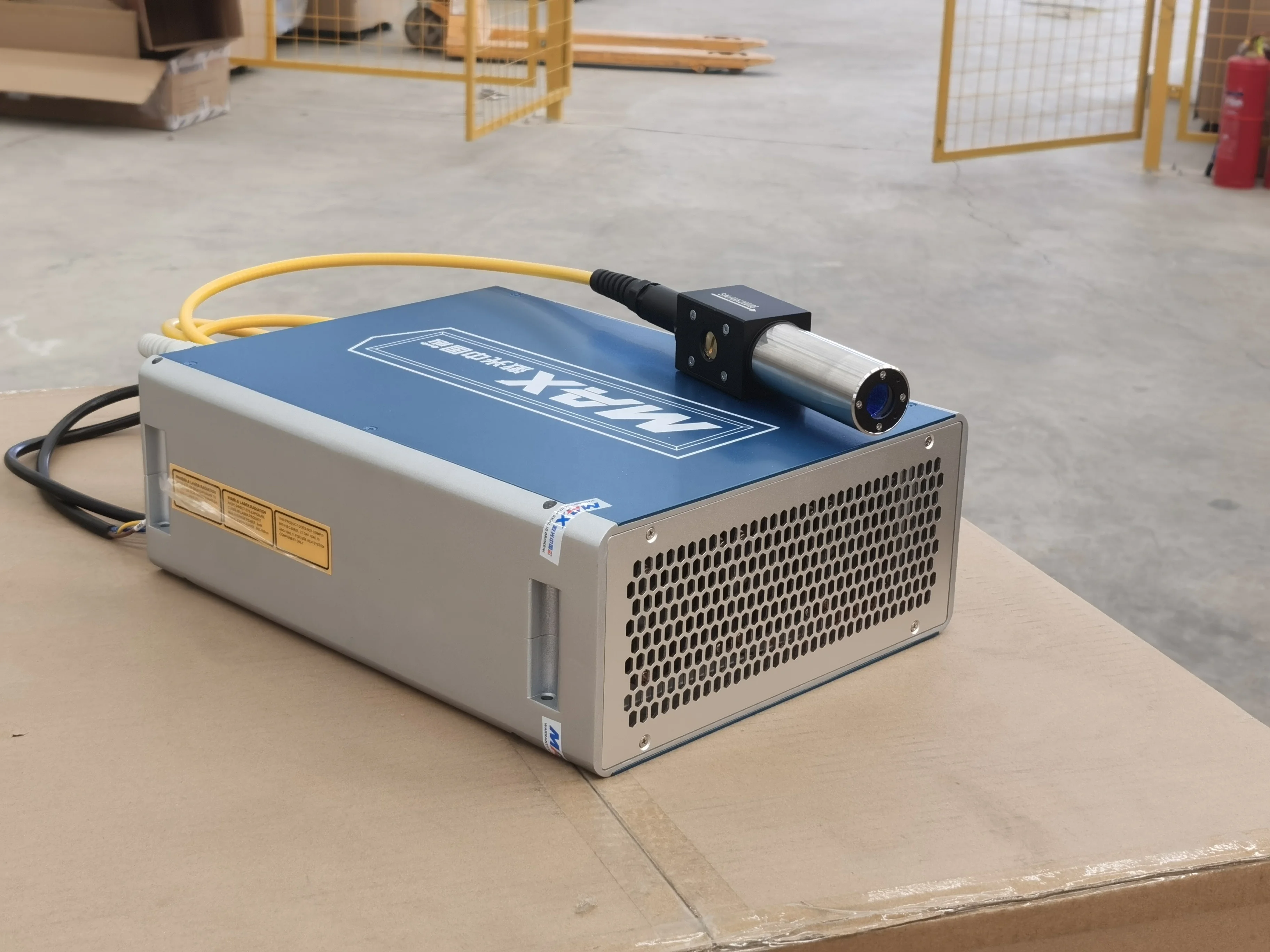

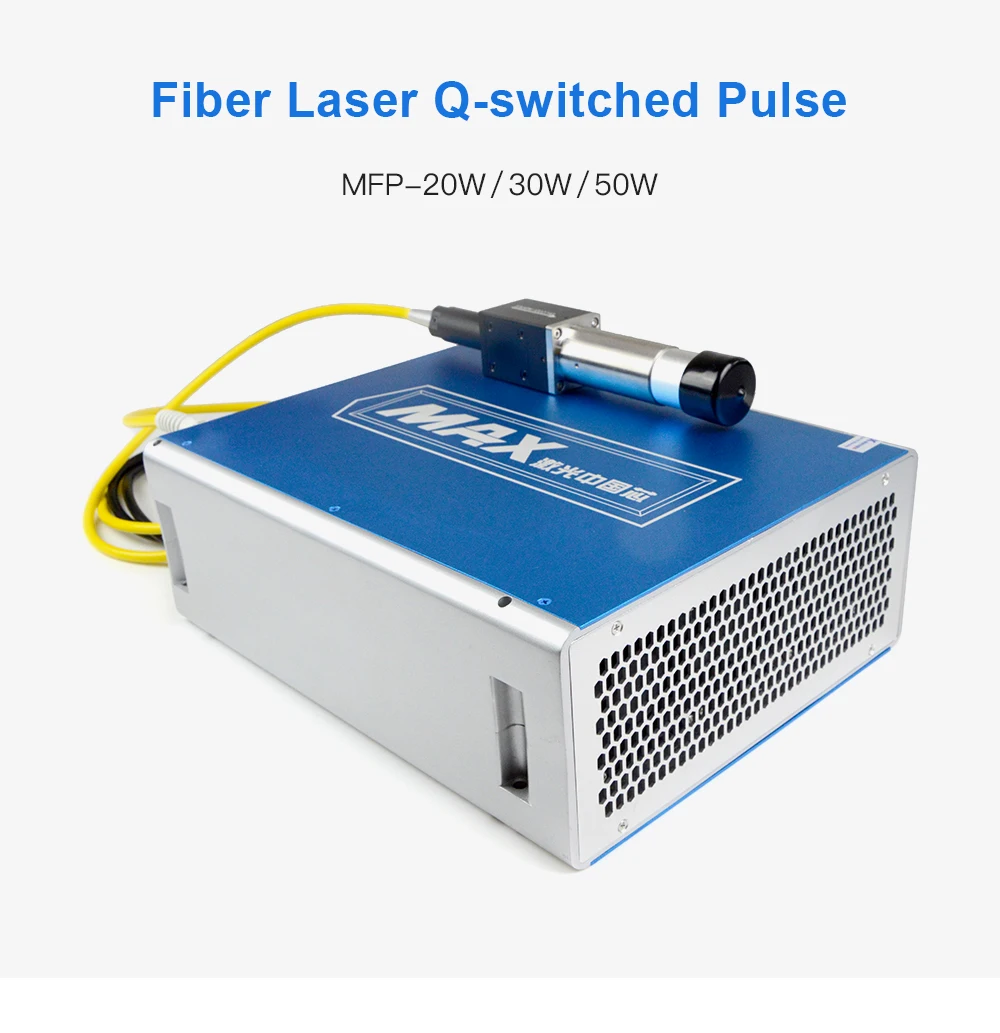

The MFPT pulse width tunable fiber laser is one of Maxphotonics' cutting-edge products, constructed with a master oscillator and high power fiber amplifier (MOPA). Multi-power optional, compact structure. It is easy to operate, maintenance-free as a whole,
and can be directly integrated into user equipment. The laser output head without optical isolator is mainly used for the marking
of low-reflection materials (such as plastic, wood, paper, etc.), as well as the marking of some metals with low reflectivity.
and can be directly integrated into user equipment. The laser output head without optical isolator is mainly used for the marking
of low-reflection materials (such as plastic, wood, paper, etc.), as well as the marking of some metals with low reflectivity.
Feature
MAX LASER SOURCE FEATURES
1.High reliabilityAll fiber, no space optics, less failure
2.Fine marking
The beam quality is good, the pulse width is small, and the marking pattern is more delicate
.
1.High reliabilityAll fiber, no space optics, less failure
2.Fine marking
The beam quality is good, the pulse width is small, and the marking pattern is more delicate
.
3.Easy to integrate 67% smaller in volume and 50% lighter in weight for easier device integration
4.Intelligent control
The built-in cooling fan can intelligently adjust the wind speed, which is convenient for energy saving
5.Sealing structure
Fully sealed structure, dustproof and moisture-proof, to ensure long-term operation of the machine
4.Intelligent control
The built-in cooling fan can intelligently adjust the wind speed, which is convenient for energy saving
5.Sealing structure
Fully sealed structure, dustproof and moisture-proof, to ensure long-term operation of the machine
Specifications
Parameter | |||||||
Product Model | MFP-20W | MFP-30W | MFP-50W | ||||
Optical properties | |||||||
Average optical power Pnom (W) | 20 | 30 | 50 | ||||
Operating mode | Pulse | ||||||
Polarization state | Random | ||||||
M² | 1.5 | ||||||
Delivery Cable Length | 2.5（1.9~3） | ||||||
Maximum Pulse Energy | 1mJ | 1~1.2mJ | 1~1.5mJ | ||||
Pulse Repetition Rate Range | 20~80 | 30~60 | 33~80 | ||||
Output Power Stability | <5% | ||||||
Cooling Method | Air cooling | ||||||
Supply DC Voltage (VDC) | 24(23~25) | ||||||
Central Emission Wavelength | 1064 nm± 5 | ||||||
Emission Bandwidth@3dB | 5~10 nm | ||||||
Polarization | Random | ||||||
Output Beam Diameter | 7.5（6~9）（1/e2） | ||||||
Output Power Tuning Range | 10~100 | ||||||
Operation Temperature | 10~42 | ||||||
Storage Temperature | -10 ~ 60 ℃ | ||||||
Relative humidity of working environment (%) | 10~95 | ||||||
Warm-up time (min) | 1 (reached to start operation) 10 (to reach full stability) | ||||||
N.W | 10KG | ||||||
Size(L×W×H) | 355×266×120 | ||||||
Application
Application Material
Suitable for Many type of metals : Gold , Silver , Stainless Steel , Copper ,Aluminum ,Copper Brass ,etc Alloy and metal oxides : Anodized Aluminum Some non-metallic materials & Special surface treatment : silicon wafer , Poly urethane , ceramics , plastic , rubber , epoxy resin , PVC ,PC, ABS ,Coating film etc .
Application Industry
1. Electrical Engineering and Electrical part and component
2. Mobile (Cover ,battery , keyboard ,IPhone Case )
3. Jewelry (Ring , pedent , bracelet ),eyeglass , clocks and craft
4. Building materials , PVC pipe
5. Car motor car spare part , instrument and meters and cutting tool
6. Plastic case , aviation and aerospace
7. Military product , hardware fitting and accessory , sanitary appliance
8. Food and veverage , medicine package and medical instrument , solar Pv industry, Gold Silver , Jewelry
2. Mobile (Cover ,battery , keyboard ,IPhone Case )
3. Jewelry (Ring , pedent , bracelet ),eyeglass , clocks and craft
4. Building materials , PVC pipe
5. Car motor car spare part , instrument and meters and cutting tool
6. Plastic case , aviation and aerospace
7. Military product , hardware fitting and accessory , sanitary appliance
8. Food and veverage , medicine package and medical instrument , solar Pv industry, Gold Silver , Jewelry

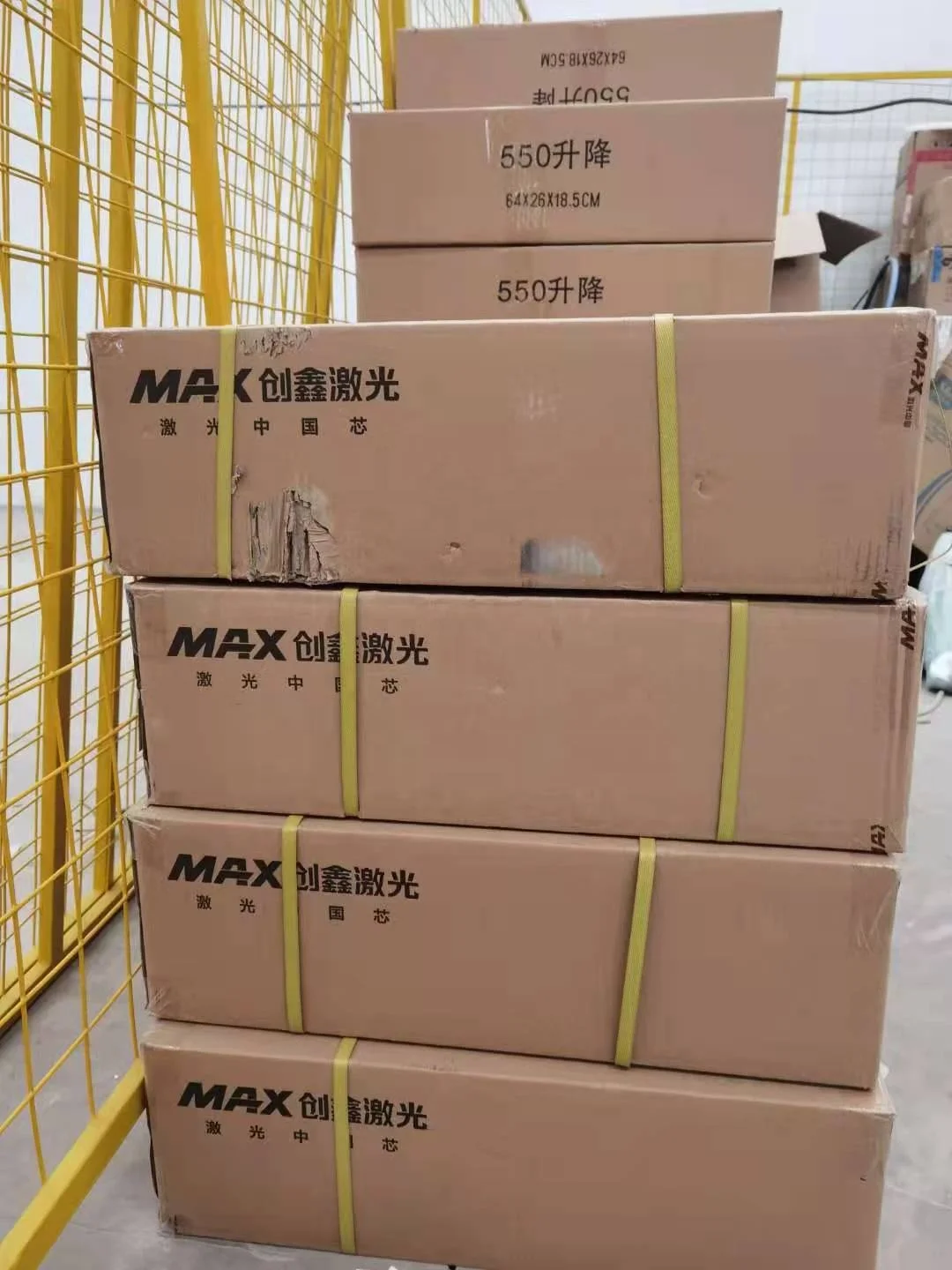

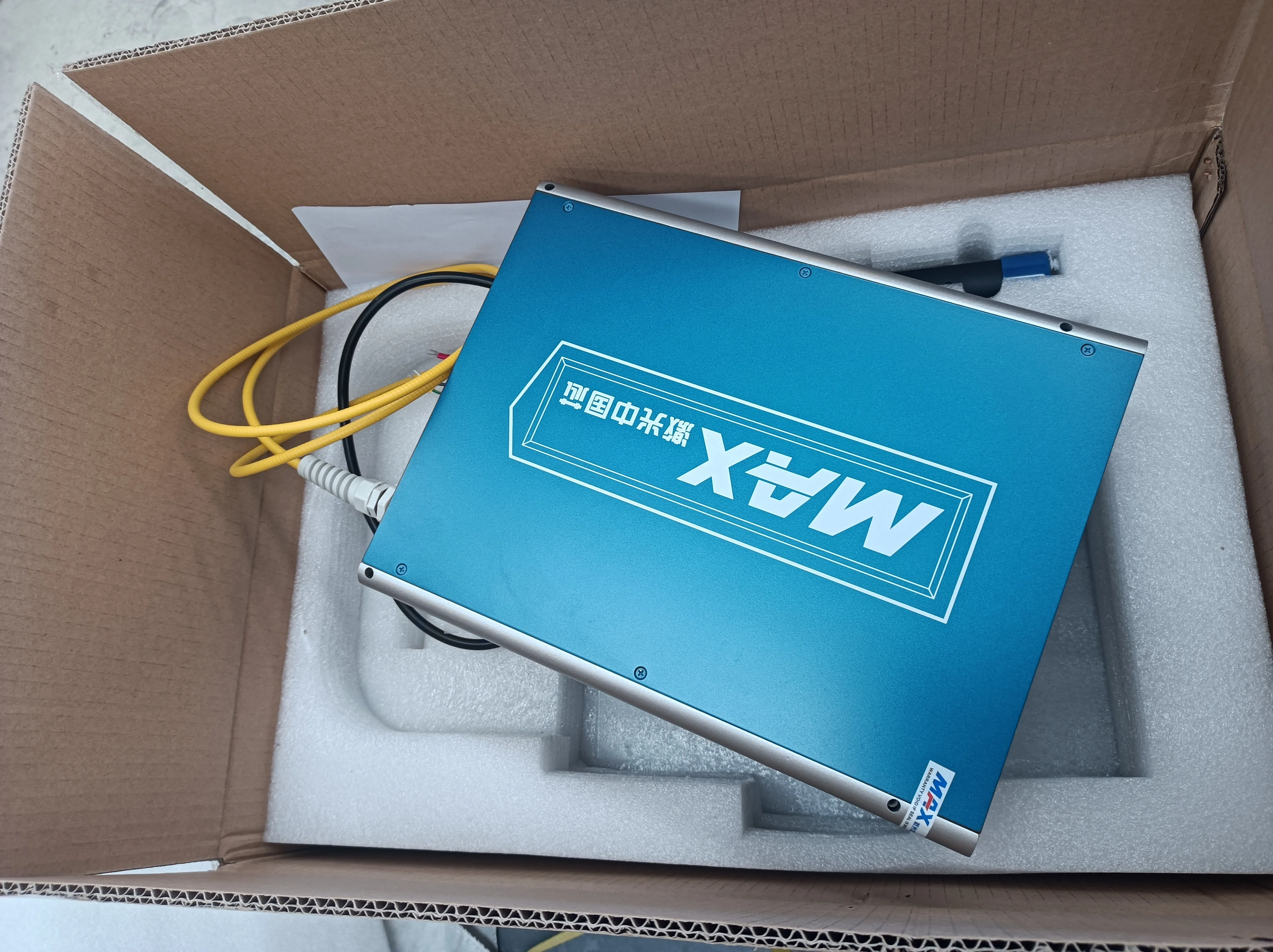

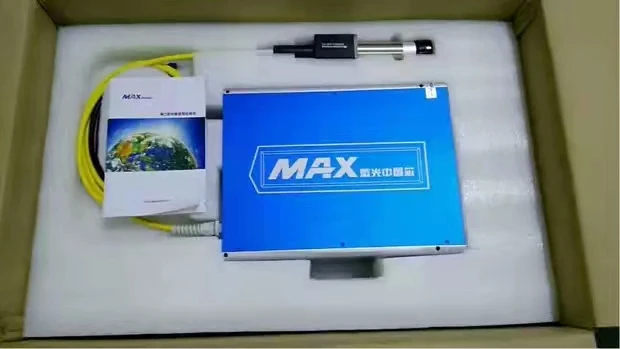

Shipping And Packing
We have 3 layers package. 1.For the outside, we adopt plywood case. 2.In the middle, the machine is covered by foam, to protect the machine from shaking. 3.For the inside layer, the machine is covered by the waterproof plastic bag.Carton packaging reduces weight. Save on shipping costs

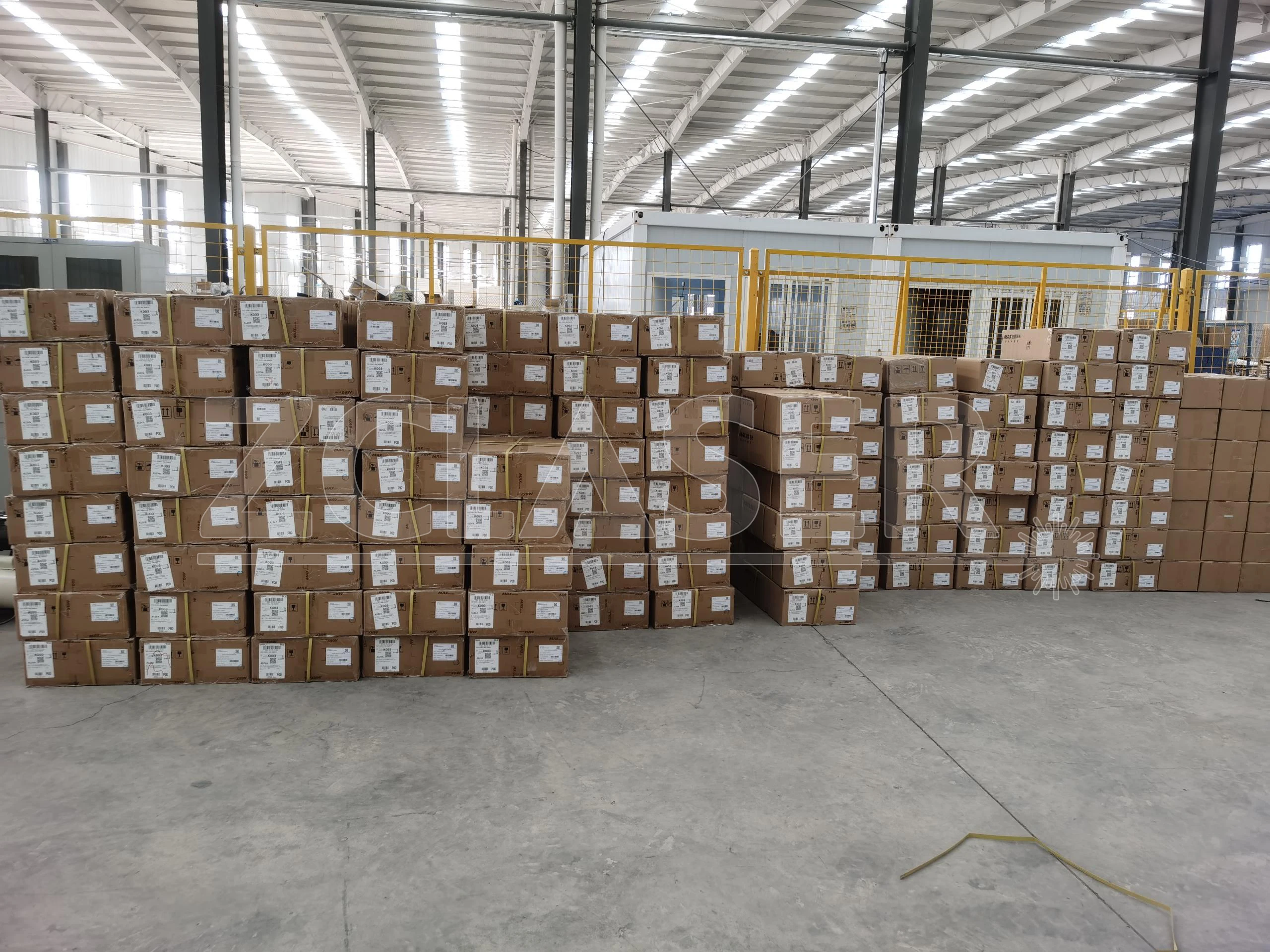

We have our own factory with a lot of stock, please rest assured to order
We have our own factory with a lot of stock, please rest assured to order
1.For the outside, we adopt plywood case.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by the waterproof plastic bag.
Delivery Time

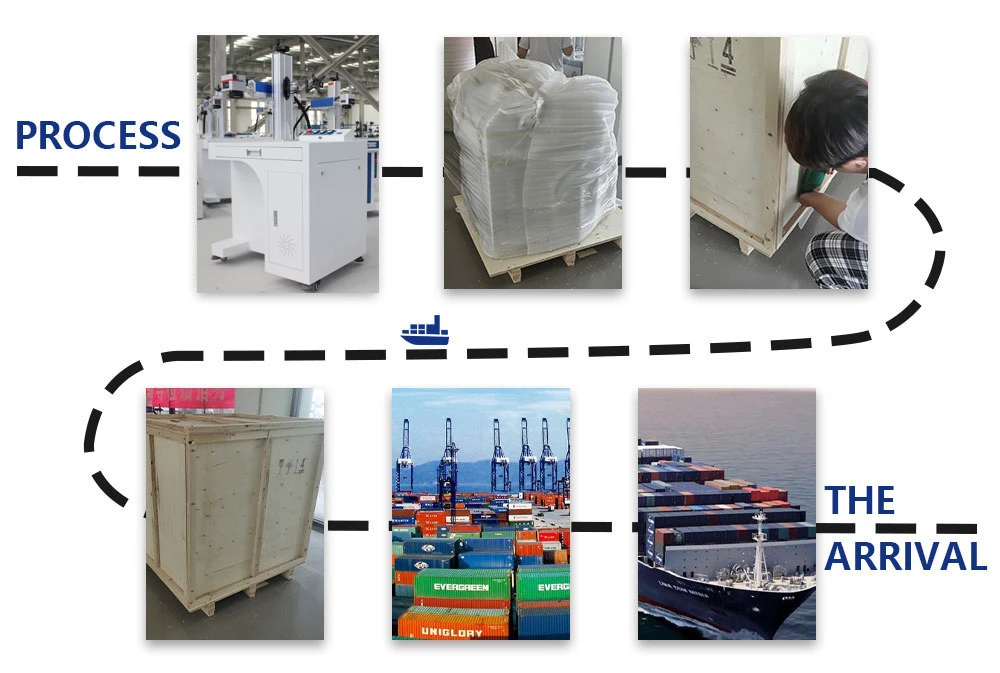

We provide shipping methods such as sea, air, and express.
1. The delivery lead time would be 7-10 working days after recieving the payment.
2. The customer can choose the shipping by sea, by air and even by international express such as FedEx, DHL, TNT, etc. We will send the cargo by reliable forwarder.
Our Service
After-Sales Service
①1 years warranty. (Not include consumable parts)
②Lifelong technical support online or by email.
③24 hours online service to help you use our machine well.
④Offer oversea service for training, installing, operating if necessary.
⑤Will offer you manual and operating producer when deliver the machine.
⑥Offer training at our factory for free (you could visit us and learn).
⑦We will supply the machine with training video and user's manual in English for installing, operation, maintenance to ensure customer could use our machine well.
③24 hours online service to help you use our machine well.
④Offer oversea service for training, installing, operating if necessary.
⑤Will offer you manual and operating producer when deliver the machine.
⑥Offer training at our factory for free (you could visit us and learn).
⑦We will supply the machine with training video and user's manual in English for installing, operation, maintenance to ensure customer could use our machine well.
Company Introduction
Jinan Zhancheng Automation Equipment Co., Ltd.
Is established in July 2003 ,owns more than 2000 square meters of researching and office space.All machines ,passed the European Union CE authentication,American certificate and are certified to ISO 9001. Products are sold to USA, South east Asia,Europe,Canada,Australia,Africa etc,more than 120 countries and areas, and supply OEM service for more than 30 manufactures.
The industrialization of laser technology will effectively promote the upgrading of emerging industries such as manufacturing, energy saving, and environmental protection, and meet consumer demand for high-quality products and services. Our company has established a complete quality management and after-sales service system . We can provide customers with various technical support and after-sales services, and provide a complete set of laser processing solutions for domestic and foreign customers.
Remote software teaching support, email/WhatsApp/Tel online service⭐⭐⭐⭐⭐
Absolute genuine guarantee, comprehensive after-sales service, and experienced technical team!!
Remote software teaching support, email/WhatsApp/Tel online service⭐⭐⭐⭐⭐
Solve basic problem within 24 hours⭐⭐⭐⭐⭐
Special teaching video for practical needs from customer⭐⭐⭐⭐⭐
Special teaching video for practical needs from customer⭐⭐⭐⭐⭐

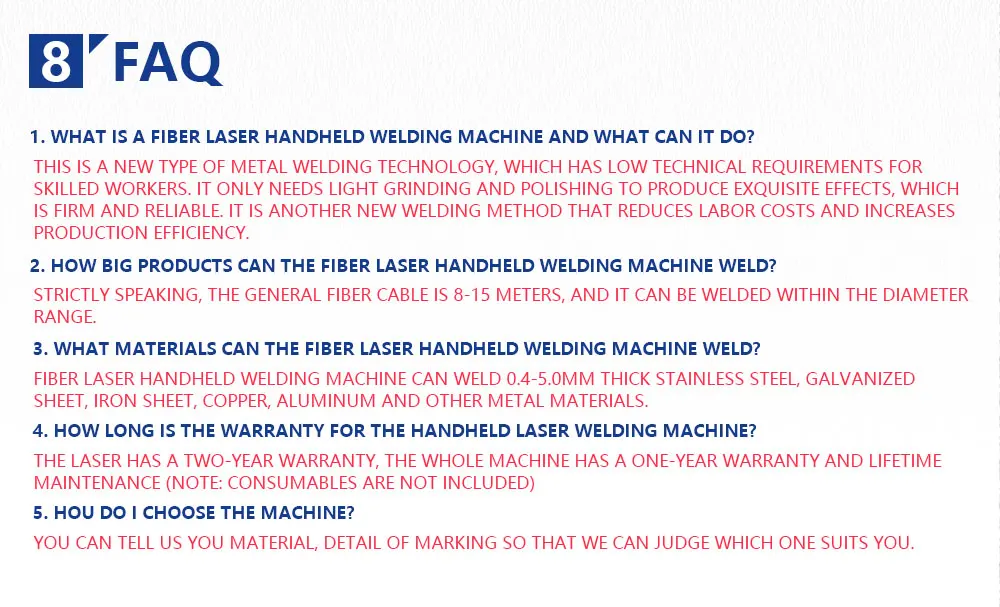

FAQ
