OEM factory price long distances HDMI Fiber Extender 20km over fiber 4K 60Hz with Keyboard and mouse HD extender
- Category: >>>
- Supplier: Aost,Electronic,Tech,Co.,Ltd.
Share on:
Product Overview
Description

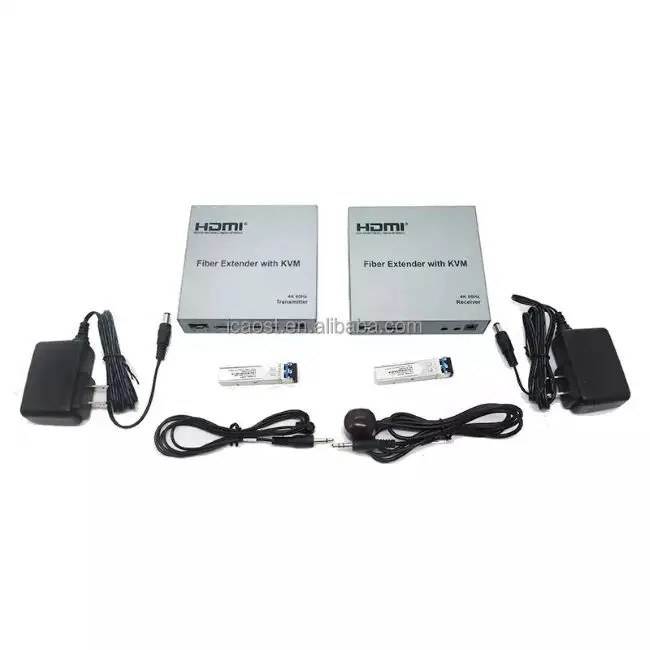

HDMI/KVM Extender over Fiber 20km
HD MI fiber extender is a device transmitting HD audio and video signal via bidirectional single fiber cable. It transmits your HD display with the high resolutions up to 20km. It support IR, RS232 and KVM function.By using bidirectional single fiber LC interface, it has the characteristics of low cost and stable signal transmission. It can be used in security monitoring, high-definition signals between buildings, square large screens and other long-distance HDMI signal transmission fields.
Features:
* Support HDMI [email protected]/HDCP2.2;
* Support transmitter HDMI Loop out;
* Support 3.5mm stereo output;
* Support IR;
* Support KVM;
* Support RS232;
* Comply with SFP MSA and SFF-8472 standard protocol;
* Pure hardware design, plug and play, do not need to install additional software;
* Support 4K to 1080P resolution (Downscaling).
Video Resolutions | 3840*[email protected] |
HDCP | HDCP 2.2 |
Fiber wavelength | 1310nm; 1550nm |
Fiber transmission distance. | 20km |
Power adapter | DC 5V/2A |
Audio format | L-PCM |
Size(L-W-H) | 106x106x17mm |
Weight | TX:272.1g RX:273.1g |
Operating Temperature/Humidity | (-10℃~ +55℃) |
