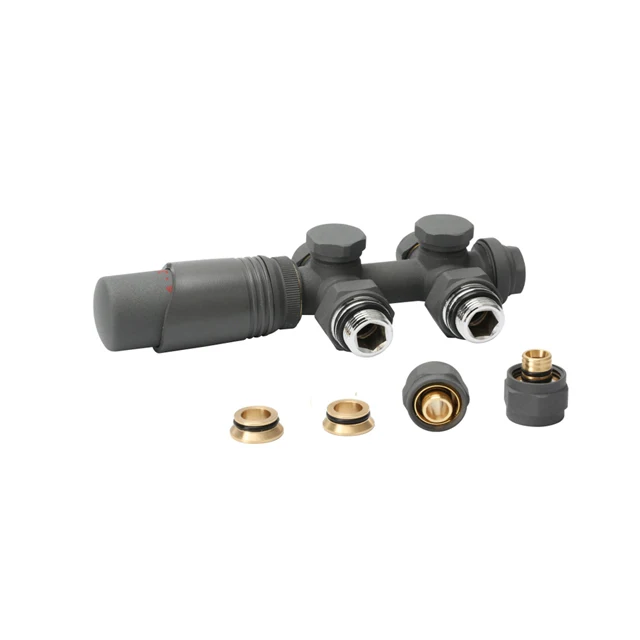

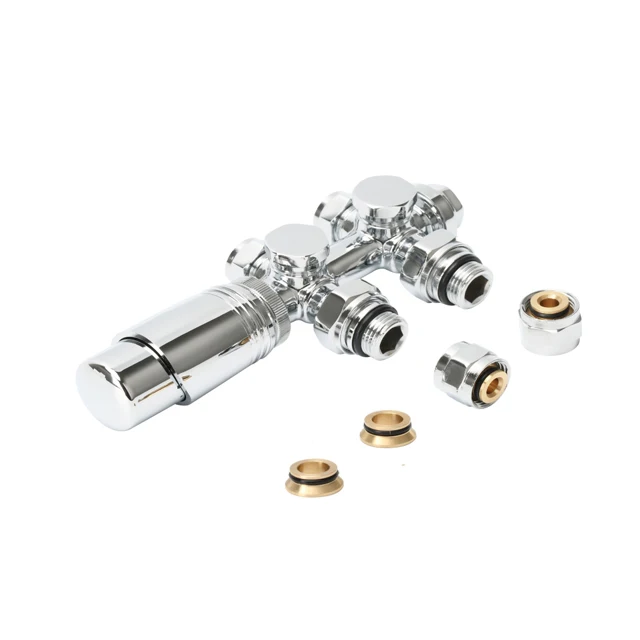

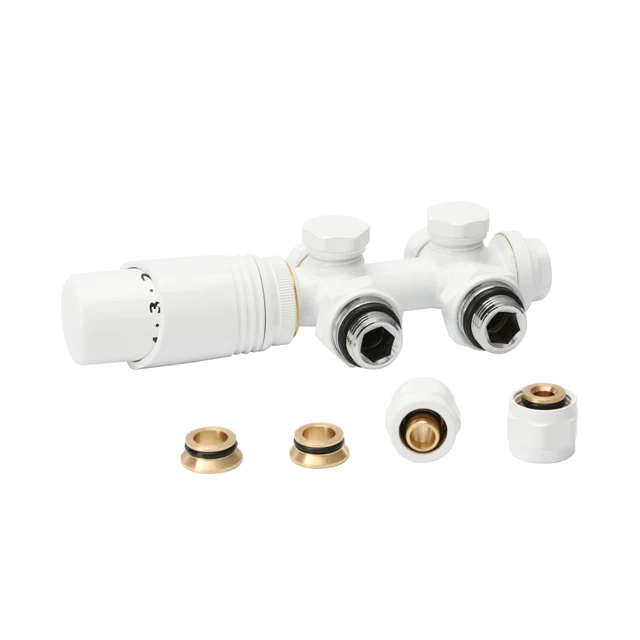

Six way Brass TRV brass temperature control H valve for towel radiator

Product Overview

Description







 BASIC INFORMATION



Descriptions	Thermostatic Radiator Valve H Valve for Radiator Copper&Pex Pipe
Model No.	BJ13003
Material	Brass H58-3 or CW617N
Processing	Forging, CNC Machining
Size	G1/2'' *15mm&16mm*50mm center distance
Color	white RAL 9016/Anthracite RAL7016/Chrome
Working Medium	Hot/Cold Water
Max Working Temperature	<110℃
Max Working Pressure	10 bar
Test Standard	CE
Material Details for Each Part	Brass Body, Brass Cartridge, Brass Handle



  FEATURES & ADVANTAGES

>>  1 model ,dual use for straight 180°and angled 90° installation

>>  Forging process, 100% leakage test to eliminate the possibility of  leakage

>>  High precision machining, top quality polish and chrome/paint finish, make the valve's  quality stable and reliable
