Worldsunlight WSDB PV2/2 IP65 2 IN 2 OUT 2 Strings 15A 500V DC Solar PV Array Combiner Box

Share on:

Price in USD:Details


Product Overview



WSDB-PV2/2 IP65 2 IN 2 OUT 2 Strings 15A 500V DC Solar PV Array Combiner Box

1.2ways,IP65 waterproof

2.DC 500V,16A

3.Polyester, vertical wall mounting,High quality



 WSDB-PV2/2 IP65 2 IN 2 OUT 2 Strings 15A 500V DC Solar PV Array Combiner Box

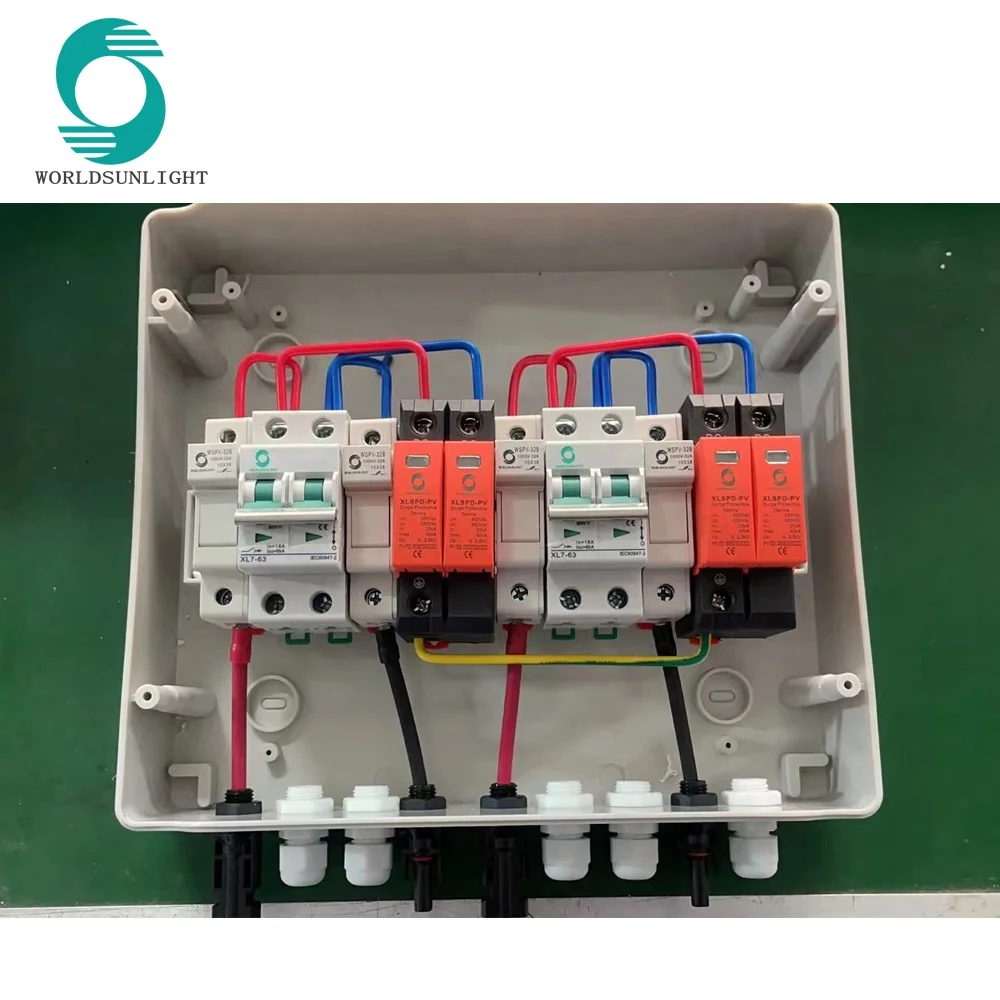

Including 4 pcs dc fuses+dc fuse holders/2 pcs 2p dc mcb/2pcs 2p dc spd.

Product Description


1. WSDB-PV2/2 IP65 2 IN 2 OUT 2 Strings 15A 500V DC Solar PV Array Combiner Box Application

Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, the combiner box provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.

 solar pv combiner box2.jpg

Production and package

22 500v


2. WSDB-PV2/2 IP65 2 IN 2 OUT 2 Strings 15A 500V DC Solar PV Array Combiner BoxSpecifications






Input channel number




Less than 8

Max. input voltage


Input current of each channel


Max. output current




Less than 80A

Size of the input waterproof terminal


Size of the output waterproof terminal





Monitoring module

Detect current of each channel, bus voltage, status of circuit breaker and lightning protector, box temperature

Communication mode/protocol

RS485 bus/standard MODBUS-RTU protocol

Prevent-reverse function

Can be equipped with modularized and encapsulated prevent-reverse diode (optional)

Temperature and humidity

Operating temperature: -40~+85℃, humidity 95%, places free of dew or corrosive gas.



Power consumption of monitoring module

Working hours≤8W

Auxiliary power supply

Auxiliary power supply: AC85V~265V/DC24V(±10%)/DC200V~1000V

Box material

Hot galvanized steel/stainless steel/cold rolled sheet/engineering plastics

Ingress protection


Volume (W×H×D)










3. WSDB-PV2/2 IP65 2 IN 2 OUT 2 Strings 15A 500V DC Solar PV Array Combiner BoxFunctional characteristics

1.Ingress protection of the combiner box reaches IP65, it is featured with waterproof, dustproof, rustproof, salt fog proof, can be used outdoors.


2.Put in 24 channels of PV strings at most.


3.Positive and negative poles of each PV string are equipped with special fuse wire, which protects the PV string from fault, use matchable fuse holder and fuse wire to reduce later maintenance cost for owner, and guarantee safety of maintenance personnel.


4.It uses photovoltaic purposed HV lightning protector to carry out protection to the positive pole-to-ground and negative pole-to-5.ground of bus after combination, the continuous operating voltage (Uc) reaches 1000VDC.


5.The power supply module in the combiner box can accept PV voltage as high as PV Intelligent Lightning Protection Combiner Box.


6.The measure-control module of combiner box adopts high-performance Honeywell Hall elements (DC CT sensor), which 8.carries out monitoring, alarm and local fault location to each PV string, meanwhile, it measures the temperature inside the combiner box, carries out status inspection to the lightning protector and output circuit breaker.


7.Monitoring module in the combiner box has function of digital display, it indicates the current of each PV string, bus voltage, temperature inside the box, status of circuit breaker and lightning protector, system power, equipment address and other relevant information.


8.It is equipped with RS485/MODBUS-RTU serial port communication.


9.All external interfaces have lightning protection, Solar power generation system solar panel combiner box.


10.Receive and download the parameters of local monitoring device, and carry out analysis processing.


11.Working power supply for combiner box can be 220VAC/DC from outside, also can be supplied by the self-contained power supply of combiner box. When using the self-contained power supply, users need not to arrange additional wiring for the power supply, Solar power generation system solar panel combiner box supply.

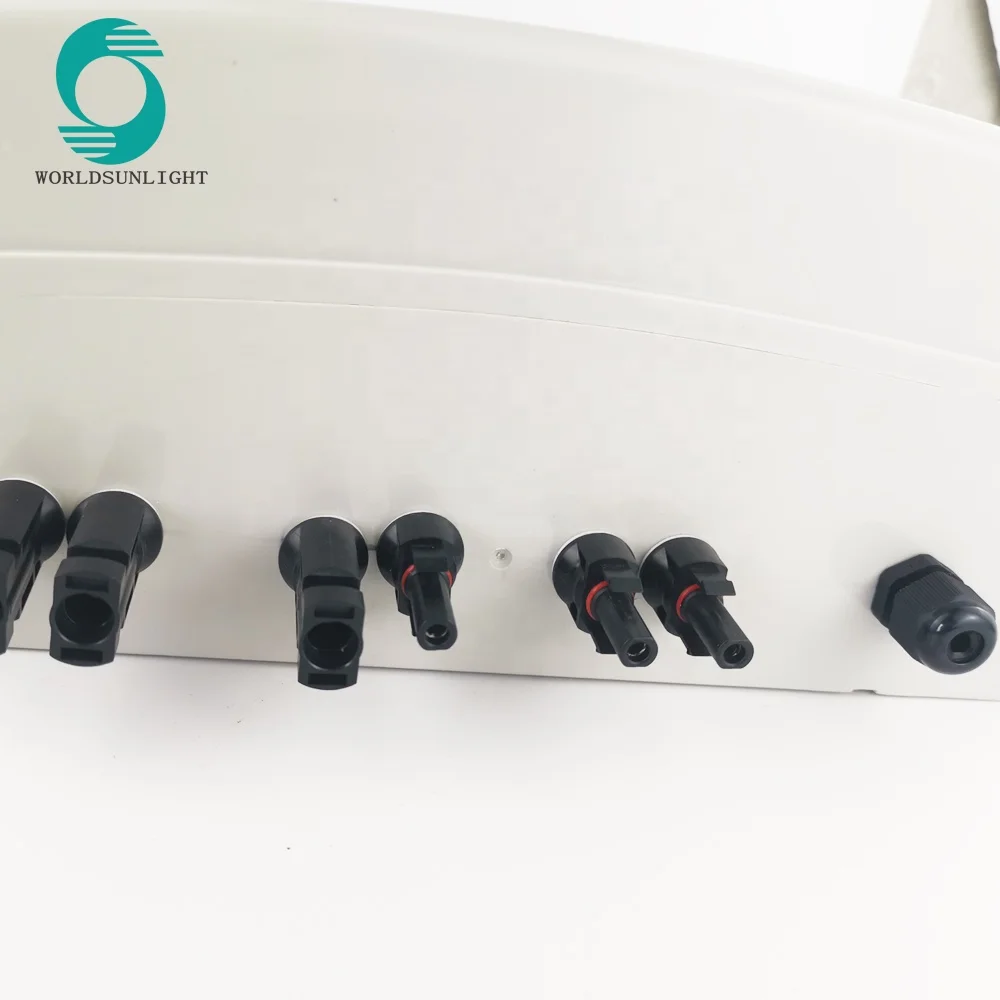

4. WSDB-PV2/2 IP65 2 IN 2 OUT 2 Strings 15A 500V DC Solar PV Array Combiner BoxPictures

WSDB-PV21 (9).jpg
WSDB-PV21 (5).jpg
WSDB-PV21 (7).jpg



Packaging & Shipping


5. WSDB-PV2/2 IP65 2 IN 2 OUT 2 Strings 15A 500V DC Solar PV Array Combiner Box Packing

DC fuse rating 15A PV string combiner box pricesConvergence box.jpg
