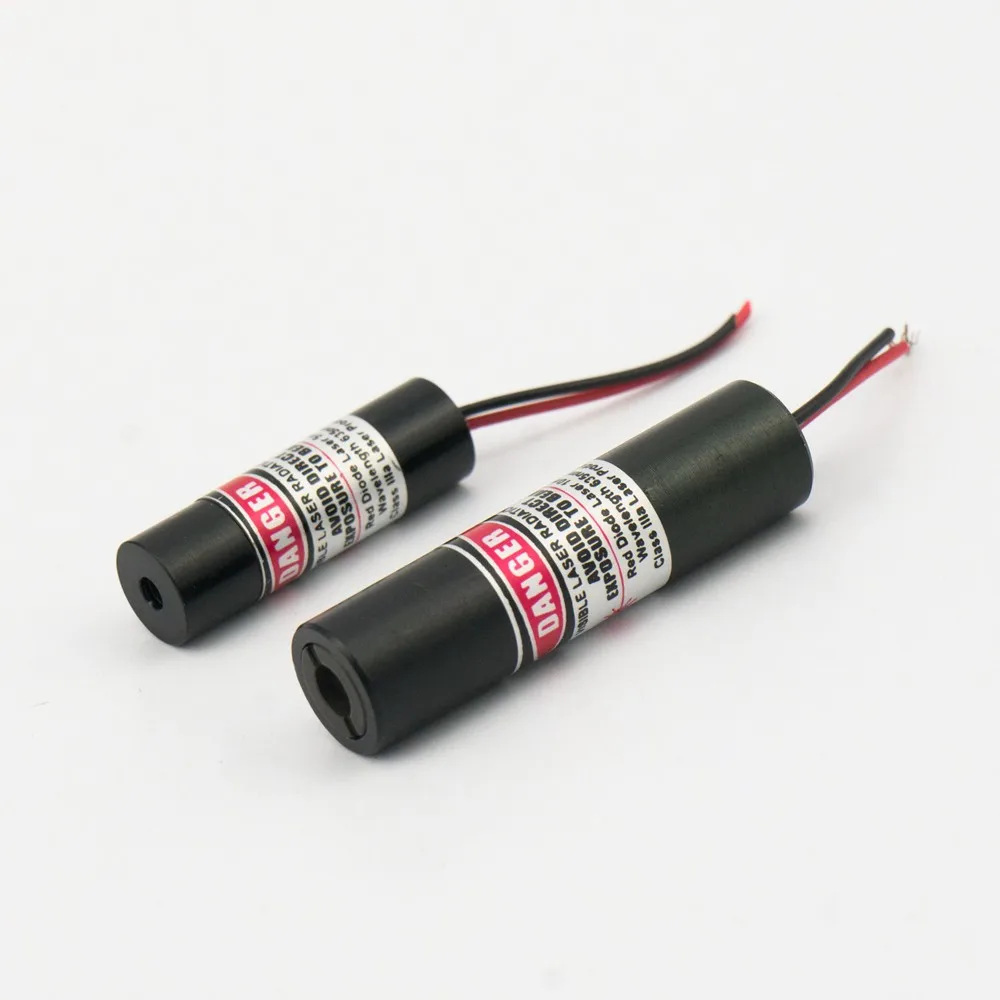

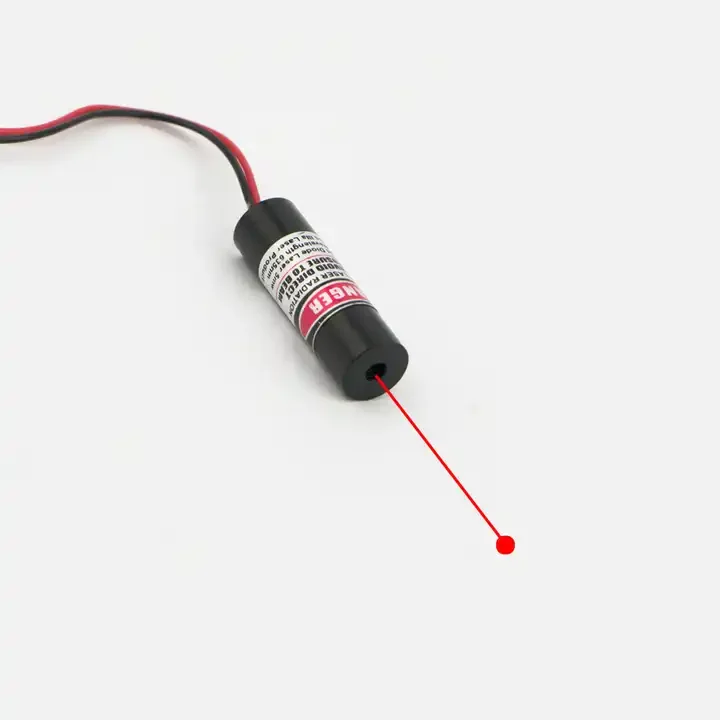

Green Red Dot Laser 1mW 5mW Beam size 1mm laser module
- Category: >>>
- Supplier: Elite Optoelectronics Co. Ltd.
Share on (1600795274800):
Product Overview
Description
Specification | Cross Laser Module | ||||||
Wavelength | 405nm~980nm （Custom) | ||||||
Output Power | 1, 5, 10, 20, 35, 50, 80, 100, 150 and 200mW（Custom） | ||||||
Fan Angle | 3° 5° 10° 15° 20° 30° 45° 60° 75° 90° 105° 120° (Custom) | ||||||

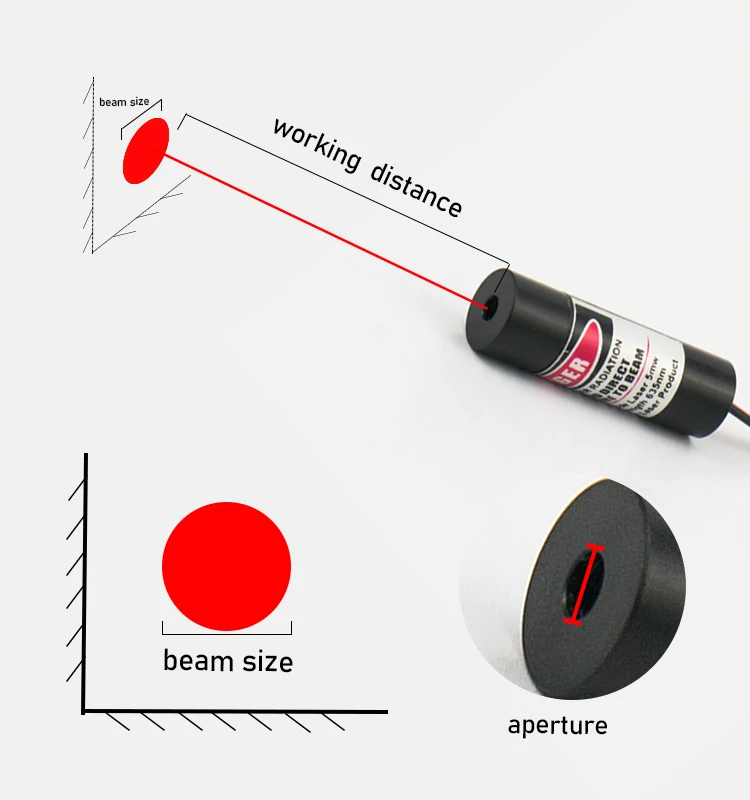

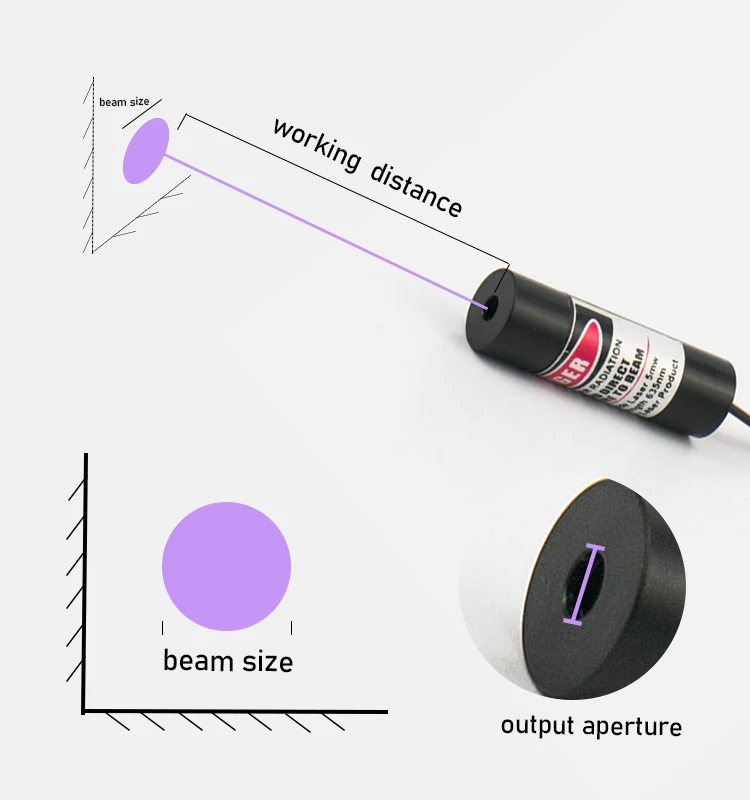

Linewidth at 1/e^2 | 0.1mm, 0.3mm, 0.5mm, 1.0mm, 2.0mm (Custom) | ||||||
CDRH Class | I, II, IIIa, IIIb | ||||||
Laser Drive Modes | CW, Analog Modulation, Digital Modulation | ||||||
Lens | Optical Glass Lens | ||||||
Dimension | Ø6.5x14mm ~ Ø14x50mm (Custom) | ||||||
Operating Current | < 300mA | ||||||
Input Voltage | 3.0V, 5.0V, 9.0V, 12.0V, 24.0V | ||||||
Operating Temperature | -20℃~60℃ | ||||||
Storage Temperature | -40℃~85℃ | ||||||
MTBF | >10,000hours | ||||||
Product Category
Beam shapes: Point laser module, Line laser module,Cross line laser module, Micro-spot laser module.
Product Features
1. Industrial laser modules use high-quality laser diodes.
2. Specially designed collimating lens and high stability (APC) drive circuit.
3. Reliable performance, service life of more than 10,000 hours, and high stability.
2. Specially designed collimating lens and high stability (APC) drive circuit.
3. Reliable performance, service life of more than 10,000 hours, and high stability.
