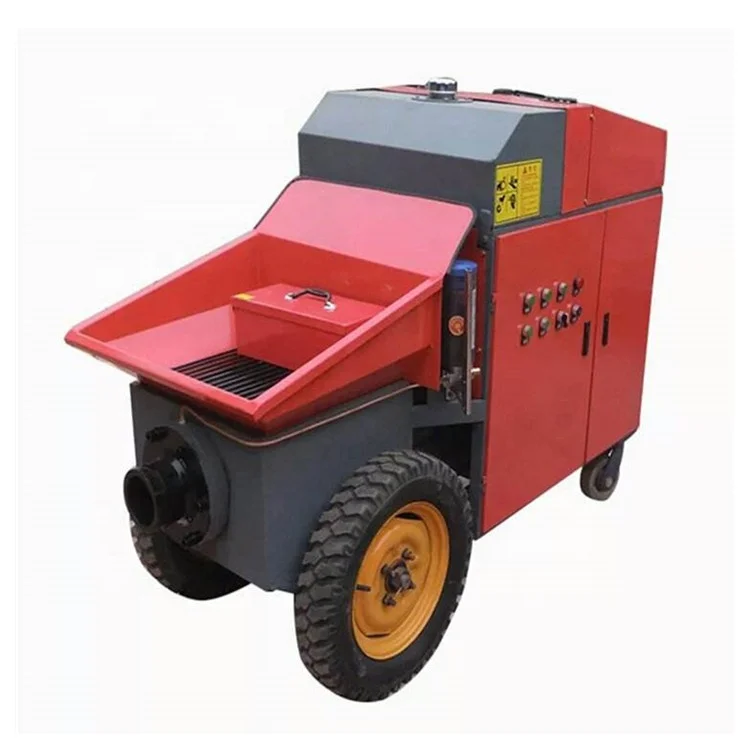

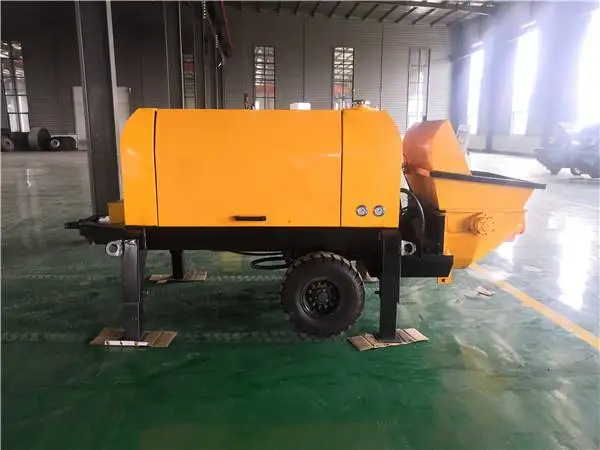

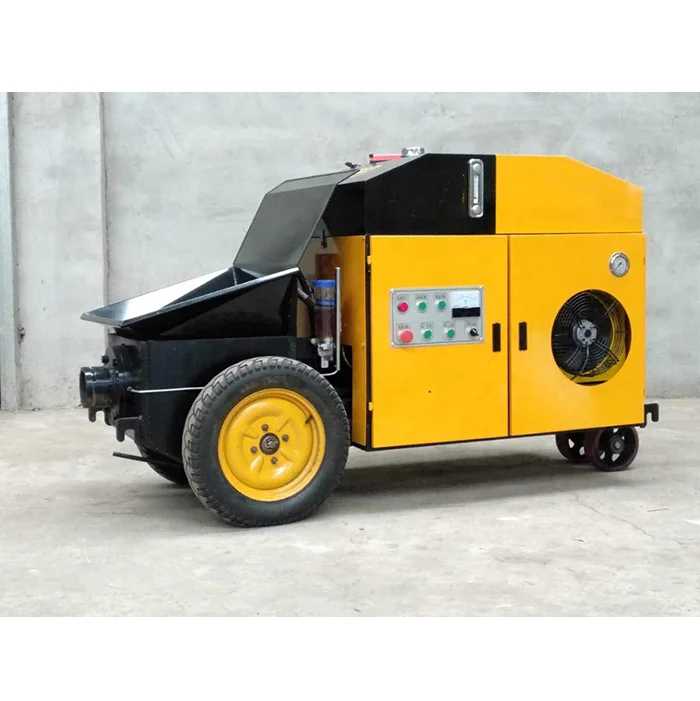

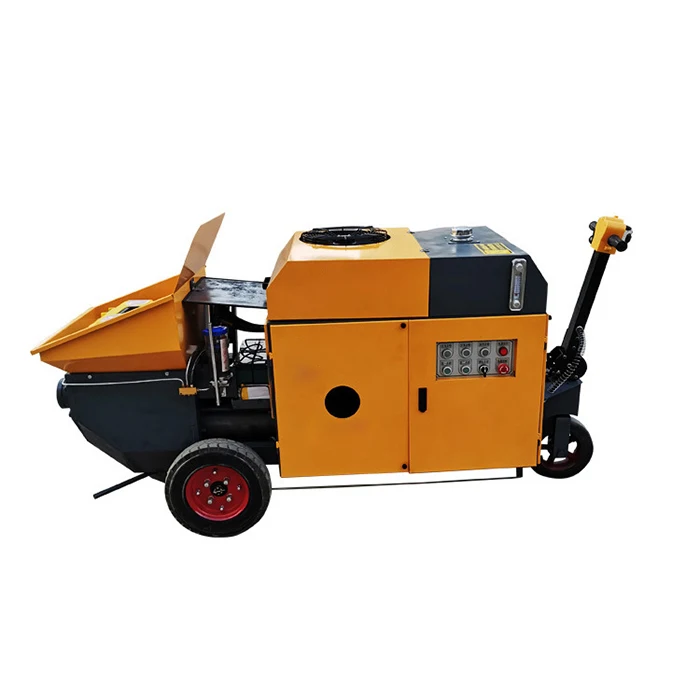

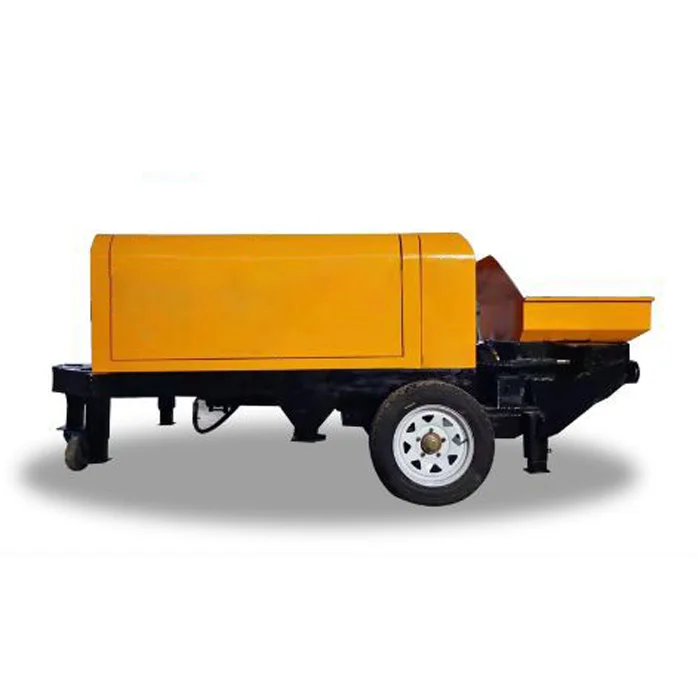

On Sale Electricity Driven Mobile Concrete Pump Mini Concrete Pump Truck

Product Overview

Description

Electricity Driven Mobile Concrete Pump Mini Concrete Pump Truck Product Presentation

Concrete pump, consists of a pump body and a conveying pipe, is a kind of machinery that uses pressure to continuously transport concrete along pipes. It is mainly used in house construction, bridges and tunnel construction.

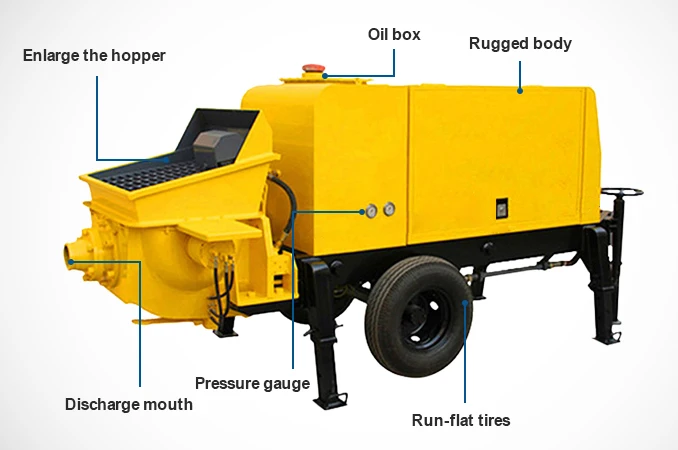

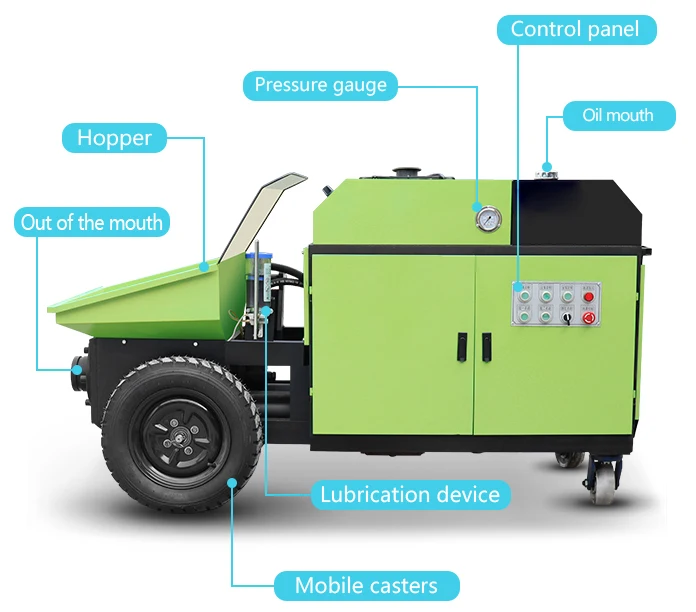

Electricity Driven Mobile Concrete Pump Mini Concrete Pump Truck Product Details

1.Reliable performance, smooth operation.

2.High material suction capability, strong pumping capability.

3.Long life S pipe and wearing parts.

4.Advanced hydraulic and electrical systems, safety and reliability.

5.Intelligent control system, high efficiency.

6.Wireless remote control function, more convenient, simple operation.

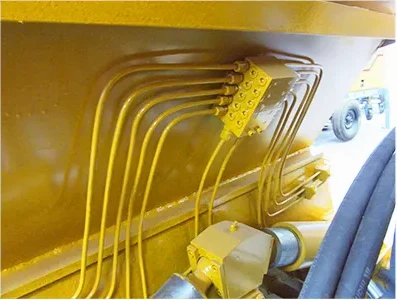

	AUTOMATIC LUBRICATION SYSTEM Lubricate Automatcially theComponets of ConcretePumps;
HIGH PRESSURE CONCRETE OUTPUT Meet the High Building andLong Distance ConstructionWorks;

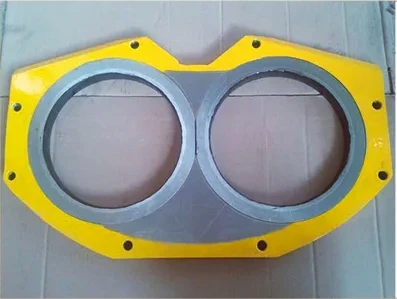

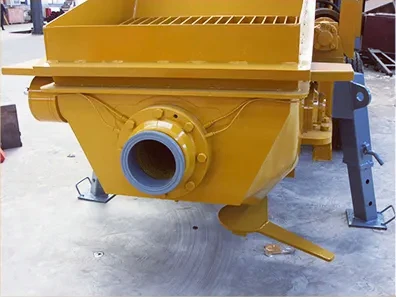

	HARD ALLOY EYEGLASS PLATE Hard-Alloy Glasses PlateEnsure the Service Life!

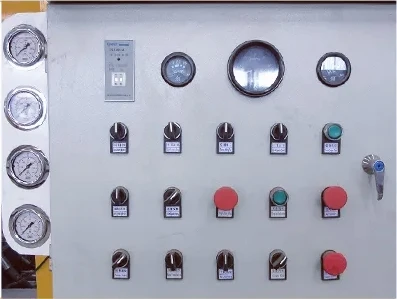

PLC CONTROL FULL AUTOMATICALLY Operation is Simple andClear At a Glance, lmproveWork Efficiency;

Electricity Driven Mobile Concrete Pump Mini Concrete Pump Truck Product parameters

model	HC-55	HC-45	HC-40	HC-30	HC-15
Motor power	55kw	45kw	37kw	30kw	15kw
Stone particles(cm)	0.5-1.5/1-2/1-3/2-4	0.5-1.0/1-2/1-3/2-4	0.5-2-3	0.5-1.0/1-2/1-3	Up to 2
Vertical pumping distance	150/90/40/30m	120-70-40m-20m	80-40-25m	60-25-15m	10-20m
Horizontal pumping distance(m)	300/200/150/80	200-150-100-60	150-100-80	100-80-60	40-50
Concrete delivery capacity	30-35m3	20-25m3	15-18m3	12-15m3	5-8m3
Overall dimensions(mm)	3980*1650*1650	3980*1500*1580	3580*1500*1580	3250*1450*1550	2300x800x1400
Operating Weight	2800kg	2500kg	1800kg	1500kg	1000kg

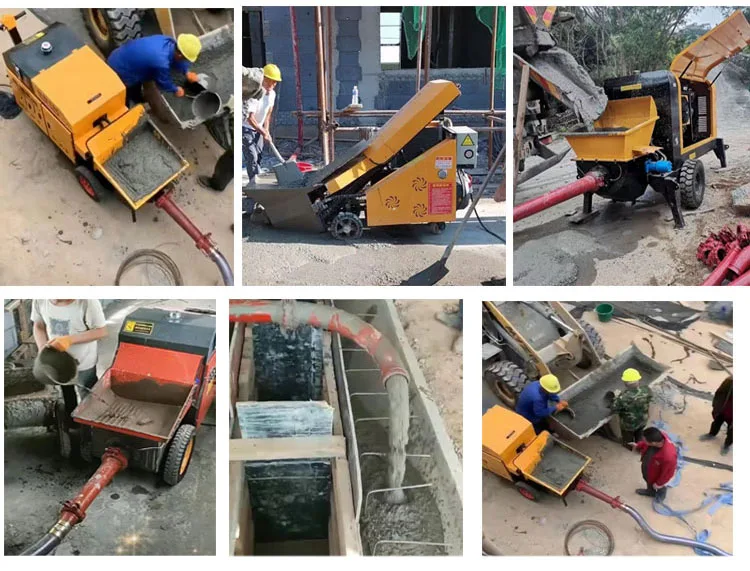

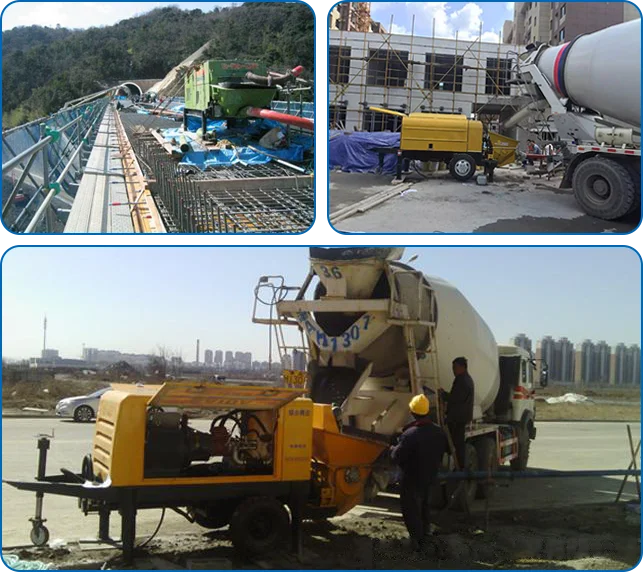

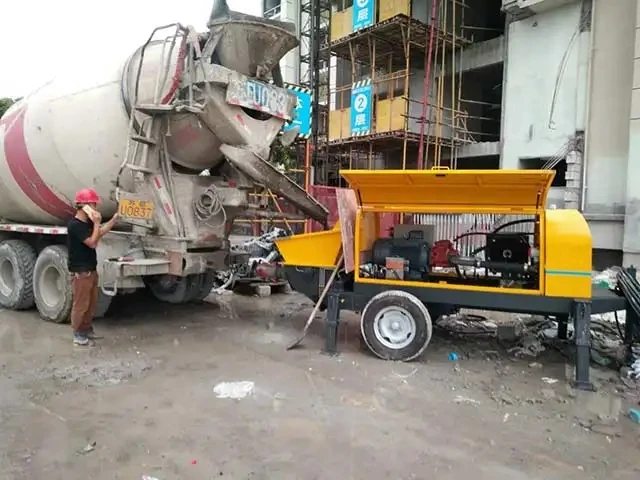

Electricity Driven Mobile Concrete Pump Mini Concrete Pump Truck Construction site

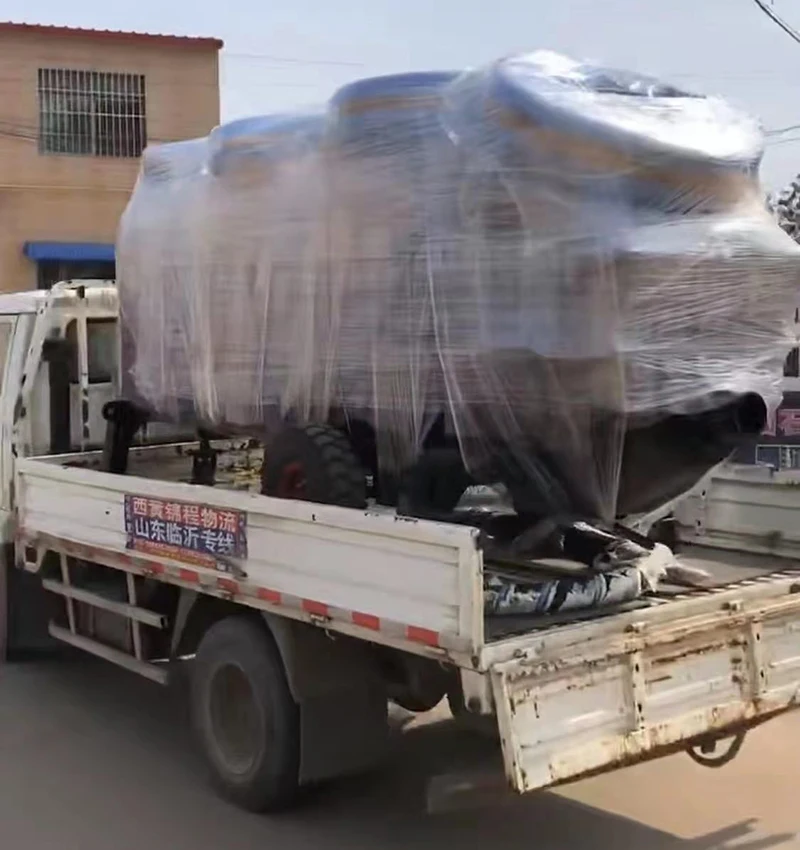

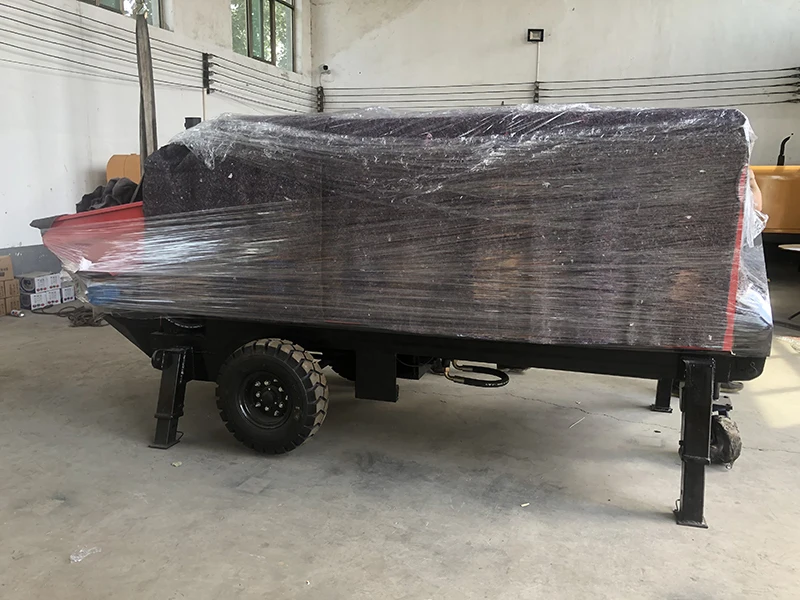

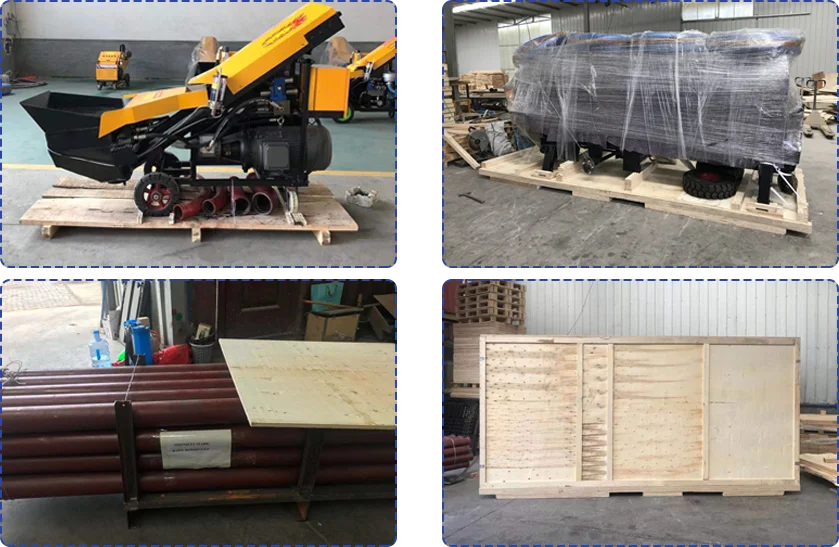

Electricity Driven Mobile Concrete Pump Mini Concrete Pump Truck Packaging and shipping

1. Packaging:
Packed by standard import & export wooden cases or carton boxes.



FAQ

Q1. What is the driving power of the hollow block making machine?

A: Electricity and diesel engine

Q2. Are you a manufacturer of a trading company?

A: We are the biggest building materials machinery manufacturers, with strongtechnical force, reliable product quality, which merge science,industry and tradetogether in one.Welcome to our factory at any time.

Q3.How can I pick up a suitable machine ?

A: Only clarify your required output per day or per shift (8 hours) as well as yourbudget, then we can recommend suitable machine with very competitive price.

Q4. What kind of blocks can be produced by this plant?

A: You can get blocks with different sizes by changing the position of cutting wires

Q5. Is this block machine suitable for us to use?

A: Could you please tell us what kind of bricks do you want to make? And the capacity you want? Let us check if it can meet

your request.

Q6. Which industry did this block machine usually be used in?

A: Interlocking bricks, Hollow bricks, Paving bricks,Solid bricks,etc

Q7. How to use the block machine?

A: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers.

Q8. How about the after sale service of block machine?

A: 1 year guarantee for the whole machine (without the spare parts).
