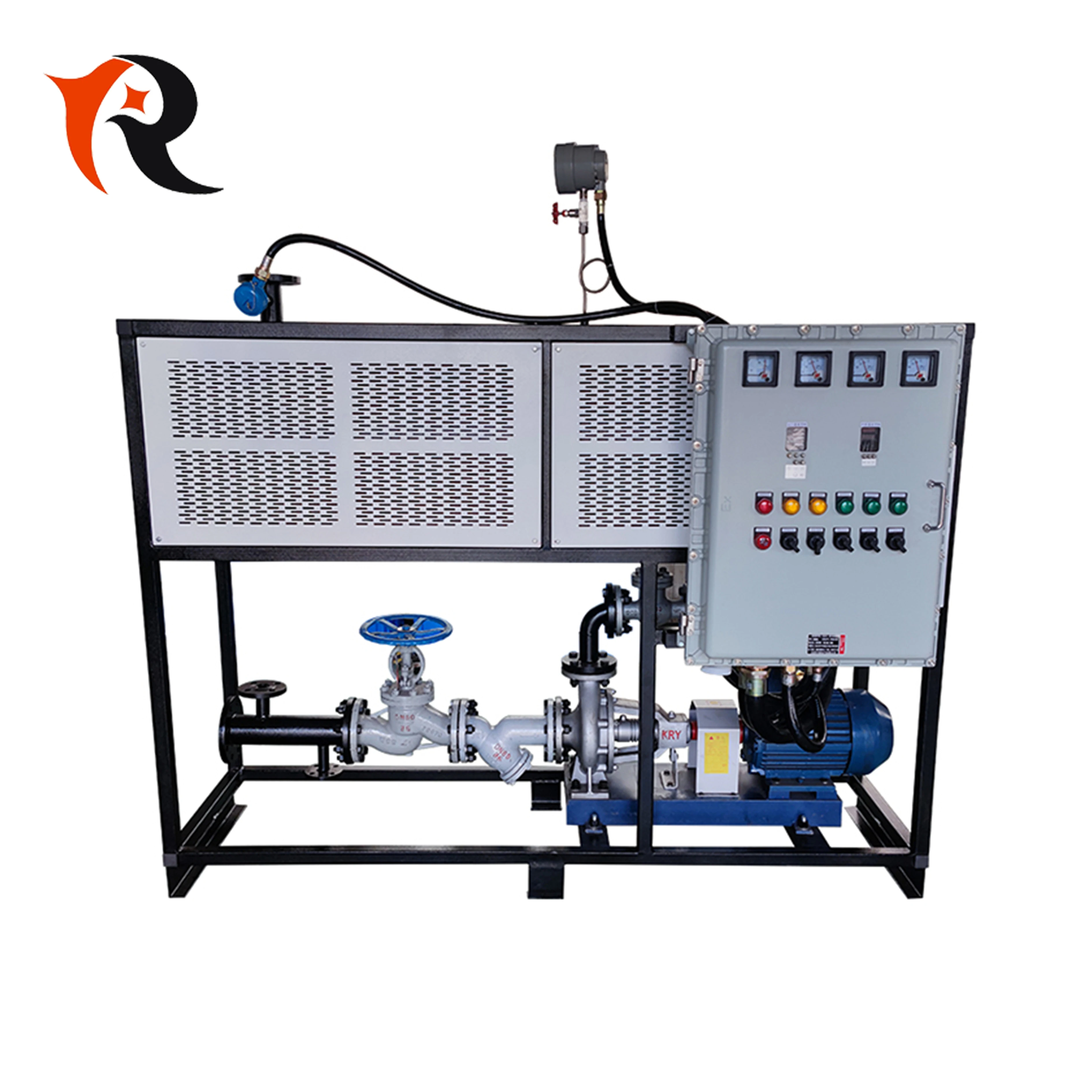

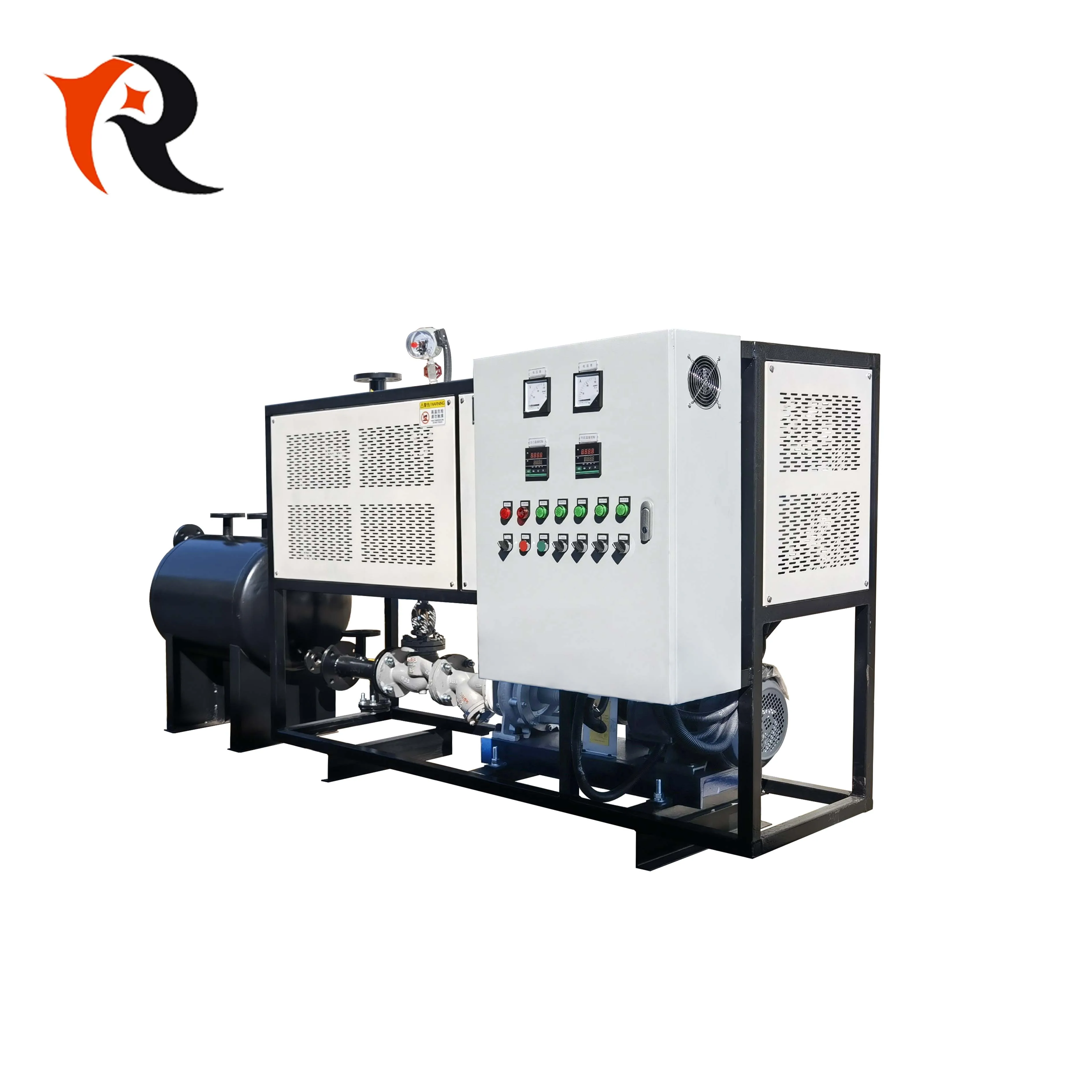

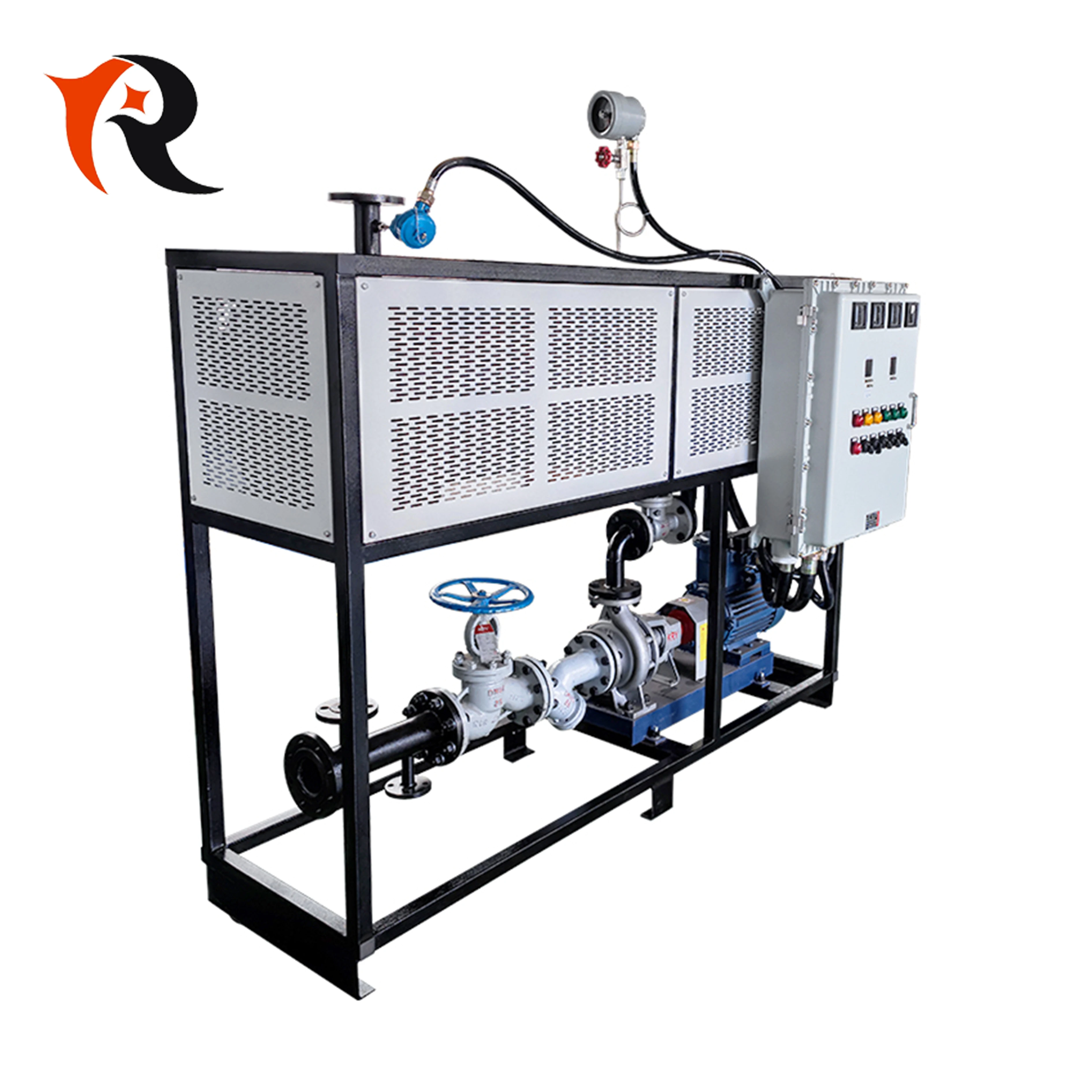

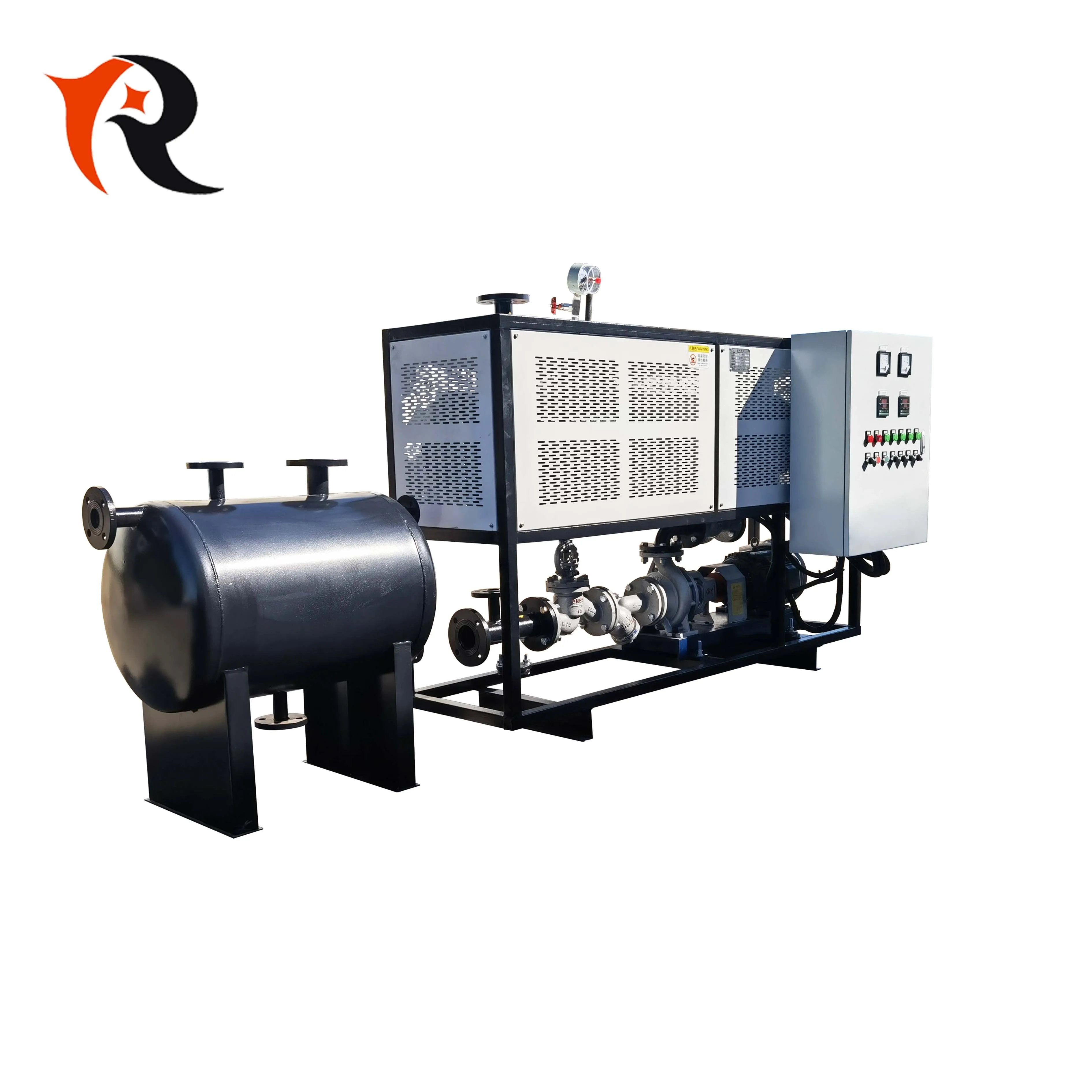

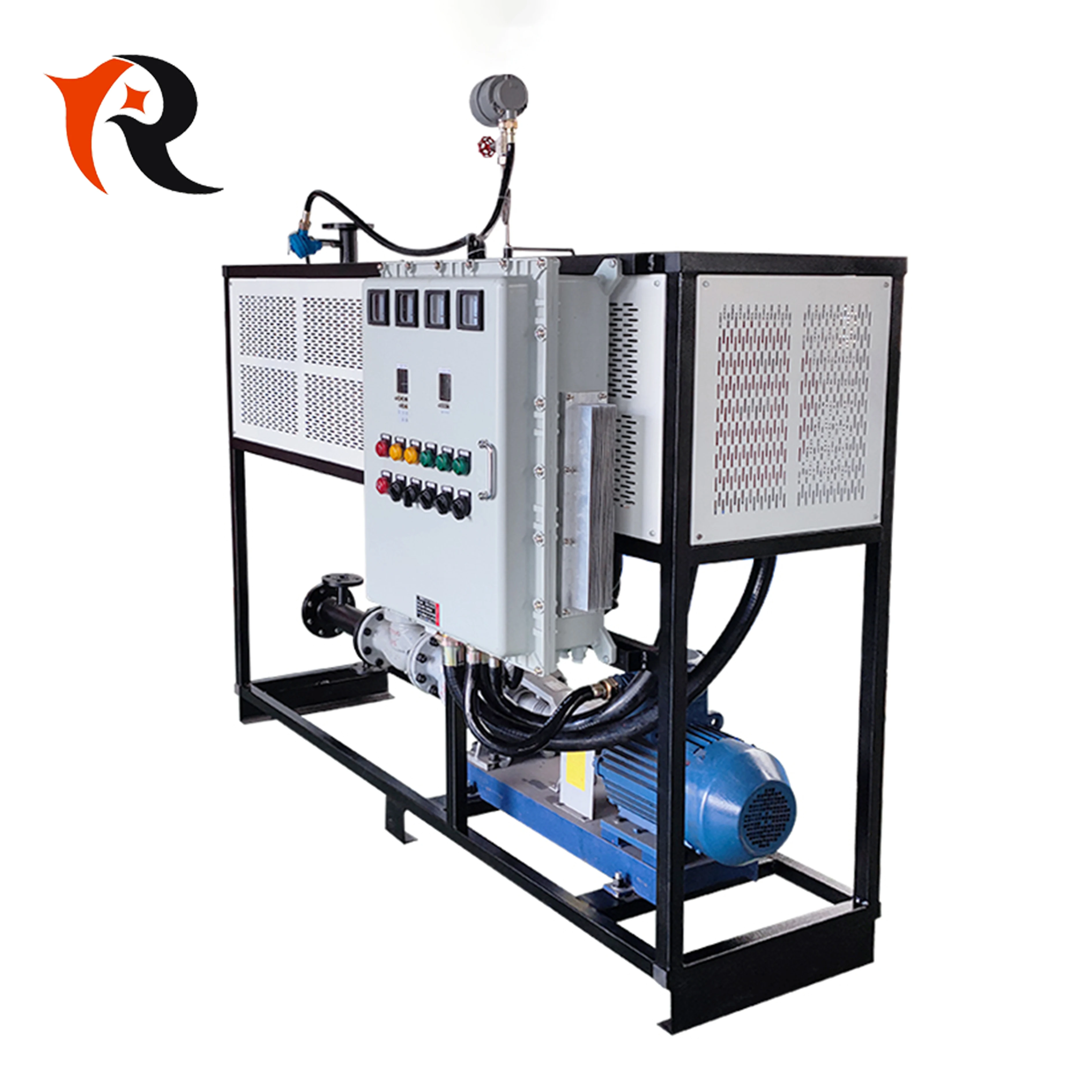

Electric thermal oil furnace for paint baking room heating
- Category: >>>
- Supplier: Yancheng Xinrong Electronic Industries Co. Ltd.
Share on (1600795542846):
Product Overview
Description
Product Description
Thermal oil electric heater is a new type, safe, high efficiency and energy saving, low pressure (under normal pressure or lower pressure) and can provide high temperature heat energy special industrial furnace, It is a direct-flow special industrial furnace that uses electricity as the heat source and heat transfer oil as the heat carrier, and uses a circulating oil pump to force the liquid phase to circulate. The heat energy is transferred to the heating equipment and then returned to the reheated DC special industrial furnace, Repeatedly in this way, the continuous transfer of heat is realized, and the temperature of the heated object is increased to meet the heating process requirements.
Working principle:
For the electric heating oil furnace, the heat is generated and transmitted by the electric heating element immersed in the heat-conducting oil. The heat-conducting oil is used as the medium and the circulating pump is used to force the heat-conducting oil to circulate in the liquid phase. After the equipment is unloaded by the heating equipment, it passes through the circulating pump again, returns to the heater, absorbs heat, and transfers it to the heating equipment. In this way, the continuous transfer of heat is realized, the temperature of the heated object is increased, and the heating process is achieved.

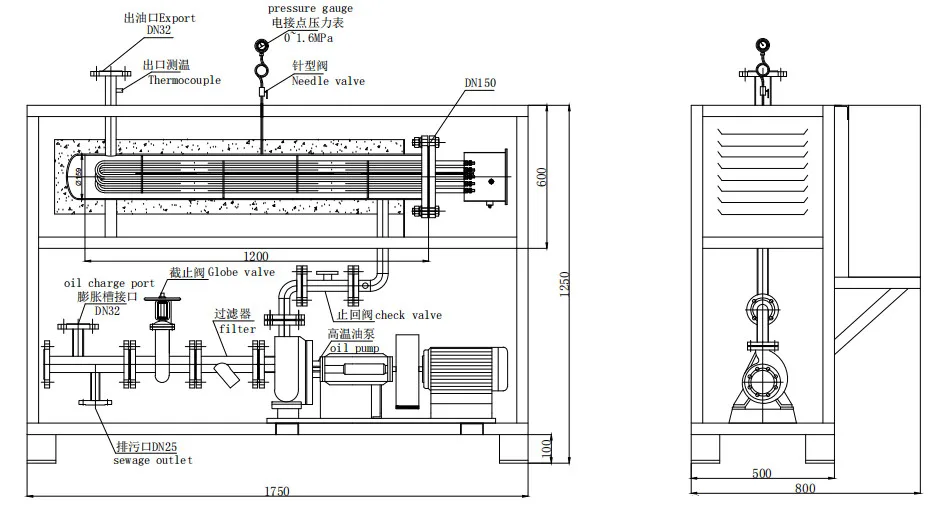

Structure

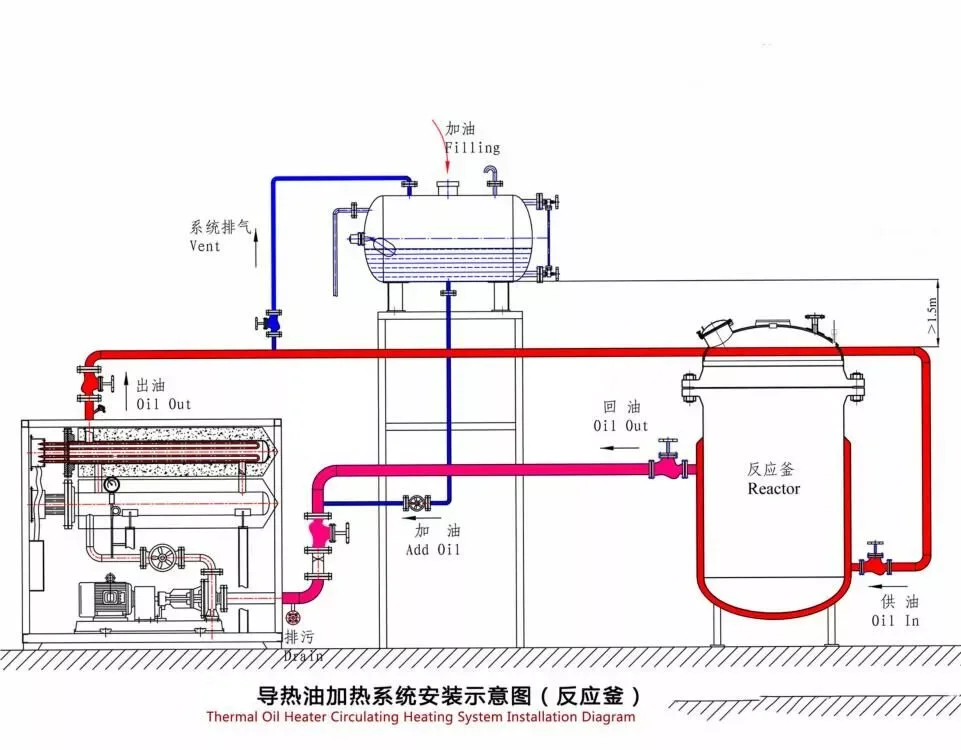

The electric heating heat transfer oil system is composed of explosion-proof electric heater, organic heat carrier furnace, heat exchanger (if any), on-site explosion-proof operation box, hot oil pump, expansion tank, etc. The inlet and outlet pipes and some electrical interfaces can be used. It can get the stable heating and precise temperature.
Specification
Model | Heater Power (KW) | Oil Capacity (L) | Overall Dimension(L*W*H) | Heating-oil Pump | Expansion Tank(mm) | ||||
Power(kw) | Flow(m3/h) | Head(m) | |||||||
XR-YL-10 | 10 | 15 | 1400*500*1150 | 1.5 | 8 | 22 | φ400*500 | ||
XR-YL-18 | 18 | 23 | 1750*500*1250 | 1.5 | 8 | 22 | φ400*500 | ||
XR-YL-24 | 24 | 28 | 1750*500*1250 | 2.2 | 12 | 25 | φ400*500 | ||
XR-YL-36 | 36 | 48 | 1750*500*1250 | 3 | 14 | 30 | φ500*600 | ||
XR-YL-48 | 48 | 48 | 2000*550*1500 | 5.5 | 18 | 40 | φ500*600 | ||
XR-YL-60 | 60 | 52 | 2000*550*1500 | 5.5 | 18 | 40 | φ500*600 | ||
XR-YL-72 | 72 | 60 | 2000*550*1500 | 5.5 | 18 | 40 | φ500*600 | ||
XR-YL-90 | 90 | 68 | 2100*600*1550 | 7.5 | 25 | 50 | φ500*600 | ||
XR-YL-120 | 120 | 105 | 2100*600*1550 | 7.5 | 25 | 50 | φ600*700 | ||
XR-YL-150 | 150 | 195 | 2200*700*2000 | 7.5 | 25 | 50 | φ600*700 | ||
XR-YL-180 | 180 | 230 | 2200*700*2000 | 11 | 60 | 40 | φ700*800 | ||
XR-YL-240 | 240 | 260 | 2200*700*2000 | 15 | 80 | 40 | φ700*800 | ||
XR-YL-300 | 300 | 293 | 2600*950*2200 | 15 | 80 | 40 | φ700*800 | ||
XR-YL-400 | 400 | 358 | 2600*950*2000 | 15 | 80 | 40 | φ800*1000 | ||
XR-YL-500 | 500 | 510 | 2200*1000*2000 | 15 | 80 | 40 | φ800*1000 | ||
XR-YL-600 | 600 | 562 | 2600*1200*2000 | 22 | 100 | 55 | φ800*1000 | ||
XR-YL-800 | 800 | 638 | 2600*1200*2000 | 22 | 100 | 55 | φ1000*1200 | ||
XR-YL-1000 | 1000 | 750 | 2600*1200*2000 | 30 | 100 | 70 | φ1000*1200 | ||
Buying Guide
The key questions before ordering a pipeline heater are:
1. What’s your using environment? For liquid heating?
3. What wattage and voltage will be used?
4. What is your required temperature? What’s the temperature before heating?
5. What material do you need?
6. How long required to reach your temperature?
3. What wattage and voltage will be used?
4. What is your required temperature? What’s the temperature before heating?
5. What material do you need?
6. How long required to reach your temperature?
Application
Thermal oil electric heater is widely used on hot roller/hot rolling machine, calender/kneader, radiator/heat exchanger, reaction kettle/distillating machine, drying oven/drying room/drying tunnel, Laminator/ Vulcani zing machine
Company Profile
Yancheng Xinrong Electronic Industries Co.,Ltd have been engaged in design and manufacturing of industrial heating system, Our company have advanced production lines and testing equipment, who supply clients high quality goods, as well as professional R&D department and service team, who provide customers best heating solutions. Our products have been exported to Europe, America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.
Adhering to "Quality Best, Customer First and Honesty" business philosophy, the company and domestic and foreign partner make progress together to create a better future.
