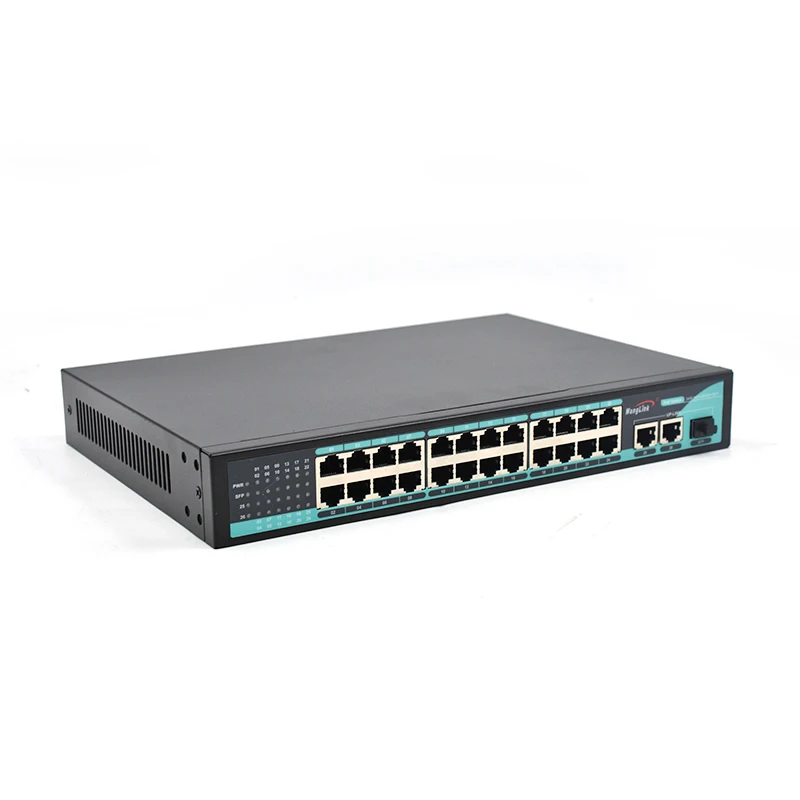

Wanglink Gigabit PoE Ethernet Switch 24 10/100/1000Mbps PoE Port 2 GE RJ45 Uplink 1 GE SFP Slot Switch PoE for CCTV
- Category: >>>
- Supplier: Shenzhen Wangguang Technology Co. Ltd.
Share on (1600795664084):
Product Overview
Description
Recommend Products
Products Description
This PoE switch has 26 10/100/1000Base-T Ethernet ports and 1 1000Base-X SFP slot, of which port 1-24 support IEEE802.3 af/at PoE (Power over Ethernet) protocol power supply. The PoE port supports a maximum output power of 25.4W, and the maximum PoE power output of whole machine is 360W; It is support standard PoE protocol, which can automatically detect whether the powered device supports PoE power supply, and it only provide the power to the same PoE protocol PD devices, it can effectively prevent damage to non-PoE powered devices.
Product Features

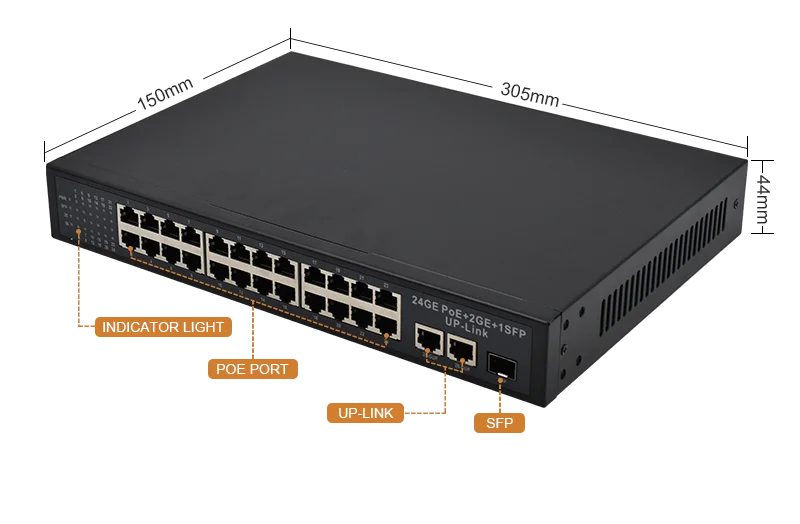

* 26 10/100/1000Base-T ethernet ports, 1 1000Base-X uplink SFP slot;
* Support IEEE802.3 af/at PoE protocol, An PoE RJ45 port can supply maximum power output of 25.4W;
* Support 10/100/1000Mbps auto-negotiate;
* Support Half/Full duplex adaptive, and auto MDI/MDI-Xfunction;
* All port support wire-speed forwarding;
* Support desktop and wall-mounted, and rack-mount installation;
* Plug and Play, no configuration requirements;
* Metal case, internal power supply, and have excellent heat dissipation performance can let the product running stable for a long time
* Support IEEE802.3 af/at PoE protocol, An PoE RJ45 port can supply maximum power output of 25.4W;
* Support 10/100/1000Mbps auto-negotiate;
* Support Half/Full duplex adaptive, and auto MDI/MDI-Xfunction;
* All port support wire-speed forwarding;
* Support desktop and wall-mounted, and rack-mount installation;
* Plug and Play, no configuration requirements;
* Metal case, internal power supply, and have excellent heat dissipation performance can let the product running stable for a long time
Specification
Model | WOR-SG2421P-SFP | ||
Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE802.1W Spanning Tree IEEE 802.3x flow control | ||
Connector Type | SFP slot | ||
Transmission rate | 1.25Gbps | ||
Transmission distance | Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | ||
Wavelength | Multi-mode:850nm/1310nm, Single-mode:1310nm/1550nm/1490nm | ||
Characteristic | Connector Type | 2×4 RJ45，1×1 RJ45 | |
Transmission rate | 10/100/1000Mbps auto-negotiate | ||
10Base-T: ≤250m（CAT3,4,5 UTP） 100Base-TX: ≤100m（CAT3,4,5 UTP） 1000Base-T: ≤100m（CAT3,4,5 UTP） | |||
Forward method | Store-and-forward（full wire-speed） | ||
Transmission mode | Half/Full duplex adaptive | ||
MAC address table | 4K | ||
Case space | 1.5Mb | ||
Jumbo frames | 9216b | ||
Packet Forwarding Rate | 40.176Mpps@64byte | ||
Bandwidth | 54G（non-blocking） | ||
Power indicator | Green, PWR. | ||
Link/Act indicator | Yellow, 1 for each ethernet port and fiber port | ||
Input voltage | AC100~240V, 50Hz | ||
Power consumption | Standby: ≤5W; whole: ≤320W | ||
PoE pin | 1/2+,3/6- | ||
The port max rate | ≤25.4W | ||
Environment | Operating Temperature | -20℃～60℃ | |
Storage Temperature | -40℃～85℃ | ||
Operating Humidity | 5%～95% non-condensing | ||
Heat dissipation method | Natural heat dissipation | ||
Size | 305×220×44mm | ||
Weight | Net weight: 2.1kg, Gross weight: 2.3kg | ||

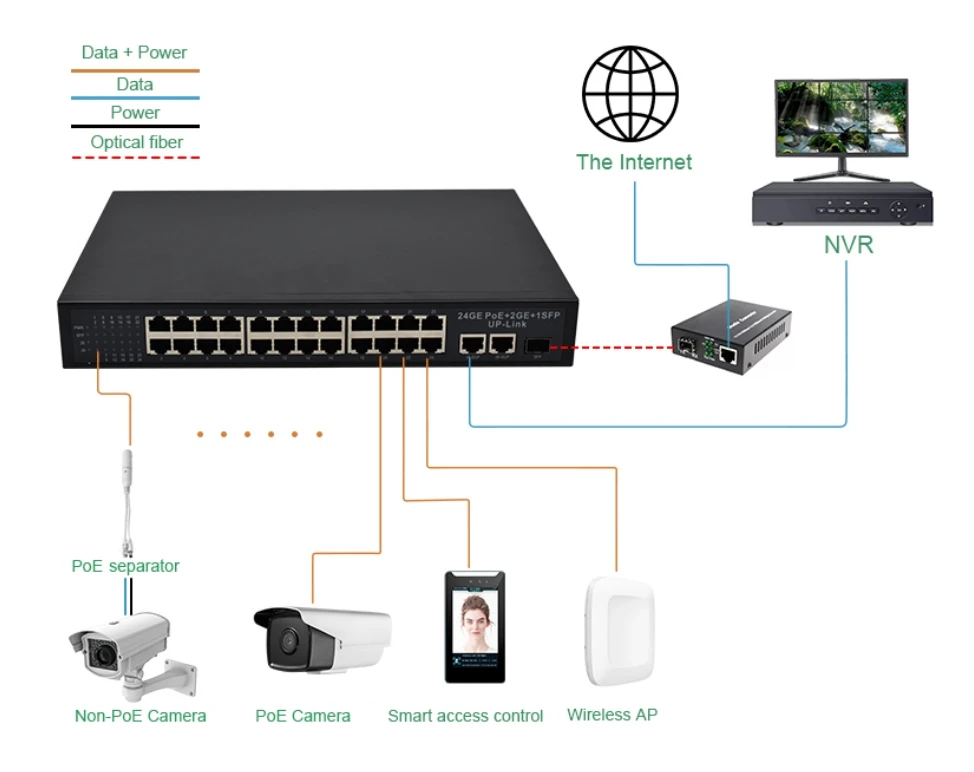

Applications
Packaging and Shipping
Why Choose Us
Company Profile
FAQ
What is your main products？
We focus on FTTX product, main products is poe switch, media converter, ONU, SFP and its accessories.
Can I get sample for free?
Yes, we have limited free sample rules(full payment the first and bulk order give back). For details, please feel free to contact with your service manager.
Can you print my logo on the product?
Yes, sure. We accept the OEM/ ODM order, you can print your logo on the product face, packing box, carton even on the software manage page and so on.
What is the delivery time?
Instock products - 24h
OEM products lower than 1000pcs - 5 days about.
Over 10,000pcs, 15days about.
What is the Payment Terms that you accepted?
With the world change, we also adjusting our payment terms. For bulk order, we accept the deposit in advance and full in the final.
How About The After-sales Services?
24 Hours Online service, remote technical support, face to face meeting or send our technical expert if need.
What about the warranty?
For most of our product, we provide 1 year warranty(non-human damage).
and lifetime limited warranty.
What will my goods delivery from?
We have two factories. The one is in China, and the other is in India. We default send it from China, but if you have requirement, we can send it from India.
