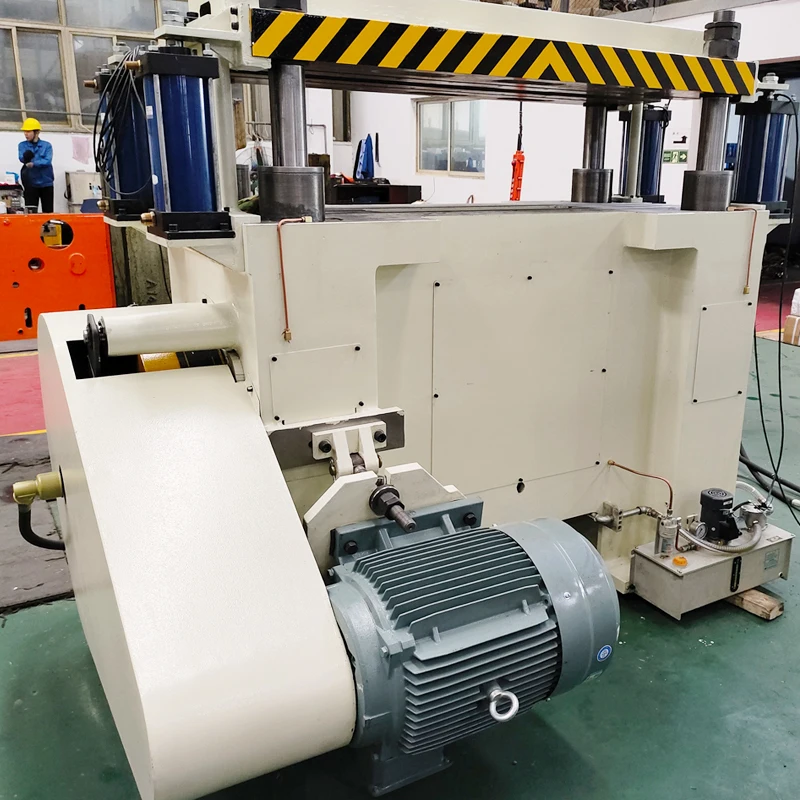

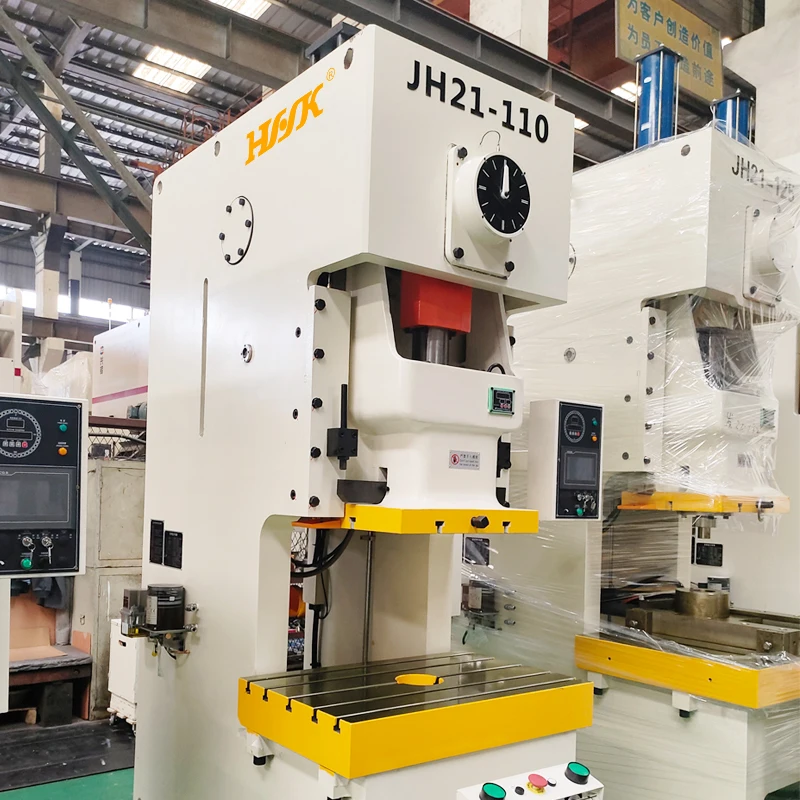

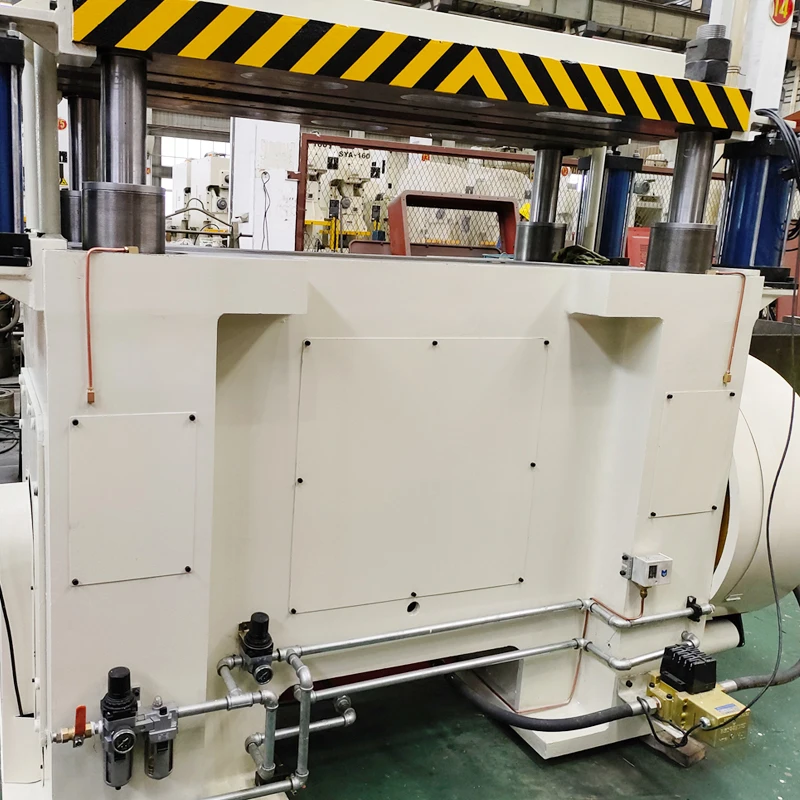

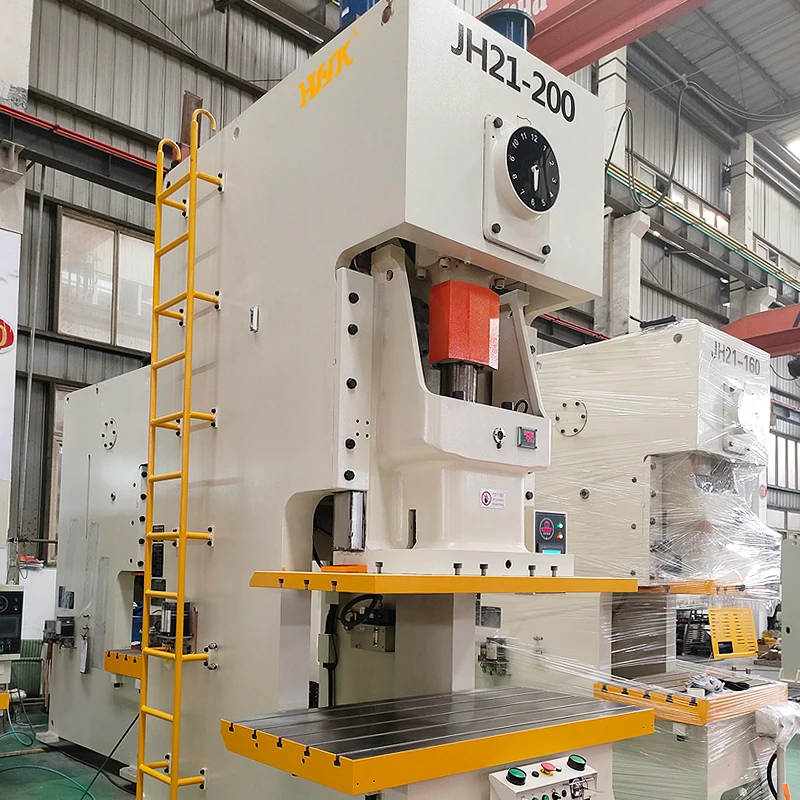

Eccentric press jh21 jh21 110 power press high speed punching machine
- Category: >>>
- Supplier: Nanjing Huangshi Machine Tool Manufacturing Co. Ltd.
Share on (1600795676280):
Product Overview
Description
Product Description
Specification

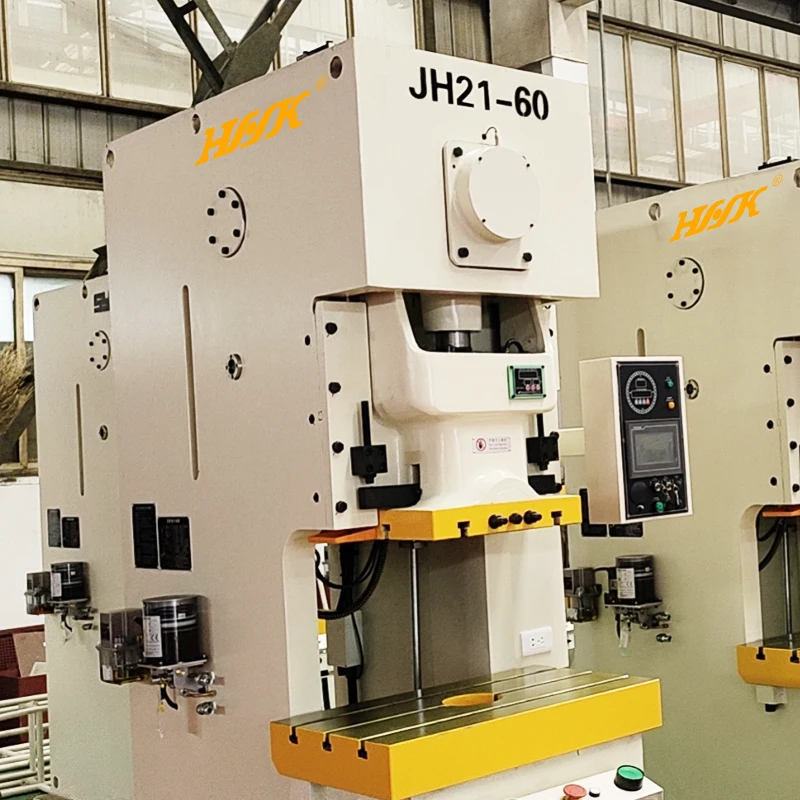

Specification | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-110 | JH21-125 | JH21-160 | ||||||
Capacity (Ton ) | 25 | 45 | 60 | 80 | 110 | 125 | 160 | ||||||
Rated Tonnage point(mm) | 3 | 4 | 4 | 5 | 5 | 5 | 6 | ||||||
Stroke(mm) | 80 | 120 | 140 | 160 | 180 | 180 | 200 | ||||||
Stroke Per Minute(s.p.m) | 100 | 80 | 70 | 60 | 50 | 50 | 45 | ||||||
Die Height(mm) | 250 | 270 | 300 | 320 | 350 | 350 | 400 | ||||||
Slide Adjustment (mm) | 50 | 60 | 70 | 80 | 90 | 90 | 100 | ||||||
Depth of Tthroat(mm) | 210 | 225 | 270 | 310 | 350 | 350 | 390 | ||||||
Distance betweenuprights(mm) | 450 | 500 | 560 | 620 | 660 | 660 | 720 | ||||||
Slide Area (mm) | 360×250 | 410×340 | 480×400 | 540×460 | 620×520 | 620×520 | 700×580 | ||||||
Shank Hole(mm) | ∅40×60 | ∅50×60 | ∅50×60 | ∅50×60 | ∅70×80 | ∅70×80 | ∅70×90 | ||||||
Boleter Area(mm) | 720×400 | 810×440 | 870×520 | 950×600 | 1070×680 | 1070×680 | 1170×760 | ||||||
Shank hole (mm) | 150 | 150 | 150 | 150 | 160 | 160 | 180 | ||||||
Distance from worktable to ground(mm) | 780 | 800 | 900 | 900 | 900 | 900 | 900 | ||||||
Main Motor(kw.p) | 2.2×4 | 5.5×4 | 5.5×4 | 7.5×4 | 7.5×4 | 11×4 | 15×4 | ||||||
Slide Adjust Device(HP) | manual operation | electrial driving | |||||||||||
Air Pressure(kg/cm²) | 6 | ||||||||||||
Presses Dimension (mm) | 1520×1060×2120 | 1620×1130×2340 | 1690×1160×2650 | 1870×1170×2810 | 2020×1315×2985 | 2020×1315×2985 | 2325×1450×3250 | ||||||
Die Cushion Capacity(Ton) | 4.5 | 4.5 | 6 | 6 | 8.5 | 8.5 | 8.5 | ||||||
Die Cushion Stroke (mm) | 50 | 50 | 60 | 60 | 70 | 70 | 80 | ||||||
Die cushion effective area(mm²) | 300×230 | 300×230 | 350×310 | 450×310 | 500×350 | 500×350 | 650×420 | ||||||
Cooperative Partner
High-quality brand in-depth cooperation
High quality brands supports
High efficient product output and manufacturing
Company Introduction
Nanjing Huangshi Machine Tool Manufacturing Co.,Ltd
Top professional Chinese press brake machine, groover machine, shearing machine and slotting machine manufacturer
More than 20 years' experience on this line machine manufacturing
HSSK covers an area of 36,000 square meters, having 2 workshop, finish customer's order with high speed productivity and
efficiency
Certification-- Own CE certification and SGS certification to prove our quality
Professional engineer teams-- Excellent after-sale service to our quality
Developed a series of high-quality press brake machine, shearing machine, slotting machine and other products--HSK/HST series of
bending machine, HSN(K)/HSA(K)/HSO(K)/HSS(K)/HSC(K)/Q11/Q35Y series shearing machine, FN/HG02 series slotting machine
More than 20 years' experience on this line machine manufacturing
HSSK covers an area of 36,000 square meters, having 2 workshop, finish customer's order with high speed productivity and
efficiency
Certification-- Own CE certification and SGS certification to prove our quality
Professional engineer teams-- Excellent after-sale service to our quality
Developed a series of high-quality press brake machine, shearing machine, slotting machine and other products--HSK/HST series of
bending machine, HSN(K)/HSA(K)/HSO(K)/HSS(K)/HSC(K)/Q11/Q35Y series shearing machine, FN/HG02 series slotting machine
Certifications
High technology to manufacture product, quality of product gets better every year
More professional engineer in team
Exihibations
Products are sold to many countries
Participate in international exhibitions in many countries, attracted many customers
Packing&Delivery
Packing
Packaging products with stretch film
Loading
Plastic cover coat, through containers
Delivery
Fixed machine to prevent damage in transit
Dispatch Validity
30 days after receiving 30% down payment.
Warranty
14 months after delivery the goods.
Contact Us
Related Products
FAQ
Q: How can I choose the most suitable machines ? |
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you |
Q: Who are we? |
A: We are based in Jiangsu, China, start from 2013,sell to Domestic Market(80.00%),Eastern Asia(10.00%),South America(2.00%),Mid East(2.00%),North America(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Africa(1.00%),Eastern Europe(1.00%). There are total about 11-50 people in our office. |
Q: How can we guarantee quality? |
A: Always a pre-production sample before mass production; Always final Inspection before shipment; |
Q: What can you buy from us? |
A: CNC Bending Machine, CNC Shearing Machine, CNC Vertical Grooving Machine, CNC Gantry Grooving Machine |
Q: Why should you buy from us not from other suppliers? |
A: We can also offer overseas installation, training, maintenance, commissioning for each client and confirm they can operate HSSK machine properly and enjoy the high performance and best service during operation. |
Q: What services can we provide? |
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DEQ,DDP,DDU,DAF,DES； Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian |
Q: What is the average lead time? |
A: For mass production, the lead time is 20-30 days after receiving the deposit payment. |
Q: Do you have product warranty |
A: 12 months after delivery the goods. |
