6V 30mA 0.2W UVC Ultraviolet LED Emitter 270 280nm 3030 CUD7QF1A
- Category: >>>
- Supplier: Shenzhen Tongrui Photoelectric Co. Ltd.
Share on (1600795678908):
Product Overview
Description
Product Description
3030 5.00-7.00V 30mA 220mW

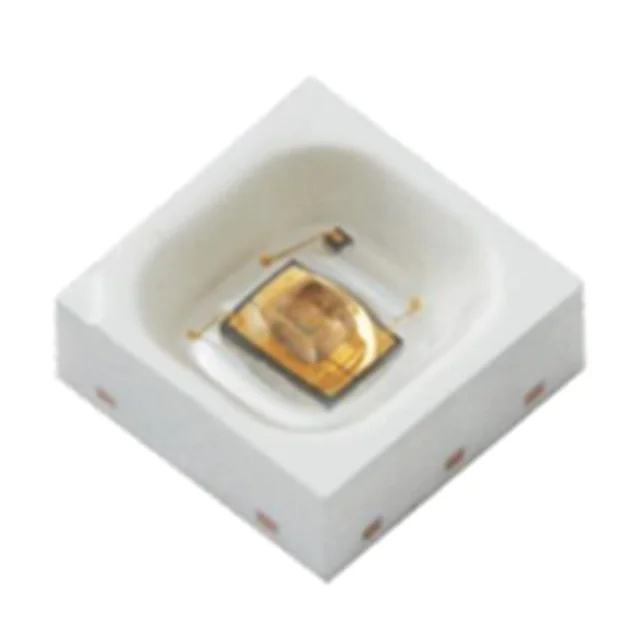

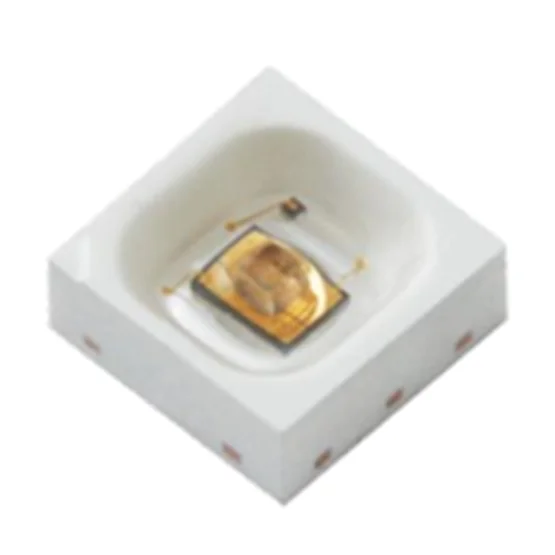

Deep UV LED - 275nm LEDs
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
270-280nm CUD7QF1A
CUD1GF1A is a deep ultraviolet light
emitting diode with peak emission
wavelengths from 270nm to 280nm.
emitting diode with peak emission
wavelengths from 270nm to 280nm.
The LED is sealed in EMC packages
with a silicone mold.
with a silicone mold.
It incorporates state of the art SMD design
and low thermal resistance.
and low thermal resistance.
Features
• Low thermal resistance
• SMT solderable
• Lead Free product
Applications
— Horticulture
— Fluorescent spectroscopy
— Fluorescent spectroscopy
— Chemical and Biological analysis
— Curing
— Vitamin D
— Skin care

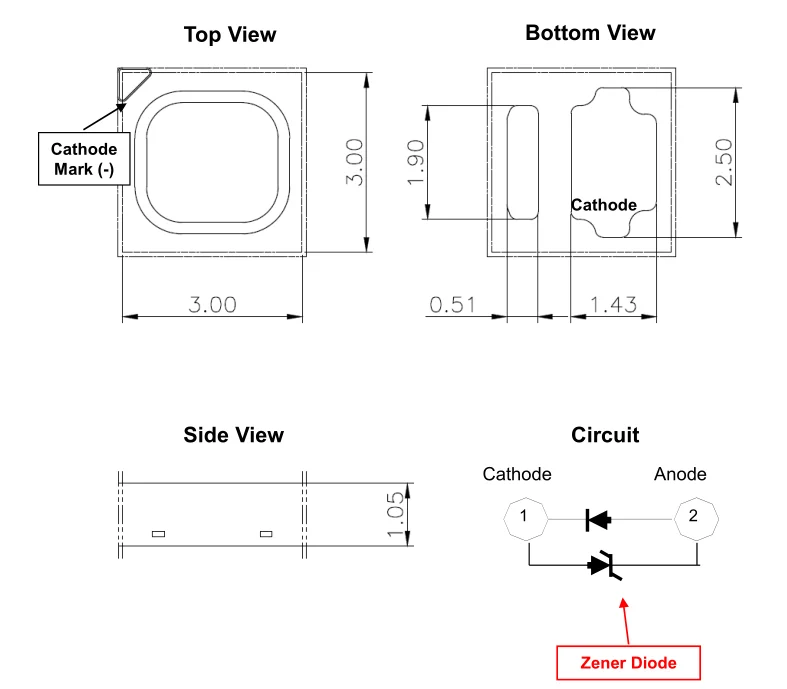

1. All dimension units are millimeters.
2. All dimension tolerance is ±0.20mm unless otherwise noted.
3. Scale : none
3. Scale : none

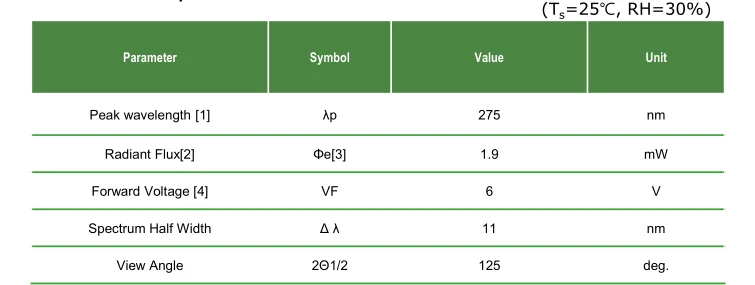

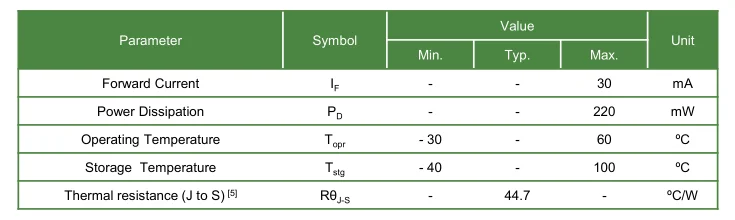

Specification
Model | 3030 – CUD7QF1A |
Max. Forward Current | 30mA |
Operating Voltage | 5.00-7.00V(Typ. 6V) |
Color | UVC(Ultraviolet) |
Wavelength | 270-280nm(Typ. 275nm) |
Radiant Flux | Typ. 1.9mW@20mA@25℃ |
Power | Max. 220mW |
Minimum Packing Quantity | 500 pcs/reel |
