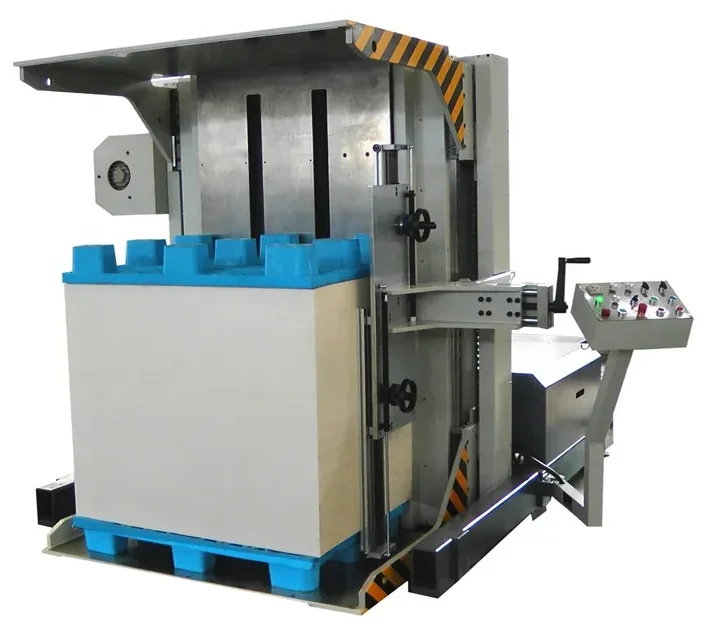

automatoic paper pile turning machine pile turner
- Category: >>>
- Supplier: Ruian Dapeng Printing Machinery Co. Ltd.
Share on (1600795756435):
Product Overview
Description
Product Description
Specification
Model | FZ1200 |
Maximum weight of paper pile | 1000KG |
Maximum paper size | 1200×800mm |
Minimum paper size | 560×360mm |
Maximum cleat spacing | 1400mm |
Minimum cleat spacing | 680mm |
power | 8KW |
Power supply | 3P 380V AC 50Hz |
Oil pressure | maximum16MPa |
Net weight | 2800KG |
Overall dimension | 2370×2090×1890mm |
temperature | +12℃--+45℃ |
humidity | Dry ventilation relative humidity does not exceed 50% no condensation |
ground | The ground is level and the foundation is strong |
Main Features
Briefing :
This machine is mainly used in printing and packaging industry, for pile turning, aligning, dust removal etc. It is a necessary
equipment to improve the work efficiency and printing quality.
Features:
1.Dust Removing
•It can remove the impurities such as paper fibers, paper scraps, and printing powders.
•Before printing: The machine can be used for removing the paper fibers, paper scraps and dust to improve the printing quality and
reduce the defection rate about 80%.
•After printing: The machine can remove the printing powders, give a fast dry to the ink and prevents sticking together as well as
paper back pollution.
• It can stop impurities such as paper fibers, paper scraps go into the printing machine to increase the service life of printing
machine
2.Paper Separation
•After the vibration and air jetting, the pile is filled with air cushion between the sheets by which the mis-feeding and
double-sheeting can be avoided
3. Aligning
•With the vibration platform and high pressure air jetting, the whole pile paper can be aligned at one time.

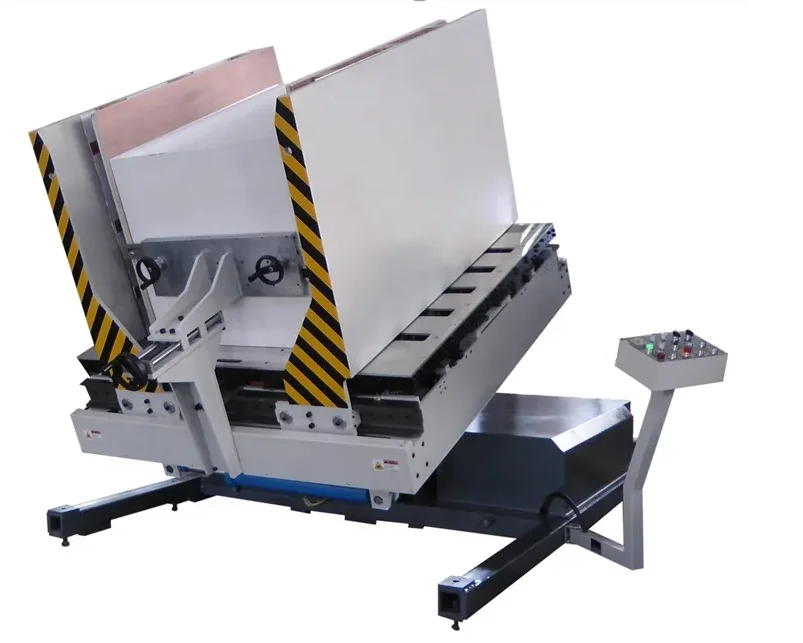

4.Turning
•For the piles of double-sided printing paper, the pile turning will improve the work efficiency and lower the intensity of work
.The working environment will be much better for workers
5.High Efficiency, Easy Operation
•For average, the processes of pile turning, powder removing, separation of paper and aligning only needs about 3 minutes
•Easy for operation. No need of special training for operation.
6. Detecting And Taking Off Bad Product
•In the vibration, blowing process can be extracted from the paper heap of bad products.

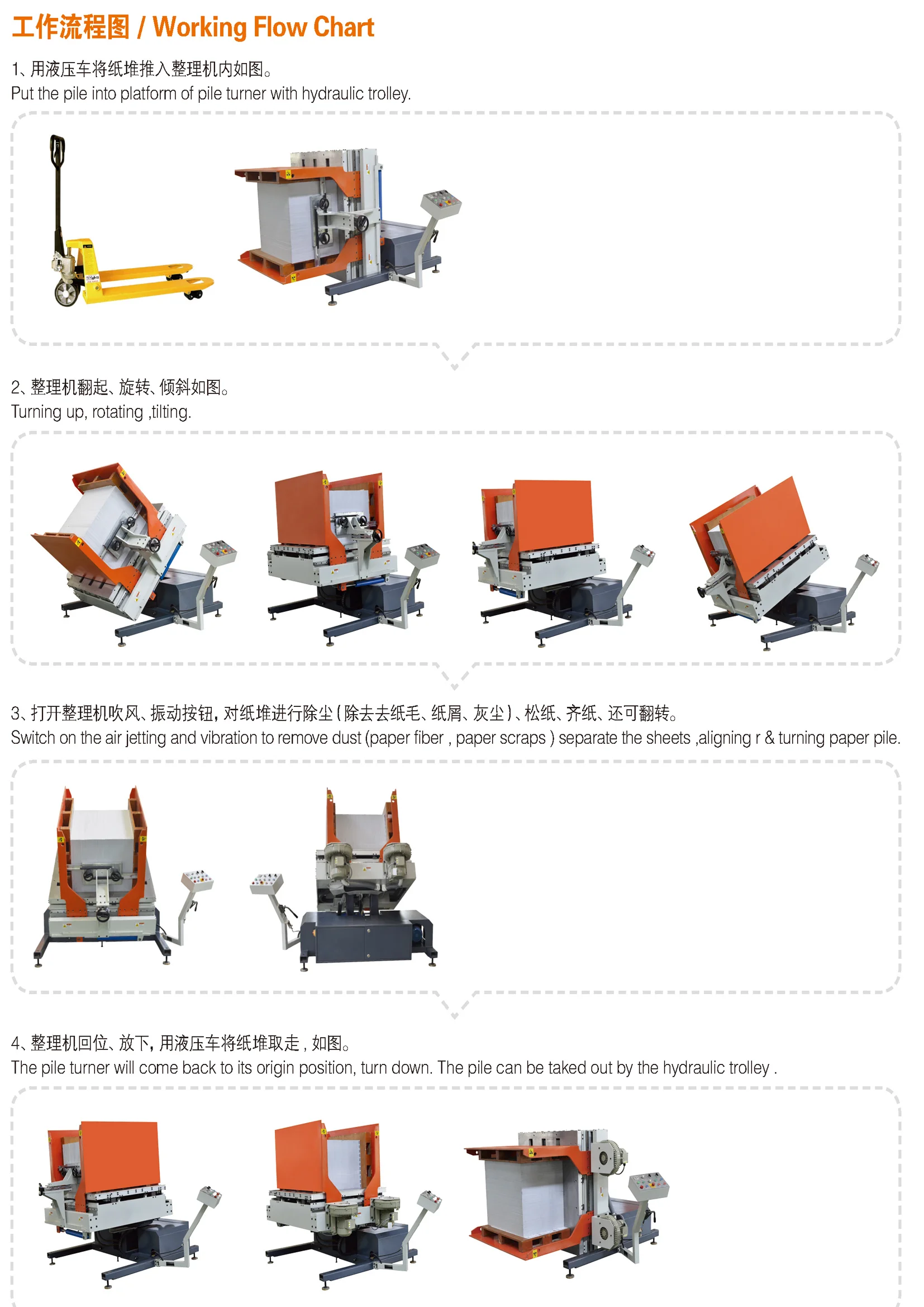

Working Process
1. Push the pile of paper into the flip machine with a hydraulic car as picture.
Briefing :
This machine is mainly used in printing and packaging industry, for pile turning, aligning, dust removal etc. It is a necessary
equipment to improve the work efficiency and printing quality.
Features:
1.Dust Removing
•It can remove the impurities such as paper fibers, paper scraps, and printing powders.
•Before printing: The machine can be used for removing the paper fibers, paper scraps and dust to improve the printing quality and
reduce the defection rate about 80%.
•After printing: The machine can remove the printing powders, give a fast dry to the ink and prevents sticking together as well as
paper back pollution.
• It can stop impurities such as paper fibers, paper scraps go into the printing machine to increase the service life of printing
machine
2.Paper Separation
•After the vibration and air jetting, the pile is filled with air cushion between the sheets by which the mis-feeding and
double-sheeting can be avoided
3. Aligning
•With the vibration platform and high pressure air jetting, the whole pile paper can be aligned at one time.
4.Turning
•For the piles of double-sided printing paper, the pile turning will improve the work efficiency and lower the intensity of work
.The working environment will be much better for workers
5.High Efficiency, Easy Operation
•For average, the processes of pile turning, powder removing, separation of paper and aligning only needs about 3 minutes
•Easy for operation. No need of special training for operation.
6. Detecting And Taking Off Bad Product
•In the vibration, blowing process can be extracted from the paper heap of bad products.
Working Process
1. Push the pile of paper into the flip machine with a hydraulic car as picture.
Details Images
