High Speed automatic Disposablelo cotton swab paper stick machine llipop paper stick making machine
- Category: Straw Making Machines >>>
- Supplier: Zhengzhou,Perfect,Co.,Ltd.
Share on:
Product Overview
Description

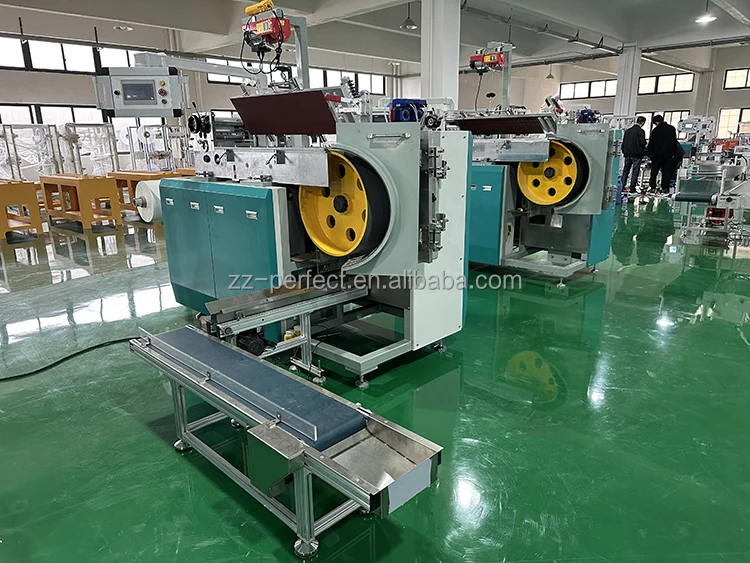

The paper stick machine is also called the straight winding machine. The working method is to cut the whole roll of paper
according to the length, and then roll it up from the beginning until the whole paper section is finished. In the rolling, the two
ends of the paper stick are always flush. , So it is called a straight roll machine.
according to the length, and then roll it up from the beginning until the whole paper section is finished. In the rolling, the two
ends of the paper stick are always flush. , So it is called a straight roll machine.
Products Description
♦Application♦
♦Technical parameters♦
Paper rod diameter | 2.5-6mm | ||||
Paper stick length | 50-260mm(length can be customized) | ||||
Productivity | 400-1000pcs/min | ||||
Paper thickness | 60-100g/m² | ||||
Applicable glue | Polyvinyl alcohol glue, starch glue | ||||
Paper requirements | single glossy paper | ||||
Power Supply | 380V 50HZ | ||||
Total Power | 4.5KW | ||||
Feed table size | 1180*1210*950mm | ||||
Dimensions | 2230*1100*2200mm | ||||
Receiving table size | 2100*550*640mm | ||||
weight | 2000KG | ||||
♦Features♦
1. Since the straight roll machine only applies a layer of glue on the outer circle of the paper stick, the hardness of the paper stick produced by it is slightly softer than that of the inclined roll machine, so the straight roll machine paper stick is generally used in cakes, lollipops, shoes. Support and other products or use in the industry;
2. The straight rolling machine mostly produces products with a diameter of 3.0mm or more (the paper stick above 3.0mm is a bit soft);
3. Adopt man-machine interface, intuitive display and easy operation. With multiple sets of memory devices, there is no need to reset the product when changing products;
4. The parts are welded, finished and specially treated to ensure good quality. The machine has stable performance and long service life.
5. The diameter of the paper rod can be changed through servo control.
2. The straight rolling machine mostly produces products with a diameter of 3.0mm or more (the paper stick above 3.0mm is a bit soft);
3. Adopt man-machine interface, intuitive display and easy operation. With multiple sets of memory devices, there is no need to reset the product when changing products;
4. The parts are welded, finished and specially treated to ensure good quality. The machine has stable performance and long service life.
5. The diameter of the paper rod can be changed through servo control.
Product Details
PRODUCT CONFIGURATION
Touch Panel | Siemens:Smart700IE V3 |
PLC | Siemens:Smart SR20 |
Inverter | Siemens:v20，3Kw |
Circuit Breaker | Eaton:E6-32/3/C |
Contactor | Eaton:XTCG018C00DT |
Relay | Schneider:RXM2LB2BD |
Switching Power Source | Eaton:A22-STOP/K10 |
Proximity Switch | Otonix:PRE12-2DN |
Related Products
Packaging & Delivery
Package Detail | Wooden case/High Speed automatic Disposablelo cotton swab paper stick machine llipop paper stick making machine |
Package Seize | 3200*900*2200mm |
Gross Weight | 2000kg |
Our Service
1.Pre-Sales Service:
Our service team will glad to reply inquiry and consulting support in every way as soon as we can, we can support sample testing.
2. Package & Delivery
Our service team will pack goods under export standard, and prepare delivery in time as agreement.
3.Technical Support:
Free Replacement of accessories within 1 year
Remote assistance,24 hours online technical service
Detailed operation video
Our service team will glad to reply inquiry and consulting support in every way as soon as we can, we can support sample testing.
2. Package & Delivery
Our service team will pack goods under export standard, and prepare delivery in time as agreement.
3.Technical Support:
Free Replacement of accessories within 1 year
Remote assistance,24 hours online technical service
Detailed operation video
Company Information
Zhengzhou Perfect Co., Ltd. is a manufacturer of packaging and printing machinery with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for external packaging materials' printing, coating, die cutting, slitting, embossing and others on the products including cigarettes and wines, food, cosmetics, medicine and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
