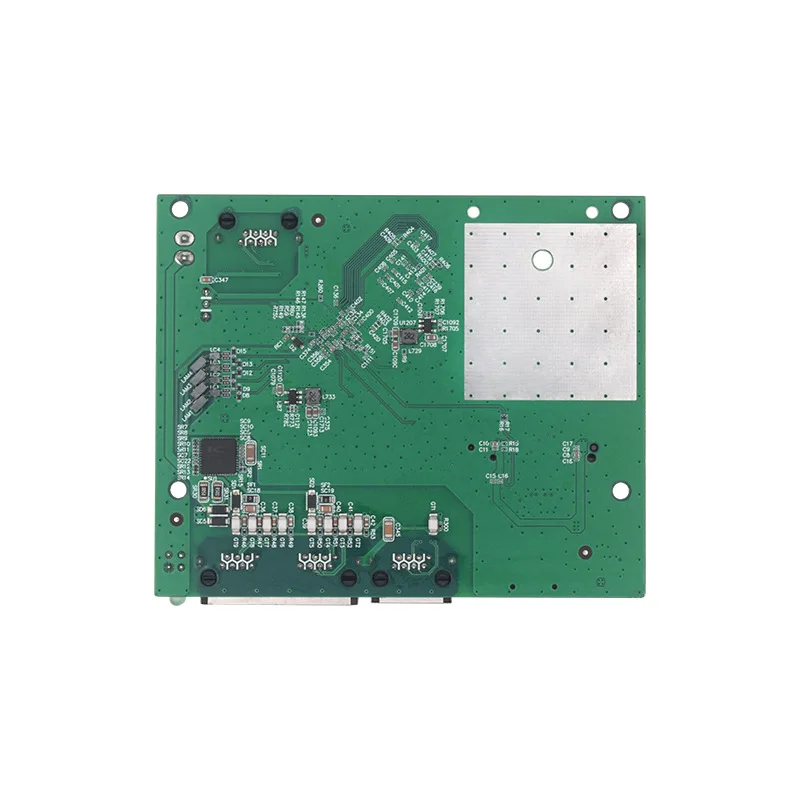

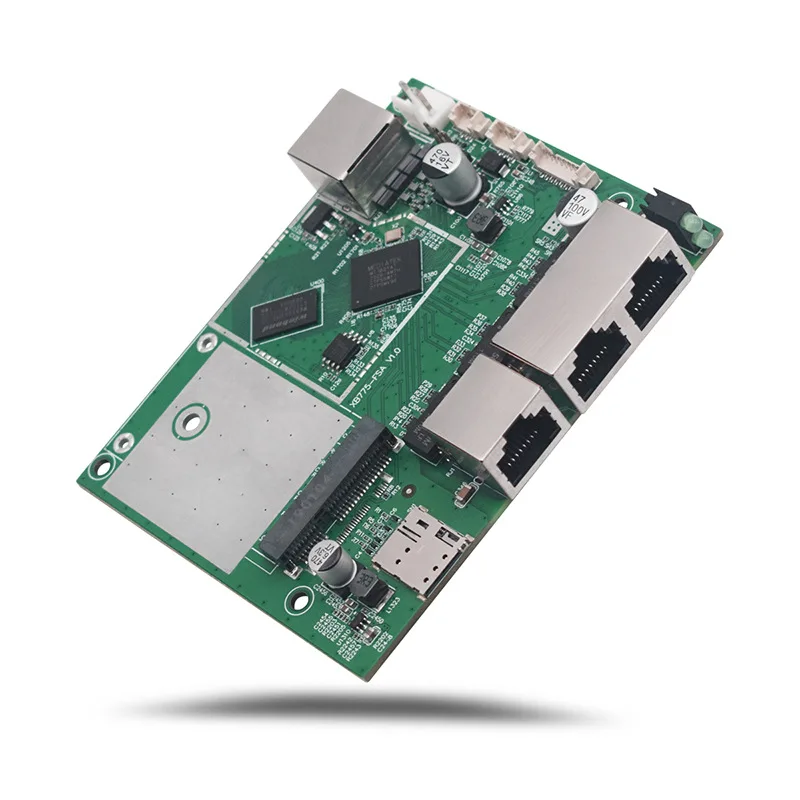

MT7621A 4G 5G Router pcb design circuit board of wifi router 4g wifi router pcba smt
- Category: >>>
- Supplier: Shi Di Fen (Shenzhen) Technology Co. Ltd.
Share on (1600795879641):
Product Overview
Description
MT7621A 4G 5G Router pcb design circuit board of wifi router 4g wifi router pcba smt
Hardware Overview:
AL-775 is a cellular 4G/5G to Gigabit Ethernet router that supports standard-sized MiNT POIE or MiNT 2 interface cellular network modules. The cellular module uses USB3.0/USB2.0 interface for communication and has a built-in nano sim card holder. LAN1&LAN2□ can be equipped with PSE power supply output conforming to the 8023af/at standard. The connected lower-level extended AP does not need independent power supply, and the power and data can be realized by connecting with a separate network cable. The LAN3 port uses | 25mm spacing terminal blocks, which is convenient for internal interface expansion.
We can modify and design the functions that customers want according to the needs of customers.
Products Description
CPU | MediaTek MT7621/MIPS1004Kc/880Mhz | ||||||
SPI FLASH | SPI FLASH 16MB (MAX32MB) | ||||||
RAM | DDR3 RAM 128MB (MAX512MB) | ||||||
Depend on the module installed | |||||||
Gigabit Ethernet | LAN:10/100/1000 Mbps (MDI/MDX) RJ45 X3 WAN:10/100/1000 Mbps (MDI/MDX) RJ45 X1 | ||||||
POE | LAN1& LAN2:Gigabit Port as standard 802.3at/af Ethernet power supply equipment(PSE) | ||||||
Reset | SW RESET | ||||||
SIM | Nano sim | ||||||
802.3at/af DC52-57V PSE DC:12V/1A | |||||||
Temperature | 0 to 40 degrees C(Operating Temperature) -20 to 70 degree C (Storage Temperature) Operating humidity:5% to 95%(noncondensing) Non-operating humidity:5%to 95%(Noncondensing) | ||||||
