1050 1060 5052 Chinese supplier aluminum wire High quality
US $1500-$2500
Super Fine Aluminium Winding Wire Enamelled Aluminum Wire Insulated Aluminum Wire
- Category: Aluminum Wire >>>
- Supplier: Zhengzhou,LP,Industry,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Conductor | Aluminum | ||||||

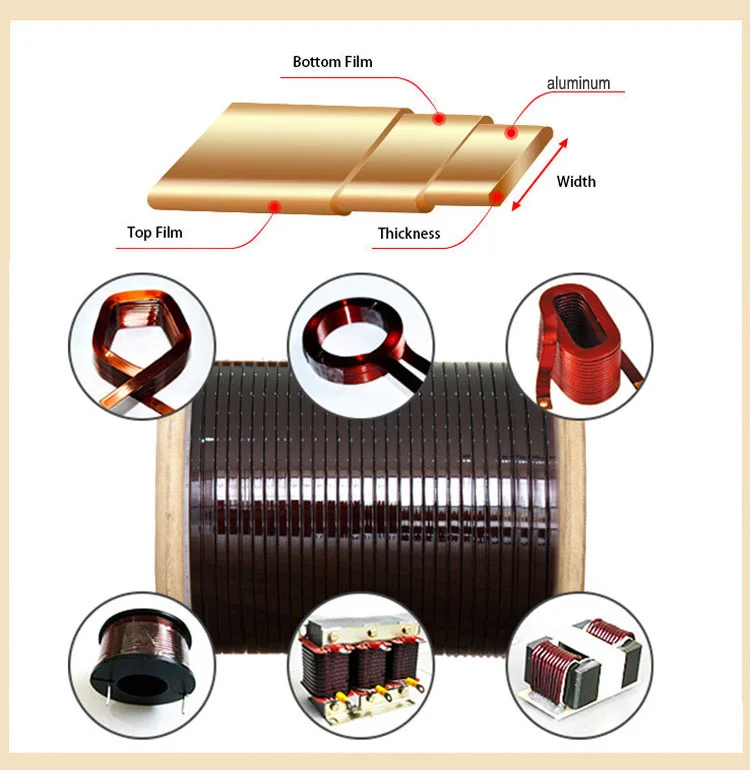

Dimension | Round shape dia: 0.16-9.2mm; Flat shape: Thickness(a): 0.8~10.0mm; Width(b): 2.0-25mm | ||||||
Thermal Class (℃) | 120(Class E);180 (Class H);200 (Class C);220 (Class C+); 240(Class HC) | ||||||
Insulation thickness | G1;G2;G3;G4 | ||||||
Certificate | UL,ISO9001,ISO14001 | ||||||
Standard | IEC,NEMA,GB,JIS | ||||||
Packing | PT15-PT270 or ply-wood spool | ||||||
Appication | Transformer; motor;generator; modern instrument; welding machine and so on | ||||||
Enamelled aluminum wire is mainly used as an electrical conductor wherever coils are in motion.It has different sizes with different insulation, such as Polyurethane, Polyester, Polyesterimide, Polyimide etc..
LP enamelled aluminum wire reach to production standards: IEC60317,NEMA MW1000/JIS C3202.
LP enamelled aluminum wire reach to production standards: IEC60317,NEMA MW1000/JIS C3202.
Application
transformers, inductors, motors, generators, power coils, magnet coils
transformers, inductors, motors, generators, power coils, magnet coils
Features
*excellent bendingproperty
*good resistance to abrasion
*high mechanical property
*.higher thermal property
*suitable for windings that are subjected to constantly high temperature and mechanical stress
*.good chemical resistance
*good resistance to refrigerant
*good performance against radiation
*good resistance to abrasion
*high mechanical property
*.higher thermal property
*suitable for windings that are subjected to constantly high temperature and mechanical stress
*.good chemical resistance
*good resistance to refrigerant
*good performance against radiation
01 Stretching and squeezing aluminum conductor into require diameters, roundd or flat, by enameled wire machine
02 Suitable aluminum wire conductor is painted by insulation materials
02 Suitable aluminum wire conductor is painted by insulation materials
03 Forced air cooling improves the quality of enameled wire. Use a blower to cool the wire in countercurrent through the air duct and cooler. Note that the air source must be used after purification to avoid blowing impurities and dust on the surface of the enameled wire, sticking to the paint film, and causing surface problems.
04 The purpose of receiving and arranging the wire is to continuously, tightly and evenly wind the enameled wire onto the spool
04 The purpose of receiving and arranging the wire is to continuously, tightly and evenly wind the enameled wire onto the spool
Application
*dry & oil-immersed transformer
*electrical equipment
*winding of high and low voltage DC/AC motor
*magnet coil
*automobile coil
*train coil
*winding with service temperature up to 220°C
*motor and generator for aviation and marine application
*nuclear industry
*winding requiring high reliability
* Microwave transformers;
* Windings with light weight, high conductivity, good heat resistance; Winding used for high frequency signal transmission
* Magnetic wire used in High Frequency transformer, common transformer, inductance coils, electromotors, household electromotors and micro-motors;
* Enamelled wire used in small-motor rotor winding .etc.
* Magnet wires used in monitor deflection coil;
* Magnet wires used in degaussing coil;
* Other special magnet wire.
*electrical equipment
*winding of high and low voltage DC/AC motor
*magnet coil
*automobile coil
*train coil
*winding with service temperature up to 220°C
*motor and generator for aviation and marine application
*nuclear industry
*winding requiring high reliability
* Microwave transformers;
* Windings with light weight, high conductivity, good heat resistance; Winding used for high frequency signal transmission
* Magnetic wire used in High Frequency transformer, common transformer, inductance coils, electromotors, household electromotors and micro-motors;
* Enamelled wire used in small-motor rotor winding .etc.
* Magnet wires used in monitor deflection coil;
* Magnet wires used in degaussing coil;
* Other special magnet wire.
Recommend Products
PACKING & SHIPPING

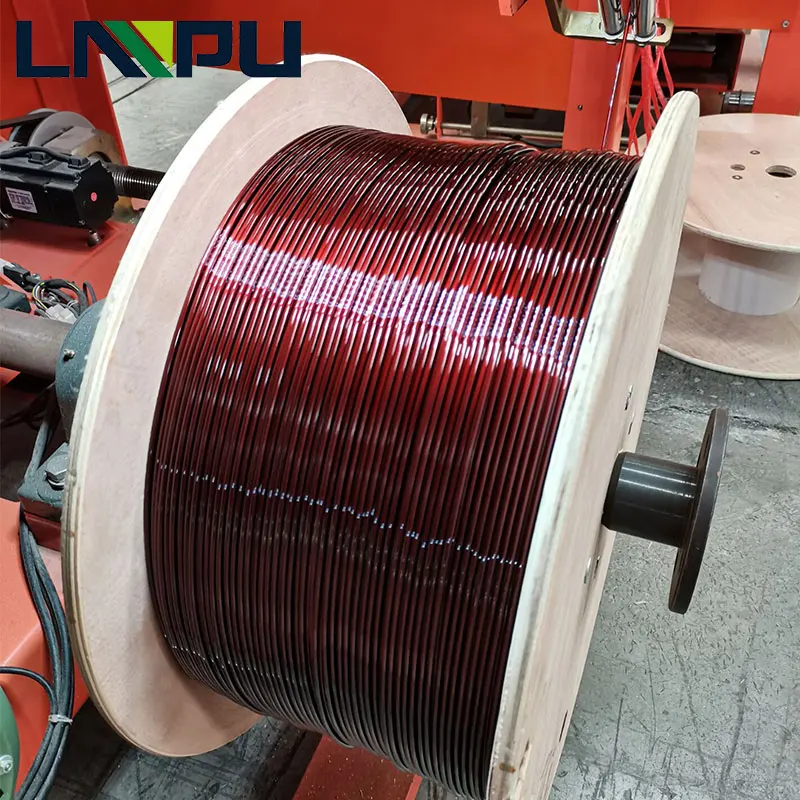

30kg-150kg ply-wood spool (250*400/250*500/250*600/250*730)
Note : lf you need different packing ,
please coordinate with the sales de-partment
Note : lf you need different packing ,
please coordinate with the sales de-partment
Q:How about your company’s annual production capacity?
A:Our Company’s annual production is about 8,000 tons.
Q: What’s your company ‘s product scope?
A: We have many kinds of products ,such as enameled aluminum wire, enameled cooper wire, paper covered magnet wire, fiber glass covered magnet wire and other aluminum/cooper magnet wire products.
Q:What’s the temperature-resist grade of your enameled aluminum wire?
A: We produce the thermal class of enameled aluminum wire from 130 to 220 Centigrade.
Q:What is specifications of enameled aluminum wire your company can produce?
A: flat enameled aluminum wire: a:0.8-8.00mm; b: 2.0-22mm
Q:Can you offer Round Enameled wire with PEW, C200?
A: Yes, for favorable offer, There is one problem need confirm again, PEW is for Class 155 or 180, not Class 200.
Q: Could you provide the free samples?
A: Yes, We could provide the free sampels within 0.5kg. You only need undertake the express charnges.
Q: What’s the price of your enameled aluminum wire?
A: Please sent an email to our [email protected] or call whatsapp/mobile 0086-18103865695, our salesman will reply you as soon as possible.
