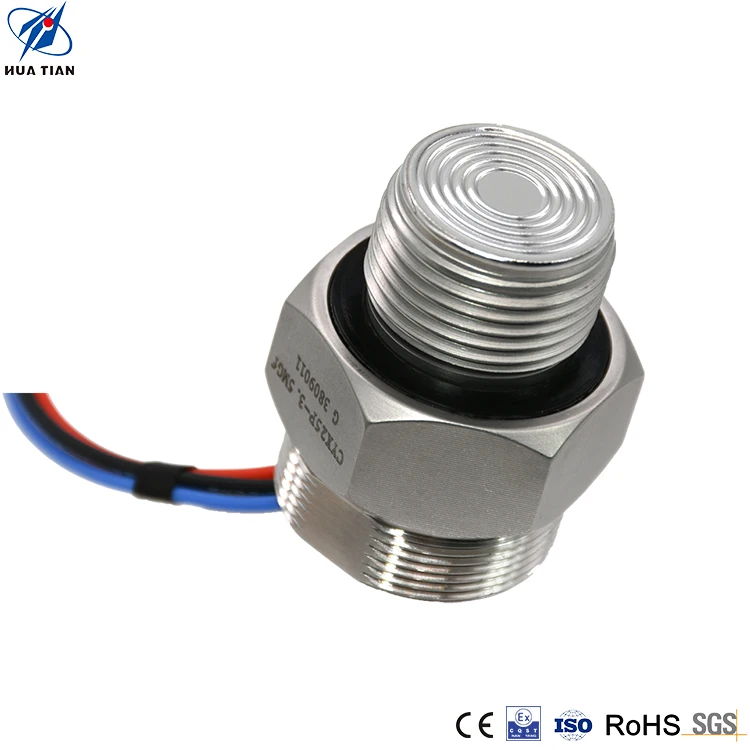

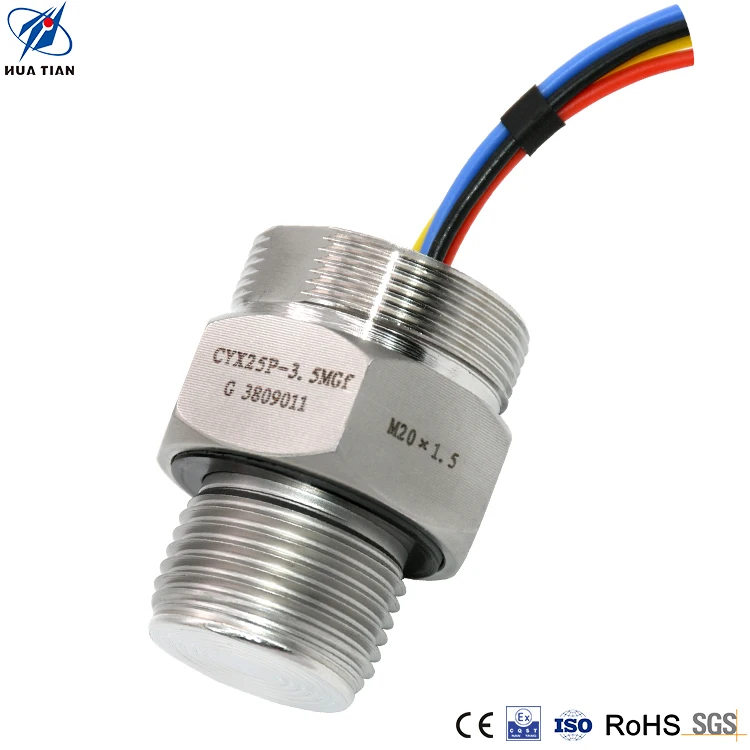

China Huatian CYX25P high accuracy hydraulic oil press micro air pressure sensor transducer high performance
- Category: >>>
- Supplier: Tianshui Huatian Sensor Co. Ltd.
Share on (1600796019284):
Product Overview
Description
China Huatian CYX25P high accuracy hydraulic oil press micro air pressure sensor transducer high performance
Product Parameters
Parameters | Typical value | Maximum | Company | |
Zero output | + 1 | + 2 | MV | |
Nonlinearity | 0.2 | 0.5 | %FS | |
Hysteresis | 0.05 | 0.08 | %FS | |
Repeatability | 0.05 | 0.08 | %FS | |
Input / output impedance | 2.6 | 5.0 | K Ω | |
Zero temperature drift note 1 | ±0.4 | ±1.0 | %FS, @25℃ | |
Sensitivity temperature drift note 2 | ±0.4 | ±1.0 | %FS, @25℃ | |
Long term stability | 0.2 | 0.3 | %FS / year | |
Exciting current | 1.5(the maximum input voltage can be 10V) | mA | ||
Insulation resistance | 500 (100VDC) | M Ω | ||
Compensation temperature note 3 | 0～50; -10℃～70℃ | ℃ | ||
Working temperature | -40～+125 | ℃ | ||
Storage temperature | -40～+125 | ℃ | ||
Response time | ≤1 | ms | ||
Housing and diaphragm material | 316L stainless steel | |||
Ed seal ring | 18.5× 23.9 × 1.5mm Fluororubber note 4, nitrile rubber | |||
Measuring medium | Fluids compatible with 316L, nitrile rubber or fluoroelastomer | |||
Life (25 ℃) | > 1 × 108 pressure cycle (80% FS) | times | ||
Filling medium | silicone oil | |||
Products Description
CYX23/25 series oil filled pressure sensor
Joint type flat film sensitive device
The piezoresistive pressure sensor imported high precision, high stability force sensitive chips, adopted advanced technology, military industry production conditions and equipment manufacturing delicately.
Widely used in petroleum, chemical, metallurgy, electric power, aviation, medical equipment.

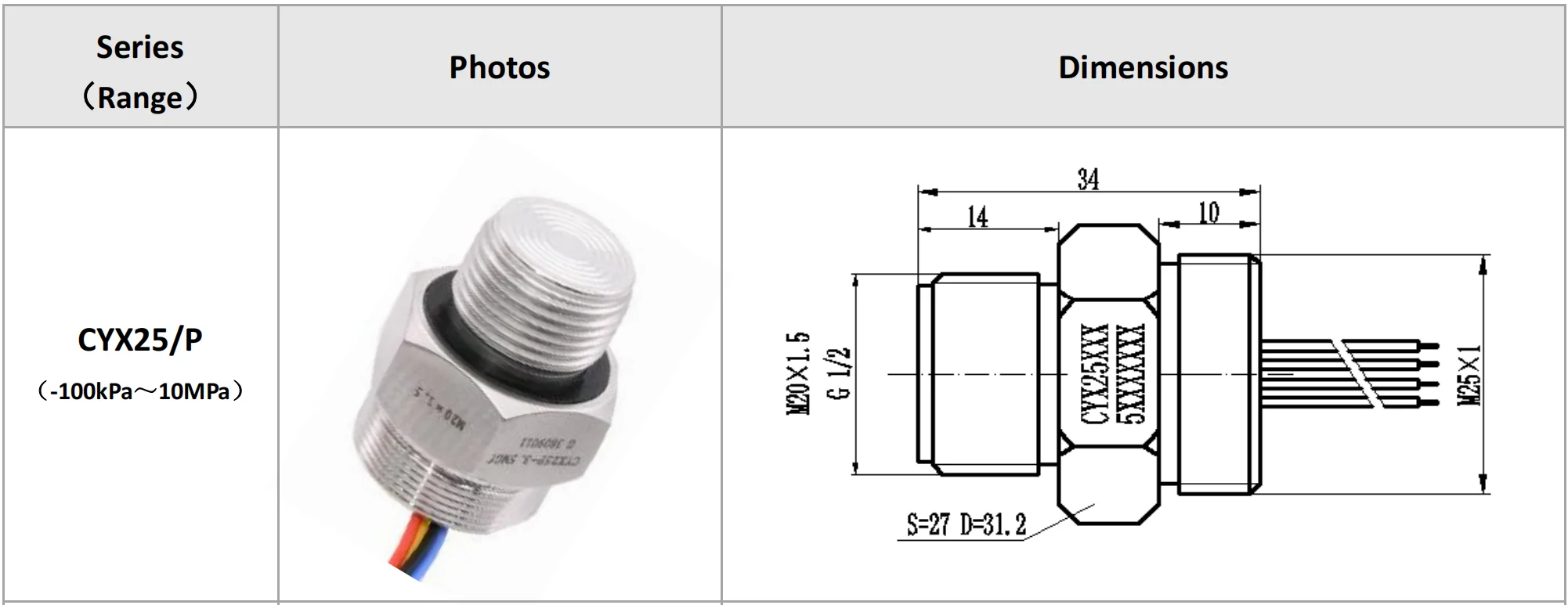

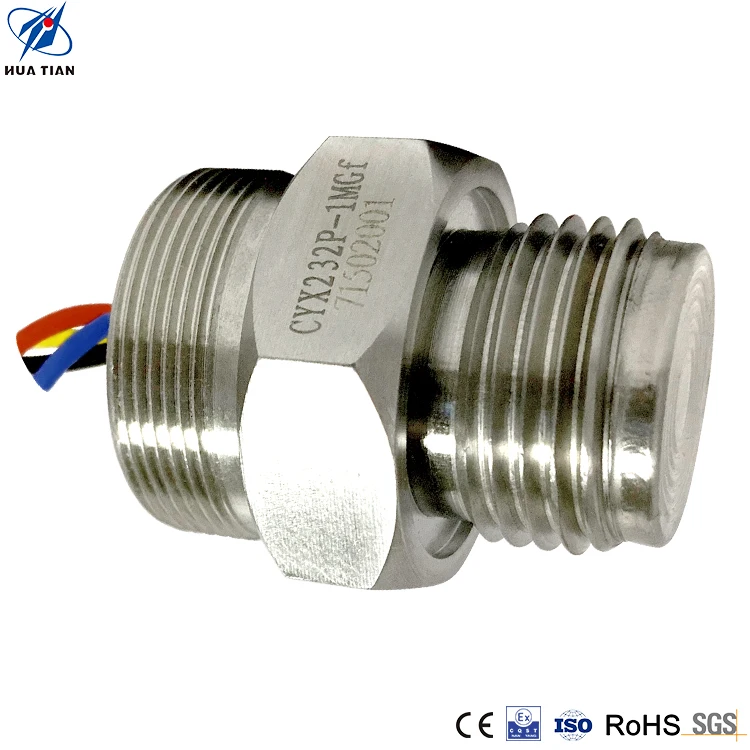

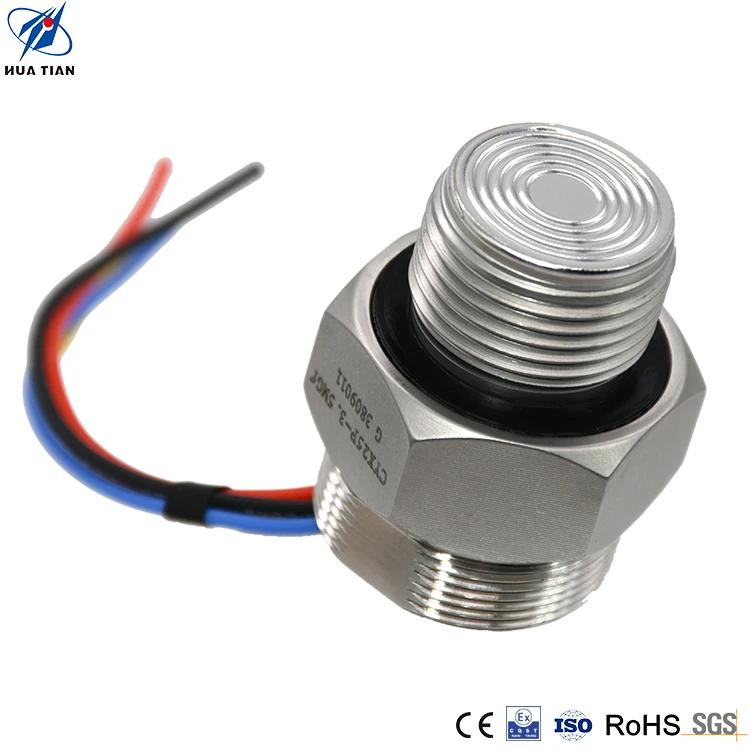

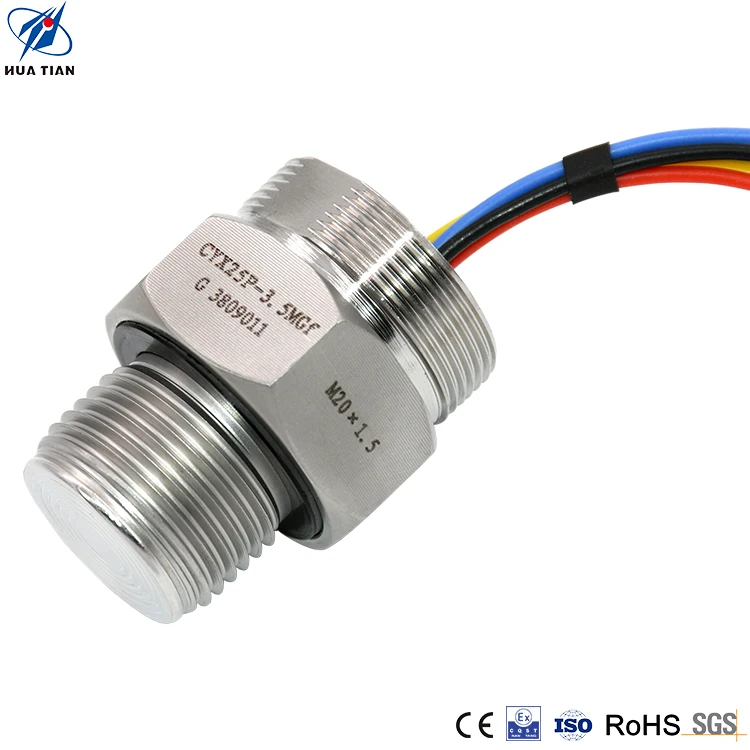

Details Images
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
Main uses:
industrial process control
liquid level measurement
gas and liquid pressure measurement
pressure switch and hydraulic system
medical and food equipment
industrial process control
liquid level measurement
gas and liquid pressure measurement
pressure switch and hydraulic system
medical and food equipment
