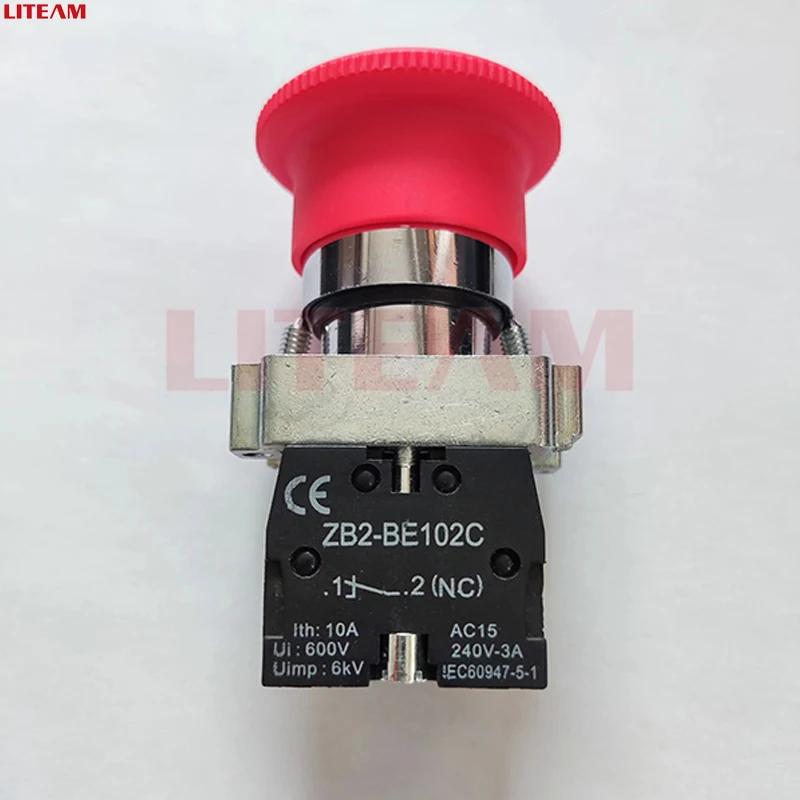

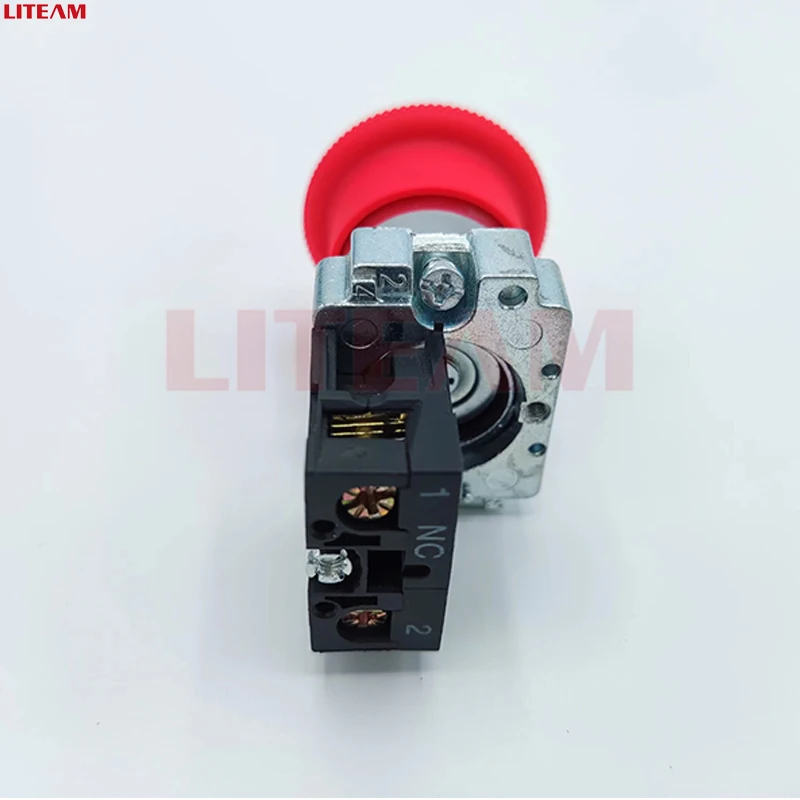

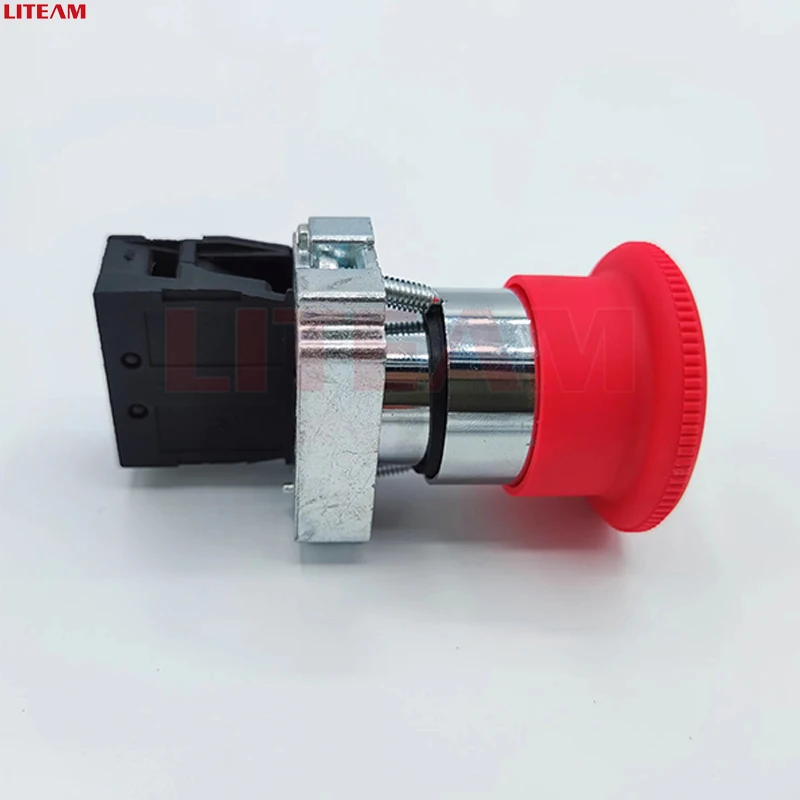

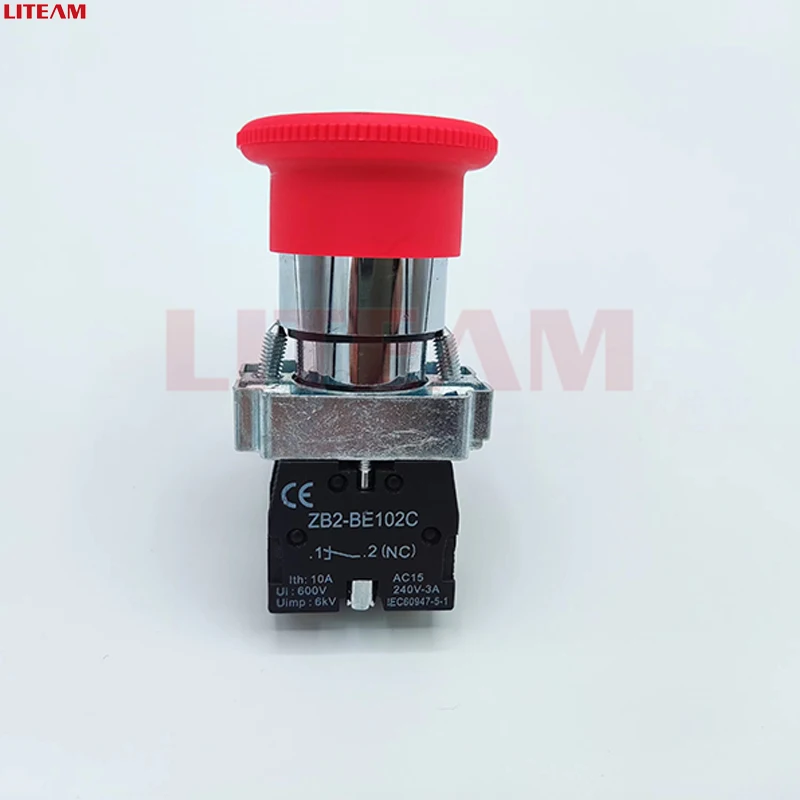

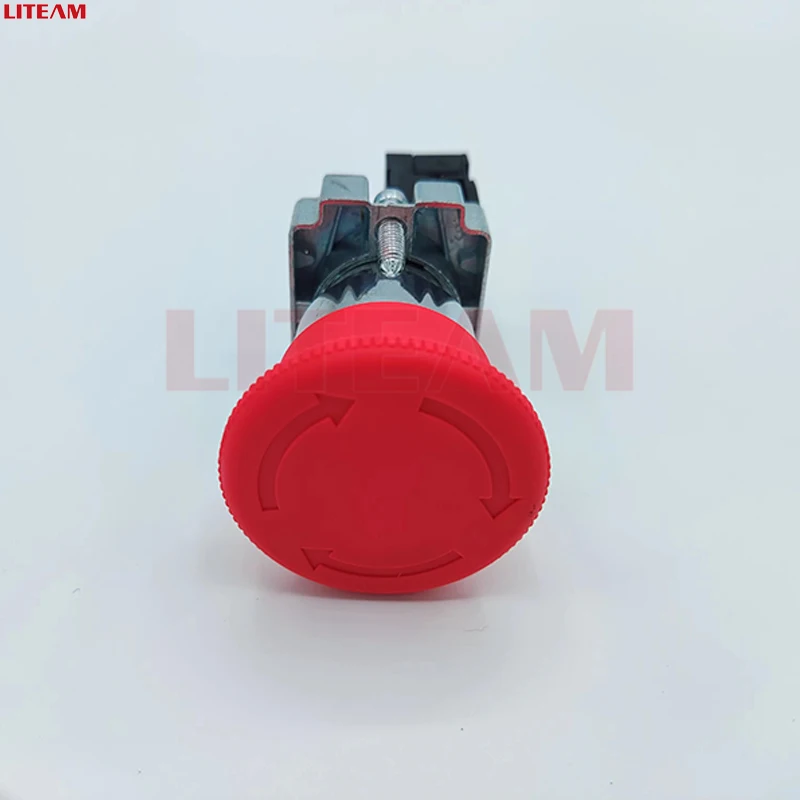

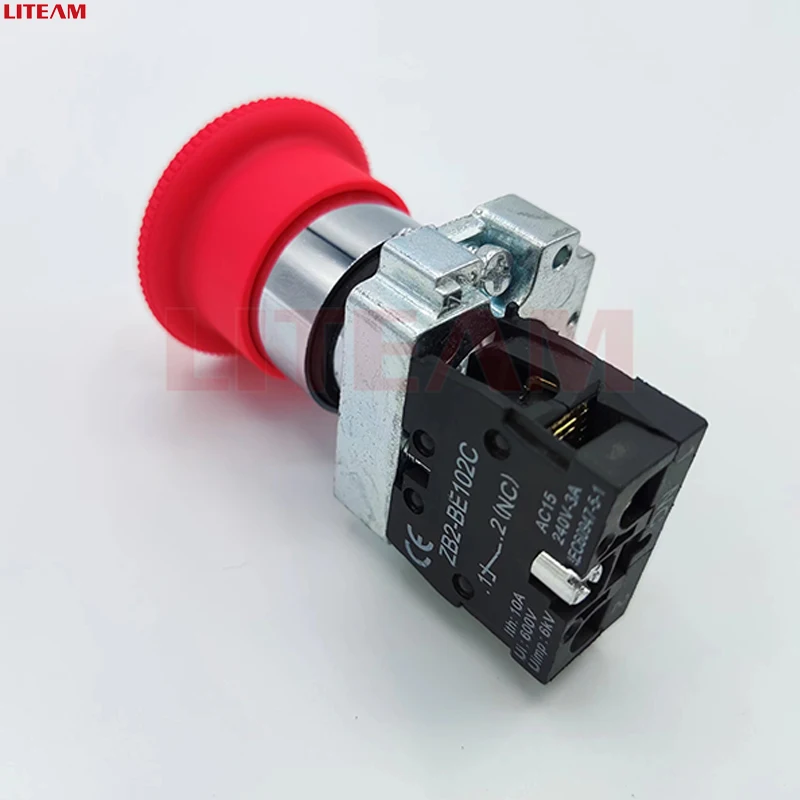

22mm XB2 BS542 Mushroom Emergency Push Button Switch Wrist Emergency Stop Push Button Switch Remote Control Push Button
- Category: >>>
- Supplier: Yueqing Liteam Import & Export Co. Ltd.
Share on (1600796388329):
Product Overview
Description
Product Description
Product Name : Push Button Switch;
Action Type : Lacthing;
Contact Type : 1 NO ;
Poles : DPST
Ui : 660V;Ith : 10A;Terminals Quanlity : 4 Pins
Mount Hole Diameter : 22mm / 7/8";
Fit Panel Thickness(adjustable) : 6mm / 15/64"(max.)
Cap Lamp : Red;
Material : Plastic,Metal
Color : As Picture Shown;Weight : 46g;Package Content : 1 x Push Button Switch Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A
* Features: 4 terminals, 22mm mounting hole, 1NO+1NC contact type, red mushroom emergency stop latching push button switch with yellow cap.
* Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
Summarization

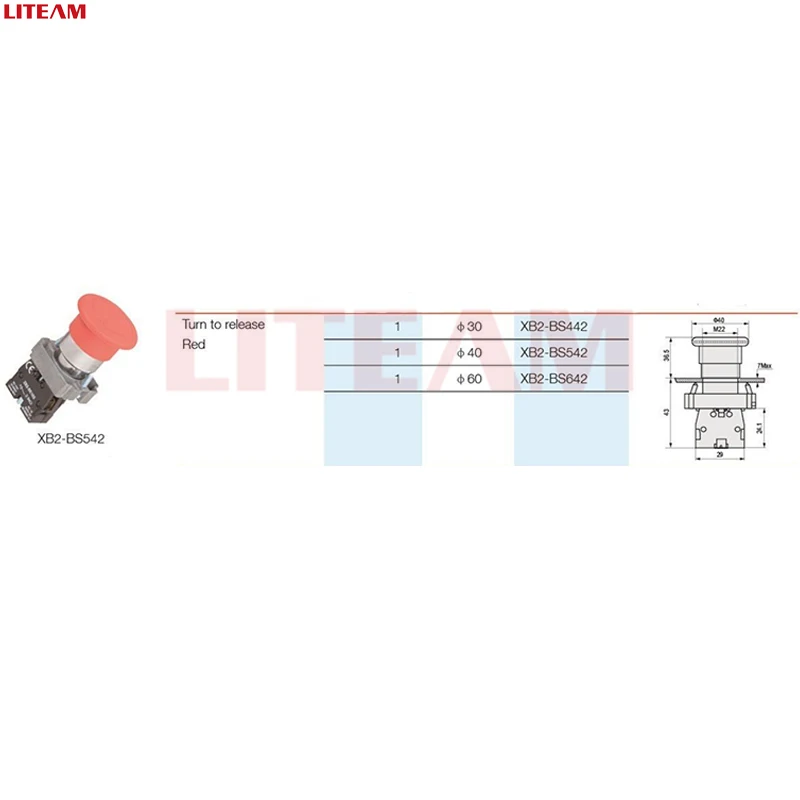

Product Name | Stop Switch Push Button Mushroom Emergency Stop Rotary PushButton NO+NC 660V 10A XB5-AS542 22mm Mounting |
| Rated. Current | 10A 660V |
| Mounting Hole Size | 22mm |
| Function | 1NO |
| Operation Type | Latching |
| Head Shape | Mushroom |
| LED Color | Red |
| Material | Plastic |
Application
