Automatic Chocolate Rotary Lobe Pump Cheese Sauce Transfer Pump
- Category: >>>
- Supplier: Henan Banglan Machinery Co. Ltd.
Share on (1600796409084):
Product Overview
Description
Product Description

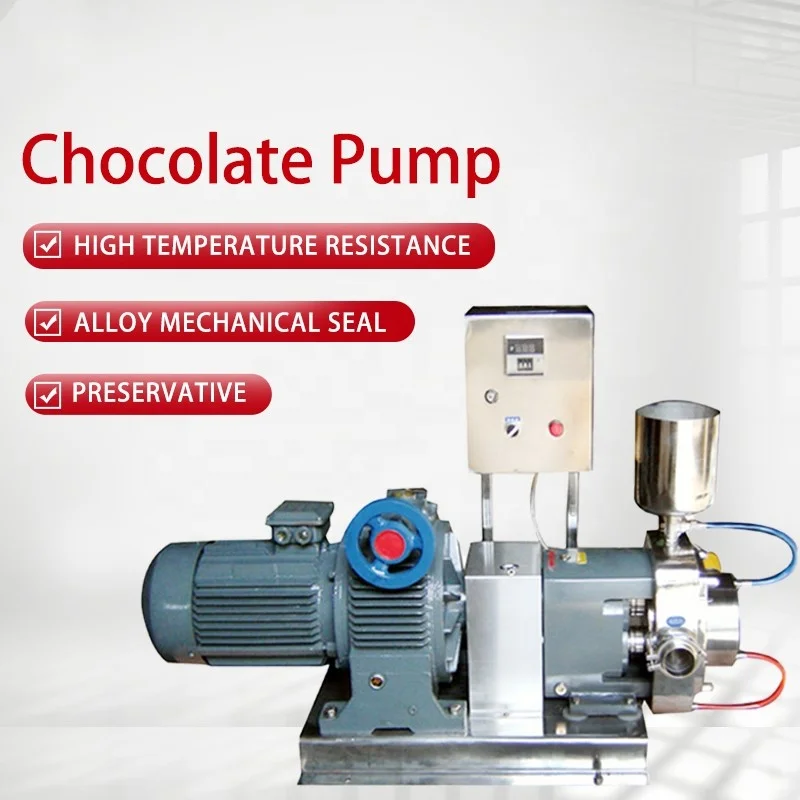

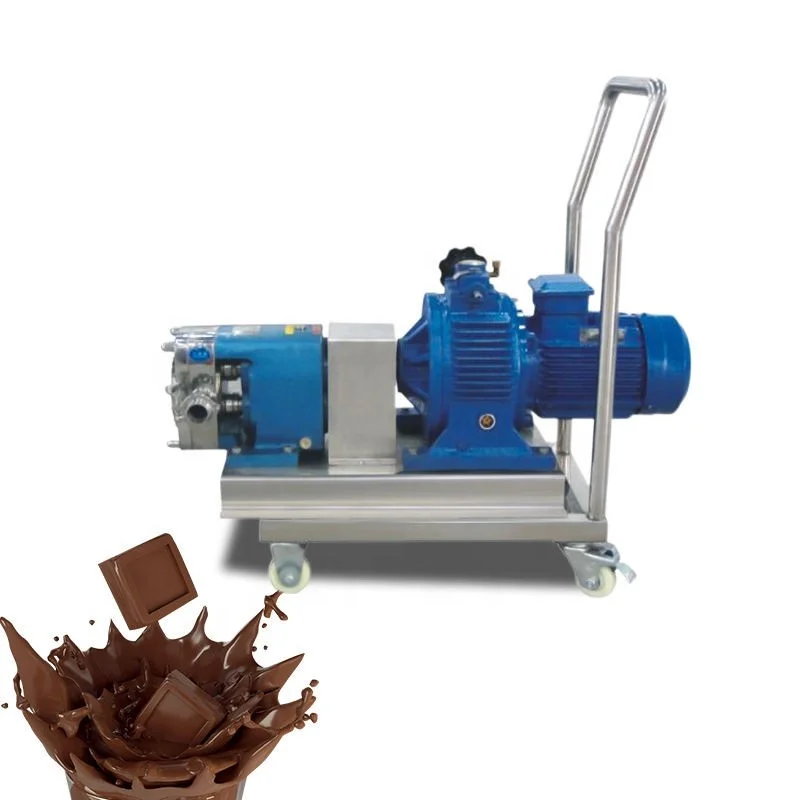

Automatic Chocolate Rotary Lobe Pump Cheese Sauce Transfer Pump
This machine is used in food industry. We named them as chocolate transfer pump. Chocolate transfer pump with jacketed is specially design for transferring easily solidified material. The jacketed cavity surrounding the rotor chamber, can be circulated with hot medium such as hot water or steam, either heat up the cavity of rotors maintaining consistent temperature delivery of the materials according to specific requirements.
Features
1.Chocolate Pump is a rotary positive displacement pump with high efficiency and long life.
2.The body is with water-circulating heat preservation system.
3.Customers can choose different model according to the flow rate required
4.The chocolate mass pump can be used individually or with other production line for automatic chocolate mass feeding.
2.The body is with water-circulating heat preservation system.
3.Customers can choose different model according to the flow rate required
4.The chocolate mass pump can be used individually or with other production line for automatic chocolate mass feeding.
Specification
Number | Caliber Import | Caliber Exit | Pressure | Flow | Power |
A3RP0.5/1.0 | 25mm | 25mm | 1.0(1.6)Mpa | 0.5 m3/h | 0.75KW |
A3RP1.0/1.0 | 40mm | 40mm | 1.0(1.6)Mpa | 1.0 m3/h | 1.1KW |
A3RP2.0/1.0 | 40mm | 40mm | 1.0(1.6)Mpa | 2.0 m3/h | 1.5KW |
A3RP4.0/1.0 | 65mm | 65mm | 1.0(1.6)Mpa | 4.0 m3/h | 3KW |
A3RP5.0/1.0 | 65mm | 65mm | 1.0(1.6)Mpa | 5.0 m3/h | 4KW |
A3RP6.0/1.0 | 65mm | 65mm | 1.0(1.6)Mpa | 6.0 m3/h | 4KW |
A3RP7.0/1.0 | 65mm | 65mm | 1.0(1.6)Mpa | 7.0 m3/h | 4KW |
A3RP8.0/1.0 | 80mm | 80mm | 1.0(1.6)Mpa | 6.0 m3/h | 5.5KW |
A3RP10.0/1.0 | 80mm | 80mm | 1.0(1.6)Mpa | 10.0 m3/h | 5.5KW |
A3RP12.0/1.0 | 80mm | 80mm | 1.0(1.6)Mpa | 12.5 m3/h | 7.5KW |
A3RP16.0/1.0 | 80mm | 80mm | 1.0(1.6)Mpa | 16 m3/h | 7.5KW |
A3RP20.0/1.0 | 100mm | 100mm | 1.0(1.6)Mpa | 20 m3/h | 11KW |
A3RP24.0/1.0 | 100mm | 100mm | 1.0(1.6)Mpa | 24 m3/h | 11KW |
A3RP32.0/1.0 | 100mm | 100mm | 1.0(1.6)Mpa | 32 m3/h | 15KW |
A3RP40.0/1.0 | 100mm | 100mm | 1.0(1.6)Mpa | 40 m3/h | 15KW |
A3RP50.0/1.0 | 125mm | 125mm | 1.0(1.6)Mpa | 50 m3/h | 18KW |
A3RP60.0/1.0 | 150mm | 150mm | 1.0(1.6)Mpa | 60 m3/h | 22KW |
A3RP80.0/1.0 | 200mm | 200mm | 1.0(1.6)Mpa | 80 m3/h | 40KW |

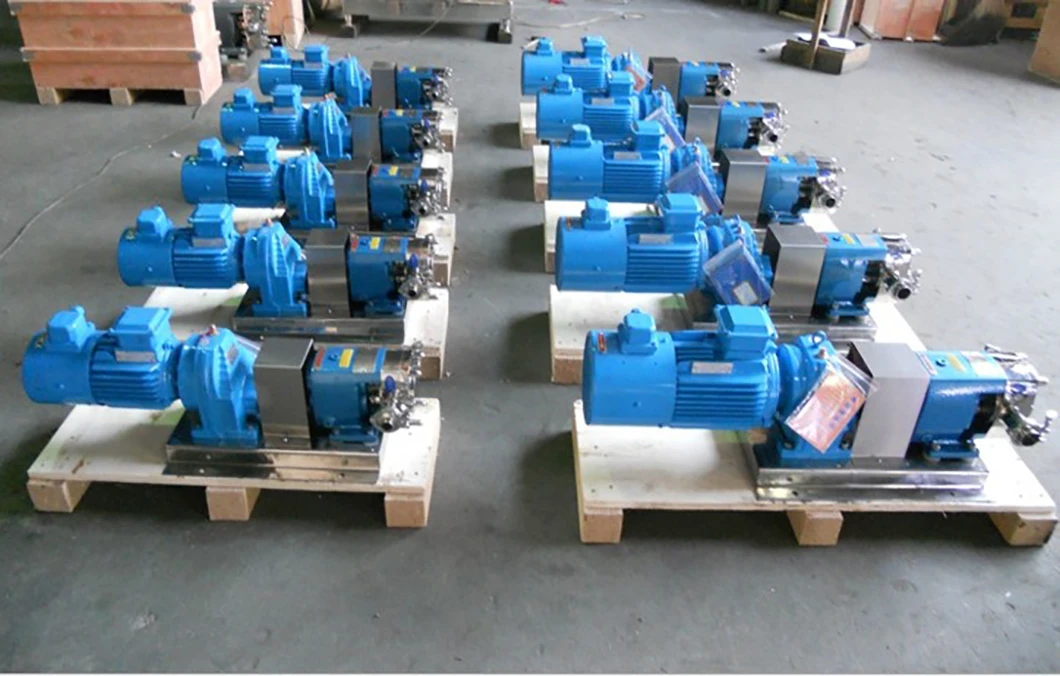

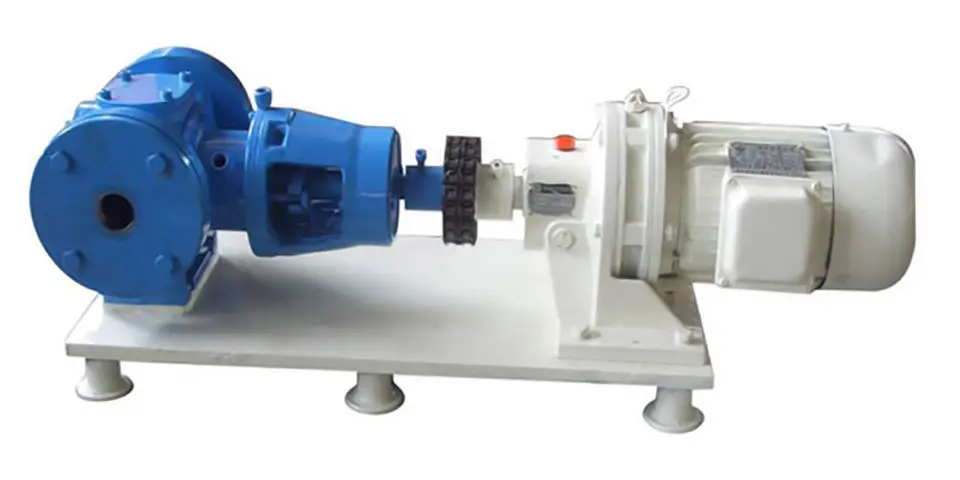

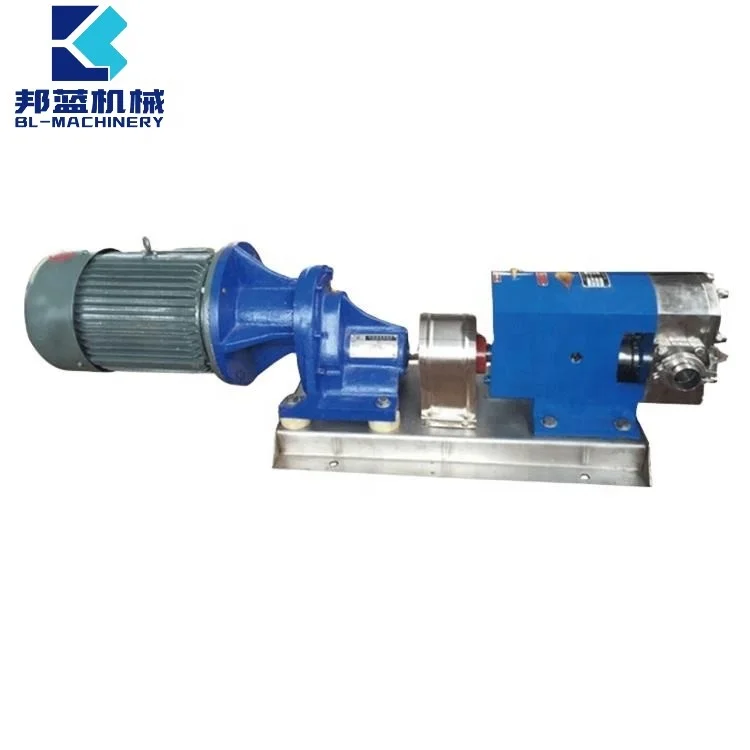

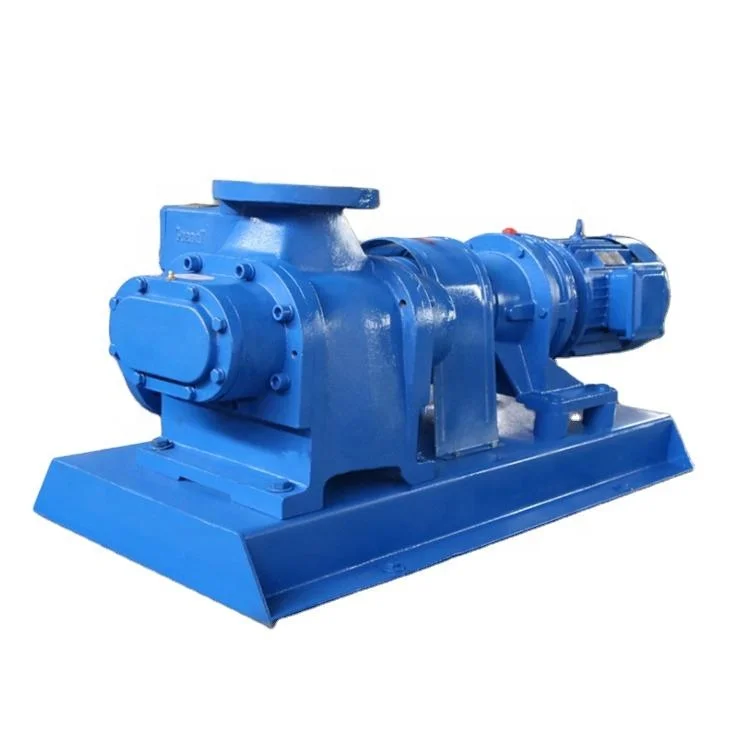

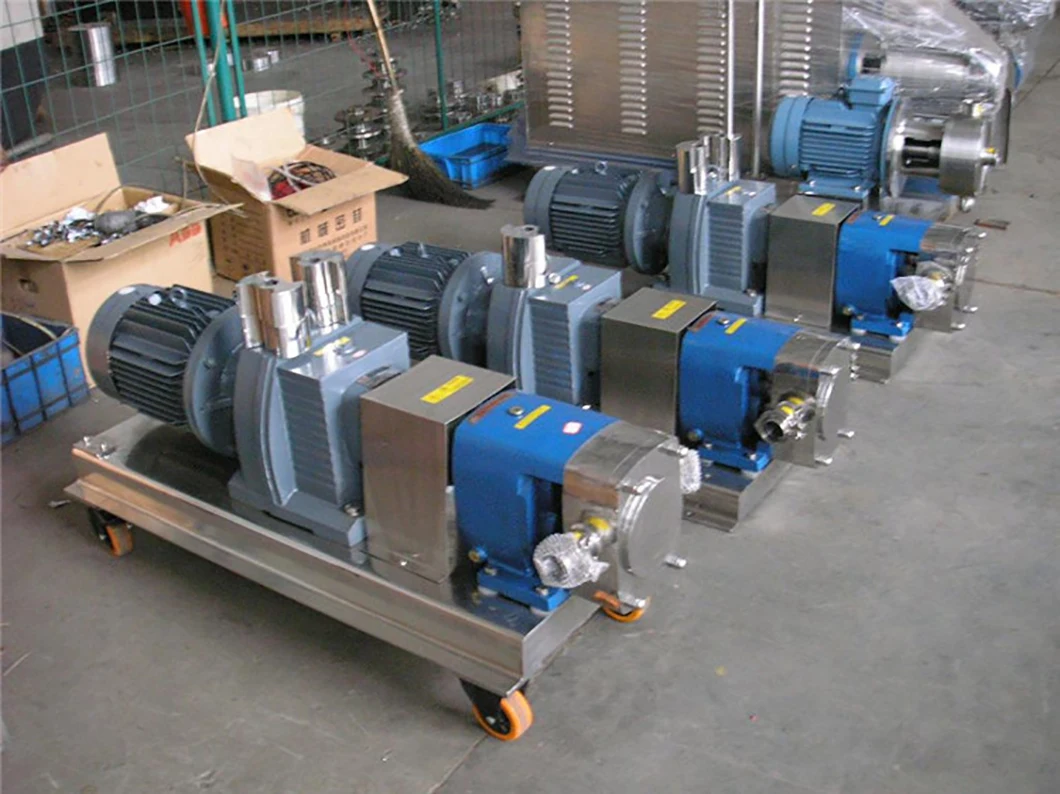

Product pictures

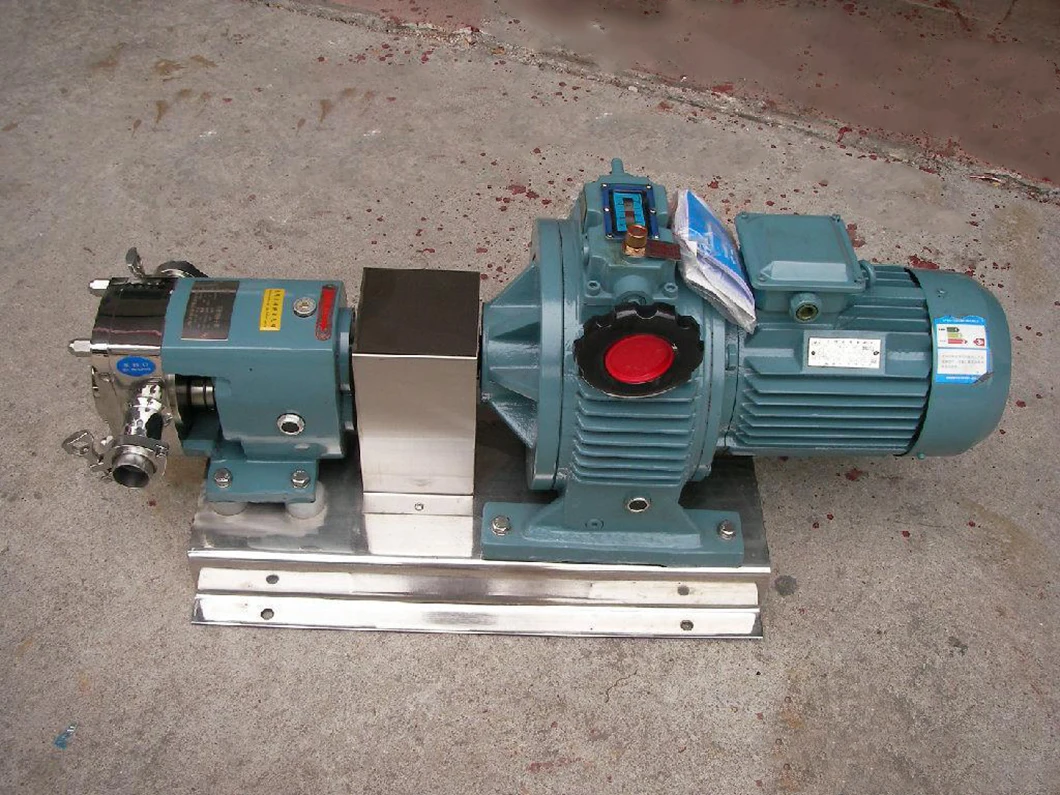

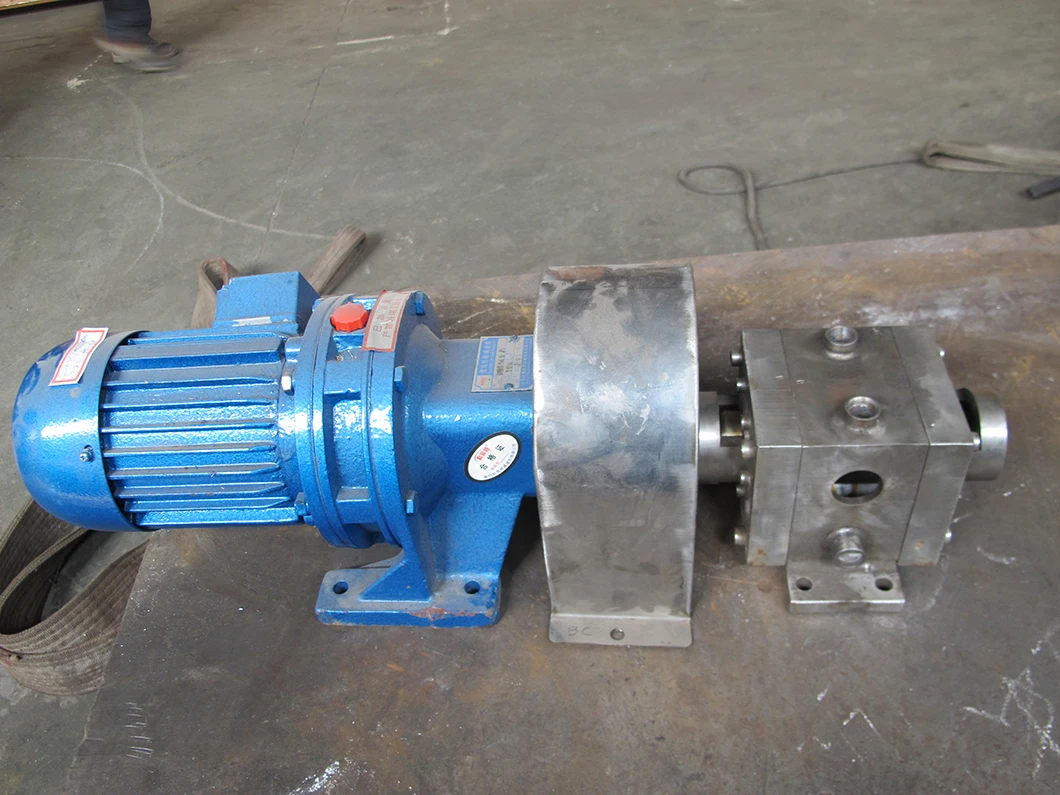

Product details
strong canrrying capacity , simple
transmission and long service life . In the case of conveying materials of high viscosity , the advantages are obvious . If the variable frequency motor is used with the inverter , the flow can be automatically adjusted
transmission and long service life . In the case of conveying materials of high viscosity , the advantages are obvious . If the variable frequency motor is used with the inverter , the flow can be automatically adjusted
Main features : Through the frequency converter or digital control , the materials can be conveyed in a quantitative , timed
manner at fixed pressure . It can be used as a common metering pump
manner at fixed pressure . It can be used as a common metering pump
