GYTS 12B1 Layer Twisted Armored 12 Core Single Mode Outdoor Pipe Duct Fiber Optical Cable
- Category: >>>
- Supplier: Chengdu Bolein Technology Co. Ltd.
Share on (1600796453471):
Product Overview
Description
GYTS-12B1 Layer Twisted Armored 12 Core Single Mode Outdoor Pipe Duct Fiber Optical Cable
Product Description
GYTS Outdoor Fiber Optic Cable Features:
Product Description:

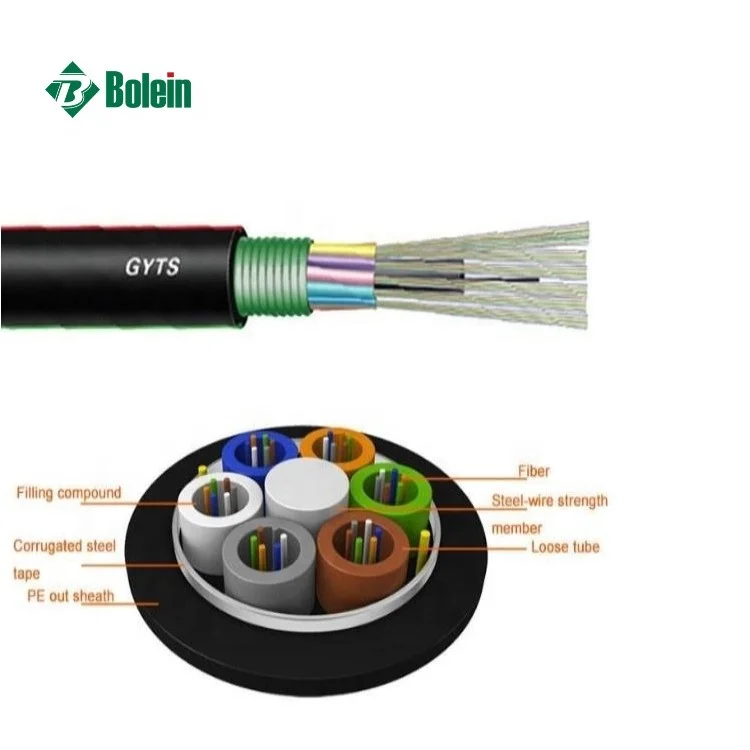

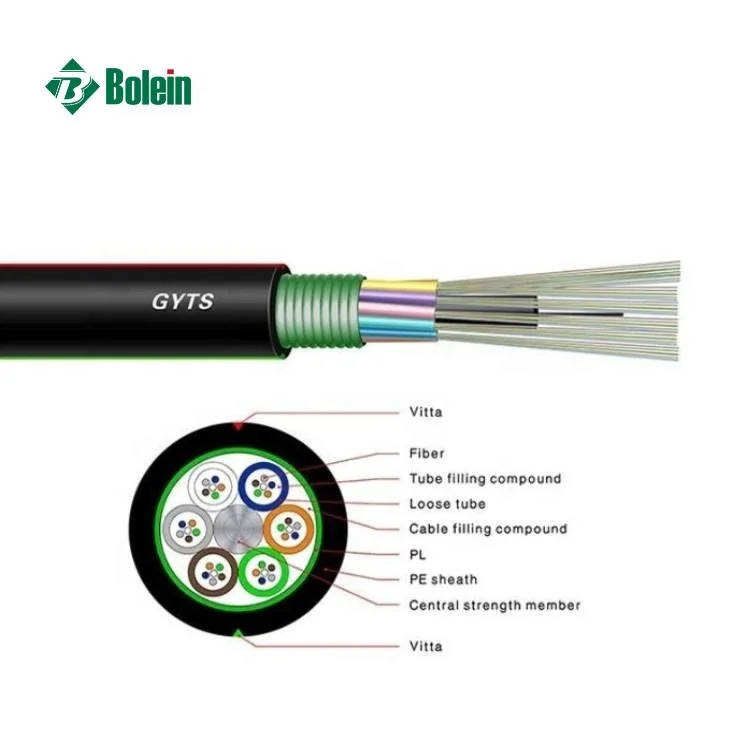

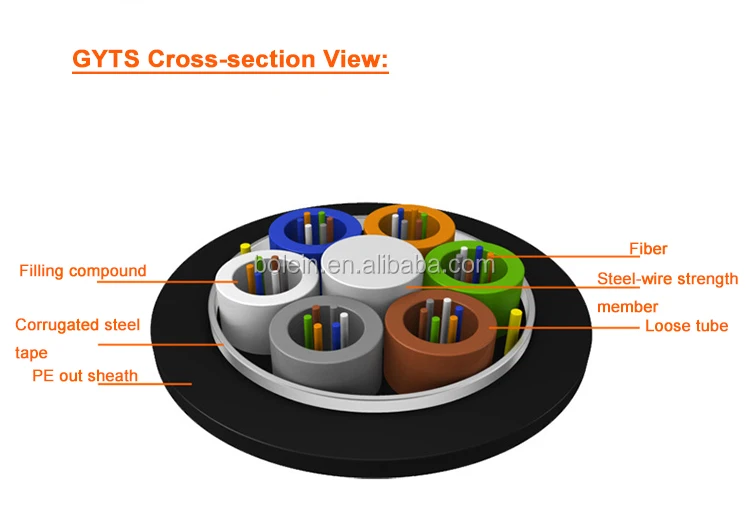

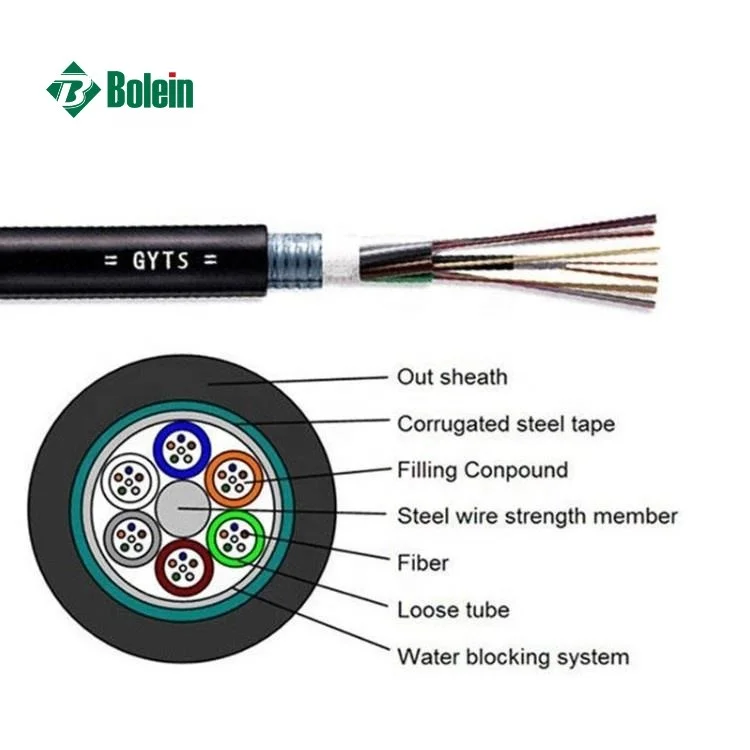

Bolein Multi Loose Tube corrugated Steel tape external cables are consisted of 250um fibers held in oil filled PBT loose tubes wrapped around a phosphatized steel wire central strength member. This is surrounded by either water blocking jelly, a corrugated steel tape laminated on both sides with polyethylene and bonded tightly to the polyethylene sheath.
Product Description:
Bolein Multi Loose Tube corrugated Steel tape external cables are consisted of 250um fibers held in oil filled PBT loose tubes wrapped around a phosphatized steel wire central strength member. This is surrounded by either water blocking jelly, a corrugated steel tape laminated on both sides with polyethylene and bonded tightly to the polyethylene sheath.
Applications:

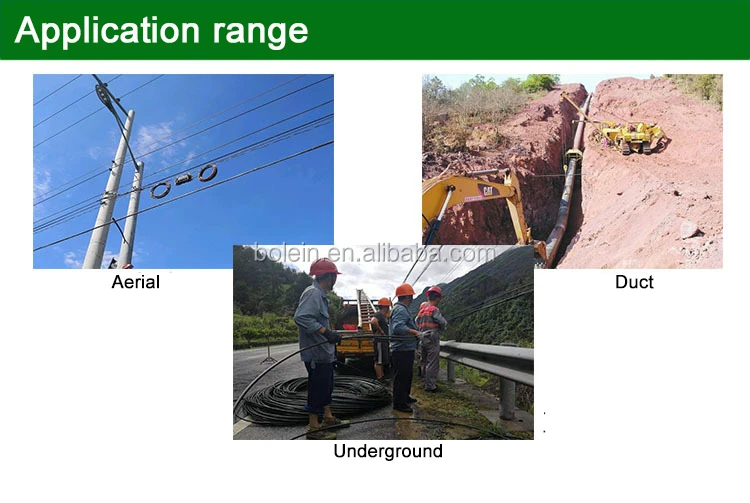

Suitable for external applications in ducts and aerial applications.
Suitable for external applications in ducts and aerial applications.
item | value |
Model Number | GYTS-12B1 |
Type | CAT 6 |
Place of Origin | China |
Brand Name | BOLEIN / OEM |
Number of Conductors | ≥ 10 |
Product Name | GYTS Fiber Optic Cable |
Description | 12 Core Single Mode GYTS Outdoor Armoured Fiber Optic Cable |
Application | Outdoor Pipe Duct Optical Cable Communication |
Cable Structure | GYTS |
Diameter of out sheath | 9.8~18mm |
Jacket | PE LSZH |
Fiber Type | G652D |
Fiber count | 2-288 Cores |
Min. bending radius (mm) | Short-term: 20D, Long-term: 10D |
Working Temperature | -20 ~ +60°C |
Fiber Count (Core) | Diameter of out sheath (mm) | Weight (KG/KM) | Min. allowable tensile strength (N) | Min. allowable crush load (N/100m) | Min. bending radius (mm) | Suitable Temperature (°C) | ||||||
Short term | Long term | Short term | Long term | Short term | Long term | |||||||
24 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 | |||
36 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 | |||
42 | 10.5 | 105 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 | |||
48 | 12.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 | |||
60 | 12.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 | |||
72 | 12.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 | |||
96 | 12.5 | 165 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 | |||
144 | 14.0 | 180 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40~+60 | |||
Fiber Type | Multi-mode | G.651 | A1a: 50/125 | Gradient type refractive index | |
A1b: 50/126 | |||||
Single Mode | G.652(A,B,C,D) | B1.1 routines | |||
G.653 | B2 Zero dispersion shifted | ||||
G.654 | B1.2 Cutoff wavelength shift | ||||
G.655 | B4 Non-zero dispersion shifted | ||||
Parameters | G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | |||
@1300nm | ≤1.0dB/km | ≤1.0dB/km | ||||
@1310nm | ≤0.36dB/km | ≤0.40dB/km | ||||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | ||||
Brand width | @850nm | ≥500MHz.km | ≥200MHz.km | |||
@1300nm | ≥1000MHz.km | ≥600MHz.km | ||||
Numerical Aperture (NA) | 0.200±0.015NA | 0.275±0.015NA | ||||
Cable cut-off wavelength | ≤1260nm | ≤1480nm | ||||
Details Images

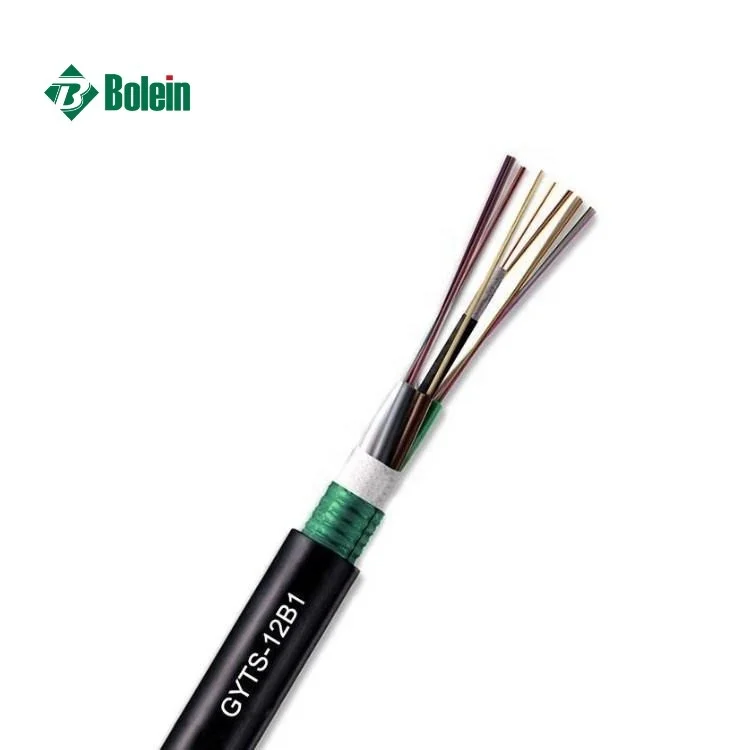

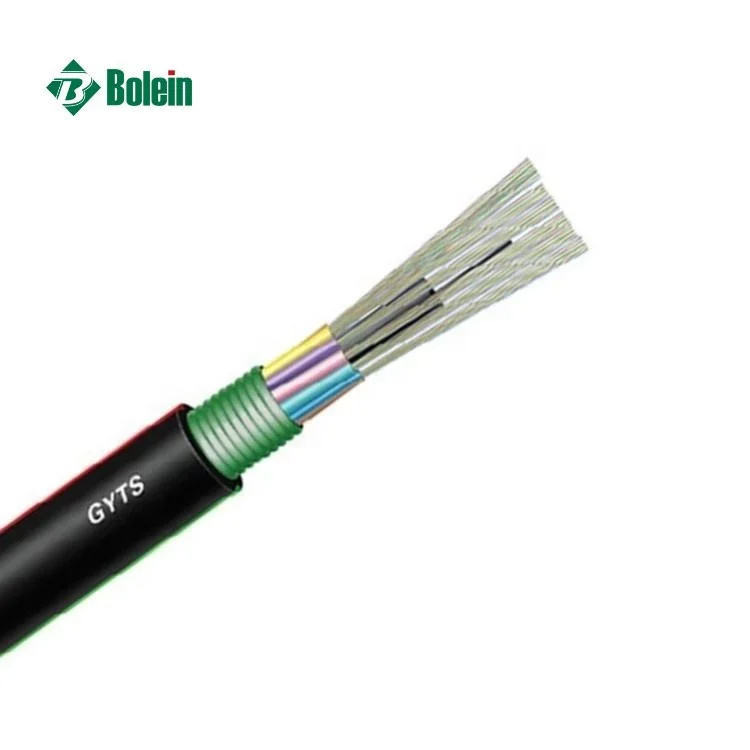

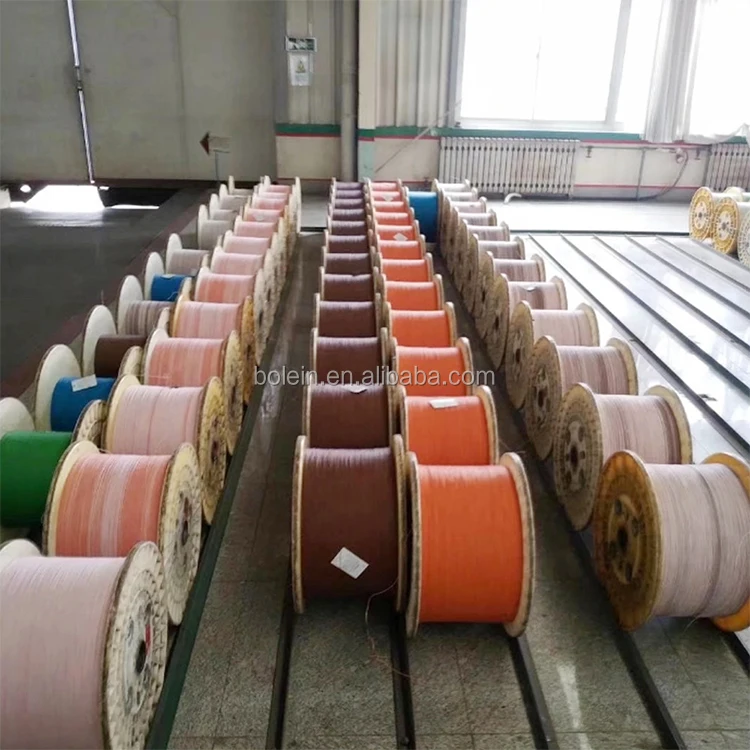

Real Product Photo
Our Services
We have stock & warehouse in UAE (Dubai), Pakistan (Lahore, Karachi) & China,its easy for customer to take products directly from one of the warehouses according to their own situation. We have partnership with local logistics company, so we can provide the best delivery service. Even for UAE and Pakistan customers, there are door-to-door transportation services.
We also offer customers OEM, lifetime warranty and return policy.
Good quality, good price, good service and good gurantee to our clients. Clients satisfaction is the AIMS of Bolein.
We also offer customers OEM, lifetime warranty and return policy.
Good quality, good price, good service and good gurantee to our clients. Clients satisfaction is the AIMS of Bolein.

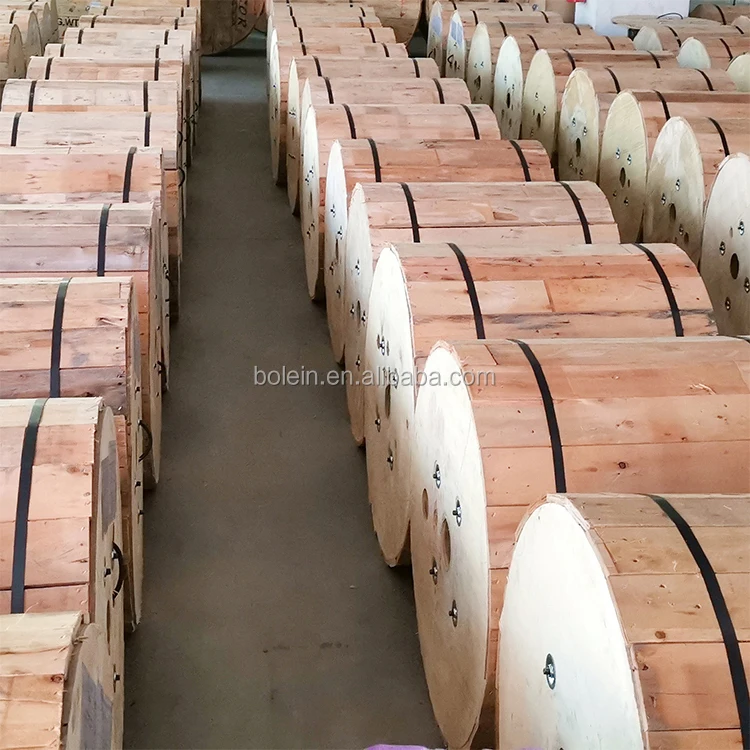

Packaging & Shipping

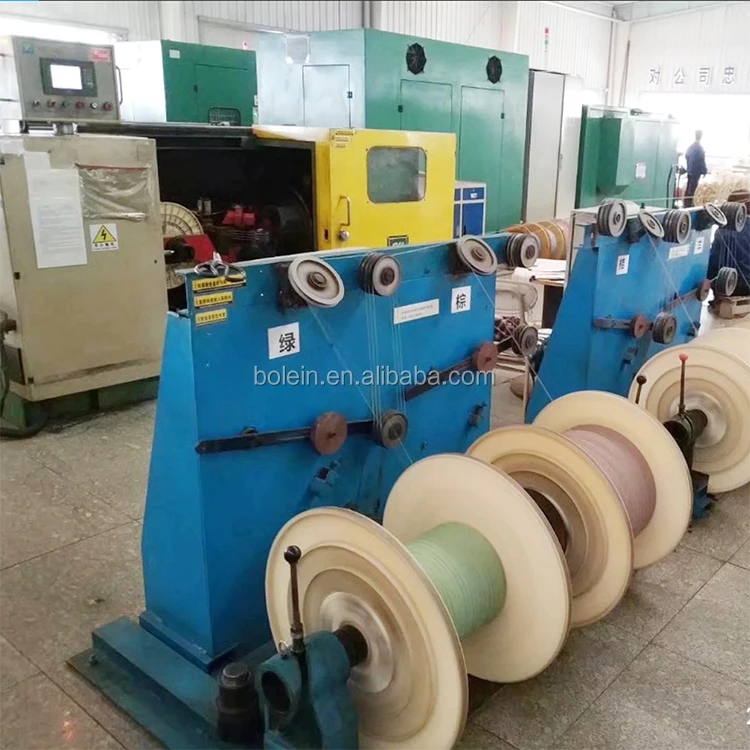

Company Profile
Exhibition
FAQ
1. Q: who are we?
A: We are based in Sichuan, China, start from 2019, sell to Mid East(80.00%), Eastern Europe(10.00%),Africa(10.00%).There are total about 51-100 people in our office.
A: We are based in Sichuan, China, start from 2019, sell to Mid East(80.00%), Eastern Europe(10.00%),Africa(10.00%).There are total about 51-100 people in our office.
2. Q: how can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;
A: Always a pre-production sample before mass production; Always final Inspection before shipment;
3. Q: what can you buy from us?
A: Network Cabinet, ONU Cabinet, Server Rack, Fiber Optic Cable, LAN Cable
A: Network Cabinet, ONU Cabinet, Server Rack, Fiber Optic Cable, LAN Cable
4. Q: why should you buy from us not from other suppliers?
A: BOLEIN have our own R&D team and two factories over 100,000 square meter workshop, sales team spreading in Chengdu, China; Dubai, UAE and Karachi,Pakistan etc. Committed to provide customers with the fastest delivery and the best after-sales service.
A: BOLEIN have our own R&D team and two factories over 100,000 square meter workshop, sales team spreading in Chengdu, China; Dubai, UAE and Karachi,Pakistan etc. Committed to provide customers with the fastest delivery and the best after-sales service.
5. Q: what services canwe provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English ,Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean,Hindi.
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English ,Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean,Hindi.
