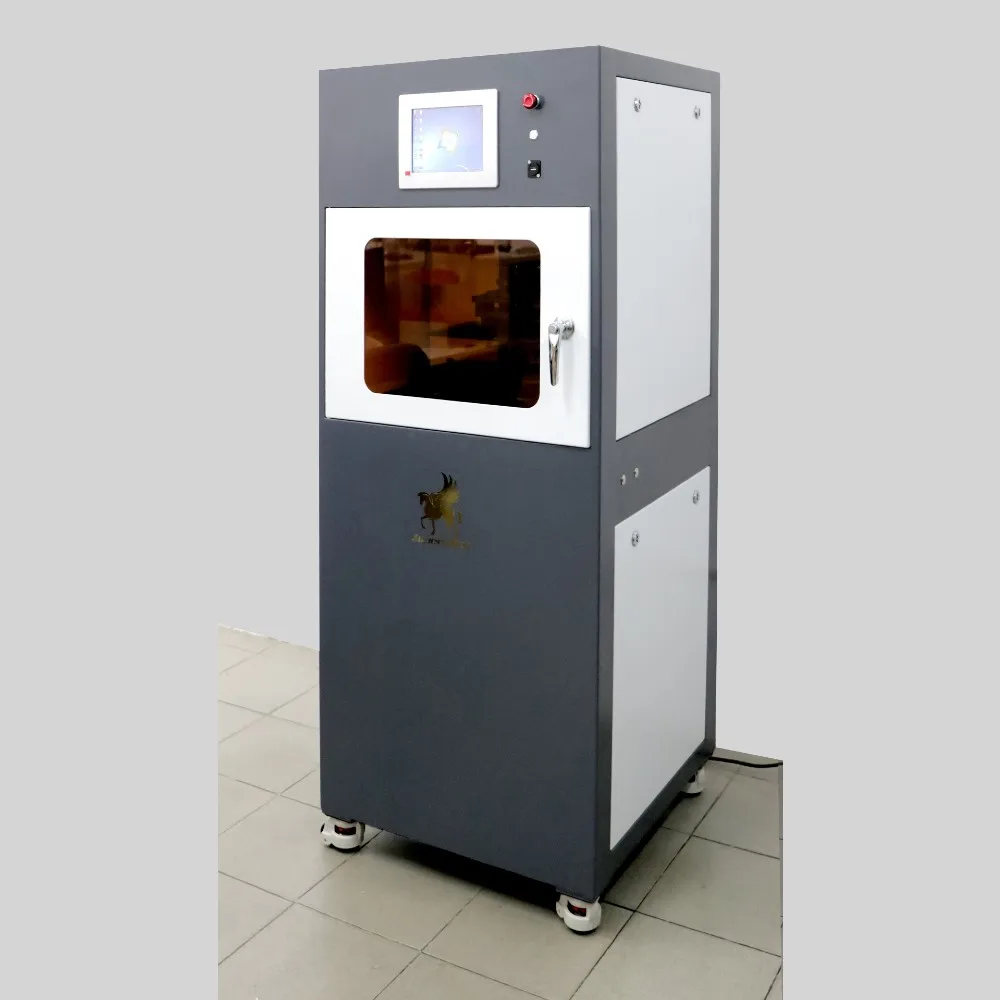

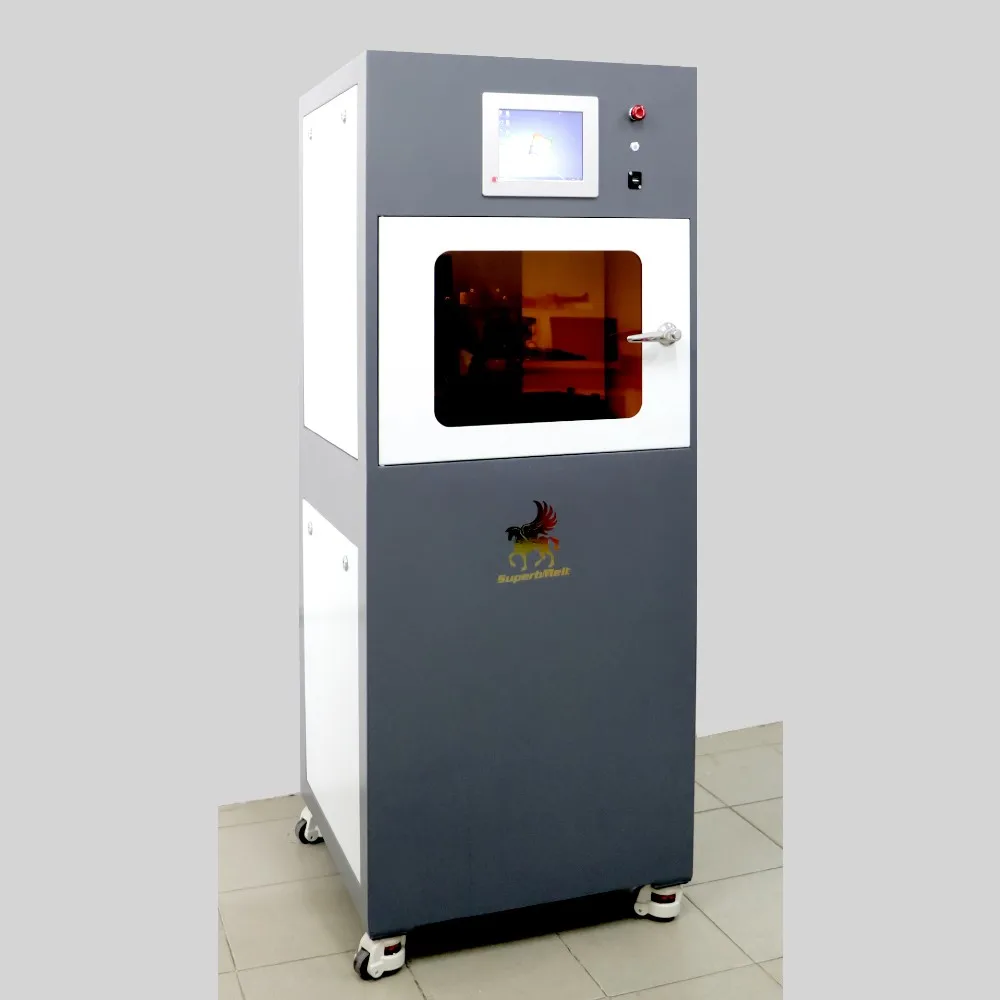

SuperbMelt 4K Castable Wax Resin Printing for Gold Jewelry Casting DLP 3D Printer
- Category: >>>
- Supplier: Longgang Superb Electromachinery Co. Ltd.
Share on (1600796508490):
Product Overview
Description
Products Description

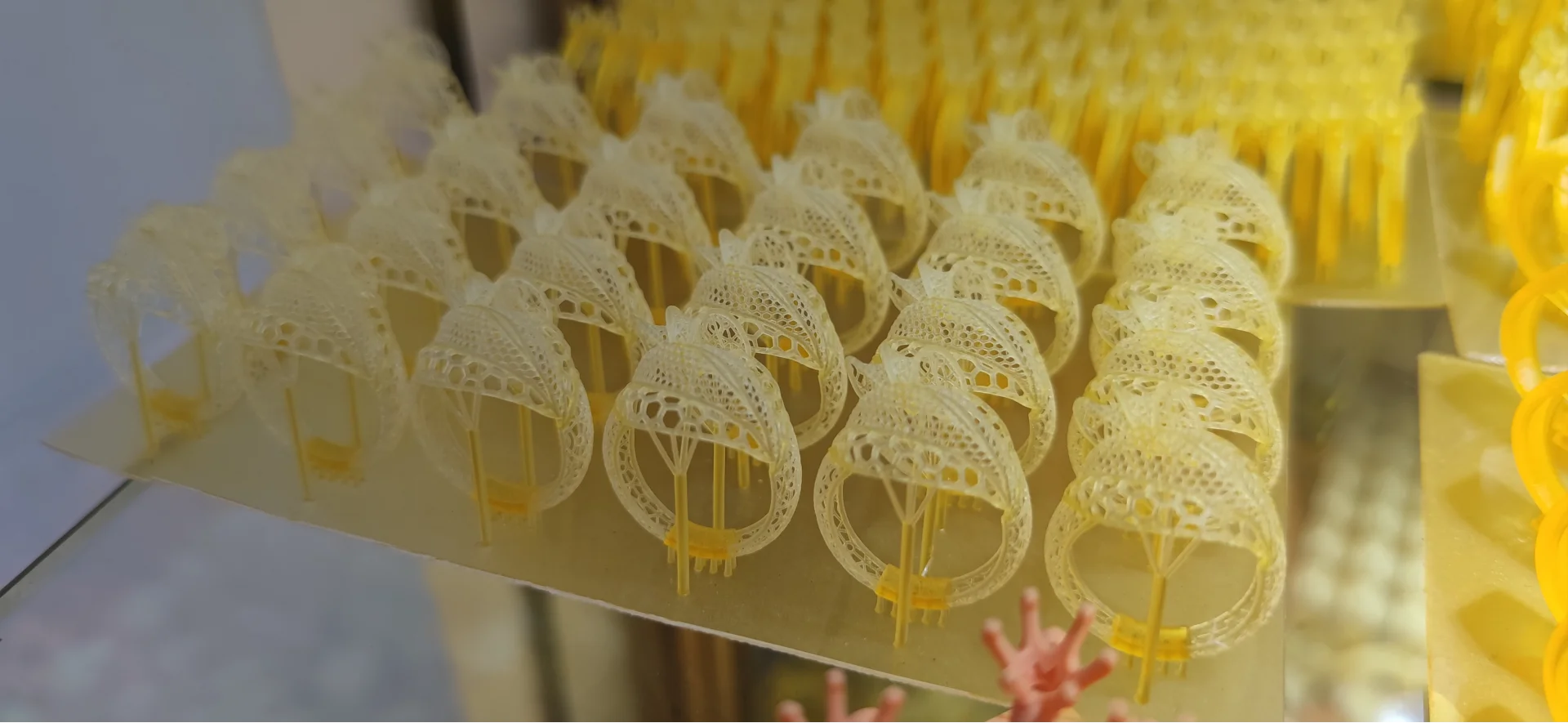

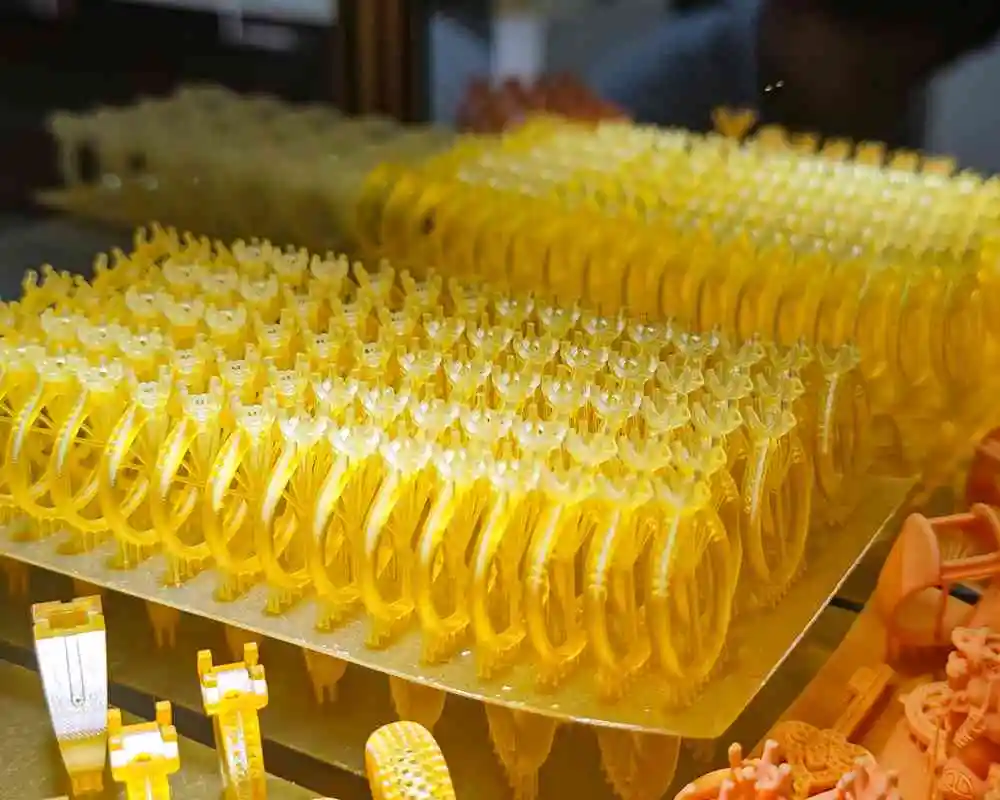

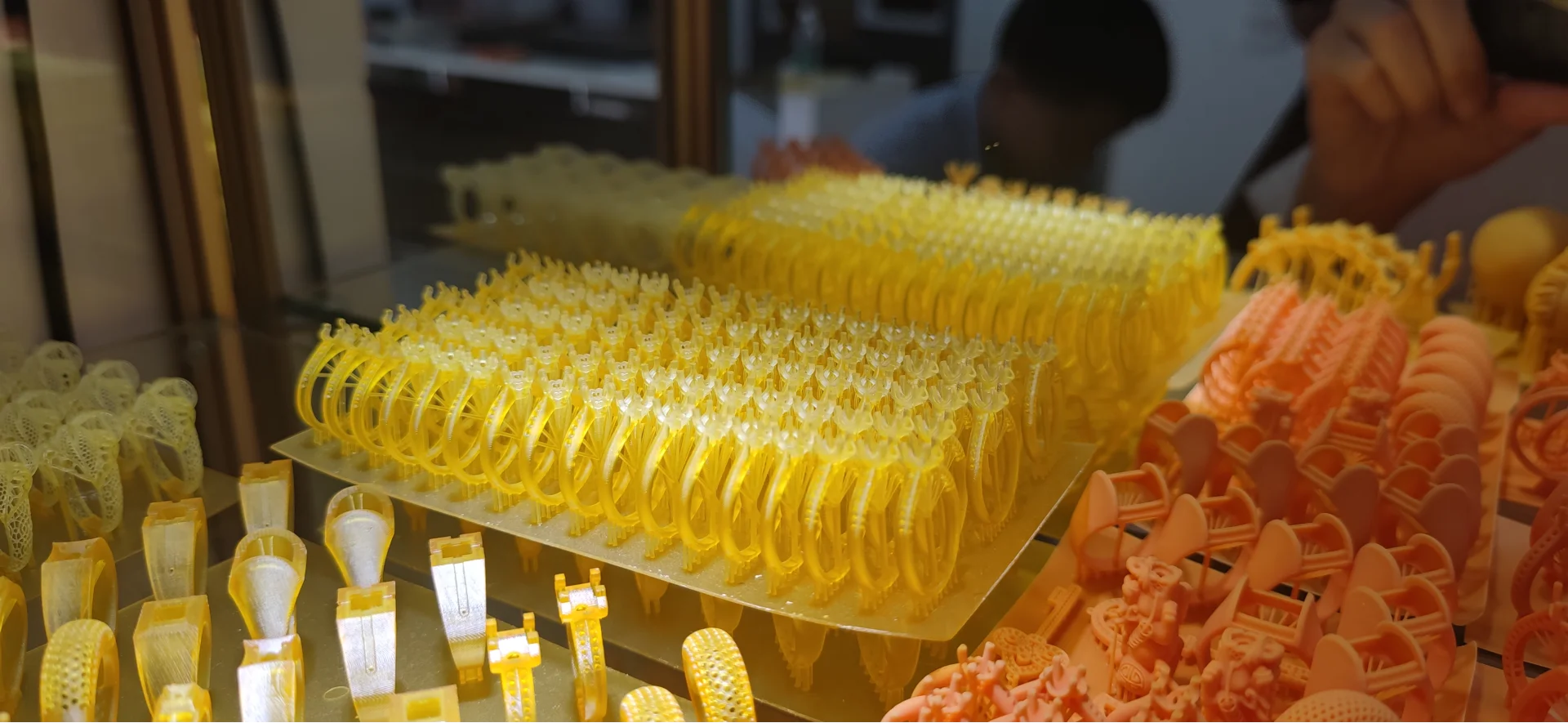

Finished product display
Model | SPB-J200HD |
DLP Resolution | 3840*2160 (4K) |
X/Y Pixel | 50μm |
Light Source | UV LED 405nm Texas Instruments DMD chip |
Print Layer Thickness | 0.025-0.1mm |
Forming Size | 192mm*108mm*120mm |
Data Format | STL/SLC |
Machine Power | 500W |
Input Voltage | 110-220VAC 50/60Hz |
Printable Materials | castable resin, ceramic resin, dental mold resin |
Easy to Use
Equipped with a high-definition screen, and the touch screen operation is easier. After setting the parameters, it can be printed automatically.
4K HD
Large Printing Size
Large-format printing area realizes more printing quantity and wider application range of workpieces.
Performance Features
High Resolution
The use of 4K industrial-grade ultra-high-resolution projection optical engine makes the projected image clearer. Its resolution is 3840×2160, so the printing accuracy is also higher. It can easily solve the printing of some difficult jewelry styles, and the printed texture of the finished product will be more clear and detailed. In this way, it is easier to obtain perfect and exquisite jewelry products in the later casting process.
Large Format Print Size
The printing layout reaches 192mm*108mm*120mm, and 30-50 models can be formed at a time. Realized mass production, making production more efficient, suitable for medium and large jewelry factories. The molding space is also large, suitable for large-scale model production such as animation figures, metal crafts, etc.
Swing Trough
Every time it is completed, when it rises, the trough will also swing at the same time to assist in the separation of
photosensitive resin, which can buffer the stripping process, improve stability, and ensure the quality of the finished product.
Remote Monitoring
Equipped with a remote monitoring system, you can clearly understand the printing process and status without standing next to the machine during printing. When an abnormality occurs, you can control it in time, so as to avoid wasting time and cost due to printing failure.
Various Printing Materials
Most of the castable resins, ceramic resins and dental molding resins on the market can be used, and no fixed model brand is required. This means more choices for you, the ability to buy the qualities you need individually, and more finished products that are achievable.
Strong Compatibility
The machine can adjust the temperature and humidity, so there is no need to worry about receiving interference in a too cold or too hot environment, which will affect the operation of the machine. This feature prolongs the service life of the machine and ensures the printing quality.
High Stability Light Source
Whether each layer of mold can be stably molded depends on whether the light is uniform. Our 4k printer uses LED UV light source, which is characterized by high stability and high uniformity. The service life of this light source can reach more than 20,000 hours, which effectively guarantees the stability of the printing process and makes the molding more reliable.
The use of 4K industrial-grade ultra-high-resolution projection optical engine makes the projected image clearer. Its resolution is 3840×2160, so the printing accuracy is also higher. It can easily solve the printing of some difficult jewelry styles, and the printed texture of the finished product will be more clear and detailed. In this way, it is easier to obtain perfect and exquisite jewelry products in the later casting process.
Large Format Print Size
The printing layout reaches 192mm*108mm*120mm, and 30-50 models can be formed at a time. Realized mass production, making production more efficient, suitable for medium and large jewelry factories. The molding space is also large, suitable for large-scale model production such as animation figures, metal crafts, etc.
Swing Trough
Every time it is completed, when it rises, the trough will also swing at the same time to assist in the separation of
photosensitive resin, which can buffer the stripping process, improve stability, and ensure the quality of the finished product.
Remote Monitoring
Equipped with a remote monitoring system, you can clearly understand the printing process and status without standing next to the machine during printing. When an abnormality occurs, you can control it in time, so as to avoid wasting time and cost due to printing failure.
Various Printing Materials
Most of the castable resins, ceramic resins and dental molding resins on the market can be used, and no fixed model brand is required. This means more choices for you, the ability to buy the qualities you need individually, and more finished products that are achievable.
Strong Compatibility
The machine can adjust the temperature and humidity, so there is no need to worry about receiving interference in a too cold or too hot environment, which will affect the operation of the machine. This feature prolongs the service life of the machine and ensures the printing quality.
High Stability Light Source
Whether each layer of mold can be stably molded depends on whether the light is uniform. Our 4k printer uses LED UV light source, which is characterized by high stability and high uniformity. The service life of this light source can reach more than 20,000 hours, which effectively guarantees the stability of the printing process and makes the molding more reliable.
Applications
The 4k 3d printer focuses on the application of the jewelry industry. It is mainly used for making molds before jewelry casting.
It can be matched with materials that castable, and the gold silver platinum or other material jewelry can be casted in the later stage.

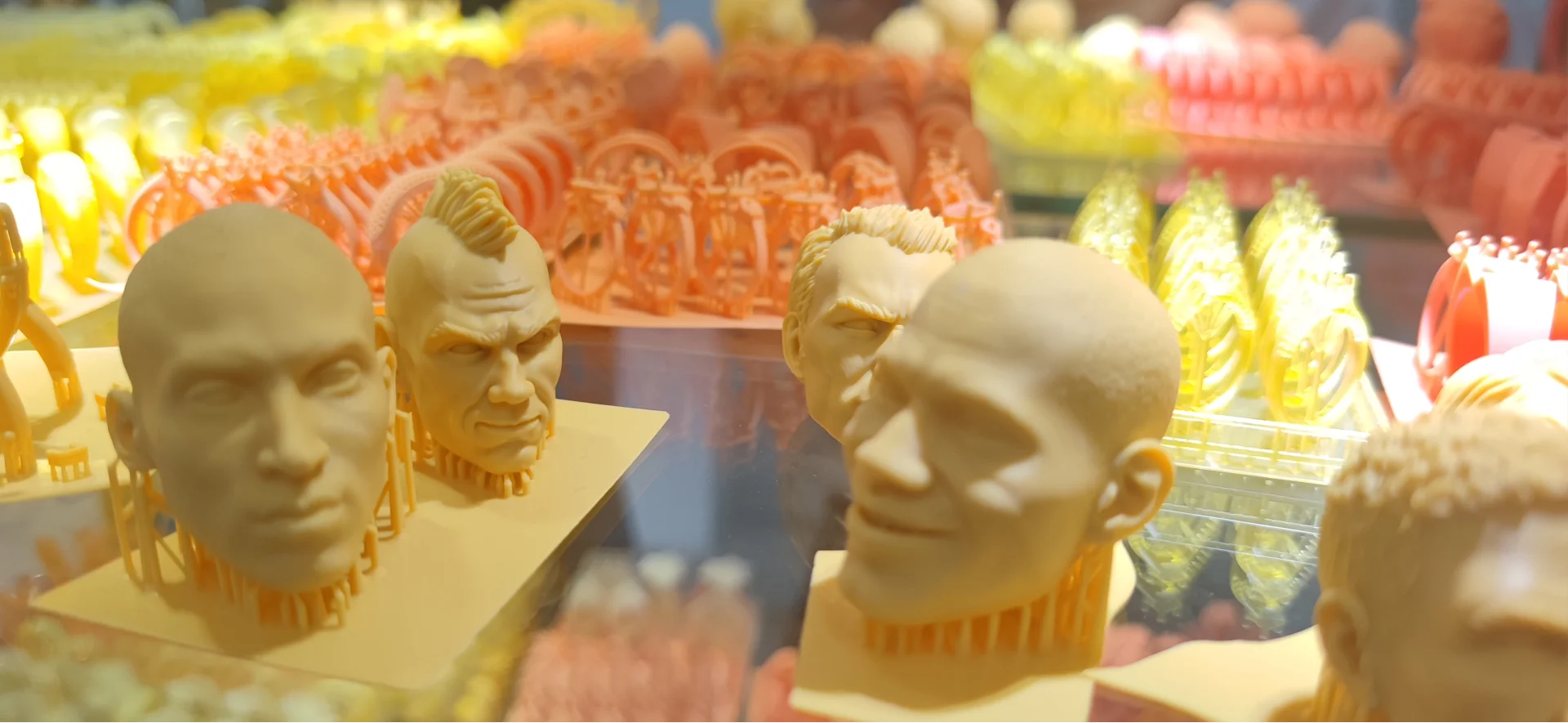

It is also possible to use uncastable materials, first make the resin mold, and then use the wax injection machine to mass-produce, and then casting the jewelry. At the same time, this method is more suitable for making animation figurine and original models of some large-scale handicrafts.
It can be matched with materials that castable, and the gold silver platinum or other material jewelry can be casted in the later stage.
It is also possible to use uncastable materials, first make the resin mold, and then use the wax injection machine to mass-produce, and then casting the jewelry. At the same time, this method is more suitable for making animation figurine and original models of some large-scale handicrafts.
Our Advantages
About SuperbMelt
1.Superb is a top-notch professional manufacturer and exporter of precious metal melting, casting and forming machines which are used in fields like precious metal, Rapid Prototyping, Jewelry and Artistic Sculpture.
2.Our mission is to build the most innovative melting and casting equipment for jewelry and
precious metal manufacturing, providing you with the highest reliability in your daily operations that guarantees the best quality.
3. As a leading precious metal melting and casting solutions provider, the provision of timely technical support for our manufacturers is an essential part of our services. With a strong technical support team that comprises of qualified and well trained (in China) local technicians, we are committed to solving any problems that you may have.
2.Our mission is to build the most innovative melting and casting equipment for jewelry and
precious metal manufacturing, providing you with the highest reliability in your daily operations that guarantees the best quality.
3. As a leading precious metal melting and casting solutions provider, the provision of timely technical support for our manufacturers is an essential part of our services. With a strong technical support team that comprises of qualified and well trained (in China) local technicians, we are committed to solving any problems that you may have.
Customer Photos
Advancing an industry caught up in the sleaze of the ordinary meant collaboration, dedication, and a workforce built on communal values. Fast track to this day, we pride ourselves as a major distributor of melting, casting, and forming machines in over 30countries.
Exhibition
FAQ
1.Why Are Your Price is Expensive? What Is the Difference?
Compared to other suppliers using LCD technology, our printers use DLP technology for better performance and greater accuracy.And we are using a UV light source.DLP has high contrast, rich details, better text effect and longer service life.
2.What Is the Smallest Wire Diameter a 3D Printer Can Print?
Minimum can reach 0.3mm.
3.Are All Resins Suitable for Casting?
There are two types of resins: directly castable and non-castable. If you need a finished resin to cast jewelry, you must choose a castable resin.
4.How Long Does it Take to Print?
15-28mm/hour, printing time will be different for different materials.
5.Can the Materials of Resin and Wax Printers be Universal?
In addition to the white wax 3D printer, other materials can be used in general, just need to match the corresponding parameters on the software.
However, the mechanical structure and working principle of wax printers are different from resin printers. resin printers must have a special oxygen-permeable release film to use wax materials.
6.What Software is Available?
General 3D software design files can be used, but some are for industrial use.
The most commonly used in the jewelry industry are these Rhino, ZBrush, Freeform, etc.
7.How Long Is the Life of The Machine?Can it Work Continuously?
The UV LED light source has a service life of 20,000 hours and can work continuously.
8.How Many Design Can be Printed at One Time?
Mainly determined by print size, up to 15-20 designs.
Compared to other suppliers using LCD technology, our printers use DLP technology for better performance and greater accuracy.And we are using a UV light source.DLP has high contrast, rich details, better text effect and longer service life.
2.What Is the Smallest Wire Diameter a 3D Printer Can Print?
Minimum can reach 0.3mm.
3.Are All Resins Suitable for Casting?
There are two types of resins: directly castable and non-castable. If you need a finished resin to cast jewelry, you must choose a castable resin.
4.How Long Does it Take to Print?
15-28mm/hour, printing time will be different for different materials.
5.Can the Materials of Resin and Wax Printers be Universal?
In addition to the white wax 3D printer, other materials can be used in general, just need to match the corresponding parameters on the software.
However, the mechanical structure and working principle of wax printers are different from resin printers. resin printers must have a special oxygen-permeable release film to use wax materials.
6.What Software is Available?
General 3D software design files can be used, but some are for industrial use.
The most commonly used in the jewelry industry are these Rhino, ZBrush, Freeform, etc.
7.How Long Is the Life of The Machine?Can it Work Continuously?
The UV LED light source has a service life of 20,000 hours and can work continuously.
8.How Many Design Can be Printed at One Time?
Mainly determined by print size, up to 15-20 designs.
