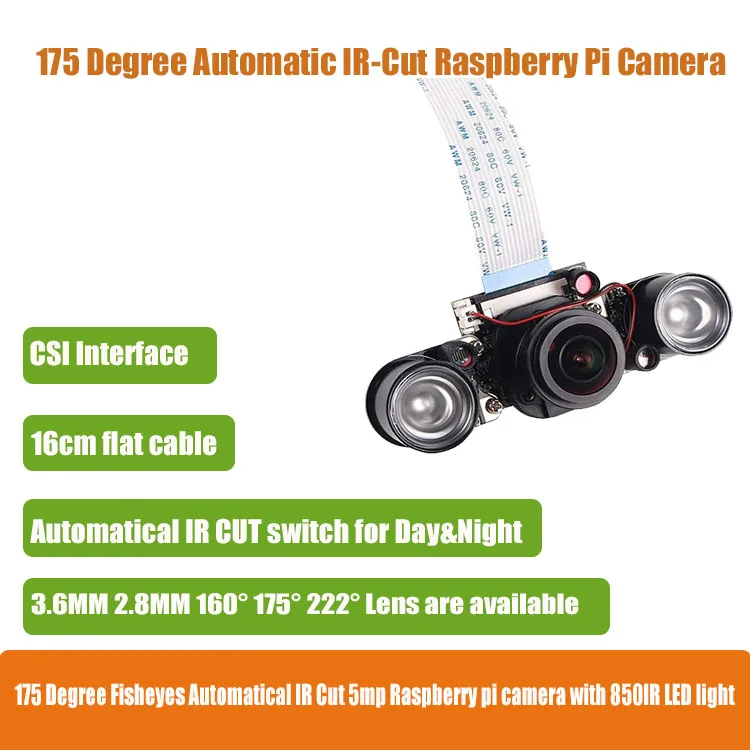

Raspberry Pi Camera Module OV5647 5MP 175 Degree Wide Angle Fisheye Lens Raspberry Pi 3/2 Model B Camera Module
- Category: >>>
- Supplier: Shenzhen Huiber Vision Technology Co. Ltd.
Share on (1600796521235):
Product Overview
Description
Product Specification
Module No. | HBV-RPI-AUTO-IRCUT-175 S1.0 |
Module Size | 30.58mm×32mm ×24.5±0.5mm |
Temperature (Operation) | -20°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM to infinity |
Resolution | 800LW/PH (Center) |
PCB printing ink | Black |
interface | 15p-1.0 mip |
Working power supply | 3.3v（pin15） |
Operating system | Raspberry Pi |
Package | Anti-electrostatic tray |
Certifications | FCC and CE |
Sensor Type | OV5647 (1/4” ) |
Active Array Size | 2592*1944 |
Sensitivity | 600mV/Lux-sec |
Pixel Size | 1.4µm x1.4µm |
Maximum Image Transfer Rate | 15 fps for QSXGA; |
Output formats | 8/10bit RGB RAW output |
S/N Ratio | 34db |
Dynamic Range | 67db @8x gain |
Package | CSP,Bare Die |
Lens Type | |
Lens Construction | 6G |
F/No | 2.0 |
EFL | 1.7mm |
BFL(Optical) | 4.8 mm |
DFOV | 175° |
TV Distortion | <16% |
Relative Illumination (Sensor) | 70% |
IR Filter | Auto IR-CUT |

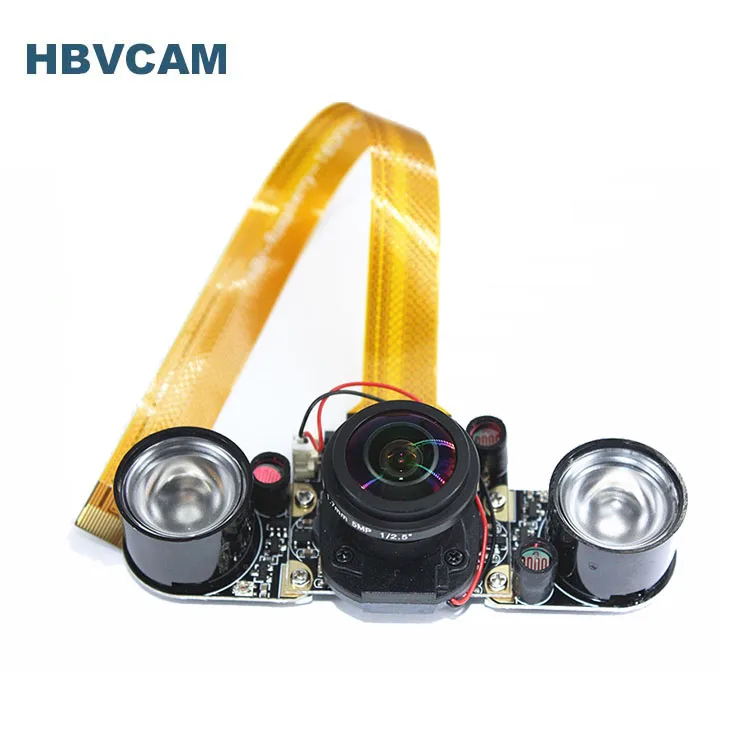

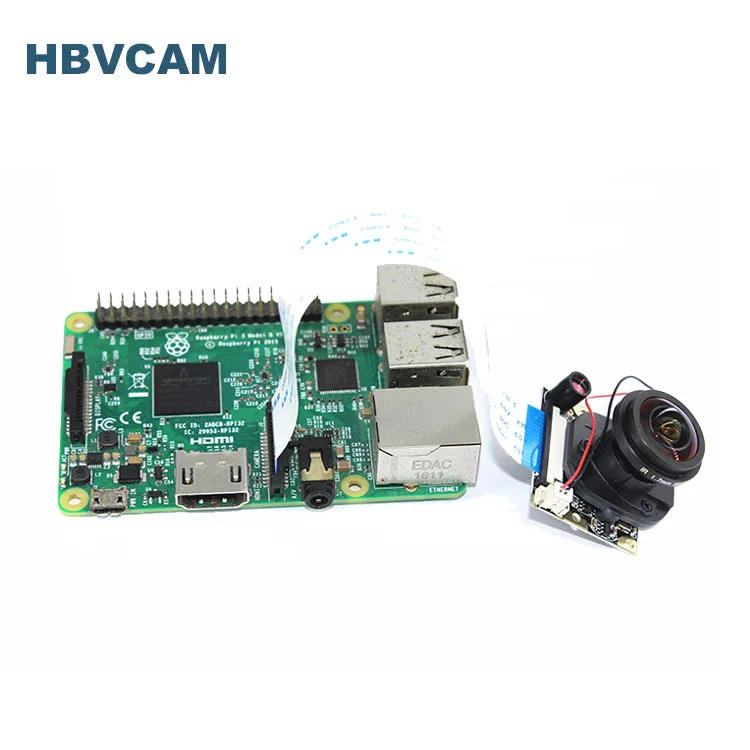

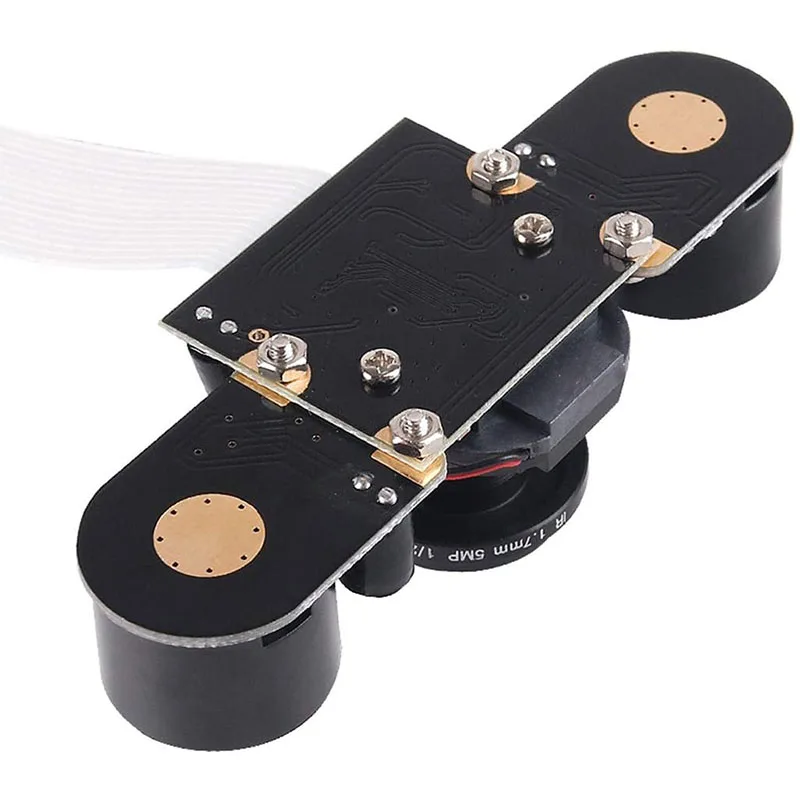

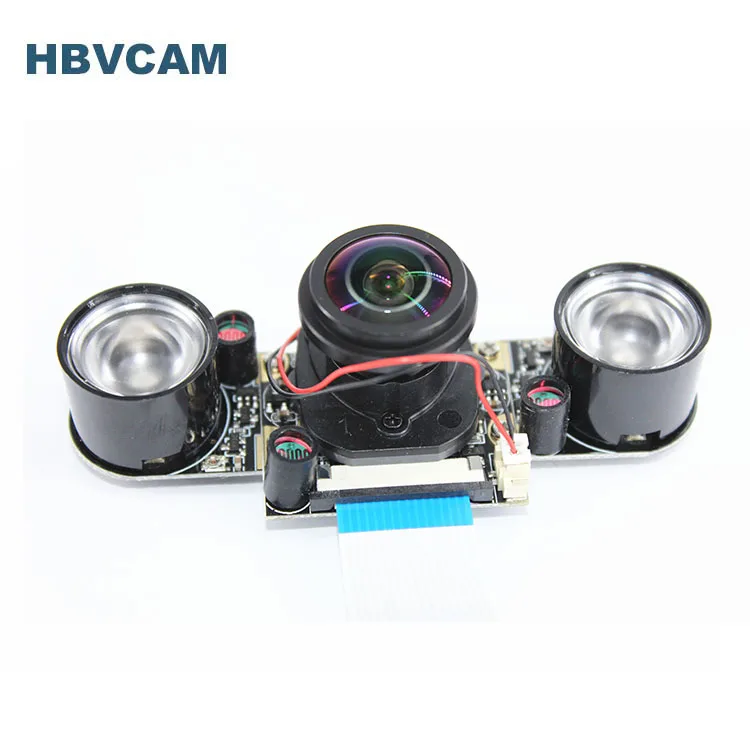

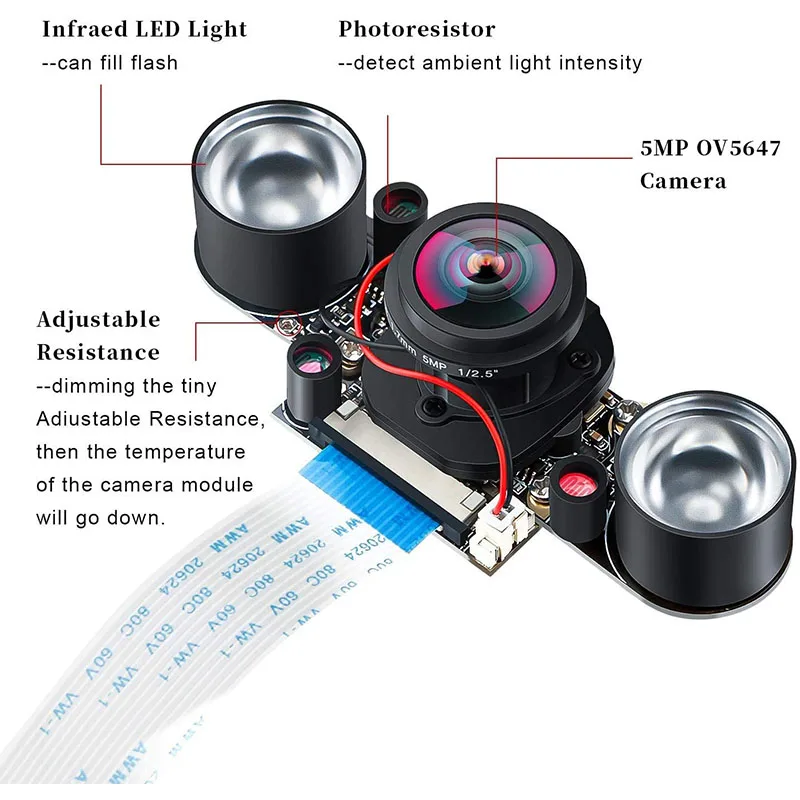

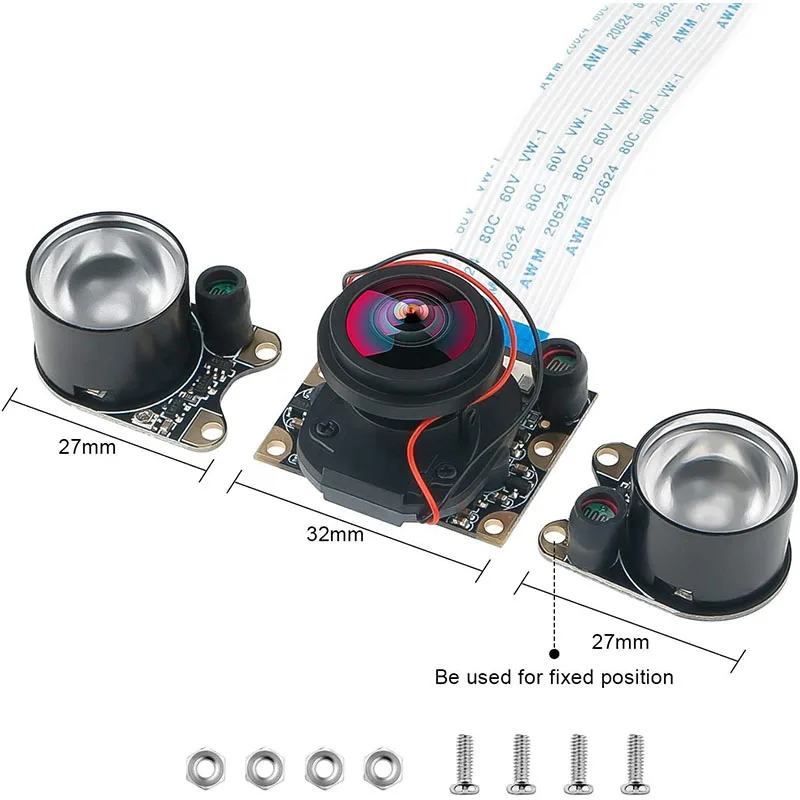

Detail Images

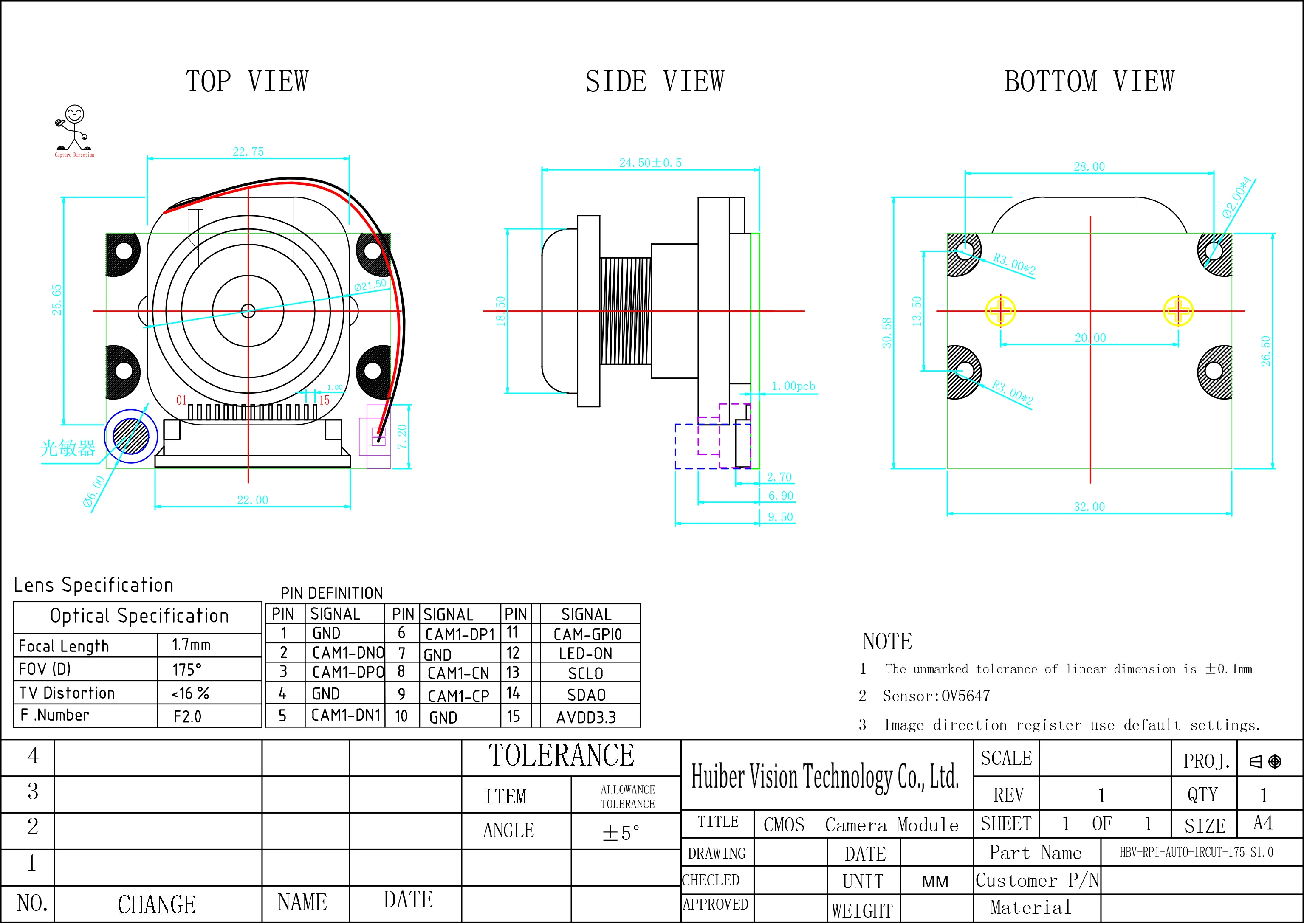

Product drawing
1. Do you camera module manufacturer?
A: Yes, we are a professional USB camera module manufacturer and our company was established in 2013.
2. Do you supply OEM/ODM service?
A: Yes, we are a professional USB camera module manufacturer and our company was established in 2013.
2. Do you supply OEM/ODM service?
A: Yes, we can supply OEM/ODM service, we also can customize the camera module according to your
requirement.
3. Do you supply SDK?
A: Sorry, we can not supply SDK.
4. Does the camera module can work with Windows/Android/Linux system?
A: Usually the camera can work with Windows system with freedriver, it is a play and plug camera module, it can also work with some Andorid and Linux system with standard UVC protocol, it need to be tested whether work with Android and Linux system.
requirement.
3. Do you supply SDK?
A: Sorry, we can not supply SDK.
4. Does the camera module can work with Windows/Android/Linux system?
A: Usually the camera can work with Windows system with freedriver, it is a play and plug camera module, it can also work with some Andorid and Linux system with standard UVC protocol, it need to be tested whether work with Android and Linux system.
