Super fine powder pulverizer kava grinder tea leaf grinding machine
- Category: >>>
- Supplier: Jiangyin Fangyuan Machinery Manufacturing Co. Ltd.
Share on (1600796649768):
Product Overview
Description
Super fine powder pulverizer kava grinder tea leaf grinding machine
Product Description

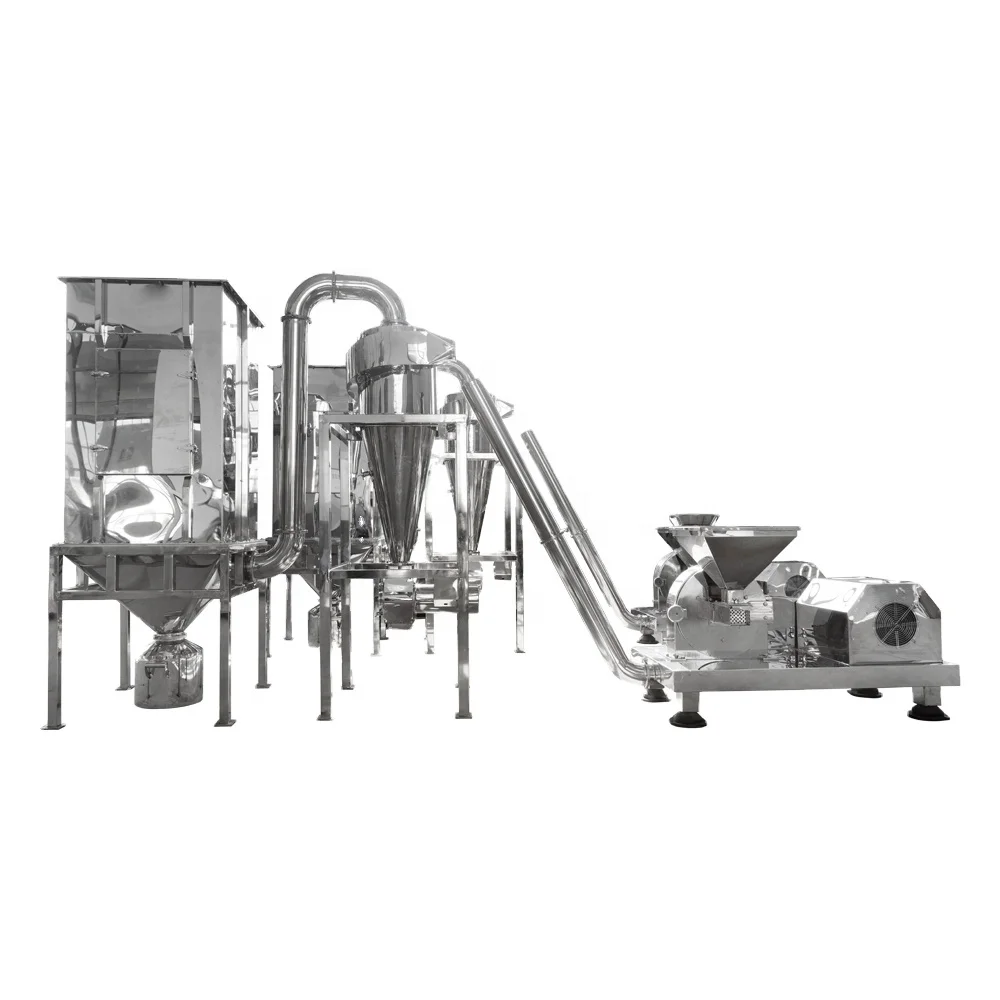

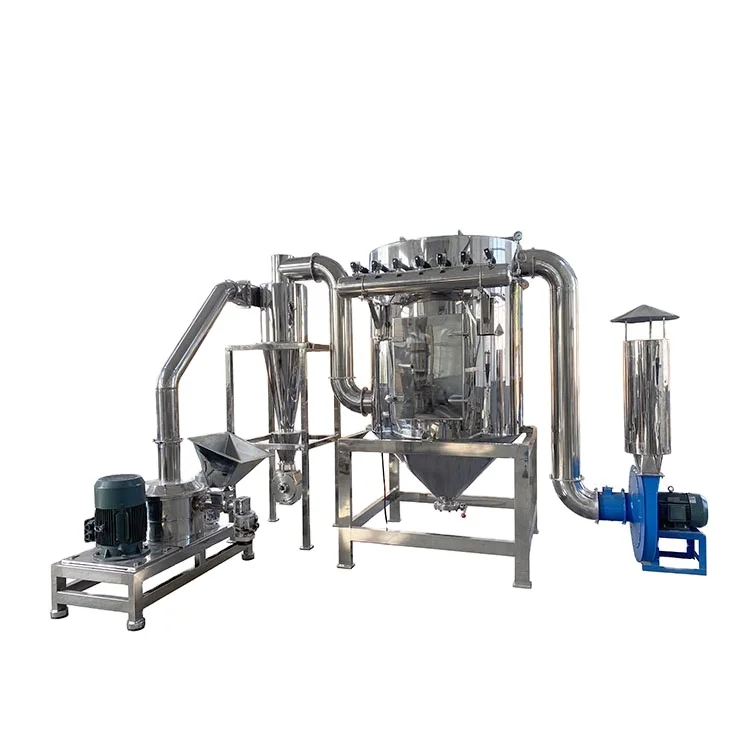

WFJ Series powder pulverizer machine is made with stainless steel. Its smooth inside can prevent powder sticking and also easy cleaning. This is fulfill the requirement of GMP.
This powder pulverizer machine consists of main engine, auxiliary engine, electric FengXuan has three parts, and no screening, nets, uniform size etc. Various performance and continuous operation. The material is the helical conveyer hopper is entered into the crushing chamber by high-speed rotating blades, crushed by negative pressure, wind shear of the material into the cyclone separator, hag filters, discharge material to product requirements.
Main Product | Super fine powder pulverizer kava grinder tea leaf grinding machine | ||||||
Model | WFJ-15 | WFJ-30 | WFJ-60 | WFJ-80 | |||
Production Capacity(kg/h) | 10-200 | 30-800 | 50-1200 | 100-1500 | |||
Spindel Speed(r/min) | 6000 | 3800 | 2800 | 2500 | |||
Feeding Size (mm) | ﹤10 | ﹤15 | ﹤15 | ﹤15 | |||
Output Size (mesh) | 80-320 | 80-320 | 80-320 | 80-320 | |||
Motor Power (kw) | 14.3 | 38.85 | 69.6 | 87.6 | |||
Overall Dimension(mm) | 4200×1200×2700 | 6640×1300×3960 | 7500×2300×4530 | 9000×2300×4530 | |||
Weight(kg) | 850kg | 1500kg | 3200kg | 3700kg | |||
Main Features:
1. Machine materials adopt SUS304 or 316L with good quality to meet GMP standards.
2. Closed operation structure keep material clean and hygiene.
3. No sive or no sceeen in mill chamber, the fineness is set by adjusting the rotor speed and the feed rate.
4. It can handle heat sensitive and hygroscopic materials.
5. Automatic dust collector device is available for a rigid dust-free workshop and can effectively recycle fine powder.
1. Machine materials adopt SUS304 or 316L with good quality to meet GMP standards.
2. Closed operation structure keep material clean and hygiene.
3. No sive or no sceeen in mill chamber, the fineness is set by adjusting the rotor speed and the feed rate.
4. It can handle heat sensitive and hygroscopic materials.
5. Automatic dust collector device is available for a rigid dust-free workshop and can effectively recycle fine powder.
Details Images
Mill Chamber
No sieve or screen, fineness can be adjusted by motor speed.
Discharge Part
Separate fine powder from dust, and easy for installation and repair.
Dust Separation Plant
Bag-type dust remover, keep the fineness of discharge material to meet the requirement.

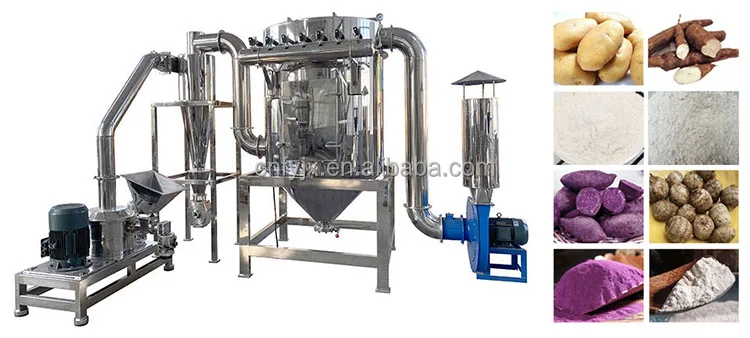

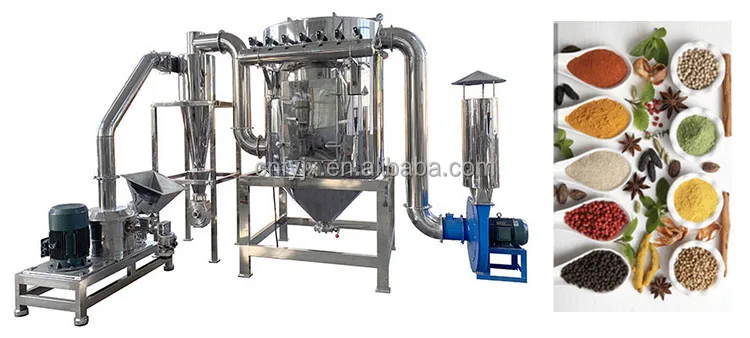

Product Application
WFJ powder pulverizer (air classifier mill) is one type of grinder which can make very fine powder, the output size is 60-320 mesh. It can can crush dry food, spice, herb leaf. For dried ginger and turmeric grinding, this type can also grind them into very fine powder. And this grinder can produce powder very evenly, the distribution of powder is very even.
Spices
Grains
Food additives
Pharmacy
Chemical
Mineral
Packing & Delivery
The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Company Profile
Super fine powder pulverizer kava grinder tea leaf grinding machine
Fangyuan group is Founded in 1989, Jiangyin Fangyuan Machinery Manufacturing Co., Ltd. is located in Zhutang Town, Jiangyin City, the first town of foreign trade in Jiangnan. It is adjacent to Jiangyin Yangtze River Bridge, Shanghai-Nanjing, Xicheng and Yanjiang Expressway. It has a unique geographical location, with Shanghai to the east, Suzhou and Wuxi to the south, Changzhou and Nanjing to the west,and the Yangtze River to the north. Waterway transportation is convenient. The company covers an area of more than 20,000 square meters and has a construction area of 12,000 square meters. It has more than 10 middle and senior technicians and more than 100 employees.
CE of Pulverizer
CE of Mixer
CE OF Granulator
CE of Dryer
CE of Sifter
ISO
FAQ
Q: How long will you deliver the goods after I place an order?
Q: Why Choose Us?
7 * 24 hours online EMAIL service!
1. We are Alibaba Assessed Gold Supplier.
2. We are a factory with rich experience and technology, engaged in the machinery industry for more than ten years, best quality control and best services.
A: Normally, our delivery time is 30 days after we receive the
deposit. If the order is big, we need to extend the delivery time.
Q: Which payment terms can we accept?
1. Normally we can work on T/ T term or L / C.
2. On T / T term, 30% down payment is required in advance. And 70% balance shall be settled before shipment.
3.On L / C term, a 100% irrevocable L / C without soft clauses can be accepted.
Q: What's the warranty of the products?
deposit. If the order is big, we need to extend the delivery time.
Q: Which payment terms can we accept?
1. Normally we can work on T/ T term or L / C.
2. On T / T term, 30% down payment is required in advance. And 70% balance shall be settled before shipment.
3.On L / C term, a 100% irrevocable L / C without soft clauses can be accepted.
Q: What's the warranty of the products?
A: we offer you one year warranty. Guarantee & After-sale Services One year guarantee for whole machine 24 hours technical support by e-mail.User manual.
Q: Why Choose Us?
7 * 24 hours online EMAIL service!
1. We are Alibaba Assessed Gold Supplier.
2. We are a factory with rich experience and technology, engaged in the machinery industry for more than ten years, best quality control and best services.
3.Approved CE, ISO9001.
