WF C Series industrial mustard powder mill dry powder grinding machine
- Category: >>>
- Supplier: Jiangyin Fangyuan Machinery Manufacturing Co. Ltd.
Share on (1600796699682):
Product Overview
Description

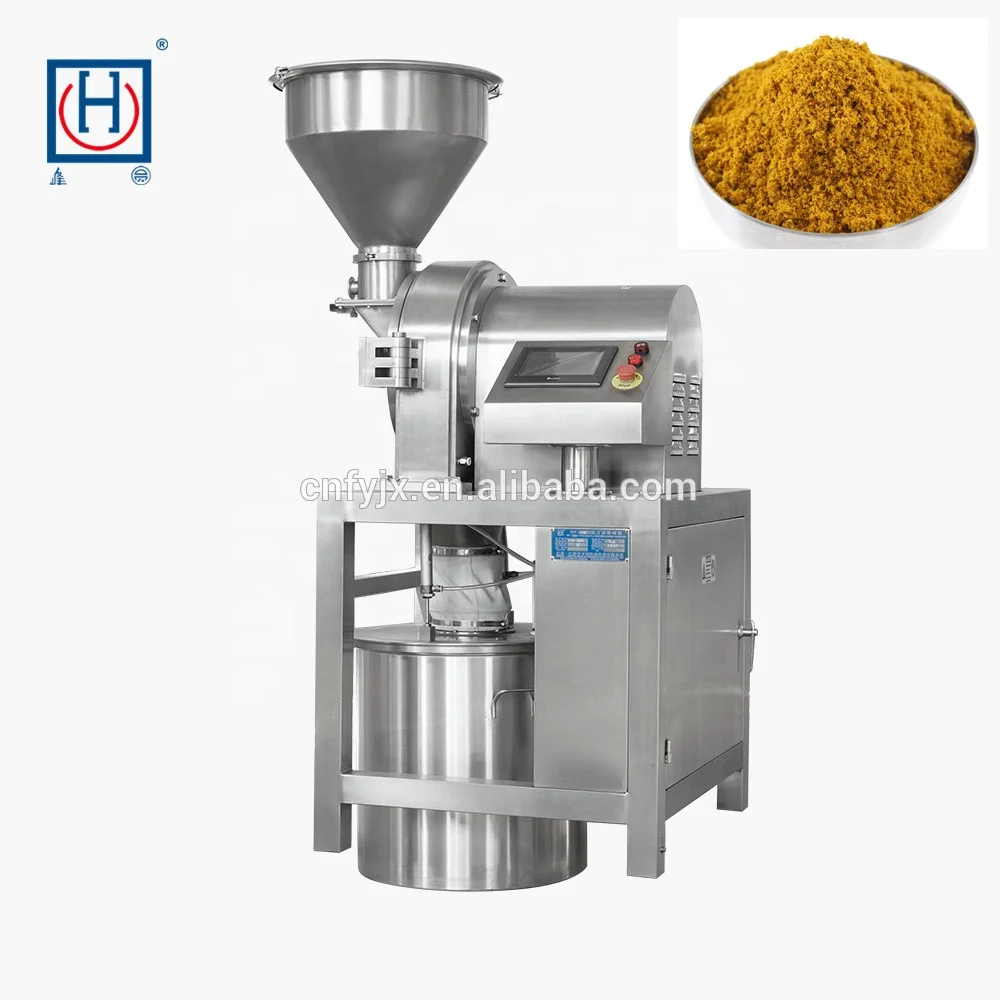

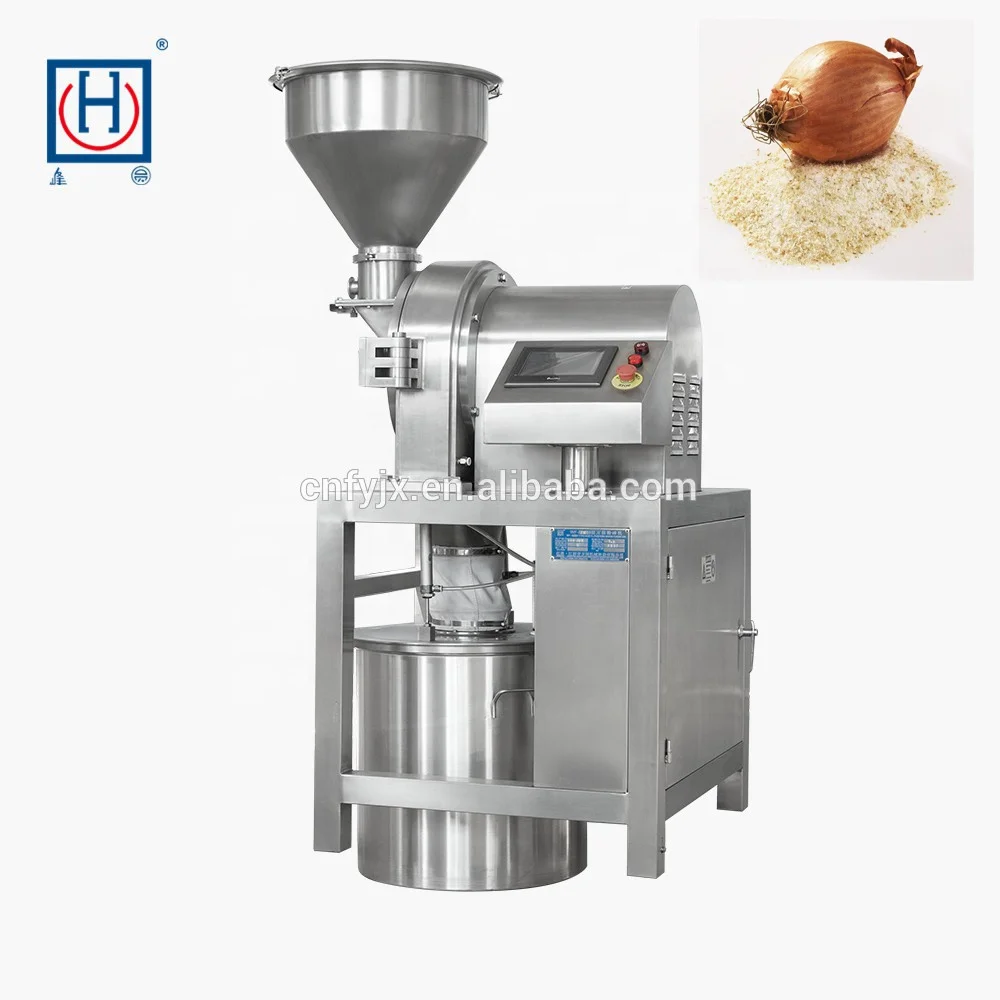

WF-C Series industrail mustard powder mill dry powder grinding machine
Product Description
WF-C spice powder grinding machine is made with stainless steel. Its smooth inside can prevent powder sticking and also easy cleaning. This is fulfill the requirement of GMP.
It is a multi-functional grinder machine, and it's also can be called pin mill machine, impact mill machine and powder grinding machine, powder grinder.
It adopts wind wheel type revolving cutters, so that the airflow is great enough to blow away the heat in the mill chamber. It runs smoothly, and it convenient in dismantling and assembling with low noise and excellent result.
Main Product | WF-C Series industrail mustard powder mill dry powder grinding machine | ||||||
Model | WF-20B | WF-30B | WF-40B | WF-60B | |||
Production Capacity(kg/h) | 60-150 | 150-300 | 160-800 | 250-1200 | |||
Spindel Speed(r/min) | 4500 | 3800 | 3400 | 2800 | |||
Feeding Size (mm) | ≤6 | ≤6 | ≤6 | ≤10 | |||
Output Size (mesh) | 60-120 | 60-120 | 60-120 | 60-120 | |||
Motor Power (kw) | 4 | 5.5 | 11 | 22 | |||
Overall Dimension(mm) | 600×600×1450 | 650×650×1650 | 850×900×1750 | 1000×1050×1800 | |||
Weight(kg) | 280kg | 350kg | 350kg | 760kg | |||
Main Features:
1. Whole powder grinding machine adopt SUS304 or 316L to meet GMP standards.
2. Closed operation structure keep material clean and hygiene.
3. Easy to operate and maintain.
3. Different types of knives make sure different properties of materials.
4. Changeable filter screen helps you get a specific size of the final powder.
5. Automatic dust collecting device is a good optional for a dust-free workshop.
1. Whole powder grinding machine adopt SUS304 or 316L to meet GMP standards.
2. Closed operation structure keep material clean and hygiene.
3. Easy to operate and maintain.
3. Different types of knives make sure different properties of materials.
4. Changeable filter screen helps you get a specific size of the final powder.
5. Automatic dust collecting device is a good optional for a dust-free workshop.
Details Images
Filter Screen
1. Adopt stainless steel materials.
2. Screen size replacement from 20 mesh to 120 mesh to adjust the fineness range.
3. Easy to replace and Clean.
3. Easy to replace and Clean.
Optional Grinding Disc
1. Easy for installation and replace.
2. Different grinding disc for different proporties of materials.
3. Good crushing effect.
3. Good crushing effect.
Cooling jacket system
1. Nature water is available
2. Reduce the temperature of mill chamber.
3. Extended service life of bearings.
4. Maintain the natural properties of the material.
3. Extended service life of bearings.
4. Maintain the natural properties of the material.
Product Application
This spice grinding machine is applied for non-sticky, less fiber, good fluidity materials, such as food additive, spices, grains, pharmacy, chemical, mineral and other industries.
Spices
Grains
Food additives
Pharmacy
Chemical
Mineral
Packing & Delivery

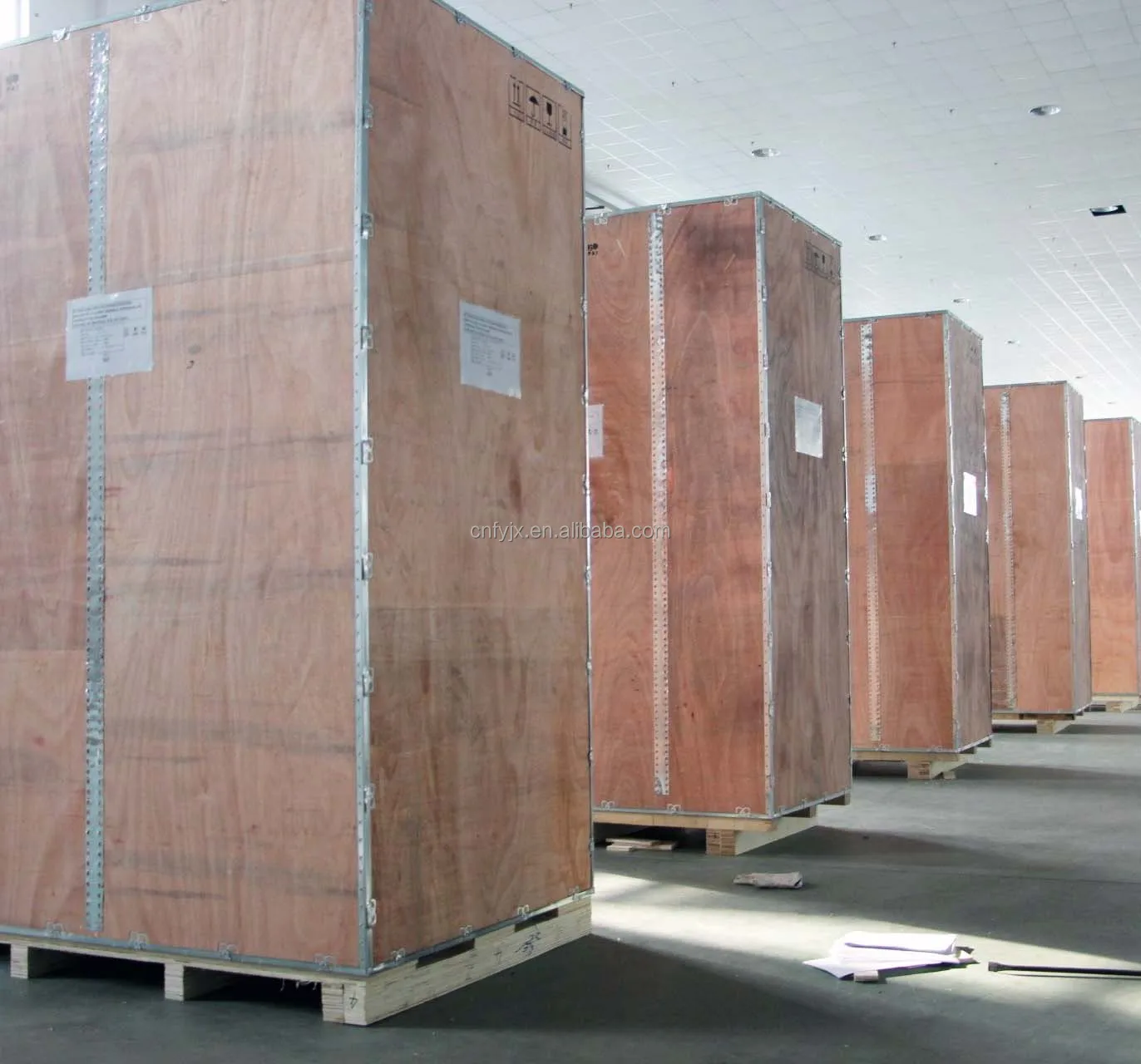

The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Company Profile
WF-C Series industrail mustard powder mill dry powder grinding machine
Fangyuan group is Founded in 1989, Jiangyin Fangyuan Machinery Manufacturing Co., Ltd. is located in Zhutang Town, Jiangyin City, the first town of foreign trade in Jiangnan. It is adjacent to Jiangyin Yangtze River Bridge, Shanghai-Nanjing, Xicheng and Yanjiang Expressway. It has a unique geographical location, with Shanghai to the east, Suzhou and Wuxi to the south, Changzhou and Nanjing to the west,and the Yangtze River to the north. Waterway transportation is convenient. The company covers an area of more than 20,000 square meters and has a construction area of 12,000 square meters. It has more than 10 middle and senior technicians and more than 100 employees.
FAQ
Q: How long will you deliver the goods after I place an order?
Q: Why Choose Us?
7 * 24 hours online EMAIL service!
1. We are Alibaba Assessed Gold Supplier.
2. We are a factory with rich experience and technology, engaged in the machinery industry for more than ten years, best quality control and best services.
A: Normally, our delivery time is 30 days after we receive the
deposit. If the order is big, we need to extend the delivery time.
Q: Which payment terms can we accept?
1. Normally we can work on T/ T term or L / C.
2. On T/T term, 30% down payment is required in advance. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L / C without soft clauses can be accepted.
Q: What's the warranty of the products?
deposit. If the order is big, we need to extend the delivery time.
Q: Which payment terms can we accept?
1. Normally we can work on T/ T term or L / C.
2. On T/T term, 30% down payment is required in advance. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L / C without soft clauses can be accepted.
Q: What's the warranty of the products?
A: we offer you one year warranty. Guarantee & After-sale Services One year guarantee for whole machine 24 hours technical support by e-mail.User manual.
Q: Why Choose Us?
7 * 24 hours online EMAIL service!
1. We are Alibaba Assessed Gold Supplier.
2. We are a factory with rich experience and technology, engaged in the machinery industry for more than ten years, best quality control and best services.
3. Approved CE, ISO:9001.
