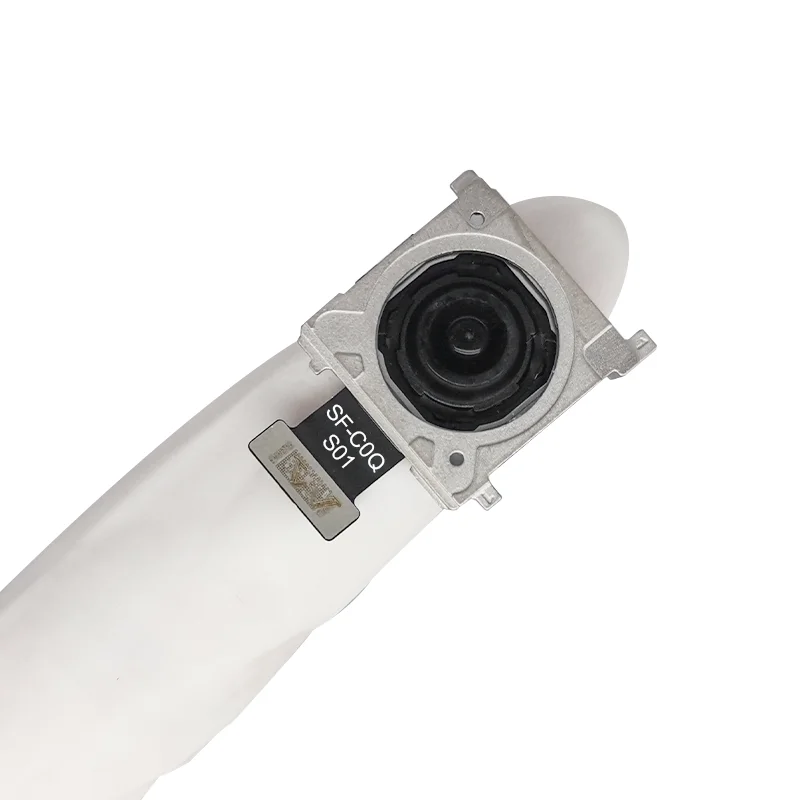

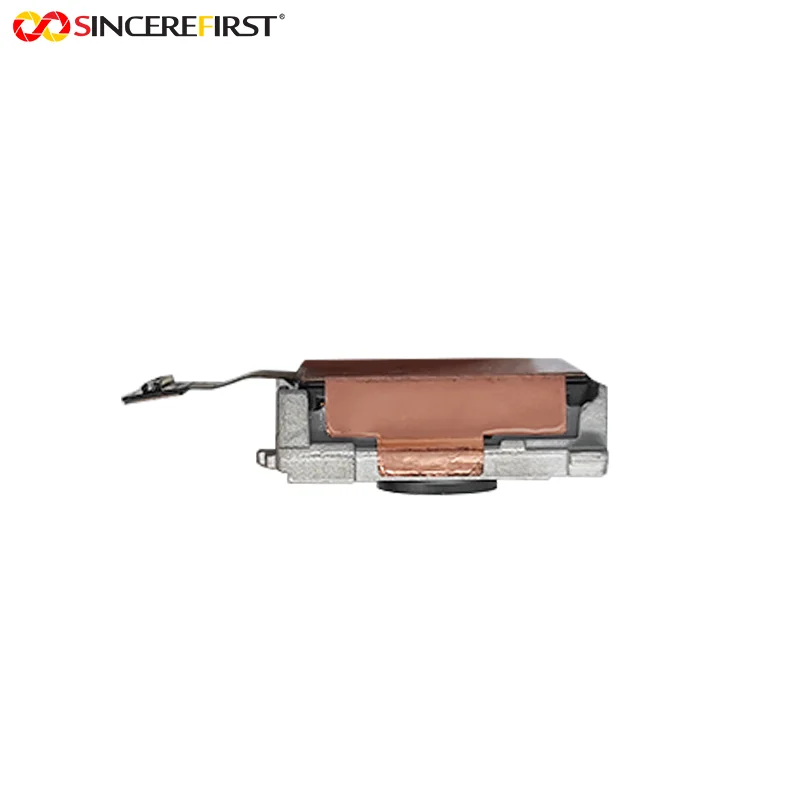

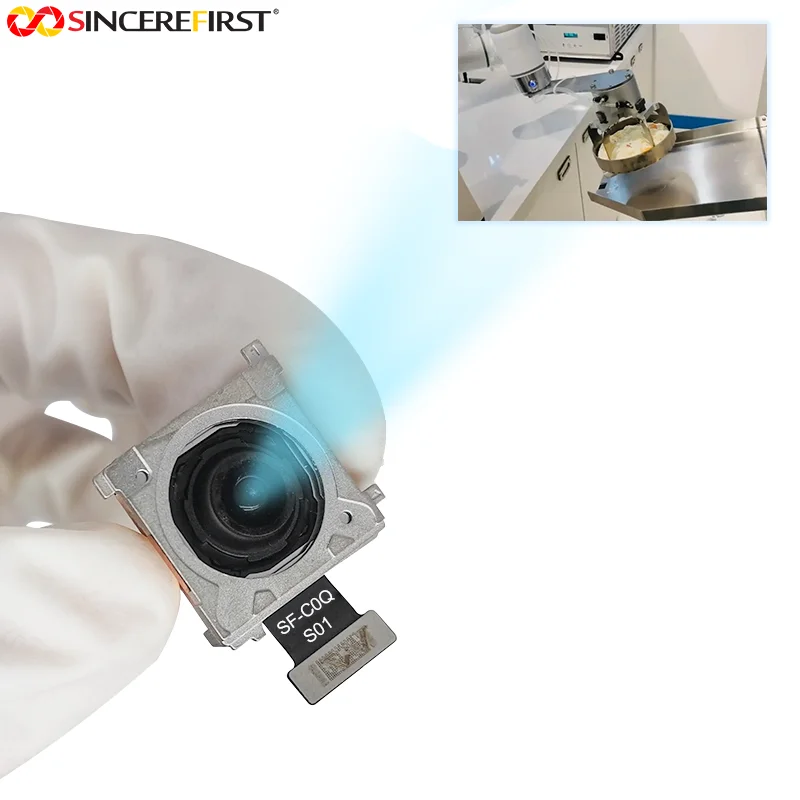

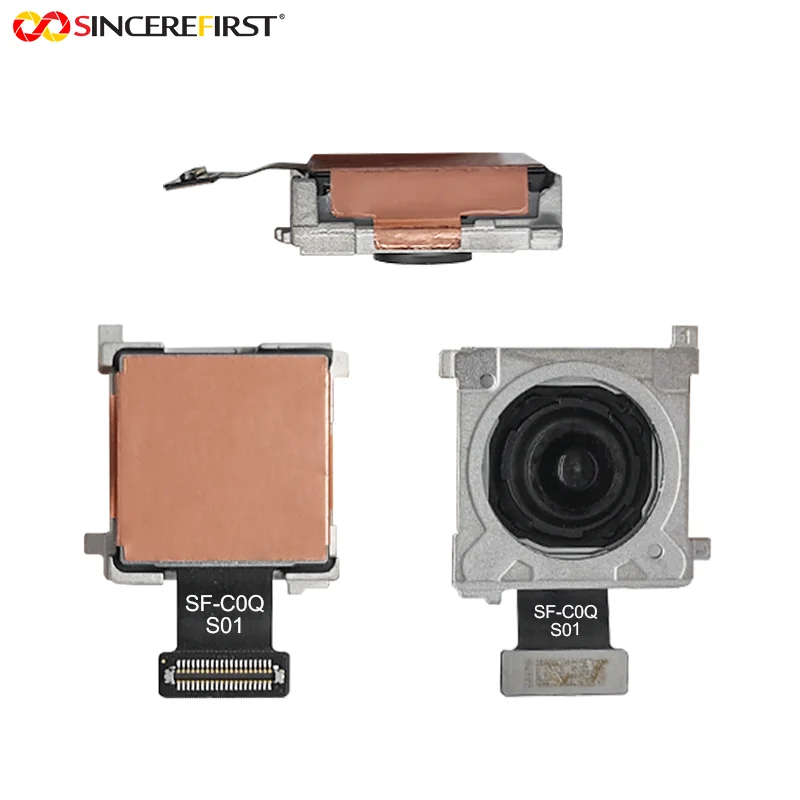

High Definition 50MP Sony IMX766 Sensor Auto Focus OEM Camera Module MIPI CMOS Camera Module
- Category: >>>
- Supplier: Guangzhou Sincere Information Technology Ltd.
Share on (1600796701744):
Product Overview
Description
Products Description
Sensor: | IMX766 | Pixels: | 50MP | |||
Focus Range: | 10cm to Infinity | Focus: | AF | |||
F.NO: | 2.4 | Fov(D): | 80° | |||
I2C: | 0*20 | Test Connector: | DK-118RM040-35 | |||
SF-C0QS01 IMX766 Description: The Sony IMX766 is a 50MP resolution image sensor with a sensor size of 1/1.56” and a pixel size of 1.0μm. The large sensor size combined with increased pixel size offers higher light intake compared to previous Sony sensors. It is still a flagship in night scenes, with a better color reproduction of bright neon lights and suppression of highlights in complex lighting environments at night. The IMX766 is used in the OnePlus Nord 2 camera and the OPPO Reno5 Pro+2. SF-C0QS01 IMX766 Features: ◆Back-illuminated and stacked CMOS image sensor ◆Quad Bayer Coding (QBC) color filter arrangement ◆Phase Detection Auto Focus (PDAF) with 2x2OCL ◆High Frame Rate 24frame/s@Full resolution (QBC Re-mosaic) 120frame/s@2x2 Adjacent Pixel Binning (16:9) 480frame/s@2x2 Adjacent Pixel Binning V2H2(16:9) ◆High signal to noise ratio (SNR) ◆Dual sensor synchronization operation ◆Built-in 2D Dynamic Defect Pixel Correction (DPC) ◆Lens Shading Correction (LSC) ◆Built-in temperature sensor ◆Output video format of RAW10, RAW8 ◆QBC Re-mosaic function ◆Two PLLs for independent clock generation for pixel control and data output interface ◆CSI-2 serial data output MIPI C-PHY 1trio/2trio/3trio, Max 3.1 Gsps/Trio, C-PHY spec. ver. 1.2 compliant MIPI D-PHY 2lane/4lane, Max. 2.5Gbps/lane, D-PHY spec. ver. 1.2 compliant ◆2-wire serial communication (Supports I2C "Fast mode" and "Fast-mode Plus", I3C) ◆DOL function (Quad Binning and 10bit mode only) ◆4K bit of OTP ROM for users MIPI Camera Module, MIPI Camera Board, Camera Sensor Module, Phone Camera Module As our manufacturing facilities provide optics and camera modules design service and manufacturing of electro-optical subsystem, optical lens, camera module, image processing and laser sensing. We dispose of an unsurpassed design and development capacity, comprising an in-house optics & photonics division, an hardware division and an software integration division making us the ideal choice for clients who wish to outsource crucial designs and manufacturing to a highly qualified and trusted partner. As the camera module structure, we divide into 3 main sections: 1. Image Sensor 2. Camera Lens Module + Optical Filter 3. Sensor Driver and Interface FPC Camera Module Application Areas Camera Module For Imaging And Vision Solutions, Integrated Complex And Customized Technology, Machine Vision, Intelligent Systems, Future Security, Optical Technology Solutions, Camera Module Customized Solutions, Internet Of Things End-to-end Solution, Iris Recognition Technology, Iris Solutions, Face Recognition, VR High End Camera Solutions, Smart Home Solutions, Intelligent Hardware Solutions, Professional Camera Modules, Specially Designed For Small Uav, Airborne Camera Modules, Uav Solutions, Uav Special Modules, Drone Solutions, Aerial Filming Solutions, Optical Technology Solutions, Mobile Phone Camera Module, Camera Solutions, Optronics Solutions Imaging Technology Solutions, Video Technology Solutions, Optoelectonic Research, Infrared Imagers For Industry, Embedded Systems Solutions Main Developmet Board, Graphics Processing Unit, System Adaption Main Developmet Board: Arduino, ESP32, Raspberry Pi, NVIDIA Graphics Processing Unit: Ambarella, Rockchip, MediaTek, Qualcomm, NVIDIA, ATI System Adaption: Self-developed Software, Android, Window, MAC-IOS 1 year Replacement!! 10 Years Warranty!! | ||||||
Customized Service
Recommend Products
Buyer Reviews
Company Profile
Contact Us
FAQ
Q1: Are you factory or trade company?
A1: We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q2: What can you customize with our camera module?
A2: FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, Firmware and so on.
Q3: What is your camera module custom requirements flow?
A3: Camera module / Board camera customized process insight
With hundreds of camera module application, the standard camera modules can't meet each specific requirement, so customization process comes with necessity and popularity, the hardware and firmware modification, including module dimension, lens view angle, auto/fixed focus type and lens filter, to empower the innovation.
Non-recurring engineering completely covers the research, development, design for producing a new product. For saving the developing time and cost, SINCERE FIRST provides the custom camera module service based on our standard camera module solution.
· Customized requirements flow
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2.Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you according to your needs.
4.Sample Development
5.Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Q4: What operating system does your camera module support?
A4: Our camera module can support Windows, Mac-IOS, Android and Self-developed Software.
Q5: Which software / development platform do your camera modules support?
A5: Arduino, ESP32, Raspberry Pi, NVIDIA, Ambarella, RK(Rockchip), MTK(MediaTek Inc.), Qualcomm, ATI
Q6: How long does it take to develop a new camera module?
A6: Typically around 7–10 days from start date.
A1: We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q2: What can you customize with our camera module?
A2: FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, Firmware and so on.
Q3: What is your camera module custom requirements flow?
A3: Camera module / Board camera customized process insight
With hundreds of camera module application, the standard camera modules can't meet each specific requirement, so customization process comes with necessity and popularity, the hardware and firmware modification, including module dimension, lens view angle, auto/fixed focus type and lens filter, to empower the innovation.
Non-recurring engineering completely covers the research, development, design for producing a new product. For saving the developing time and cost, SINCERE FIRST provides the custom camera module service based on our standard camera module solution.
· Customized requirements flow
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2.Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you according to your needs.
4.Sample Development
5.Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Q4: What operating system does your camera module support?
A4: Our camera module can support Windows, Mac-IOS, Android and Self-developed Software.
Q5: Which software / development platform do your camera modules support?
A5: Arduino, ESP32, Raspberry Pi, NVIDIA, Ambarella, RK(Rockchip), MTK(MediaTek Inc.), Qualcomm, ATI
Q6: How long does it take to develop a new camera module?
A6: Typically around 7–10 days from start date.
