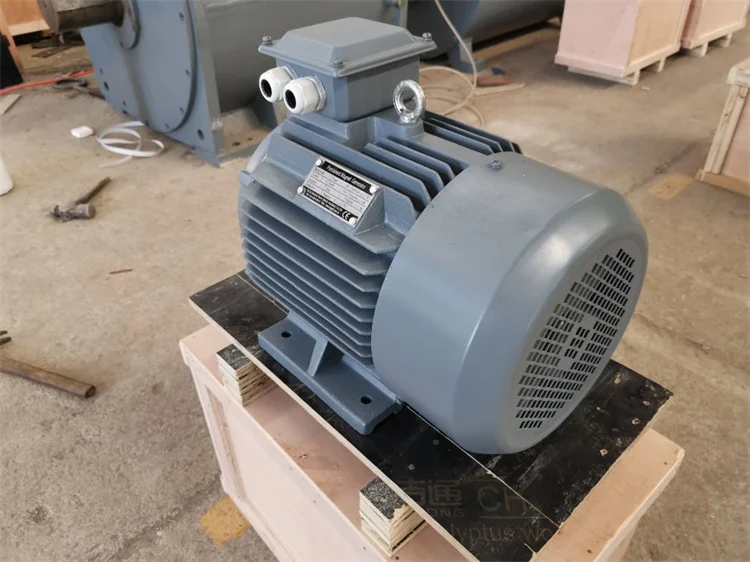

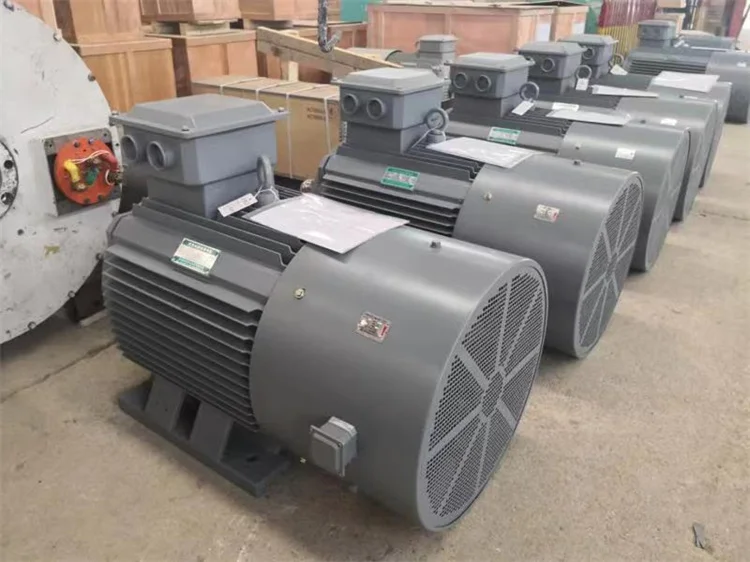

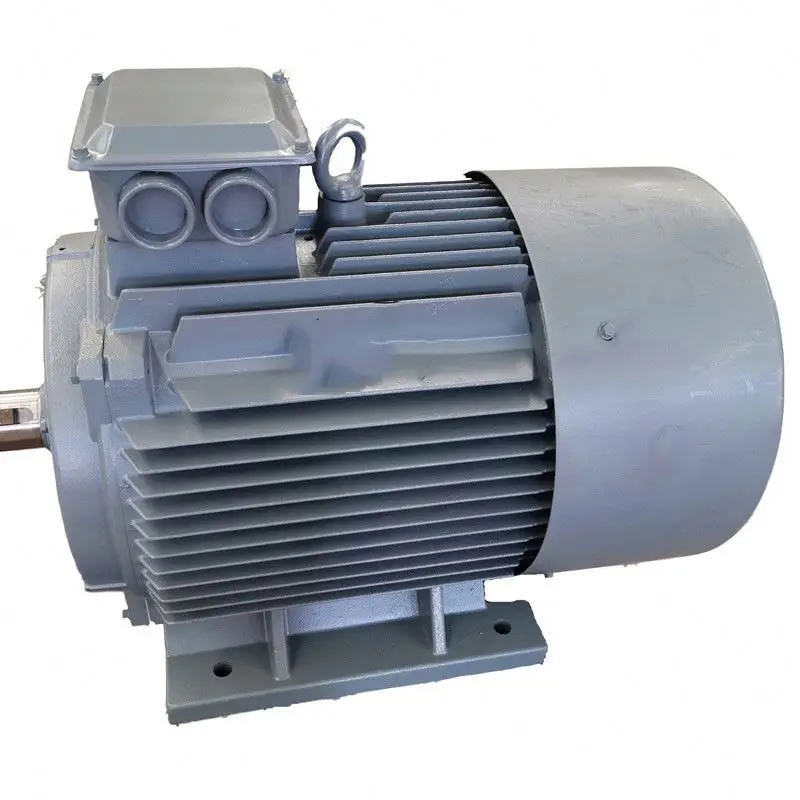

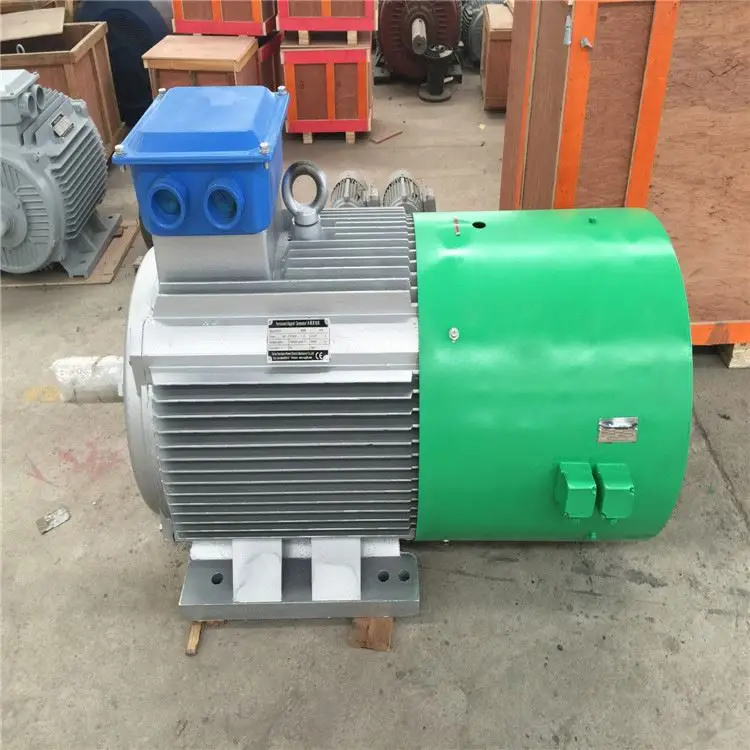

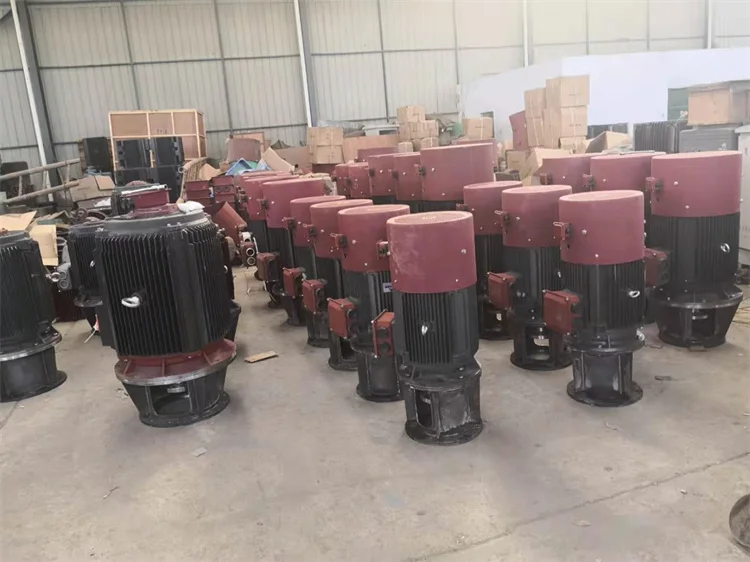

Cheap price LOW RPM 50kw magnetic generator also called permanent magnet generators for sale
- Category: >>>
- Supplier: Henan Richwoll CYF Technology Co. Ltd.
Share on (1600796703151):
Product Overview
Description
Product Description
Specification
Rated power | 50kW |
Rated speed | 200rpm |
Rated voltage | 400VAC |
Rated current | 72.2A |
Phase number | 3-phase |
Frequency | 50Hz |
Numbers of Poles | 30 |
Rated torque | 2500Nm |
Startup torque | 50Nm |
Insulation Class: | H |
Protection Class | IP54 |
Efficiency | 95.50% |
Cooling | Forced air cooled |
Ambient temperature | -25~45℃ |
Recommended altitude | < 1000m |
Bearings | Ball Bearings |
Winding material | 100% Copper |
Winding temperature level | 180℃ |
Stator Impregnation type | Vacuum Pressure Impregnation (VPI) |
Magnet Material | Neodymium 40SH |
Magnet temperature level | 150℃ |
Iron core | Cold rolled silicon steel sheet |
Normal working temperature | 90℃ |
Max working temperature | 130℃ |
Installation | Horizontal |
FAQ
1. Why the shipping cost changes so differently?
Actually, the shipping cost according to the quantity, if you need 10 pcs, the package is totally different with the package of 100 pcs. that is why the shipping cost is different.
2. May I start to test the sample at a very small quantity? Such as one pc ?
Sure, you can. We fully understand that at the very beginning, you need to test the quality, also the market, so one pc of sample is acceptable. but please be noted that: if the quantity is very small, the shipping cost may very expensive. because it is not suitable for the shipping by Sea, and by Express, the shipping cost may expensive.
3.How long about the lead time after I paid ?
If you paid online, after we received your payment, we would arrange the package and delivery according to our production line. Normally if the quantity less than 200 pcs, the lead time would within 5 days, if there is the holiday or the hot selling season, such as the Black Friday and Double 11, the lead time may be delay. and we would notify you before the delivery.
4. If I did not receive the parcel, what should I do ?
Sometimes, if the parcel is really lost during the delivery, we would arrange the re-send service. to make all the customers have a good buying experience.
Actually, the shipping cost according to the quantity, if you need 10 pcs, the package is totally different with the package of 100 pcs. that is why the shipping cost is different.
2. May I start to test the sample at a very small quantity? Such as one pc ?
Sure, you can. We fully understand that at the very beginning, you need to test the quality, also the market, so one pc of sample is acceptable. but please be noted that: if the quantity is very small, the shipping cost may very expensive. because it is not suitable for the shipping by Sea, and by Express, the shipping cost may expensive.
3.How long about the lead time after I paid ?
If you paid online, after we received your payment, we would arrange the package and delivery according to our production line. Normally if the quantity less than 200 pcs, the lead time would within 5 days, if there is the holiday or the hot selling season, such as the Black Friday and Double 11, the lead time may be delay. and we would notify you before the delivery.
4. If I did not receive the parcel, what should I do ?
Sometimes, if the parcel is really lost during the delivery, we would arrange the re-send service. to make all the customers have a good buying experience.
Company Information
Henan YXLK Electronic Technology Co., Ltd. is a professional manufacturer and exporter concerned with the design, development and
production of Solar Panels and Batteries products.
We specialized in manufacturing Solar Panels and such Batteries as Solar panels, Solar Chargers, lithium batteries and other
components.
Currently, we are equipped with a complete production line of Solar Panels. we are committed to providing the comfortable and safe
Solar Panels for every consumers. Besides, Our company has an experienced and professional team, our products have exported to
many countries and regions especially the Southeast Asia and Africa.After years of unremitting efforts, we have became a stable
exporter due to our excellent products and services.
In the future, Henan YXLK Electronic Technology Co., Ltd. will continue to provide high-quality products and efficient services
for tens of millions of users around the world. We welcome customers and business partners at home and abroad to establish
cooperation and crate a bright future together. and efficient services for tens of millions of users around the world. We welcome
customers and business partners at home and abroad to establish cooperation and crate a bright future together.
production of Solar Panels and Batteries products.
We specialized in manufacturing Solar Panels and such Batteries as Solar panels, Solar Chargers, lithium batteries and other
components.
Currently, we are equipped with a complete production line of Solar Panels. we are committed to providing the comfortable and safe
Solar Panels for every consumers. Besides, Our company has an experienced and professional team, our products have exported to
many countries and regions especially the Southeast Asia and Africa.After years of unremitting efforts, we have became a stable
exporter due to our excellent products and services.
In the future, Henan YXLK Electronic Technology Co., Ltd. will continue to provide high-quality products and efficient services
for tens of millions of users around the world. We welcome customers and business partners at home and abroad to establish
cooperation and crate a bright future together. and efficient services for tens of millions of users around the world. We welcome
customers and business partners at home and abroad to establish cooperation and crate a bright future together.
Packaging & Shipping
1.Standard Export Package:aluminum alloy case & PE soft material inner.
2.Offering the door to door services depend on your actual request. Such as DHL, UPS, TNT, FEDEX… by air and the sea transportations.
2.Offering the door to door services depend on your actual request. Such as DHL, UPS, TNT, FEDEX… by air and the sea transportations.
Q1: What’s the delivery time?
A1:You will get machine during 3-5 working days after payment received.
Q2: What’s the payment method?
A2:T/T ,Western Union,MoneyGram, secure payment…
Q3:Do you have any training for the machine?
A3:The machine comes with user manual, video tutorial to help you use the machine.
Q4: How to do the maintenance when something goes wrong with the machine?
A4: After you get the machine, We have 24 hours calling service to help you if you have any problems.
Q5: What about the warranty?
A5: we provide 1 year warranty, lifelong maintenance.
Q6: Can you put my LOGO on the start screen instead of yours?
A6: Yes. You just need to send us a picture of your logo in high quality. Then we put your logo on start screen of the machine.
A1:You will get machine during 3-5 working days after payment received.
Q2: What’s the payment method?
A2:T/T ,Western Union,MoneyGram, secure payment…
Q3:Do you have any training for the machine?
A3:The machine comes with user manual, video tutorial to help you use the machine.
Q4: How to do the maintenance when something goes wrong with the machine?
A4: After you get the machine, We have 24 hours calling service to help you if you have any problems.
Q5: What about the warranty?
A5: we provide 1 year warranty, lifelong maintenance.
Q6: Can you put my LOGO on the start screen instead of yours?
A6: Yes. You just need to send us a picture of your logo in high quality. Then we put your logo on start screen of the machine.
