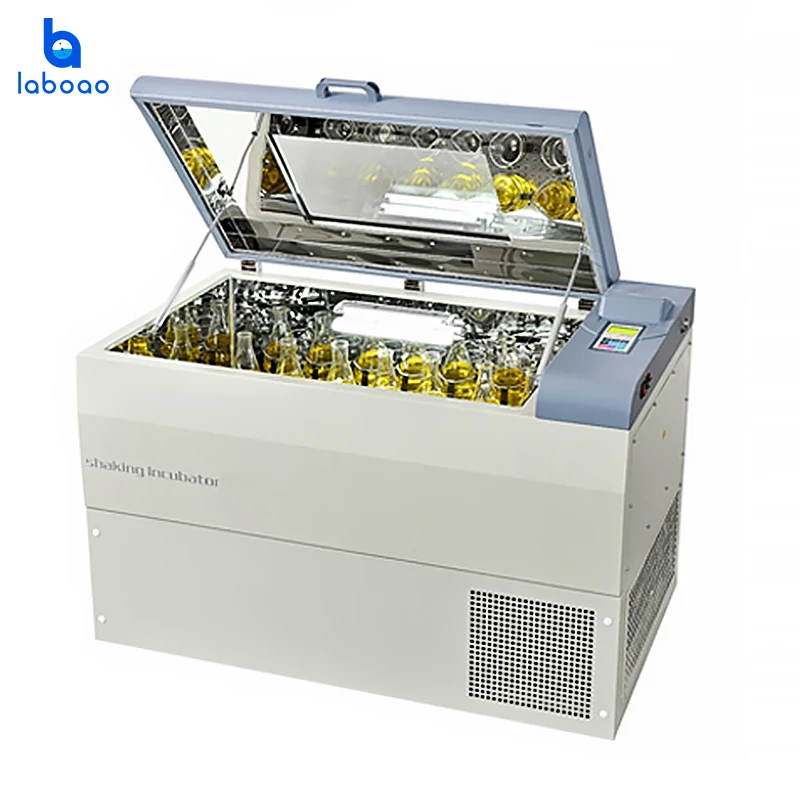

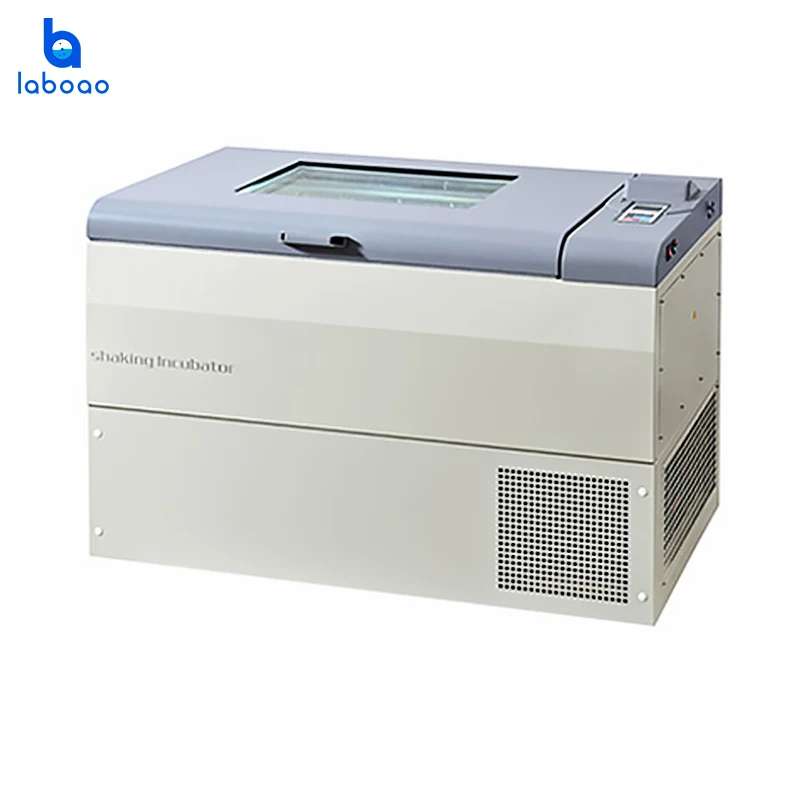

LABOAO cheap digital microplate shaker thermostatic shaking incubator Horizontal Refrigerated Shaking Incubator

Model

LH-211B

LH-211C

LH-211D

LH-211F

Control method

P.I.D(Microcomputer environment scanning micro processing chip)

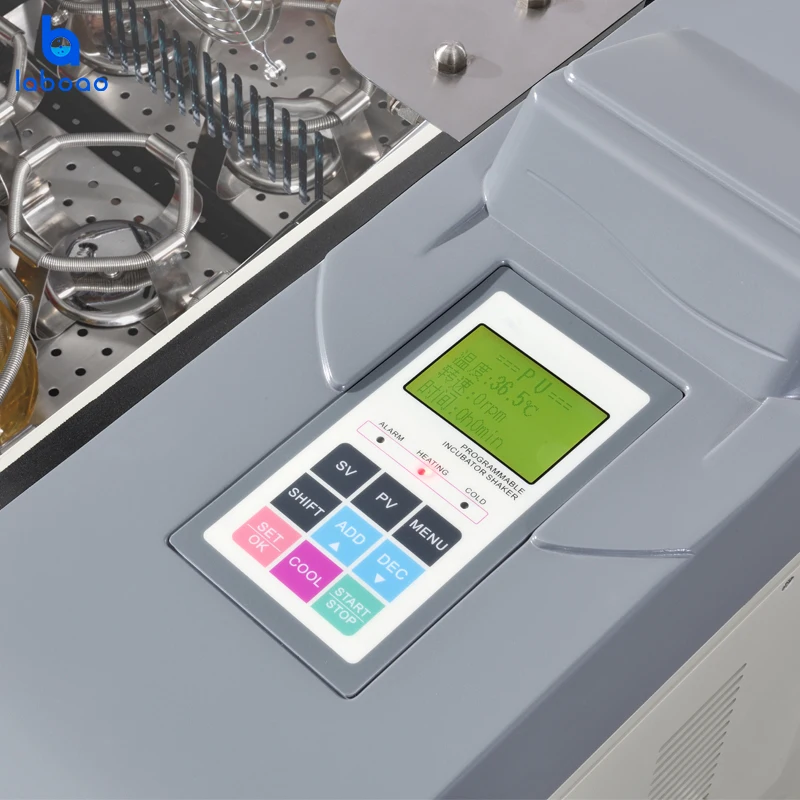

Display method

LCD (Large screen LCD dual display)

Cyclic mode

Forced convection

Oscillation mode

Rotary oscillation

Reciprocating

Drive mode

Single-axis balancing device (Chinese patent)

Environmental requirements

Temperature 5-25 ° C, humidity 20% -90%

Temperature control range

4-60℃

Temperature accuracy

±0.1℃

Temperature uniformity

±1℃

Performance

Frequency Range

30-300rpm

Rotation accuracy

±1rpm

Pendulum amplitude

Φ25mm

Φ25mm

Φ50mm

Φ25mm

Standard configuration

28*500ml

8*2000ml

28*500ml

28*500ml

Security function

Upper and lower temperature deviation alarm; upper- and lower-line speed deviation alarm, independent over-temperature protector;
open door stop protection; leakage protection, chiller overload protection.

Accessory function

Speed storage, call recovery, parameter memory, temperature speed correction, clock display, room temperature / measured
temperature double display.

Programming function

Repeat, step, eight-segment curve programming settings.

The refrigerant

CFC-Free (134A) fluorine-free safety refrigeration system

Cooler

200W

Heater

800W

Timing range

0-999.59h/ Sustainable

Standard sizes

Rocker size

920*500(mm)

Number of rocking plates

one

Gross weight

185kg

185kg

180kg

175kg

Inner cavity size

970*550*350 (mm)

Dimensions

1250*740*840 (mm)

Package dimensions

1340*860*1070(mm)

Power

1120W

Power supply

AC 200-240V 50-60HZ

Material

Motor

120W inverter motor

Inner cavity material

High quality imported stainless steel mirror panel

Box Material

High quality and high strength castings, channel steel, angle steel, cold rolled steel plate
