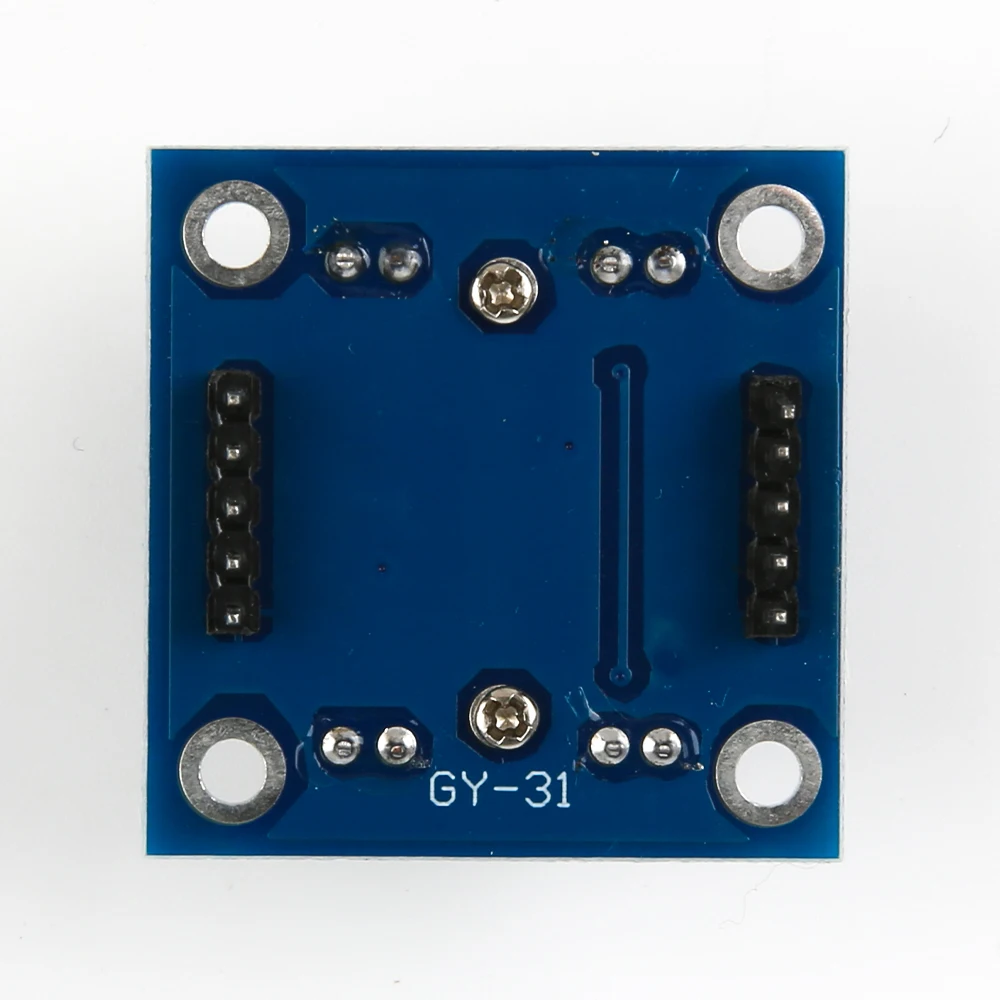

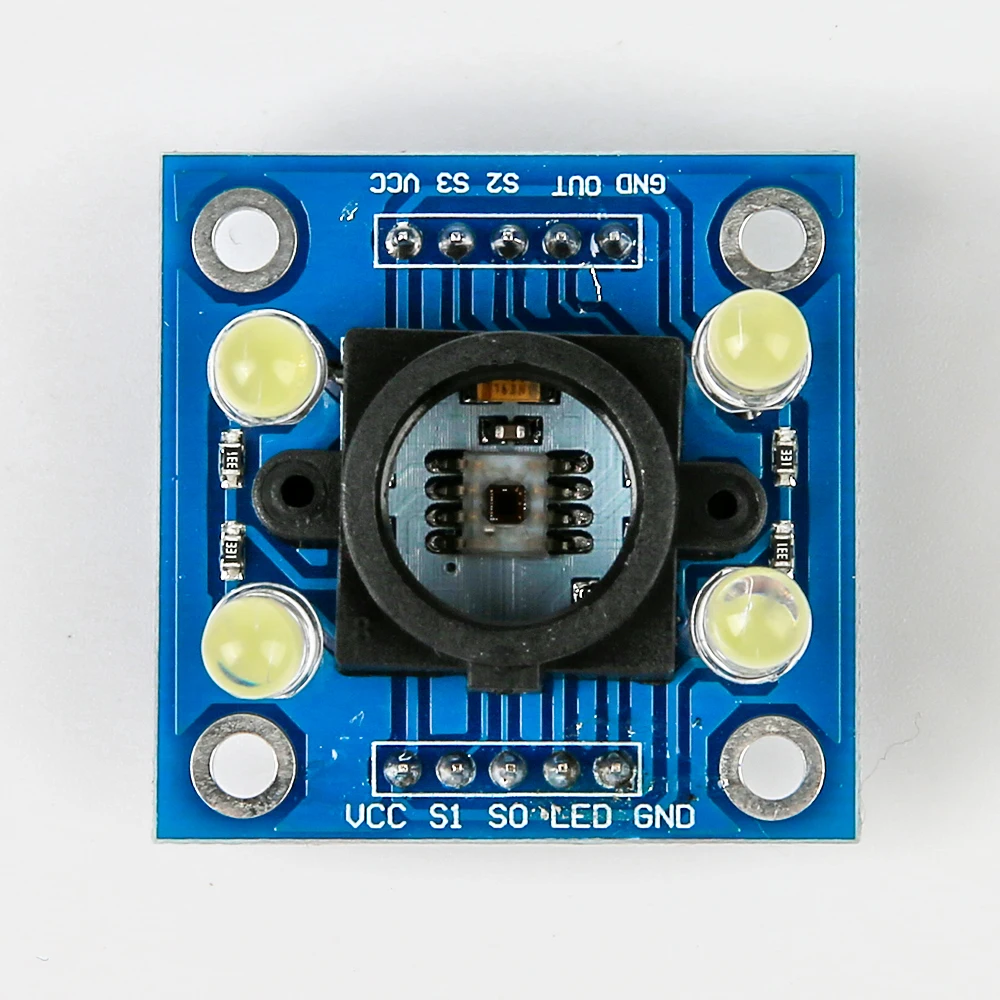

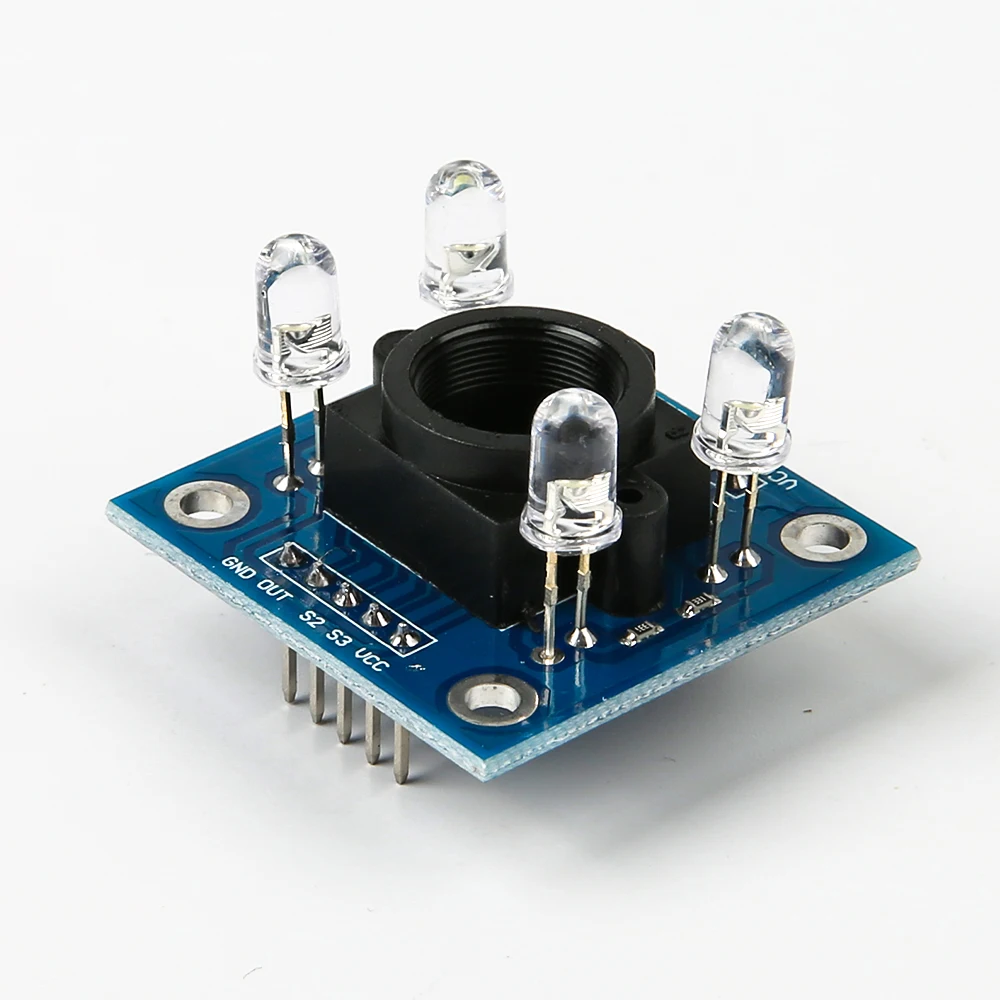

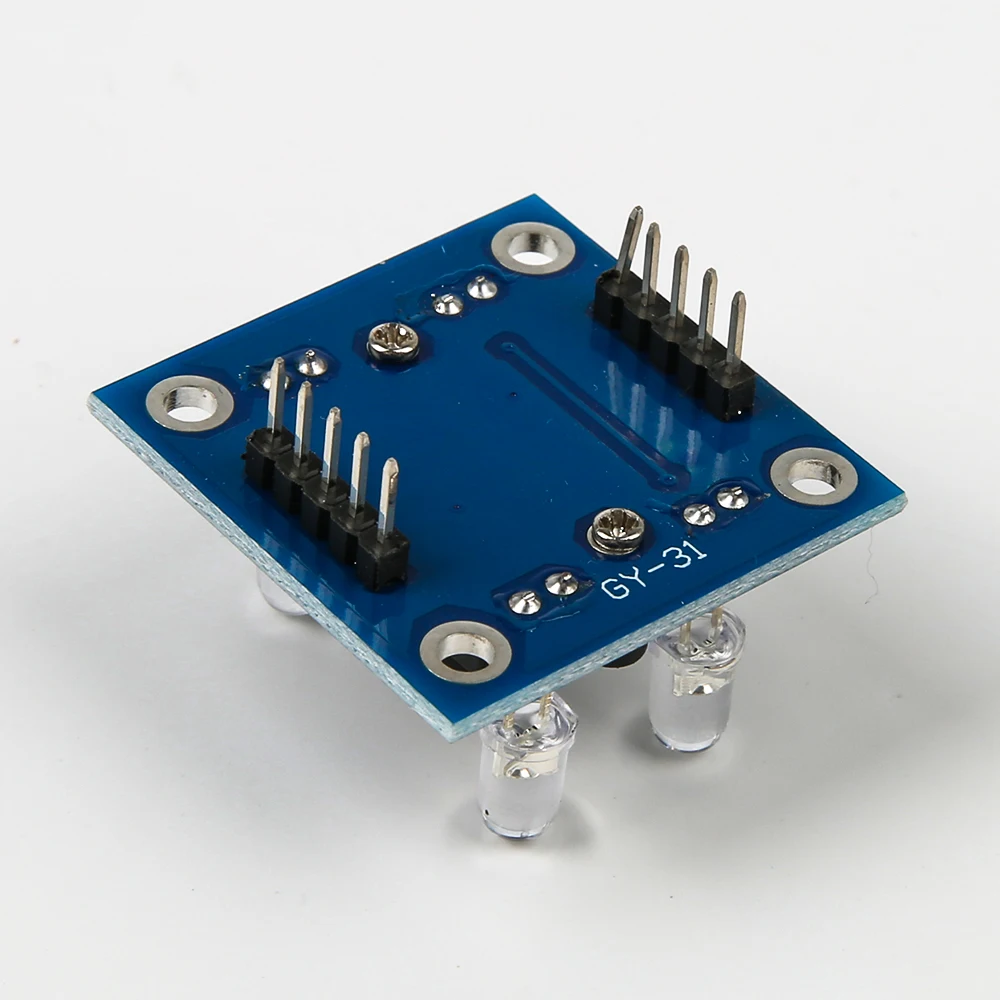

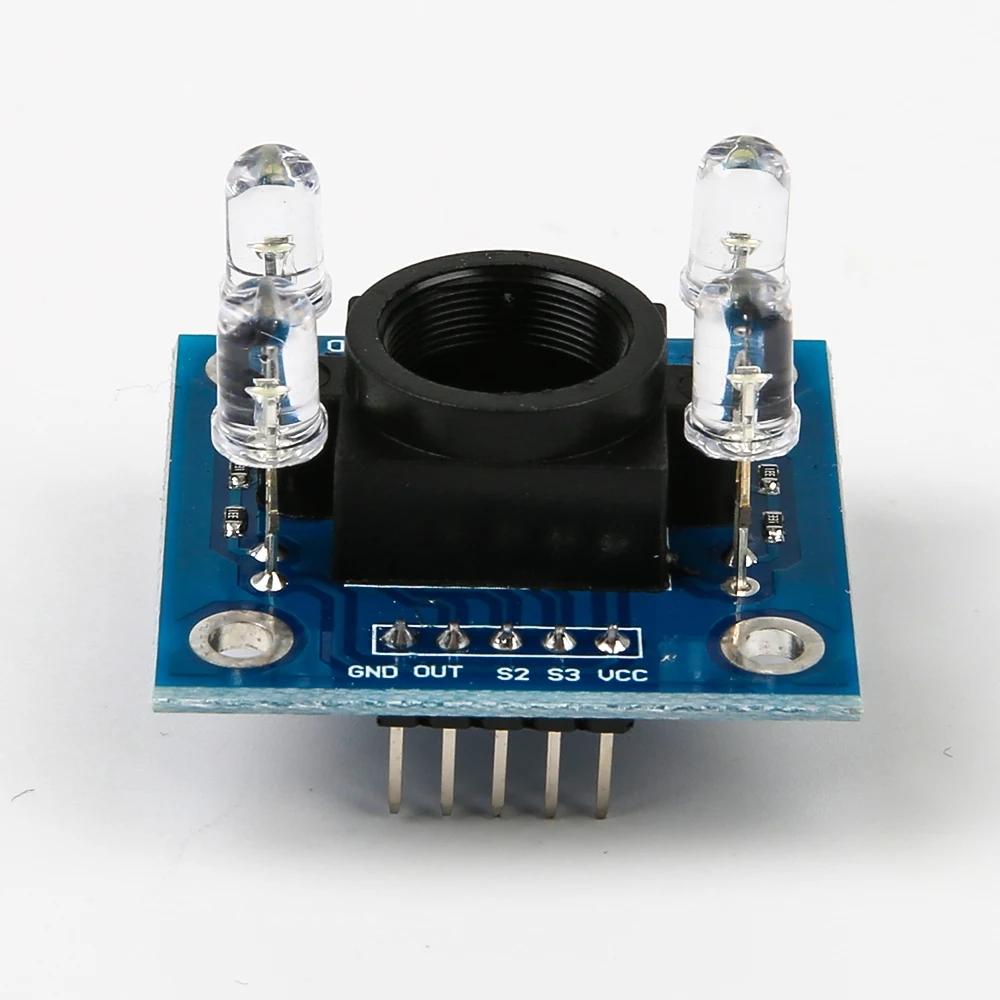

Popular TCS230 TCS3200 Detector Module GY-31 Color Recognition Sensor
Product description: TCS230 uses an 8-lead SO1C surface-mount package with 64 photodiodes integrated on a single chip. There are four types of diodes,16 of which have red filters; 16 photodiodes with green filters; 16 photodiodes with blue filters; The remaining 16 do not haveany filters and can pass through all the light information. These photodiodes are cross-arranged in the chip, which can greatly reduce the inhomogeneity of the incident light-assisted emission, so as to increase the accuracy of color recognition. On theother hand, 16 photodiodes of the same color are connected in parallel and evenly distributed in the diode array, which caneliminate the position error of the color. When working, the desired filter is dynamically selected through two programmable pins. The sensor's typical output frequency ranges from 2 HZ-50 KHZ, and the user can also select 100%, 20%, or 2% output scaling factors, or power off mode, with two programmable pins. The output scale factor enables the output of the sensor to adapt to different measurement ranges and improves its adaptability. For example, when using a low speed frequency counter, you can choose a small calibration value to match the TCS230 output frequency to the counter. Description: 1. Weight: 10g 2. Supply voltage: 3.3V-5V 3. Best detection distance: 1cm 4. Using imported chips TCS3200 5. Upgraded version:TCS230 TCS3200 6. Anti-light interference 7. A white LED can control light off. 8. Can detect non-luminous object color 9. Type: voltage regulator Package List: 1 * Color Recognition Sensor Module | ||||||||
