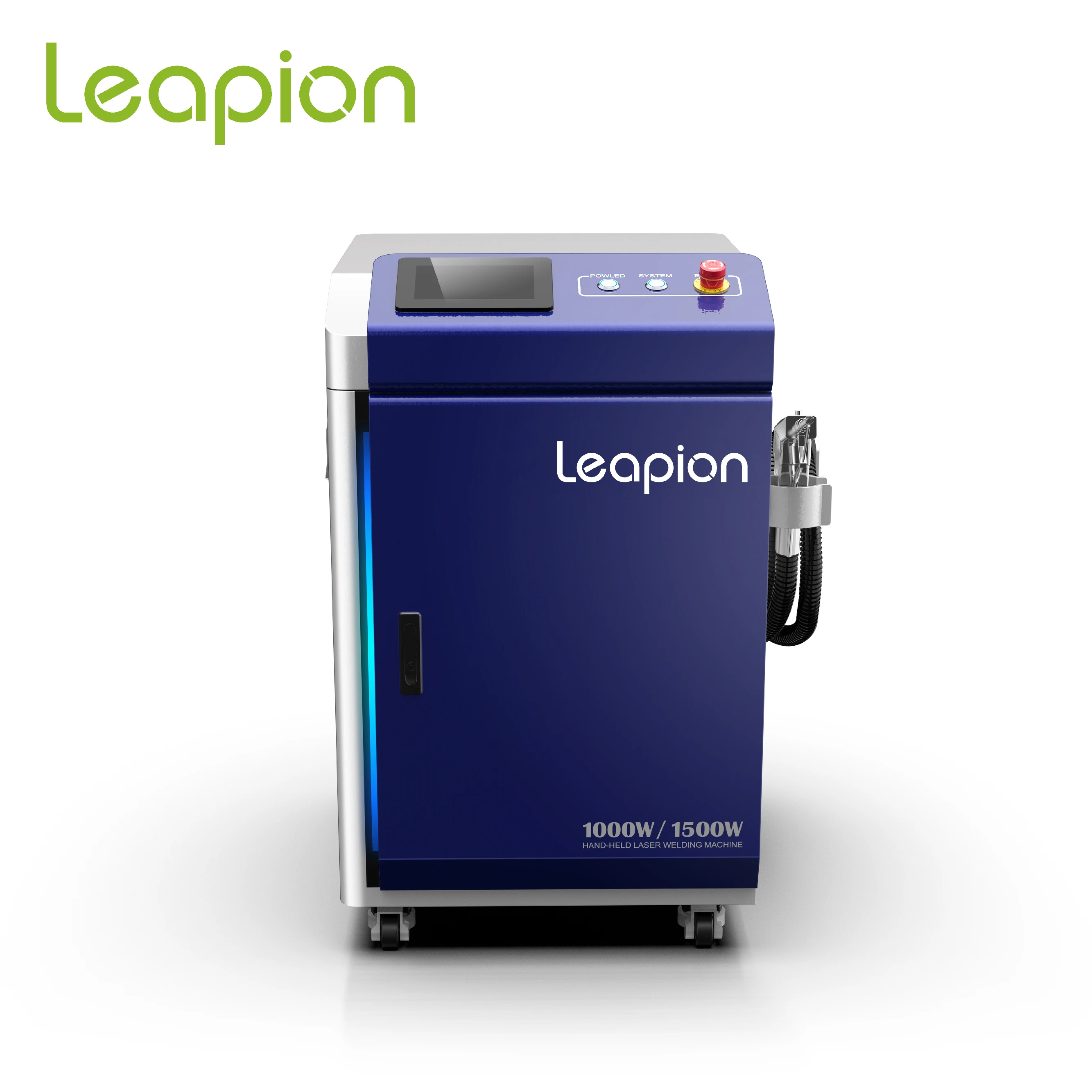

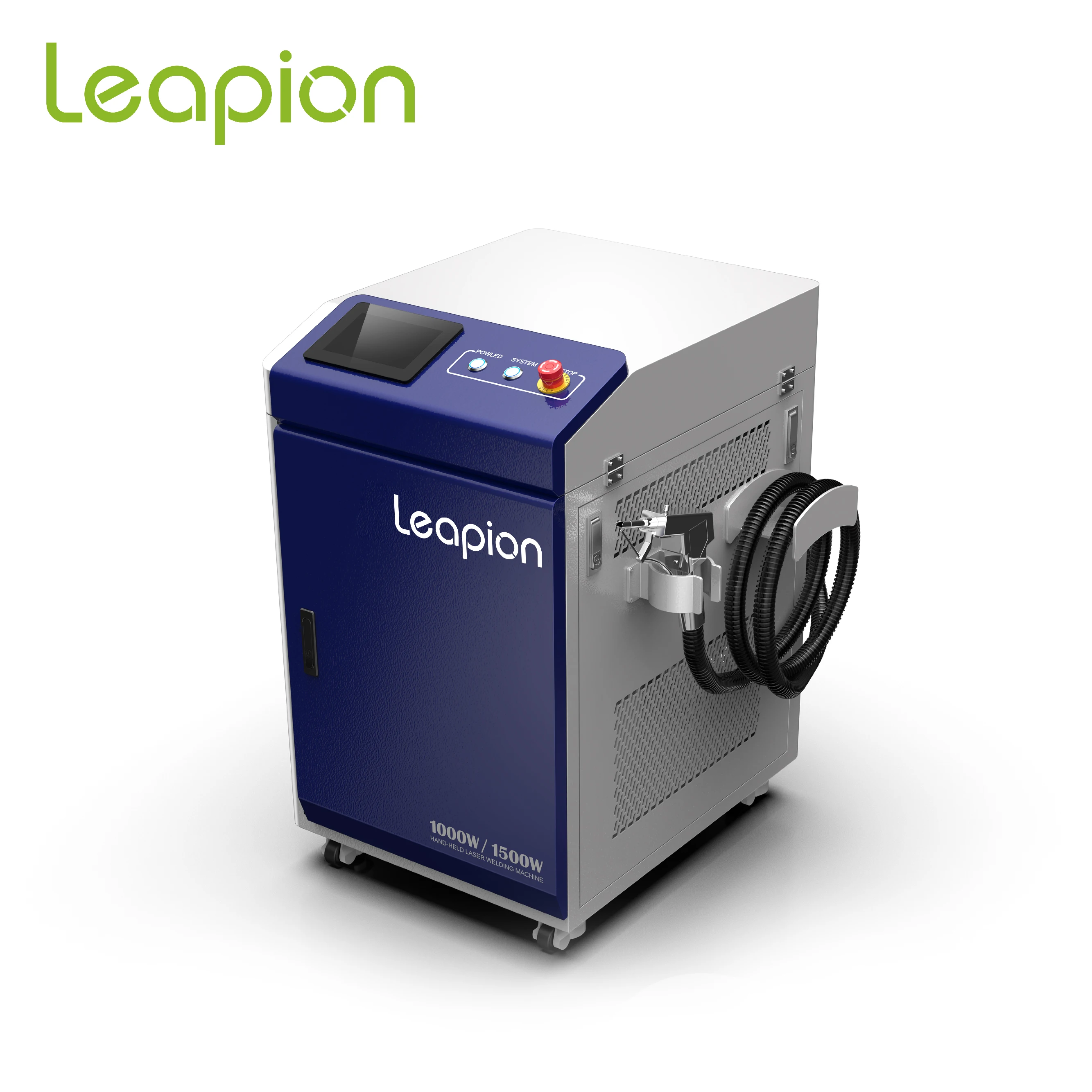

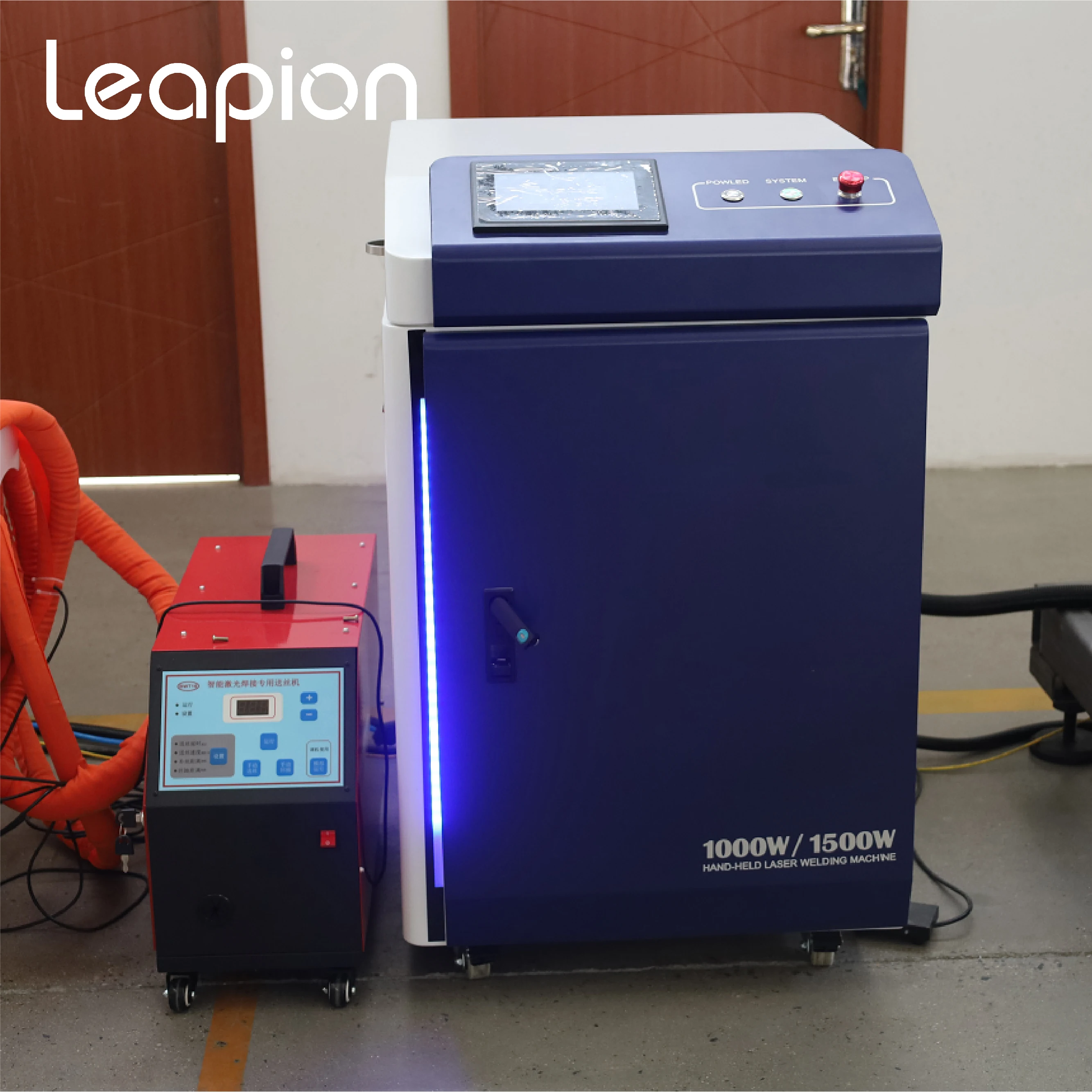

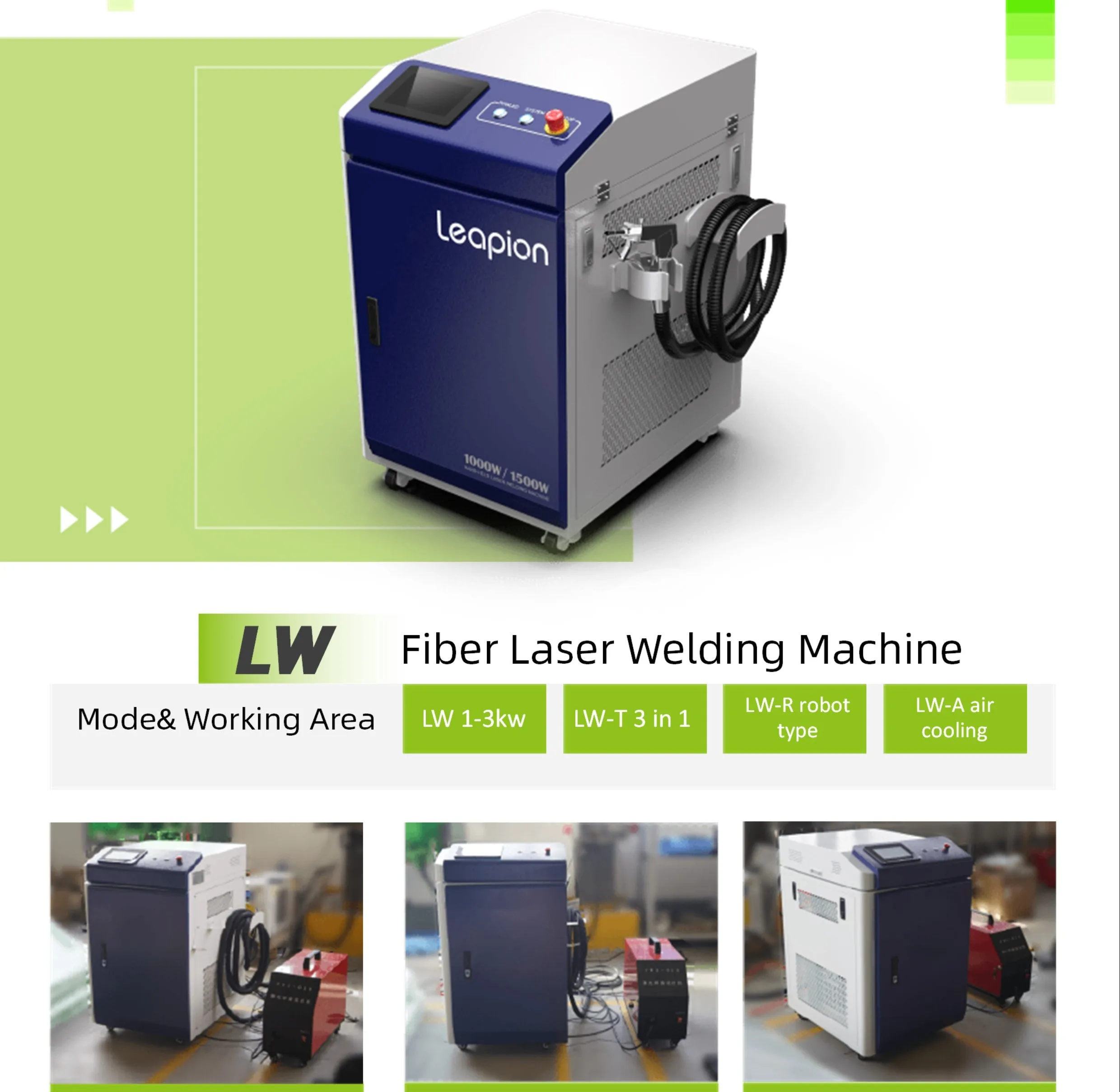

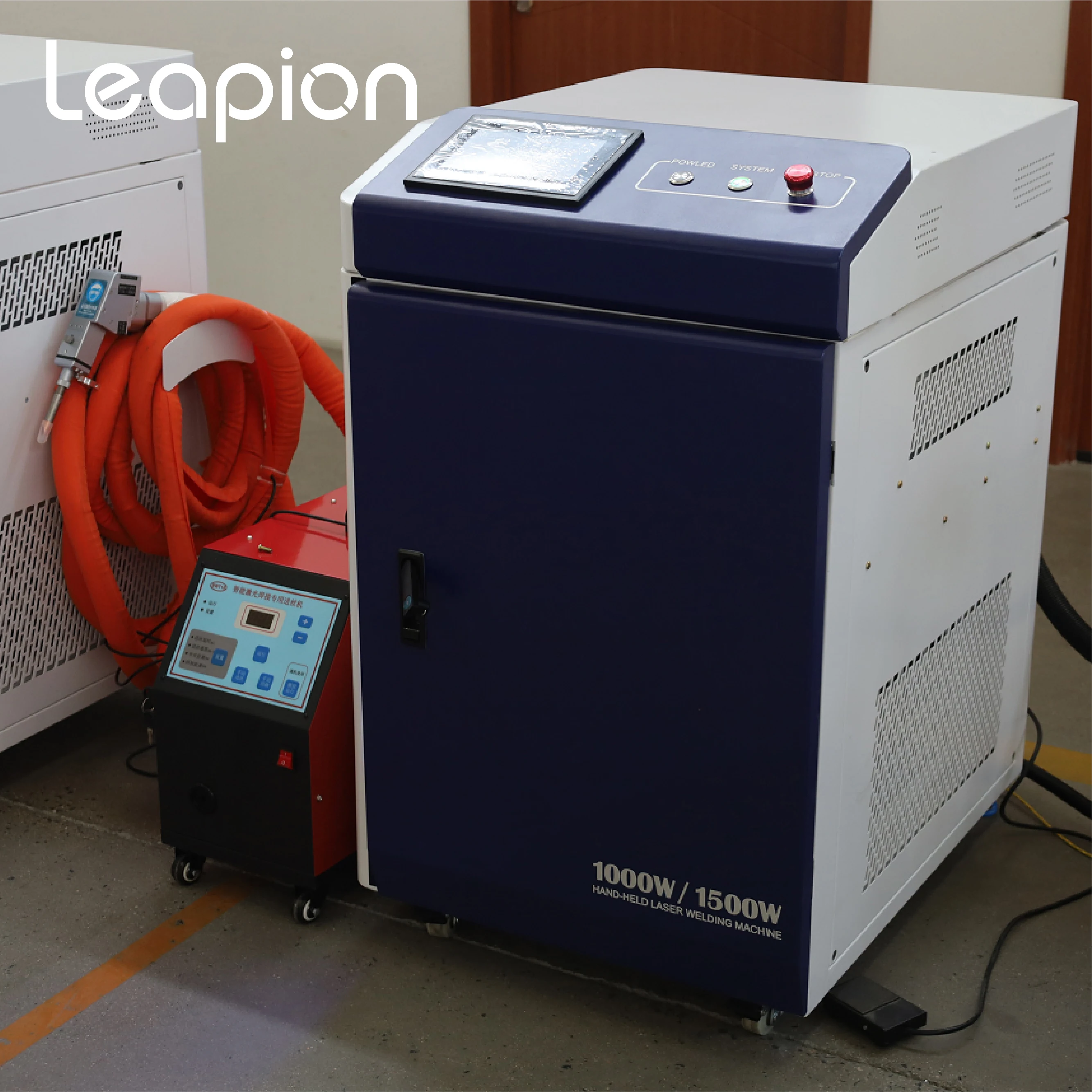

Air Cooled Laser Welding Machine 2000 W 3 In 1 Fiber Laser Welding Machine Price For Sale France
- Category: >>>
- Supplier: Shandong Leapion Machinery Co. Ltd.
Share on (1600796835271):
Product Overview
Description
Product Description

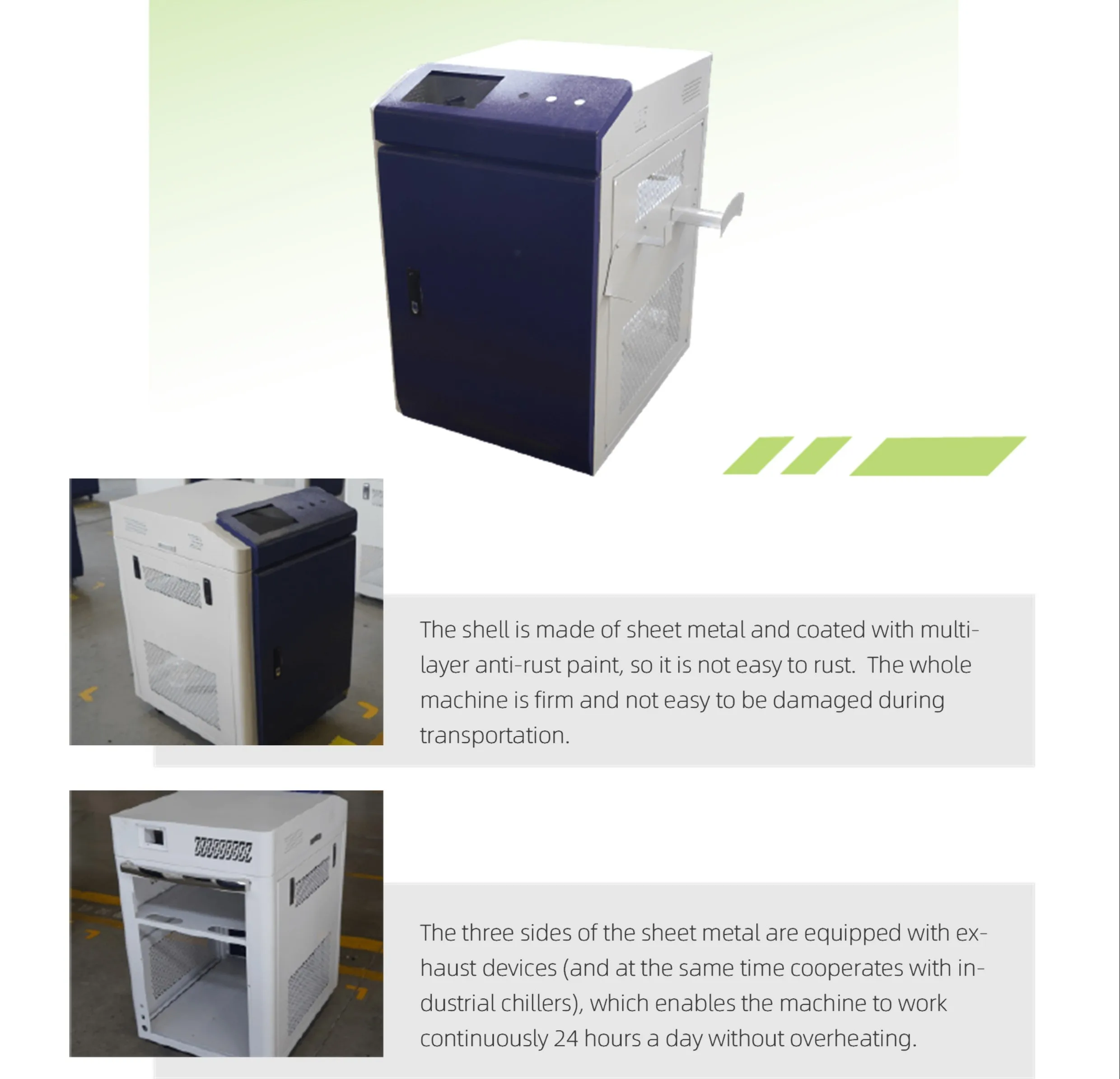

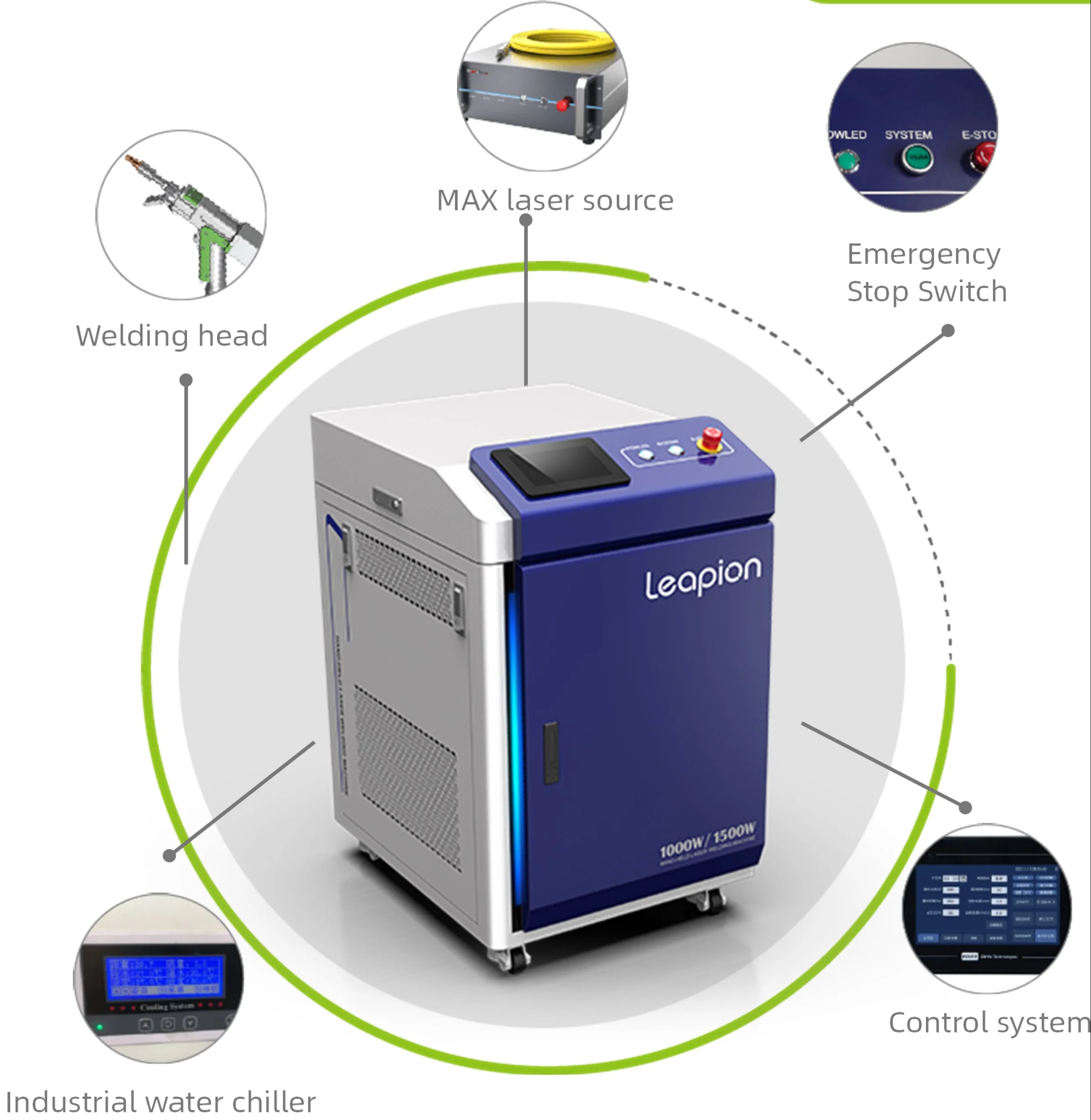

Industrial Machine Case

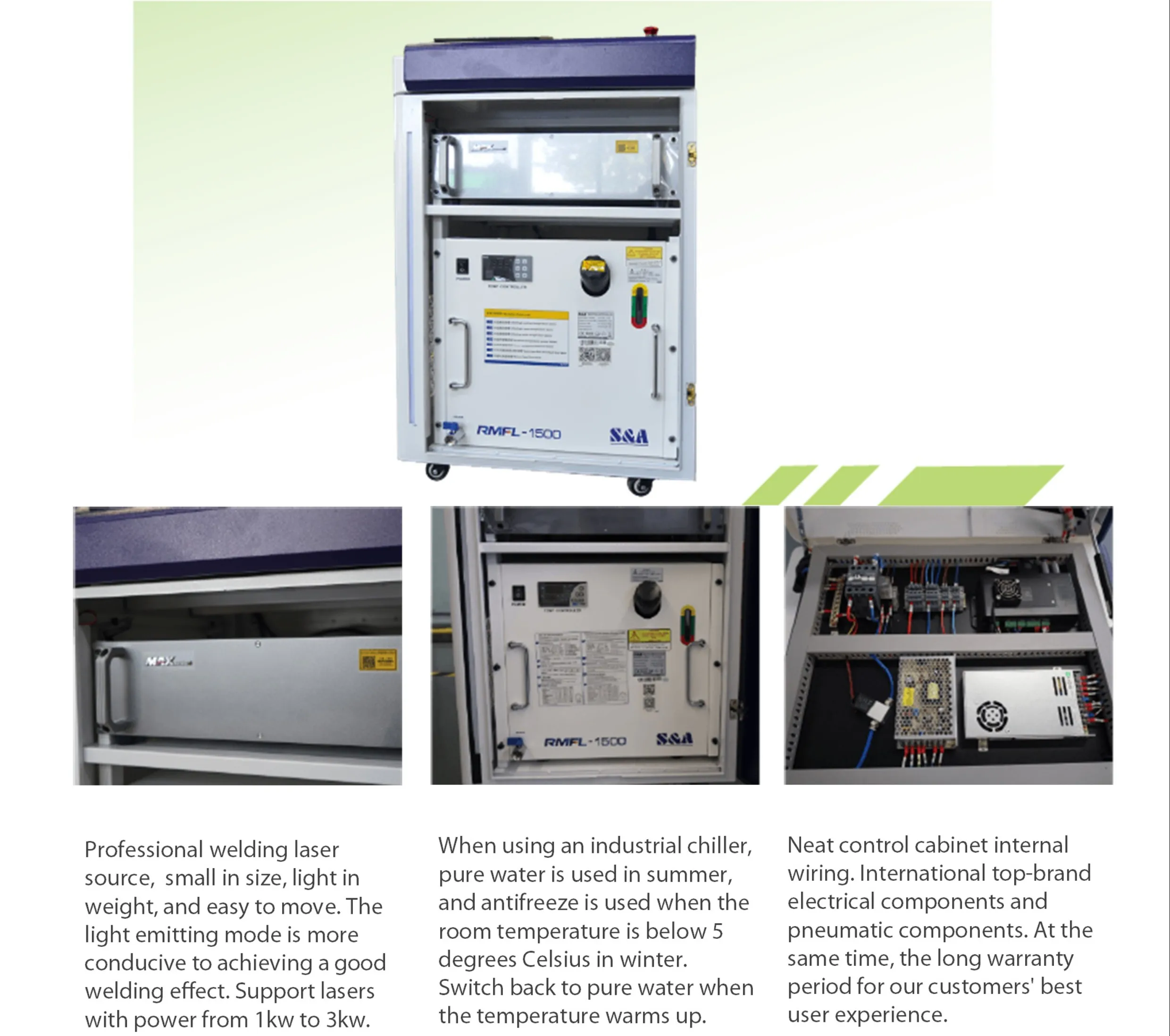

Laser System

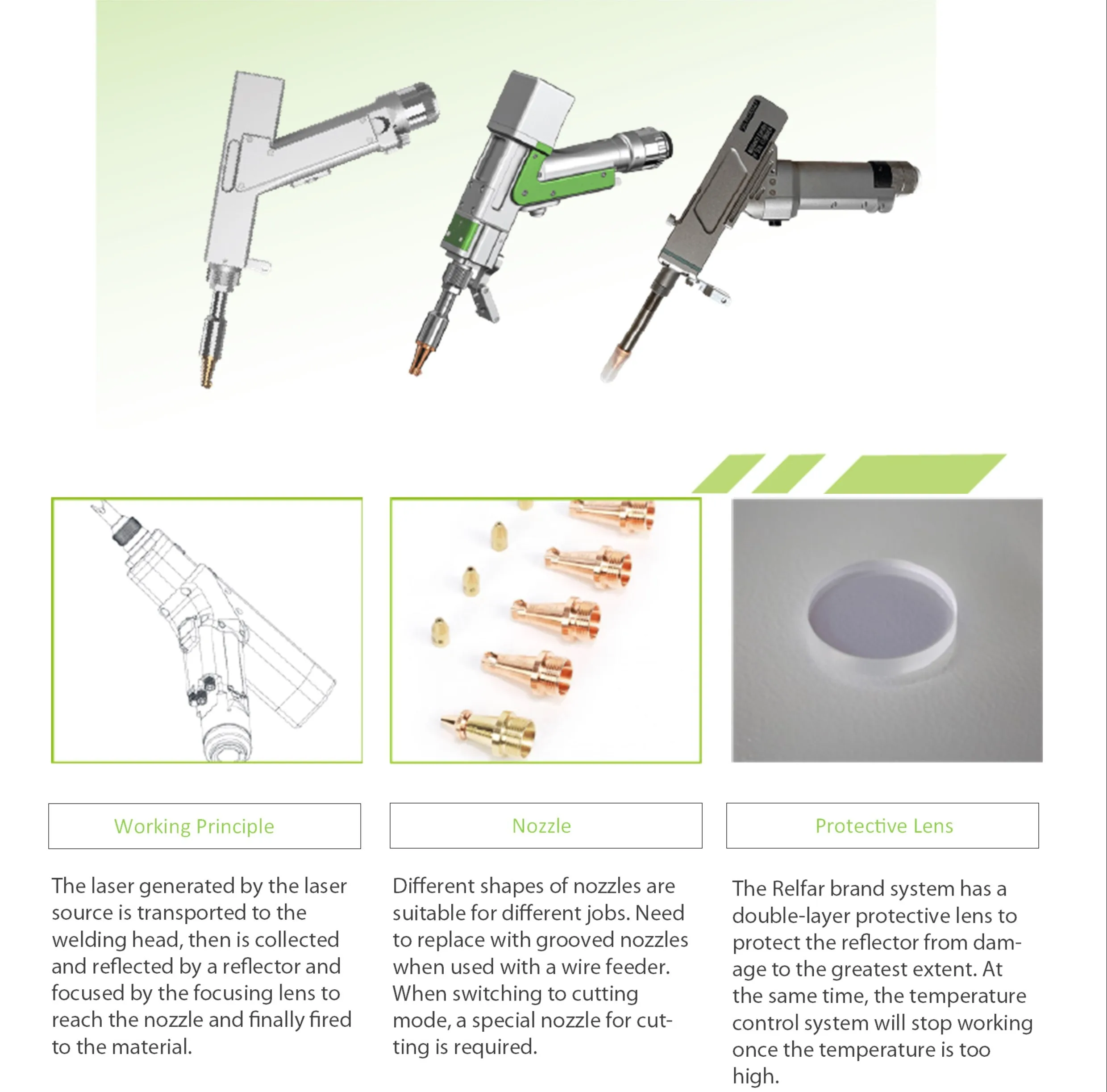

Laser Welding Head

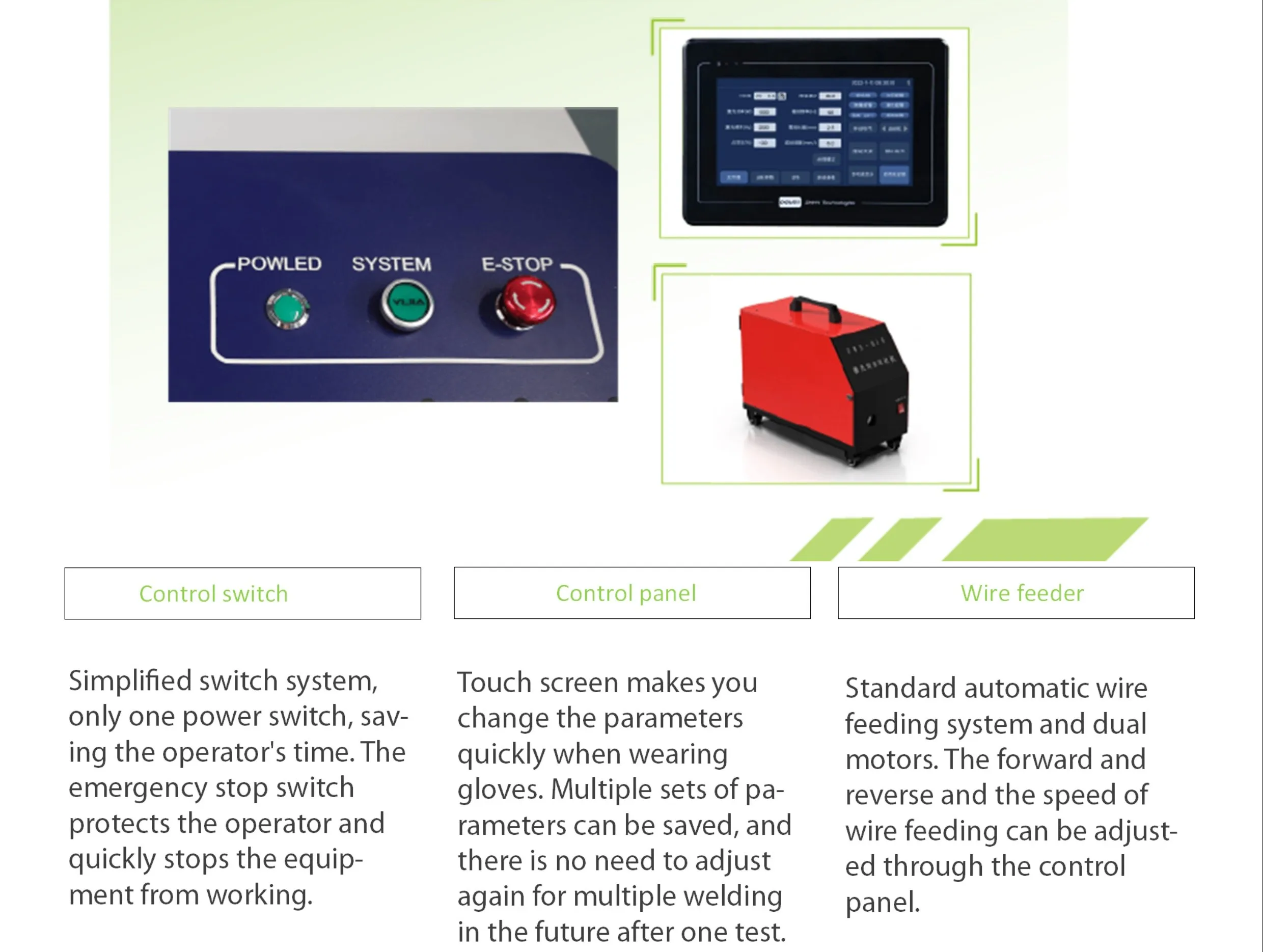

Control System
Model | LM-T 3 in 1 Laser Welding Cutting Cleaning Machine |
Laser Type | Fiber Laser |
Fiber Laser Power | 1000w, 1500w, 2000w, 3000w |
Welding Width | 0.2-5mm |
Head Type | LightWeight Handheld |
Cooling Type | Water Cooled |
Laser Source Brand | Max, Raycus, IPG, Reci, Leapion, etc. |
Control Panel | Touch Screen |
Shell Material | Metal |
Technical Parameters
Spot adjustment range | 0-5mm |
Effective light aperture | 16mm |
Laser Head Weight | 0.71KG |
Optical fiber interface | QBH |
Wavelength range | 1070±20nm |
Intelligent protection function | Protective lens intelligent temperature control device |
Collimating focal length | 50mm |
Focal length | 150mm |
Core diameter of supported wire | 3.0mm |
Maximum wire feed speed | 80mm/s |
Auto Wire Feeder Net Weight | 16.2KG |

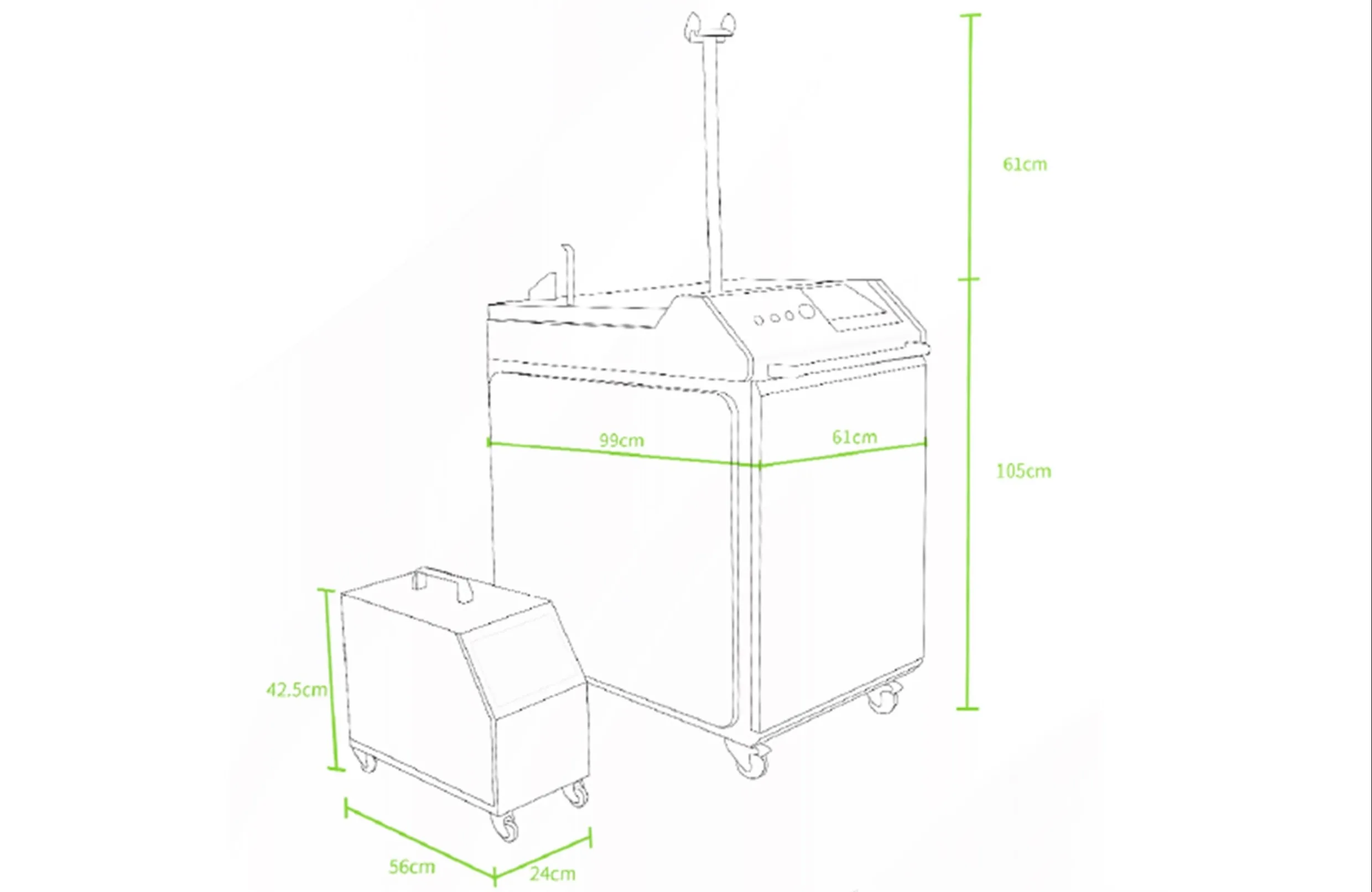

Auto Wire Feeder Dimension | 560*240*472mm |
Machine Package Dimension | 1150*880*1400mm |
Machine Package Weight | 250KG |

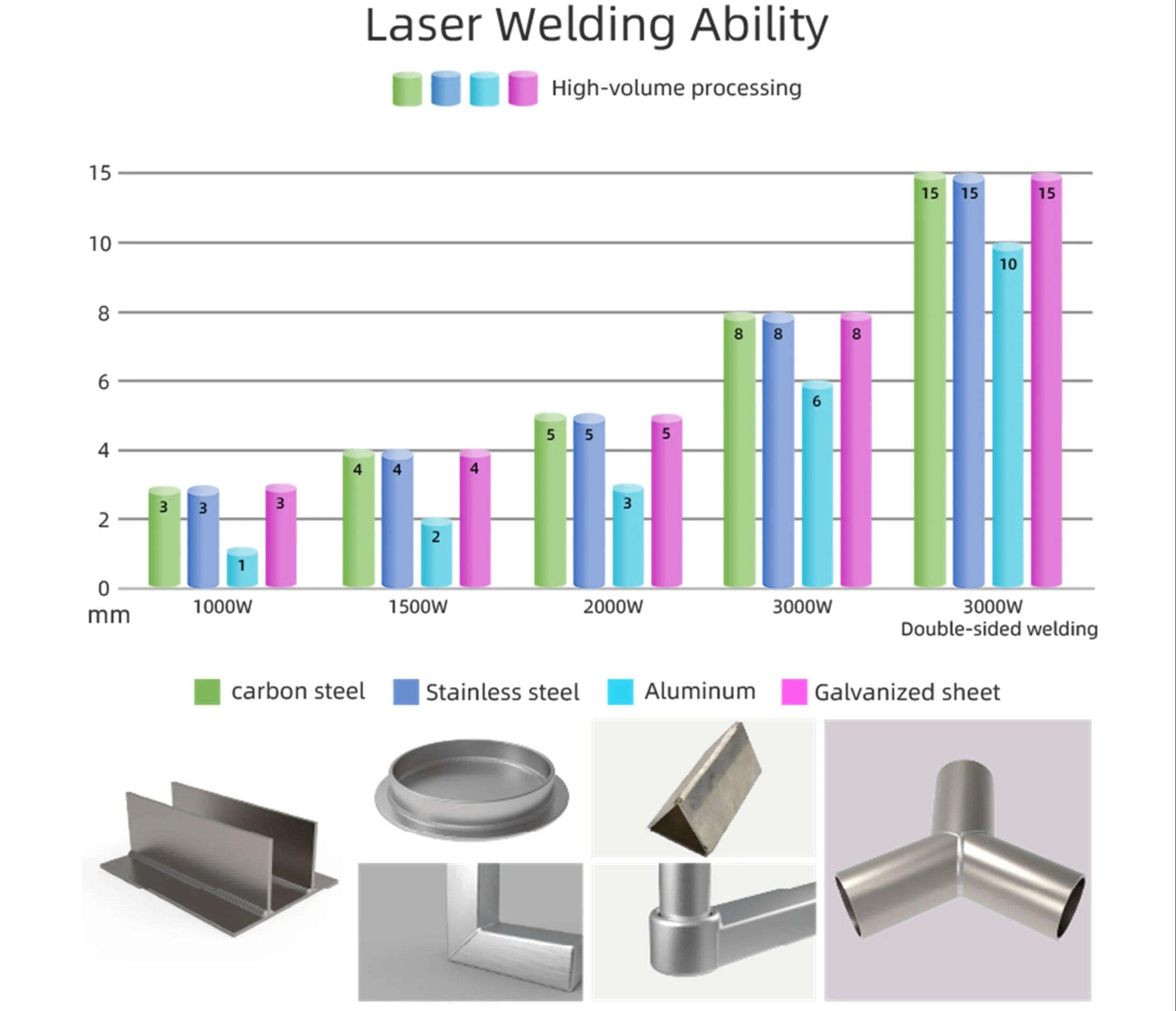

Welding Ability
Certifications
Service Introduction
Company Introduction
Production Line
FAQ
Q: What customized services you provided?
A: Leapion is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
Q: What payment method you accept?
A: On Alibaba, we supply Trade Assurance Order, and via this method, you could pay by T/T, L/C, Credit Card, etc.
Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.
Q: How long is the delivery time?
A: It depend on the machine mode you require, and which country you from. About the production time, LW mode machine only need 10 works day. About the shipping time, it depend on the flight time.
