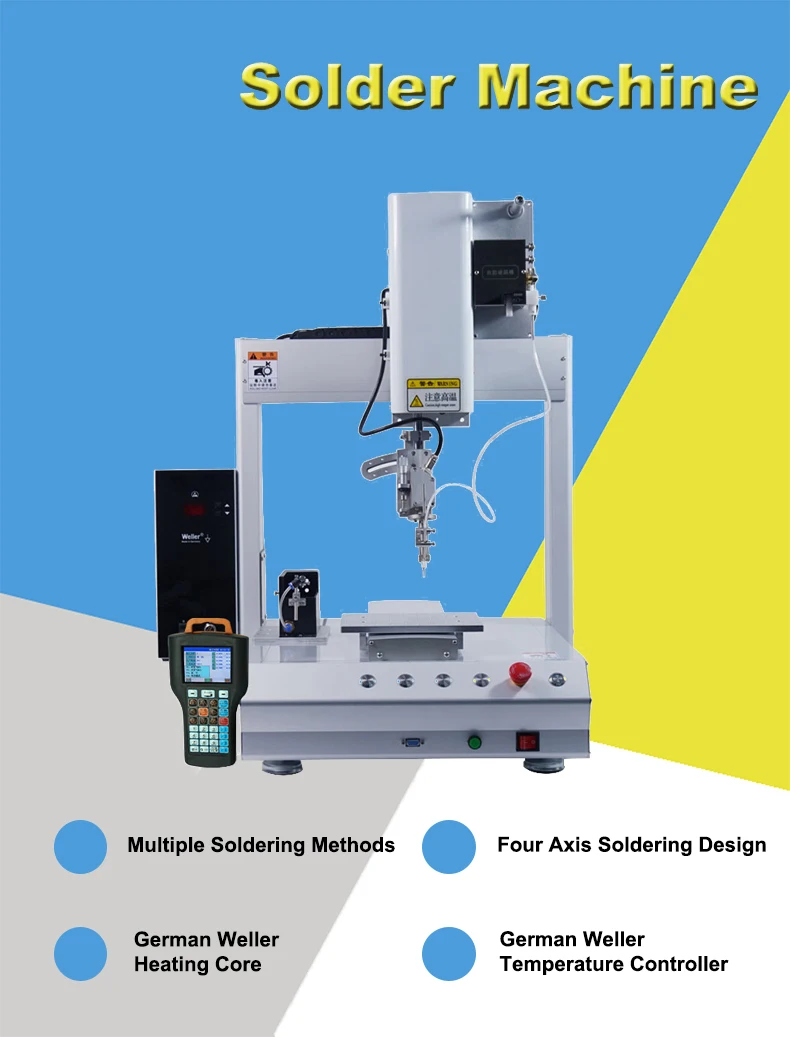

YX331 T Best Desktop LED Strip Soldering Machine Automatic Tin Feeding Machine Robotic Solder PCB Soldering Machine
- Category: >>>
- Supplier: Wenzhou Yingxing Import&Export Co. Ltd.
Share on (1600796835611):
Product Overview
Description
Product Description
Introduction
YX331-T intelligent tin soldering machine control system is designed and manufactured by the professional digital control team of the company for tin soldering machine industry; it is featured as low cost, high condensation and high degree of integration. The perfect tin soldering processes are collocated to meet different processing demands; the product is widely applied in the multi-axis automatic tin soldering machine field.
Feature
2.Perfect tin soldering processes are collocated and spot welding and drag welding processes are prepared; the tin supply speed is automatically adjusted according to the working speed.
3.The oblique angle gun access function is collocated; it is able to set up the gun access angle at disposal.
4.The tin shaking function (horizontal, vertical) is collocated to upgrade the welding quality.
5.Perfect cleaning functions include regular cleaning function or designated position cleaning function; upon cleaning, the tin compensation volume is set up.
6.It supports the counterpoint function of MARK point and aims to revise the error caused by the angle and position deviation of work piece.
7.It enjoys the skip selection function and is able to select numerous interrupted commands at one time.
8.It enjoys the command displacement function and is able to move the edited function to the target position.
9.It enjoys such functions as regional array copy, translational calculation, batch edition, single step, automatic and circulation operation, I/O input and output.
10.It enjoys such functions as automatic execution, automatic reset, production volume setup and processing time counter and thus meets different application demands.
11.The action parameter is edited and downloaded to the controller by serial port for off-line and separate operation; the action parameter can be also saved in the portable box to bring convenience to usage; graph copy and save functions are collocated between the equipment.
12.The portable box is able to save several hundred processing files; each file can support 8,000 commands—They are adopted in the normal usage.
13.The hardware is collocated with four-gun tunnel control function, four-way general output function, eight-way input function and twelve-way high-speed pulse output function.
14.Each action command has separate tin delivery time, tin return time, lifting height and flexible batch revision functions; they are able to swiftly upgrade the edition efficiency.
Part list
1.Operation instruction box:1 Set
2.Controller:1 Set
3.Data line:1 Set
4.Lengthened line:1 Set
The YX331-T software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The YX331-T machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
The YX331-T machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
Model | YX331-T |
Temperature Control System | Germany WELLER |
Heating Core | Germany WELLER |
Temperature Control Range | 0-500°C |
Temperature Error | ±2°C |
Soldering Range X/Y/Z(mm) | 500/300/300/100/360R |
Maximum Load | 15 kg |
Movement Speed(mm/sec) | 0-300 |
Capacity of Decomposition | 0.01 mm/Axis |
Repeated Accuracy | ±0.02 mm/ Axis |
Program Recording Mode | More than 100sets |
Display Usage | LCD Teaching Box |
Motor System | Japan SHINANO Motor |
Guide Rail | Taiwan HIWIN |
Kind of Drive | Italy ELATECH Belt |
Power Switch | Japanese OMRON |
Motion Tween Function | 3 Axis |
Input Power | AC110V - 220V |
Al Control Interface | RS232 |
Product Details
Company Information
Exhibition
Certifications
Product packaging
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
