Custom High purity Titanium 99.99% 4N disc Ti sputtering target for pvd coating
- Category: Titanium >>>
- Supplier: Rich Special Materials Co. Ltd.
Share on (1600796895260):
Product Overview
Description
PRODUCT INFORMATION
Pure Titanium Target
We accept Customized Ratios, Purity and Shape.
Ratios: TiAl5 at%, TiAl10 at%, TiAl20 at%, TiAl25 at%, TiAl 30 at%, TiAl40 at%, TiAl50 at%...
Purity: 99.5%、99.7%、99.8%、99.9%、99.95%、99.99%.
Shape: Circular, Plane, Tube, Arc, Multi-tile...
Ratios: TiAl5 at%, TiAl10 at%, TiAl20 at%, TiAl25 at%, TiAl 30 at%, TiAl40 at%, TiAl50 at%...
Purity: 99.5%、99.7%、99.8%、99.9%、99.95%、99.99%.
Shape: Circular, Plane, Tube, Arc, Multi-tile...
Impurity Content
Ratios | Ti-75Al at% | Ti-70Al at% | Ti-67Al at% | Ti-60Al at% | Ti-50Al at% | Ti-30Al at% | Ti-20Al at% | Ti-14Al at% |
Purity (%) | 99.7 | 99.7 | 99.7 | 99.7 | 99.8/99.9 | 99.9 | 99.9 | 99.9 |
Density (g/cm3) | 3.1 | 3.2 | 3.3 | 3.4 | 3.63/3.85 | 3.97 | 4.25 | 4.3 |
Grain Size (µm) | 100 | 100 | 100 | 100 | 100/- | - | - | - |
Production | HIP | HIP | HIP | HIP | HIP/VAR | VAR | VAR | VAR |

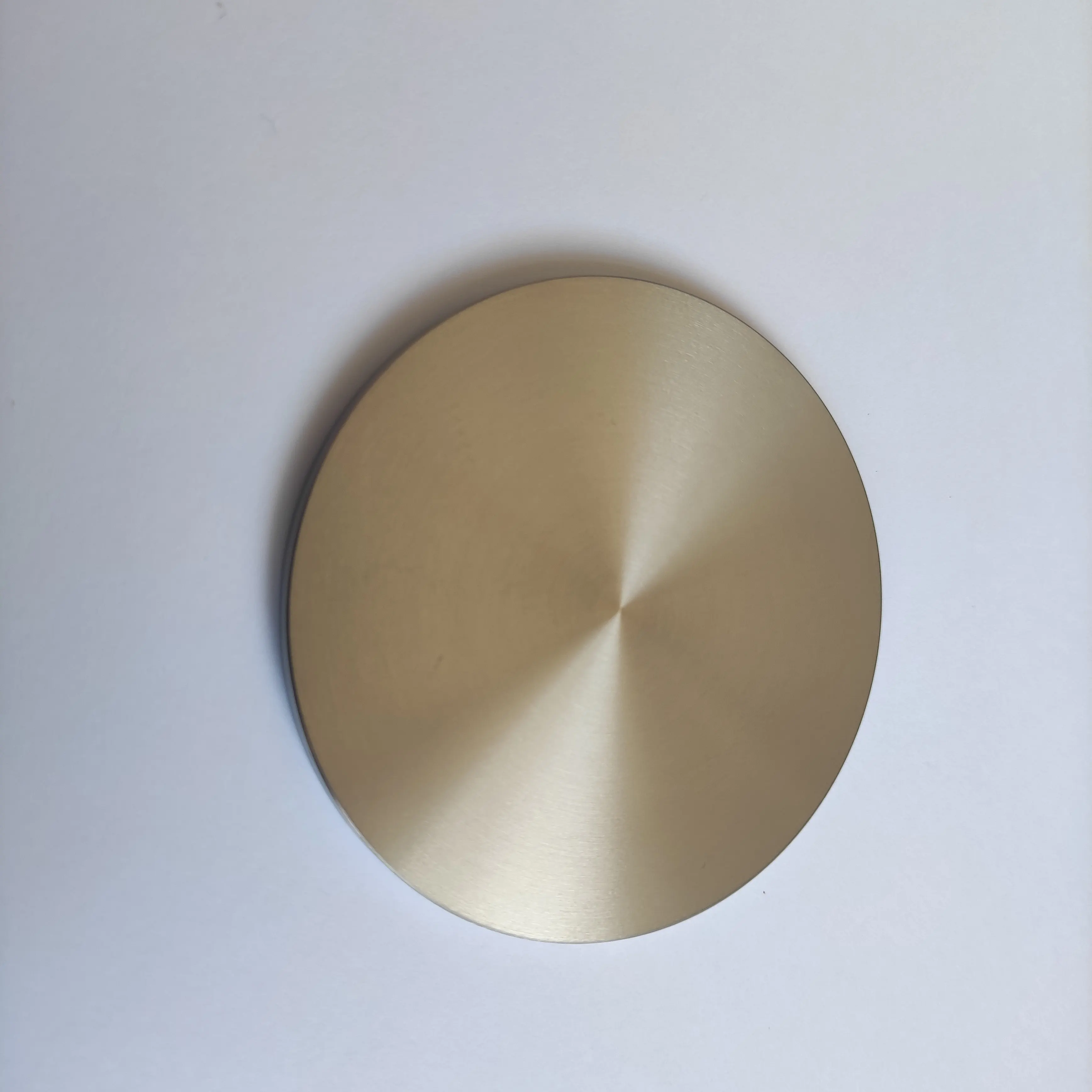

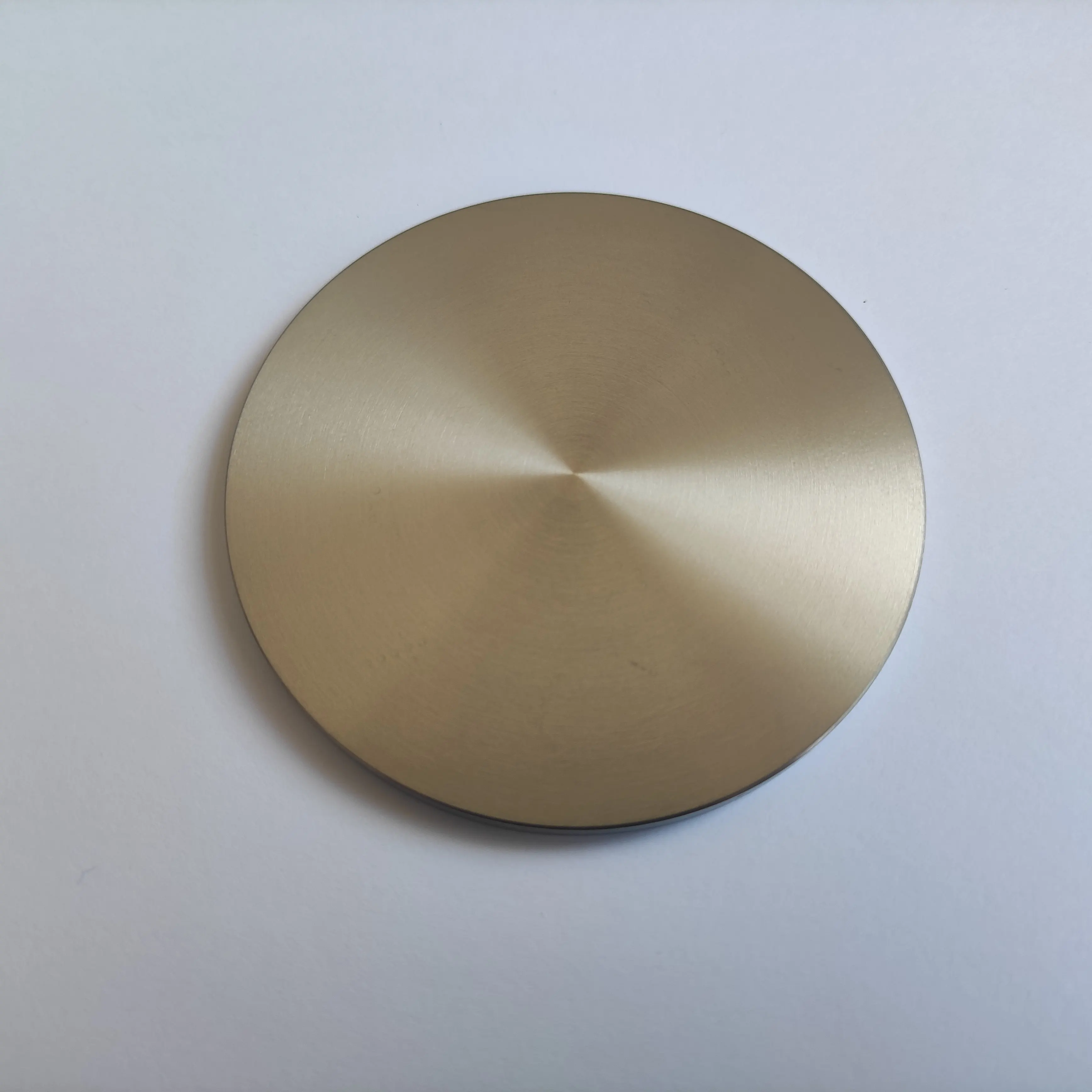

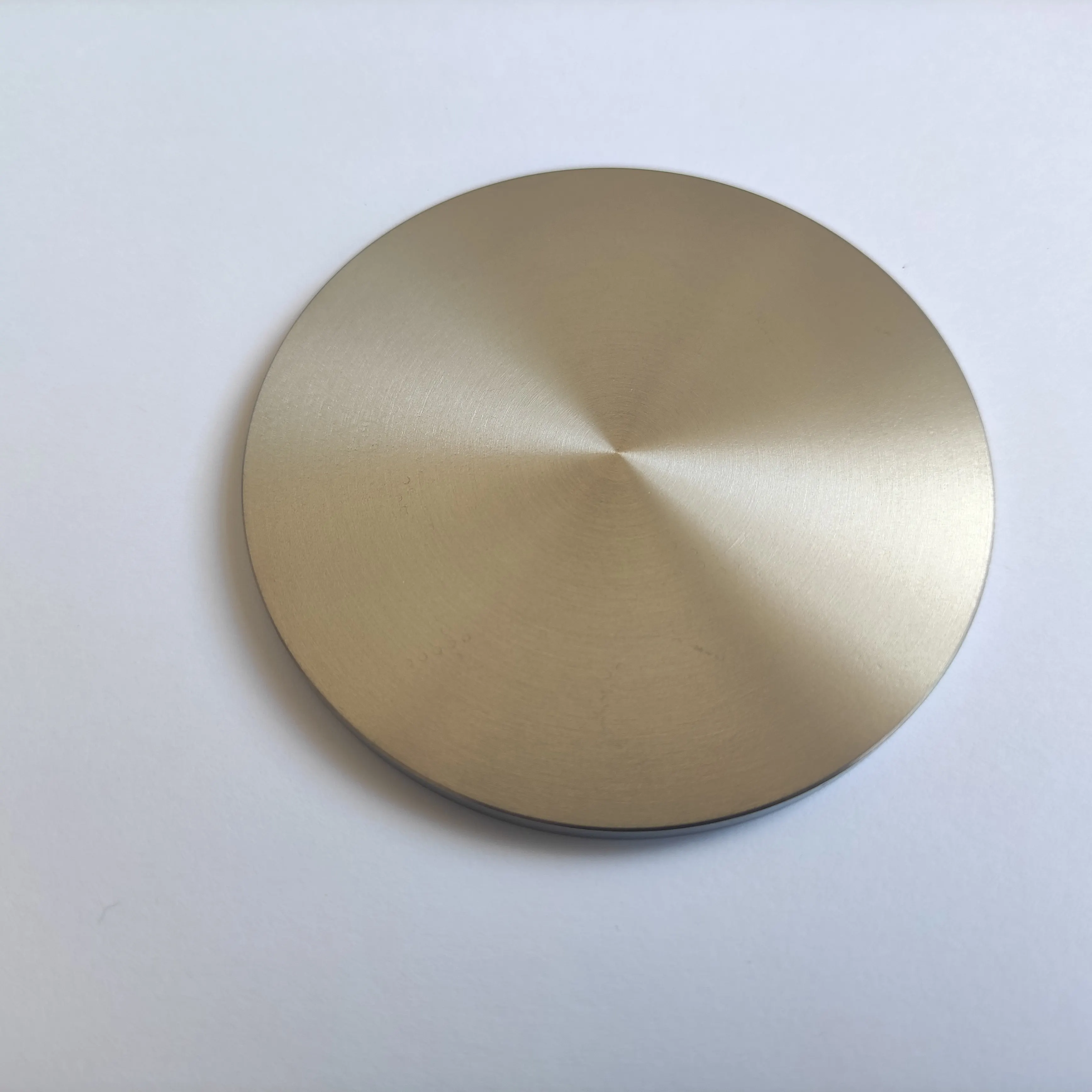

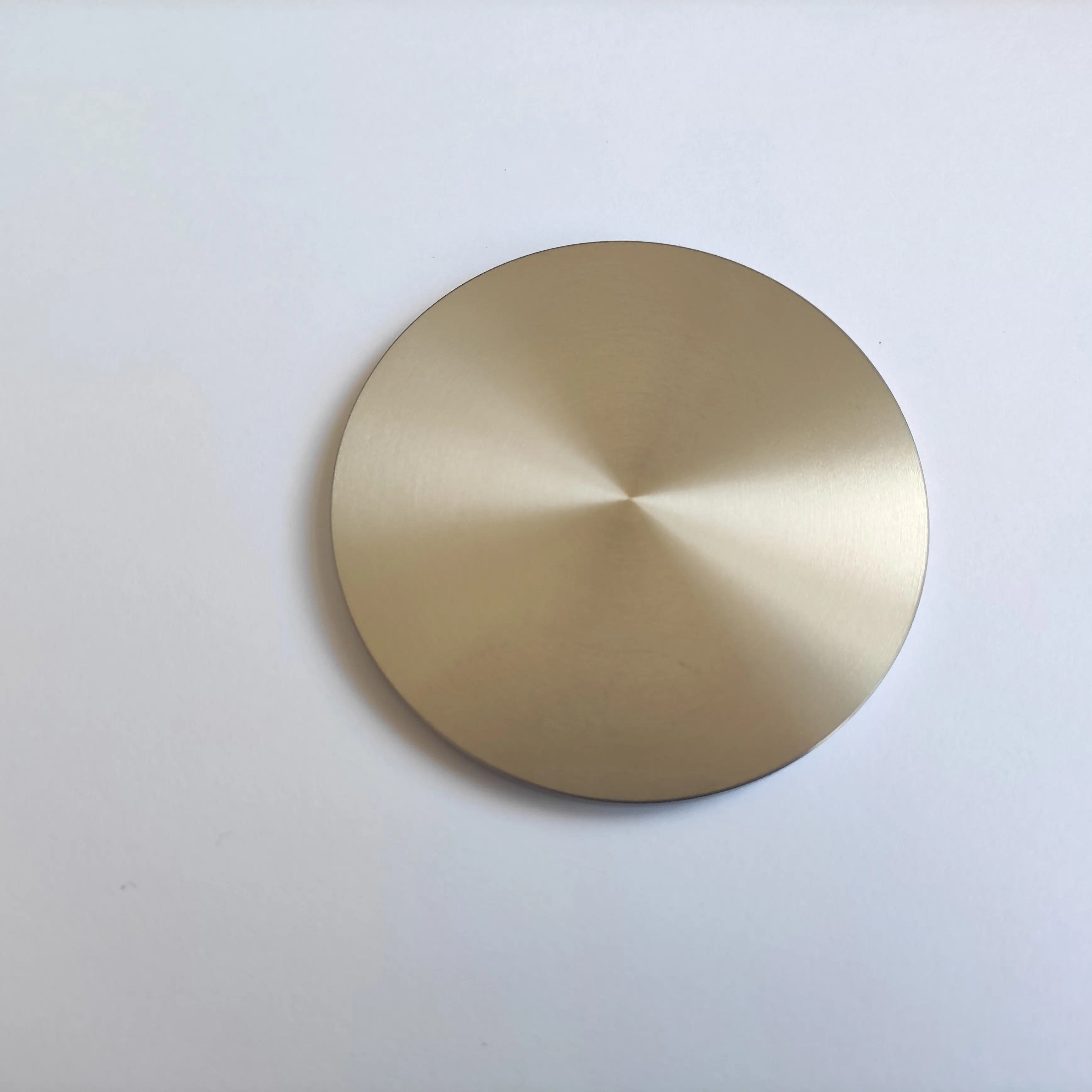

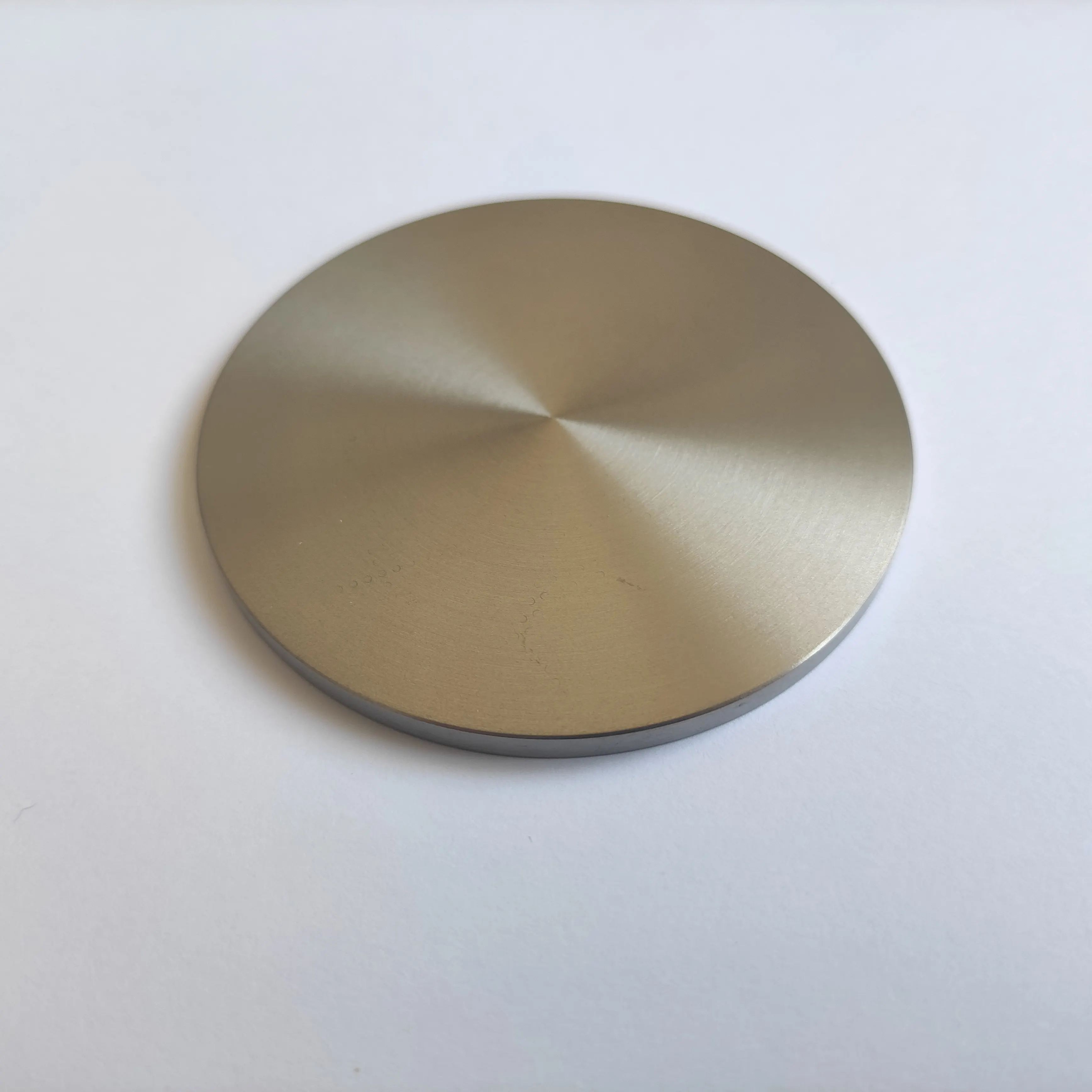

Details of Titanium Target
Titanium Target
Diameter: 76.2mm
Thichness: 4mm
Shape: Circular, Plane, Tube, Arc, Multi-tile...
Purity: 99.99%
MOQ: 1 Piece
Dispatch: 25 Days
Customization: Available
Application: Vacuum Coating
Titanium Target
Product purity: 99.5%, 99.7%, 99.8%, 99.9%, 99.95%, 99.99%, 99.99%, 99.995%.
We offer form sizes: planar targets, cylindrical targets, arc targets, special-shaped targets and many more.
Titanium, with an atomic number of 22 and an atomic weight of 47.867, is a silvery-white transition metal characterized by light weight, high strength, metallic luster, and resistance to wet chlorine corrosion. α titanium is a hexagonal crystal system, and β titanium is a cubic crystal system. The transition temperature is 882.5 °C. Melting point (1660±10) °C, boiling point 3287 °C, density of 4.506g/cm3. Soluble in dilute acid, insoluble in cold and hot water; seawater corrosion resistance is very strong. Titanium is an important structural metal developed in the 1950s, titanium alloy has low density, high specific strength, good corrosion resistance, low thermal conductivity, non-toxic and non-magnetic, weldable, good biocompatibility, strong surface decoration and other characteristics, widely used in aviation, aerospace, chemical, petroleum, electric power, medical, construction, sporting goods and other fields.
Product purity: 99.5%, 99.7%, 99.8%, 99.9%, 99.95%, 99.99%, 99.99%, 99.995%.
We offer form sizes: planar targets, cylindrical targets, arc targets, special-shaped targets and many more.
Titanium, with an atomic number of 22 and an atomic weight of 47.867, is a silvery-white transition metal characterized by light weight, high strength, metallic luster, and resistance to wet chlorine corrosion. α titanium is a hexagonal crystal system, and β titanium is a cubic crystal system. The transition temperature is 882.5 °C. Melting point (1660±10) °C, boiling point 3287 °C, density of 4.506g/cm3. Soluble in dilute acid, insoluble in cold and hot water; seawater corrosion resistance is very strong. Titanium is an important structural metal developed in the 1950s, titanium alloy has low density, high specific strength, good corrosion resistance, low thermal conductivity, non-toxic and non-magnetic, weldable, good biocompatibility, strong surface decoration and other characteristics, widely used in aviation, aerospace, chemical, petroleum, electric power, medical, construction, sporting goods and other fields.
We could produce various kinds of Titanium Aluminum Sputtering Targets
OUR COMPANY
RICH SPECIAL MATERIALS CO.,LTD
Rich Special Materials was established in Beiiing in 2015.We are a Manufacturer of Sputtering Targets and Special Alloy,with“ISO9001”cetification.Our Factory is in Tangshan Industrial Park.On Site Visit to our factory is available.
In our factory, We have many sets of 0.5ka~300kaVIM machines,2kg~30kg Vacuum Suspension Melting Furnace，50~200g Non-consumable Electrode Vacuum Arc Melting Furnace and CNC Machine,in order to meet the requirements from research to mass production.
We supply various sputtering targets such as metals ,alloys, ceramic materials ,which are applicated in the field of Glass Coating, Optical Coating, Solar Cell Coating,Data Storage and Semiconductors.Besides supplying materials,we also offer custom products.Free free to contact us for more information.
We also supply Research Materials to assist our customers in the Research and Development fields.
Our Products
Certifications
PRODUCT LINE
PACKAGING & SHIPPING
FAQ
1.What's your payment terms?
T/T advanced.
2.What's your delivery time?
2.What's your delivery time?
Usually we will arrange the shipment within 7 to 15 days. For customized products within 3-4 weeks
3. How about the packing?
3. How about the packing?
Vacuum packaging for each product and wooden or paper cases outside. If you have special requirements, we will try to satisfy.
4.What documents you provide?
Commerical Invoice, Packing List, Bill of loading, COA , and Origin certificate.
5.Could we print our logo/website/company name on products?
Laser marking is available, MOQ 1 piece.
4.What documents you provide?
Commerical Invoice, Packing List, Bill of loading, COA , and Origin certificate.
5.Could we print our logo/website/company name on products?
Laser marking is available, MOQ 1 piece.
OUR PRODUCTS
1Ni、NiCr、NiV、NiFe、NiCrCu、NiCu、NiMo、NiW、NiCrAIY-X….
2.Ti、TiAl、TiSi、TiAISi、TiAlZr、TiB2、TiCu、Zr、ZrAl、ZrSi…
3.Cr、CrAl、CrSi、CrAISi、CrC、CrB、CrSiBCrTi…
4.Co、CoFe、CoNiFe、CoCrNi、CoCrAIY-X、CoCr-X、CoNbZr…
5.Al、AISi、AISnCu、AlZn、AINb、AINd、AITa、AINb、AIV、Cu、CuZn….
6.Refractory Alloy: W、Mo、Ta、Nb、Hf、WTi、WMo、TaTi、NbZr、WC+X…
7.Precious Metal:Au、Ag、Pt、Ir、Re、AgTi、AuNi、AgCu 、PtAu….
8.Low Melting Point Alloy and Brazing Material:Bi 、Pb 、Sn、PbBi 、SnNiCu、 SnAICu.…. 9.Inconel 600、Monel、Hastelloy、GH4169、K4002 、5K、4J36、1J50 Alloy…10.Processing & Smelting Service for High-entropy alloy、Copper Alloy、 Aluminum Alloy、Zinc Alloy、Titanium Alloy、Zirconium Alloy、LowAlloy Steel、 High Alloy Steel、High Temperature Alloy、Functional Materials、Refractory Alloy and Precious Metal.
