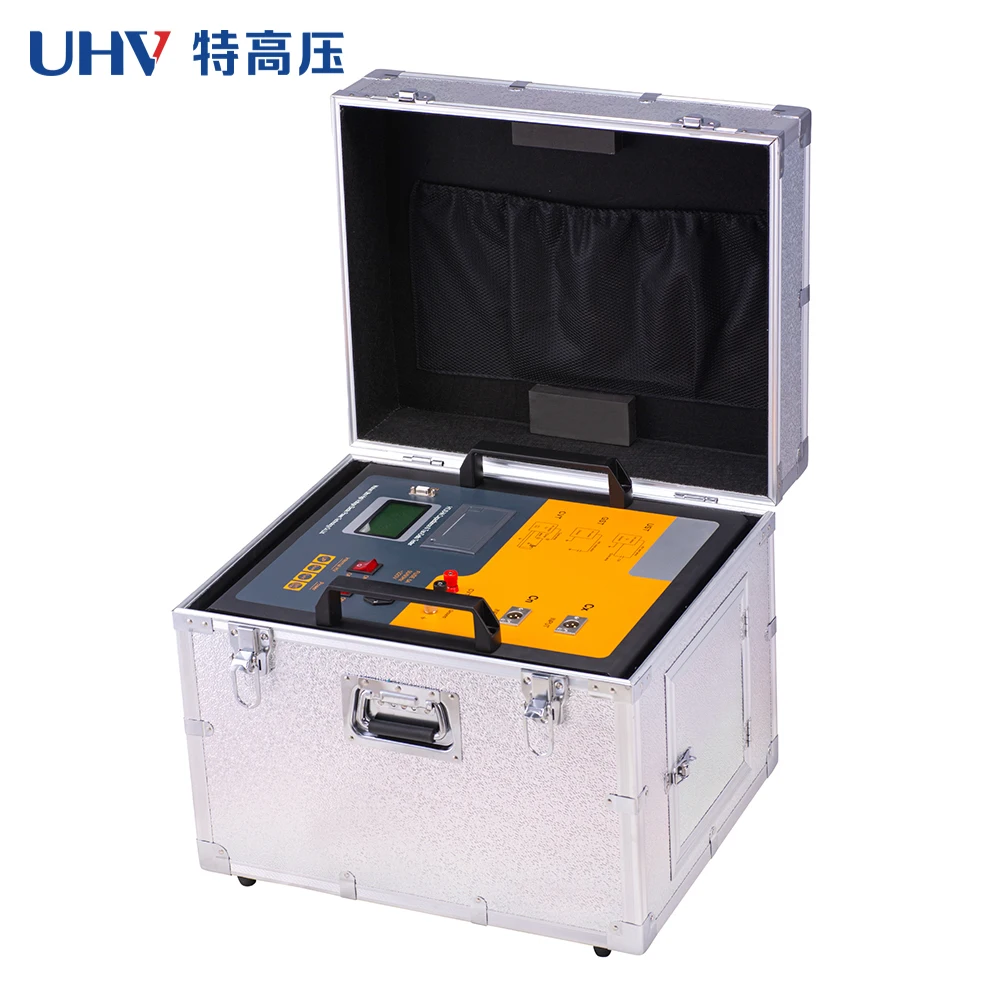

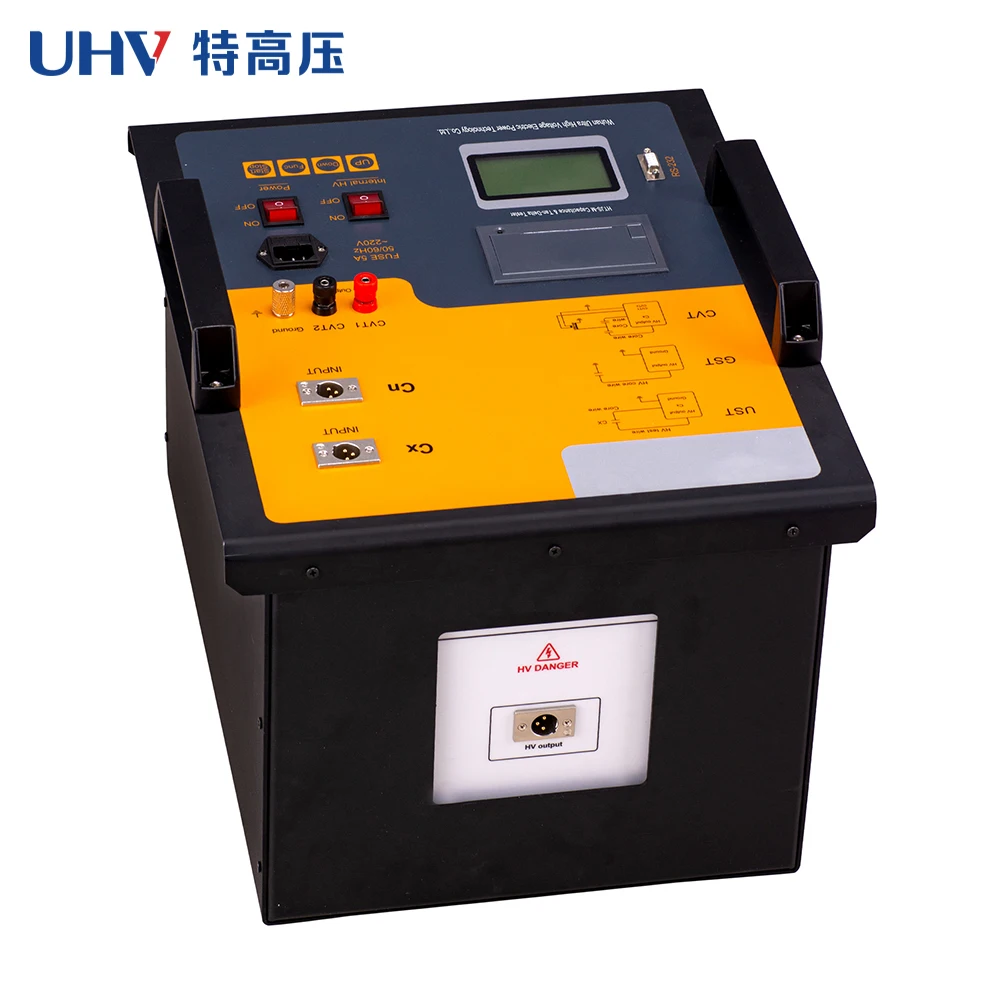

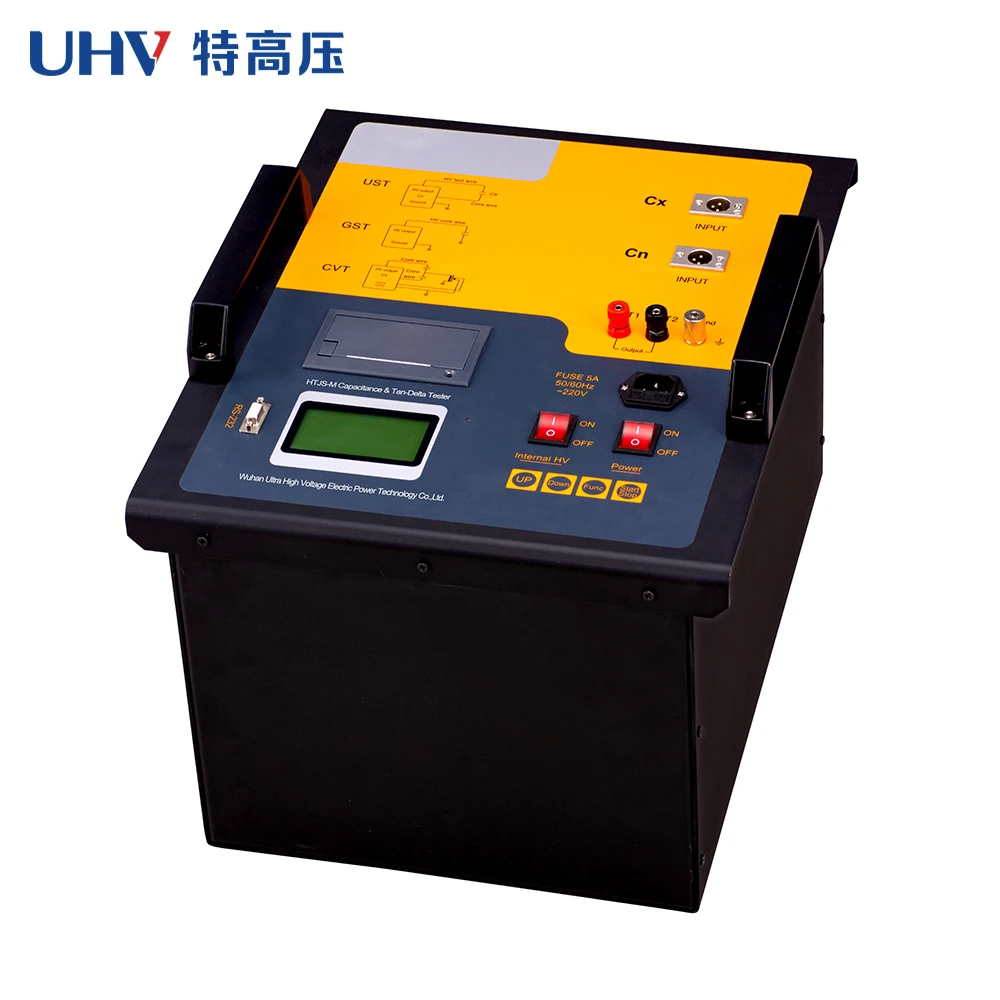

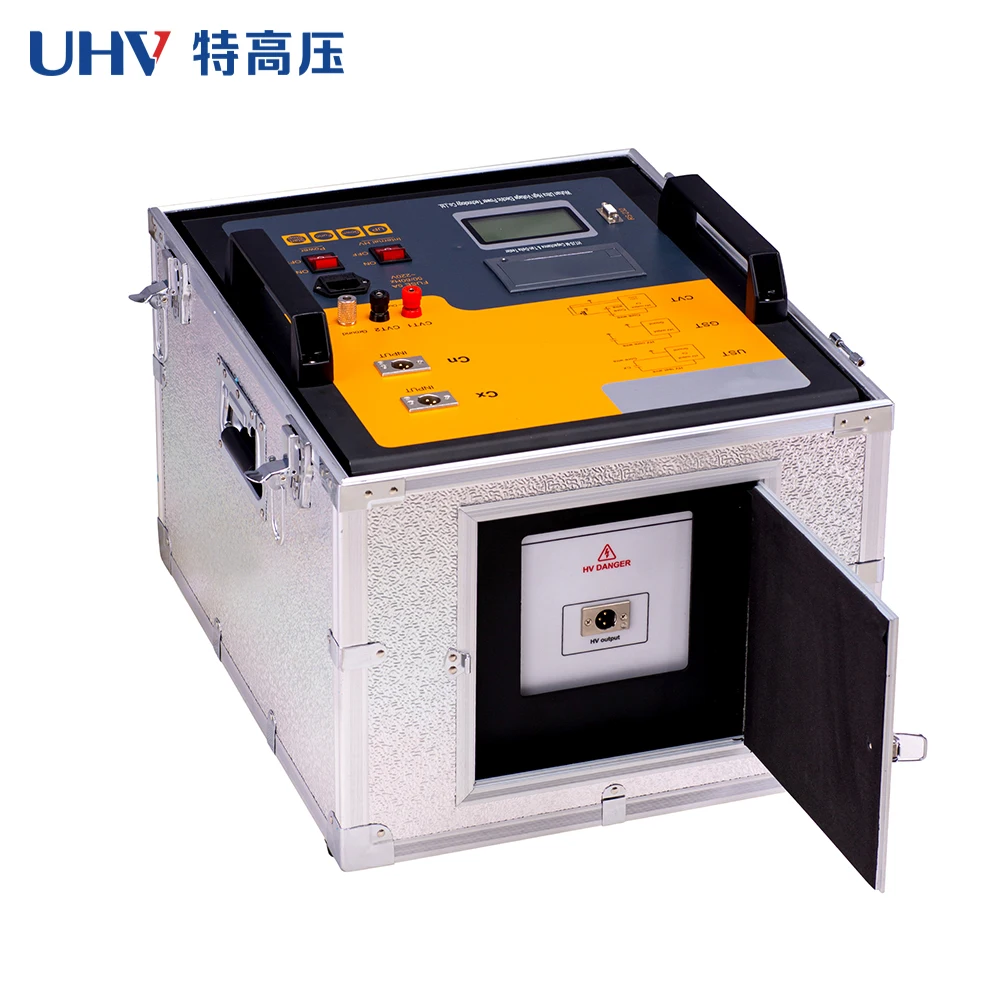

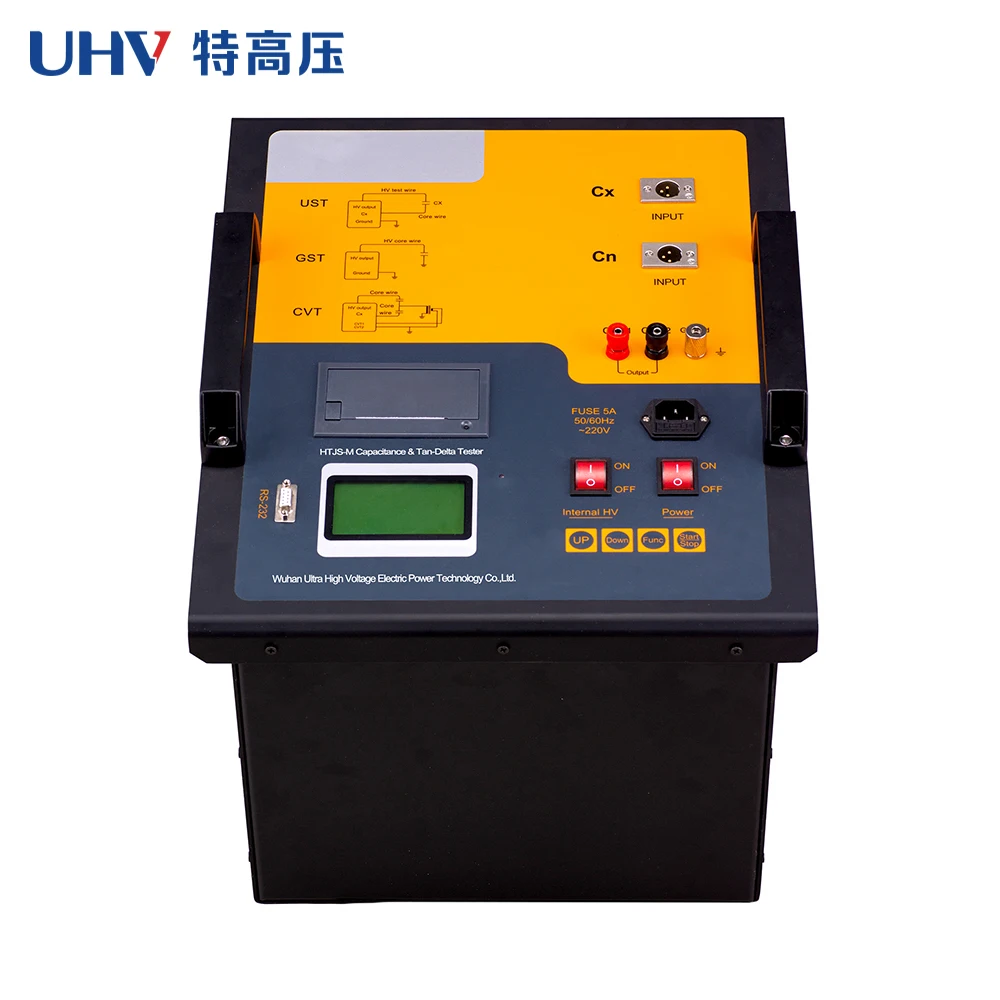

HTJS M intelligent dielectric loss tester anti interference dielectric loss measuring instrument motor dielectric loss tester
- Category: >>>
- Supplier: Wuhan Huatian Electric Power Automation Co. Ltd.
Share on (1600796909258):
Product Overview
Description
Product Description
The high-voltage dielectric loss test device is used for on-site anti-interference dielectric loss measurement, or precision dielectric loss measurement in the laboratory. The instrument is an integrated structure with built-in dielectric loss bridge, variable frequency power supply, test transformer and standard capacitors. Using frequency conversion anti-interference and Fourier transform digital filtering technology, automatic and intelligent measurement, the measurement data is very stable under strong interference. The measurement result is displayed by a large-screen LCD, and the built-in micro-printer can be printed out.
Product Feature
1.2.1 Frequency conversion anti-interference
Using frequency conversion anti-interference technology, it can still measure accurately under 200% interference, and the test data is stable, which is suitable for on-site anti-interference dielectric loss test.
1.2.2 High-precision measurement
Using techniques such as frequency floating, digital waveform analysis, and bridge self-calibration, combined with high-precision three-terminal standard capacitors, high-precision dielectric loss measurement is achieved, and the accuracy and stability of the positive/reverse wiring measurement are consistent.
The input resistance of all ranges of the instrument is lower than 2Ω, which eliminates the influence of the additional capacitance of the test line.
It can be connected to an oil cup for precision dielectric loss test of insulating oil, and can be connected to a solid material measuring electrode for precision dielectric loss test of insulating material.
1.2.3 Good compatibility
Automatic identification of 50Hz / 60Hz system power supply, support generator power supply, even if the frequency fluctuates greatly, it can be measured normally.
The built-in series and parallel dielectric loss measurement models are fully compatible with the calibration table and dielectric loss standard, which is convenient for instrument verification.
1.2.4 Multi-level safety protection to ensure personal and equipment safety
High-voltage protection: short-circuit, breakdown or high-voltage current fluctuations of the test product can cut off the output at a high speed in a short-circuit mode.
Low voltage protection: wrong connection of 380V, power supply fluctuation or sudden power failure, start protection, will not cause overvoltage.
Grounding protection: When the instrument's poor grounding causes the enclosure to carry dangerous voltage, the grounding protection is activated.
C V T: Four protection limits of high voltage and current, low voltage and current, will not damage the equipment; wrong selection of the menu will not output excitation voltage. There is no 10kV high voltage output during CVT measurement.
Misoperation prevention: two-level power switch; real-time monitoring of voltage and current; multiple keystrokes to confirm; terminal high/low voltage is clearly defined; slow boosting, rapid decompression, sound and light alarm.
Anti- "capacity rise": When measuring large-capacity samples, there will be a "capacity rise" effect of increased voltage. The instrument can automatically track the output voltage and keep the test voltage constant.
Anti-seismic performance: The instrument adopts a unique anti-seismic design, which can withstand strong long-distance transportation vibration and bumps without being damaged.
High-voltage cable: It is a high-voltage resistant insulated wire that can be used for mopping the ground.
1.2.5 Technological breakthroughs, powerful functions
(1) With an external standard capacitor interface, it can automatically track the frequency of the external test power supply from 45Hz to 65Hz, and support industrial frequency power supply and series resonance power supply for large-capacity high-voltage dielectric loss test.
(2) It has the function of discharging prompt for poor circuit contact to facilitate the judgment of whether the wiring is reliable.
(3) With CVT self-excitation method measurement function, C1/C2 can be measured at the same time during one connection, automatically compensate for the effect of bus grounding and the partial voltage of standard capacitors, without changing wires and connecting any external accessories, and high-voltage connecting wires can be grounded.
(4) With reverse wiring low-voltage shielding function, when the 220kVCVT bus is grounded, the C11 can be measured without disconnecting the 10kV reverse wiring dielectric loss, and the master and slave capacitors can be measured at the same time for one wiring.
(5) Chinese graphic menu, large backlit LCD display.
(6) Equipped with thermal printer, printing data is clear and fast, without noise
(7) With calendar clock, 100 sets of measurement data can be stored.
(8) With computer interface (optional). Through this interface, the measurement, data processing and report output can be realized, and the internal measurement software of the instrument can also be upgraded. A computer can control 32 instruments, which can be integrated into a comprehensive high-voltage test vehicle.
Using frequency conversion anti-interference technology, it can still measure accurately under 200% interference, and the test data is stable, which is suitable for on-site anti-interference dielectric loss test.
1.2.2 High-precision measurement
Using techniques such as frequency floating, digital waveform analysis, and bridge self-calibration, combined with high-precision three-terminal standard capacitors, high-precision dielectric loss measurement is achieved, and the accuracy and stability of the positive/reverse wiring measurement are consistent.
The input resistance of all ranges of the instrument is lower than 2Ω, which eliminates the influence of the additional capacitance of the test line.
It can be connected to an oil cup for precision dielectric loss test of insulating oil, and can be connected to a solid material measuring electrode for precision dielectric loss test of insulating material.
1.2.3 Good compatibility
Automatic identification of 50Hz / 60Hz system power supply, support generator power supply, even if the frequency fluctuates greatly, it can be measured normally.
The built-in series and parallel dielectric loss measurement models are fully compatible with the calibration table and dielectric loss standard, which is convenient for instrument verification.
1.2.4 Multi-level safety protection to ensure personal and equipment safety
High-voltage protection: short-circuit, breakdown or high-voltage current fluctuations of the test product can cut off the output at a high speed in a short-circuit mode.
Low voltage protection: wrong connection of 380V, power supply fluctuation or sudden power failure, start protection, will not cause overvoltage.
Grounding protection: When the instrument's poor grounding causes the enclosure to carry dangerous voltage, the grounding protection is activated.
C V T: Four protection limits of high voltage and current, low voltage and current, will not damage the equipment; wrong selection of the menu will not output excitation voltage. There is no 10kV high voltage output during CVT measurement.
Misoperation prevention: two-level power switch; real-time monitoring of voltage and current; multiple keystrokes to confirm; terminal high/low voltage is clearly defined; slow boosting, rapid decompression, sound and light alarm.
Anti- "capacity rise": When measuring large-capacity samples, there will be a "capacity rise" effect of increased voltage. The instrument can automatically track the output voltage and keep the test voltage constant.
Anti-seismic performance: The instrument adopts a unique anti-seismic design, which can withstand strong long-distance transportation vibration and bumps without being damaged.
High-voltage cable: It is a high-voltage resistant insulated wire that can be used for mopping the ground.
1.2.5 Technological breakthroughs, powerful functions
(1) With an external standard capacitor interface, it can automatically track the frequency of the external test power supply from 45Hz to 65Hz, and support industrial frequency power supply and series resonance power supply for large-capacity high-voltage dielectric loss test.
(2) It has the function of discharging prompt for poor circuit contact to facilitate the judgment of whether the wiring is reliable.
(3) With CVT self-excitation method measurement function, C1/C2 can be measured at the same time during one connection, automatically compensate for the effect of bus grounding and the partial voltage of standard capacitors, without changing wires and connecting any external accessories, and high-voltage connecting wires can be grounded.
(4) With reverse wiring low-voltage shielding function, when the 220kVCVT bus is grounded, the C11 can be measured without disconnecting the 10kV reverse wiring dielectric loss, and the master and slave capacitors can be measured at the same time for one wiring.
(5) Chinese graphic menu, large backlit LCD display.
(6) Equipped with thermal printer, printing data is clear and fast, without noise
(7) With calendar clock, 100 sets of measurement data can be stored.
(8) With computer interface (optional). Through this interface, the measurement, data processing and report output can be realized, and the internal measurement software of the instrument can also be upgraded. A computer can control 32 instruments, which can be integrated into a comprehensive high-voltage test vehicle.
Product Paramenters
Accuracy | Cx | ±(reading×1%+1pF) | |
tgδ | ±(reading×1%+0.00040) | ||
Anti-interference index | variable-frequency anti-interference, under 200% interference can still achieve the above accuracy | ||
Capacitance Range | internal HV | 3pF~60000pF/10kV 60pF~1.2μF/0.5kV | |
external HV | 3pF~1.5μF/10kV 60pF~30μF/0.5kV | ||
resolution | Max: 0.001pF,4 digits | ||
tgδrange | Unlimited, resolution of 0.001%, automatically identify the tested samples of capacitance, inductance and resistance. | ||
Test CurrentRange | 10μA~5A | ||
Power | 2kVA | ||
Internal HV | Voltage range | 0.5~10kV | |
Max output current | 200mA | ||
Step-up and step-down voltage mode | Continuous smooth adjustment | ||
Test Frequency | 45,50,55,60,65Hzsingle-frequency 49/51Hz,45/55Hz,47.5/52.5Hz automatic dual variable-frequency | ||
Frequency Accuracy | ±0.01Hz | ||
External HV | When forward wiring the max test current is 5A, power frequency or variable frequency is 45-65Hz | ||
When reverse wiring the max test current is 10kV/5A, power frequency or variable frequency is 45-65Hz | |||
CVT self-excited method low voltage output | Output voltage 3 ~ 50V, output current 3 ~ 30A | ||
Measuring time | About 30 s, correlate with the measurement mode | ||
Input Power | 180V~270VAC,50Hz/60Hz±1% ,Mains or generator power supply | ||
Computer Interface | Standard RS232 interface (Optional) | ||
Printer | Comes with mini thermal printer | ||
Temperature | -10℃~50℃ | ||
Relative Humidity | <90% | ||

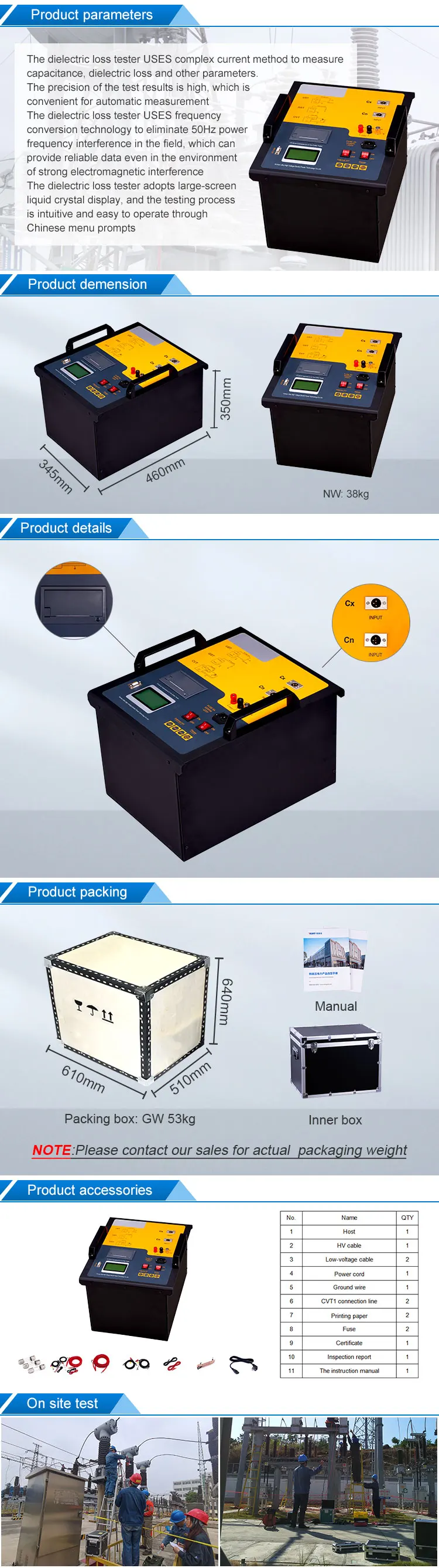

Details Images
