Hose Nut and Insert Assemble Machine Flexible Sleeve Nut Insert Faucet Assemble Machine
- Category: >>>
- Supplier: Shandong Yongfeng Hydraulic Machinery Co. Ltd.
Share on (1600797073565):
Product Overview
Description
Product Description
Product Description

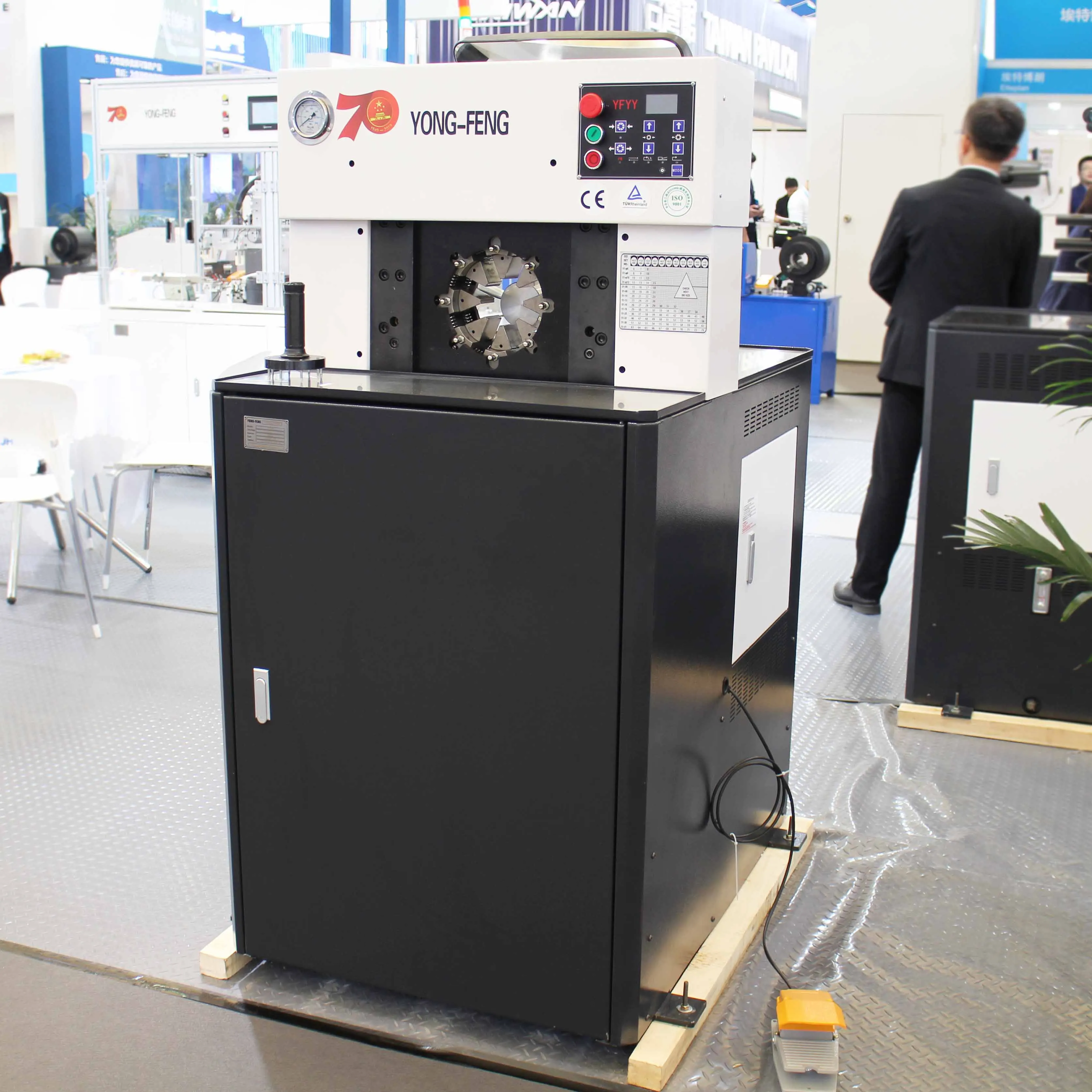

Y160 crimiping machine hydraulic hose 2 is leading in terms of speed, precision, reliability and durability.
She's suitable for high strength pressure hydraulic hoses and industrial hoses,
She's suitable for high strength pressure hydraulic hoses and industrial hoses,
and designed to handle the high production volumes hoses.
Y160 crimiping machine hydraulic hose 2 is strong and compact, easy to move from one place to another.
Y160 crimiping machine hydraulic hose 2 is strong and compact, easy to move from one place to another.
TECHNICAL DATA | ||
H.C. Material | Forge Steel (Cr40) | |
Max Hose Size | 2", 6SP (ID 51mm) | |
Crimping Range | 3mm-89mm (1/8"-3 1/2") | |
Max Opening/mm | +65 | |
Opening without Dies | 160mm (6 5/16") | |
Accessible Diameter | 160mm (6 5/16") | |
Master Die Length | 90mm | |
System Pressure | 31.5Mpa | |
Motor | 5.5kW | |
Voltage | 110/220/380/400/415V | |
Crimping Force | 2800kN/280T | |
Conttol | Digital | |
Noise Level | 60dBA | |
Weight | 1230kg | |
Size (L*W*H) | 730*1000*1620mm | |
Detailed Images

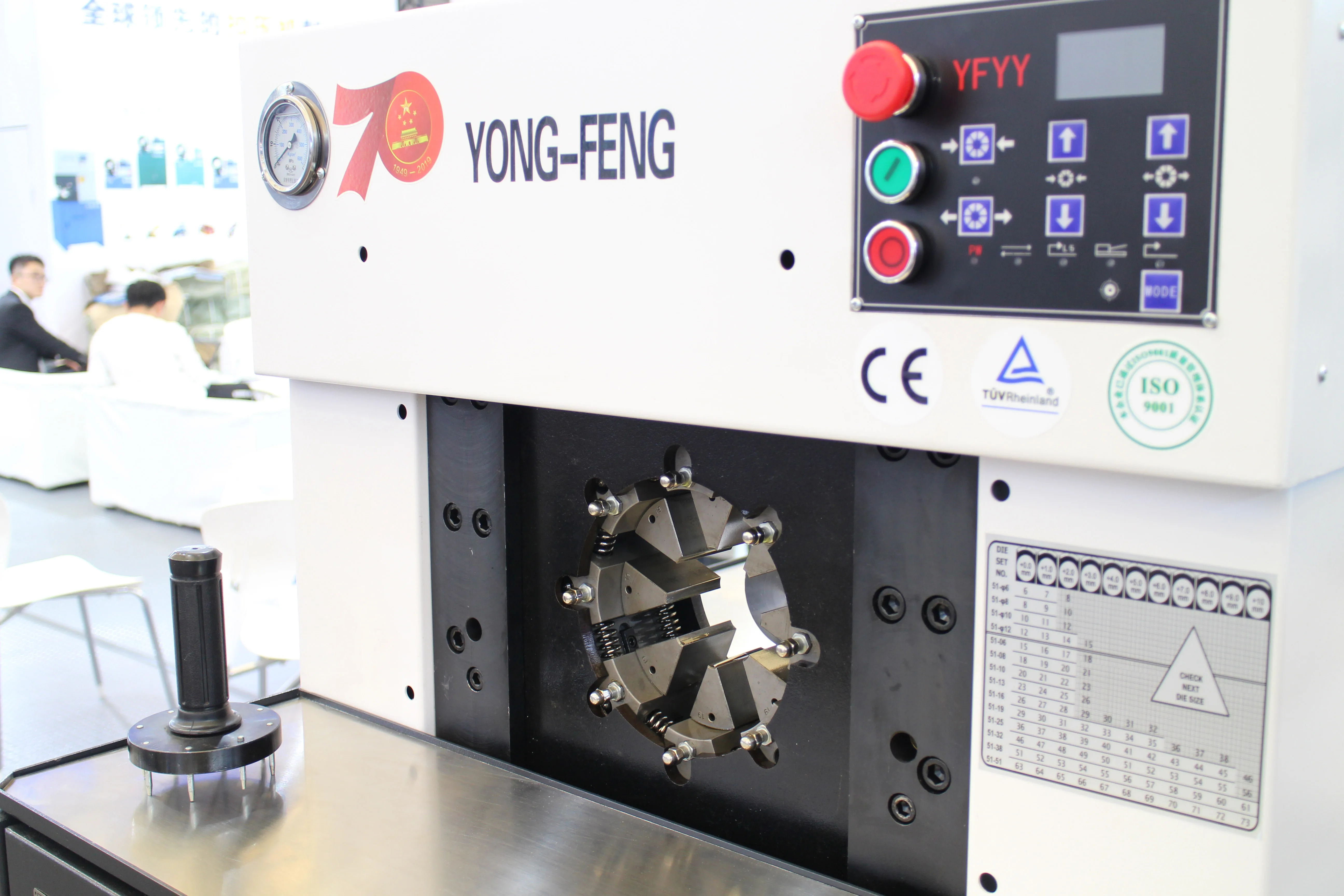

Attribute: CNC Operation Panel

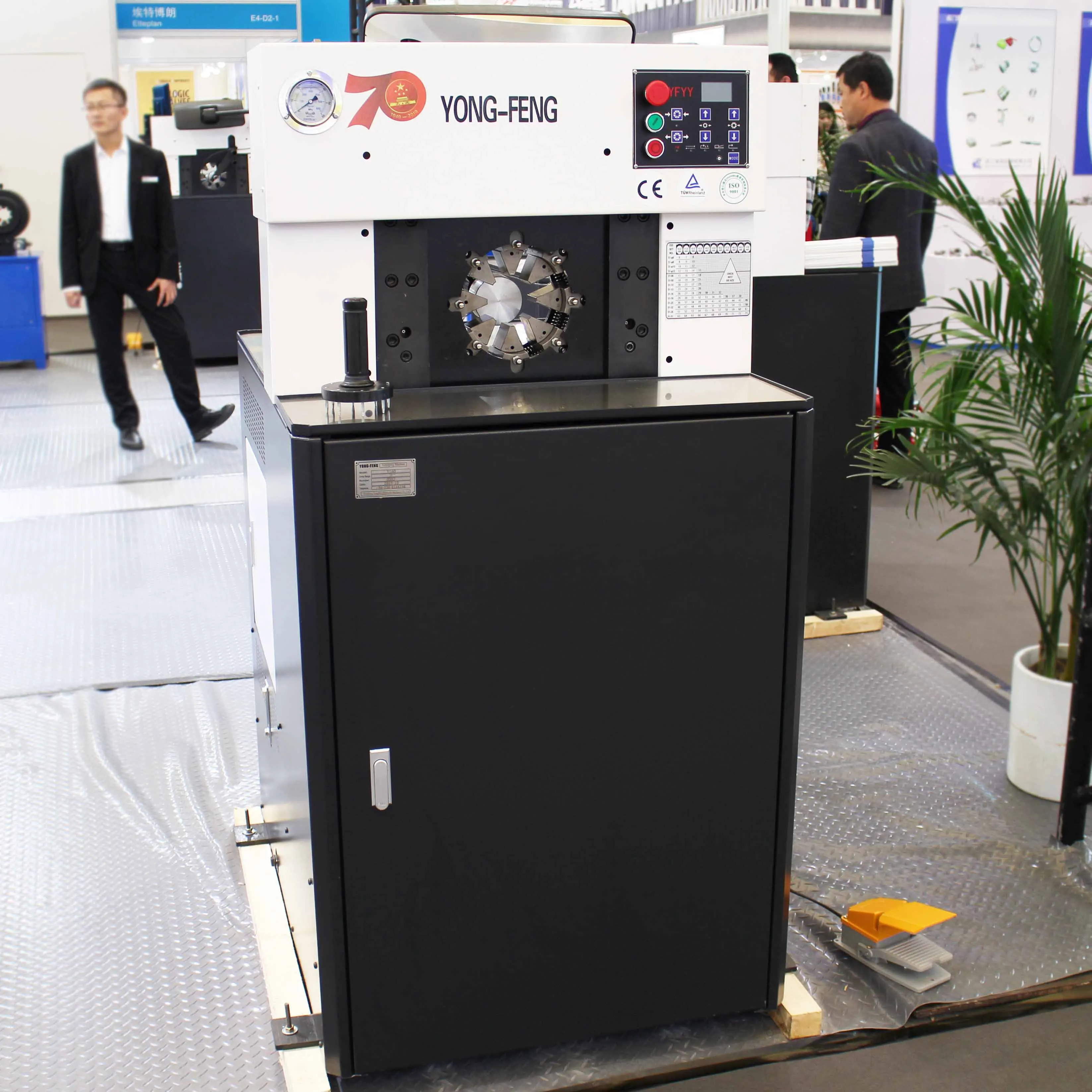

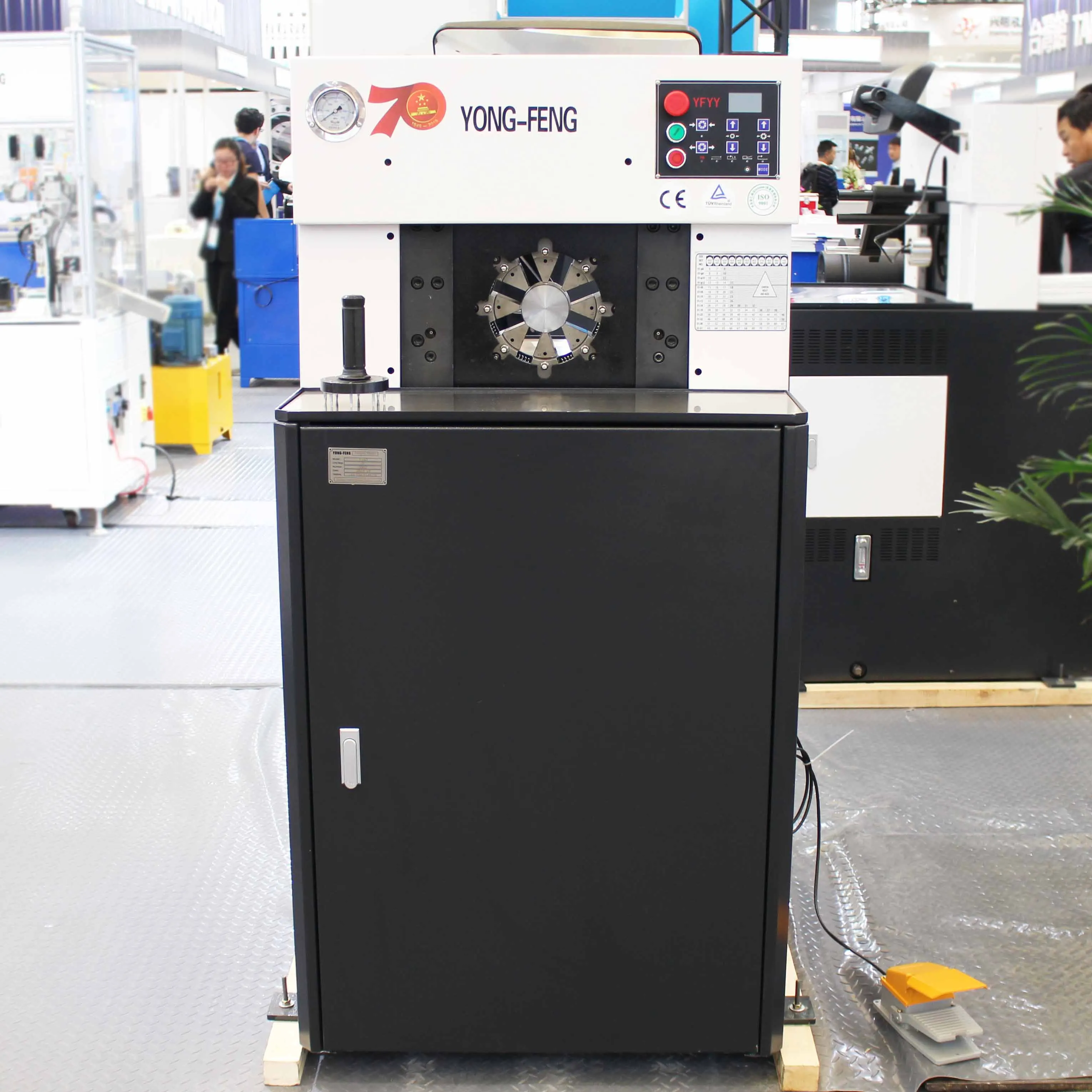

YONG-FENG Y160 crimiping machine hydraulic hose 2 is equipped with computer numerical control operation panel. It makes crimping more accurate, faster and simpler.

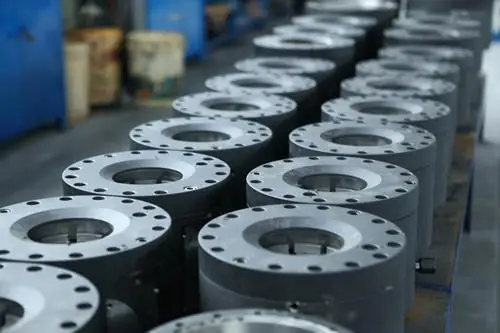

Attribute: Forge Steel
Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC 26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.

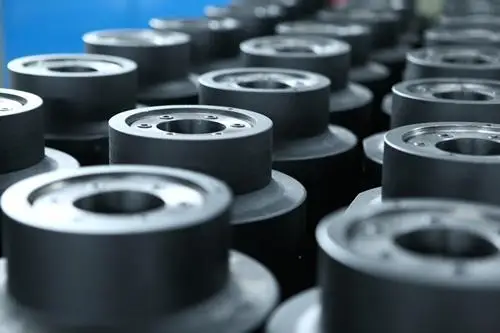

Attribute: Strong Connection

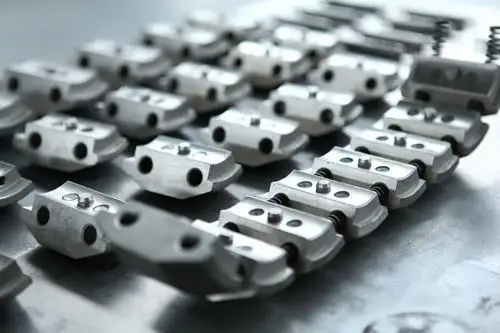

Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000.
YONG-FENG Y160 crimiping machine hydraulic hose 2 is equipped with computer numerical control operation panel. It makes crimping more accurate, faster and simpler.
Attribute: Forge Steel
Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC 26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.

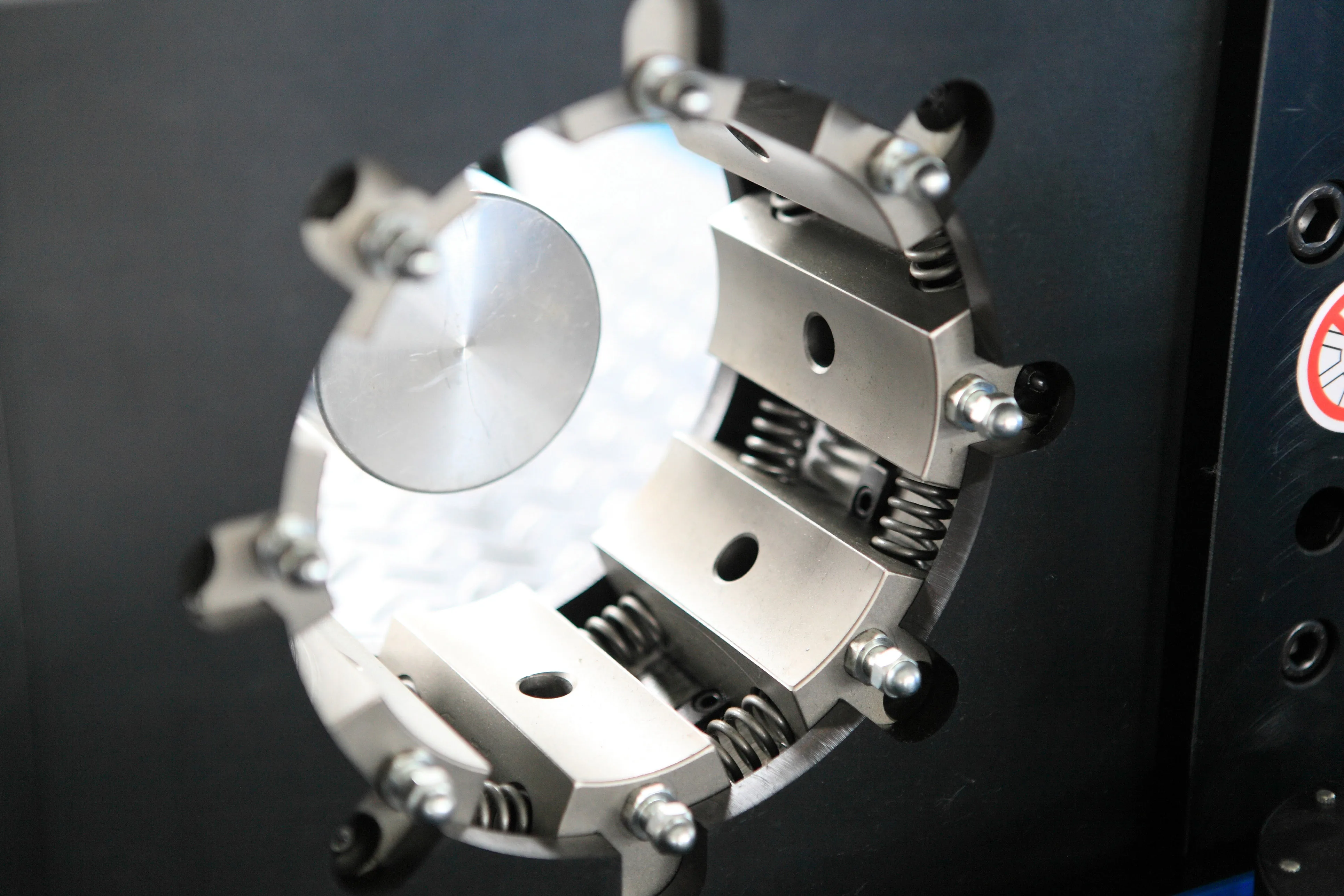

Attribute: Strong Connection
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000.
Company Introduction
YONG-FENG Hydraulic, the professional manufacturer of hydraulic hose crimpers, cutter, skiving machine, test bench, nut crimper accessories for over 30 years.
YONG-FENG hose crimping machines are widely used in industries of hydraulic repair service of construction machinery, agricultural machinery, oil fields, mining, greenhouse, galvanized steel pipes etc.
Our Services & Strength
YONG-FENG products have been sold in over 100 countries and regions around the world.
We have distributors and partners in more than 11 countries such sa Russia, New Zealand, Thailand, Denmark, India etc.Packing&Shipping

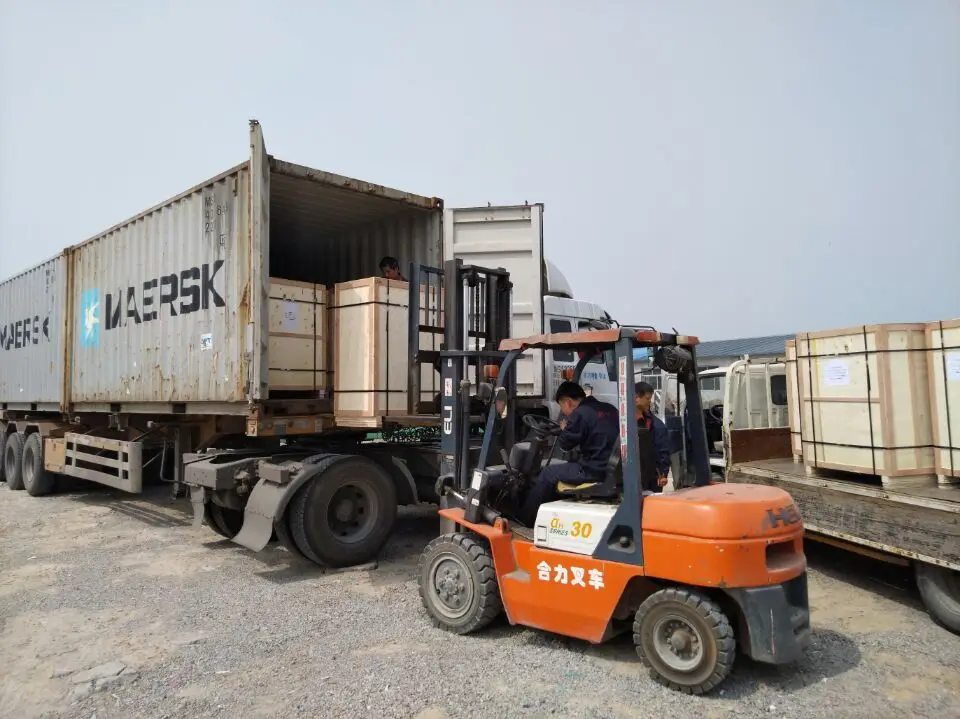

Packing: The outside package is wooden plywood, and the inner package is moisture-proof plastic film.
Transportation method: by sea, land, air.
After Sales Service
Installation & Commissioning
* Instruction manual
* Online support
* Video technical support
Warranty & Accessories
* Warranty 3 years.
* Provide free accessories
FAQ
1.Q: What's the difference of your machine with others?
A: FORGE Steel machine head, 3 times stronger than general machine.
2.Q: Are you the manufacturer or trading company?
A: We are the manufacturer for crimping machine over 30 years, since 1992.
3.Q: Why we choose YONG-FENG?
A: CE & ISO certifications, Alibaba Assessed Supplier and every machine warranted for 3 years.
4.Q: What is the MOQ?
A: We would like to provide 1 set for you test.
5.Q: If I can not find the machine which I need,what should I do?
A: Pls contact me on line or inquiry, write down your request and email, I will reply you as soon as possible.
A: FORGE Steel machine head, 3 times stronger than general machine.
2.Q: Are you the manufacturer or trading company?
A: We are the manufacturer for crimping machine over 30 years, since 1992.
3.Q: Why we choose YONG-FENG?
A: CE & ISO certifications, Alibaba Assessed Supplier and every machine warranted for 3 years.
4.Q: What is the MOQ?
A: We would like to provide 1 set for you test.
5.Q: If I can not find the machine which I need,what should I do?
A: Pls contact me on line or inquiry, write down your request and email, I will reply you as soon as possible.
6.Q: What about the price?
A: The price 3000-3500 is for sample parts, not for whole machine.
