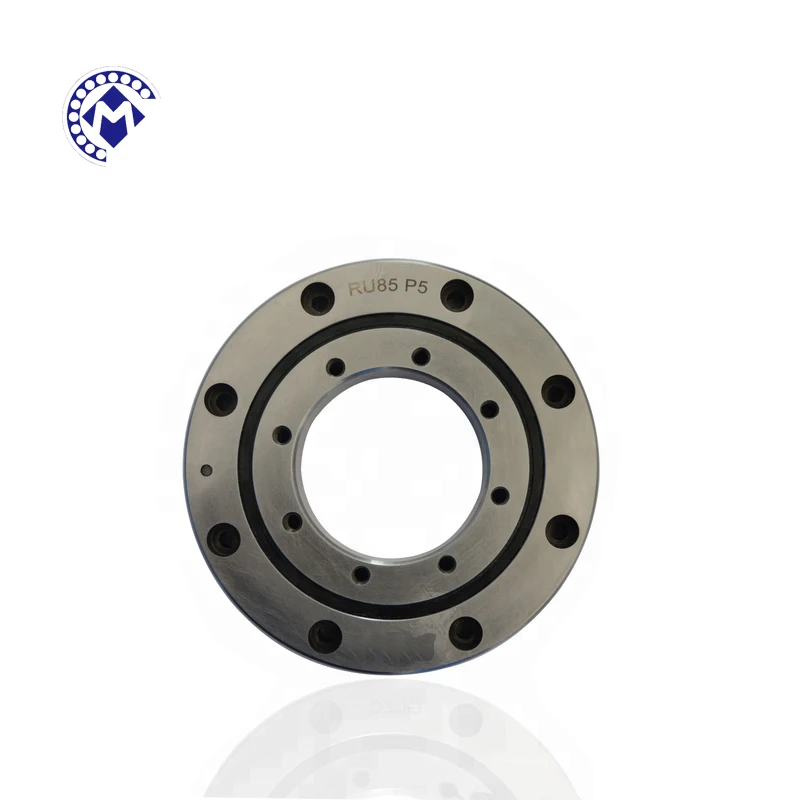

RU Series Crossed roller bearing With Inner Ring Rotation RU85 RU85UUCC0
- Category: >>>
- Supplier: Luoyang Mc Bearing Technology Co. Ltd.
Share on (1600797297974):
Product Overview
Description
RU Series Crossed roller bearing With Inner Ring Rotation RU85 RU85UUCC0
RU series crossed roller bearing

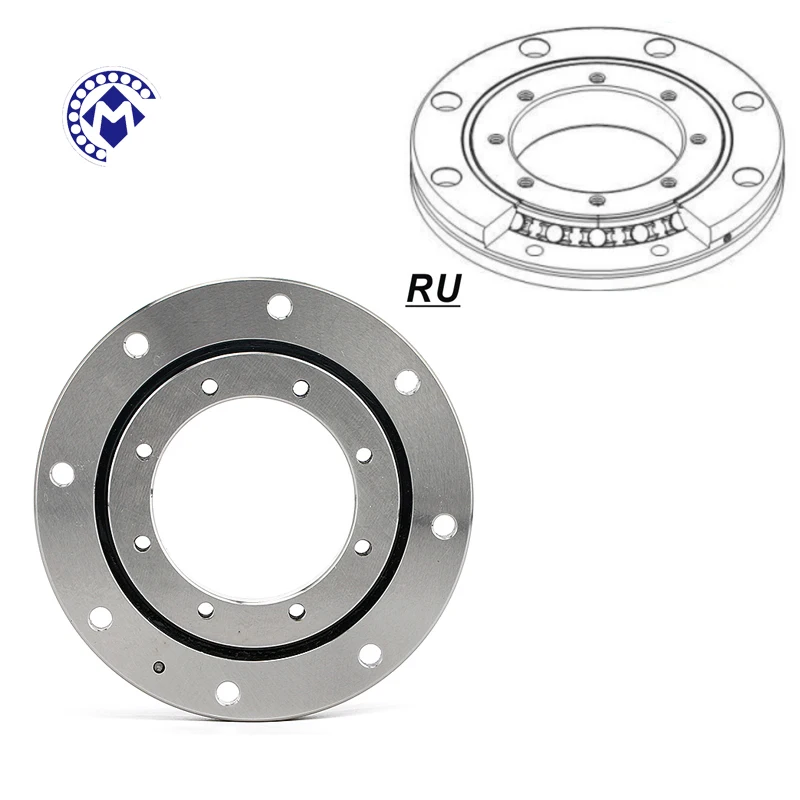

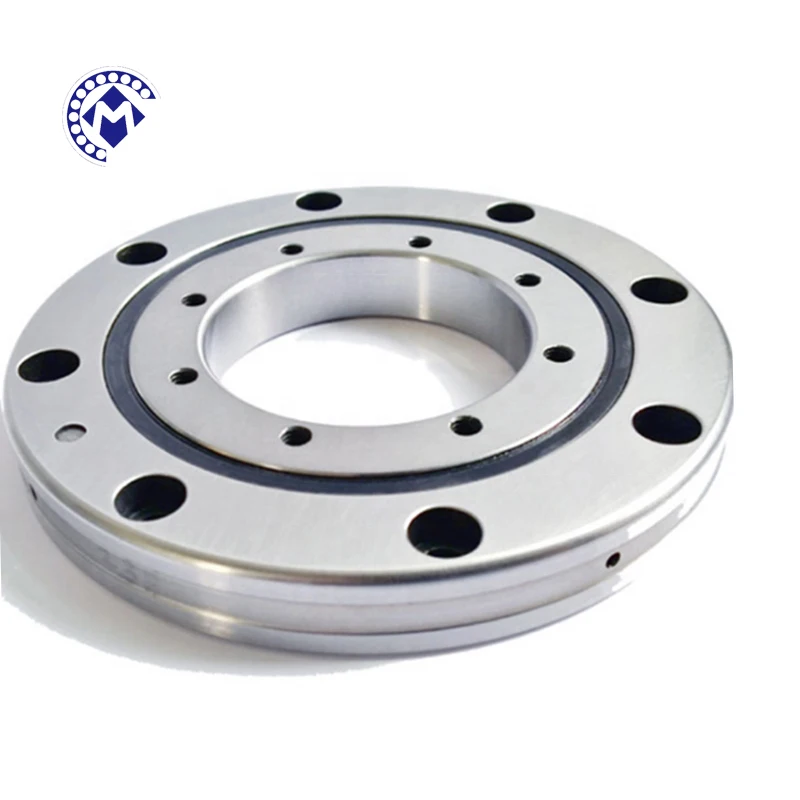

RU series(Integrated Inner/Outer Ring type) Since the mounting holes are provided, the model does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. This model can be used for both inner-ring rotation and outer-ring rotation.
CrossedRoller bearing achieves high rigidity and the precision can reach up to P4.P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines.
Product Description
| TYPE | Inner diameter | Outer diameter | Pitch diameter | Height | Chamfer | Shoulder size | Basic rated load(Radial) | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| d | D | Dpw | B | r | ds | Dh | Cr Kn | Cor Kn | KG | |
| RU 28 | 10 | 52 | 28 | 8 | 0.3 | 24 | 29.5 | 2.9 | 24 | 0.12 |
| RU 42 | 20 | 70 | 41.5 | 12 | 0.6 | 37 | 47 | 7.35 | 8.35 | 0.29 |
| RU 66 | 35 | 95 | 66 | 15 | 0.6 | 59 | 74 | 17.5 | 22.3 | 0.62 |
| RU 85 | 55 | 120 | 85 | 15 | 0.6 | 79 | 93 | 20.3 | 29.5 | 1 |
| RU 124(G) | 80 | 165 | 124 | 22 | 1 | 114 | 134 | 33.1 | 50.9 | 2.6 |
| RU 124X | 80 | 165 | 124 | 22 | 1 | 114 | 134 | 33.1 | 50.9 | 2.6 |
| RU 148X | 90 | 210 | 147.5 | 25 | 1.5 | 133 | 162 | 49.1 | 76.8 | 4.9 |
| RU 178X | 115 | 240 | 178 | 28 | 1.5 | 161 | 195 | 80.3 | 135 | 6.8 |
| RU 228X | 160 | 295 | 227.5 | 35 | 2 | 208 | 246 | 104 | 173 | 11.4 |
