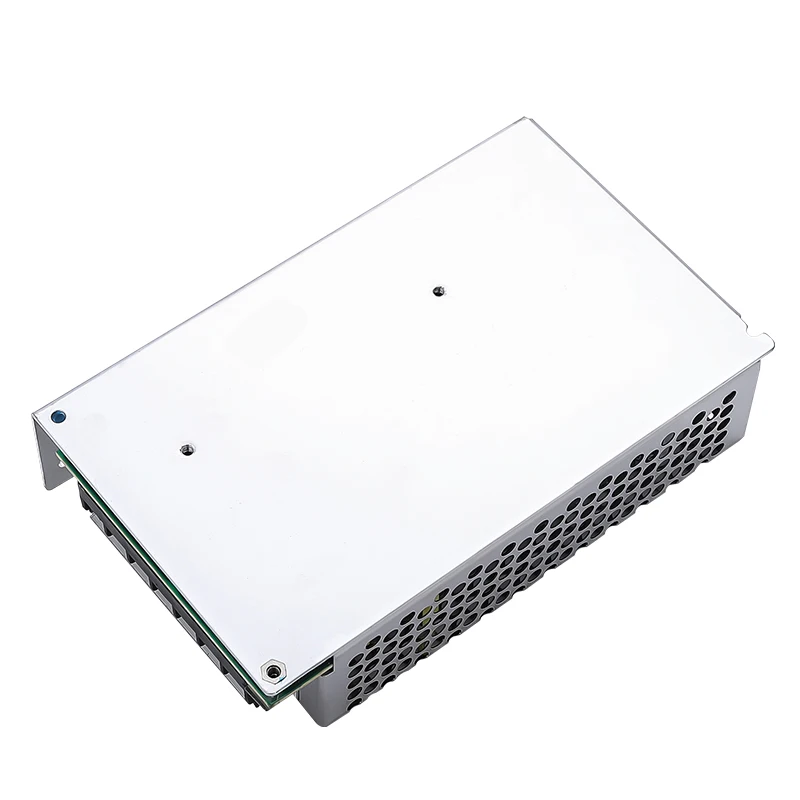

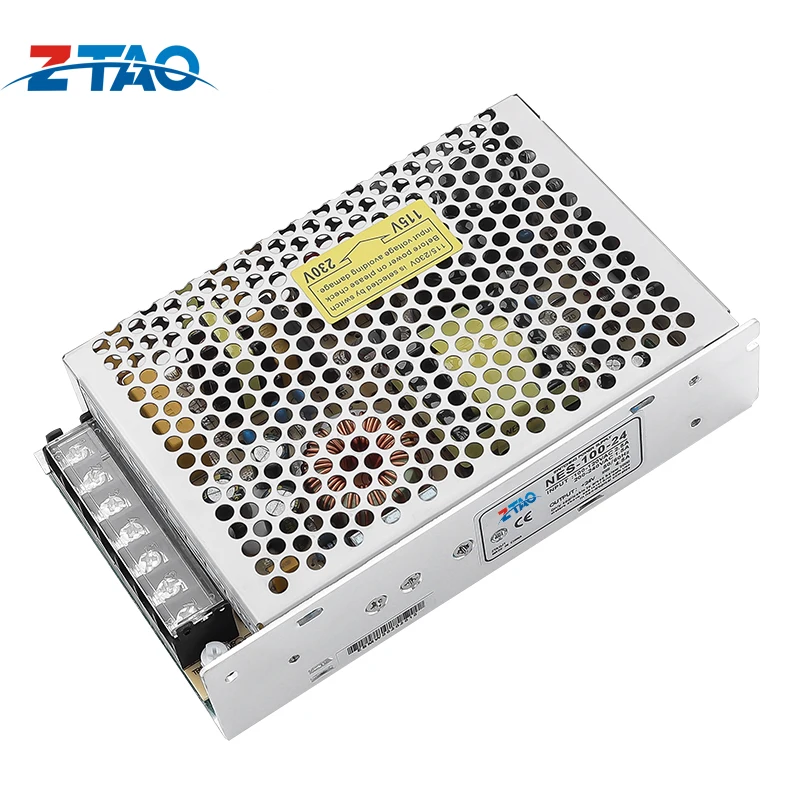

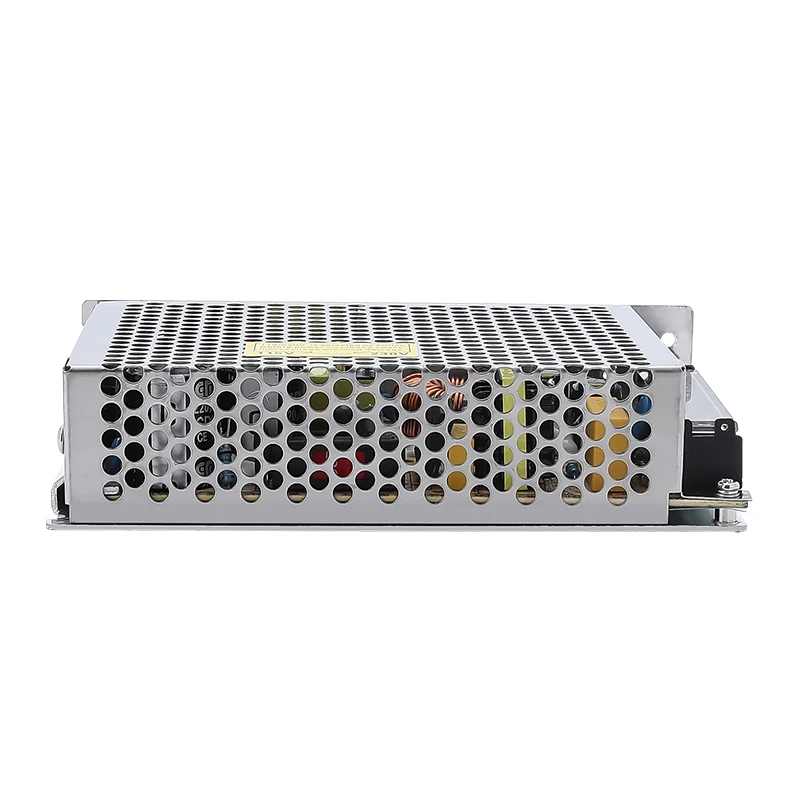

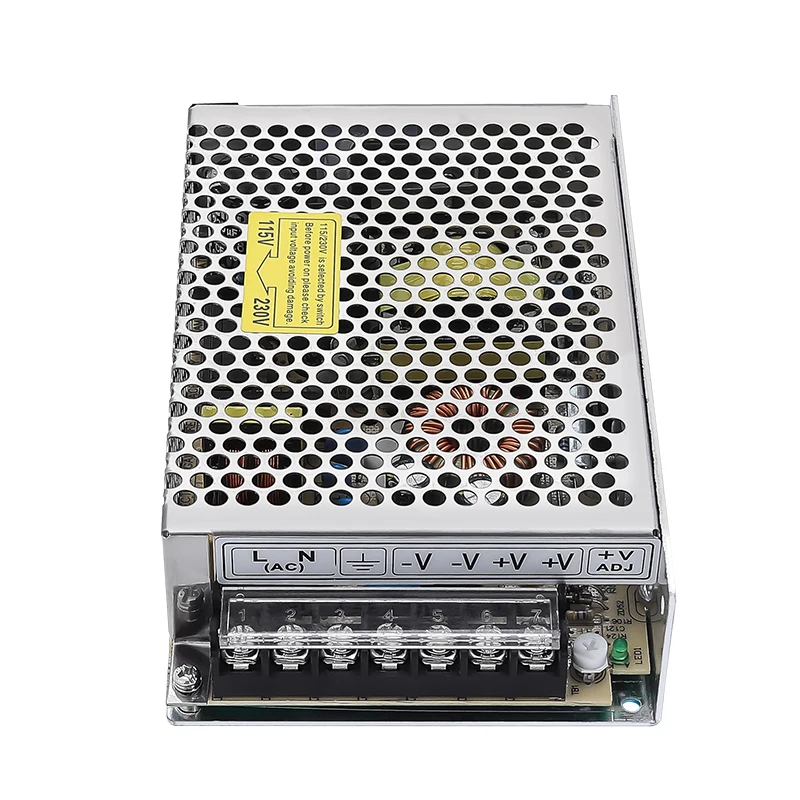

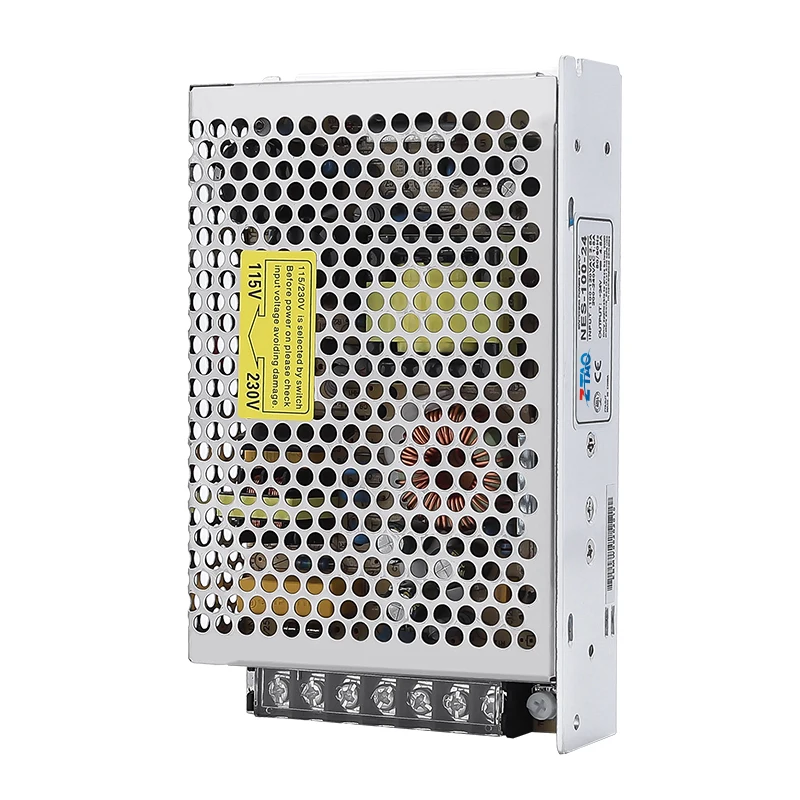

smps power adapters NES 100 5 Single Output 100W 12v 8.5A 5v 20A high current switch power supply Led Switching Power Supply
- Category: >>>
- Supplier: Zhitao Electric Group Co. Ltd.
Share on (1600797368545):
Product Overview
Description

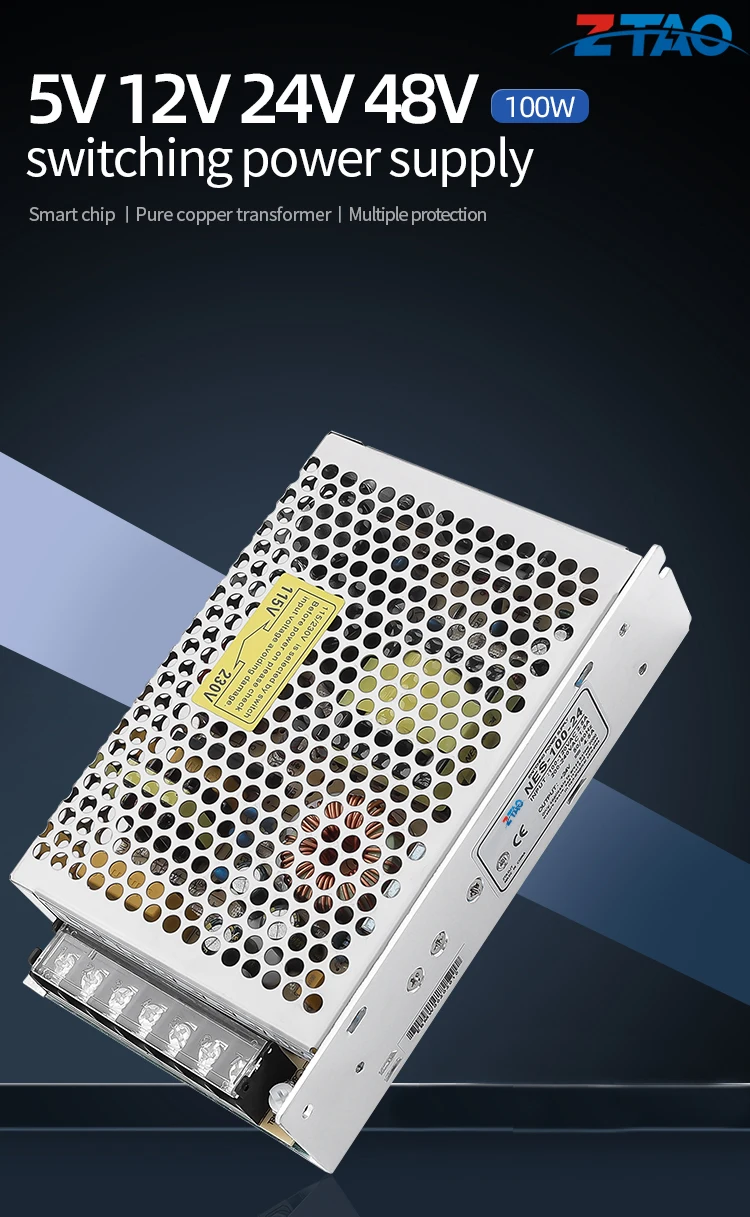

5V 12V 24V 48V
NES-100-24 Switching Power Supply
Features
1.High Efficiency and Factory Price
2.100% full load burn-in test
3.Low output ripple and noise
4.Direct Manufacturer
5.THREE YEARS WARRANTY!

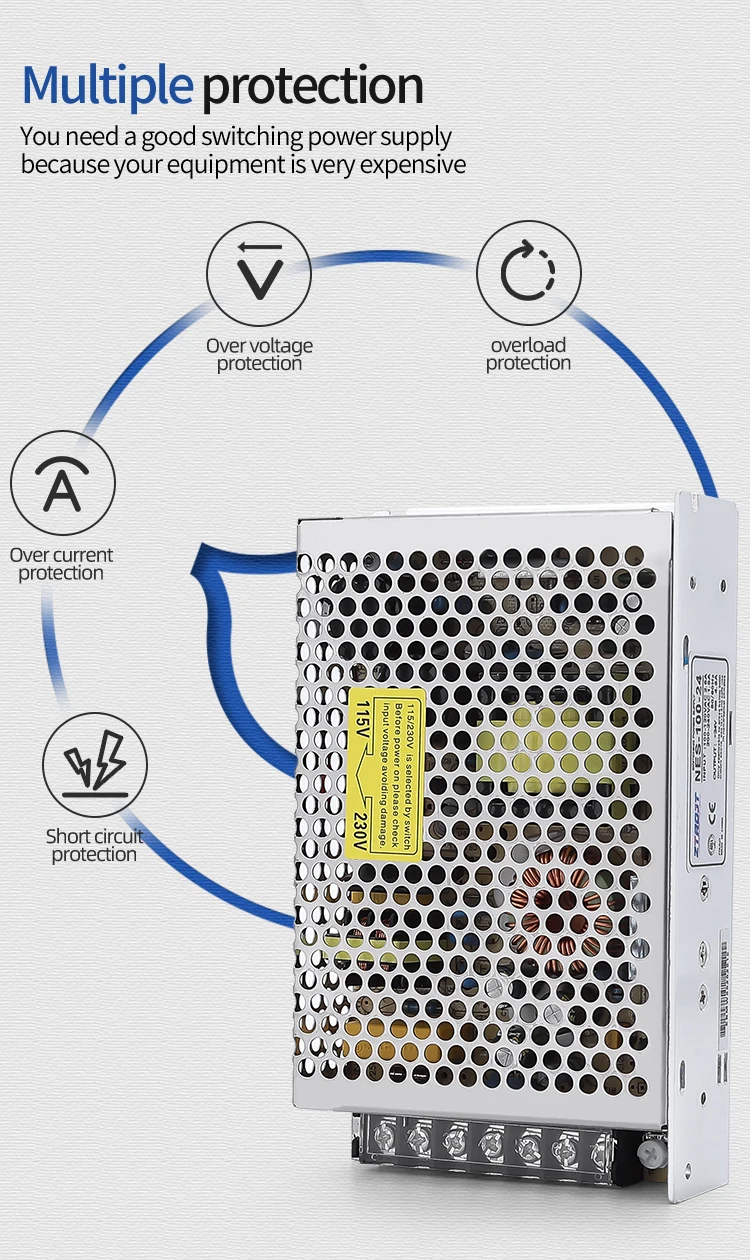

6.Protection: Over load/Over voltage/Short circuit/Over Temperature
1.High Efficiency and Factory Price
2.100% full load burn-in test
3.Low output ripple and noise
4.Direct Manufacturer
5.THREE YEARS WARRANTY!
6.Protection: Over load/Over voltage/Short circuit/Over Temperature

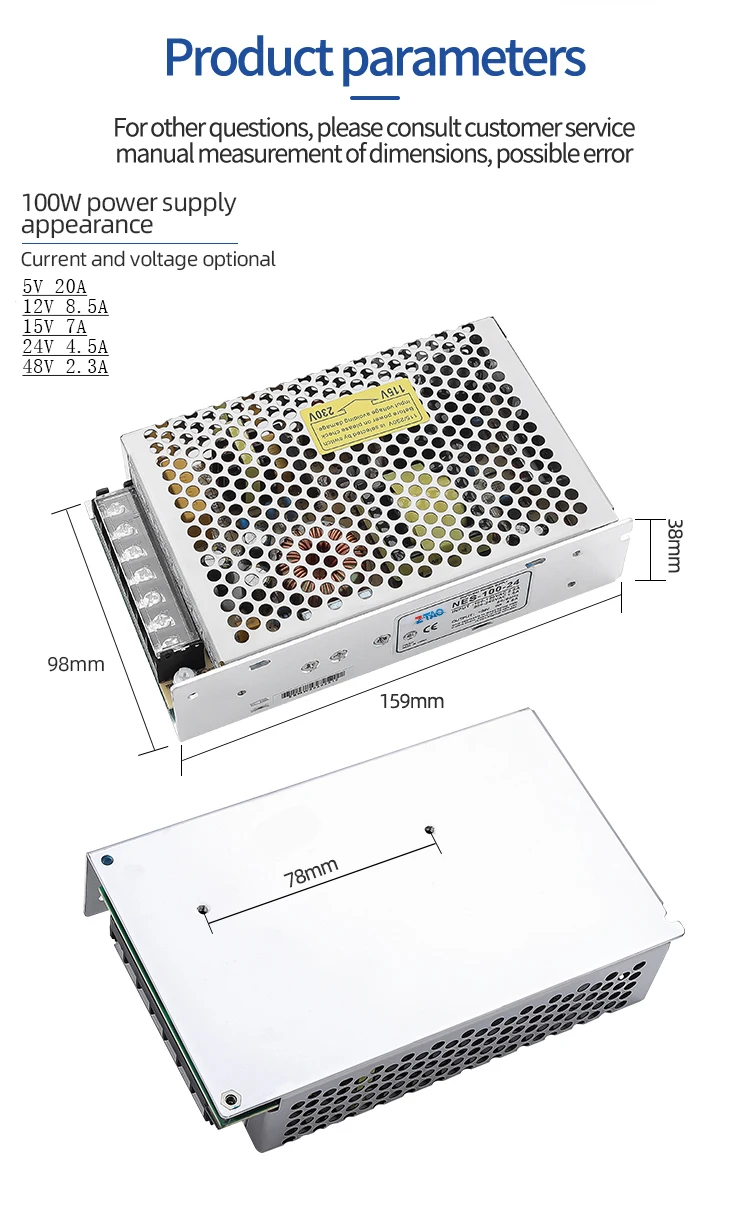

Product Description
Model | NES-100-5 | NES-100-12 | NES-100-15 | NES-100-24 | NES-100-48 | ||||
DC Voltage | 5V | 12V | 15V | 24V | 48V | ||||
Rated Current | 20A | 8.5A | 7A | 4.5A | 2.3A | ||||
Current range | 0~20A | 0~8.5A | 0~7A | 0~4.5A | 0~2.3A | ||||
Rated power | 100W | 100W | 100W | 100W | 100W | ||||
Ripple&noise | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | ||||
Voltage ADJ. | 4.75~5.5V | 10.8~13.2V | 21.6~26.4V | 36~38V | 43.2~53V | ||||
Efficiency | 78% | 80% | 82% | 84% | 86% | ||||
Over load | 105%~150% in rated output power | ||||||||
Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||
Over voltage | 5.75~6.75V | 13.8~16.2V | 27.6~32.4V | 37.2~38.6v | 55.2~64.8V | ||||
Protection mode, tum off output voltage, restart to recover | |||||||||
Details Images

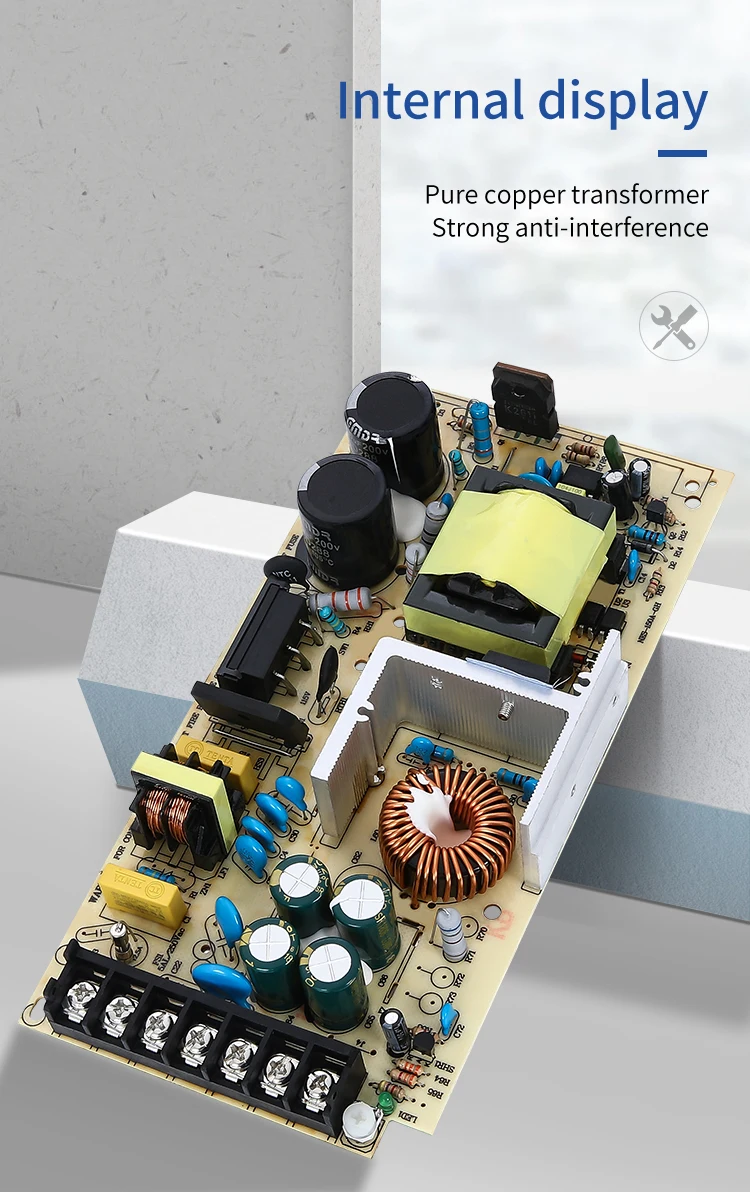

01.
PURE COPPER
TRANSFORMER
High temperature resistance of enameled wire with excellent magnetic core
PURE COPPER
TRANSFORMER
High temperature resistance of enameled wire with excellent magnetic core
02.
FILTER CAPACITOR
High voltage withstand,low loss and large capacity
03.
DUST PROTECTION COVER
Prevent accidental touch and improve safety performance
DUST PROTECTION COVER
Prevent accidental touch and improve safety performance
