Plastic PE Spiral Wrap Sleeve pipe PE Protection Guard Hydraulic Spiral Hose Protector Pipe Extrusion Making Machine Line
- Category: >>>
- Supplier: Dongguan City Yaoan Plastic Machinery Co. Ltd.
Share on (1600797387384):
Product Overview
Description
Product Overview
CABLE SPIRAL GUARD HOSE MACHINE

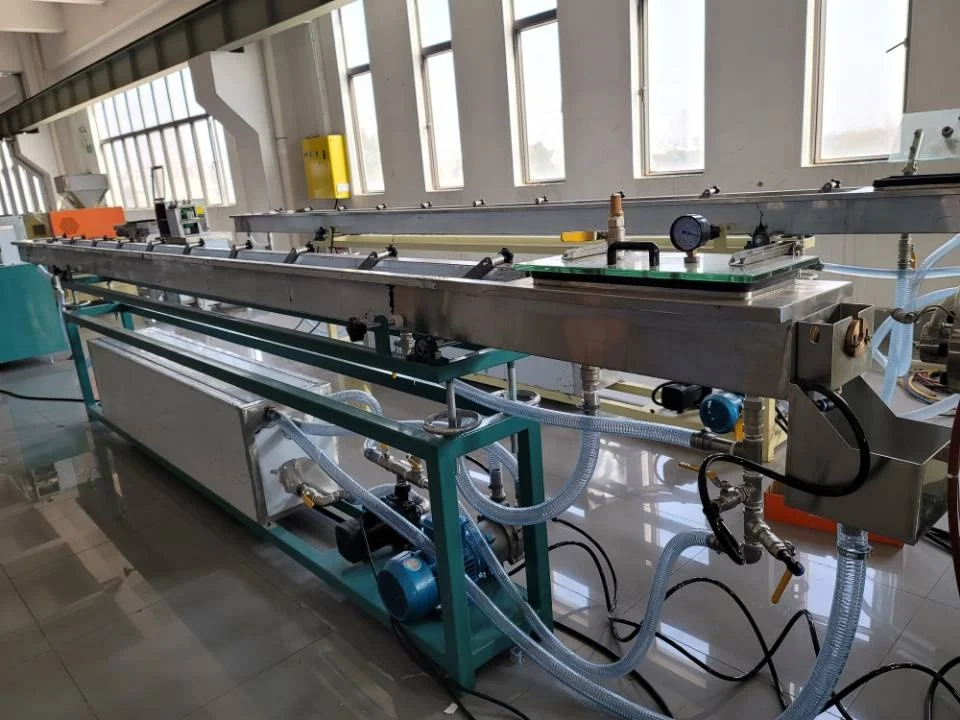

This is one kind of hose the machine. It has a special cutter which can cut the hose into sprial profile. machine consists of extruder, die head, vacuum water tank, belt haul-off unit, cutter and winder
FEATURES AT A GLANCE
easy operation
high level of automatic control
SAFETY FRAME
easy maintenance

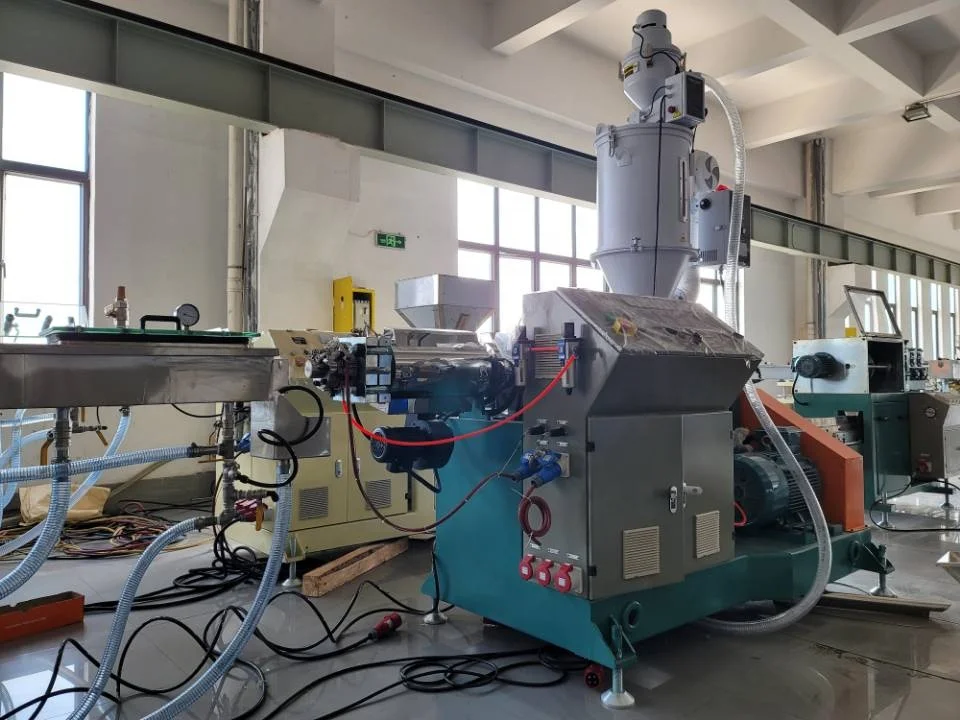

extruder and hopper dryer
vacuum water tank
cutter and winder
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | extruder | screw size:55mm, motor power: 15KW control style: frequency conversion | ||
2 | dIE HEAD | 1, PIPE RANGE: 8MM, 10MM,12MM, 15MM | ||
3 | 6M VACUUM WATER TANK | 1, Vacuum pump: 1.5KW; Circular water pump: 0.37KW | ||
4 | belt haul-off unit | belt touch width: 1 meter; control power: 0.75KWx2; Control style: ABB inverter | ||
5 | automatic cutter and winder | cut control power: 1.5KW, control style: ABB inverter; winder control power: 0.75KW Control style: frequency conversion | ||
6 | electrical part brand | INVERTER: ABB, Temperature controller: OMRON, AC CONTACTORS: SCHNEDIER | ||
7 | MACHINE OUTPUT | 30-40KG/HR | ||
8 | RAW MATERIAL | PE |
