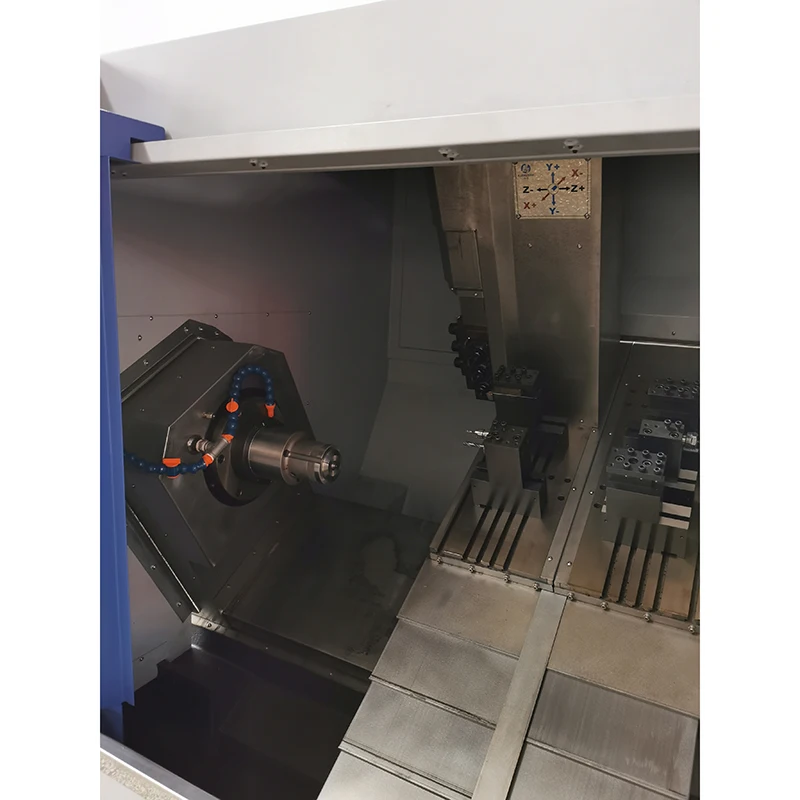

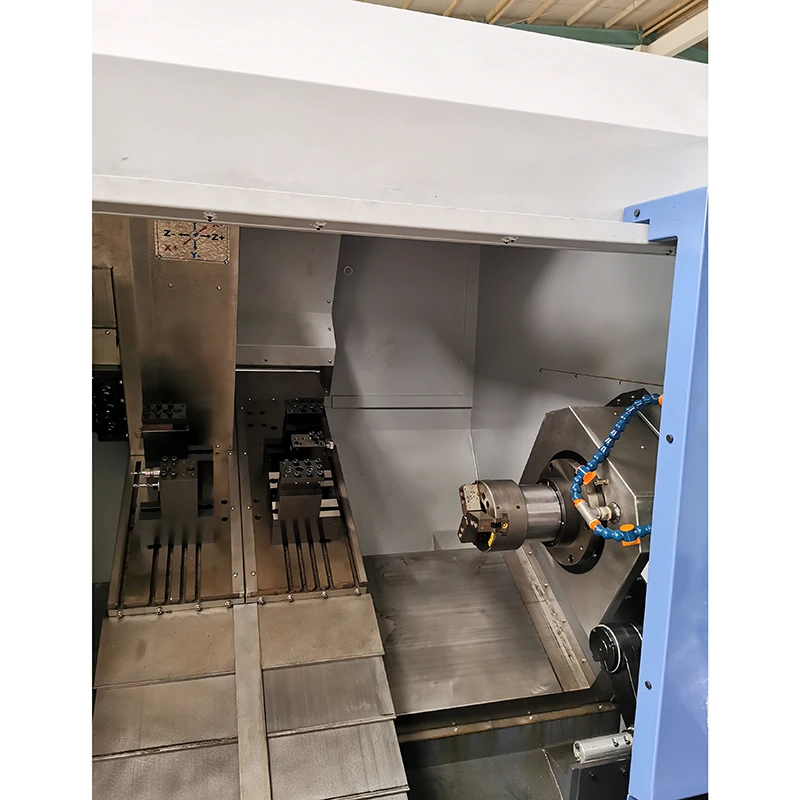

JINN FA YL 42E Ranking The First In The World Shaft End Mill Drill Combo Metal Cutting General Machine Tool Slant Bed CNC lathe
- Category: >>>
- Supplier: Xiongyi Intelligent Machinery (changzhou) Co. Ltd.
Share on (1600797435396):
Product Overview
Description
Product Description

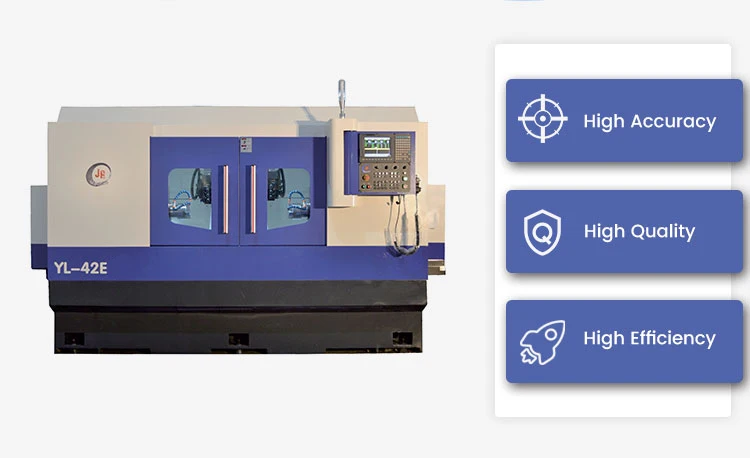

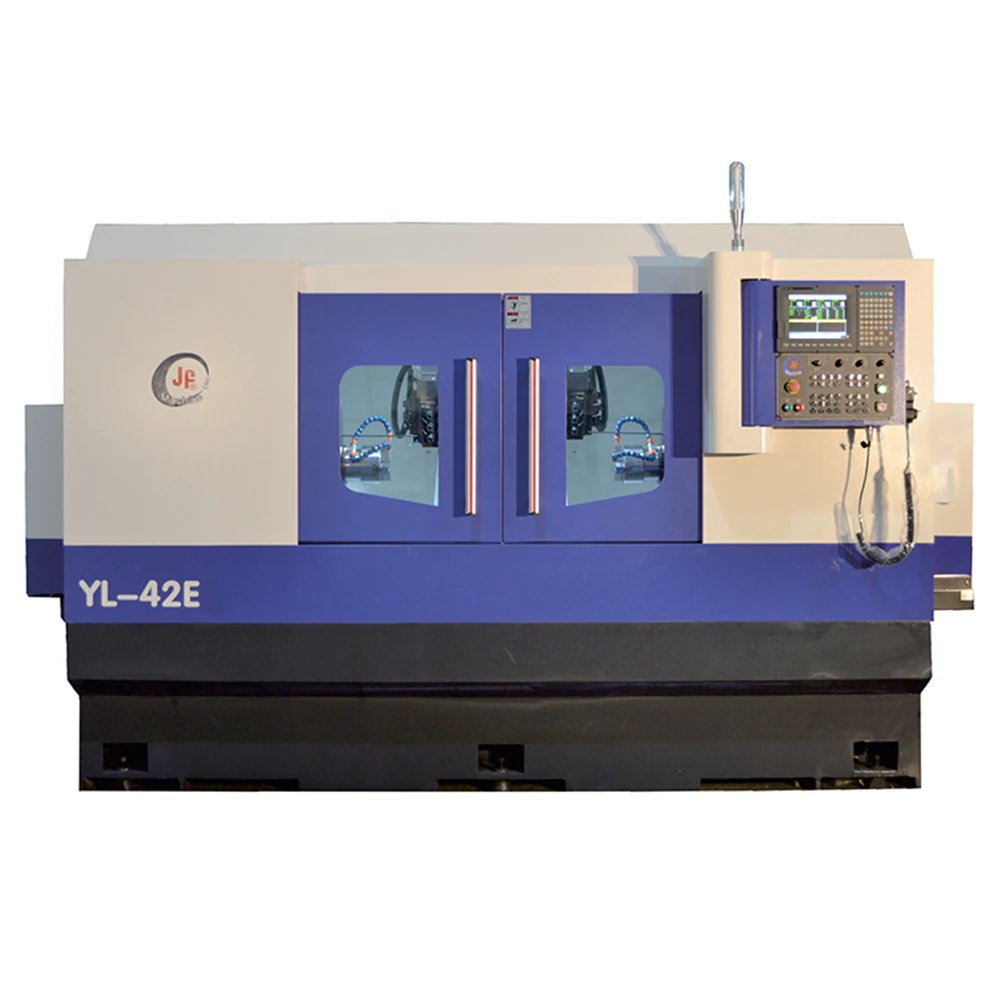

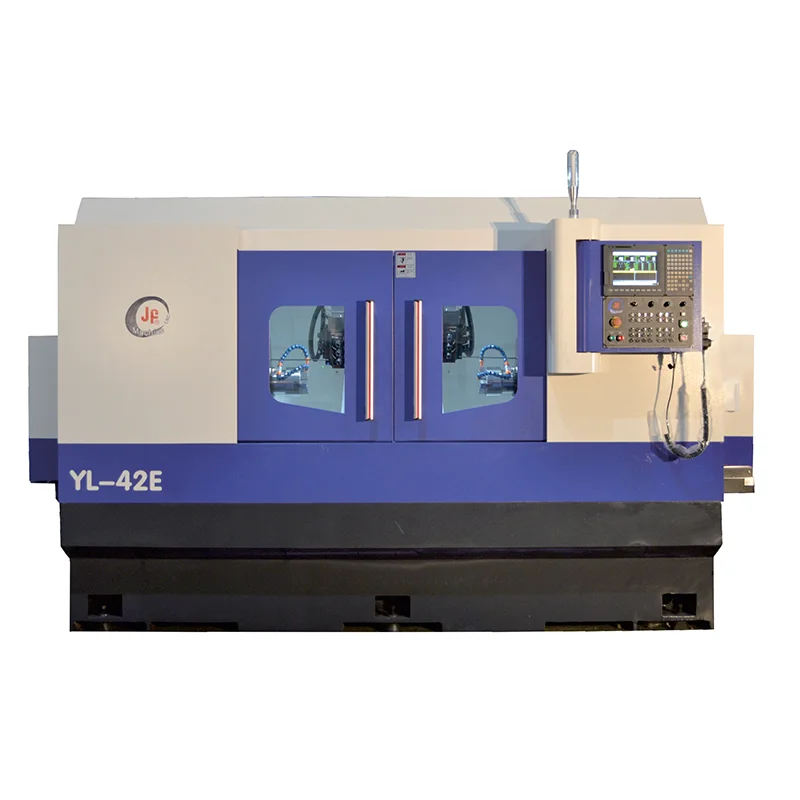

| Model: YL-42E | |||||
| Serial No | content | Parameter or function | remarks | ||
| 1 | Basic specifications | Maximum spindle diameter | φ 320 mm | ||
| Maximum machining diameter of bar | φ 42 mm | ||||
| Maximum turning diameter of bed saddle | φ 500 mm | ||||
| trip | X1 axis | 600 mm | |||
| X2 axis | 600 mm | ||||
| Z1 axis | 270 mm | ||||
| Z2 axis | 270 mm | ||||
| feed | X1/X2 axis | 25m/min | |||
| Z1/Z2 axis | 25m/min | ||||
| Stand alone profile (long × wide × High) | 4300*2450*2150 | ||||
| Total weight of single machine (Kg) | 6150 | ||||
| Repetitive positioning accuracy | 0.005 | ||||
| noise | 85Db | ||||

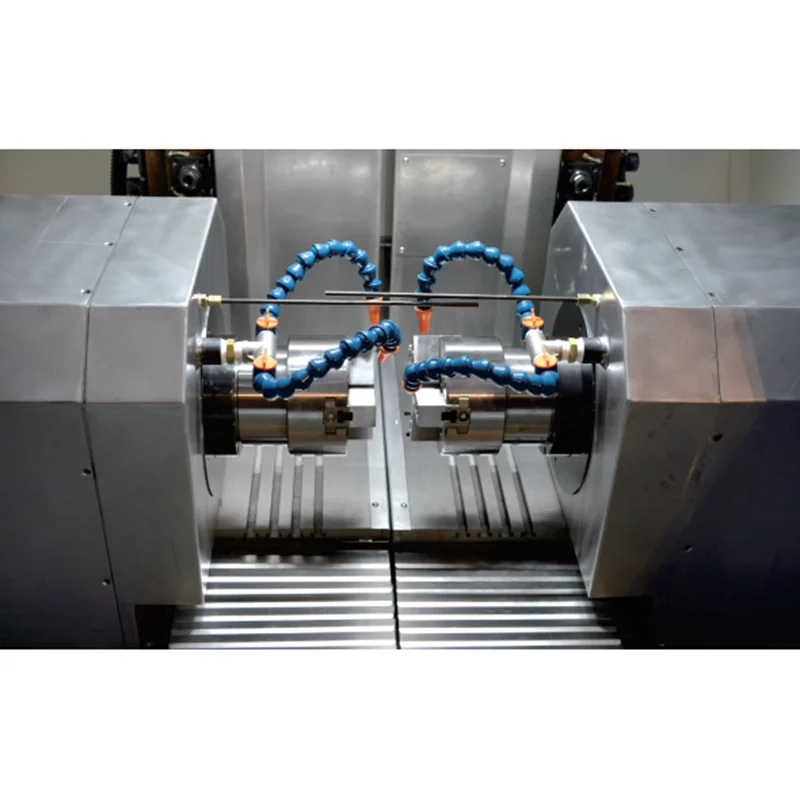

| 2 | principal axis | Motor model and manufacturer | Positive spindle | 175SF3608-2500 | Hanruikete |
| Counterspindle | 175SF3608-2500 | Hanruikete | |||
| Motor power | Positive spindle | 11KW | |||
| Counterspindle | 11KW | ||||
| Speed range | 45~4000RPM | ||||
| Lubrication medium | GREASE LGLC2 | ||||
| Spindle cooling mode | Air cooling | ||||

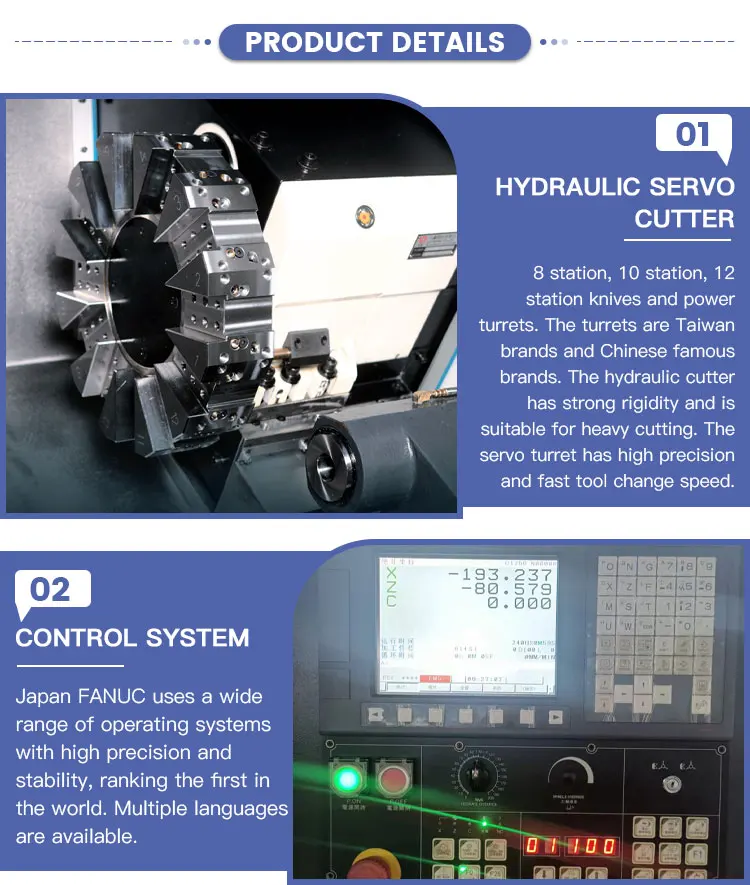

| 3 | Tool holder type | Tool holder type | Cutter bar | Yijin | |
| Number of tool holders | 5 | ||||
| Tool selection mode | Manual/Programmatic | ||||
| Outer diameter tool handle size | 16 | ||||
| Outside diameter Tool handle diameter | φ twenty | ||||
Please contact us for more equipment parameters.
Company Information
Packaging & Shipping
FAQ
1.What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK,SYNTEC. It depends on your choice.
3:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We specialize in selling all kinds of machine tools, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, Swiss-type lathes, grinding machines and special fixtures for machine tools, tools, non-standard fixtures, tools
5: Where is our factory located? How can I visit there?
A :Our company is located at C307, Block C, Boyunhui, No. 18, Xingao Road, Niutang Town, Wujin District, Changzhou City, Jiangsu Province, China. You are warmly welcomed to visit us.
6. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
