Good Ventilation Copper/Brass material expanded metal Mesh
- Category: >>>
- Supplier: Hebei Boni Tech Co. Ltd.
Share on (1600797437585):
Product Overview
Description
Products Description

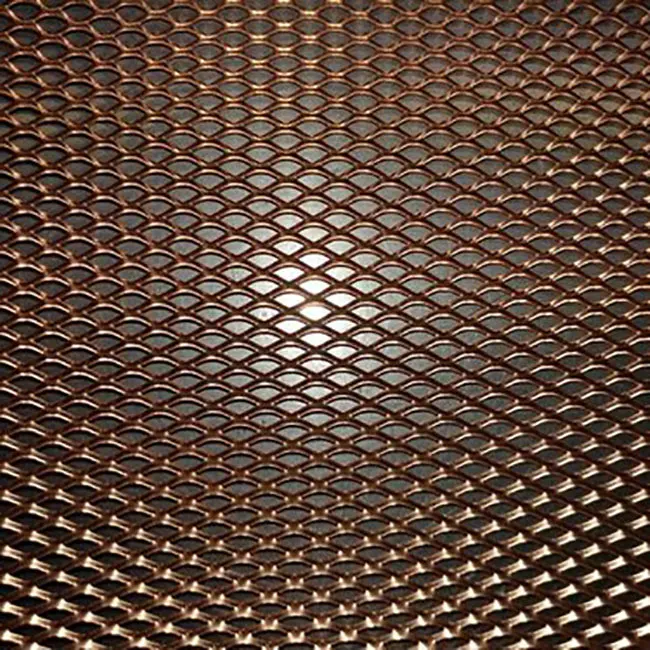

Good Ventilation Copper/Brass material expanded metal Mesh

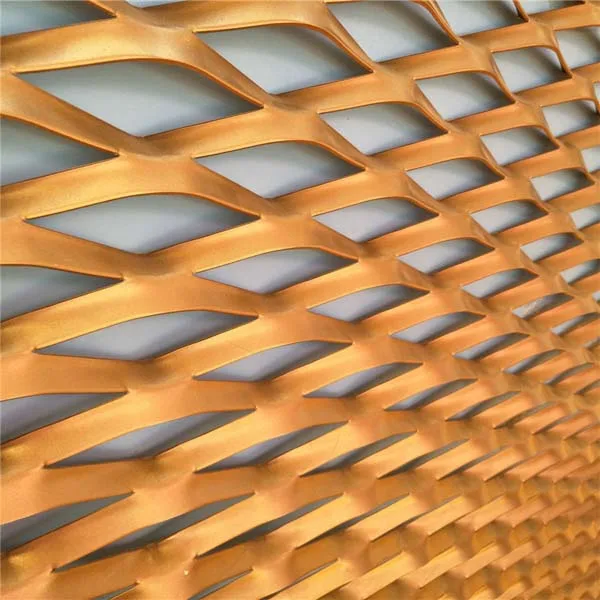

Brass/copper expanded metal mesh is a slit and stretched metal sheet to form a wide array of opening shapes. The opening shapes could be diamond, hexagon, square, scale hole and so on.
Material can be brass or copper, also can be aluminum, stainless steel,carbon steel with copper or brass coating. A square foot of raw material can produce two or three times or more area without scrap.
Specification
* Material: brass, copper, aluminum, stainless steel, carbon steel.
* Surface treatment: plated copper or brass when using other metals.
* Mesh type: light, medium, heavy.
* Opening shape: diamond, hexagon, square, scale hole.
* Width of expanded metal mesh: 0.5-2 m.
* Length of expanded metal mesh: 0.6-4 m.
* Surface treatment: plated copper or brass when using other metals.
* Mesh type: light, medium, heavy.
* Opening shape: diamond, hexagon, square, scale hole.
* Width of expanded metal mesh: 0.5-2 m.
* Length of expanded metal mesh: 0.6-4 m.
* Specification can be customized.

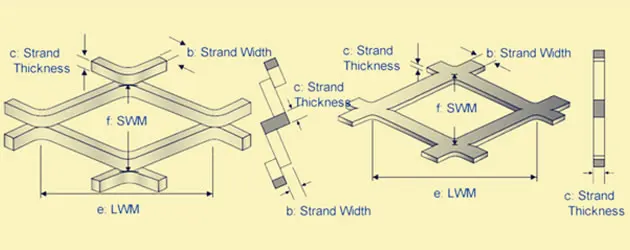

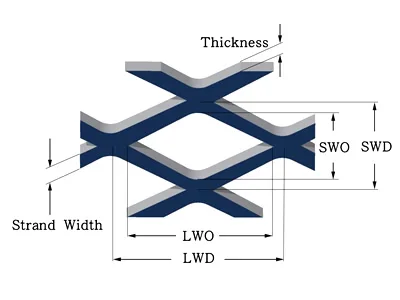

* SWD: short way of diamond.
* LWD: long way of diamond.
* SWO: short way of opening.
* LWO: long way of opening.
* Width: strand width.
* LWD: long way of diamond.
* SWO: short way of opening.
* LWO: long way of opening.
* Width: strand width.
* Expanded Metal Mesh Classification: standard, flattened.
• Regular/Standard Expanded Metal is a finished product as it comes from the press. The strands and bonds are set in a uniform manner creating different size openings and thicknesses. This regular or raised configuration gives added strength and rigidity as well as slip resistance to the mesh.
• Flattened Expanded Metal is regular expanded metal which has been cold rolled leaving a flat,smooth surface.

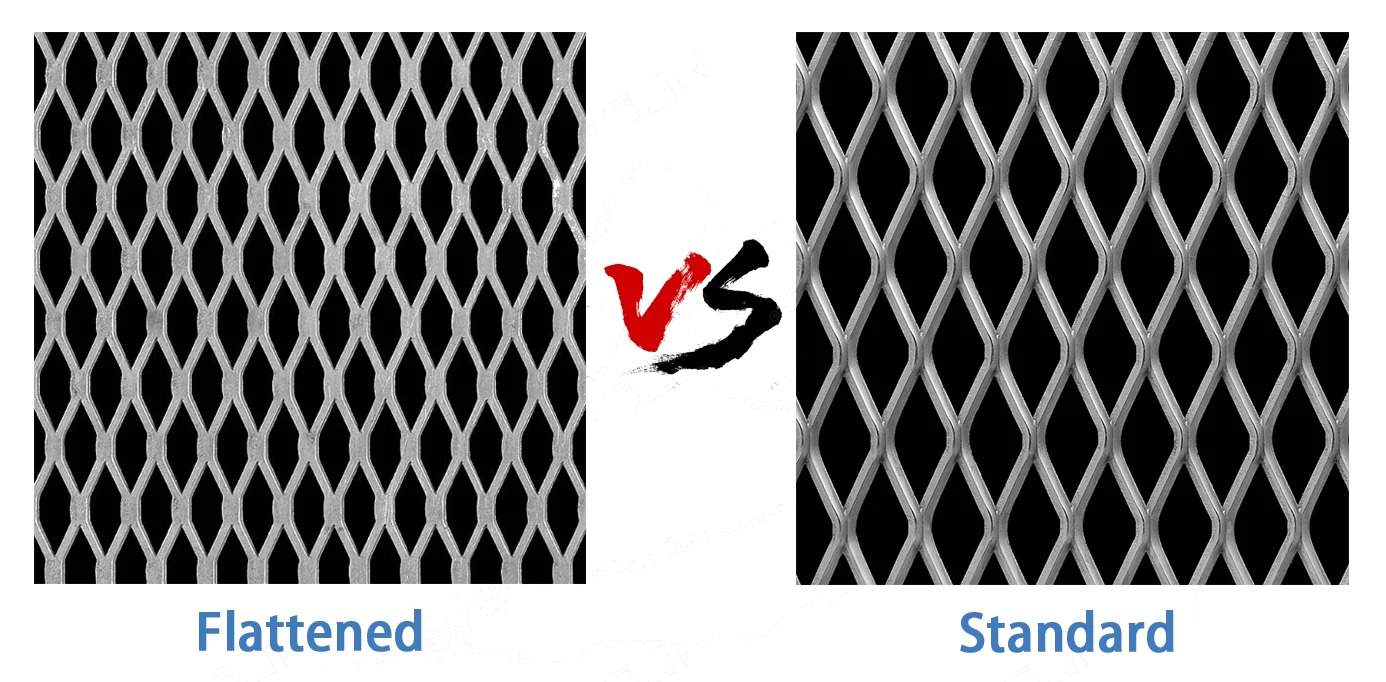

Regular/Standard Expanded Metal Flattened Expanded Metal
Standard vs. Flattened Expanded Metal

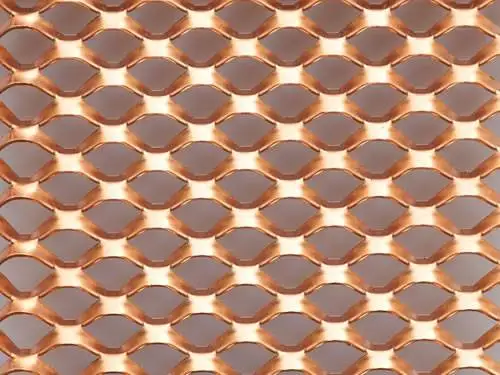

Regular or Standard expanded metal is raised at the bonds of the diamond.

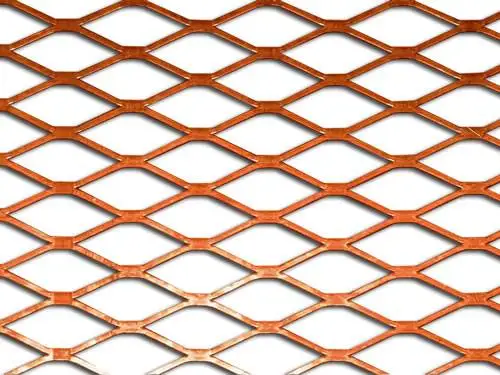

Flattened expanded metals has been passed through rollers and is smooth across each bond.
Flattened expanded metals has been passed through rollers and is smooth across each bond.

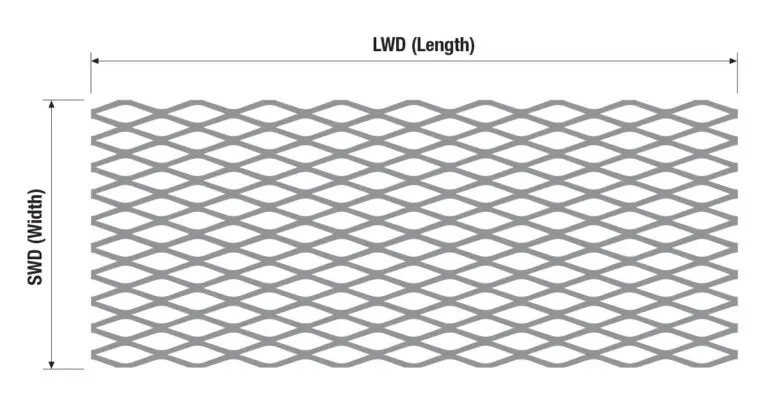

Expanded Metal Mesh Pattern Orientation:
Standard Flow: Pattern runs with the LWD running the length of the sheet and the SWD running across the width of the sheet.
Reverse Flow: Pattern runs with the LWD running across the width of the sheet and the SWD running the length of the sheet.
Reverse Flow: Pattern runs with the LWD running across the width of the sheet and the SWD running the length of the sheet.

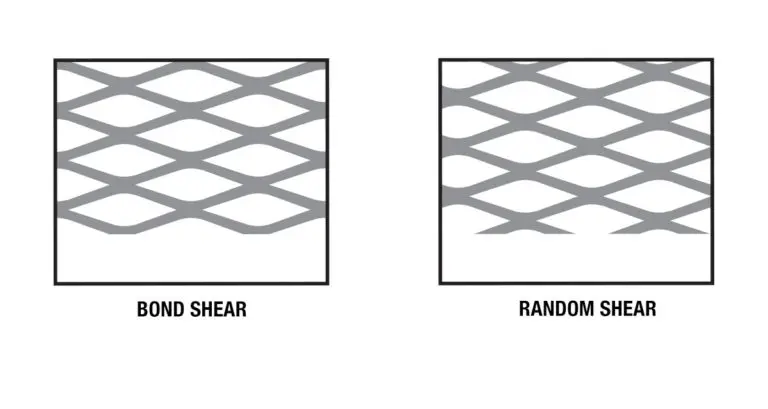

Expanded Metal Mesh Shearing:
Bond Shear: The expanded metal sheet is cut through the center of the bonds resulting in closed diamond at the edge of the sheet.
Random Shear: The expanded metal sheet is cut through diamonds resulting in partial diamonds at the sheet’s edge. The partial
diamonds result in exposed strands that are very sharp and should be protected with U-Edging or framing.
Random Shear: The expanded metal sheet is cut through diamonds resulting in partial diamonds at the sheet’s edge. The partial
diamonds result in exposed strands that are very sharp and should be protected with U-Edging or framing.

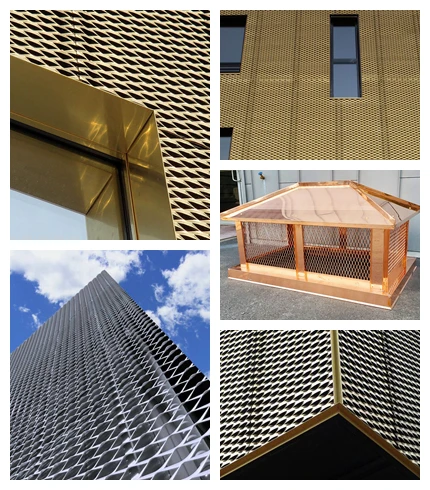

Application
Copper Expanded Metal Mesh Application:

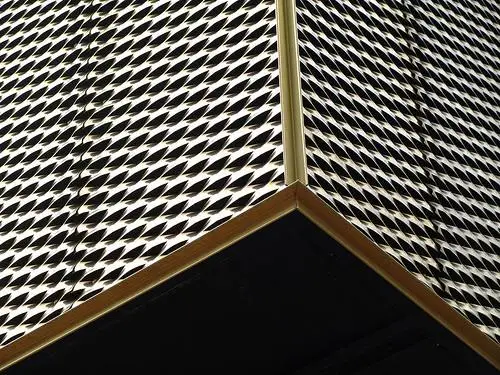

1: Ventilation mesh, decorative mesh.
2: Protection mesh for machine, electric equipment, aquatic products breeding.

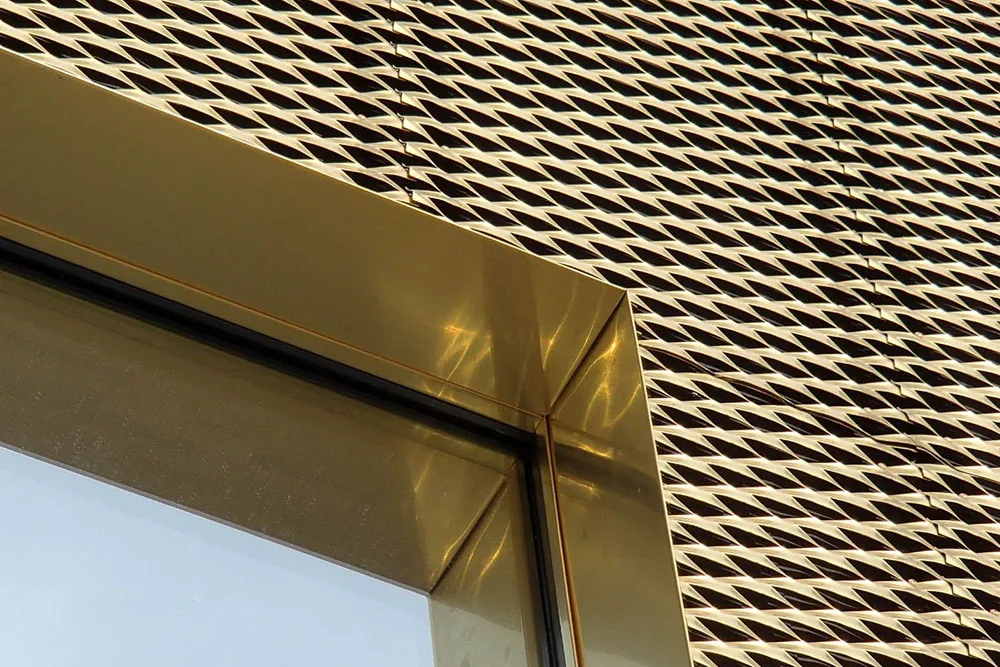

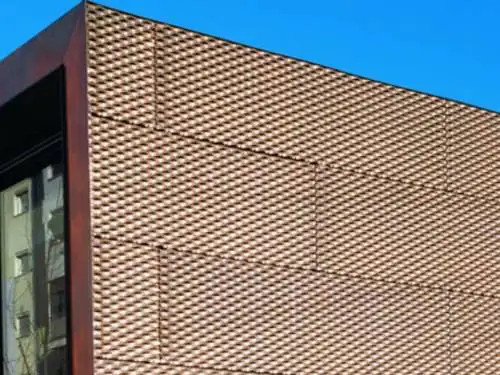

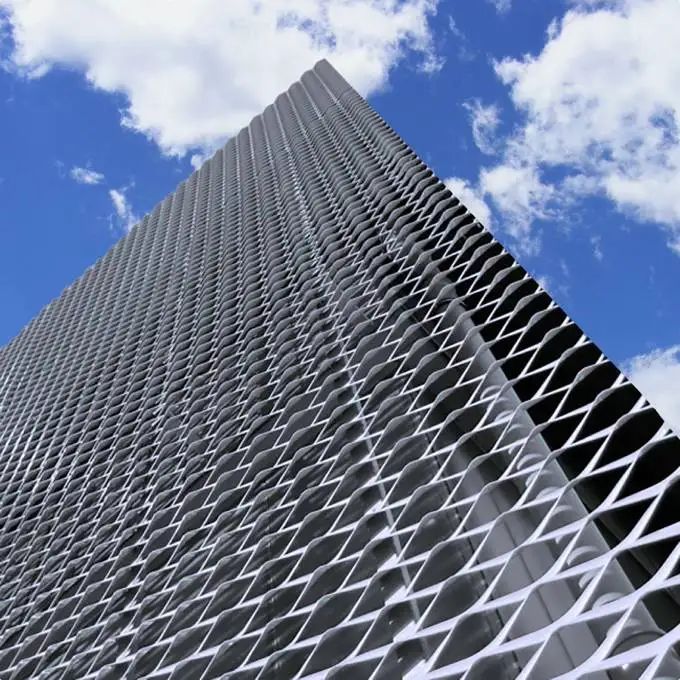

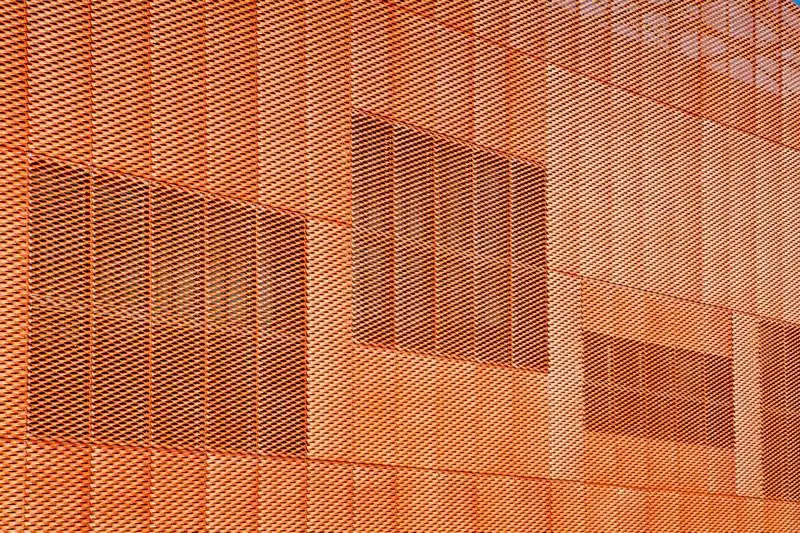

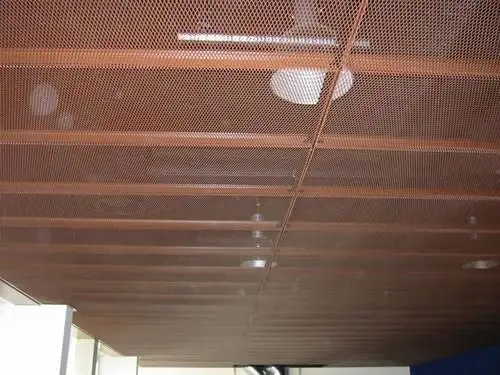

3: Screen for window, door, wall, ceiling, facade, roof, retail shelf, signage, partition.

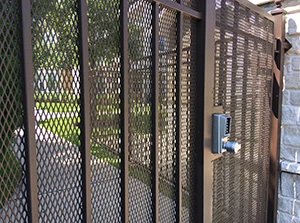

4:Fence for highway, studio, garden, green belt, bridge, stadium.

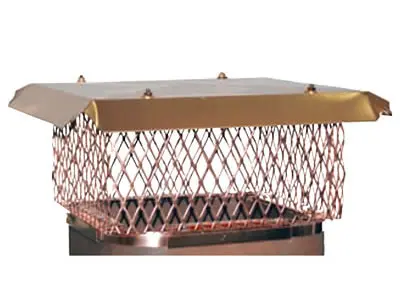

5: Chimney caps and handcrafts.
6: Used in construction, concrete reinforcement, filtration.

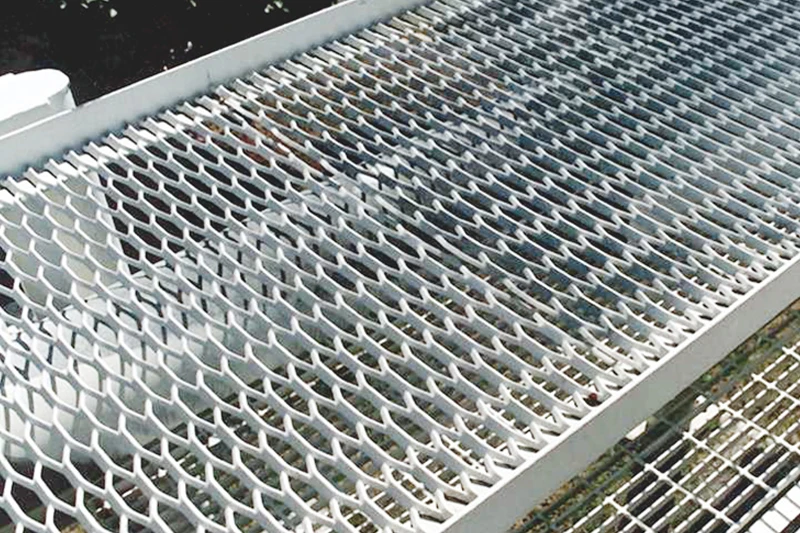

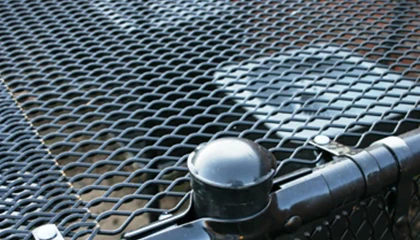

7: Heavy expanded mesh can be used as stair for corridor, oil tank, working platform, escalator, walking road for big ship, heavy model equipment, petroleum well, mine well, boiler, automobile vehicle, footbridge.
2: Protection mesh for machine, electric equipment, aquatic products breeding.
3: Screen for window, door, wall, ceiling, facade, roof, retail shelf, signage, partition.
4:Fence for highway, studio, garden, green belt, bridge, stadium.
5: Chimney caps and handcrafts.
6: Used in construction, concrete reinforcement, filtration.
7: Heavy expanded mesh can be used as stair for corridor, oil tank, working platform, escalator, walking road for big ship, heavy model equipment, petroleum well, mine well, boiler, automobile vehicle, footbridge.
Details Images

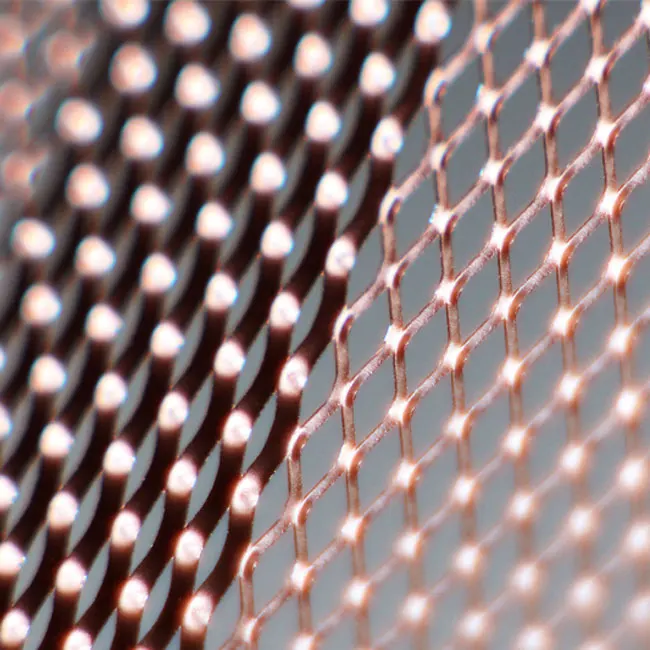

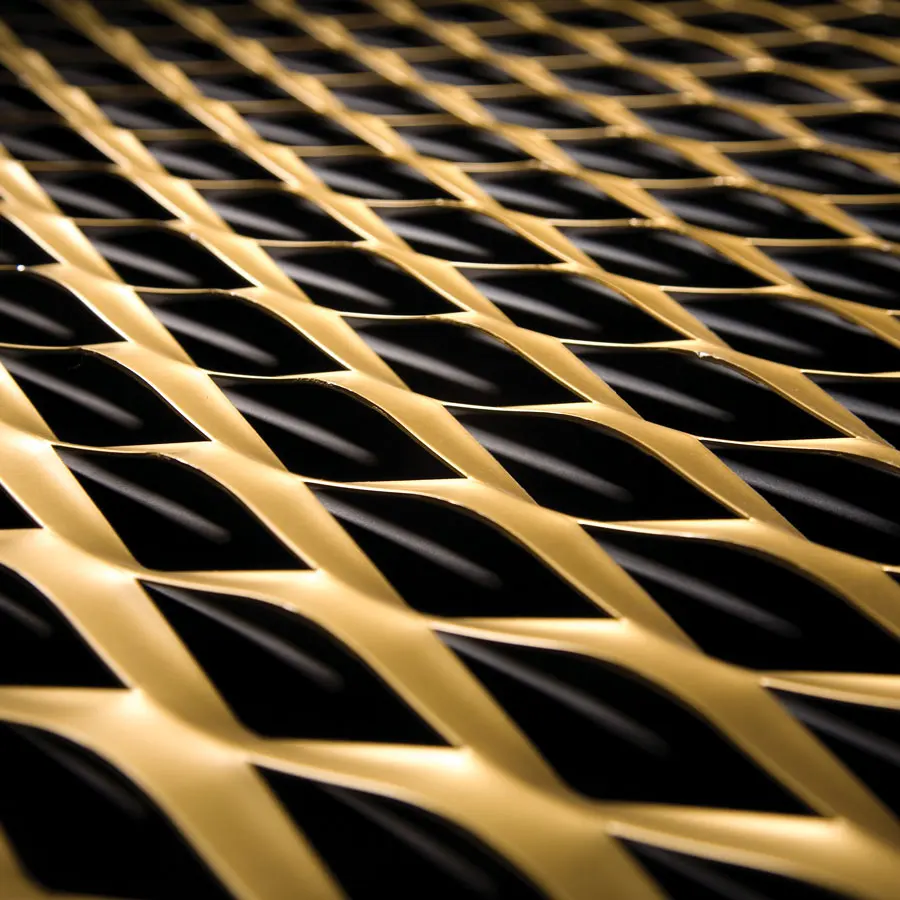

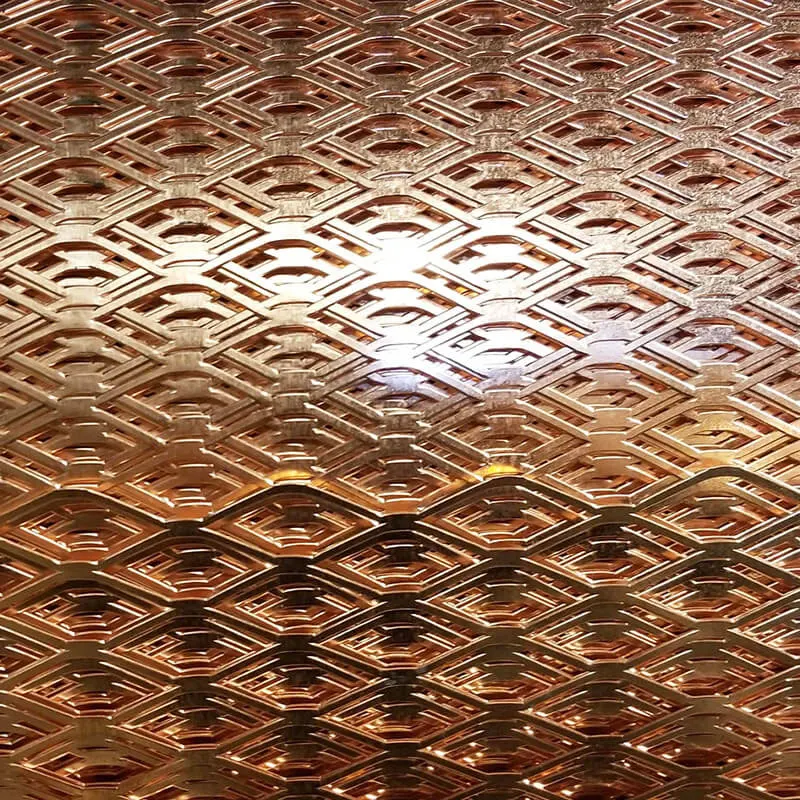

Good Ventilation Copper/Brass material expanded metal Mesh
Features of Micro Expanded Metal:
* Durable
* Attractive
* One-piece construction
* Easy handling
* Excellent strength-to-weight ratio
* Easy to cut to size
* Available in many styles
* Available in many materials, such as nickel, aluminum, carbon steel, galvanized, and stainless steel
* Durable
* Attractive
* One-piece construction
* Easy handling
* Excellent strength-to-weight ratio
* Easy to cut to size
* Available in many styles
* Available in many materials, such as nickel, aluminum, carbon steel, galvanized, and stainless steel

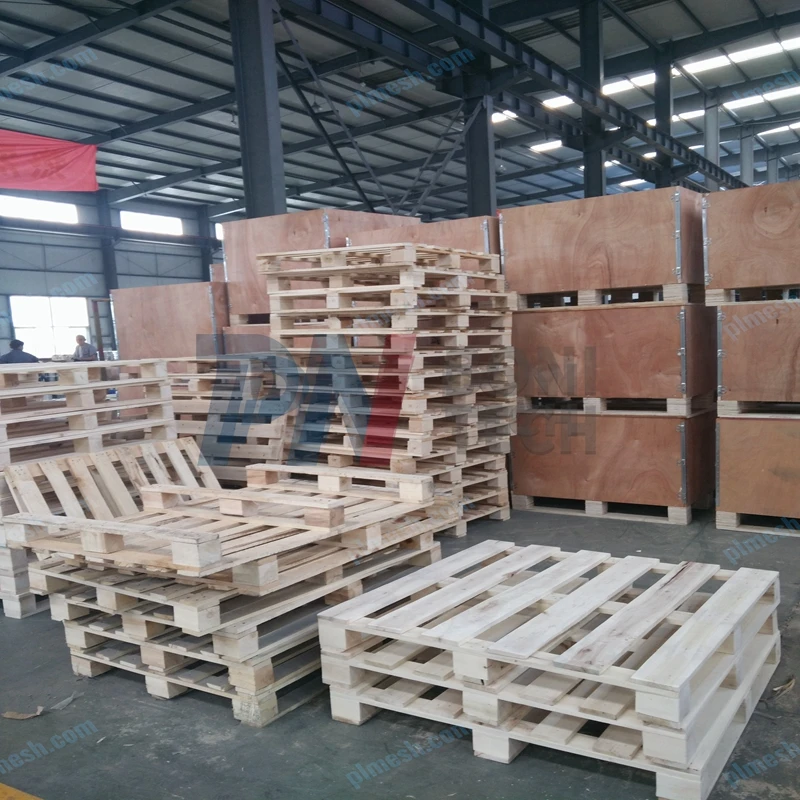

Product packaging
Expanded Metal Mesh Packaging

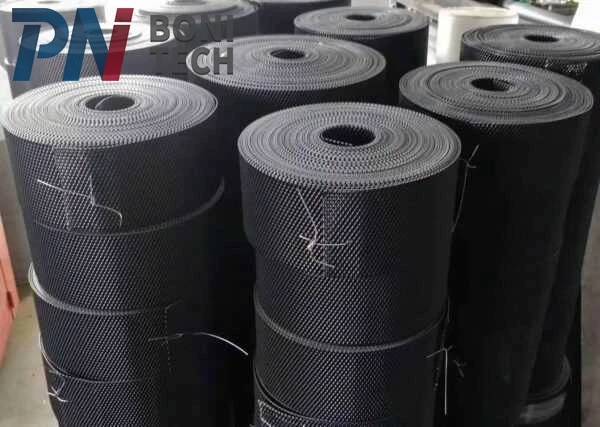

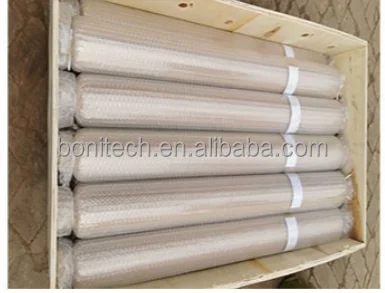

Packed in rolls with water proof paper, outside is wooden case or wooden pallet.
Heavy expanded metal mesh is packed in panels with wires binding them.
Packed in rolls with water proof paper, outside is wooden case or wooden pallet.
Heavy expanded metal mesh is packed in panels with wires binding them.
Recommend Products
Company Profile
In 1996, our first factory was founded, with area 60000 square meters. Main production with black iron wire, galvanized iron wire
and kinds of small coil wires.
In 1998, We build the second factory. Main production welded wire mesh. With our own machines.
In 2001,We bought Chain Link Fence factory.
In 2002, Built Barbed wire line.
In 2004, We started to focus on Whole Fence line production,
In 2006, we established International Market Department.
In 2018,we established wire mesh factory in Africa, and radiated market from Africa.
In 2021, We register Hebei BoNi Tech Co., Ltd. Enter the filed of wire mesh coating.
and kinds of small coil wires.
In 1998, We build the second factory. Main production welded wire mesh. With our own machines.
In 2001,We bought Chain Link Fence factory.
In 2002, Built Barbed wire line.
In 2004, We started to focus on Whole Fence line production,
In 2006, we established International Market Department.
In 2018,we established wire mesh factory in Africa, and radiated market from Africa.
In 2021, We register Hebei BoNi Tech Co., Ltd. Enter the filed of wire mesh coating.
Boni tech is a leading supplier of rare metal products and steel mesh, including perforated metal, expanded metal, nickel electrodes, gratings and more. We have multiple factories at home and abroad, and our team of knowledgeable employees is ready and inspired to serve you!
Exhibition
FAQ
1. Are you a manufacture?
-Yes, we have been in providing products in this field for 25 years.
2 . Can Boni help me determine the most suitable product for my application?
-Absolutely! We have many years of experience working with different clients. We can advise you on the best options for your needs, or work with you to develop new products.
3 . What is your lead time?
-It takes 1-4 weeks. In the case of tight work deadlines, delivery times can be shortened.
4 . How to inquire about expanded metal mesh?
-You need to provide material, thickness, strand width, SWD, LWD, surface treatment, frame type and quantity to inquire, if you have any special requirements, you can also tell us.
5 . How to query perforated metal mesh?
-You need to provide material, thickness, hole type, hole diameter,
spacing, surface treatment, width, length and quantity for inquiry, if
you have special design, you can also send drawings.
-Yes, we have been in providing products in this field for 25 years.
2 . Can Boni help me determine the most suitable product for my application?
-Absolutely! We have many years of experience working with different clients. We can advise you on the best options for your needs, or work with you to develop new products.
3 . What is your lead time?
-It takes 1-4 weeks. In the case of tight work deadlines, delivery times can be shortened.
4 . How to inquire about expanded metal mesh?
-You need to provide material, thickness, strand width, SWD, LWD, surface treatment, frame type and quantity to inquire, if you have any special requirements, you can also tell us.
5 . How to query perforated metal mesh?
-You need to provide material, thickness, hole type, hole diameter,
spacing, surface treatment, width, length and quantity for inquiry, if
you have special design, you can also send drawings.
