Product Overview

Description

Yarn spinning machine polypropylene fdy filament yarn production machine

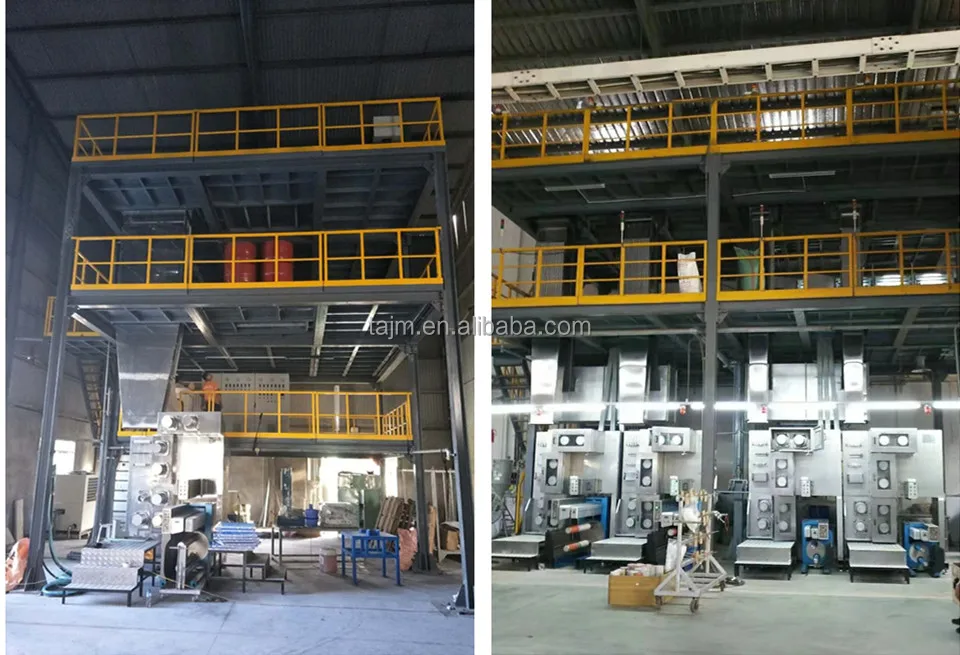

PP FDY MACHINE:

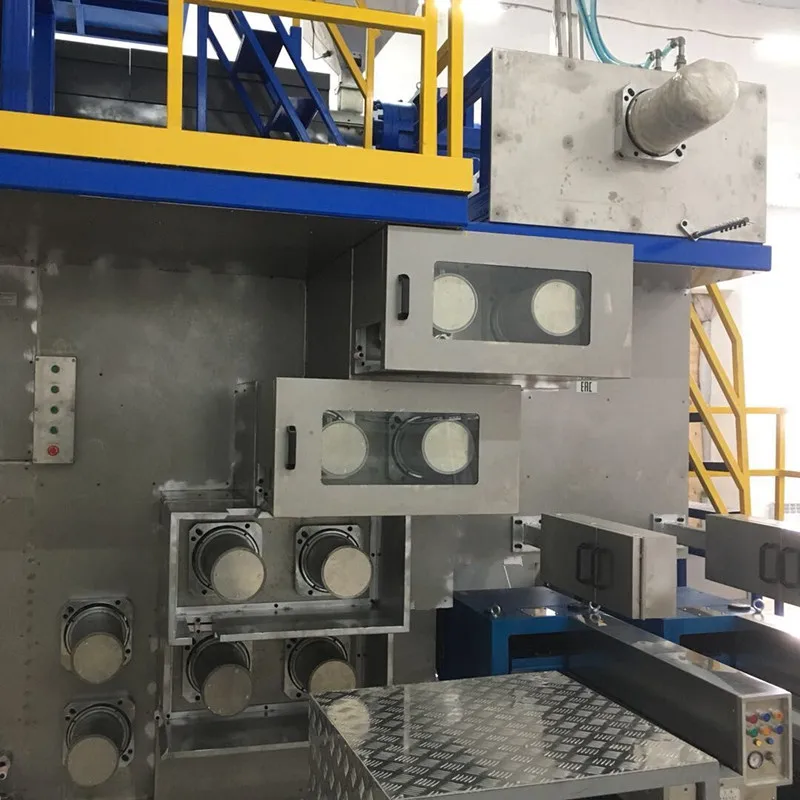

Yarn spinning machine polypropylene fdy filament yarn production machine

1.automatic pp fdy yarn machine 2.good quality yarn 3.high capacity

1. Technical Description

Multifilament spinning plant

Model: JMHT-161

This multifilament spinning plant is designed for the production of fully drawn yarn “FDY” in particular PP multifilament yarn with a titer of 500 to 2000 denier to be used for diverse textile and technical applications.

The tenacity of multifilament yarn from this line is not less than 7g/den.





yarn making process



Textile industry yarn spinning machine making pp yarn, fdy multifilament spinning machine

PP chips--> automatic hopper& loader--> extrusion screw--> melting pipe--> metering pump--> spinning beam--> spinneret and loading units --> blower--> air device--> hot godets--> automatic doffing winder





machine model

Item	JM261	JM241	JM811	JM161	JM141
Pos	2	2	1	1	1
Fibre denier	500-1500D( SINGLE YARN)
Spinneret/pos	6	4	8	6	4
Winder speed	2000-2400m/min
Capacity (900d)	3.5toms	2.3tons	2.3tons	1.7tons	1.2tons
Screw dia	120mm	105mm	90mm	90mm	70mm
Power	280kw	130kw	120kw	150kw	120kw
Machine size	5.5*5*6.5m

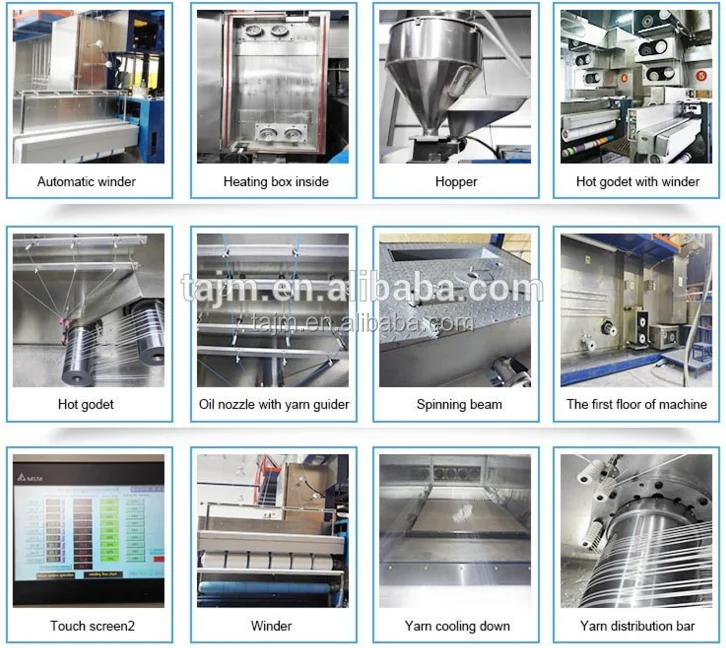

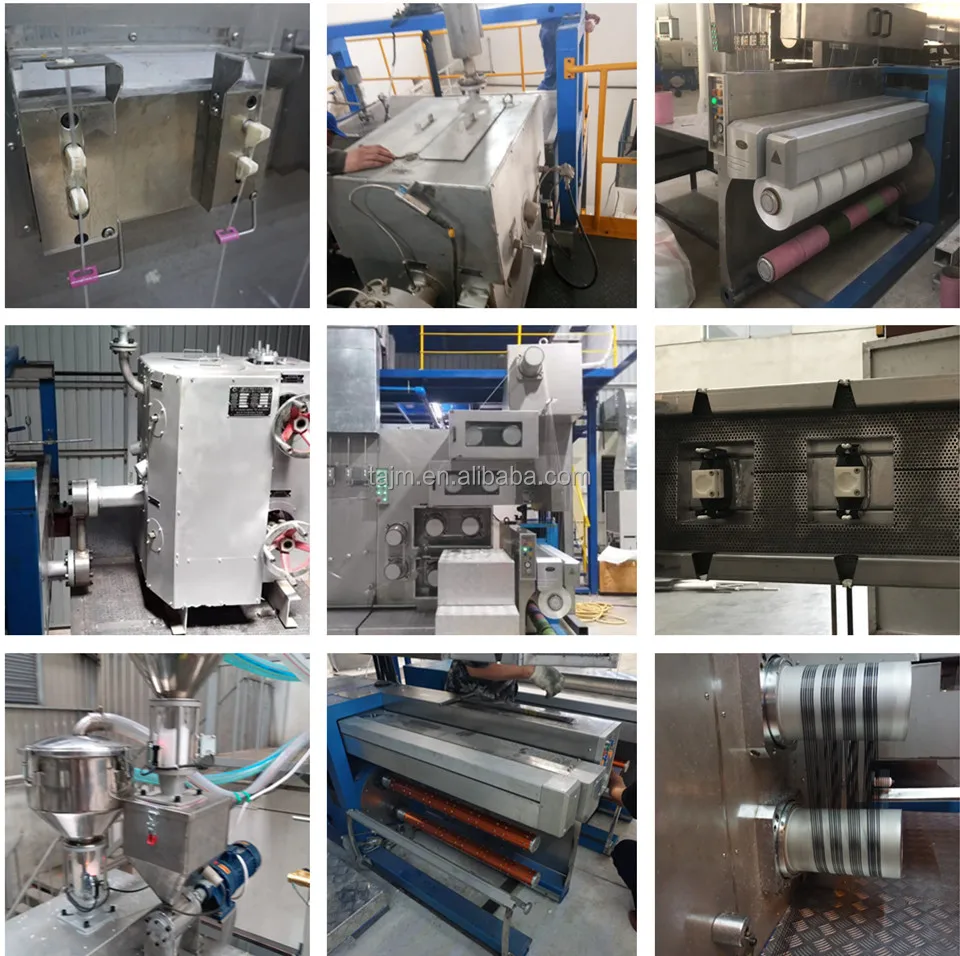

Fdy machine parts

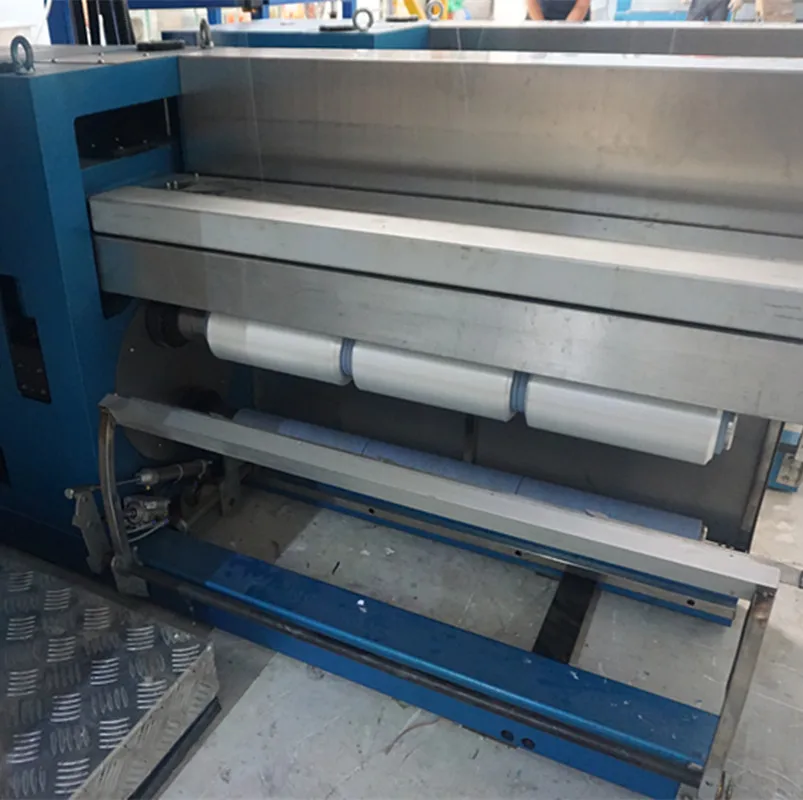

Yarn spinning machine polypropylene fdy filament yarn production machine

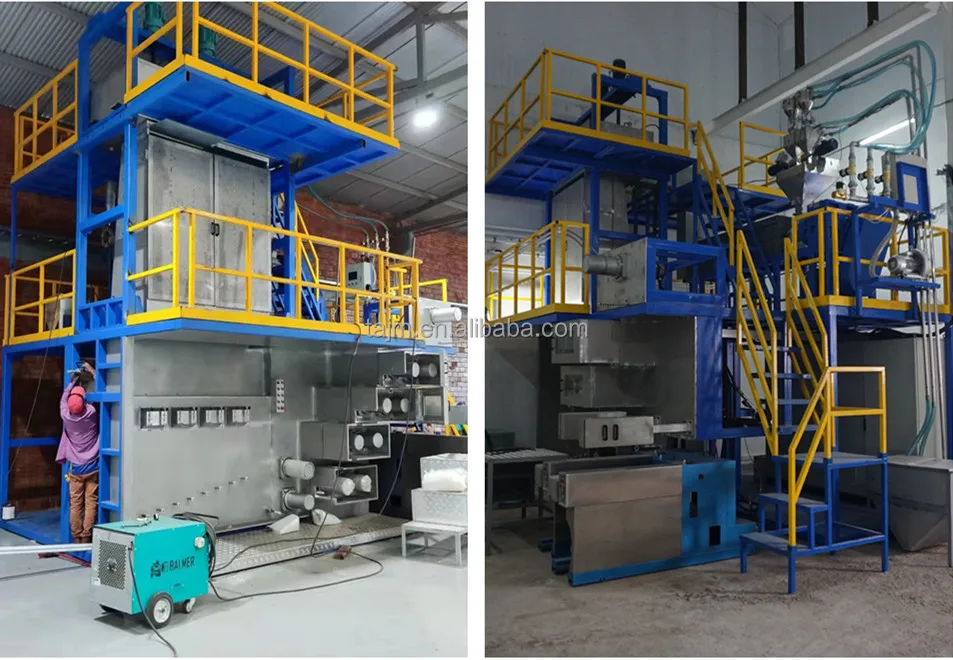

ne/ textile filament extrusion spinning machine

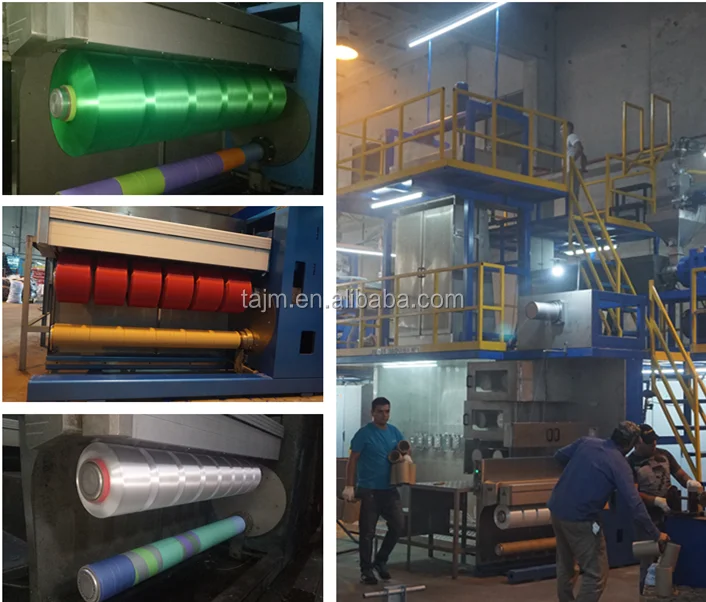

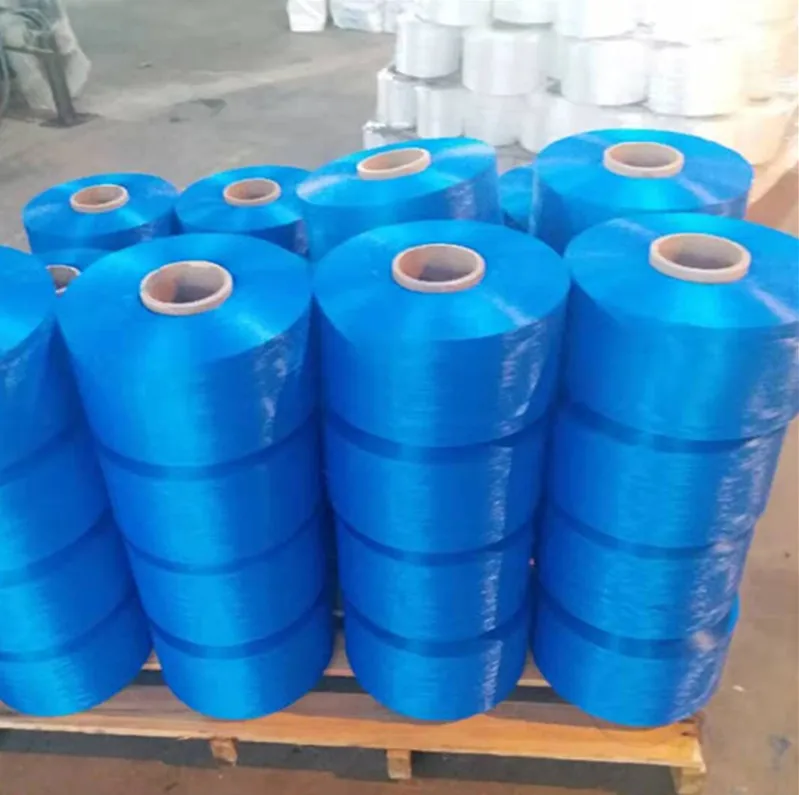

Yarn from fdy machine and application



the yarn mainly for webbing, rope, sewing thread, sling, concrete micro fiber making

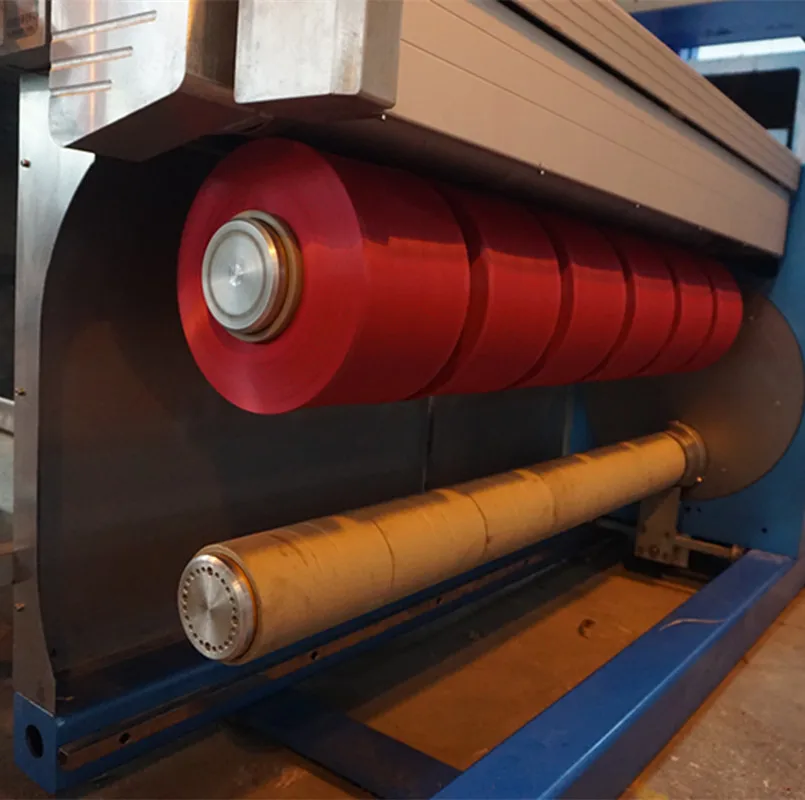

 Yarn spinning machine polypropylene fdy filament yarn production machine

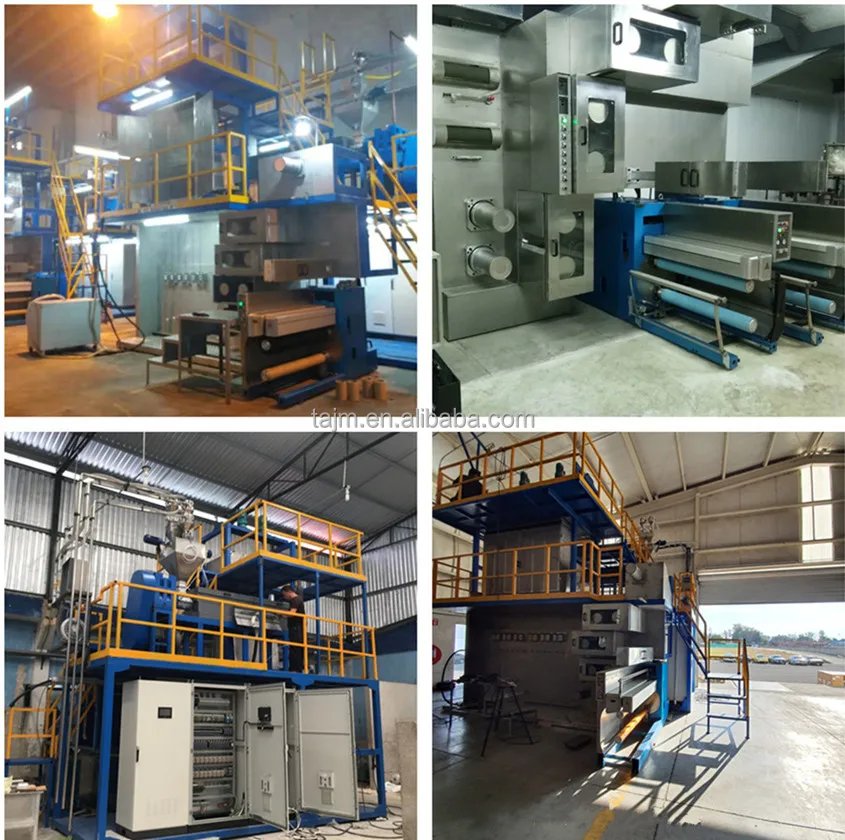

workshop



Taian jiamei machinery technology co.,ltd is sepcialized in plastic extrusion technology machinery reserach, design and manufacturer.

Have good experience of 40 years in machinery manufacturing and development.

Our main products including pp fdy multifilament spinning line,  multi yarn spinning machine, BCF carpet multifilament spinning extrusion machine. All kinds of plastic extruding machine.



Our equipment is widely used in the industrial field of braiding/ twisting rope, knirring webbing belt, construction reinforced concrete fibre, bag sewing thread, filter cloth, fishing net and narrow fabrics .



multifilament machine shipping



1*40HC+1*20GP

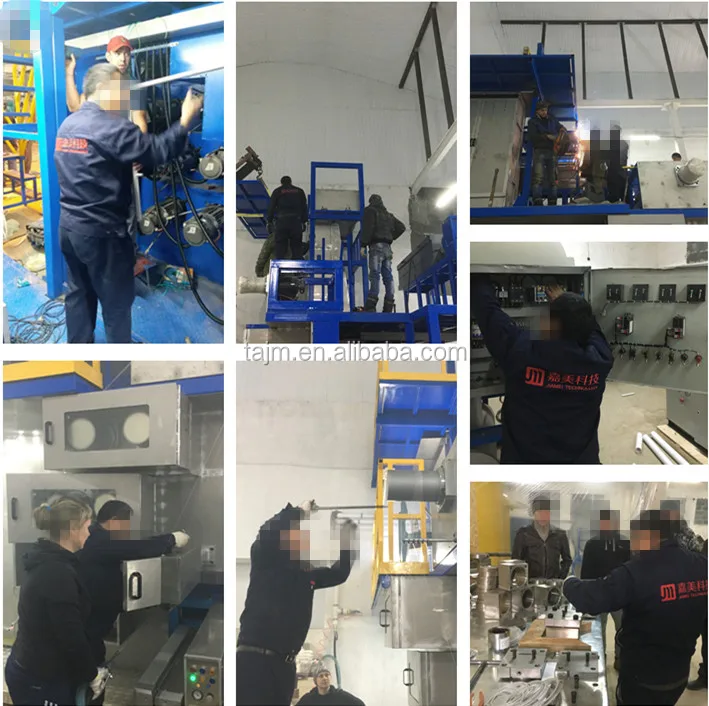

Fdy machine setup & trainning &testing

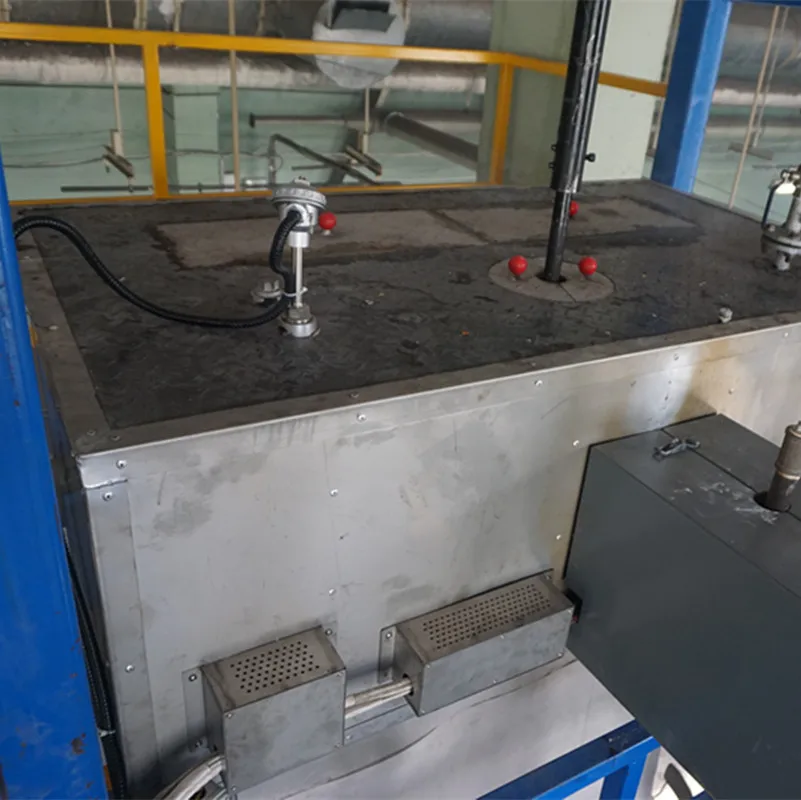

Yarn spinning machine polypropylene fdy filament yarn production machine

1. we arrange engineer to set up pp miltifilament spinning machine , need 12-15days

2. we offer professional trainning, skilled operator from china to guide you how to operate

3. Fast response for after -sales service, we have professional express agent and also through train to delivery the sapres, more convenient







related euqipment for usage

we have helped several client to do A~Z solutions , like rope making, webbing kintting , and concrete fiber making , weaving filter cloth , sewing yarn making line , if you require , pls contact with us for free!

1) ring twister and two for one twister  2) rope making machine 3)spool winder  4) braiding machine 5)knitting needle loom

6)fiber cutting machine  7) net making machine  8) yarn twisting machine
