Product Overview
Description
Products Description
01

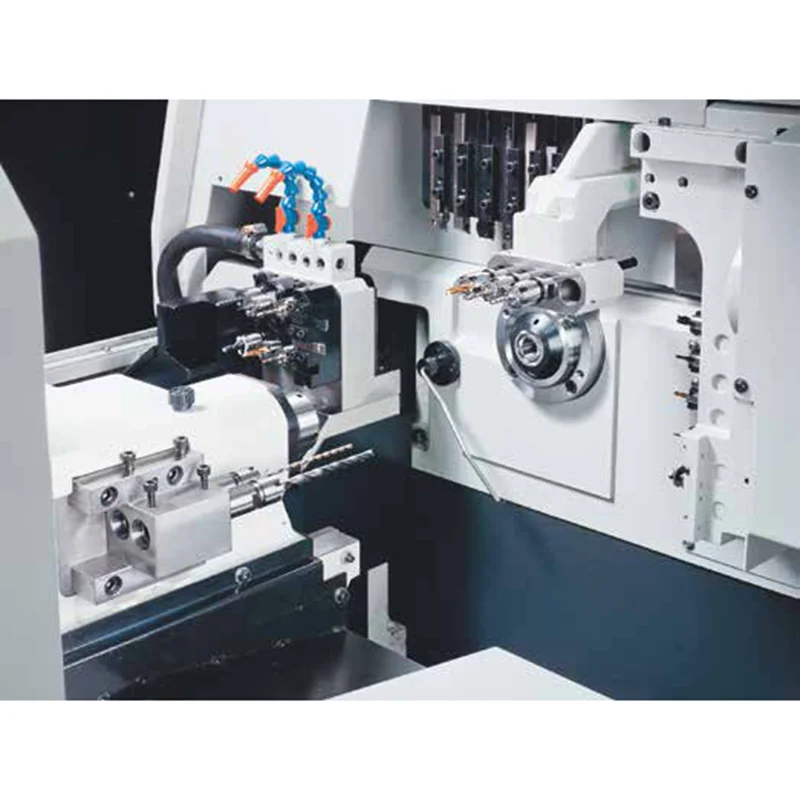

SUB-SPINDLE TOOLING SYSTEM
The sub-spindle tooling system allows the machine to perform backside machining on a part.
SUB-SPINDLE TOOLING SYSTEM-YAXIS
The sub-spindle tooling system allows the machine to perform backside machining on a workpiece
03

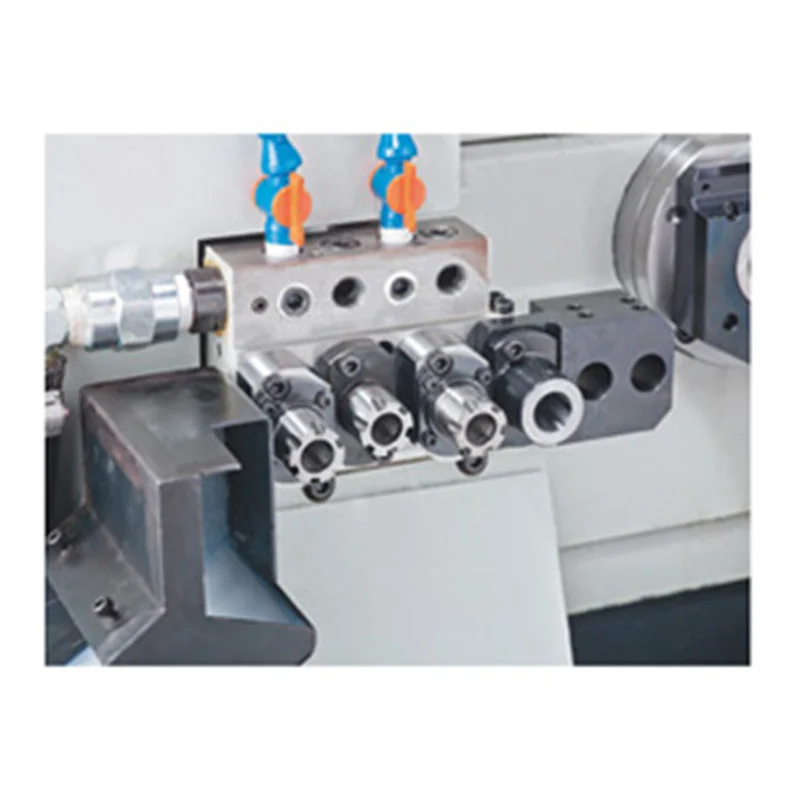

CROSS/FACED RILLING FUNCTION
The side drilling unit can be converted to 3-position face drilling for main and sub spindle.”Angle adjustment (manually)

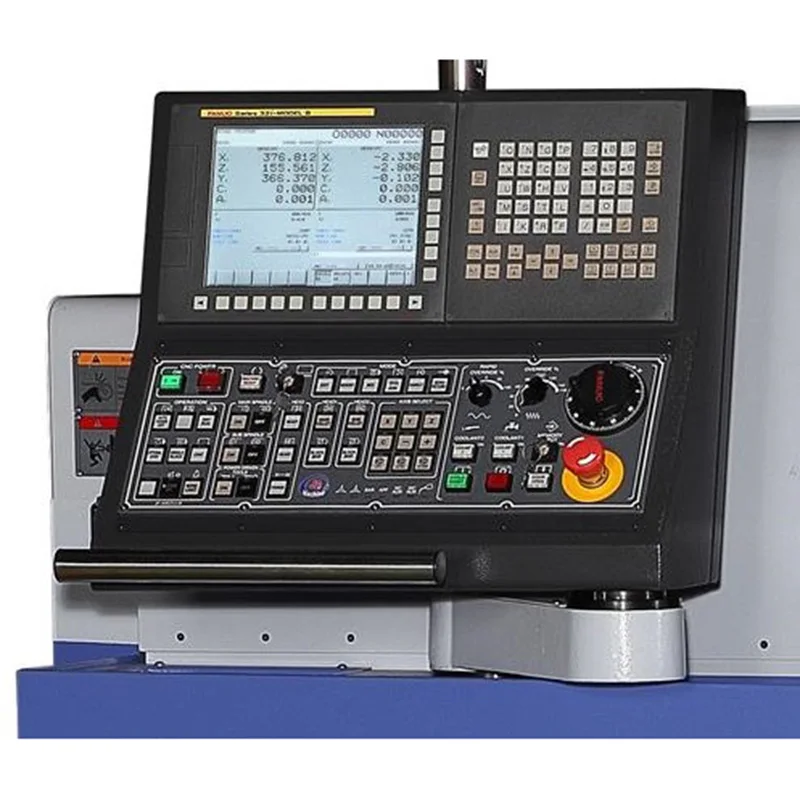

FANUC 321 CNCCONTROL
05

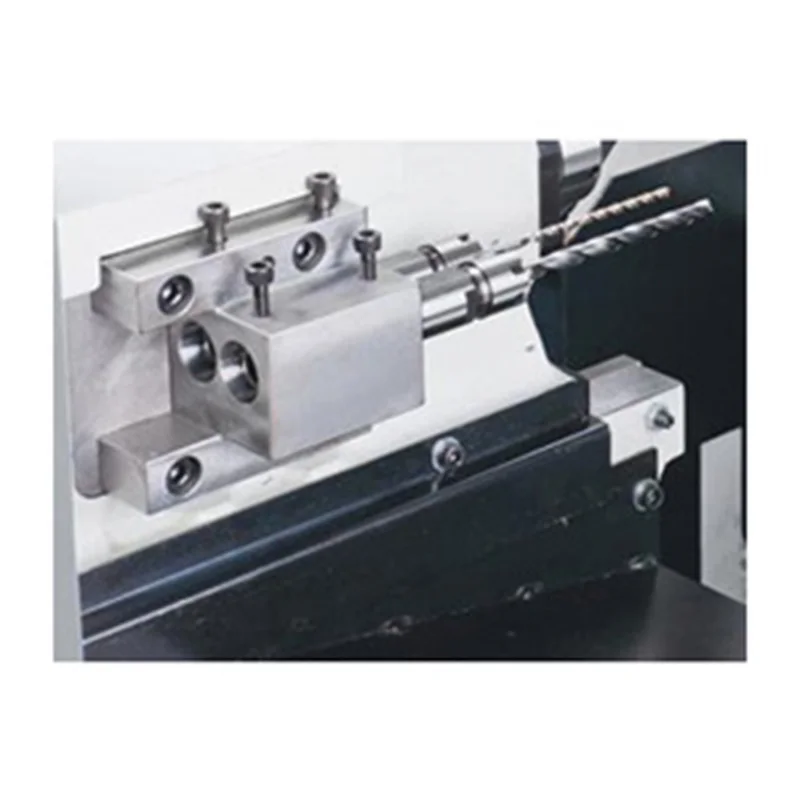

DEEP HOLE DRILLING
DEVICE(MAX.135MM)
The sub-spindle can be equipped with a deep hole drilling device with coolant
through drill.
ROTARY GUIDEBUSHING HOLDER

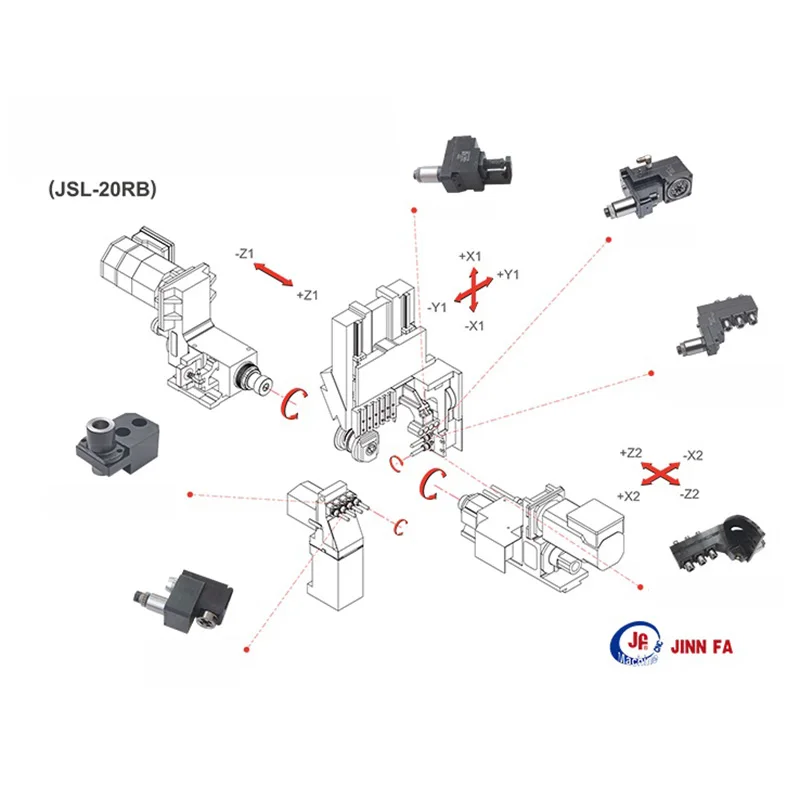

JINN FA industrial co., ltd. JSL-20RB | ||||
Maximum machining diameter of positive spindle | 20mm | |||
Maximum machining diameter of the counterspindle | 20mm | |||
The maximum bore inner diameter of the positive spindle | 10mm | |||
Maximum bore inner diameter of the counterspindle | 8mm | |||
The positive spindle is the maximum tap | M10 | |||
Maximum tapping of the counter-spindle | M8 | |||
Inner diameter of deep hole hole on the front of spindle | 8mm | |||
The maximum inner diameter of the beryllium hole in the side beryllium | 8mm | |||
The side is the maximum attack | M6 | |||
The maximum beryllium bore inner diameter of the end beryllium | 5mm | |||
The maximum attack on the teeth of the end of the crest | M4 | |||
Maximum processing length | Fixed guide sleeve:280mm | |||
Rotate the guide sleeve:190mm | ||||
Pass type:60mm | ||||
Number of tools | Outside diameter knife | 6 | ||
Internal hole knife | 4 | |||
Side beryllium knife | 5(4) | |||
Deep hole cutter on the front of the spindle | 2 | |||
Counterspindle end beryllium knife | 4 | |||
Tool size | 12mm/22mm | |||
Fast feed | 24M/min | |||
Control the number of axes | 7 | |||
Mechanical appearance (L*W*H) | 2846x1284x2024 | |||
Total Machine Weight(Kg) | 2670kg | |||
Please contact us for more equipment parameters.
