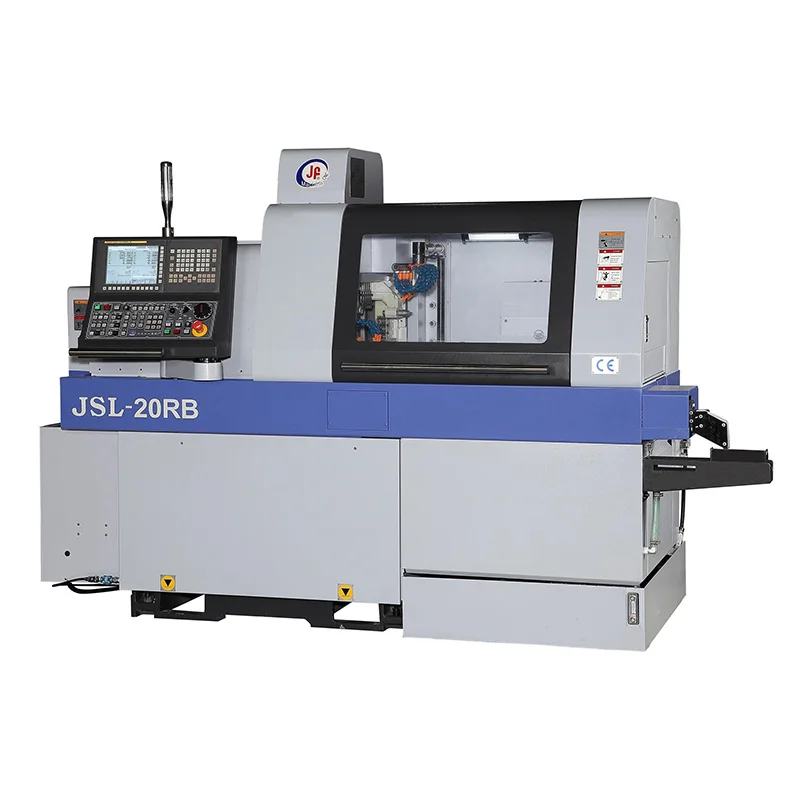

JINN FA JSL 20RB Servo Turret High Precision Universal Live Tool Holder Metal Cutting General Machine Tool Slant Bed CNC lathe
- Category: >>>
- Supplier: Xiongyi Intelligent Machinery (changzhou) Co. Ltd.
Share on (1600797572017):
Product Overview
Description
Product Description
jin chang industrial co., ltd. JSL-20RB |
| Maximum machining diameter of positive spindle | 20mm |
| Maximum machining diameter of the counterspindle | 20mm |
| The maximum bore inner diameter of the positive spindle | 10mm |
| Maximum bore inner diameter of the counterspindle | 8mm |
| The positive spindle is the maximum tap | M10 |
| Maximum tapping of the counter-spindle | M8 |
| Inner diameter of deep hole hole on the front of spindle | 8mm |
| The maximum inner diameter of the beryllium hole in the side beryllium | 8mm |
| The side is the maximum attack | M6 |
| The maximum beryllium bore inner diameter of the end beryllium | 5mm |
| The maximum attack on the teeth of the end of the crest | M4 |
| Maximum processing length | Fixed guide sleeve:280mm |
| Rotate the guide sleeve:190mm | |
| Pass type:60mm |

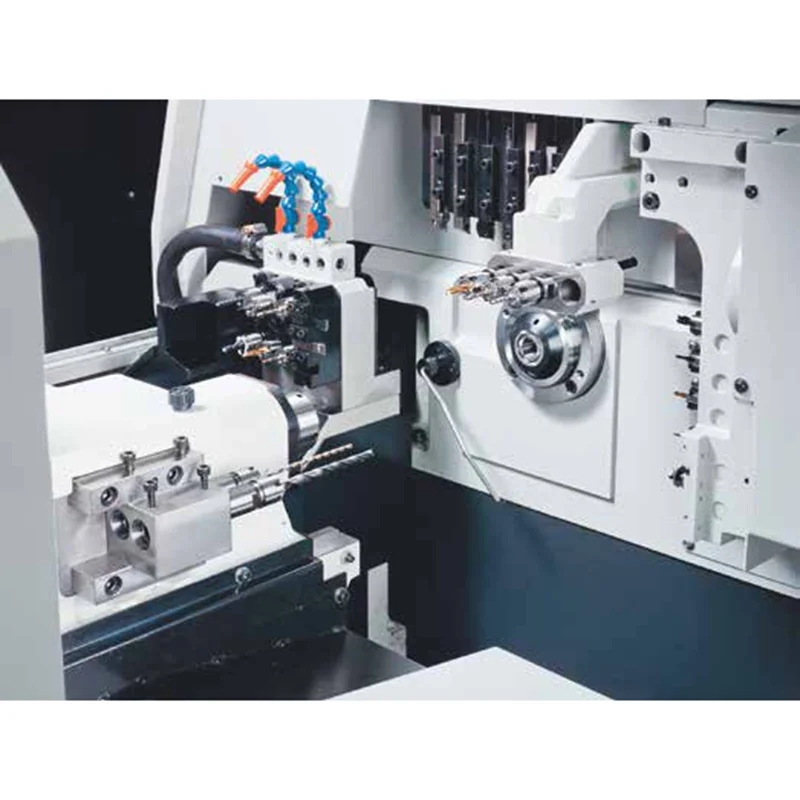

| Number of tools | Outside diameter knife | 6 |
| Internal hole knife | 4 | |

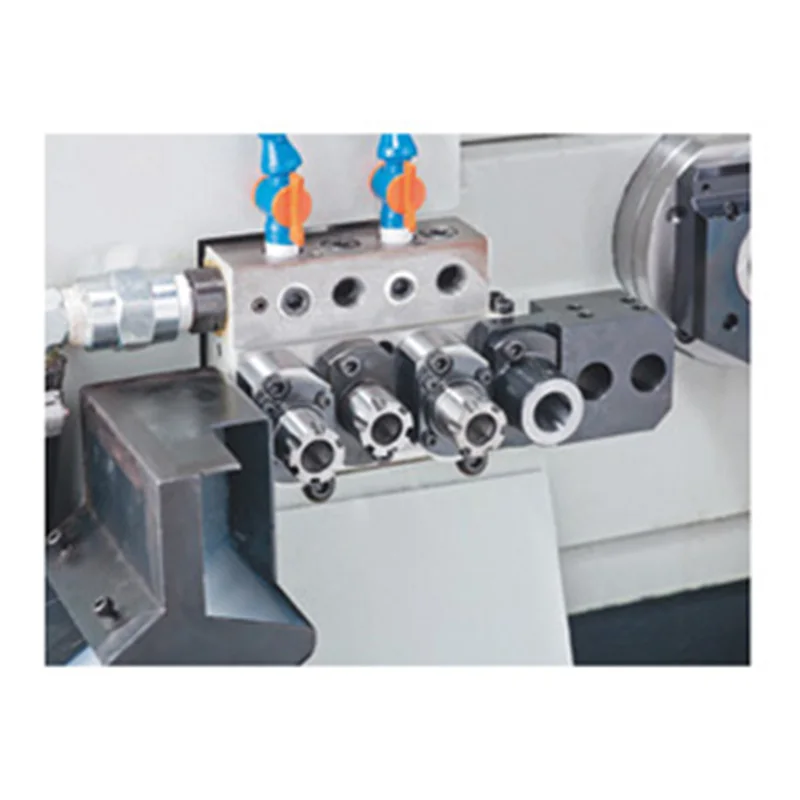

| Side beryllium knife | 5(4) | |

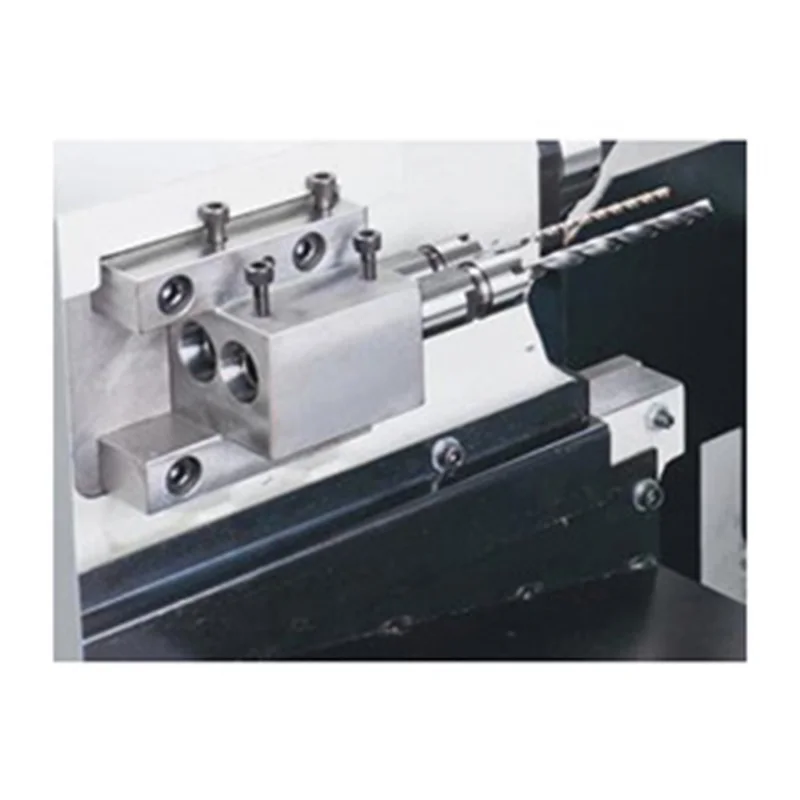

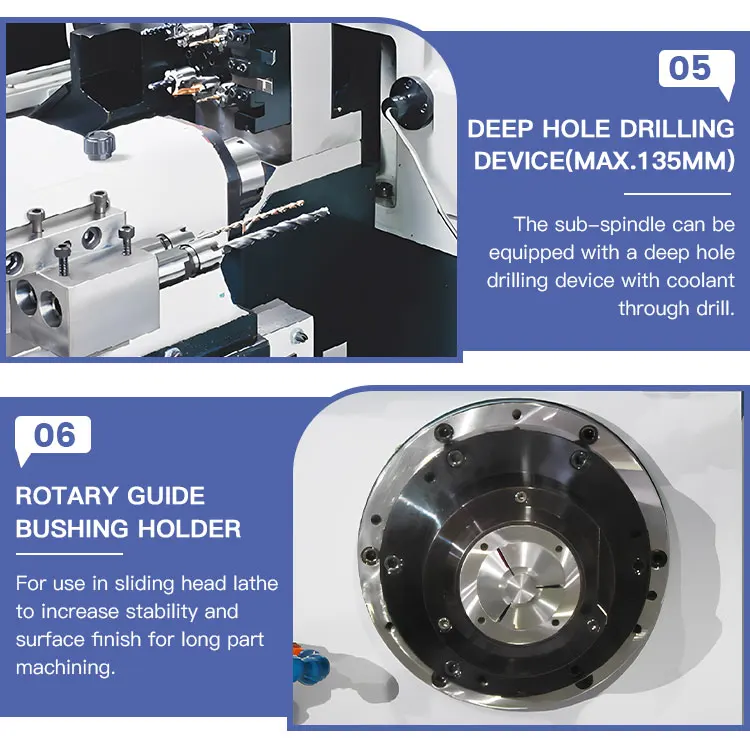

| Deep hole cutter on the front of the spindle | 2 | |
| Counterspindle end beryllium knife | 4 |
| Tool size | 12mm/22mm |
| Fast feed | 24M/min |
| Control the number of axes | 7 |

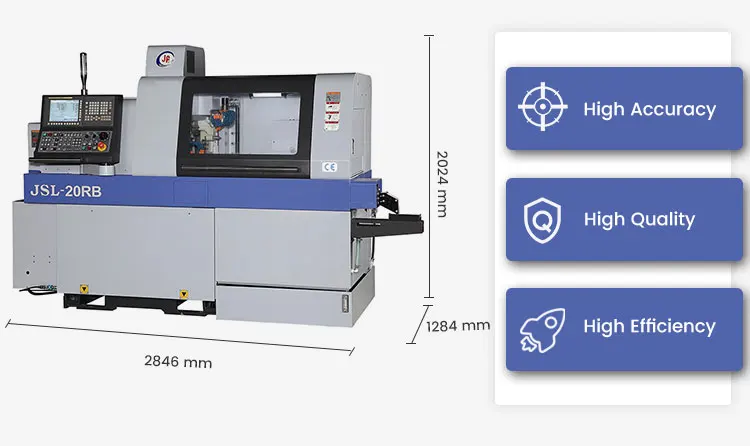

| Mechanical appearance (L*W*H) | 2846x1284x2024 |
| Total Machine Weight(Kg) | 2670kg |
Please contact us for more equipment parameters.
Company Information
Packaging & Shipping
FAQ
1.What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.

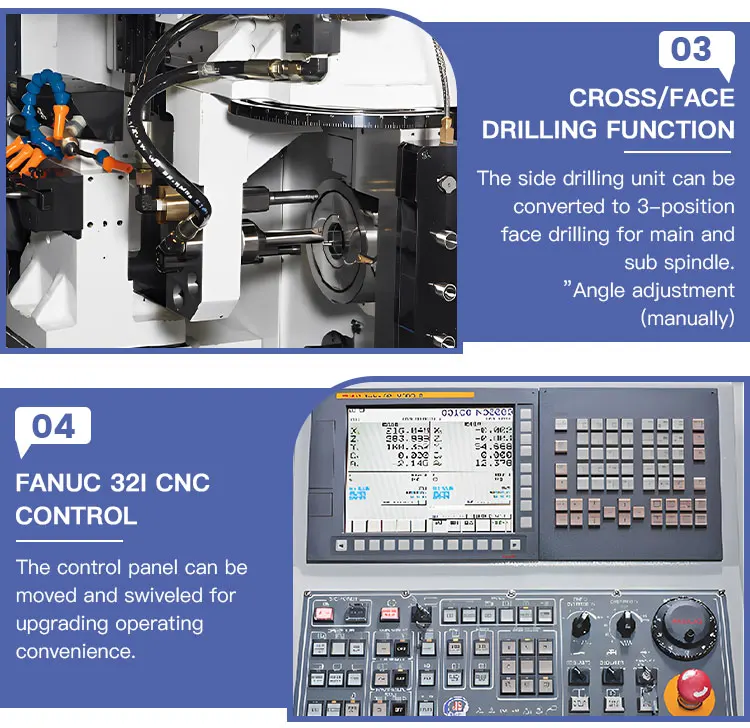

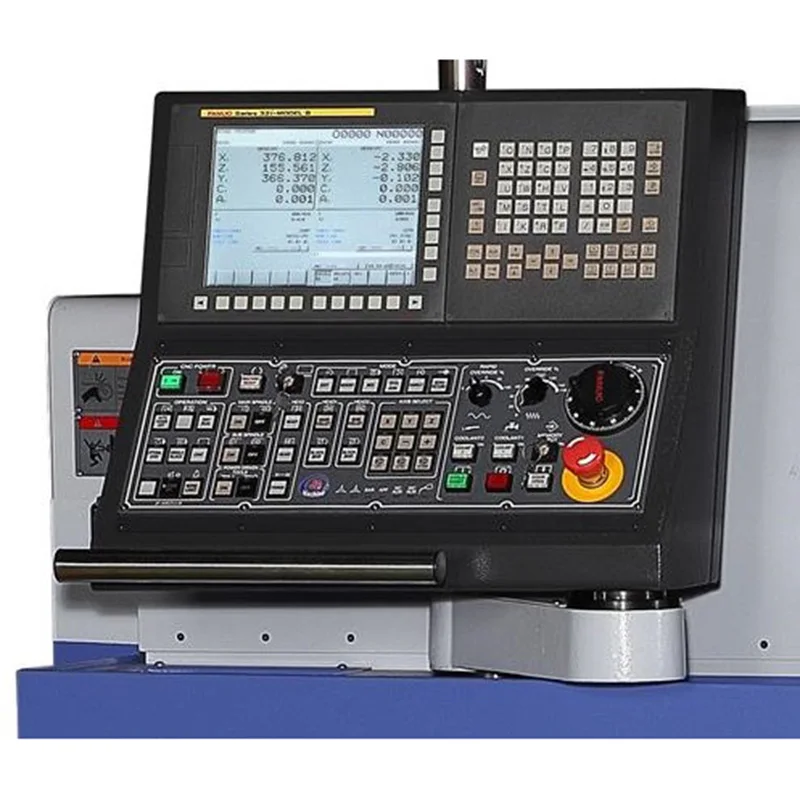

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK,SYNTEC. It depends on your choice.
3:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We specialize in selling all kinds of machine tools, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, Swiss-type lathes, grinding machines and special fixtures for machine tools, tools, non-standard fixtures, tools
5: Where is our factory located? How can I visit there?
A :Our company is located at C307, Block C, Boyunhui, No. 18, Xingao Road, Niutang Town, Wujin District, Changzhou City, Jiangsu Province, China. You are warmly welcomed to visit us.
6. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
