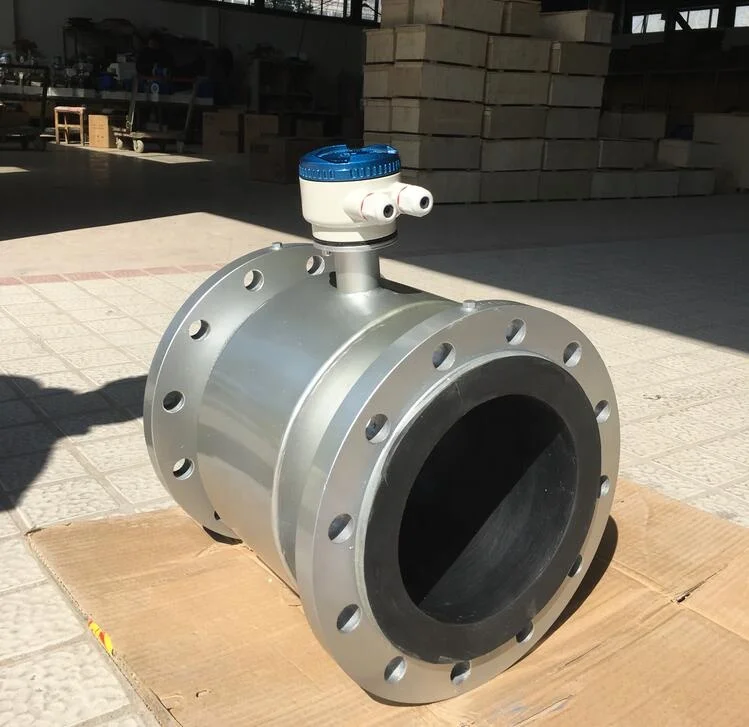

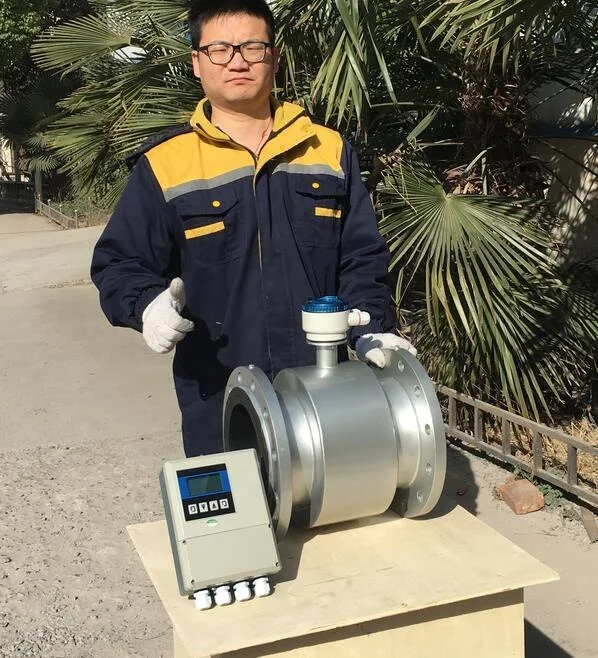

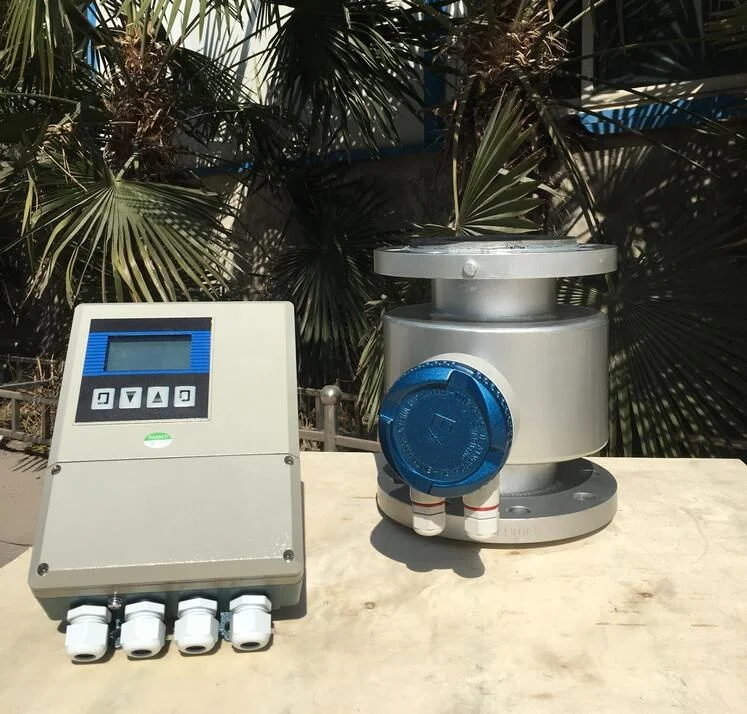

Intelligent 24V Remote IP68 Waterproof Large caliber 10 Inch 250mm Sulphuric Acid H2SO4 Electromagnetic Water Meter Flowmeter
- Category: >>>
- Supplier: KAIFENG LIZOBOR INSTRUMENT CO. LTD
Share on (1600797575845):
Product Overview
Description
Intelligent 24V Remote IP68 Waterproof Large-caliber 10 Inch 250mm Sulphuric Acid H2SO4 Electromagnetic Water Meter Flowmeter |
Product Description
* Easy Setup
* Minimal Straight Pipe
* Forward or Reverse flow and Total
* IP65,IP67 ,IP68 Rated (optional)
* Virtually No Pressure Loss
* No Moving Parts
* RS485 Standard,HART standard is available.
* Suitable for Pipes Up to DN3000
* High Accuracy to 0.2%R .
* 4 to 20 mA and Frequency Outputs Standard
* 3-Point Calibration Included
* Minimal Straight Pipe
* Forward or Reverse flow and Total
* IP65,IP67 ,IP68 Rated (optional)
* Virtually No Pressure Loss
* No Moving Parts
* RS485 Standard,HART standard is available.
* Suitable for Pipes Up to DN3000
* High Accuracy to 0.2%R .
* 4 to 20 mA and Frequency Outputs Standard
* 3-Point Calibration Included
Specification
Item | The Specifications of electromagnetic flowmeter |

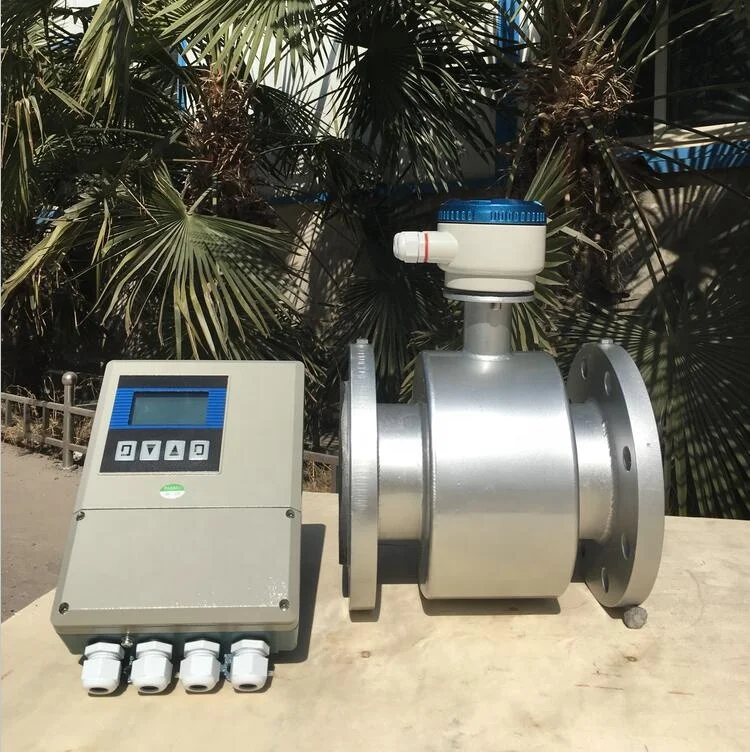

Installation Type | Copact /remote |
Measuring fluid | conductive fluid and slurry |
Caliber | DN6-DN3000 |
End connection | Flange, threaded, clamping, insertion type, etc. |
Electrode materials | Mo2Ti , Hastelloy C, Hastelloy B, Pt Ta Ti |
Flange standard | GB, DIN, JIS, EN, SABS, etc. |
Lining Material | PTFE/ Teflon, PFA (resistance to negative pressure), chloroprene rubber, polyurethane, hard rubber (optional conductive ground rubber), F46 |
Electrode Type | Standard type 316L, scraper-type (DN ≥ 50) |
Dielectric conductivity | > 5μs/cm (water> 20μs/cm) |
Accuracy grade | ±0.5% RS. |
Flow Range | 0-10m/s |
Maximum temperature of medium | For rubber liner ≤ 80 °C, for PTFE liner ≤ 120°C |
Ambient temperature | -20 - +60 |
Working pressure | 0.6Mpa-4.0Mpa, the special high rpressure is available |
Protection Level | IP65, IP67, IP68 (optional) |
Power | 220VAC(85~250 voltage) 24VDC(11~40 voltage) |
Display | Forward and backward instantaneous flowrate, total flow, velocity, flowrate percentage with back light |
Output | 4-20mA current output ,0-1kHz frequency output, pulse output per unit volume |
Communication | RS485 @Modbus, RS232@Modbus, HART, Profibus, GPRS, etc. |

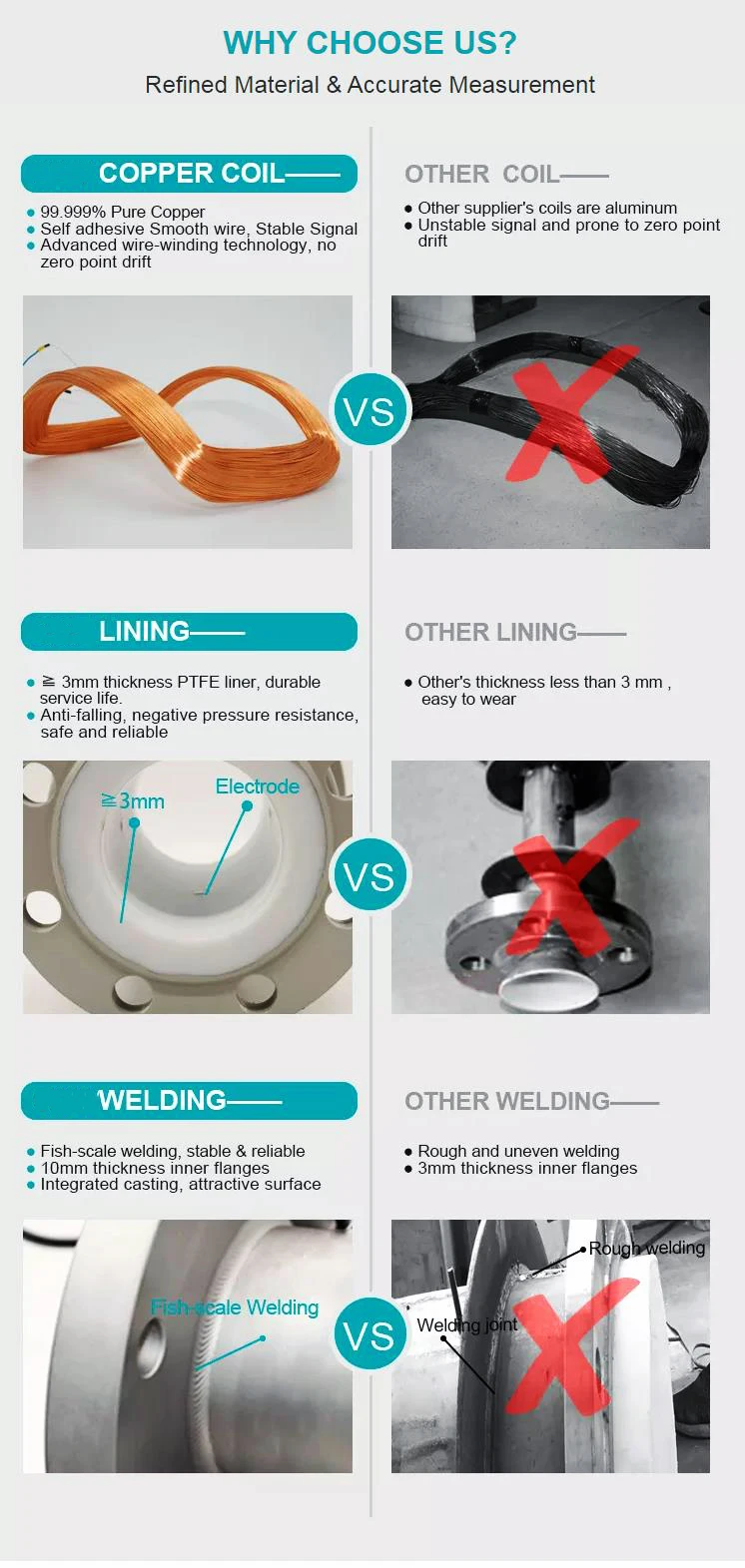

Sensor selection

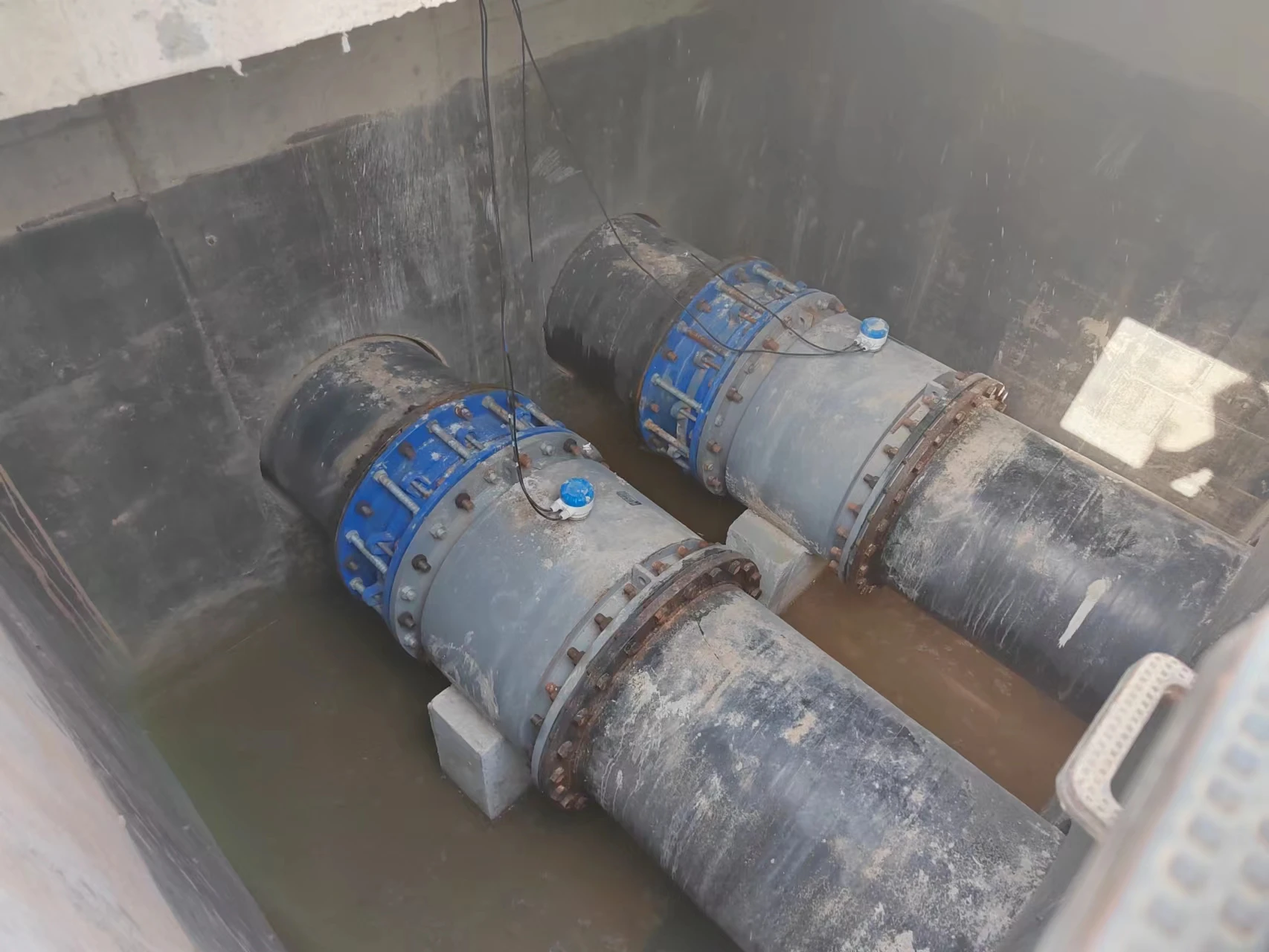

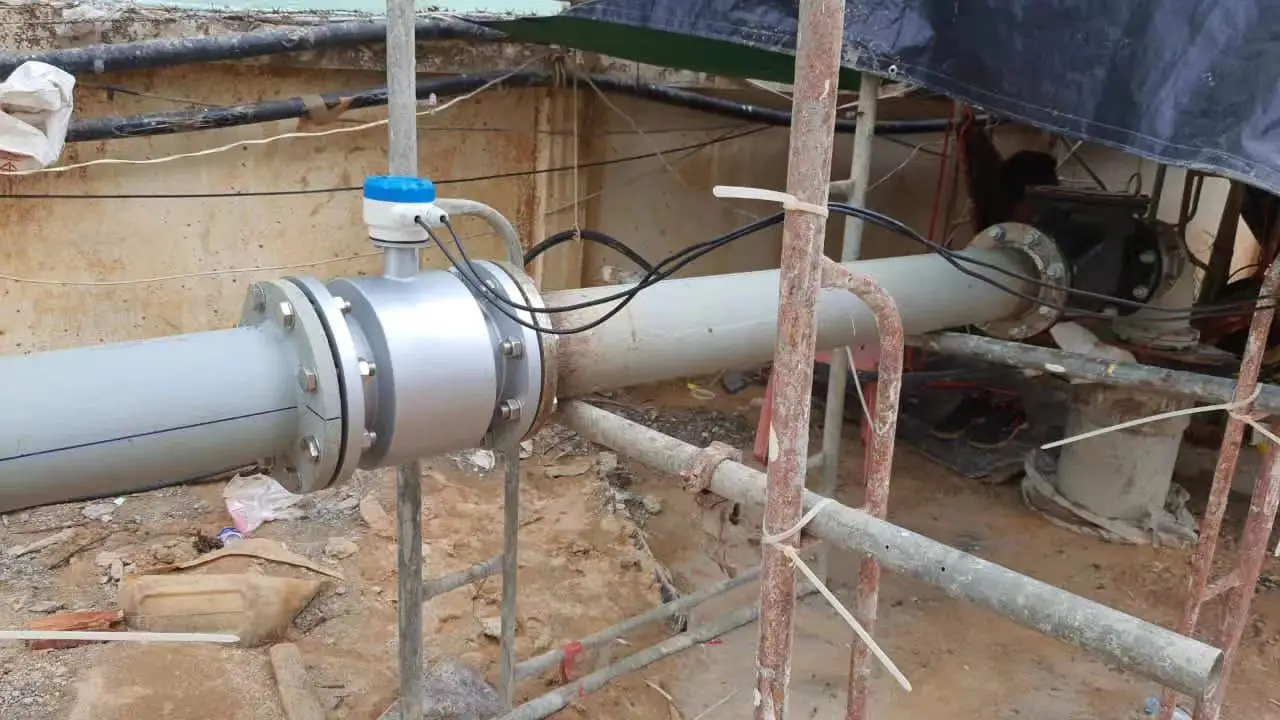

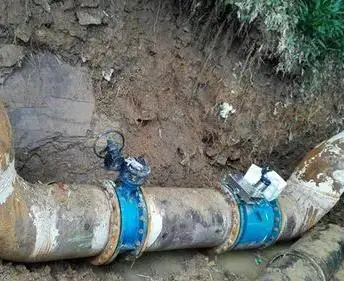

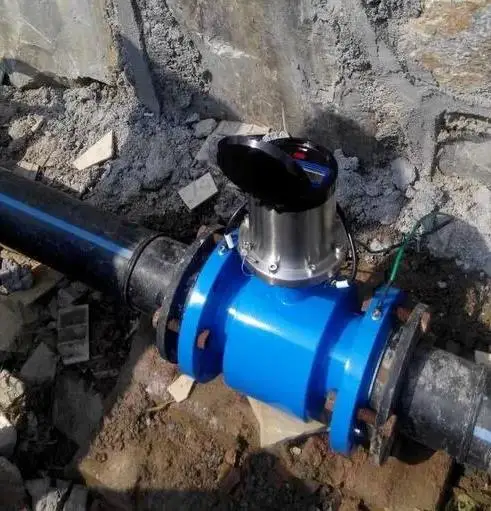

Installation project

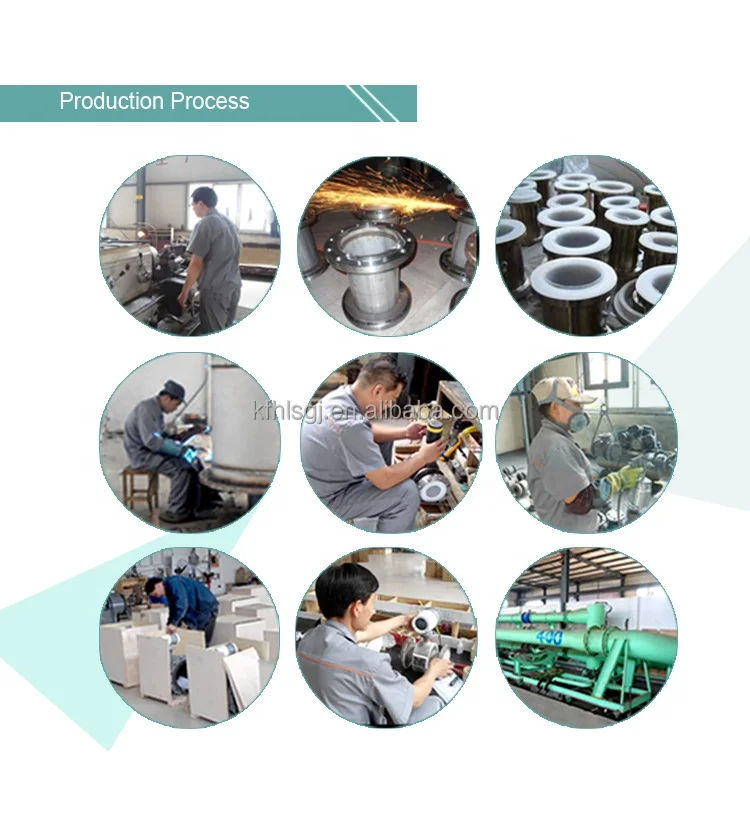

Company Profile
Packing & Delivery
Each of our meter after factory calibration, according to different size do packaging, usually, for 100 mm and below size flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging.
We will ensure that each flow meter, safe to reach your hands!
We will ensure that each flow meter, safe to reach your hands!
Contact US
Welcome to visit our website. For personal VIP service please call us 86-18317875454
FAQ
FAQ
1.How do you calibrate the flow meter?
We use the reference standard flowmeter method to calibrate the 0.5%R flow meters. We use the Gravimetric for the 0.2% R flow meters.
2.How can you guarantee the high accuracy?
The Gravimetric mothod is much more accurate than the volumetric calibration and we use the high accuracy scale to guarantee the less tolerance.
3.Why does the calibration influence the accuracy? Is it important?
The material and the structure of the magnetic flowmeter are not much difference,and the accuracy depends what it reference.
4.Do you need agent?
Yes,we need agent to expand our sales,we provide technical support,Products priority and good price.
5.I am a small company,Can I be your agent?
We are a developing company ,and appreciate partners who is willing to grow with us together
You might be a common customer to a large scaled company or famous brand,but for us ,you are the most important and special friend, we'd like to put you to the first.
We use the reference standard flowmeter method to calibrate the 0.5%R flow meters. We use the Gravimetric for the 0.2% R flow meters.
2.How can you guarantee the high accuracy?
The Gravimetric mothod is much more accurate than the volumetric calibration and we use the high accuracy scale to guarantee the less tolerance.
3.Why does the calibration influence the accuracy? Is it important?
The material and the structure of the magnetic flowmeter are not much difference,and the accuracy depends what it reference.
4.Do you need agent?
Yes,we need agent to expand our sales,we provide technical support,Products priority and good price.
5.I am a small company,Can I be your agent?
We are a developing company ,and appreciate partners who is willing to grow with us together
You might be a common customer to a large scaled company or famous brand,but for us ,you are the most important and special friend, we'd like to put you to the first.
