ZOII Factory Direct Sales Solar PV Power 2 Poles Mini Circuit Breaker 32A AC230/400V MCB
- Category: >>>
- Supplier: Zhejiang Zhiyi Electric Co. Ltd.
Share on (1600797706192):
Product Overview
Description
Products Description

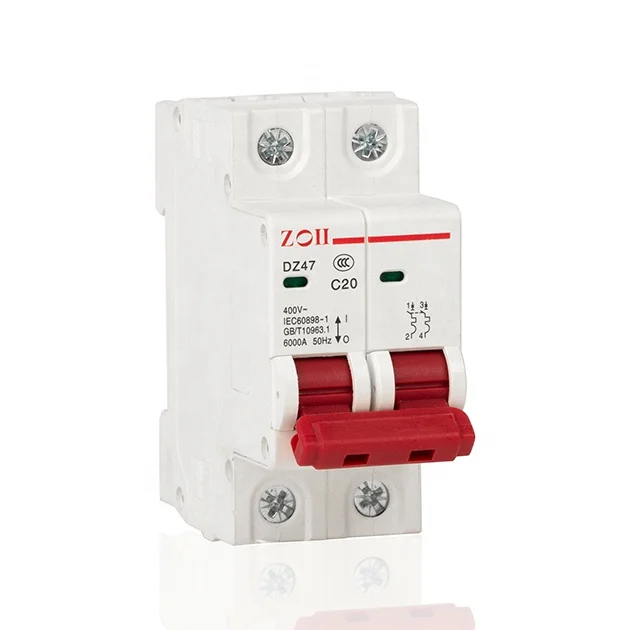

ZOII Factory Direct Sales Solar PV Power 2 Poles Mini Circuit Breaker 63A AC230/400V MCB
DZ47-63 series mini circuit breaker is suitable for lighting distribution system (type C) or motor distribution system (type D).
Beautiful and compact appearance, light weight, excellent and reliable performance, high breaking ability, quick trip, guide rail installation, shell and components using high flame retardant and impact resistant materials, long service life.
Mainly used for AC 50HZ/60HZ, single-stage 230V, two, three, four pole 400V, current to 63A line in the overload, short circuit protection, but also can not frequently in the normal circumstances to break electrical devices and lighting lines.
Beautiful and compact appearance, light weight, excellent and reliable performance, high breaking ability, quick trip, guide rail installation, shell and components using high flame retardant and impact resistant materials, long service life.
Mainly used for AC 50HZ/60HZ, single-stage 230V, two, three, four pole 400V, current to 63A line in the overload, short circuit protection, but also can not frequently in the normal circumstances to break electrical devices and lighting lines.
Product Parameter
Product Name | Mini Circuit Breaker |
Model Number | DZ47-63 |
Ploes | 2 |
BCD Curve | C |
Rated voltage | AC 230 / 400V |
Rated frequency | 50/60Hz |
Rated current | 63A |
Endurance | ≥ 20,000 operations |
Working temperature | -40ºC~75ºC |
Per pole width dimension | 13mm |
Installation method | IEC standard rail 35mm |
Enclosure protection grade | IP20 |
Terminal wiring capacity | 1-25 mm² |
Terminal screw tightening torque | 2-2.5 Nm |
Busbar thickness | 0.8-2 mm |
Product Details
Product Certificate
Packing & Delivery
Product Information
Zhejiang Zhiyi Electric Co., Ltd.
Zhejiang Zhiyi Electric Co., Ltd. is a set design, development, sales in one of the high-tech enterprises. The company mainly produces: high voltage vacuum circuit breaker, plastic case circuit breaker, small circuit breaker, small reclosing, surge protector, DC fuse, photovoltaic junction box and other products manufacturing, processing, sales. The company passed ISO9001:2000 international quality system certificate, credit rating AAA certificate.
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: What is your main products?
A2: Solar Power system accessories ,The wide range products under manufacturing covers such as AC&DC Surge
Protective Device(SPD),AC&DC Miniature Circuit Breaker(MCB),AC&DC Moulded Case Circuit Breaker(MCCB),
Voltage & Current Protector,DC FUSE,PV connector ,combiner box etc.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge.
Q4: How does your factory do regarding quality control?
A4: All the products will be 100% checked before the shipment.
Q5:How's the delivery?Because I really need them is urgently?
A5: Samples cost 1-2 days. Bulk order cost 12-15 days.
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: What is your main products?
A2: Solar Power system accessories ,The wide range products under manufacturing covers such as AC&DC Surge
Protective Device(SPD),AC&DC Miniature Circuit Breaker(MCB),AC&DC Moulded Case Circuit Breaker(MCCB),
Voltage & Current Protector,DC FUSE,PV connector ,combiner box etc.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge.
Q4: How does your factory do regarding quality control?
A4: All the products will be 100% checked before the shipment.
Q5:How's the delivery?Because I really need them is urgently?
A5: Samples cost 1-2 days. Bulk order cost 12-15 days.
